Colourful Kingspan Panels Turn Heads at Landmark Sporting Venue

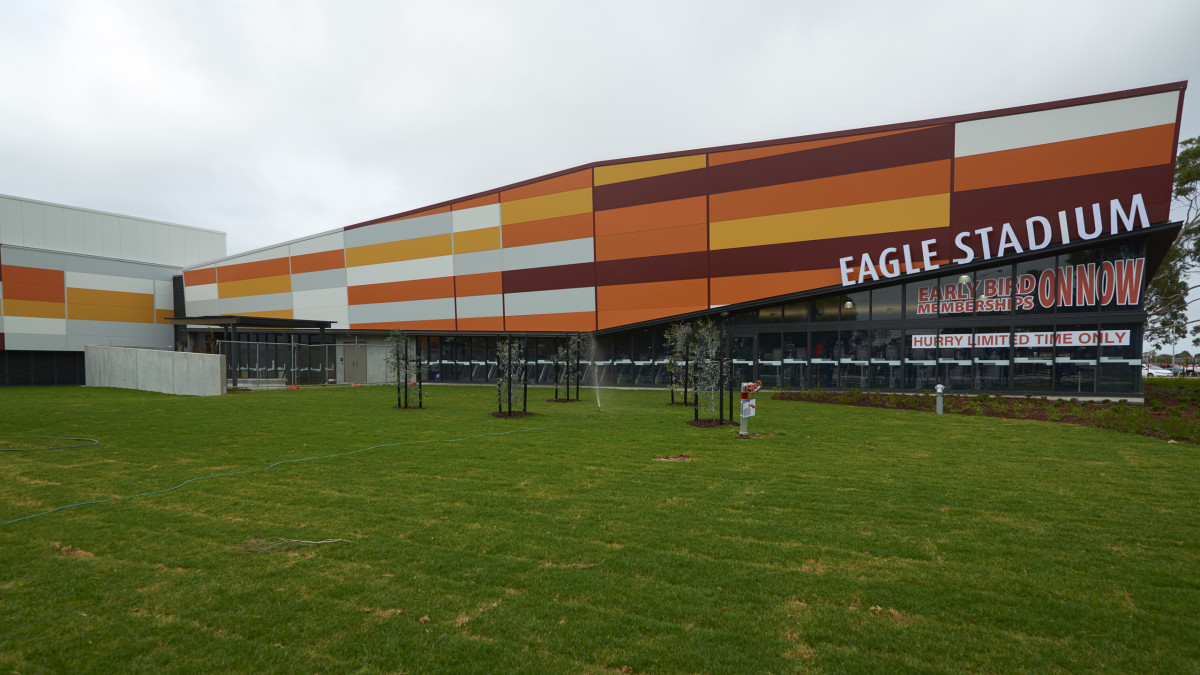

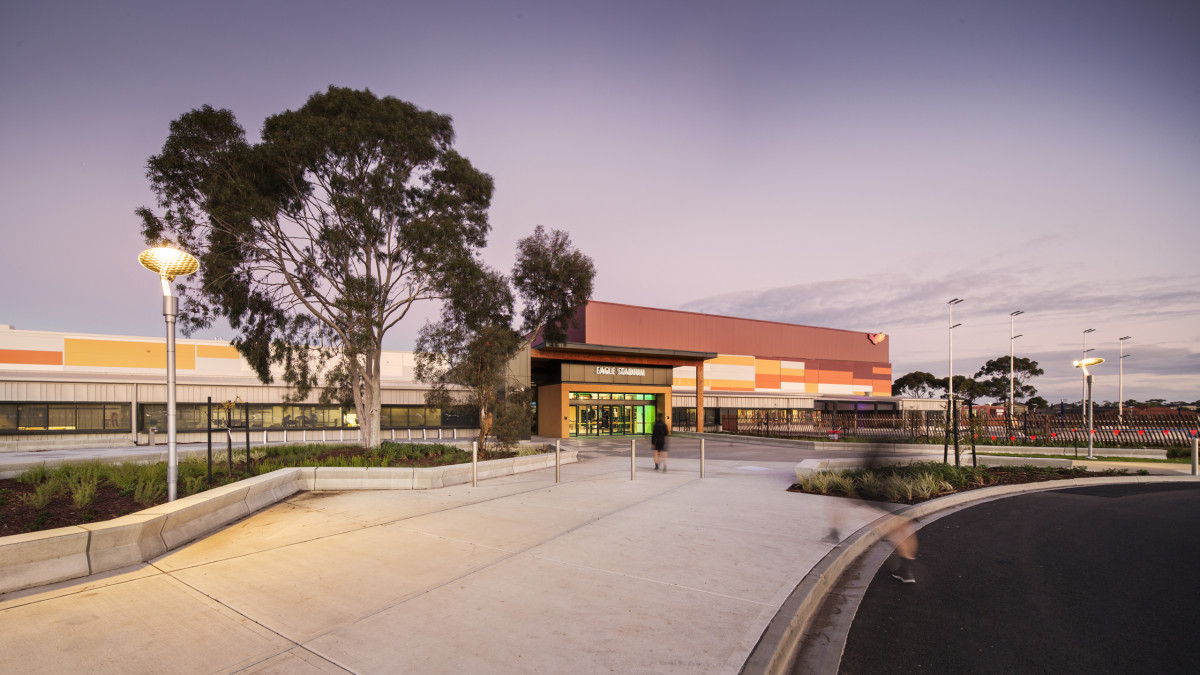

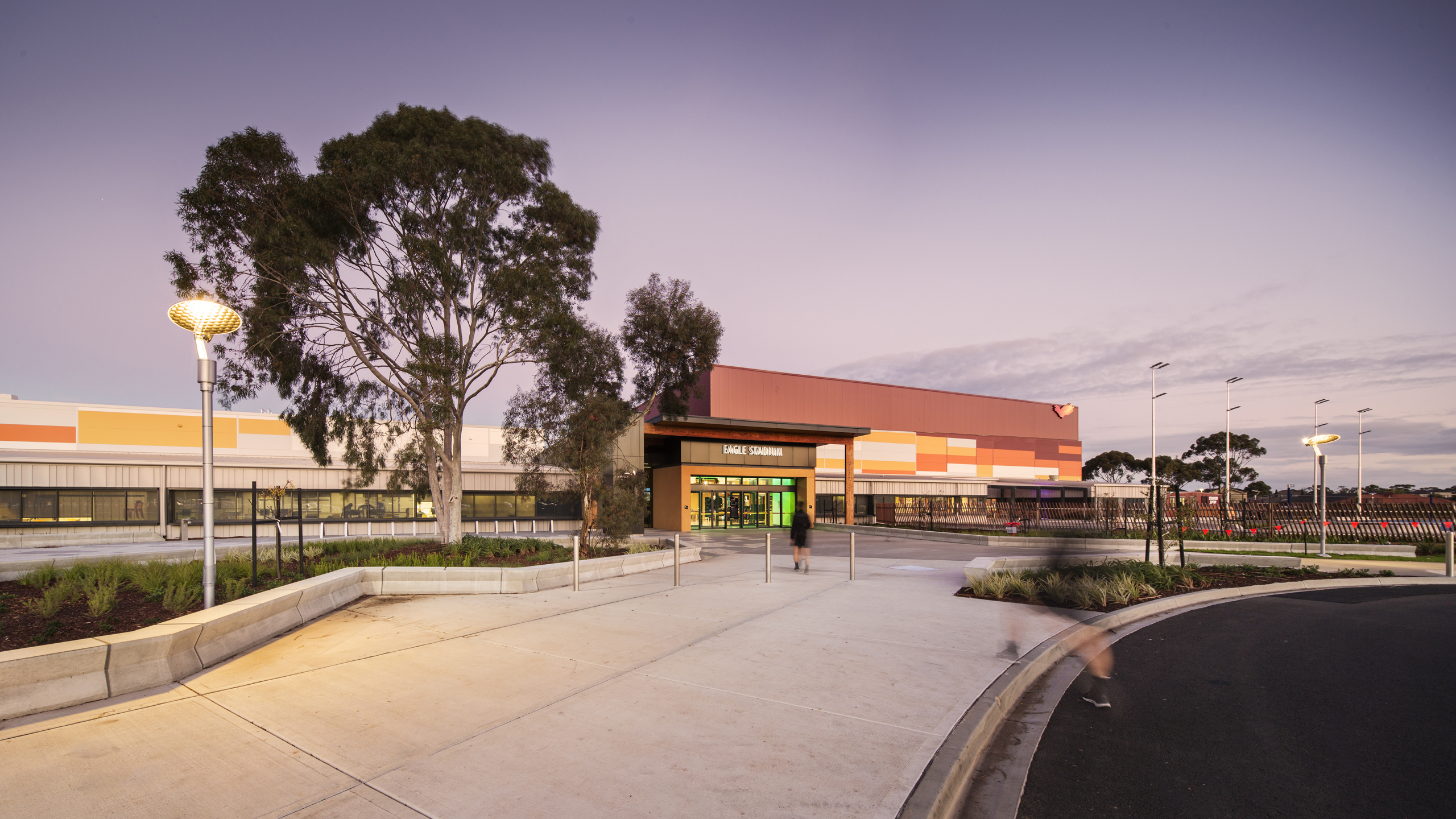

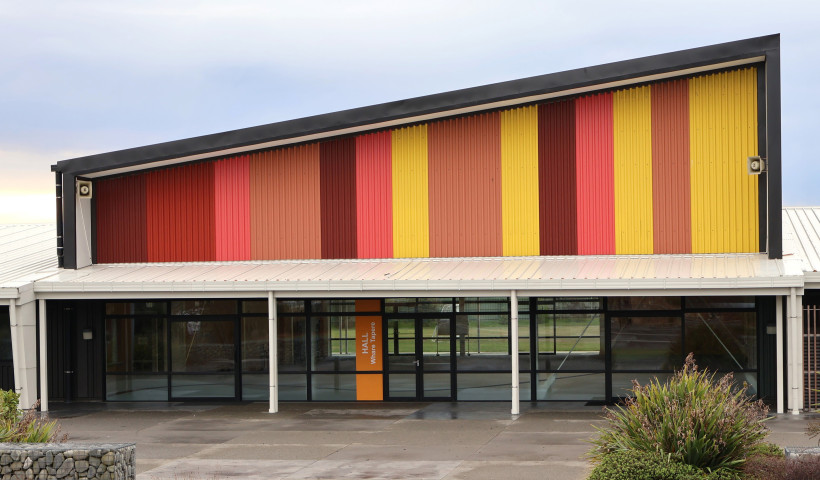

A multi-coloured facade has been created as part of the $47 million re-development of the 15,000m² Eagle Stadium in Werribee — the largest indoor sporting court facility in Melbourne's West.

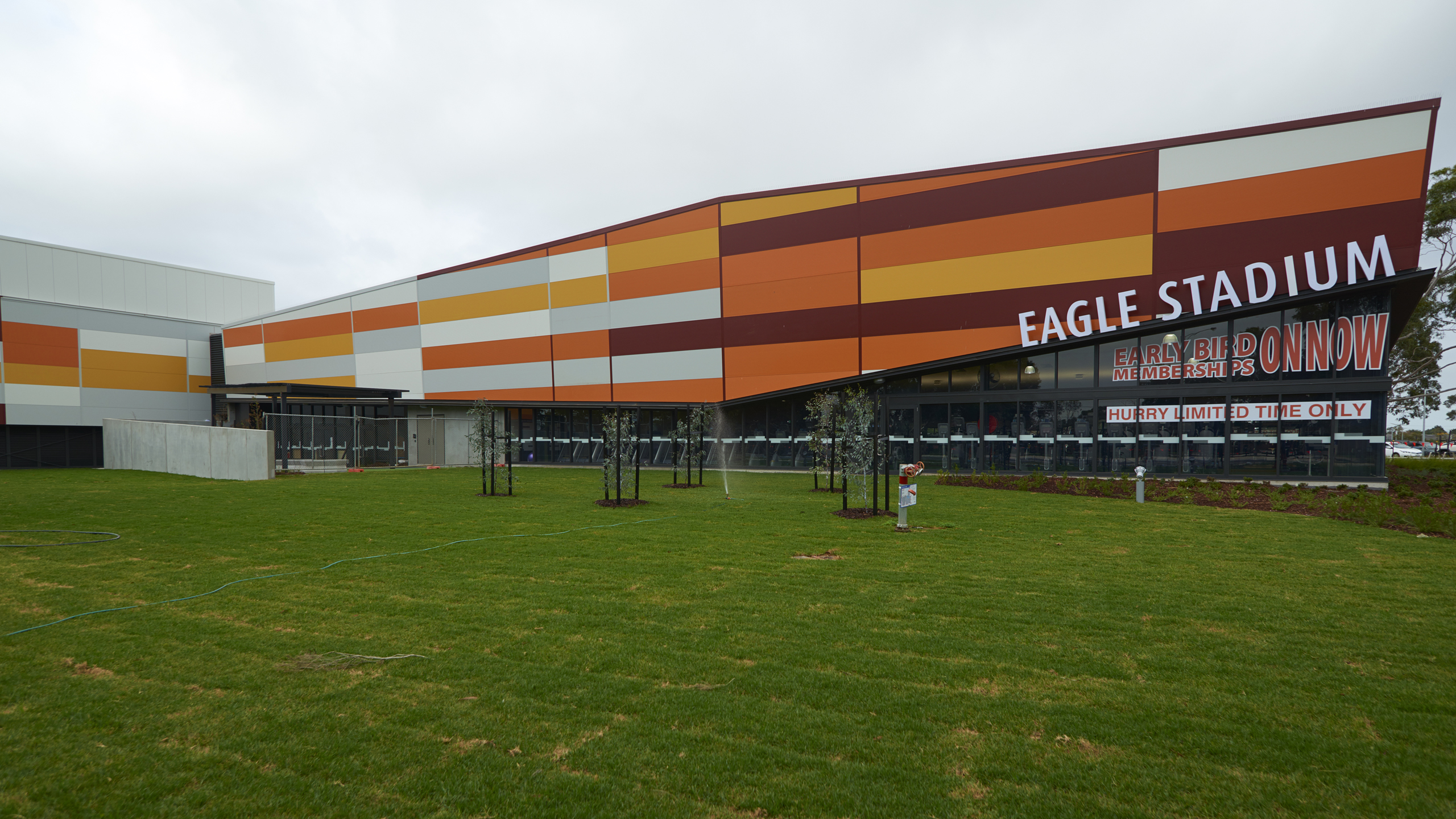

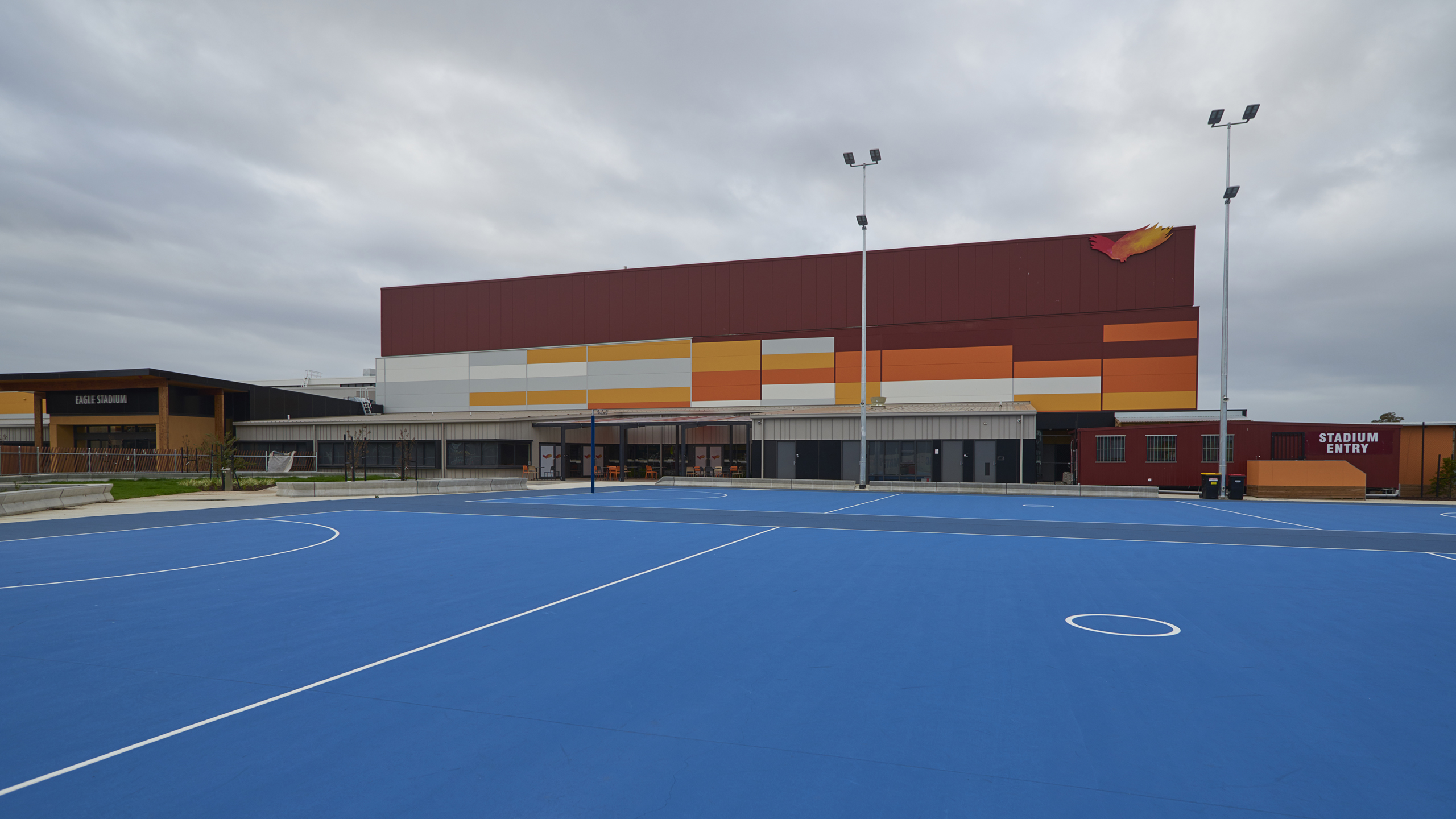

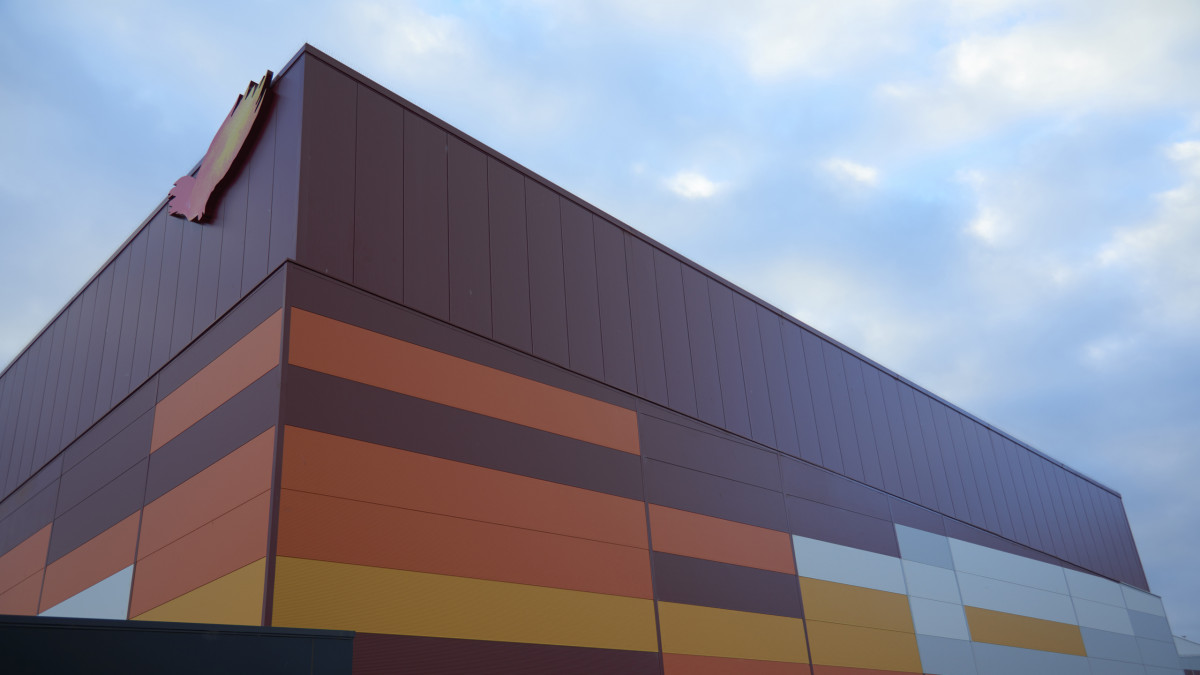

Using more than 15,000m of Trapezoidal Roof panels and almost 7,000m from the Kingspan range of Architectural Wall Panels, ten different colours were chosen to construct a roofing and walling system that maximised interior and street appeal across the site's new and existing buildings.

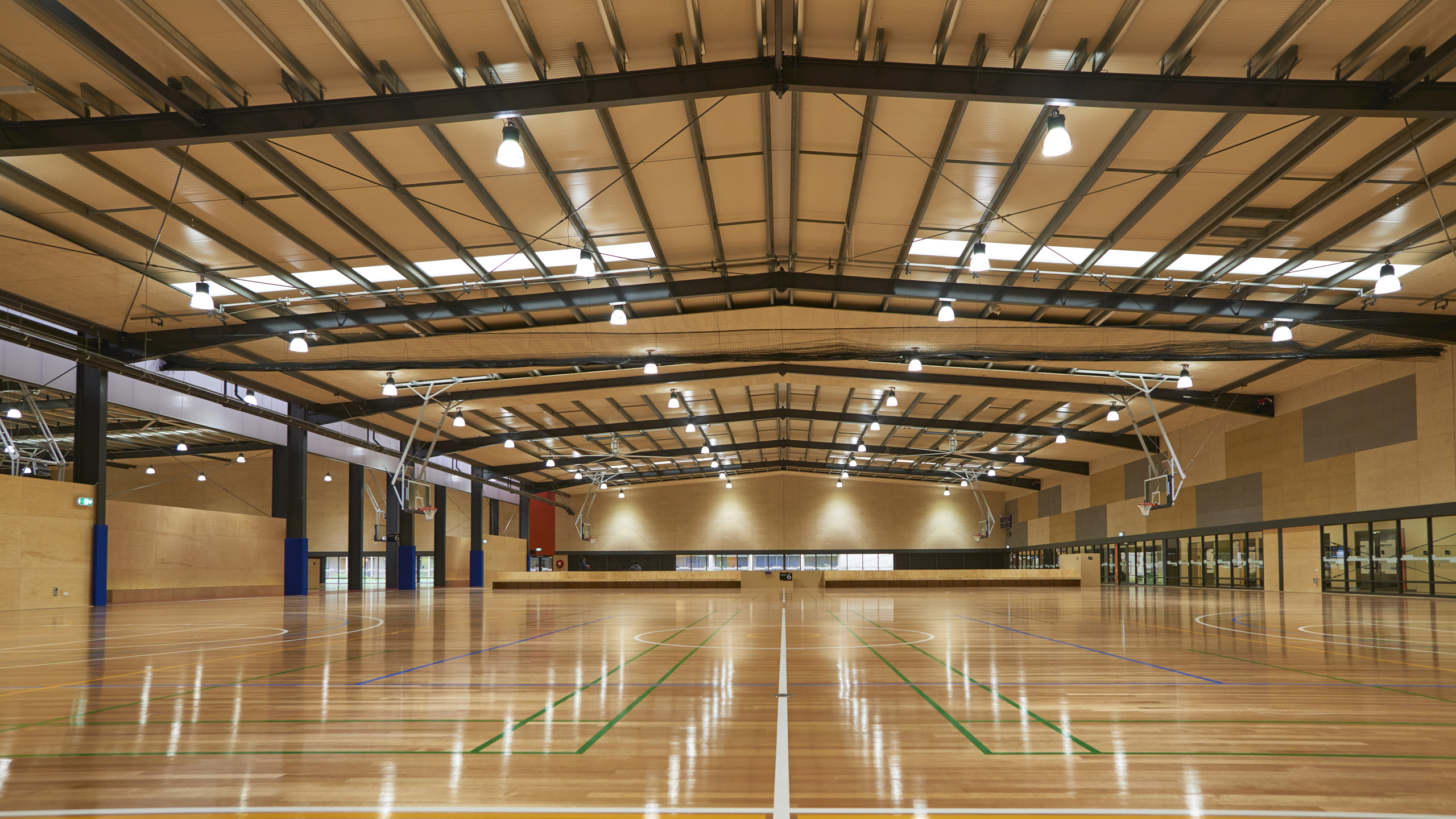

A building the size of Eagle Stadium has several thermal zones with varying mechanical and ventilation strategies — from fully air-conditioned spaces, to indirect evaporative cooled spaces, to space with natural cross ventilation. The Kingspan wall and roof panels provided a fully integrated solution that enclosed all areas with a thermal inertia, suitable for each of the different ventilated spaces. This was critical to building a facility that is able to hold an internal temperature for longer, with less energy or air change required, to maintain a suitable indoor sports environment.

The Kingspan team demonstrated a strong understanding of the product's physical properties and detailed material junctions, helping architects Williams Ross to make the most of the panels' application — from the overall facade scale across 200m, to the smallest of material junctions to seal the building enclosure.

The Kingspan team attended regular site inspections to ensure the panels were being installed to specification, delivering on the sustainable design principles laid out by Williams Ross.

"The Kingspan facade has enabled the council to create a local icon, which was a key design deliverable for the project. The clean lines and distinct colours are visually strong enough to let the stadium be a landmark in its own right, without the need for significant signage," says Gray Barton, Director, Williams Ross Architects.

Kingspan Architectural Wall Panel System

Kingspan Insulated Panels

View Product

This secret-fix wall panel system offers unprecedented freedom of design and performance.

An insulated wall panel system for use on residential, communal residential, communal non-residential, commercial, industrial buildings and outbuildings

All Kingspan panels, including Architectural Wall Panels, are typically tested up to 3.6kPa for normal conditions (ULS) and up to 15kPa for cyclonic conditions (ULS). These limits easily exceed the requirements of NZS3604, including Extra High wind zones.

Corrosion Exposure Zone B

Corrosion Exposure Zone C

Corrosion Exposure Zone D

High Earthquake Zone

Low Earthquake Zone

Medium Earthquake Zone

Very High Earthquake Zone

Extra High Wind Zone

High Wind Zone

Low Wind Zone

Medium Wind Zone

Specific Design Wind Zone

Very High WInd Zone

Architectural Wall Panels hold a CodeMark Certificate of Conformity stating the provisions of the Building Regulations 2008 (New Zealand) the product conforms to.

CodeMark Certificate of Conformity is certified under the name Kingspan Insulated Panels Architectural Wall Panels (AWP) and Evolution (EVO). Certificate number: CM20114 Rev V2.

For further details please contact the Kingspan Technical Service Department or alternatively refer to the MBiE — Product Certificate Register and search for 'Kingspan KS1000AWP'.

When designed, used, installed and maintained in accordance with Kingspan standard details, the Architectural Wall Panel is compliant with the following clauses on the NZBC:

B1 Structure — B1.3.1; B1.3.2; B1.3.3(a, f, g, h, j); B1.3.4
B2 Durability — B2.3.1(b)
C3 Fire Affecting Areas Beyond the Fire Source — C3.4(a); C3.5; C3.7
E2 External Moisture — (contributes to) E2.3.2; E2.3.7
E3 Internal Moisture — E3.3.5
F2 Hazardous Building Materials — F2.3.1
H1 Energy Efficiency — (contributes to) H1.3.1

Codemark Certification demonstrates compliance to the NZBC equivalent of an Acceptable Solution. Some specialist buildings may fall partially or wholly outside of the scope of the Codemark Certificate, should this occur then please contact Kingspan Technical for assistance in demonstrating NZBC compliance via an Alternative Solution.

Structure

Durability

Protection from Fire

External Moisture

Internal Moisture

Energy Efficiency

CodeMark

Independent Assessment

Test Results

KS1000RW Trapezoidal Roof and Wall Panel

Kingspan Insulated Panels

View Product

The Kingspan KS1000RW Trapezoidal Roof and Wall Panel system products consist of Zincalume sheets that contain a PIR core.

The KS1000RW Trapezoidal Roof Panel is a through-fixed, trapezoidal profiled roof system which can be used for building applications with roof pitches of 4° or more after deflection. For lower pitches, please contact Kingspan.

The standard specification for KS1000RW Trapezoidal Wall Panels is suitable for both vertical or horizontal walls — alternative specification available including high humidity and low temp.

All Kingspan panels, including the KS1000RW Trapezoidal Roof and Wall Panels, are typically tested up to 3.6kPa for normal conditions (ULS) and up to 15kPa for cyclonic conditions (ULS). These limits easily exceed the requirements of NZS3604, up to and beyond the Extra High wind zones.

Corrosion Exposure Zone D

Very High Earthquake Zone

Extra High Wind Zone

Specific Design Wind Zone

When designed, used, installed and maintained in accordance with Kingspan standard details, the KS1000RW Trapezoidal Roof & Wall Panel is compliant with the following clauses on the NZBC:

B1 Structure — B1.3.1; B1.3.2; B1.3.3(a, f, g, h, j); B1.3.4

B2 Durability — B2.3.1(b)

C3 Fire Affecting Areas Beyond the Fire Source — C3.4(a); C3.5; C3.7

E2 External Moisture — E2.3.1 (roof only); E2.3.2; E2.3.7

E3 Internal Moisture — E3.3.5

F2 Hazardous Building Materials — F2.3.1

H1 Energy Efficiency — H1.3.1
