Viewing Pleasure and Useable Year-Round Outdoor Spaces

The owner and also the project manager of the property had a very clear idea of what they wanted to achieve. This clarity of vision has enabled this property to be enhanced by the addition of toughened glass balustrades, two louvre roofs and a fence at the entrance to the property.

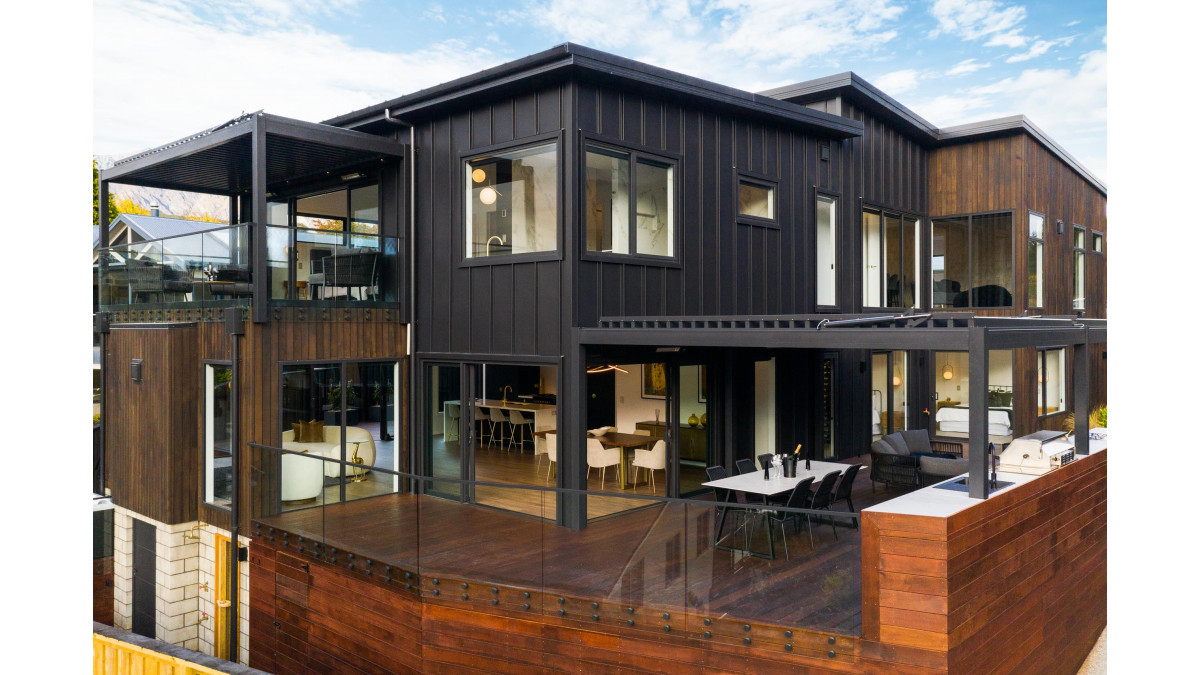

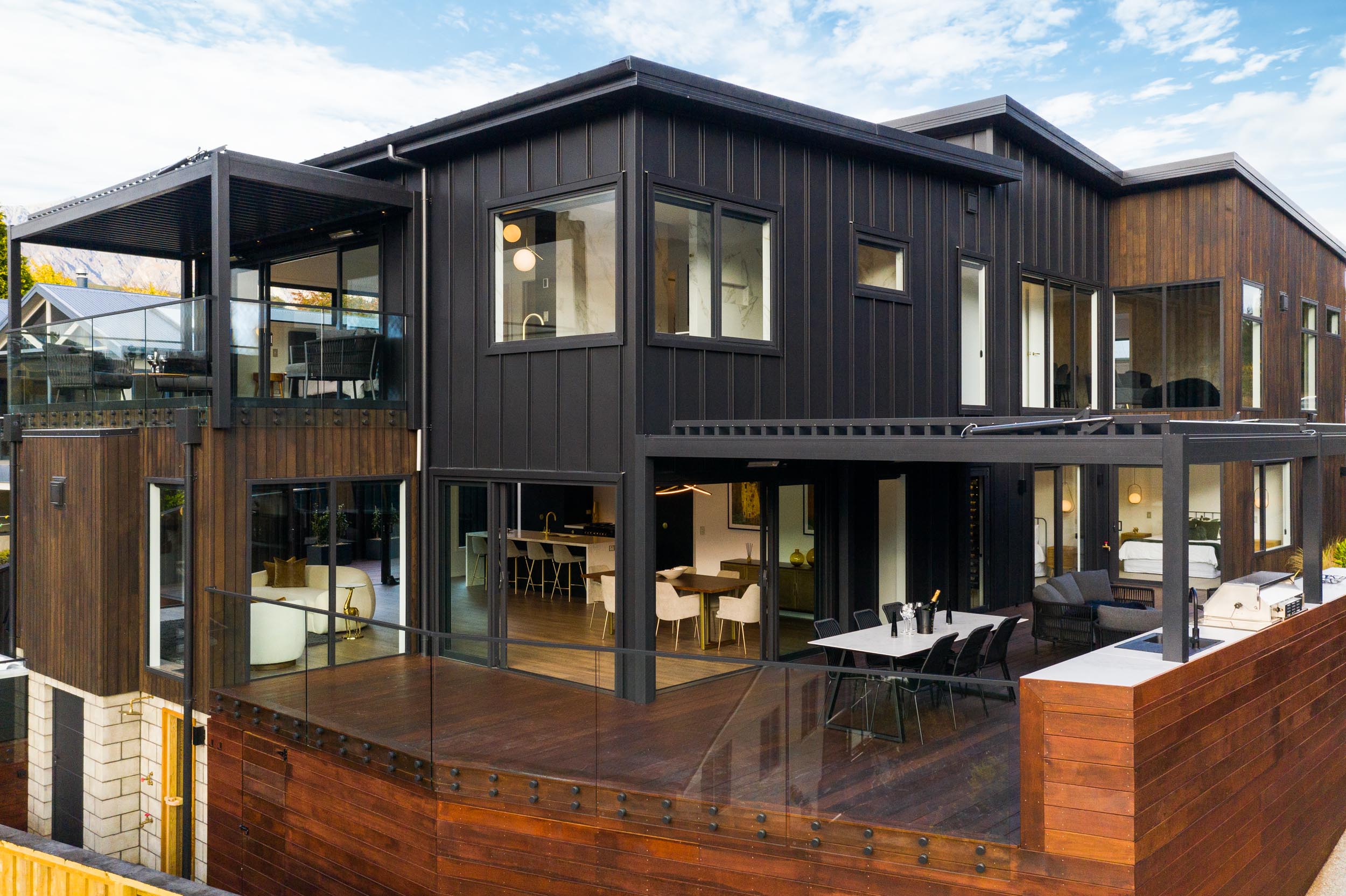

To ensure nothing detracted from the view, the owner chose Edgetec Double Disc anchor balustrade with toughened safety glass and a slim top rail on the property’s three balconies. The 50mm diameter round, aluminium anchor fixings along with toughened glass panels, provide a clear, minimalistic, uncluttered and stylish finish. The top rail and double discs are powder coated to match the existing joinery.

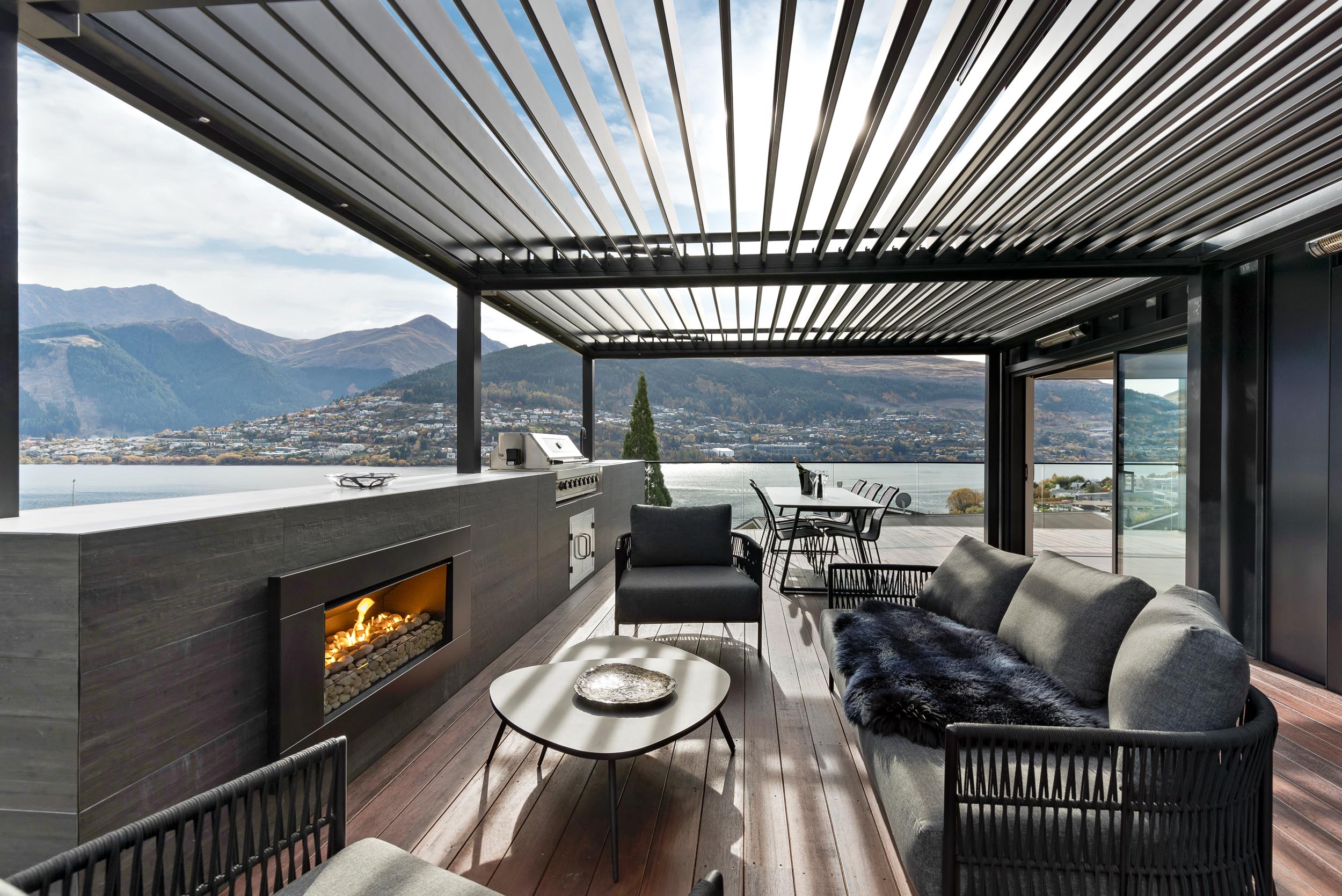

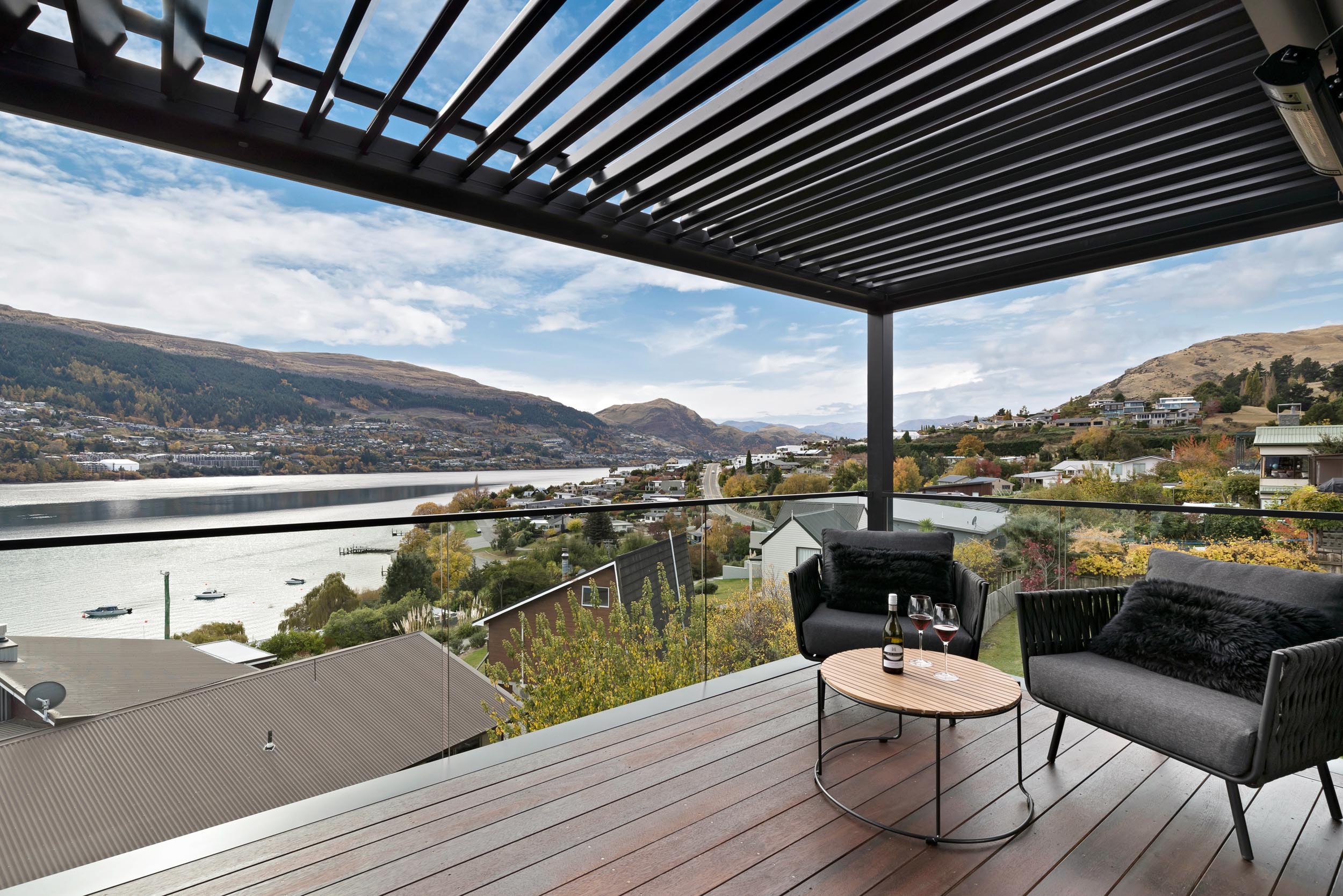

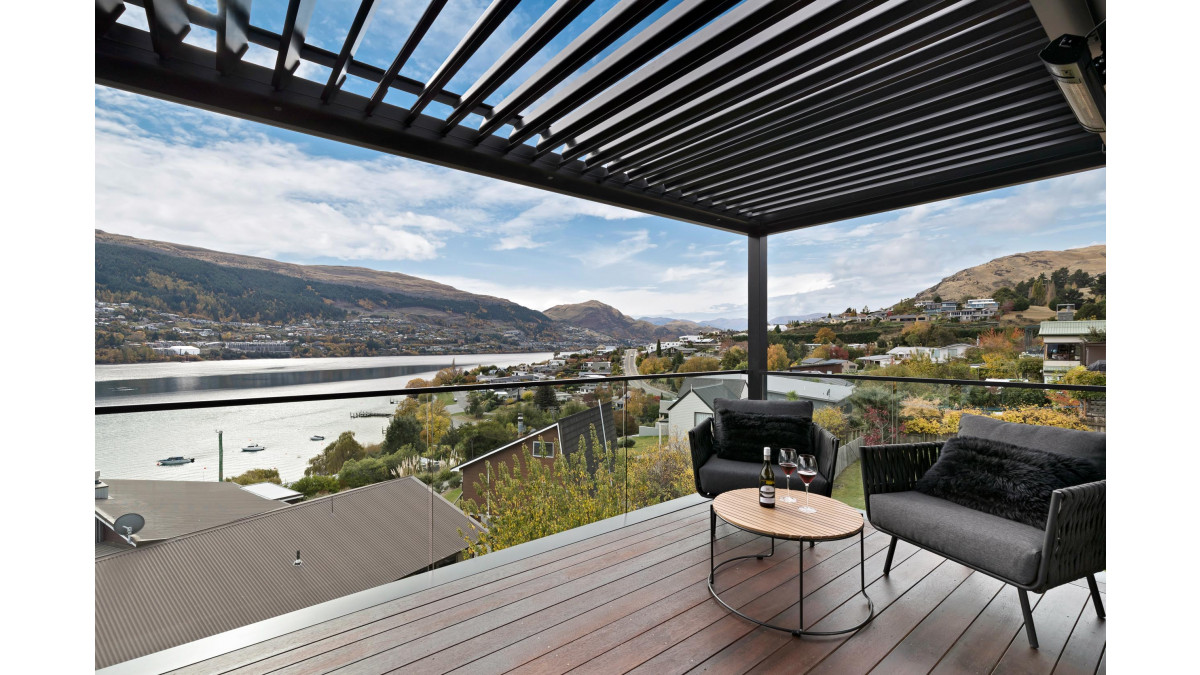

The two freestanding louvre roofs on the property required no supporting structure for installation allowing the roofs to be set to the best sun orientation to maximise shading during the day or to be completely closed to give full protection from inclement weather and sun. This design ensures that guttering and downpipes are incorporated into the louvre roof and inbuilt LEDs in the support beams provide lighting. The finished result is stunning modern outdoor focal points that have effectively become an extension of the indoor flow.

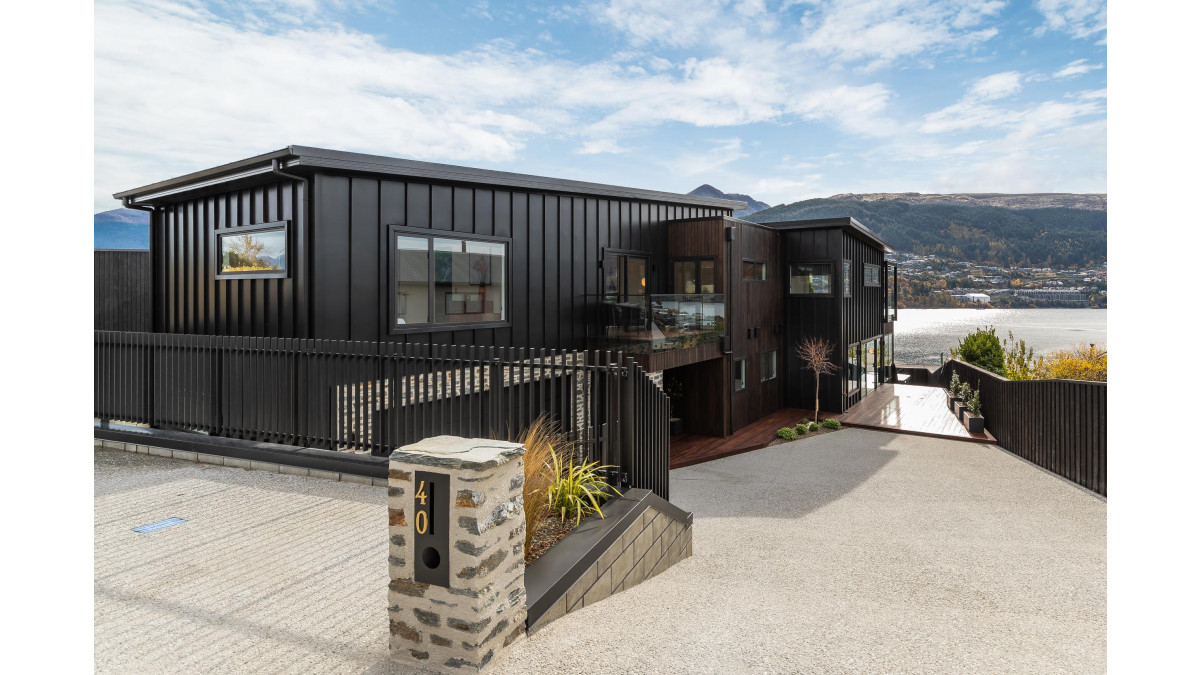

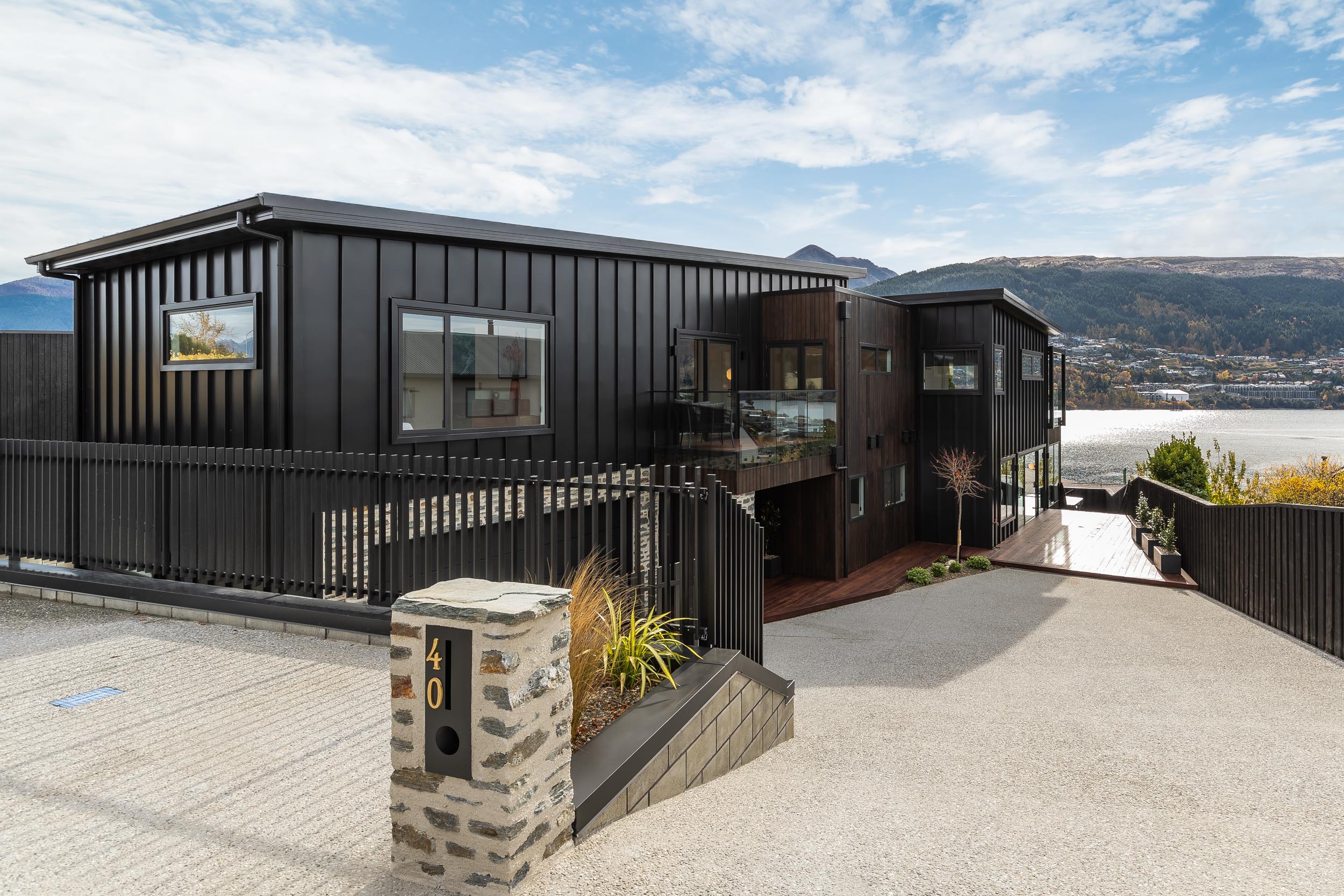

Juralco Edge Stecca has been used for the boundary fence at the entrance to the property and was suggested by the installer. The customer was convinced by the aesthetic of the panels which is a key feature. The fitted slats on the front of the balustrade support rails (as opposed to inside the rails) have added an extra dimension of depth and interest. The panels have been powder coated to the customer’s requirement.

The result is a successfully completed project that has utilised the stunning location and created a centrepiece outdoor area that can be used year-round along with a sympathetic glass balustrade. The customer is already looking forward to their new project utilising the same products

HomePlus Outdoor Living System (Opening Louvre Roof)

Juralco Aluminium

View Product

HomePlus Outdoor Living Systems is a louvre roof designed in New Zealand for a unique outdoor lifestyle, creating spaces that maximise the time which can be spent outside.

HomePlus opening louvre roofs are a permanent outdoor living system providing weather protection in a range of outdoor areas including patios, decks, extended courtyards, pool areas, cafe and bar courtyards, outdoor shopping areas etc.

HomePlus Louvre roofs can be integrated into patio roof structures, as a standalone freestanding system, or mounted to a structural wall with additional support provided by one, two, or three legs (depending on installation configuration).

Engineered and tested to meet wind and snow loading standards NZ3604:2011. Glaslide doors have been designed within the New Zealand Wind Zone parameters and in accordance with NZS 4223.3.2016

Designed and manufactured in New Zealand, HomePlus Louvre Roof Systems have been engineered and tested by independent engineers to comply with NZS3604:2011 wind zone and snow loading calculations.
Glaslide doors have been designed with New Zealand wind zone parameters and in accordance with NZS 4223.3.2016

Edge Balustrade — Including STECCA & LAMERRA Ranges

Juralco Aluminium

View Product

Edge® is an aluminium post balustrade system which is a more comprehensive and modern version of the ever popular Viking® balustrade system.

NZ Made

NZ-Owned Business

Edge® Balustrade is suitable for deck and balcony barriers, stairways, handrails, pool fencing and matching pool or stairway gates
Suitable for fixing to timber, concrete, steel
Edge® Balustrades can also accommodate waterproof and floating decks with a specially designed aluminium gutter bracket

A choice of four handrails are available: round, rectangular, and a single or twin pocket Aerofoil style which can be incorporated as a top rail or as a standalone handrail. An interlinking rail, for 10mm semi frameless glass balustrades can be top mounted (on the post caps) or front mounted 100mm below the top edge, using a handrail bracket fixed to the face of the balustrade post. A semi frameless glass finish, without a handrail can be achieved using 13.2mm thick toughened laminated glass, although the use of the Edge slimline top protection cap is highly recommended to help prevent any discolouring of the interlayer.

Low Wind Zone

Very High WInd Zone

Designed and manufactured in New Zealand, Edge Balustrade has been engineered and tested by independent engineers to comply with NZ standards AS/NZS1170, NZS4223.3.2016 and NZBC Clause F9, and 162C of the Building Act
Edge® Balustrade is suitable for Occupancy A, A other and C3 Residential
An interlinking top rail and/or handrail has been incorporated into the Edge semi frameless range to comply with new 2016 balustrade regulations — NZS4223.3.2016

Structure

Durability

Hazardous Building Materials

Safety from Falling

Restricting Access to Residential Pools

Edgetec Double Disc Anchor Balustrade

Juralco Aluminium

View Product

The Edgetec® Double Disc Anchor is a traditional 50mm diameter anchor fixing, available in powder coated aluminium and polished or satin stainless steel finishes.

NZ Made

NZ-Owned Business

Edgetec Double Disc Anchor balustrade is suitable for deck and balcony barriers, pool fencing, internal stairways or landings and can be fixed to timber (including waterproof decks), concrete, and steel.

Suitable for:

Residential and Domestic Occupancy types A, A Other, and C3
Commercial Occupancy types B, E, and C3

A hidden fixing detail is standard for Double Disc Anchor fixings.

Low Wind Zone

Very High WInd Zone

The Edgetec Double Disc Anchor balustrade system has been engineered and tested by independent engineers to comply with NZ standards AS/NZS1170 and NZS4223.3.2016, New Zealand Building Code B1, B2, F2, F4, F9 and section 162C of the Building Act (pool fencing regulations)
Edgetec Double Disc Anchor balustrade is suitable for Residential and Domestic Occupancy types A, A Other, and C3
Edgetec Double Disc Anchor balustrade is suitable for Commercial Occupancy types B, E, and C3

Structure

Durability

Hazardous Building Materials

Safety from Falling

Restricting Access to Residential Pools
