Edgetec Double Disc Anchor
Description

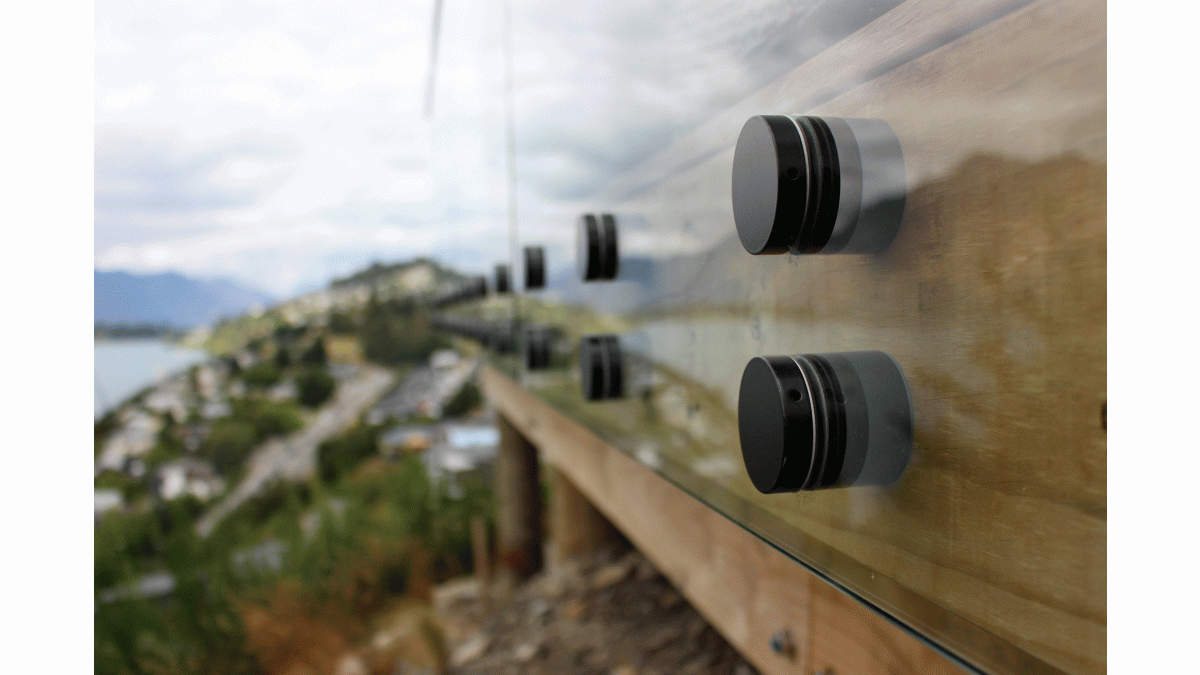

The Edgetec Double Disc Anchor is a traditional 50mm diameter anchor fixing, for 12 or 15mm toughened glass panels, available in powder coatable aluminium or polished stainless steel.

Key Features
  • Manufactured from architectural grade aluminium
  • Also available in solid 316 Marine grade polished stainless steel
  • Offers a more industrial aesthetic
  • Hidden fixing details

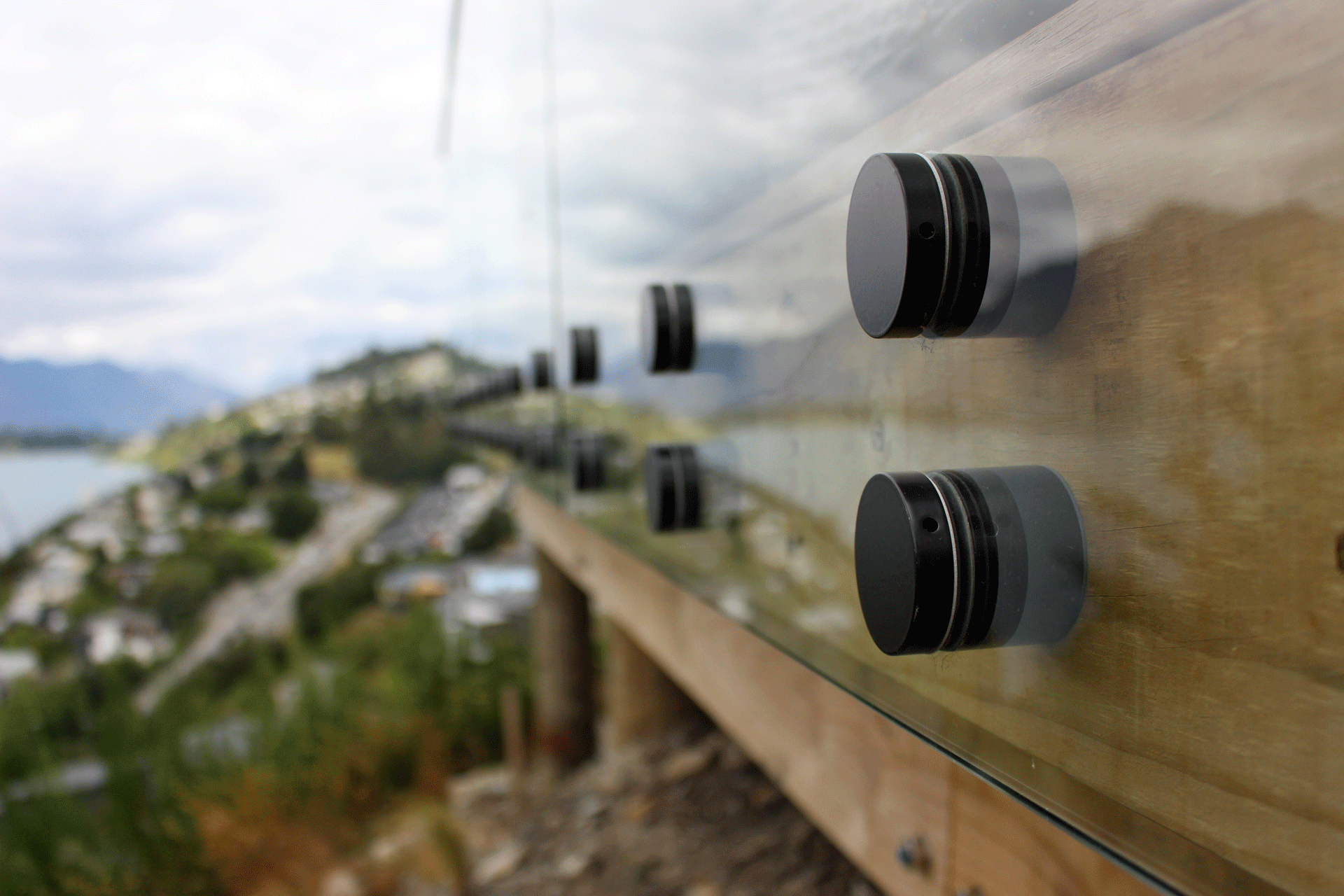

  • Surface finished in a choice of powder coat colours
  • 30mm long body sets panels out from deck for easier water drainage and cleaning
  • Can use 12 or 15mm glass
  • Satin or mirror polished SS finish available

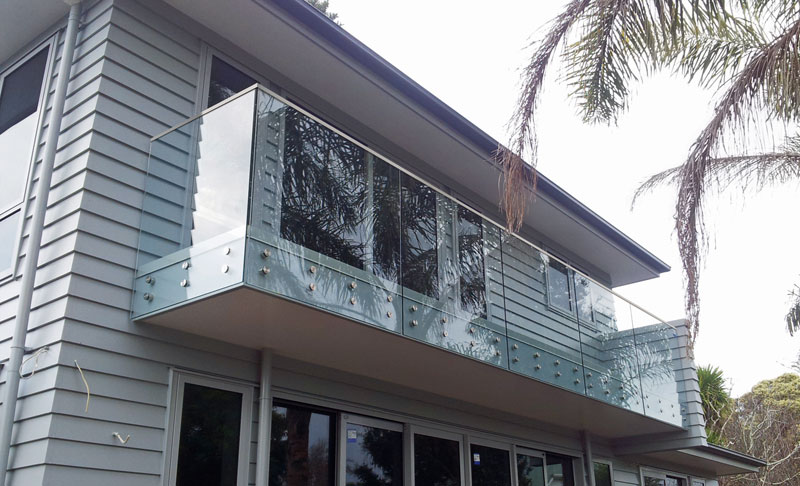

  • Interlinking top rail included in installation
  • Hidden fixing detail available on mirror polished disc fixing
  • Complies with NZS1170
  • No fixings seen at deck level
  • Spaced at 350 — 400mm depending on application
  • Face or side fixed
  • Custom made balustrade solution
NZ-Owned Business
NZ-Owned Business
Scope of Use

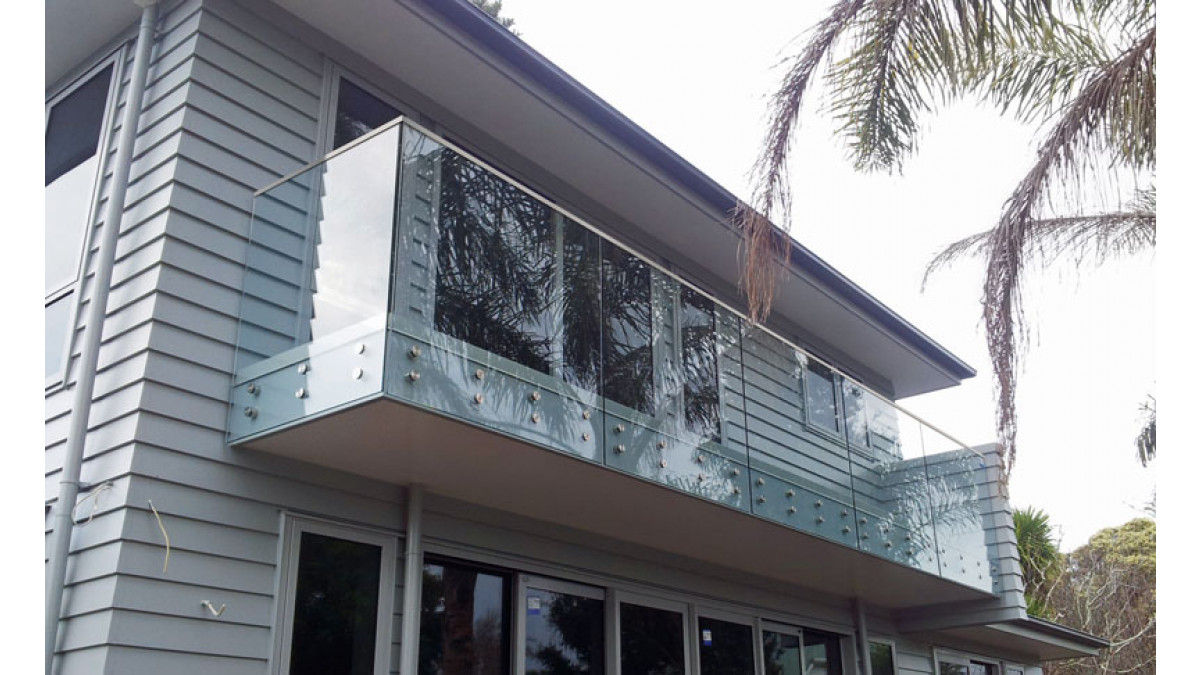

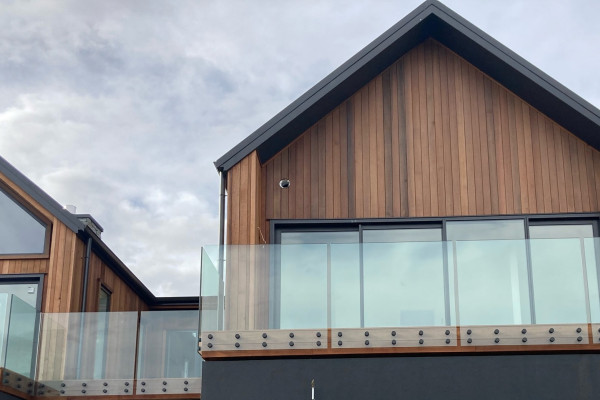

Edgetec Double Disc Anchor balustrade is suitable for deck and balcony barriers, internal stairways or landings and can be fixed to timber (including waterproof decks), concrete, and steel.

A hidden fixing detail is available with the mirror polished Double Disc Anchor fixings.

Limitations on Use
  • The Edgetec Double Disc Anchor system must only be installed in accordance with the Edgetec Double Disc Anchor product manual
  • Glass must have a minimum strength of 100mpa
  • All glass edges must be polished
  • All glass holes must be smooth and free of chips and cracks

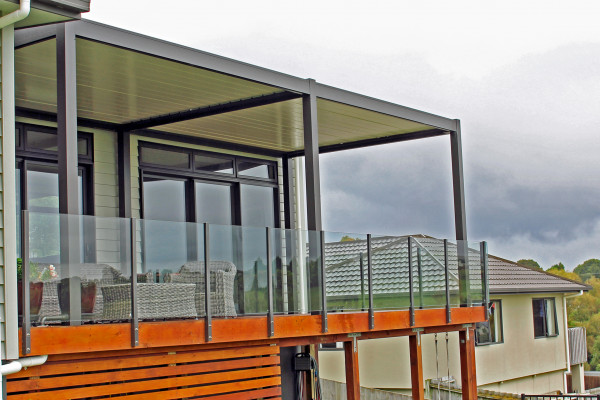

NZS 3604 Wind Zone Very High suitable
Very High Wind Zone
Statement of Building Code Compliance
  • The Edgetec Double Disc Anchor balustrade system has been engineered and tested by independent engineers to comply with NZ standards AS/NZS1170 and NZS4223.3.2016, New Zealand Building Code B1, B2 and F4 and FOSP Act 1987.
  • Edgetec Double Disc Anchor balustrade is suitable for Occupancy A, B, E and C3 Residential.
In-Service History

Juralco has over 18 years experience designing and installing balustrades throughout New Zealand and continues to focus on supporting and developing its dealer network. The Edgetec Double Disc Anchor Balustrade system was introduced for customers who prefer a traditional disc anchor fixing system, with a choice of either powder coat or stainless steel finish.

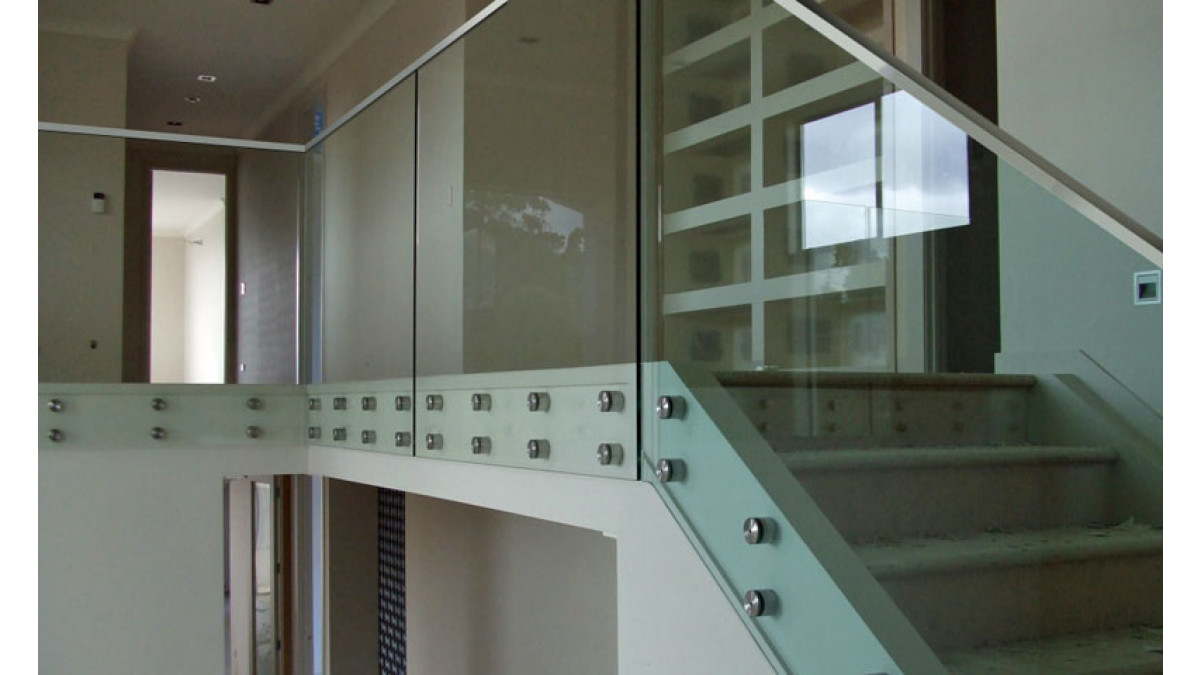

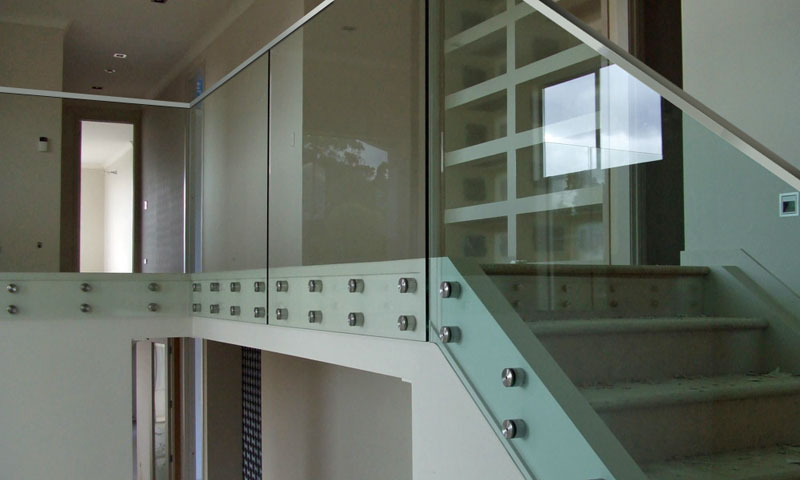

The Edgetec blaustrade range offers a choice of fixing systems for heavyweight glass panels that includes strut posts (Mini Post), rectangular clamps (JH Clamp), a cantilevered face fix balustrade (Infinity) and the Double Disc Anchor. An interlinking top rail has been incorporated into the Edgetec range to comply with new 2016 balustrade regulations - NZS4223.3.2016.

B1 Structure compliant
Structure
B2 Durability compliant
Durability
F4 Safety from Falling compliant
Safety from Falling
Literature
Product Assurance
Producer Statement
Specification Clause (Masterspec)
Warranty
Other Literature
Brochure
Colour Range
Dulux Registered Powder Coating Applicator
Edgetec Double Disc Anchor Specification Details
CAD/PDF Details
Note on CAD Files
