Improved Bracing with the CS Bracewall Cavity Slider

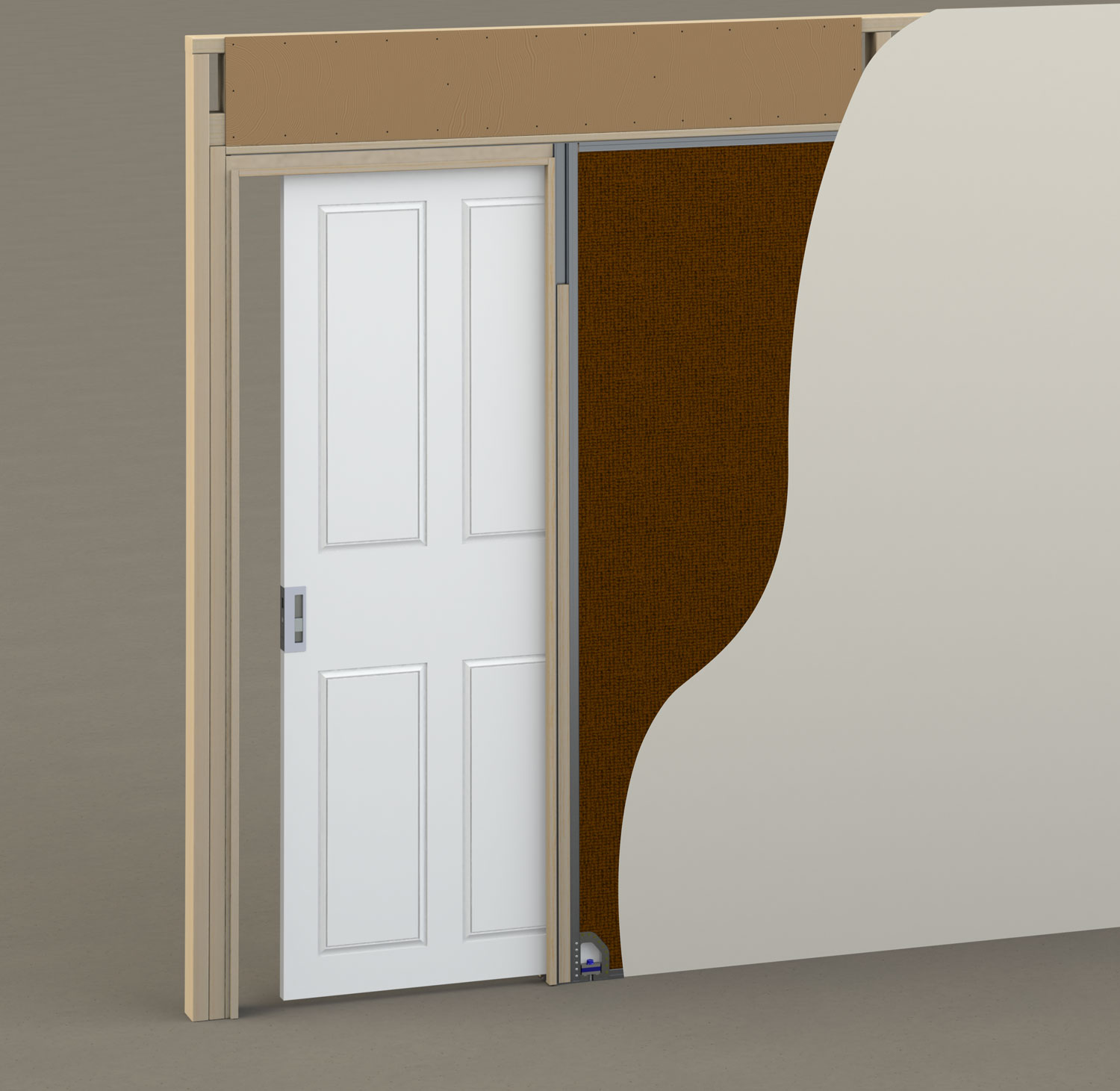

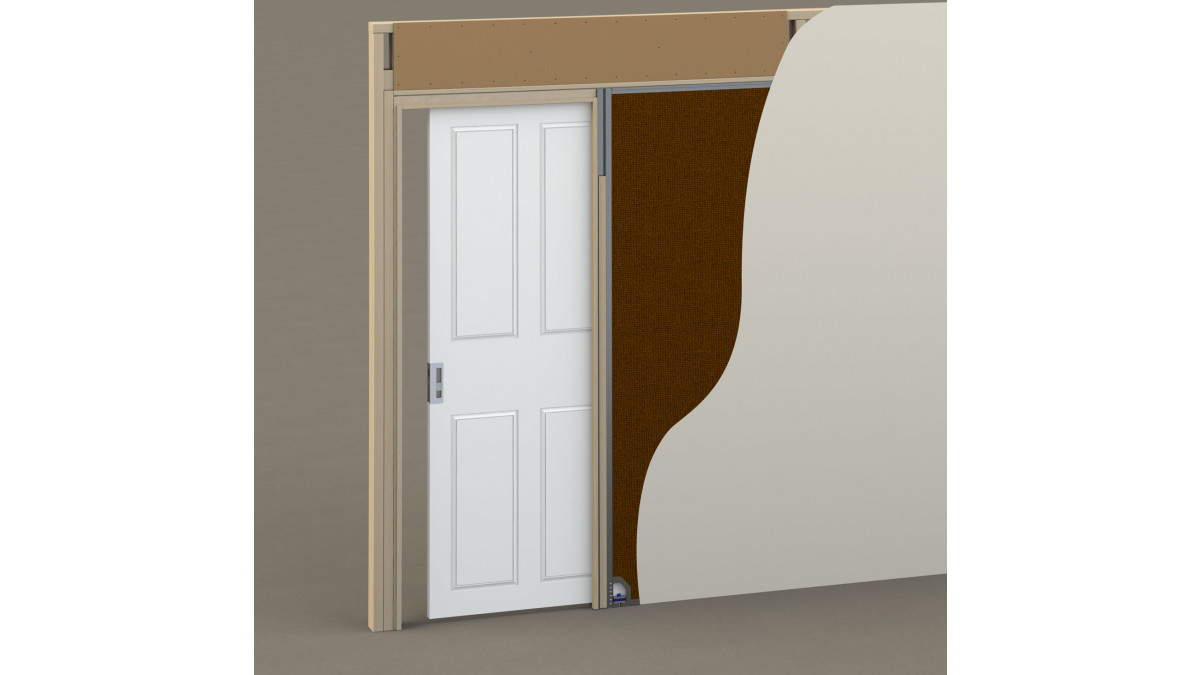

The CS BraceWall is a cavity slider designed for use in areas where wall bracing is required in conjunction with a cavity sliding door. This system combines all the benefits of the market leading CS CavitySliders range with the added advantage of an integrated bracing panel.

The P21 test for calculating bracing units in New Zealand has undergone a change, requiring a retest of this cavity slider. CS For Doors took the opportunity to redevelop the product from scratch and have come up with a new patented design* that is not only easier to install, but has increased wind and earthquake bracing units. The new system has been engineered to meet the requirements of the New Zealand Building Code, and has been tested and analysed by BRANZ using the P21 method.

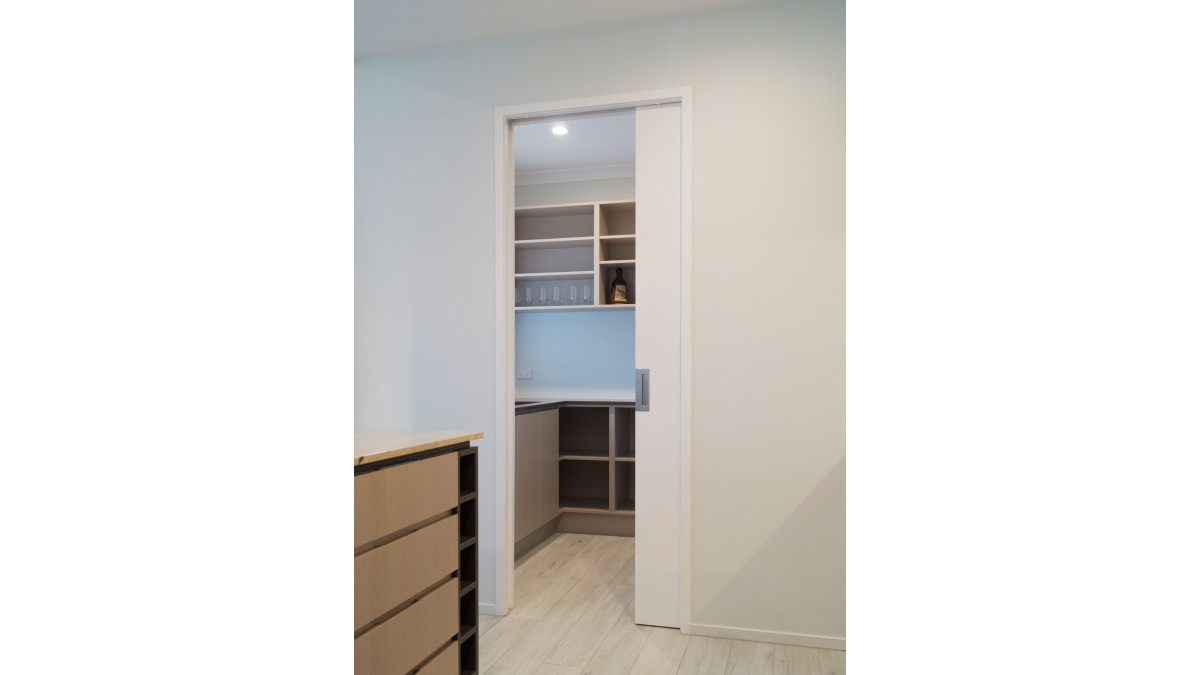

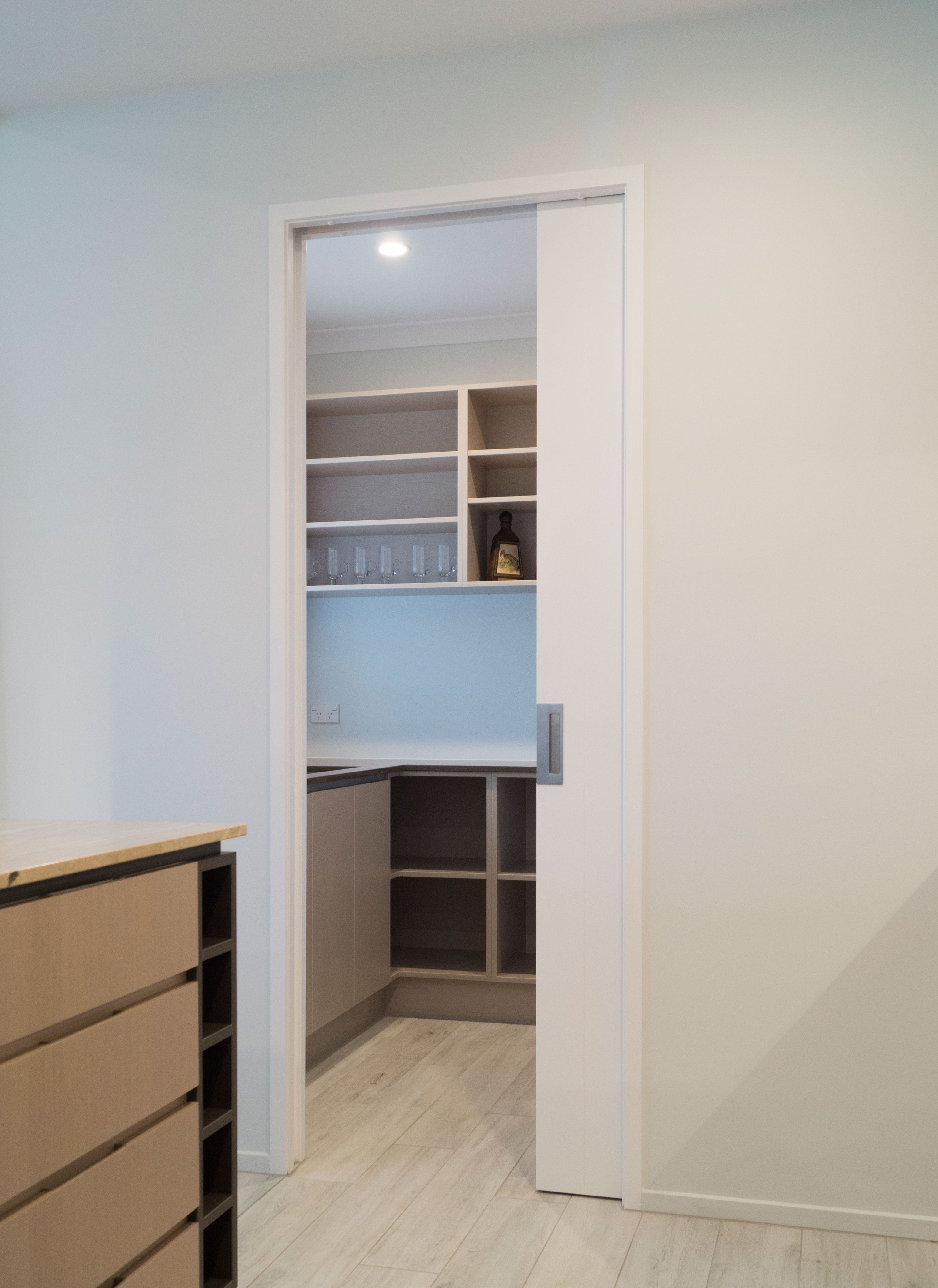

CS BraceWall cavity sliders feature all the standard benefits of the CS CavitySliders range, and once installed and lined, the finished appearance is the same as that of a regular cavity slider. Architectural detail options can be incorporated into the design to create a specific look or to provide a unique solution. This model can also be combined with CS SofStop for a soft closing option.

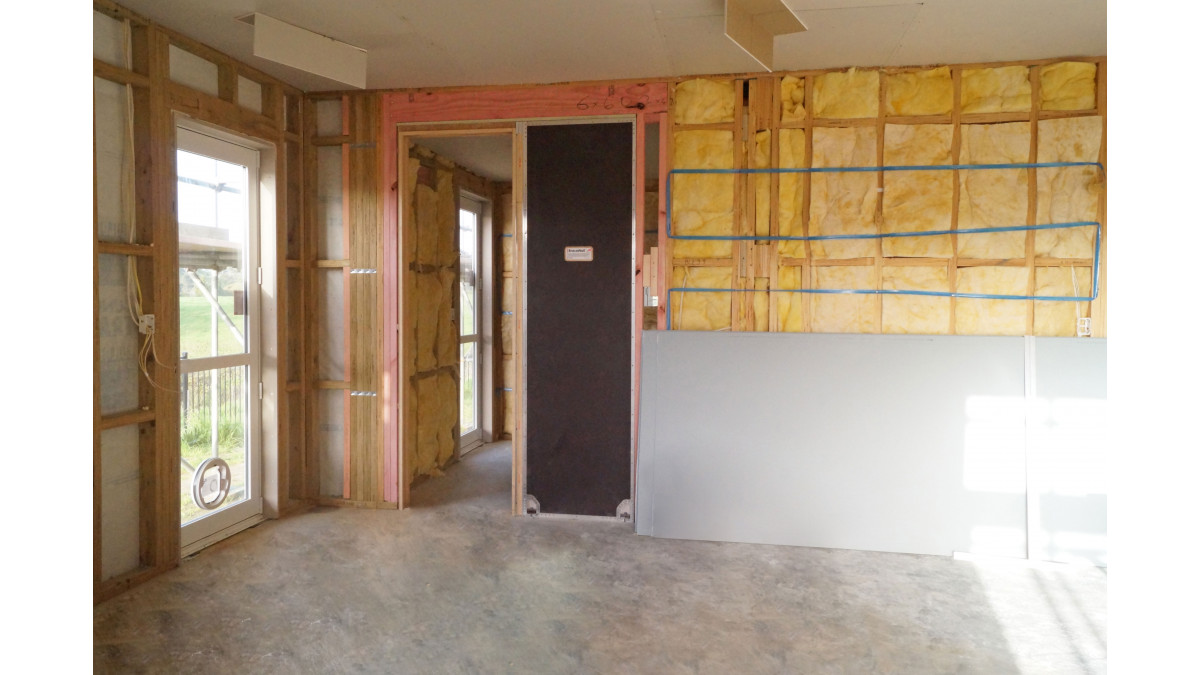

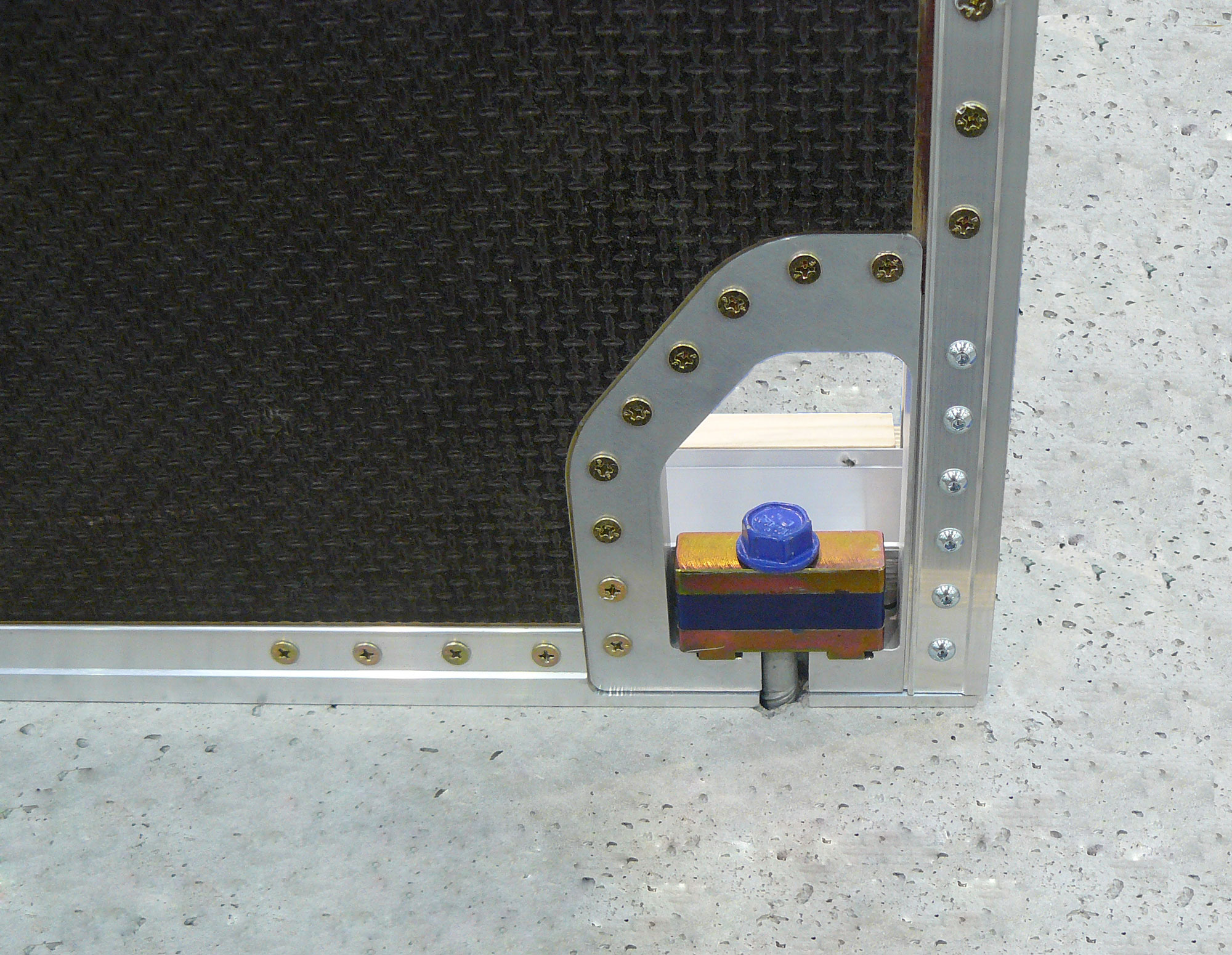

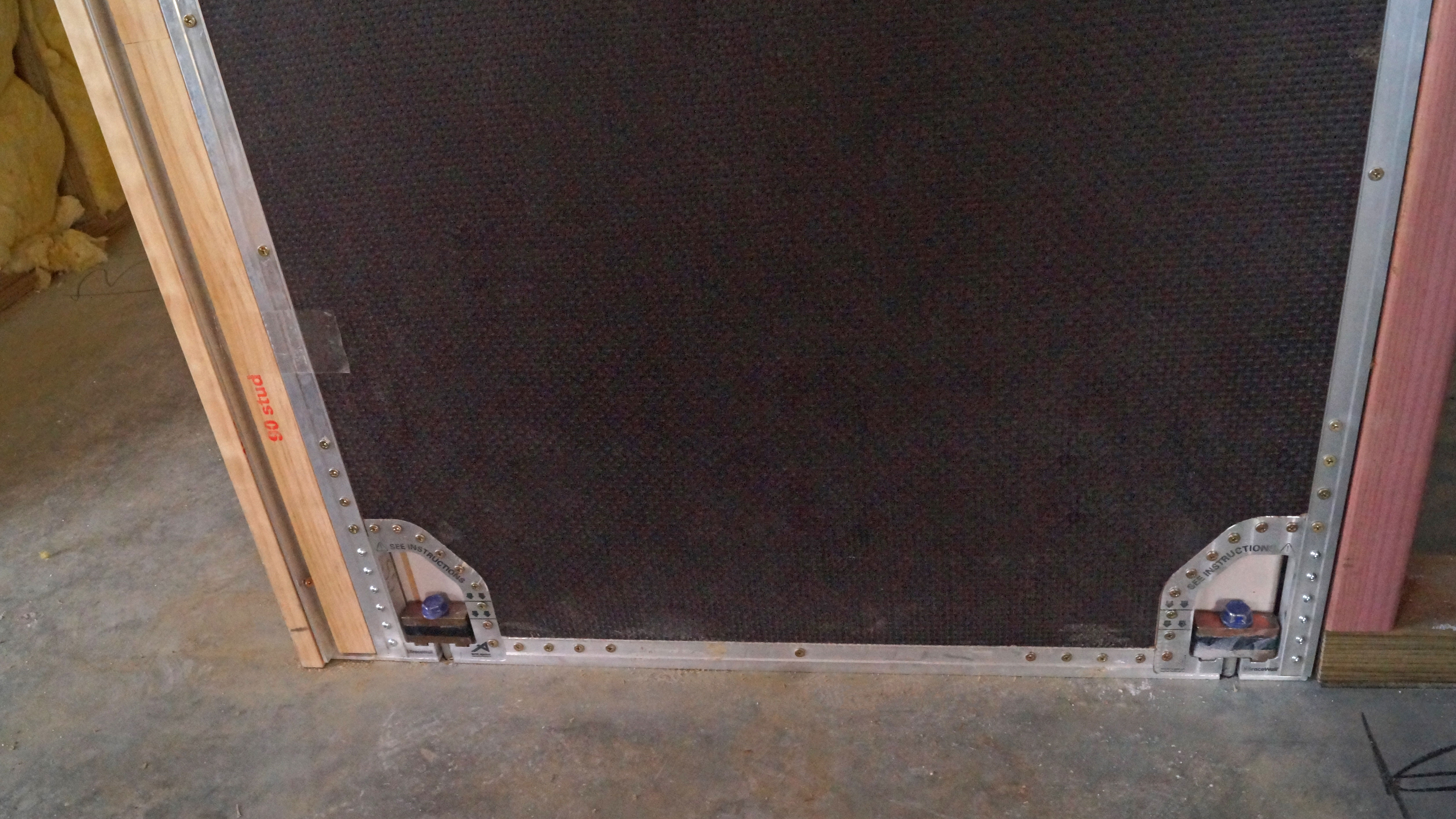

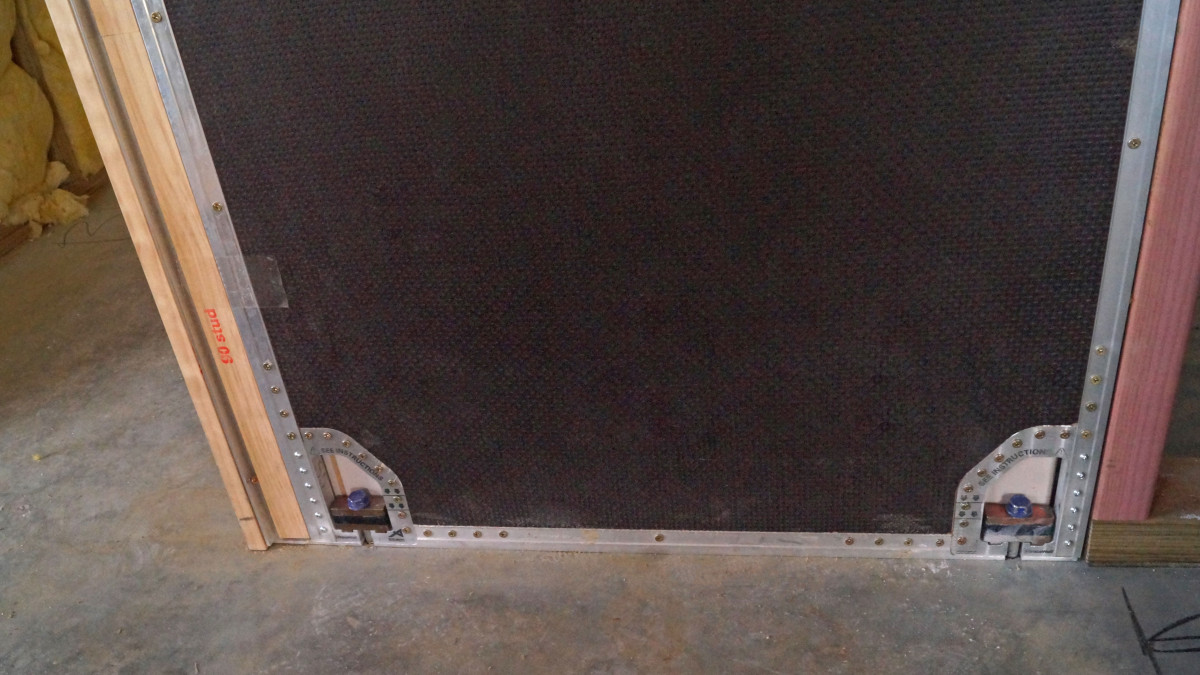

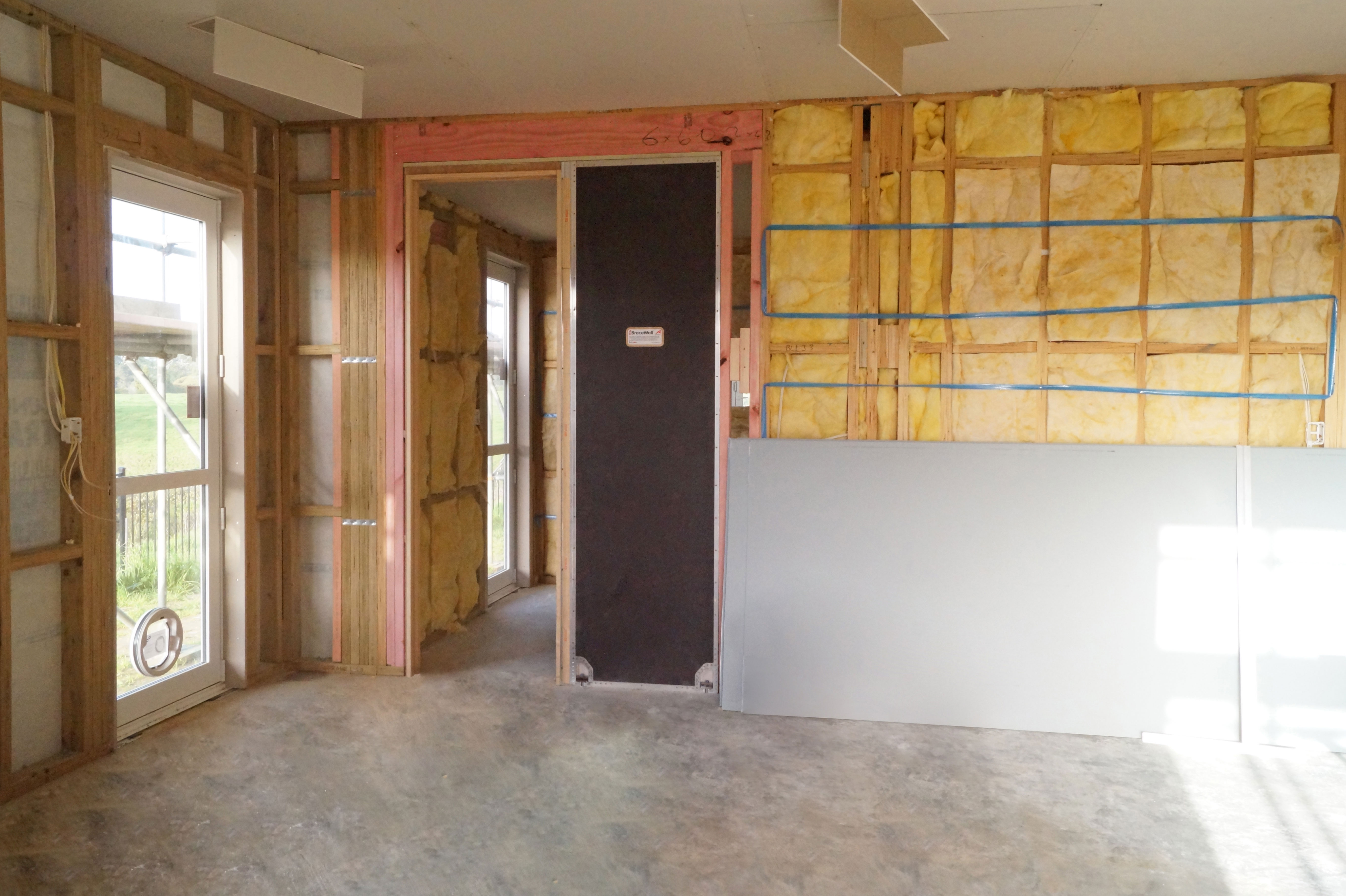

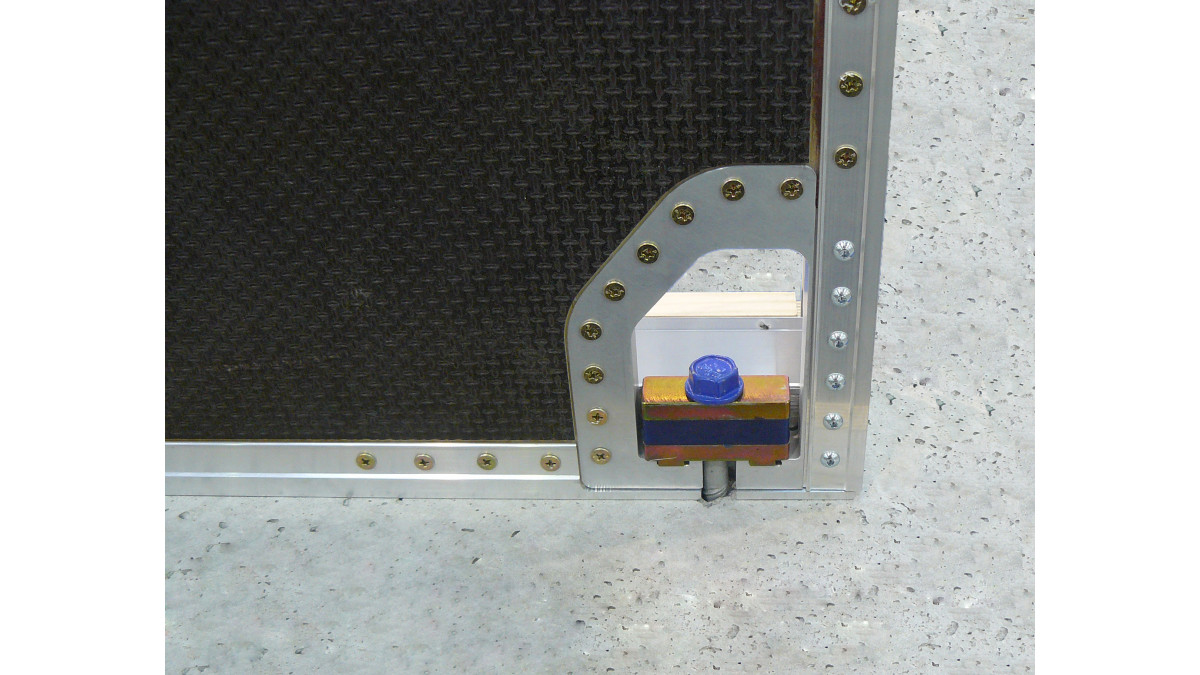

The new design fits within a standard 90mm stud wall and is supplied as a fully assembled unit ready for installation on site. All prefixing is done during manufacturing, ensuring a faster, simpler installation onto timber or concrete floors.


  • Available as Single or Bi-Parting double units in standard and non-standard sizes. Minimum compliant pocket width is 710mm.
  • Bracing units are greater than many other bracing systems. They are not reliant on wall linings.
  • Available with timber or aluminium jambs.

*Patent pending

Contact your local CS For Doors Rep for a product demonstration.
Ph: 0800 SLIDER (0800 754 337) or email [email protected]
