How to Achieve H1 Compliance with GreenStuf

Meeting compliance for the new H1 Energy Efficiency standards in commercial spaces requires access to quality insulation materials. The newest additions to the GreenStuf range are perfectly suited to helping you achieve this. These four new products have been designed to provide wall and ceiling thermal efficiency, helping to create healthier commercial spaces around New Zealand.

The new products include:

Thermal Wall Pads:

GreenStuf R3.2 140mm Pads
GreenStuf R3.6 140mm Pads

These wall products exceed the minimum H1 requirements for across climate zones 1 – 6.

Thermal Ceiling Insulation:

GreenStuf R3.4 140mm Roll
GreenStuf R3.6 140mm Blanket

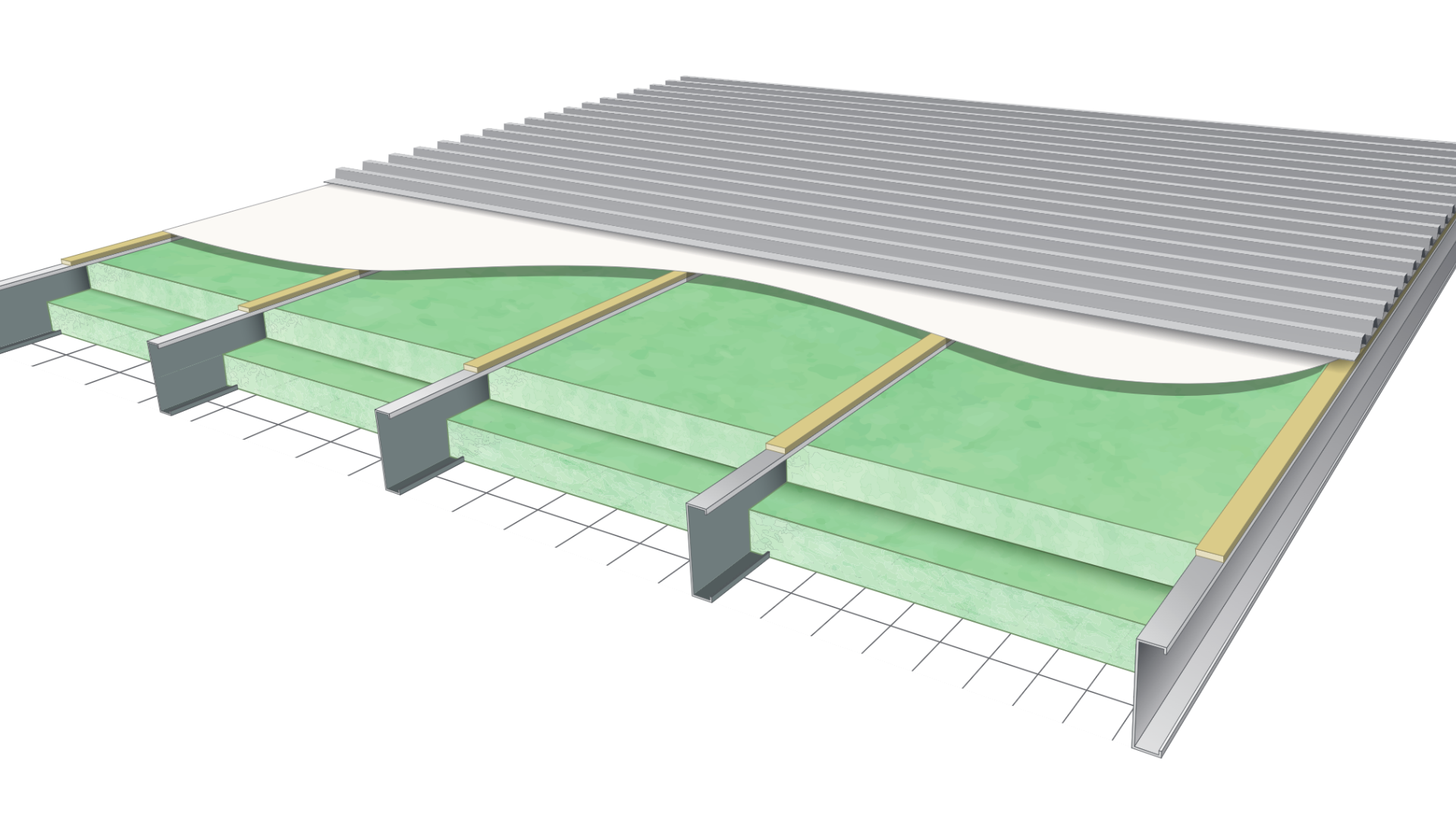

A double layer of these ceiling products will achieve R-values compliant across all climate zones. When a single layer of these products is used in a suspended ceiling system, you are able to achieve compliance for zone 1 and 2.

Need some help with H1 compliance? The GreenStuf team can complete freeH1 Calculation reports for you while also being able to provide Masterspec writing support. Feel free to reach out and discuss your next project with their team.

The GreenStuf range is manufactured using a minimum of 50% previously recycled polyester fibre and is recyclable at the end of its life. Their view is that waste is a resource with potential, not something to be disposed of. With this in mind they operate a zero-waste production line; all product trimmings and offcuts are reused, and all waste material is reintegrated back into production.

GreenStuf Thermal Ceiling Insulation

GreenStuf

View Product

To reduce heat loss in residential applications, the ceiling is the most important place to insulate.

LBC Red List Free

Green Tag Certified

NZ Made

NZ-Owned Business

Application: Thermal insulation
Fitting: Internal ceilings

GreenStuf Thermal Ceiling Insulation is designed for the thermal (and acoustic) insulation of buildings in accordance with New Zealand Building Code (NZBC) H1 Energy Efficiency, and G6 Acoustic Design requirements. GreenStuf Thermal Ceiling Insulation can be used as a roof blanket, in ceilings, under floors, internal and external walls and in mid-floor cavities.

NZBC Compliance: When installed in accordance with the manufacturer’s instructions, GreenStuf insulation will satisfy the 50 year durability clause NZBC B2.3.1 (a). GreenStuf meets the relevant clauses of NZBC E3 Internal Moisture, F2 Hazardous Building Materials, and will contribute to meeting H1 Energy Efficiency.

H1 Energy Efficiency: This product will contribute to a building meeting building code Clause H1. All GreenStuf thermal insulation is created to meet with MBIE's new changes.

Fire Regulations: GreenStuf insulation may not be suitable for all applications, as stipulated in the NZBC. Please consult a fire engineer when specifying GreenStuf insulation or contact aGreenStuf account manager for further information.

Acoustic Performance: GreenStuf insulation will assist sound reduction by reducing the resonating noise inside the construction cavity. Actual performance will vary with different construction systems. For acoustic design assistance please contact a GreenStuf account manager.

Hazardous Building Materials: GreenStuf is non-hazardous.

Durability: GreenStuf has a 50 Year Durability Warranty.

Moisture: GreenStuf is not affected by moisture. Exposure to an atmosphere of 50°C at 90% relative humidity for four days showed moisture absorption by weight of less than 0.03%.

Durability

Internal Moisture

Hazardous Building Materials

Airborne and Impact Sound

Energy Efficiency

GreenStuf Thermal Wall Pads

GreenStuf

View Product

GreenStuf® Thermal Wall Pads are designed for the thermal insulation of timber-framed buildings.

NZ Made

NZ-Owned Business

Application: Thermal insulation
Fitting: Internal walls

GreenStuf Thermal Wall Insulation are designed for the Thermal Wall Insulation of timber framed buildings in accordance with New Zealand Building Code (NZBC) H1 Energy Efficiency requirements. GreenStuf Thermal Pads can be used in ceilings, internal and external walls and mid-floor cavities.

NZBC Compliance: When installed in accordance with the manufacturer's instructions, GreenStuf insulation will satisfy the 50 year durability clause NZBC B2.3.1 (a). GreenStuf meets the relevant clauses of NZBC E3 Internal Moisture, F2 Hazardous Building Materials, and will contribute to meeting H1 Energy Efficiency.

H1 Energy Efficiency: This product will contribute to a building meeting building code Clause H1. All GreenStuf thermal insulation is created to meet with MBIE's new changes.

Acoustic Performance: GreenStuf insulation will assist sound reduction by reducing the resonating noise inside the construction cavity. Typical improvement in sound transmission loss through walls with the use of GreenStuf R2.0 Wall insulation is an increase of 5-6 STC points.

Hazardous Building Materials: GreenStuf is non-hazardous.

Durability: GreenStuf has a 50 Year Durability Warranty.

Moisture: GreenStuf is not affected by moisture. Exposure to an atmosphere of 50°C at 90% relative humidity for four days
showed moisture absorption by weight of less than 0.03%.

Durability

Protection from Fire

Internal Moisture

Hazardous Building Materials

Energy Efficiency
