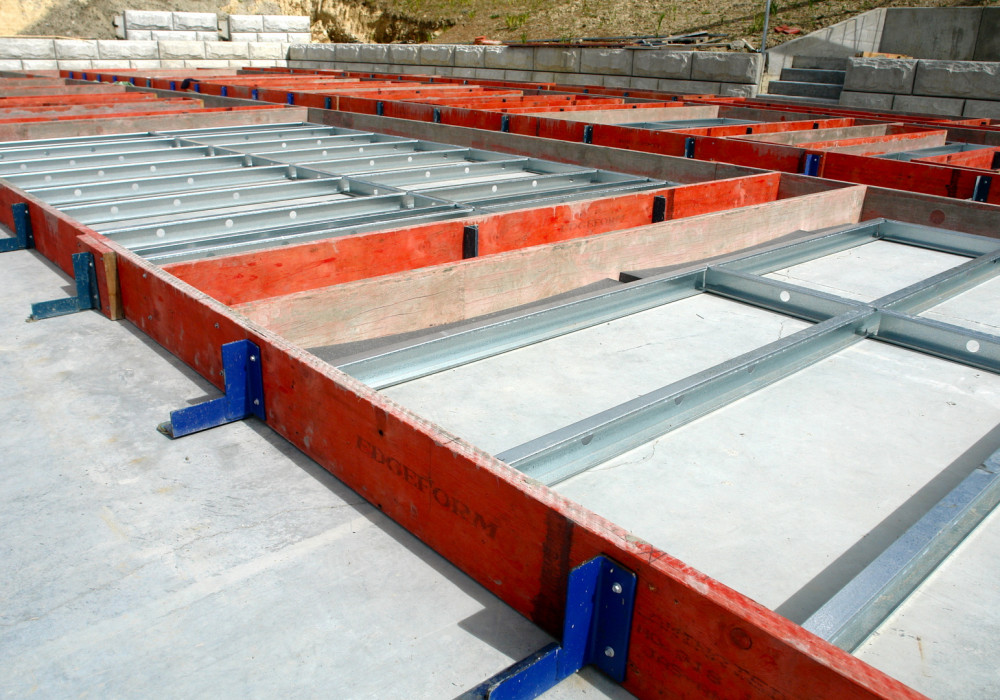

• For use in concrete formwork as edge boards

Show more

All Futurebuild LVL products are manufactured using a type ‘A’ bond with less than 0.5mg/L formaldehyde emissions from the final product (equivalent to E0).

Show more

FSC Certified

• Designed to fit within 90mm framing
• Load bearing applications — house lintels and larger span garage door lintels and beams
• Readily available H1.2 treated using a glue line and surface spray treatment to the requirements of NZS 3640
• Untreated and H3.1 LOSP treated product available made to order subject to minimum volumes and lead times, Contact Future LVL for further information
• Residential Span Tables available
• Supported by technical support and software from Futurebuild LVL

Show more

Solid Futurebuild LVL products are manufactured in accordance with AS/NZ 4357, Structural Laminated Veneer Lumber. Characteristic Properties are determined in accordance with AS/NZS 4063.2:2010 and so comply with the provisions of the New Zealand Building Code through clause 2.3 for engineering design in accordance with NZS3603:1993 Timber Structures Standard.

Futurebuild LVL is committed to manufacturing innovative engineered building products. For quality assurance the Futurebuild range is manufactured with independent audit processes and product certification.

All Futurebuild LVL products are manufactured using a type ‘A’ bond with less than 0.5mg/L formaldehyde emissions from the final product (equivalent to E0).

Show more

FSC Certified

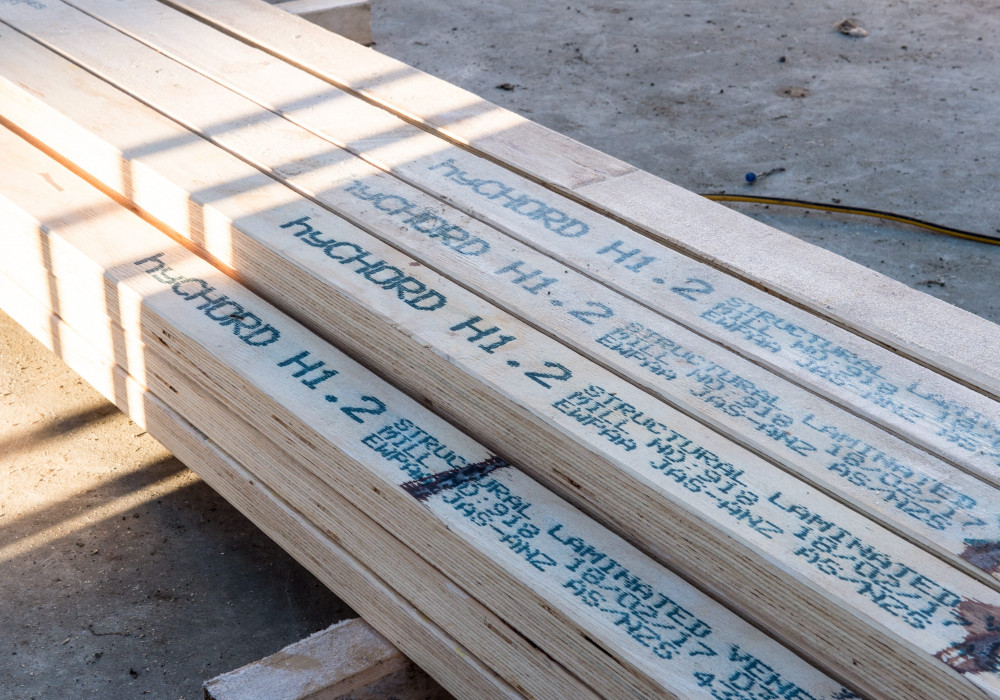

hyCHORD is primarily specified as roof truss chords, but can also be used for lintels, rafters, purlins, floor joists, wall studs or other members where smaller section sizes are required

• Readily available and stocked H1.2 treated using a glue line and surface spray treatment to the requirements of NZS 3640
• Untreated and H3.1 LOSP treated product available made to order subject to minimum volumes and lead times, Contact Furturebuild LVL for further information
• Residential Span Tables available
• Supported by technical support and software from Futurebuild LVL

Show more

Solid Futurebuild LVL products are manufactured in accordance with AS/NZ 4357, Structural Laminated Veneer Lumber. Characteristic Properties are determined in accordance with AS/NZS 4063.2:2010 and so comply with the provisions of the New Zealand Building Code through clause 2.3 for engineering design in accordance with NZS3603:1993 Timber Structures Standard.

Futurebuild LVL is committed to manufacturing innovative engineered building products. For quality assurance the Futurebuild range is manufactured with independent audit processes and product certification.

All Futurebuild LVL products are manufactured using a type 'A' bond with less than 0.5mg/L formaldehyde emissions from the final product (equivalent to E0).

Show more

FSC Certified

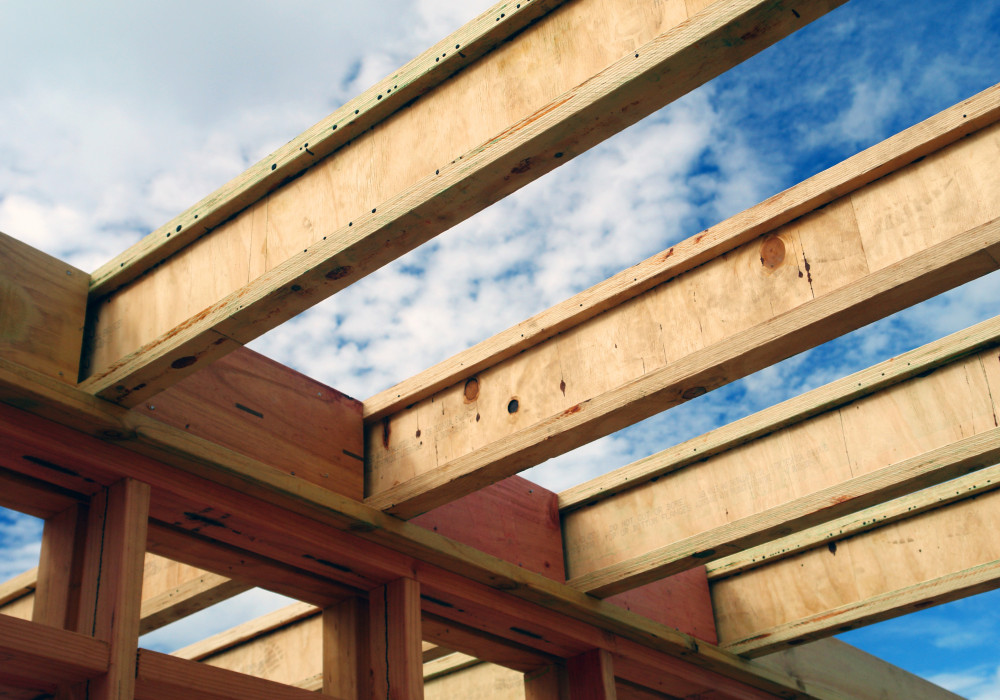

hyJOIST is ideally suited to floor joist and rafter applications due to its light weight, straightness and the ability to cut large holes through the web (e.g. for services or ventilation)

• Readily available untreated or H1.2 treated using a glue line and surface spray treatment to the requirements of NZS 3640
• H3.1 LOSP available on a made to order basis subject to minimum volumes and lead times, Contact Futurebuild LVL for further information
• Residential Span Tables and installation guide available
• Supported by technical support and software from Futurebuild LVL

Show more

hyJOIST LVL flanges are manufactured in accordance with AS/NZS 4357, Structural Laminated Veneer Lumber, whilst manufactured hyJOIST beams are randomly sampled and in-grade verified against published Characteristic Properties. hyJOIST is a product certified by the Engineered Wood Products Association of Australasia (EWPAA), which is JAS-ANZ certified.

Futurebuild LVL is committed to manufacturing innovative engineered building products. For quality assurance the hyJOIST range is manufactured with independent audit processes and product certification.

All hyJOIST components are manufactured using a Type ‘A’ (marine) bond with less than 0.5mg/L formaldehyde (equivalent to E0) emissions from the final product

Untreated (UT) product may at times contain some glue line treatment.

Show more

FSC Certified

Primarily for lintels or floor beams where large spans or depth restrictions apply

• Readily available and stocked H1.2 treated using glue line and surface spray treatment to the requirements of NZS 3640
• Untreated and H3.1 LOSP treated product available made to order subject to minimum volumes and lead times, Contact Futurebuild LVL for further information
• Residential Span Tables available
• Supported by technical support and software from Futurebuild LVL

Show more

Solid Futurebuild LVL products are manufactured in accordance with AS/NZ 4357, Structural Laminated Veneer Lumber. Characteristic Properties are determined in accordance with AS/NZS 4063.2:2010 and so comply with the provisions of the New Zealand Building Code through clause 2.3 for engineering design in accordance with NZS3603:1993 Timber Structures Standard.

Futurebuild LVL is committed to manufacturing innovative engineered building products. For quality assurance the Futurebuild range is manufactured with independent audit processes and product certification.

All Futurebuild LVL products are manufactured using a type ‘A’ bond with less than 0.5mg/L formaldehyde emissions from the final product (equivalent to E0).

Show more

FSC Certified

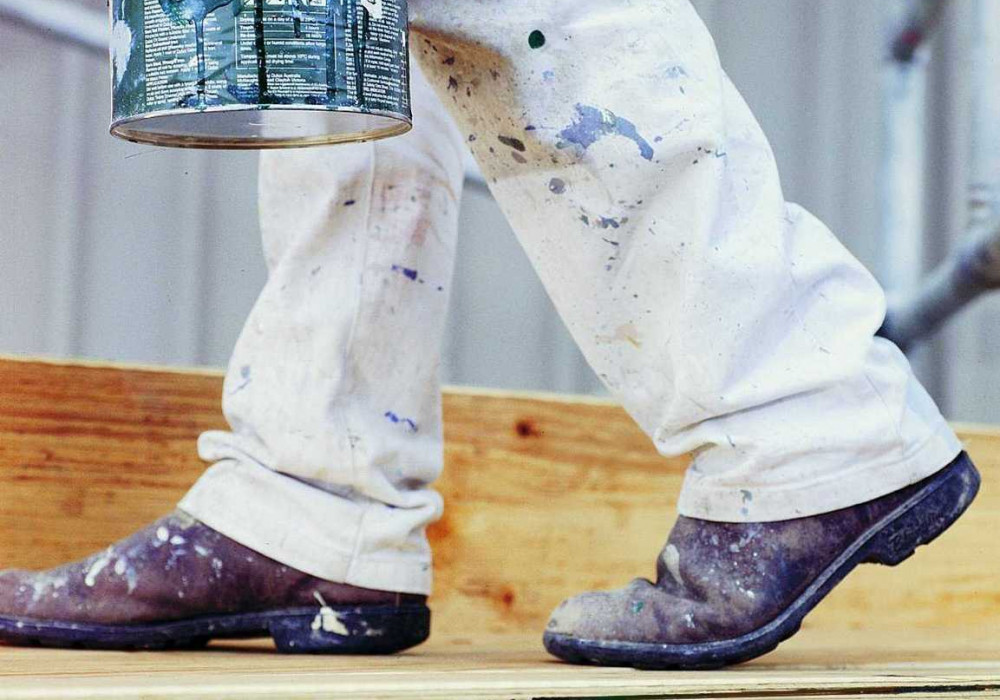

hyPLANK is safe and fit for purpose as scaffold planking

• Span Tables available for use in accordance with AS/NZS 1577

Show more

hyPLANK is manufactured in accordance with AS/NZS 4357, Structural laminated veneer lumber and is designed to be used as a non-modular scaffold plank as a part of a working platform in accordance with the requirements of AS/NZS 1576.1 and AS/NZS 1577.

Futurebuild LVL is committed to manufacturing innovative engineered building products. For quality assurance the Futurebuild range is manufactured with independent audit processes and product certification.

All hyPLANK is manufactured using a Type ‘A’ (marine) bond with less than 0.5mg/L formaldehyde emissions from the final product (equivalent to E0).

hyPLANK at the time of dispatch from the manufacturing site has a moisture content of between 8-15%.

Show more

FSC Certified

hySPAN is typically specified for structural beams and is also used for lintels, rafters and floor joists in residential structures.

• Veneers are bonded together using type 'A' (marine) bond, known for long-term durability in structural applications
• Readily available and stocked H1.2 treated using a glue line and surface spray treatment to the requirements of NZS 3640
• Untreated and H3.1 LOSP treated product available made to order subject to minimum volumes and lead times, Contact Futurebuild LVL for further information
• Residential Span Tables available
• Supported by technical support and software from Futurebuild LVL

Show more

Solid Futurebuild LVL products are manufactured in accordance with AS/NZS 4357, Structural Laminated Veneer Lumber. Characteristic Properties are determined in accordance with AS/NZS 4063.2:2010 and so comply with the provisions of the New Zealand Building Code through clause 2.3 for engineering design in accordance with NZS3603:1993 Timber Structures Standard.

Futurebuild LVL is committed to manufacturing innovative engineered building products. For quality assurance the Futurebuild range is manufactured with independent audit processes and product certification.

All Futurebuild LVL products are manufactured using a type ‘A’ bond with less than 0.5mg/L formaldehyde emissions from the final product (equivalent to E0).

Show more

FSC Certified

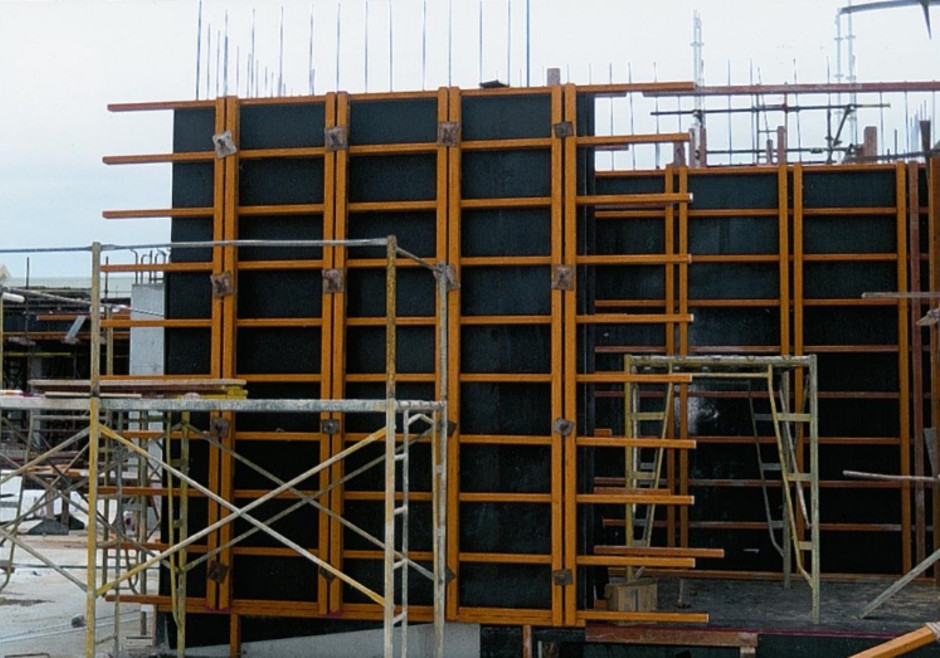

For use in concrete formwork and is suitable for joists, bearers, walers and soldiers

• Span Tables available for both vertical and horizontal forms
• Supported by technical support and software from Futurebuild LVL

Show more

Solid Futurebuild LVL products are manufactured in accordance with AS/NZ 4357 Structural Laminated Veneer Lumber with properties determined in accordance with AS/NZS 4063.2:2010 and so comply with the provisions of the New Zealand Building Code through clause 2.3 for engineering design in accordance with NZS3603:1993 Timber Structures Standard.

Futurebuild LVL is committed to manufacturing innovative engineered building products. For quality assurance the Futurebuild range is manufactured with independent audit processes and product certification.

All Futurebuild LVL products are manufactured using a type ‘A’ bond with less than 0.5mg/L formaldehyde emissions from the final product (equivalent to E0).

Show more

FSC Certified
