Sanishower Grey Water Pump
Description

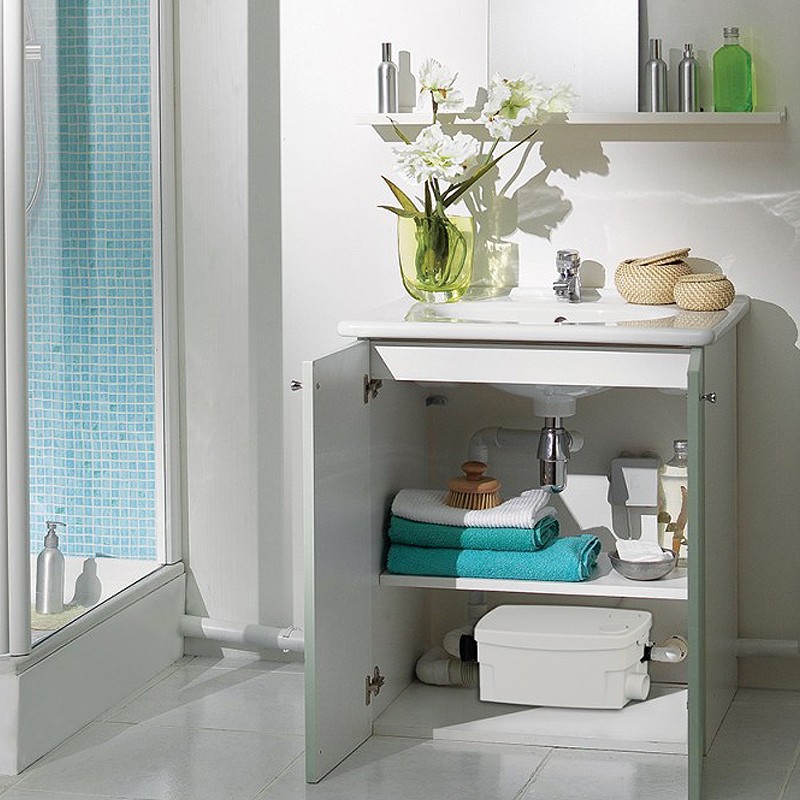

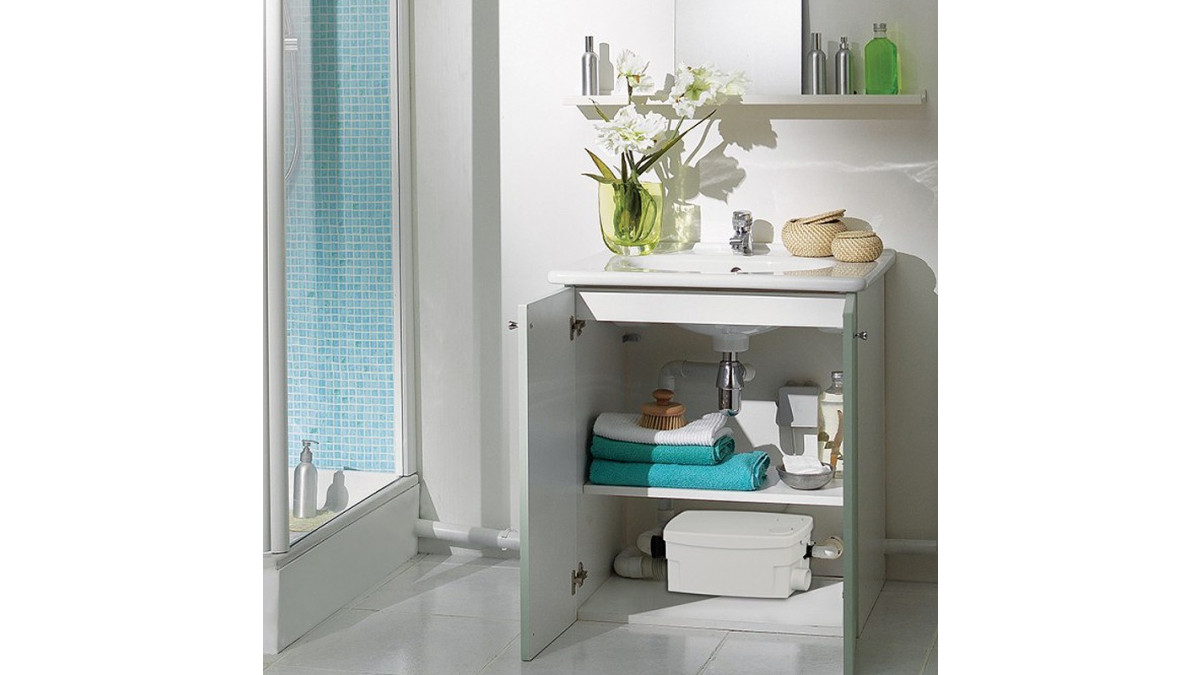

The ideal solution for installing a new shower in any location without the need for major installation work. The low-profile design enables the Sanishower+ to be installed discreetly into a cabinet, and has the option to include a basin making it perfect for adding a small bathroom.

Saniflo grey water pumps allow sanitary fixtures to be installed in areas where access to waste water pipes and conventional gravity drainage is limited, increasing the design possibilities for installing additional facilities in existing buildings.

Key Features
  • Overcomes gravity drainage issues
  • Allows basement showers
  • Additional inlet for basin
  • Can be fitted next to shower tray
  • Low-profile design for discrete installation within cabinet
  • Low activation level (65mm)
  • Includes integrated carbon filter
Scope of Use

The Sanishower is a grey water pump for adding a shower and basin:

  • Ideal for adding a basement bathroom
  • Shower, and hand basin
  • Can be fitted next to shower tray
  • Low-profile — discrete installation within cabinet
  • Can pump up to 5m in height, or 1m height with 50m length — refer to data sheet
  • Inlet pipework: 40mm. Discharge pipework: 20mm
Limitations on Use
  • Must be installed by a licensed plumber
  • All horizontal pipework requires a minimum of 1:100 fall
  • Working temperature of 35°C
  • For other applications see Product Selection Grid
Statement of Building Code Compliance

In opinion of Saniflo this product meets the following provisions of the NZBC:

  • Clause B2 DURABILITY: Performance B2.3.1 [a] not less than 50 years, and B2.3.1 [b] 15 years, and B2.3.2. The Sanishower meets this requirement
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Sanishower meets this requirement and does not present a health hazard to People
  • Clause G13 FOUL WATER: Performance G13.3.1 and G13.3.2. Sanishower meets these requirements

Producer Statement available. Project specific compliance statements are available on request.

In-Service History

The Saniflo SFA Company is the inventor of the macerator concept, with waste solution products successfully deployed around the world for the past 10 years.

Other Performance Attributes
  • Watermark Certificate WMTS 106: 2019 Certificate number: 23048
  • This product meets AS/NZS 3500.1:2018
  • IP rating 44

Warranty Conditions

  • This device is guaranteed for 2 years from the date of purchase and is subject to:
    • NZ CG Act 1993 if used for personal, domestic or household use
    • Installation in strict compliance with manufacturers installation manual in the product box
  • This warranty does not cover the following which remain at the risk, cost and responsibility of the owner:
    • Costs of travel and transport or insurance of the device
    • Device installed outside 50km radius from an accredited Saniflo Agents Office
    • All Costs necessary to safely access and replace the installed device including costs of additional plant equipment, materials. handling and/or safety equipment
  • This warranty is not transferable
  • This warranty shall not apply when the product is sold or installed outside New Zealand
Documents
Drawings on BIMobject

Sanishower+

Data Sheet: Sanishower+
Installation: Sanishower+

06.17

Saniflo Design Guide
Saniflo Product Selection Grid

Saniflo has a solution to overcome those situations where drainage is a problem — allowing freedom of design without the cost and inconvenience of moving sewer pipes.
