Sanifast SWH190 Grey Water Pump
Description

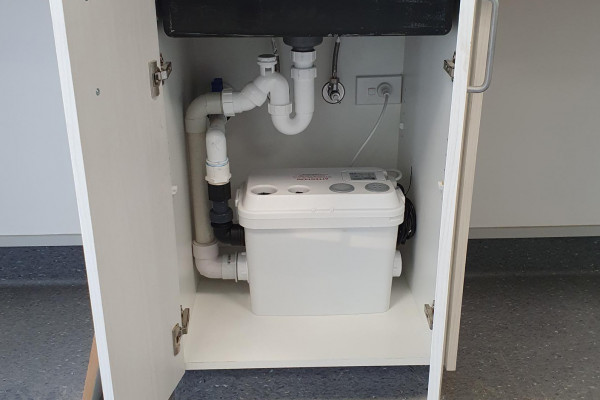

The Sanifast SWH190 is a compact easy to service commercial grey water pump designed for medium-heavy commercial use. The unit is designed to receive and pump away waste water from a washing machine dishwasher, sink and is ideal for busy commercial office kitchens

Saniflo grey water pumps allow sanitary fixtures to be installed in areas where access to waste water pipes and conventional gravity drainage is limited, increasing the design possibilities for installing additional facilities in existing buildings.

Key Features
  • High pumping performance
  • Built in high level alarm
  • Plug & Play connectivity to optional external Sanialarm Interlock for water and power isolation
  • Ease of service design with no pipework connections on lid to hinder removal
  • Large tank capacity
  • High pumping performance
  • Integrated carbon filter and anti flood valve
Scope of Use

The Sanifast SWH190 is a compact grey water pump designed for medium-heavy commercial use:

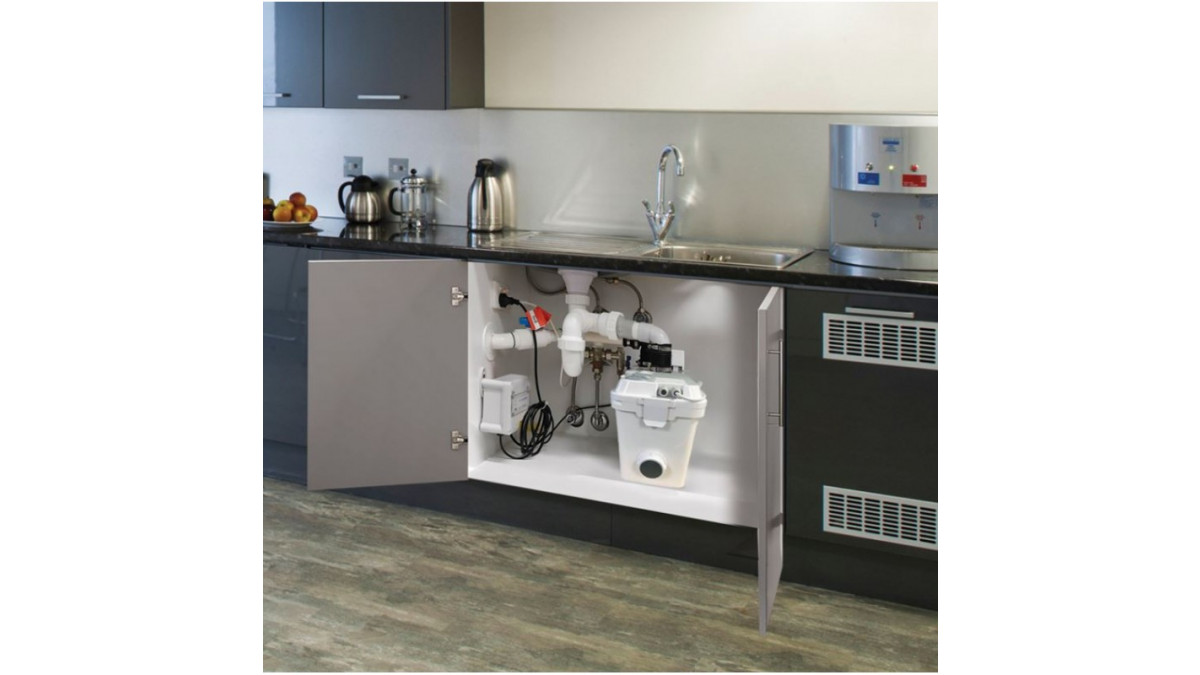

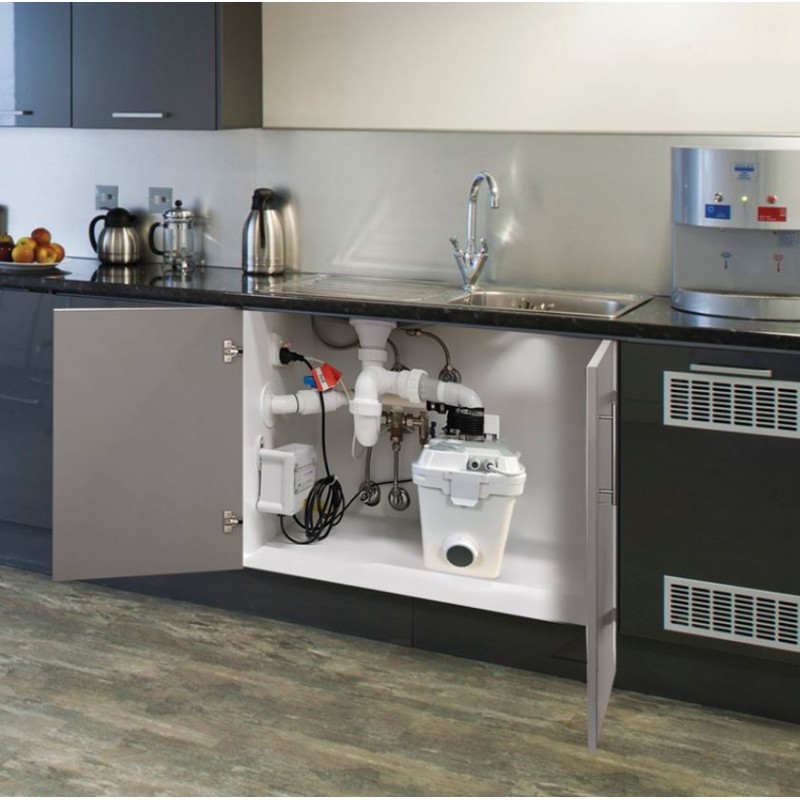

  •  Ideal for busy commercial office kitchens — designed to receive and pump away waste water from a washing machine dishwasher, sink
  • Can connect to basin, bath, shower, washing machine, dishwasher, kitchen sink

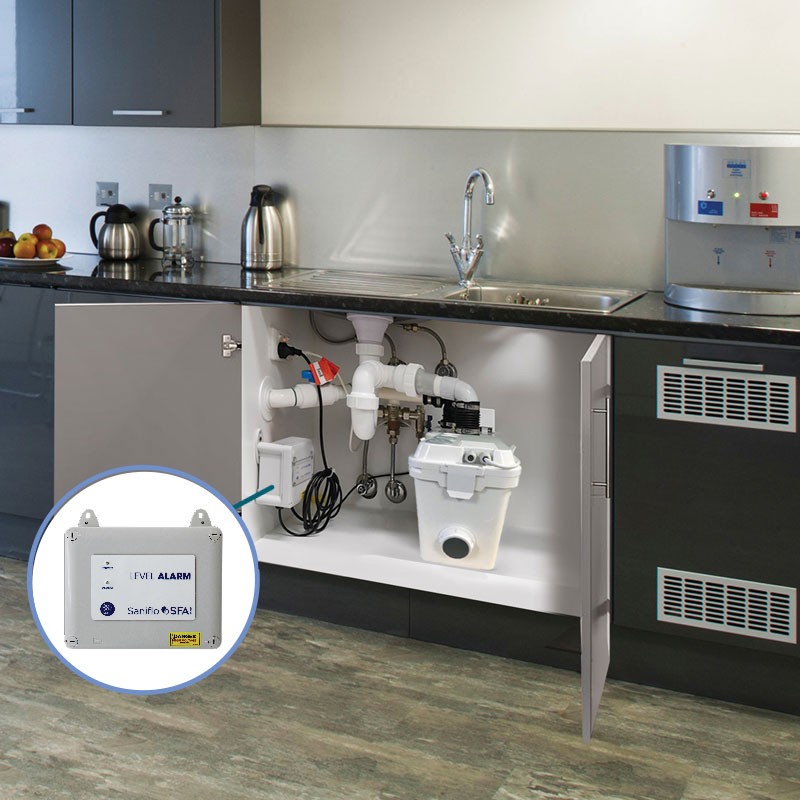

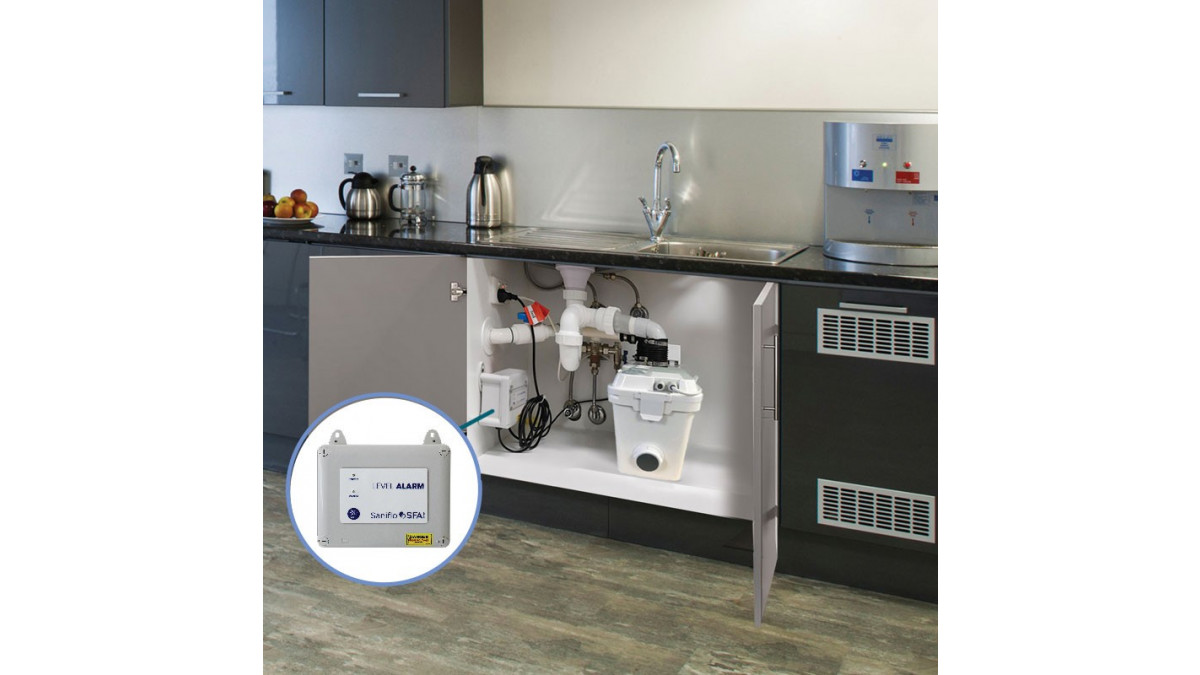

  • Built-in high level alarm, and plug & play connectivity to optional external Sanialarm Interlock for water and power isolation
  • Can pump up to 10m in height, or 1m height with 100m length — refer to data sheet
  • Inlet pipework: 50mm. Discharge pipework: 25mm
  • Factory pre-mounted non return valve (supplied)





  • Small shops, cafes, offices, bars, automatic coffee machines and dental surgeries
  • The ideal lift-pump for installation in a laundry room or kitchen
  • Hand basin, bath, shower, washing machine, dishwasher, kitchen sink
  • Up to four inlet connections — two side entries and two top entries
  • Flow rate of 110 L/min
  • Can pump up to 11m in height, or 1m height with 100m length — refer to data sheet
  • Inlet pipework: 40mm. Discharge pipework: 25mm
  • Can connect to Alarm or Alarm Interlock
Limitations on Use
  • Must be installed by a licensed plumber
  • All horizontal pipework requires a minimum of 1:100 fall
  • Working temperature of 35°C — will handle up to 75°C for short periods (5 minutes)
  • For other applications see Product Selection Grid
Statement of Building Code Compliance

In opinion of Saniflo this product meets the following provisions of the NZBC:

  • Clause B2 DURABILITY: Performance B2.3.1 [a] not less than 50 years, and B2.3.1 [b] 15 years, and B2.3.2. The Sanifast SWH190 meets this requirement
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Sanifast meets this requirement and does not present a health hazard to People
  • Clause G13 FOUL WATER: Performance G13.3.1 and G13.3.2. Sanifast meets these requirements

Producer Statement available. Project specific compliance statements are available on request.

In-Service History

The Saniflo SFA Company is the inventor of the macerator concept, with waste solution products successfully deployed around the world for the past 10 years.

Other Performance Attributes
  • Watermark Certificate WMTS 106: 2019 Certificate number: 23048
  • This product meets AS/NZS 3500.1:2018
  • IP rating 44

Warranty Conditions

  • This device is guaranteed for 2 years from the date of purchase and is subject to:
    • NZ CG Act 1993 if used for personal, domestic or household use
    • Installation in strict compliance with manufacturers installation manual in the product box
  • This warranty does not cover the following which remain at the risk, cost and responsibility of the owner:
    • Costs of travel and transport or insurance of the device
    • Device installed outside 50km radius from an accredited Saniflo Agents Office
    • All Costs necessary to safely access and replace the installed device including costs of additional plant equipment, materials. handling and/or safety equipment
  • This warranty is not transferable
  • This warranty shall not apply when the product is sold or installed outside New Zealand
Documents
Drawings on BIMobject

Sanifast

Data Sheet: Sanifast SWH190
Installation: Sanifast

11.20

Saniflo Design Guide
Saniflo Product Selection Grid

Saniflo has a solution to overcome those situations where drainage is a problem — allowing freedom of design without the cost and inconvenience of moving sewer pipes.
