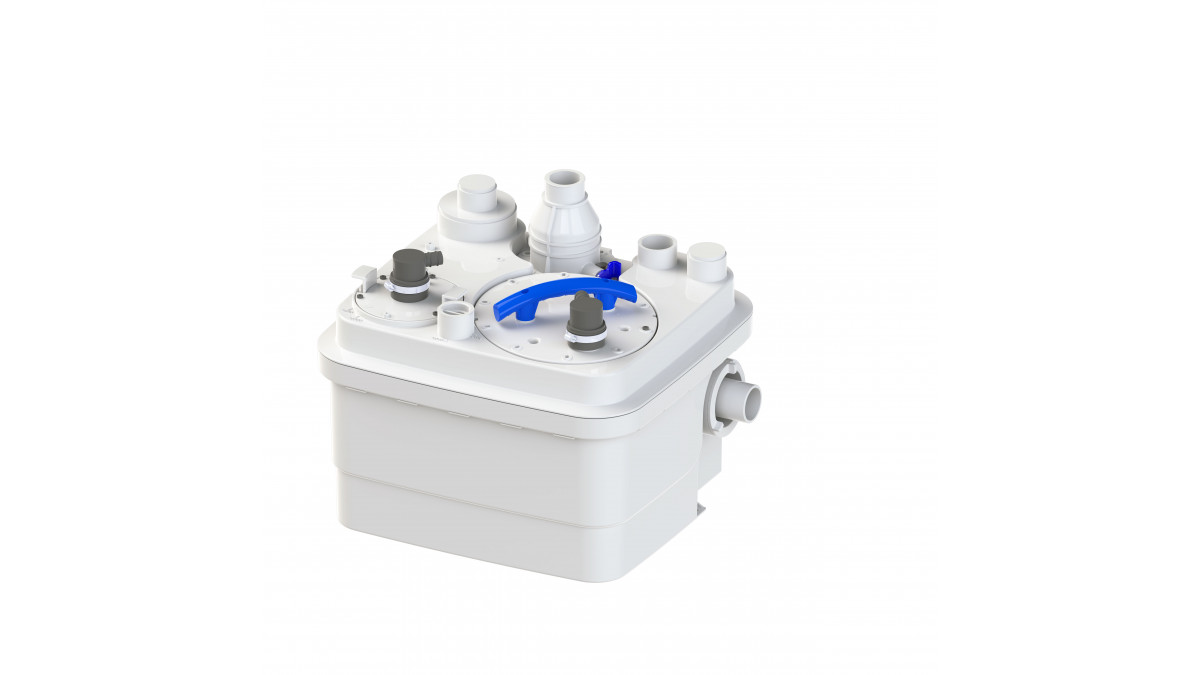

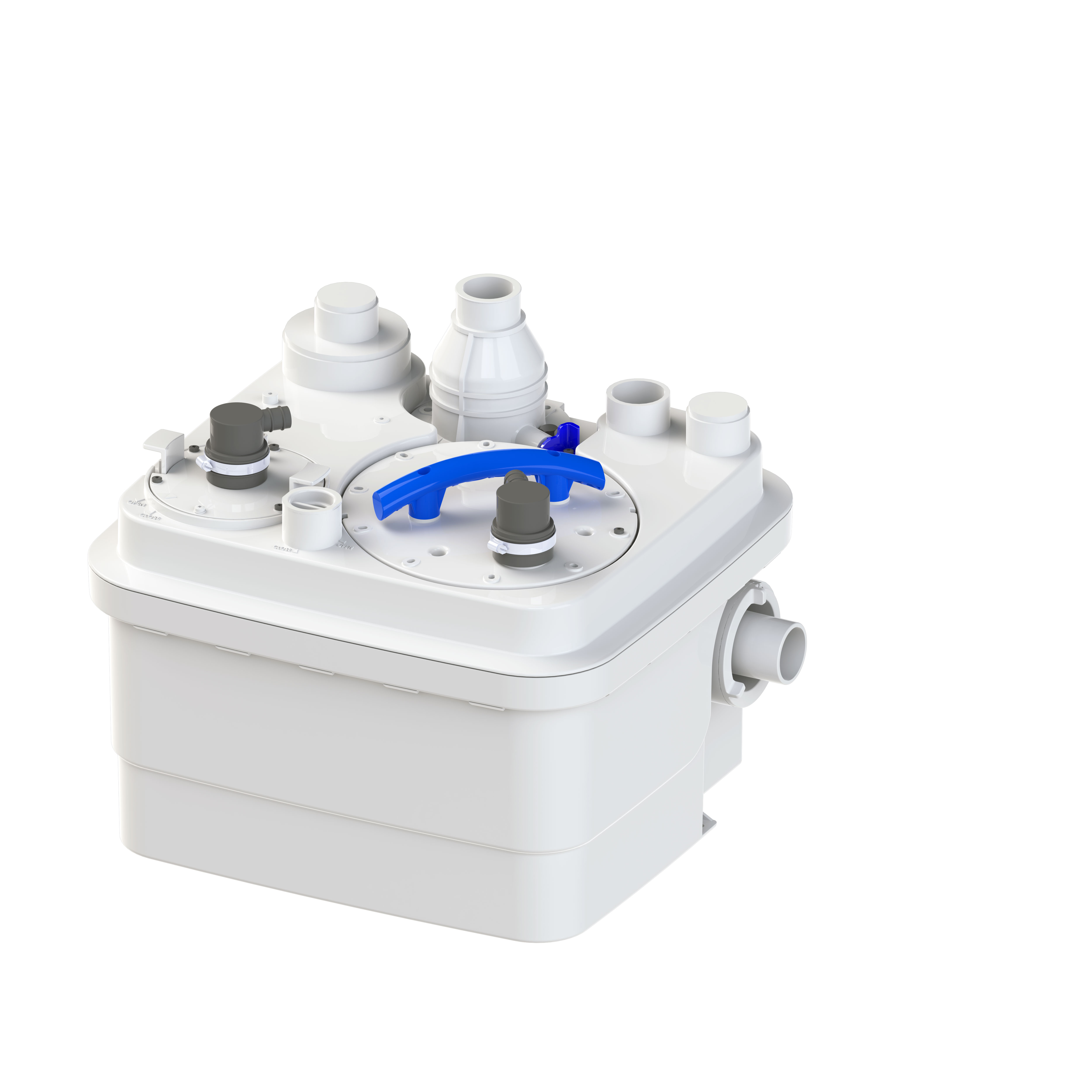

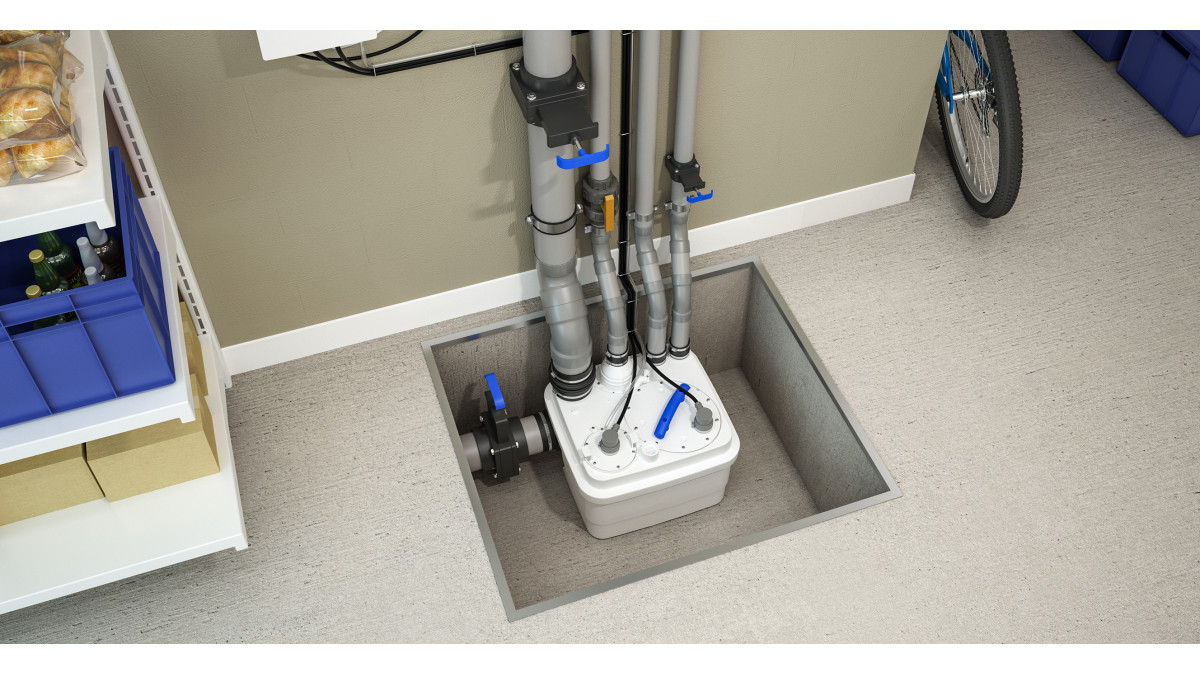

Sanicubic 1 WP Lifting Station (Waste Pump)
Description

Saniflo lifting stations are a waste water pump allowing sanitary fixtures to be installed in areas where access to waste water pipes and conventional gravity drainage is limited, increasing the design possibilities for installing additional bathrooms and kitchens in existing houses (basements, extensions) or in minor dwellings.

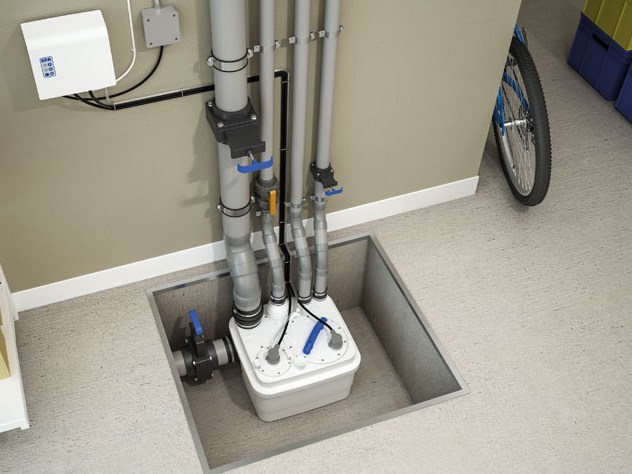

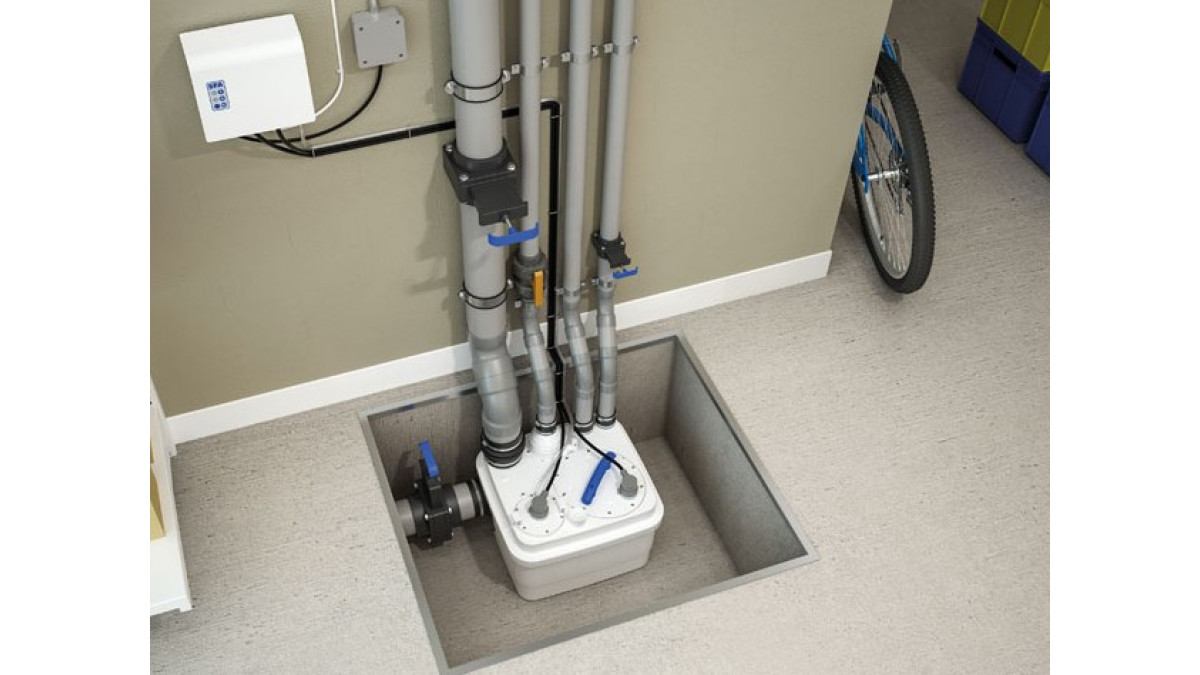

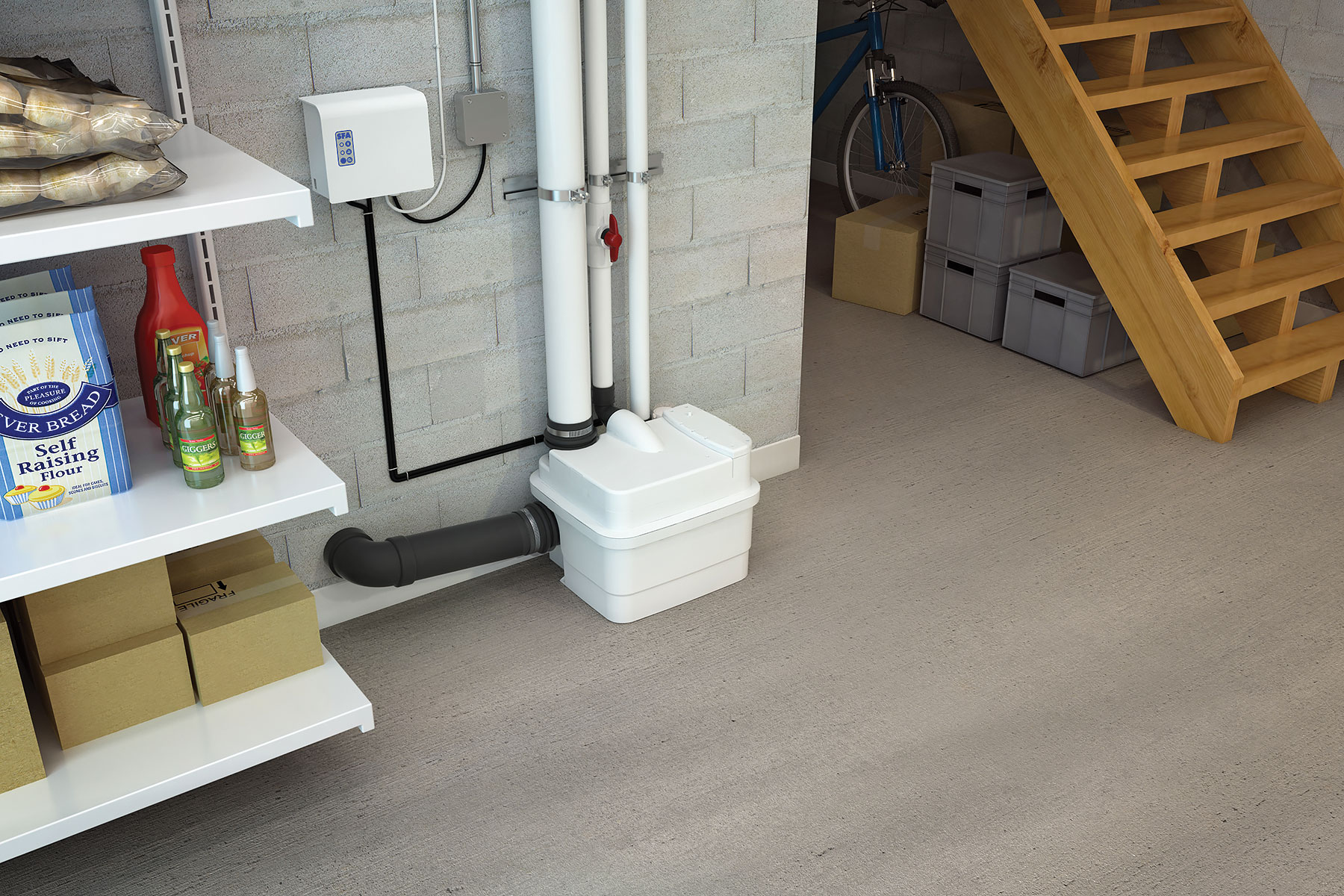

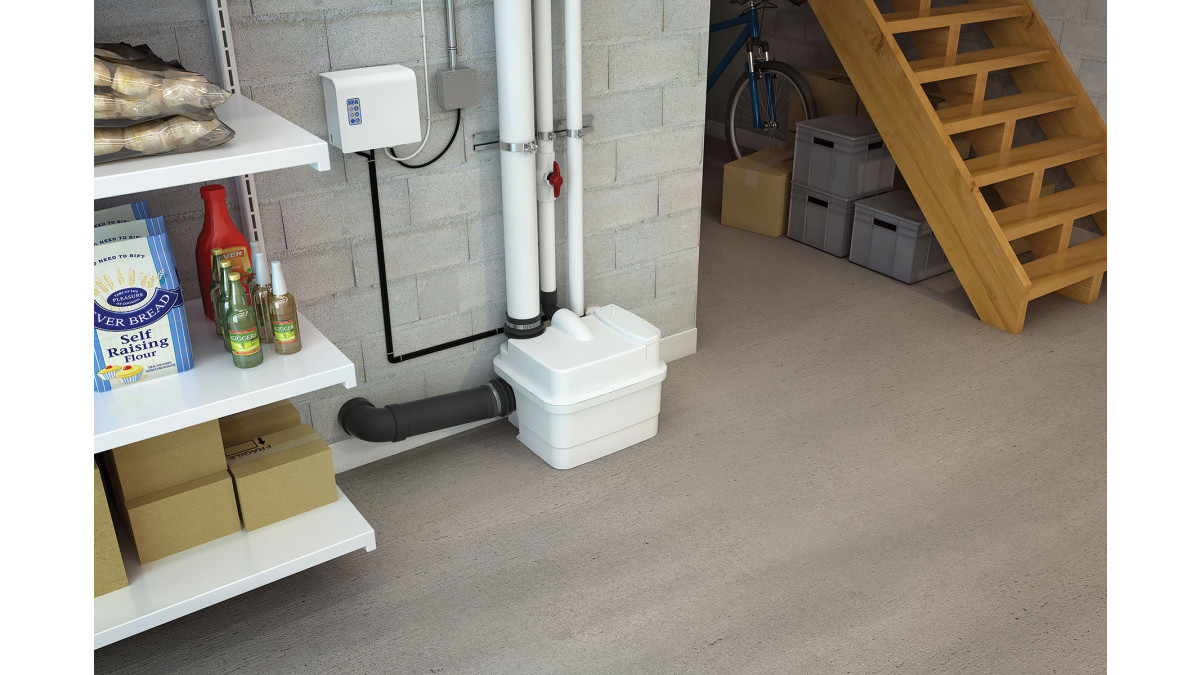

The Sanicubic 1WP is a 'whole of house' solution suitable for a small dwelling (1-2 people) catering for multiple appliances such as toilets, showers, baths and basins, sinks and dishwashers. Waste water can be drained by gravity to a pump at the lowest point of the house in order to pump it away to the main waste line.  This pump allows creative design as one is not constrained by having to use existing drainage pipes.

Key Features
  • Whole house solution — bathroom and kitchen fixtures
  • Small residential use — granny flat, minor dwellings
  • All in one pump, grey water and waste/black water
  • Can pump up to 11m in height
  • Uses small diameter pipe work, can be concealed behind walls, underfloors or in ceiling spaces
  • Acoustic rating — 75dB
  • Features integrated non-return valves
  • Reinforced waterproofing to IP68
Scope of Use

Sanicubic 1 WP is an ideal 'whole of house' solution:

  • Suitable for toilet, shower, basins, laundry, kitchen sink, dishwasher, and washing machine
  • Residential applications — extensions, basements, minor dwellings, granny flat
  • Small dwellings, suitable for 1-2 people
  • Applications located below the main sewerage line
  • Can pump up to 11m in height, or 1m height with 100m length — refer to data sheet
  • IP rating (68) means pump can be installed in exterior locations or in areas prone to flooding for short periods

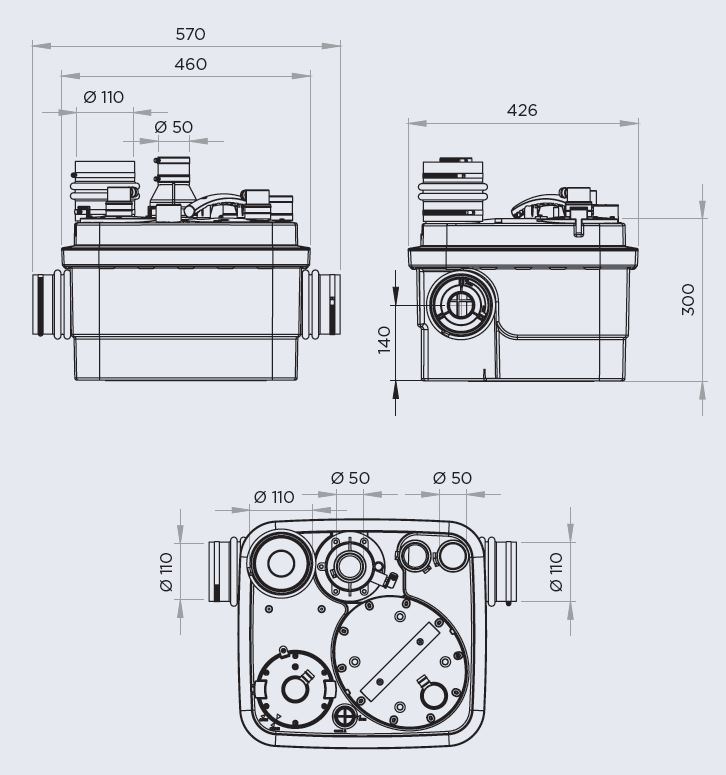

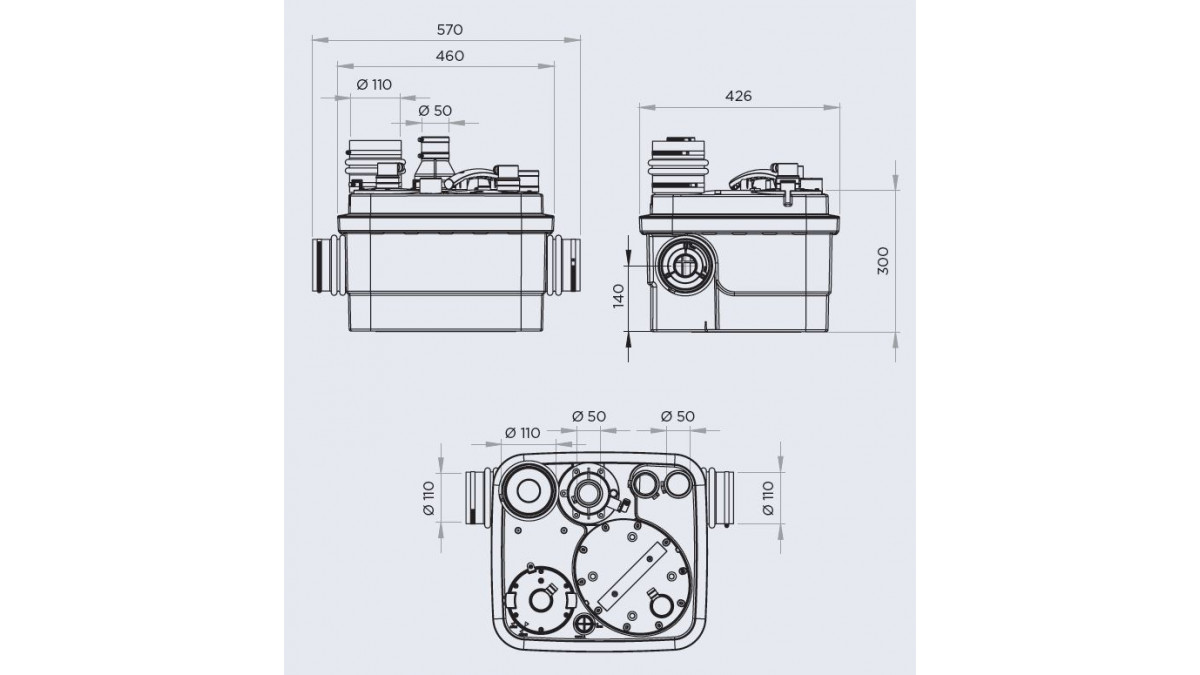

  • Inlet pipework: 40/50/100/110mm. Discharge pipework: 40mm
Limitations on Use
  • Surface of pump must be located minimum 300mm below the lowest fixture (normally the shower)
  • Must be installed by a licensed plumber
  • Not suitable for larger applications or public facilities, refer to Sanicubic 2VX. See Product Selection Grid
  • Do not dispose of any solvents, paints, caustic soda, acids, citrus oil products or other chemicals in sanitary fixtures connected to this device
  • Do not dispose of foreign objects, feminine hygiene products, wet wipes or paper hand towels in the system
  • The pump is not intended for the disposal of hair, adequate filtration must be installed for hair wash basins upstream of the pump in the form of a dedicated hair trap
  • Excessive grease build up due to lack of servicing may void warranty
Statement of Building Code Compliance

In opinion of Saniflo this product meets the following provisions of the NZBC:

  • Clause B2 DURABILITY: Performance B2.3.1 [a] not less than 50 years, and B2.3.1 [b] 15 years, and B2.3.2. The Sanicubic 1 WP meets this requirement
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Sanicubic 1 WP meets this requirement and does not present a health hazard to People
  • Clause G13 FOUL WATER: Performance G13.3.1 and G13.3.2. Sanicubic 1 WP meets these requirements

Producer Statement available. Project specific compliance statements are available on request.

In-Service History

The Saniflo SFA Company is the inventor of the macerator concept and Sanicubic WP1 has been successfully deployed around the world for the past 10 years.

Other Performance Attributes
  • Watermark Certificate WMTS 106: 2019 Certificate number: 23048
  • This product meets AS/NZS 3500.1:2018
  • Acoustic rating —75dB
  • IP Rating 68 — pump can be positioned outside the building, can tolerate submersion for short periods — refer to Saniflo for technical clarification

Warranty Conditions

  • This device is guaranteed for 2 years from the date of purchase and is subject to:
    • NZ CG Act 1993 if used for personal, domestic or household use
    • Installation in strict compliance with manufacturers installation manual in the product box
  • This warranty does not cover the following which remain at the risk, cost and responsibility of the owner:
    • Costs of travel and transport or insurance of the device
    • Device installed outside 50km radius from an accredited Saniflo Agents Office
    • All Costs necessary to safely access and replace the installed device including costs of additional plant equipment, materials. handling and/or safety equipment
  • This warranty is not transferable
  • This warranty shall not apply when the product is sold or installed outside New Zealand

Note:

  • Do not dispose of products such as solvents, paints, caustic soda, acids, citrus oil products or other chemicals in sanitary fixtures connected to this device
  • Do not dispose of foreign objects, feminine hygiene products, wet wipes or paper hand towels in the system
  • The pump is not intended for the disposal of hair, adequate filtration must be installed for hair wash basins upstream of the pump in the form of a dedicated hair trap
  • Excessive grease build up due to lack of servicing may void warranty
Documents
Drawings on BIMobject
Data Sheet: Sanicubic 1 WP
Installation: Sanicubic

Eng 03.17

Saniflo Design Guide
Saniflo Product Selection Grid

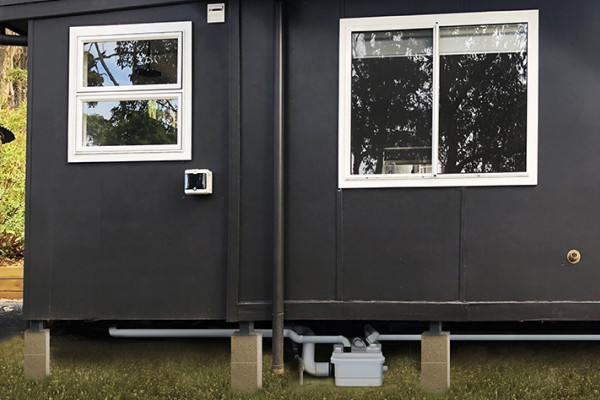

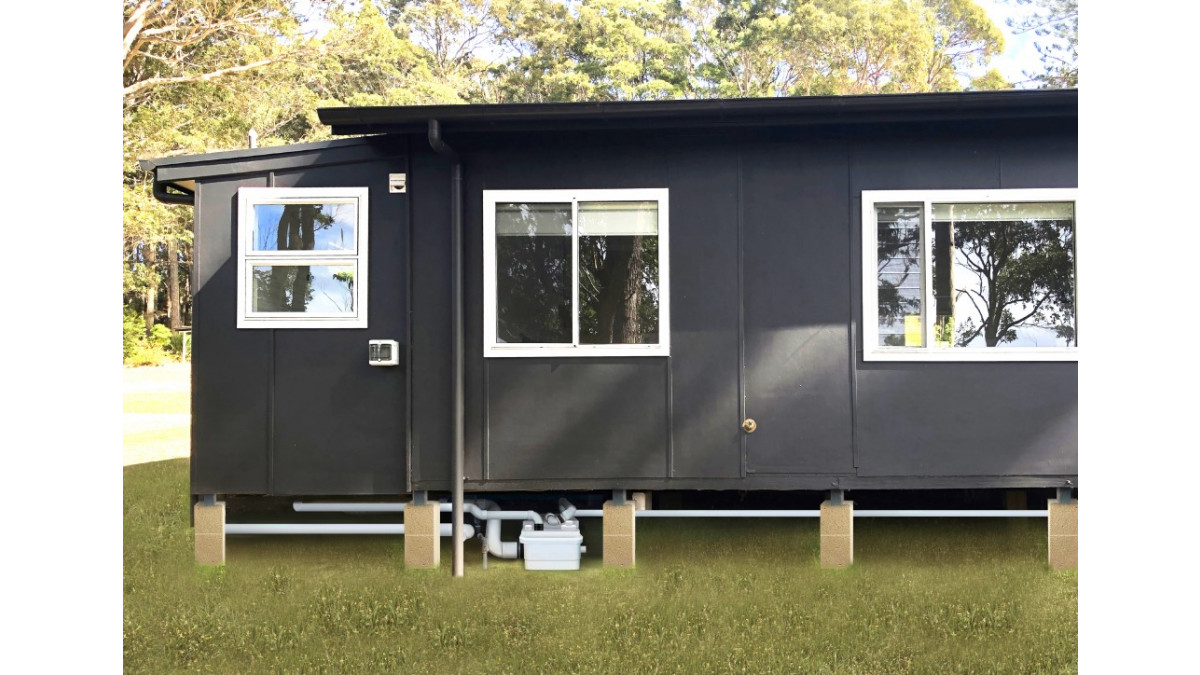

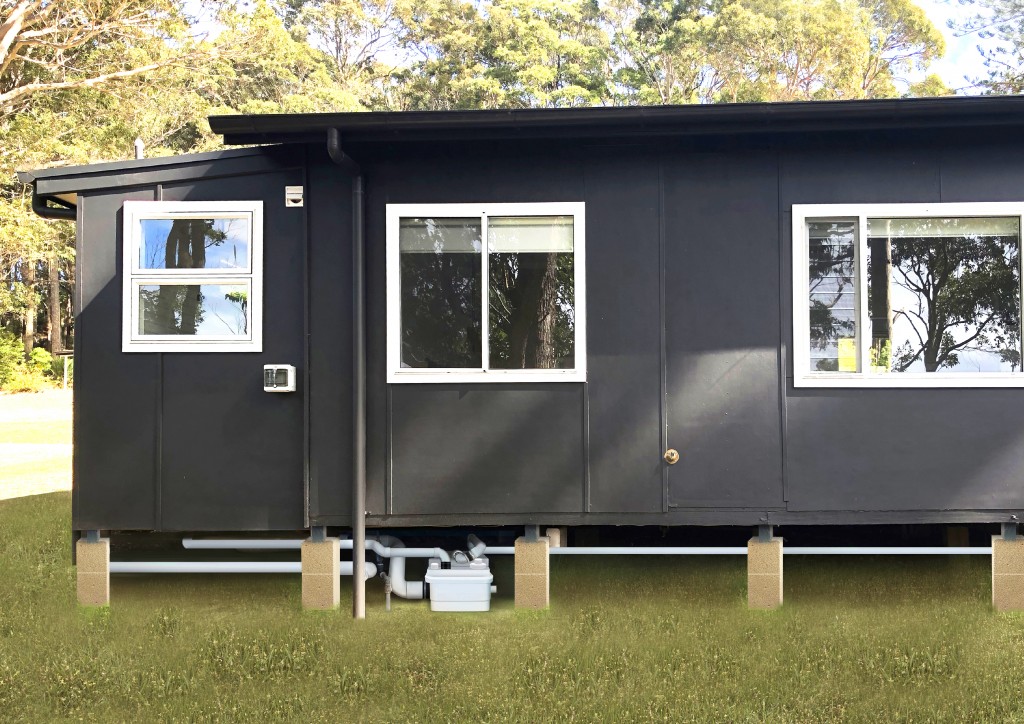

Case Study: Luxury Beach Cabins
