Sanicom 1 Lifting Station
Description

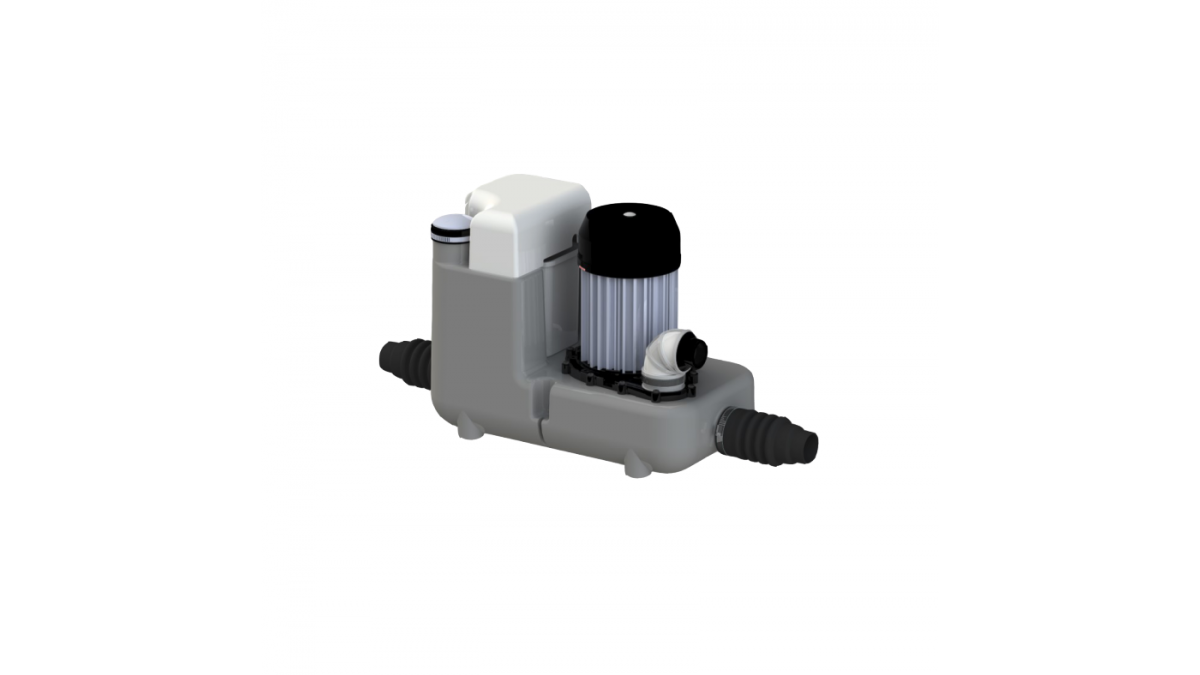

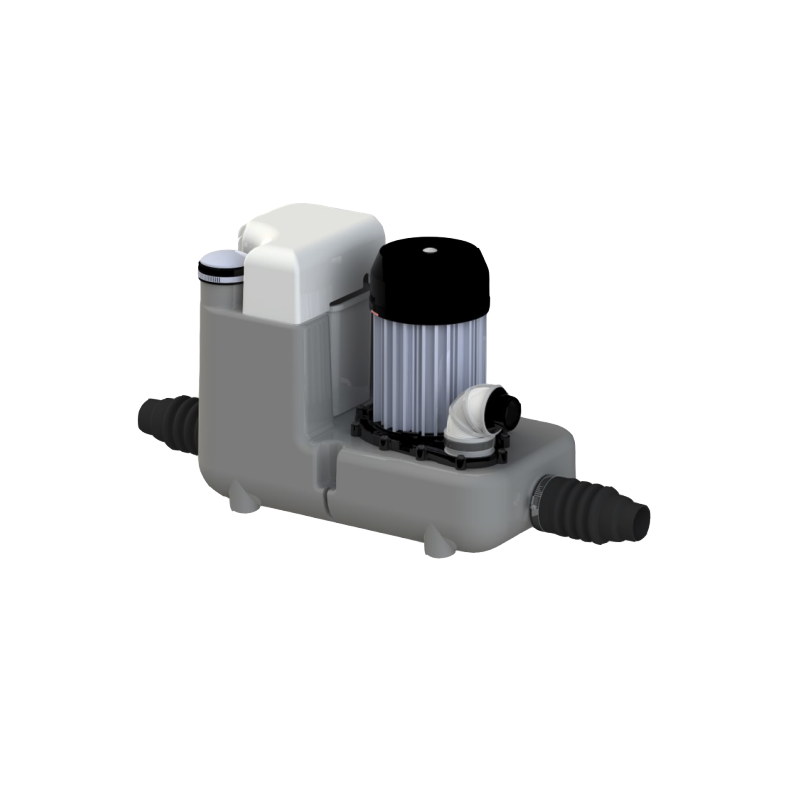

Sanicom 1 is a powerful lifting station for grey water in busy commercial environments. Suitable for multiple connections including a basin, bath, shower, sink, dishwasher and washing machine.

Saniflo lifting stations are a waste water pump allowing sanitary fixtures to be installed in areas where access to waste water pipes and conventional gravity drainage is limited, increasing the design possibilities for installing additional facilities in existing buildings.

Key Features
  • Compact design

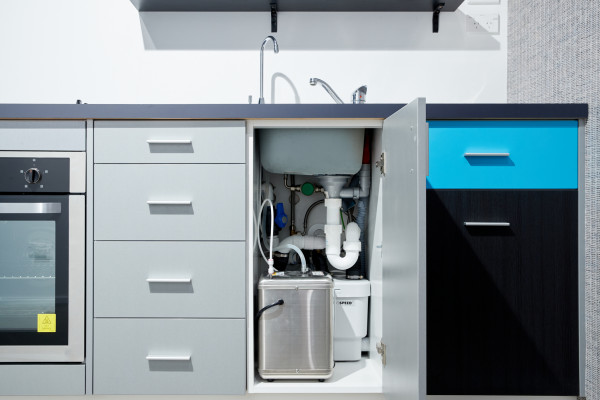

  • Ideal for commercial applications e.g. cleaning stations, catering sinks
  • Heavy duty, safe, reliable pump
  • Unit operates automatically
  • Two 50mm side entries and air vent/connection to exterior
  • Working temperature of 35°C — will handle up to 90°C for short periods (5 minutes)
  • Factory pre-mounted non-return valve (supplied)
Scope of Use

Sanicom 1 is a compact, heavy duty lifting station for high volume grey water environments:

  • Ideal for commercial applications e.g. cleaning stations, catering sinks

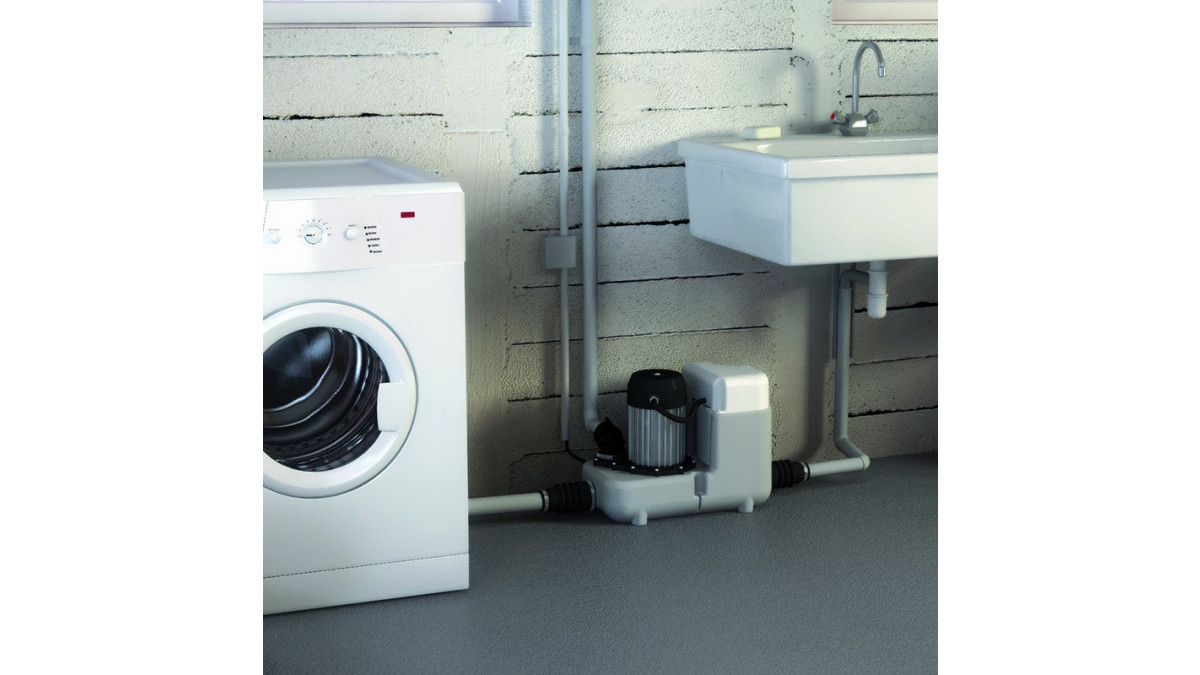

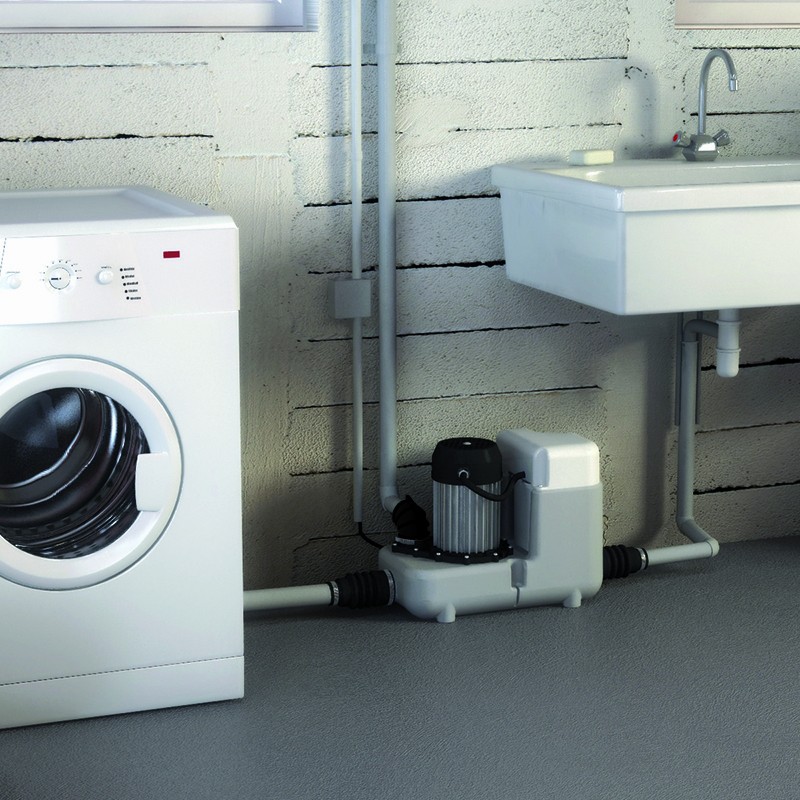

  • Suitable for multiple connections including a basin, bath, shower, sink, dishwasher and washing machine
  • Can pump up to 8m in height, or 1m height with 90m length — refer to data sheet

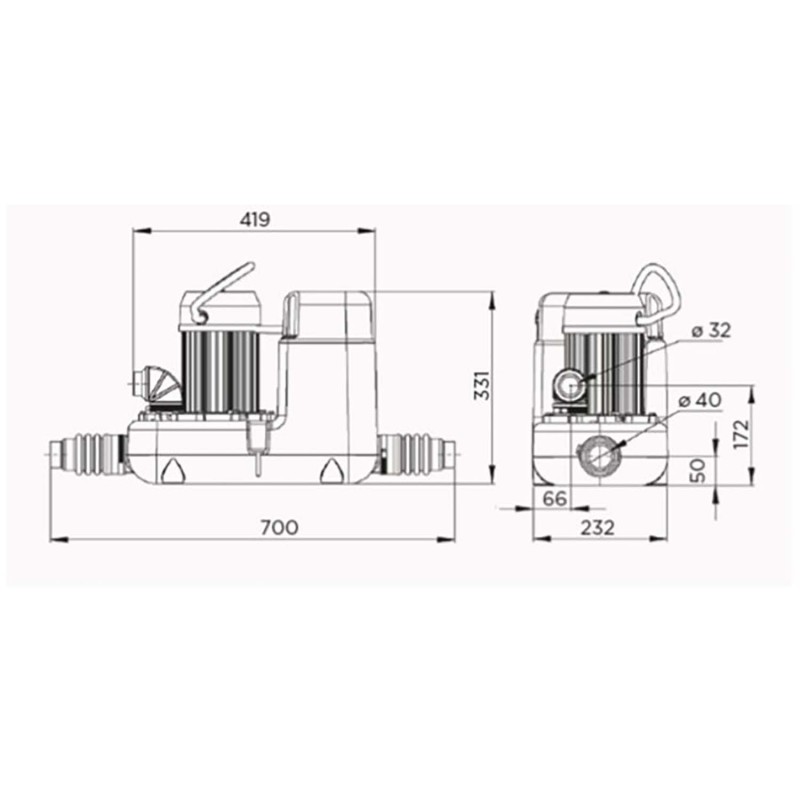

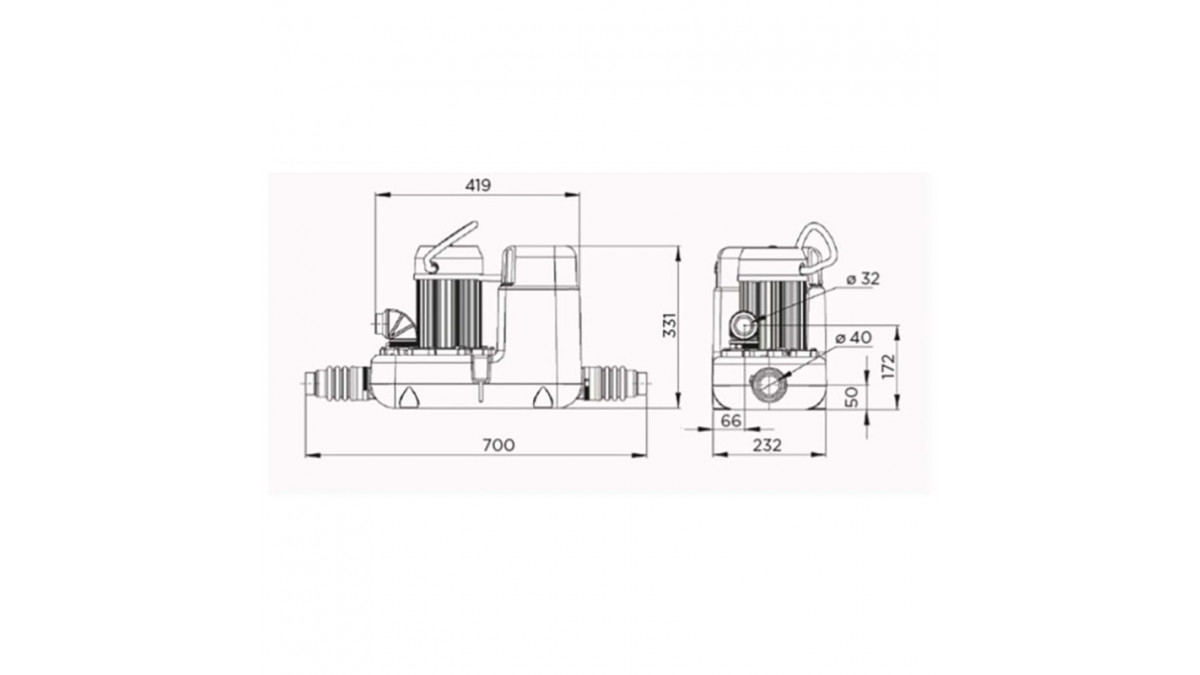

  • Inlet pipe: 50-65mm. Outlet pipe: 25mm
  • Two 50mm side entries and air vent/connection to exterior
Limitations on Use
  • Must be installed by a licensed plumber
  • Working temperature of 35°C — will handle up to 90°C for short periods (5 minutes)
  • All horizontal pipework requires a minimum of 1:100 fall
  • For other applications see Product Selection Grid
Statement of Building Code Compliance

In opinion of Saniflo this product meets the following provisions of the NZBC:

  • Clause B2 DURABILITY: Performance B2.3.1 [a] not less than 50 years, and B2.3.1 [b] 15 years, and B2.3.2. The Sanicom 1 meets this requirement
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Sanicom 1 meets this requirement and does not present a health hazard to People
  • Clause G13 FOUL WATER: Performance G13.3.1 and G13.3.2. Sanicom 1 meets these requirements

Producer Statement available. Project specific compliance statements are available on request.

In-Service History

The Saniflo SFA Company is the inventor of the macerator concept, with waste solution products successfully deployed around the world for the past 10 years

Other Performance Attributes
  • Watermark Certificate WMTS 106: 2019 Certificate number: 23048
  • This product meets AS/NZS 3500.1:2018
  • IP rating 44

Warranty Conditions

  • This device is guaranteed for 2 years from the date of purchase and is subject to:
    • NZ CG Act 1993 if used for personal, domestic or household use
    • Installation in strict compliance with manufacturers installation manual in the product box
  • This warranty does not cover the following which remain at the risk, cost and responsibility of the owner:
    • Costs of travel and transport or insurance of the device
    • Device installed outside 50km radius from an accredited Saniflo Agents Office
    • All Costs necessary to safely access and replace the installed device including costs of additional plant equipment, materials. handling and/or safety equipment
  • This warranty is not transferable
  • This warranty shall not apply when the product is sold or installed outside New Zealand
Documents
Drawings on BIMobject
Data Sheet: Sanicom 1
Installation: Sanicom 1

Eng 06.15

Saniflo Design Guide
Saniflo Product Selection Grid

Saniflo has a solution to overcome those situations where drainage is a problem — allowing freedom of design without the cost and inconvenience of moving sewer pipes.
