K-Flex Pipe Insulation
Description

K-Flex is suitable for all applications — both civil and industrial — that require the use of insulation material without neglecting the price/quality relationship, including refrigeration, air-conditioning, heating and plumbing, tanks, pipe fittings and water ducts.

Key Features

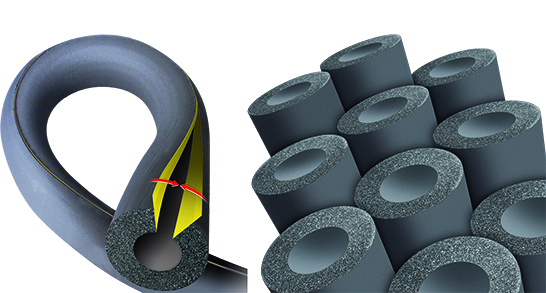

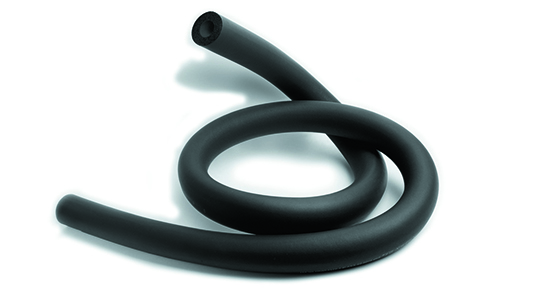

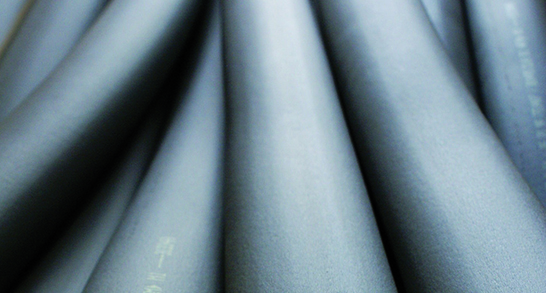

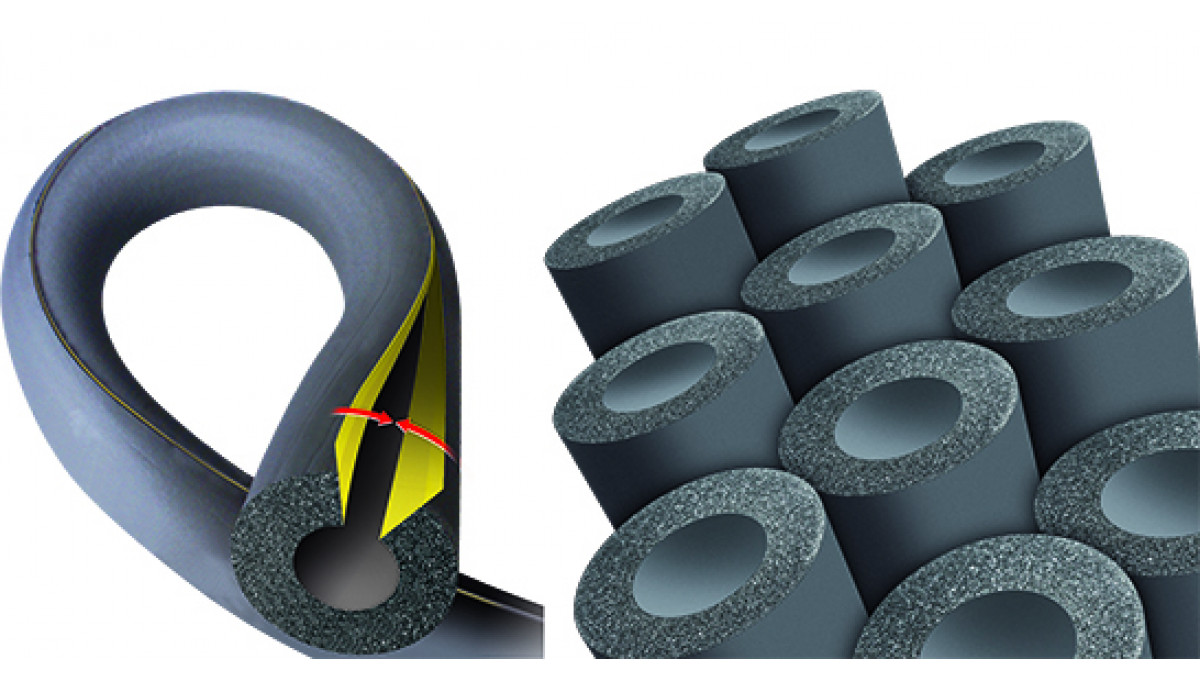

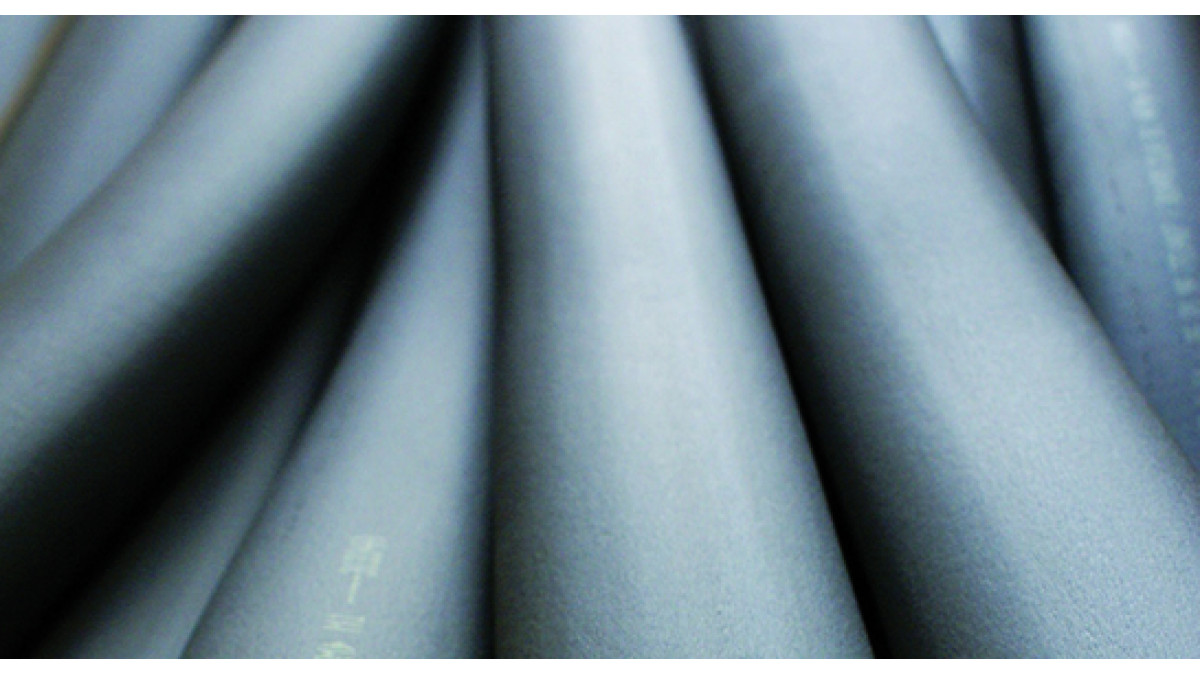

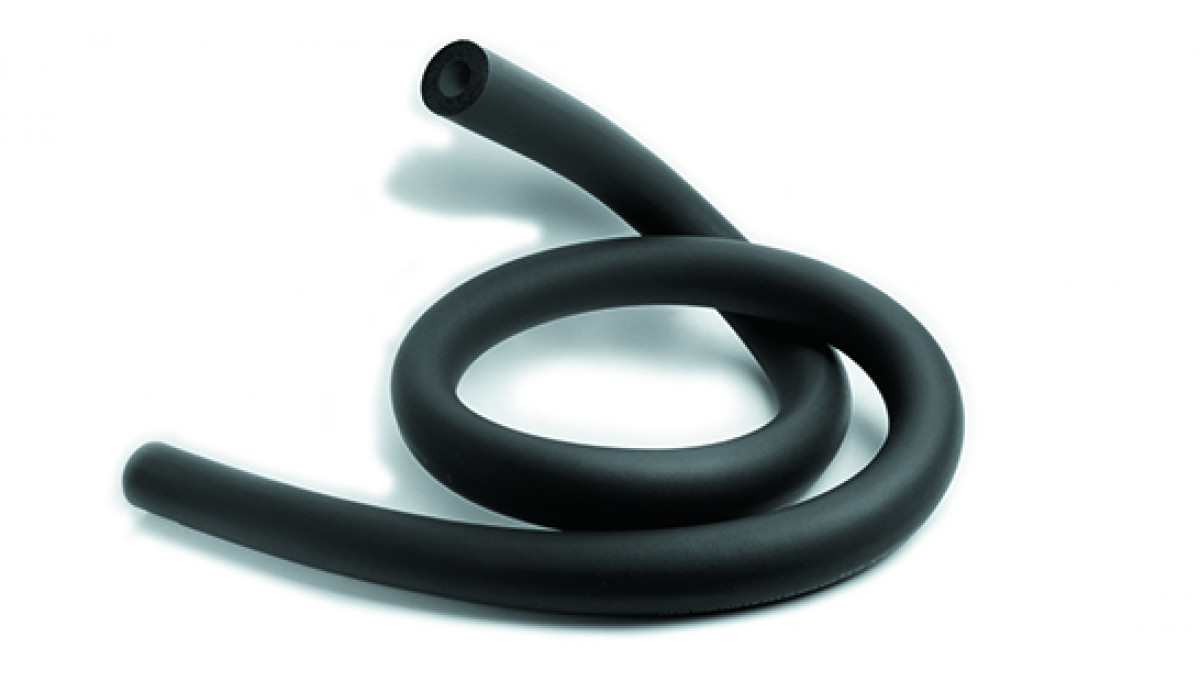

K-Flex Tubes:

  • Length: 2m
  • Thickness: from 6 to 60mm
  • Diameter: from 6mm to 210mm

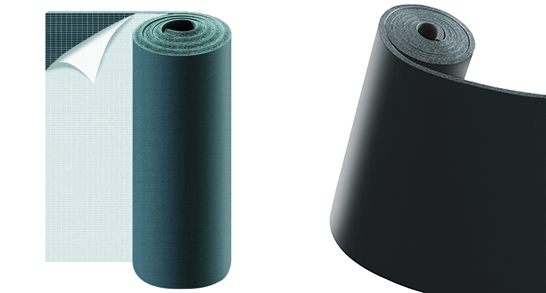

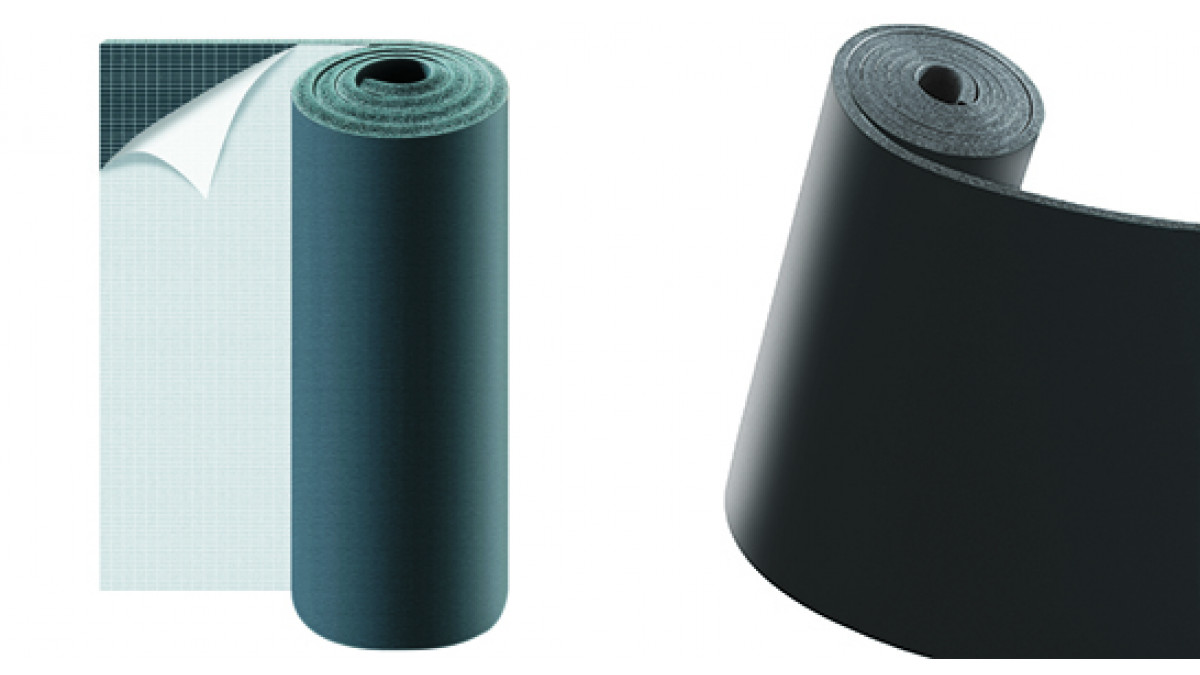

K-Flex Sheeting:

  • Designed for the insulation of large surfaces.
  • Easy application
  • Economical
  • Continuity of insulation
  • Guaranteed elasticity and stability
  • In all widths and thicknesses, standard (A) and self-adhesive (B).
  • Sheet 1000mm:(A) Standard Thickness: 6 - 60mm; (B) Adhesive Thickness: 6 - 50mm
  • Sheet 1500mm: (A) Standard Thickness: 6 - 60mm; (B) Adhesive Thickness: 6 - 50mm
Categories
Thermal Insulation
Ranges
Insulation
Scope of Use

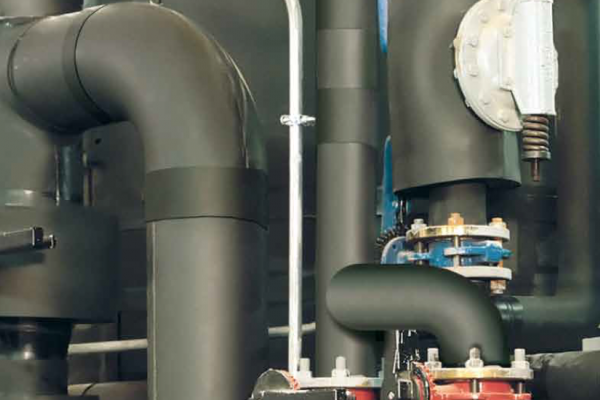

K-Flex Pipe Insulation is suitable for use with refrigeration, air conditioning, heating and plumbing, and oil and gas.

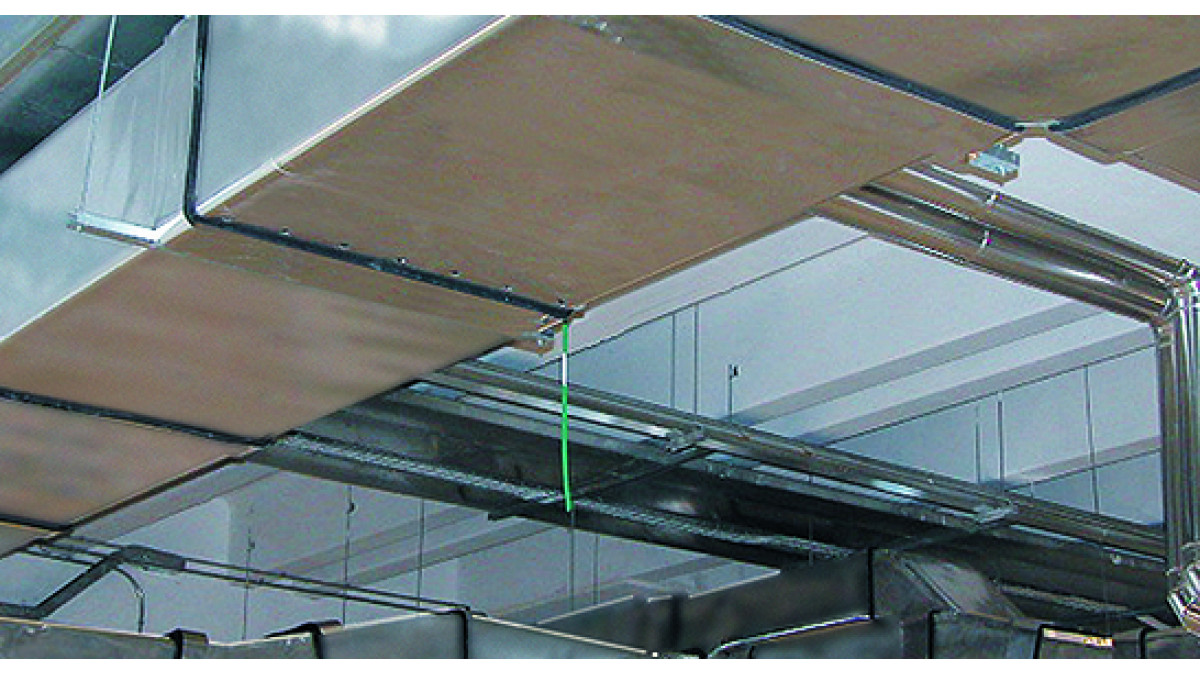

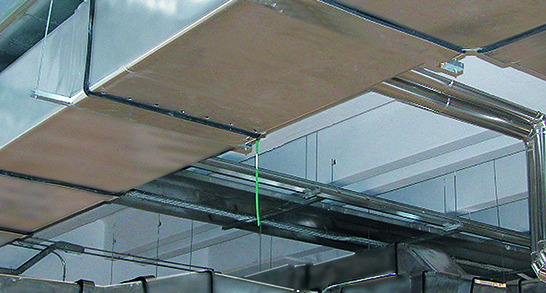

Standard sheets, 1000/1500mm in width, are ideal for the insulation of sheet aluminium ducts and pipes of large diameters.

Other Performance Attributes
  • DIN 1988/7 Supervised
  • HCFC - CFC Free
  • Fire: 1530.3 0003
  • Euroclasse B, s3, d0 EN 13501-1
  • Temperature Range: -200ºC max + 105ºC**
  • Corrosion Risk: DIN 1988/7*; pH neutral
  • Permeability μ EN 12086 (DIN52615): ≥ 10000***
  • Thermal Conductivity λ W/(mK) EN 12667 (DIN 52612) EN ISO 8497 (DIN 52613)

* Supervised by an independent institute

** for applications at a temperature lower than -50ºC, please seek advice from Potter Interior Systems (0800 768 837).

*** Controlled permeability μ ≥ 7000, Individual certification μ ≥ 10000

Documents
Data Sheet
