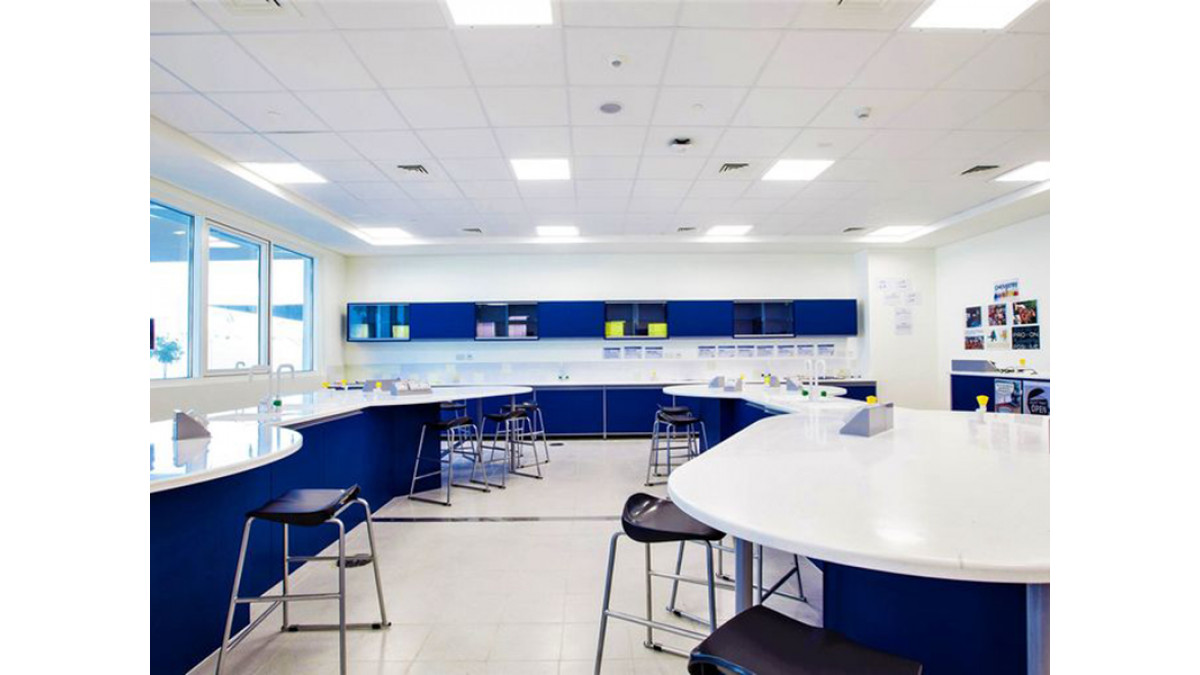

AMF Thermatex Star Ceiling Tile
Description

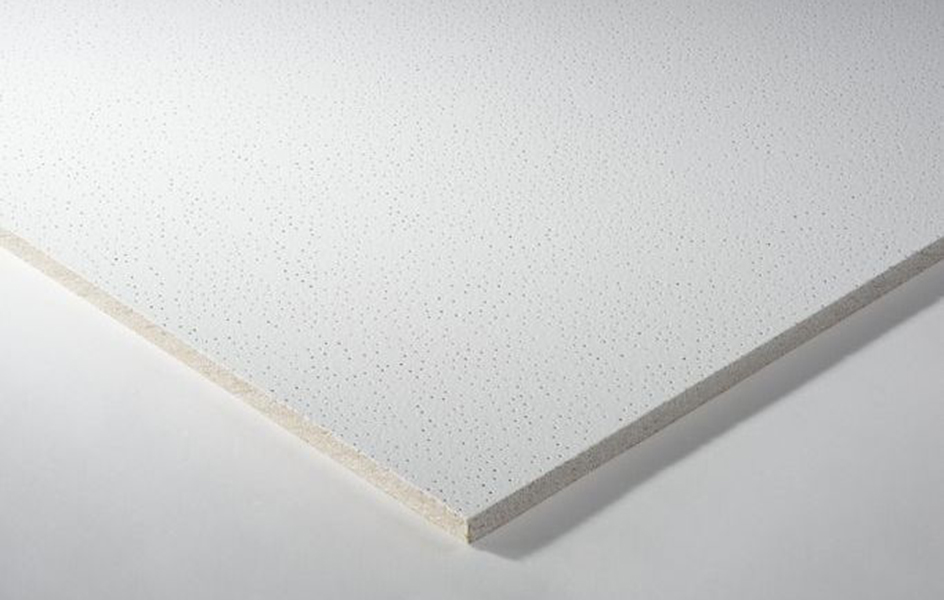

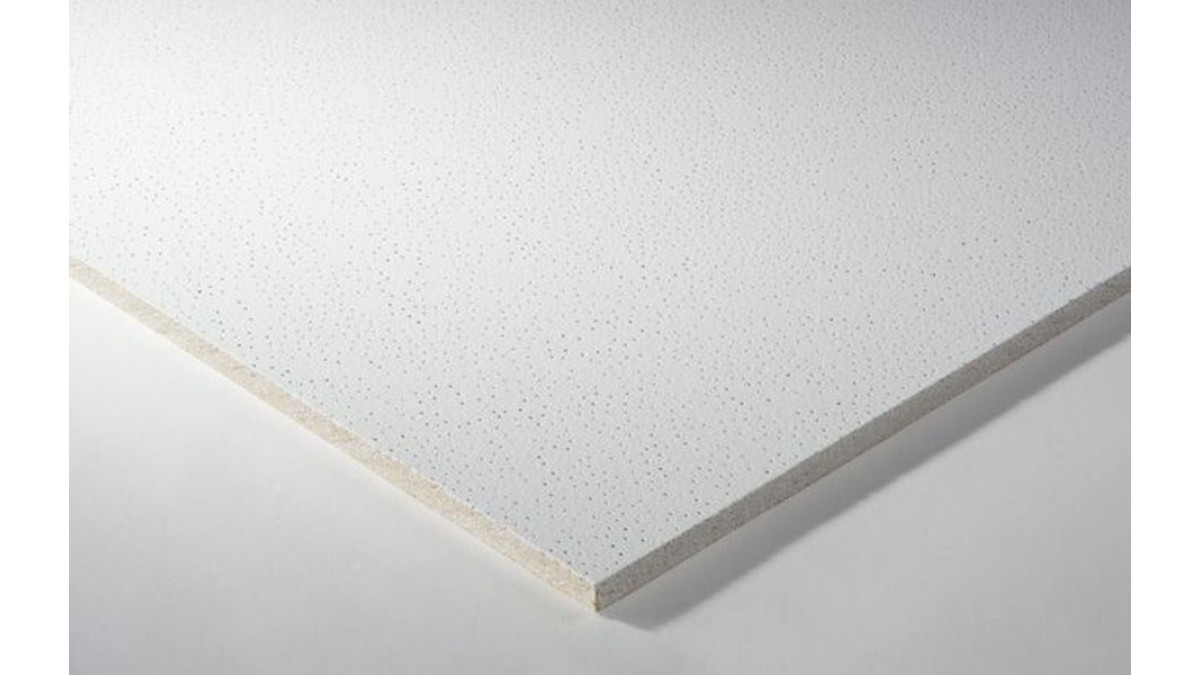

The fine perforation of Thermatex Star suspended ceiling tiles produce a remarkable acoustic performance and fulfil all fire protection requirements.

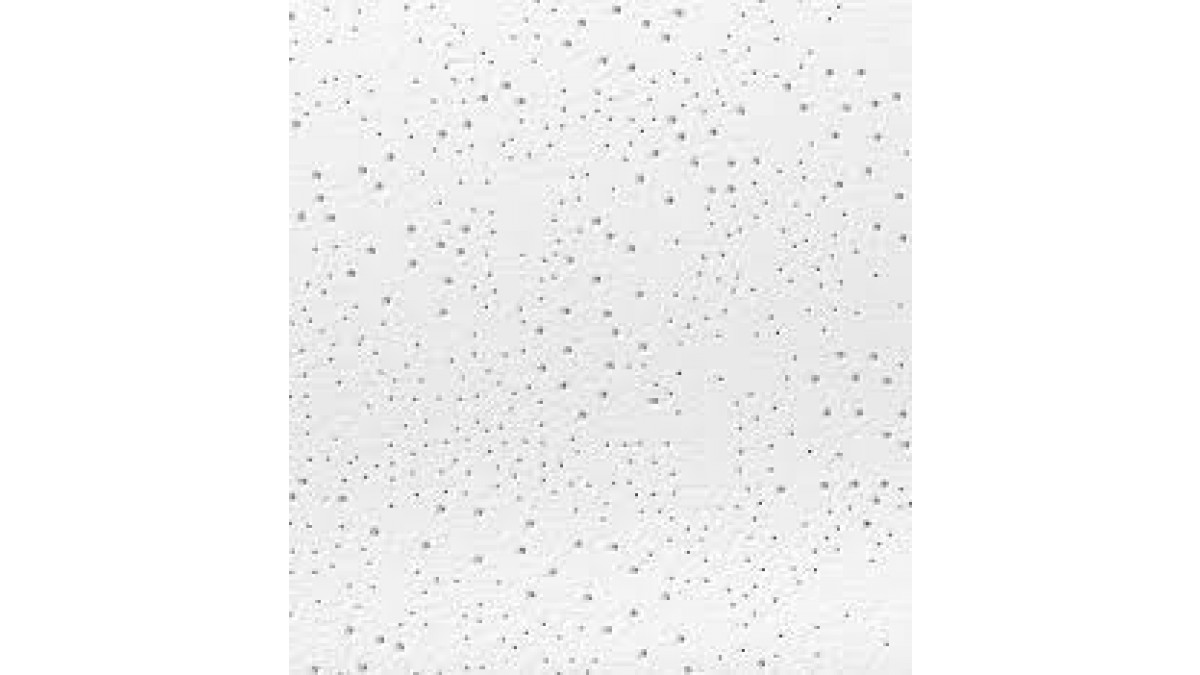

The very fine, irregular hole structure, on the otherwise smooth surface, forms an elegant ceiling design at an economical price.

The AMF Acoustic Range carries the Declare label.

Key Features
  •  System: Two way exposed grid system
  • Dimensions: 600 x 600 mm, 1200 x 600mm (other sizes available on request)
  • Thickness / weight: 15 mm (c. 3.6-3.8 kg/m²)
  • Colour: White similar to RAL 9010
  • Edge details:SK, VT 24 (other profiles available on request)
  • Sound absorption: NRC = 0.60 as per ASTM C 423
  • Sound attenuation:CAC = 34 dB as per ASTM E413-10
  • Sound insulation: Rw = 21 dB as per EN ISO 10140-2
  • Fire resistance:Group 1-S (as per ISO 5660 Parts 1 and 2)
  • Light reflectance: up to 90%
  • Thermal conductivity: λ = 0.052 – 0.057 W/mK as per DIN 52612
  • Humidity: up to 95 % RH



LBC Declare Red List Free
LBC Declare Red List Free
Scope of Use
  • Concealed system, tiles demountable / non-accessible
  • Exposed system, tiles demountable
  • Free span system, main runners exposed or concealed
  • Parallel Bandraster construction, cross tees exposed or concealed
Other Performance Attributes
  • The AMF Acoustic Range carries the Declare label.
  • Sound absorption: NRC = 0.60 as per ASTM C 423
  • Sound attenuation:CAC = 34 dB as per ASTM E413-10
  • Sound insulation: Rw = 21 dB as per EN ISO 10140-2
  • Fire resistance:Group 1-S (as per ISO 5660 Parts 1 and 2)
  • Light reflectance: up to 90%
  • Thermal conductivity: λ = 0.052 – 0.057 W/mK as per DIN 52612
  • Humidity: up to 95 % RH
Documents
Brand: AMF

A leading supplier of building materials to the commercial industry-including ceiling panels, aluminium partitioning, acoustic and thermal insulation, whiteboards and passive fire solutions.
