Viking Balustrade System
Description

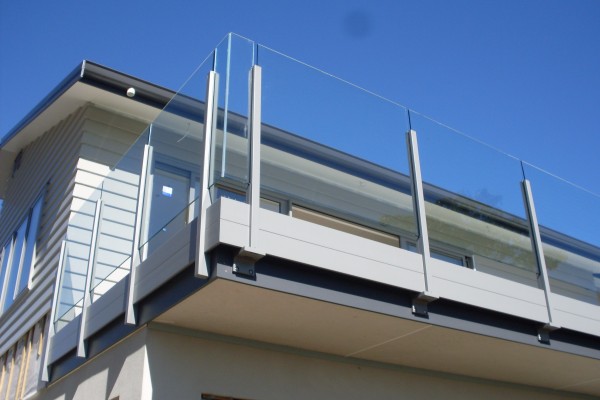

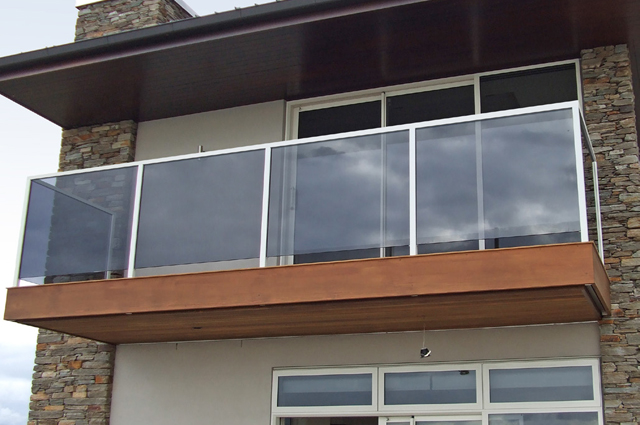

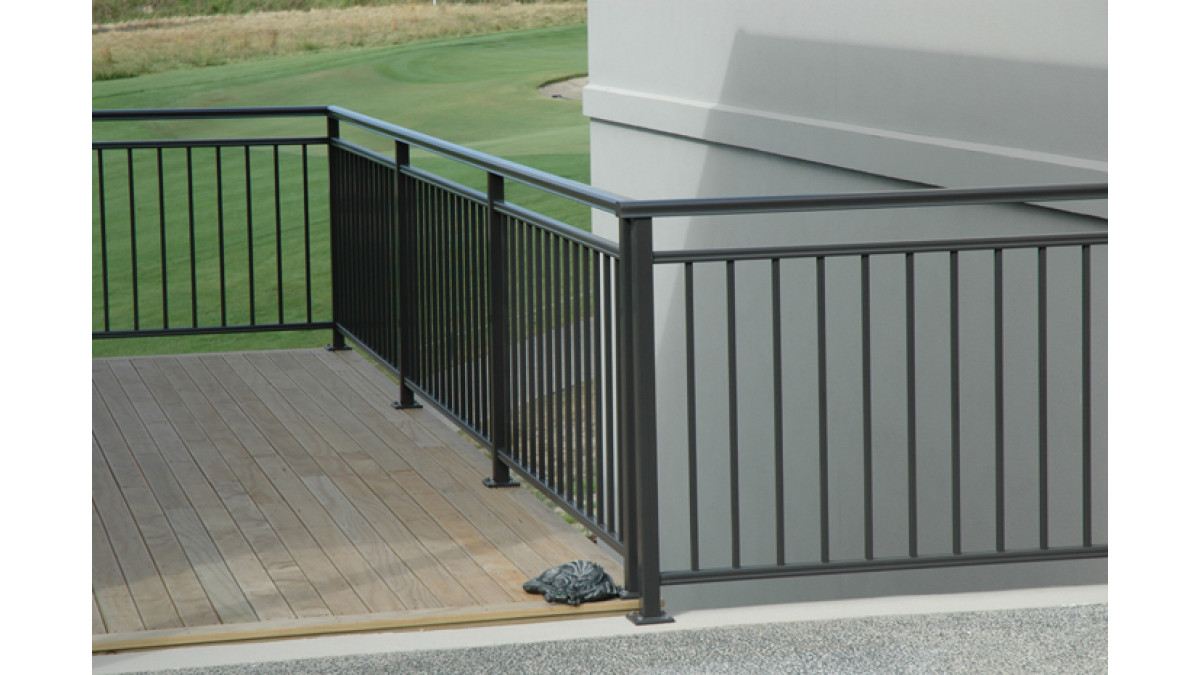

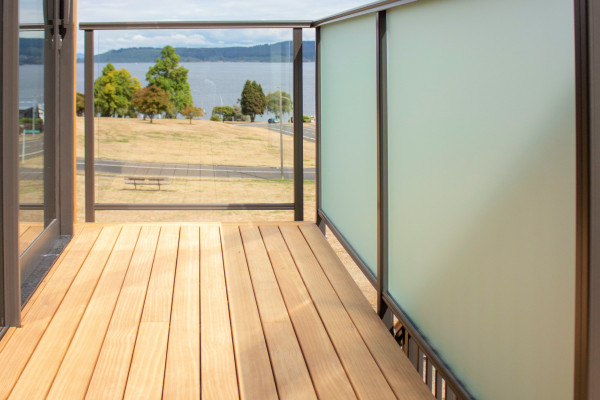

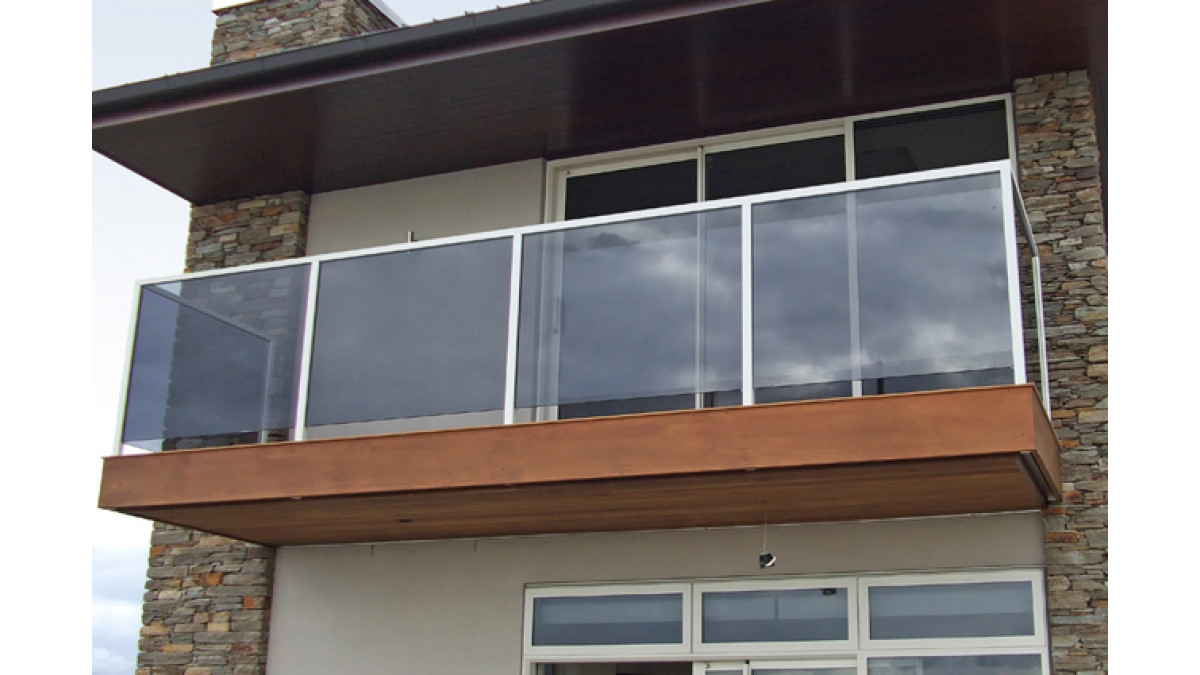

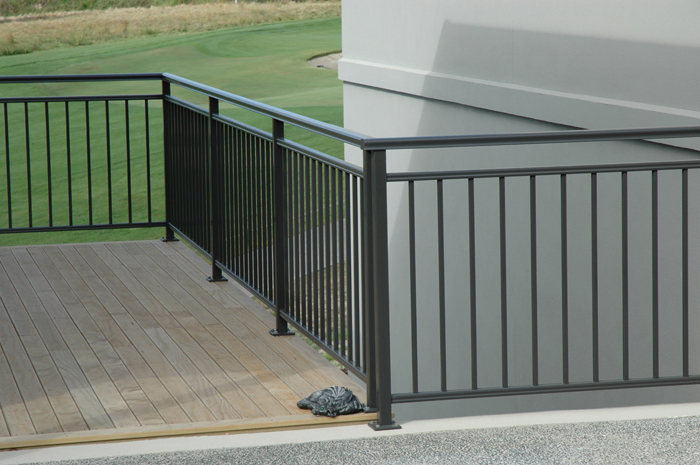

Viking balustrade is a powder coated aluminium and glass railing system that is part of the Juralco balustrade range. Options for Viking balustrade configurations include: full height glass, split rail glass, semi-frameless glass, full height baluster and split rail baluster.

Key Features
  • Recessed bottom rails locate and secure the balusters
  • Suitable for installation on waterproof/floating decks
  • Non-weld, hidden fastening system
  • Colour matched, cast aluminium end caps
  • Custom made to client specification
  • Wide choice of powder coat colours
  • 10 year warranty on standard powder coating
  • Choice of balustrade infill and fixing (top or face fixed)
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

Available in either toughened glass or vertical baluster infill, with four handrail styles and an interlinking rail for semi frameless glass installations, Viking is ideal for internal or external settings, including:

  • Decks

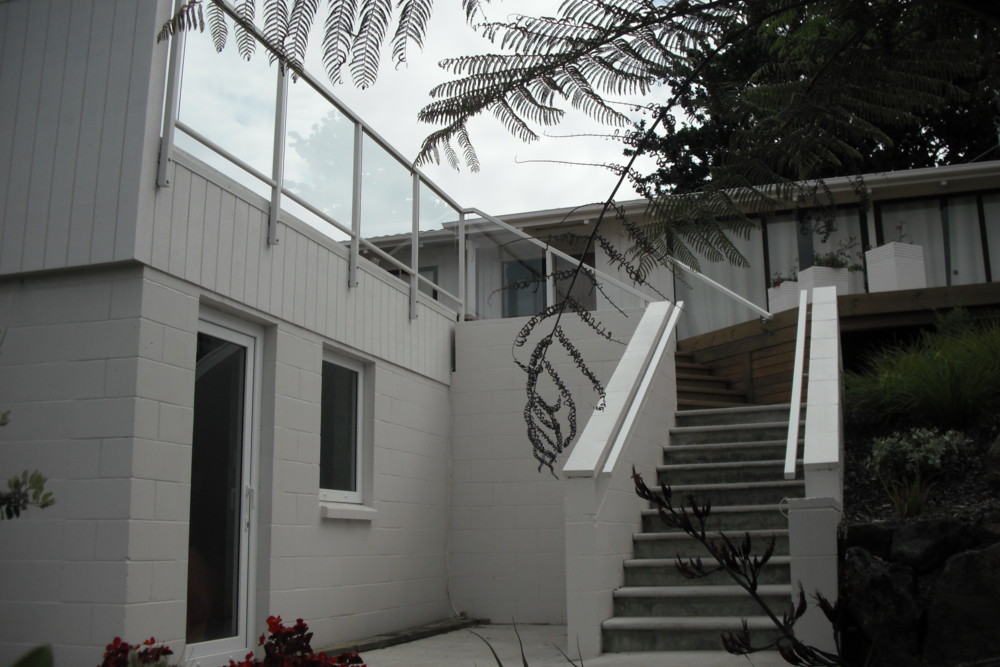

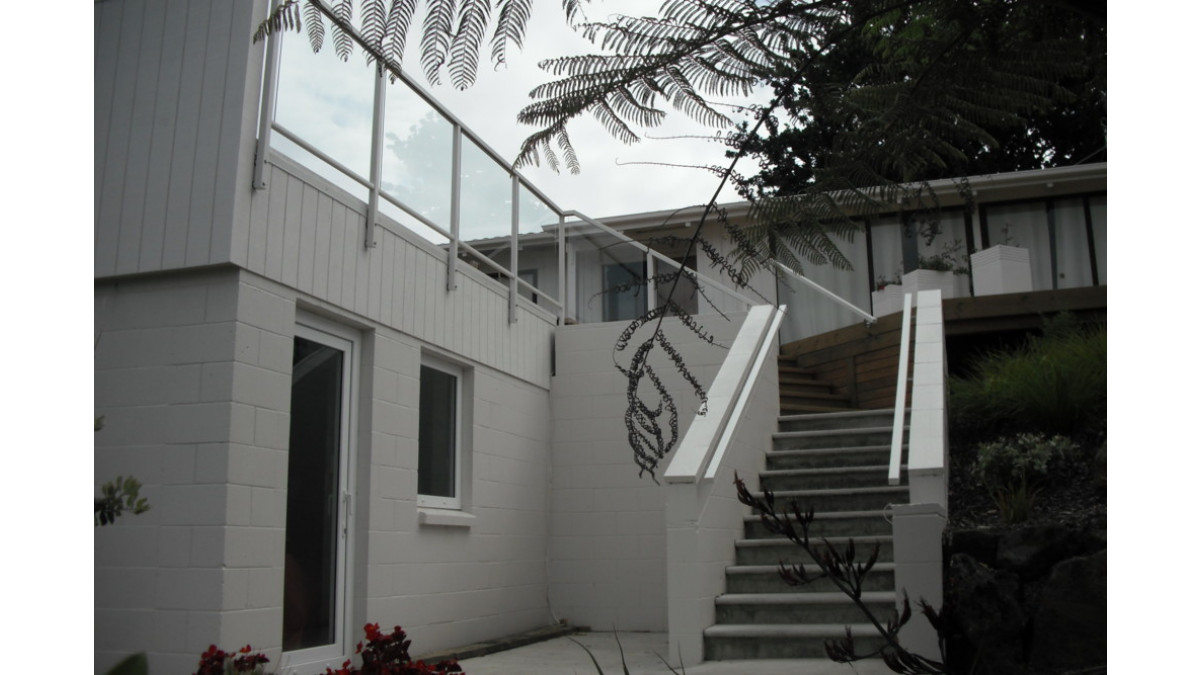

  • Stairways
  • Mezzanine floors
  • Balconies
  • Pool surrounds and matching gates

A specially designed aluminium gutter bracket is available for Viking balustrade installations onto waterproof and floating decks.

Limitations on Use
  • Viking Balustrade must only be installed in accordance with the Viking product manual
  • Any deviation from standard fabrication or installation must be accompanied by a site-specific PS1, with site-specific calculations and drawings. Juralco can help with arranging site specific producer statements
  • Glass must have a minimum strength of 100MPa
  • All glass edges must be polished

To protect installations within 100 metres of the high tide level, or above 3 storeys, Dulux Duratec powder coating must be specified. Duratec has been specially designed to withstand these harsh environments and has a 20-year warranty.

NZS 3604 Wind Zone Very High suitable
Very High WInd Zone
Statement of Building Code Compliance
  • Designed and manufactured in New Zealand, Viking balustrades have been engineered and tested to comply with NZ standards AS/NZS1170, NZS4223.3.2016, NZBC Clause F9 & 162C of the Building Act (pool safety legislation).
  • Viking balustrade is suitable for occupancy A, A Other and C3.
  • With a heavy duty base plate and secure interlocking posts for modular installation, Viking provides a high quality system.
Other Performance Attributes

All infill glass must be toughened safety glass, complying with AS/NZS 2208.

Dulux Duralloy powder coating is used for properties greater than 100m from high tide level, where AMA 2603 performance is required. Dulux Duratec powder coating must be used for properties greater than 10 metres and up to 100 metres from high tide levels where AMA 2604 performance is required.

  • 10 year warranty on standard powder coating
B1 Structure compliant
Structure
B2 Durability compliant
Durability
F2 Hazardous Building Materials compliant
Hazardous Building Materials
F4 Safety from Falling compliant
Safety from Falling
F9 Restricting Access to Residential Pools compliant
Restricting Access to Residential Pools
Documents
Dulux Registered Powder Coating Applicator
Accreditation
Warranty
Maintenance Instructions
Specification Clause (Masterspec)
Brochure
Colour Range
Additional Information
CAD/PDF Details
Full Product Manual
VIKING Face Fix Post to Concrete - M10 Studs
VIKING Face Fix Post to Steel + Timber Packers - M10 Bolts

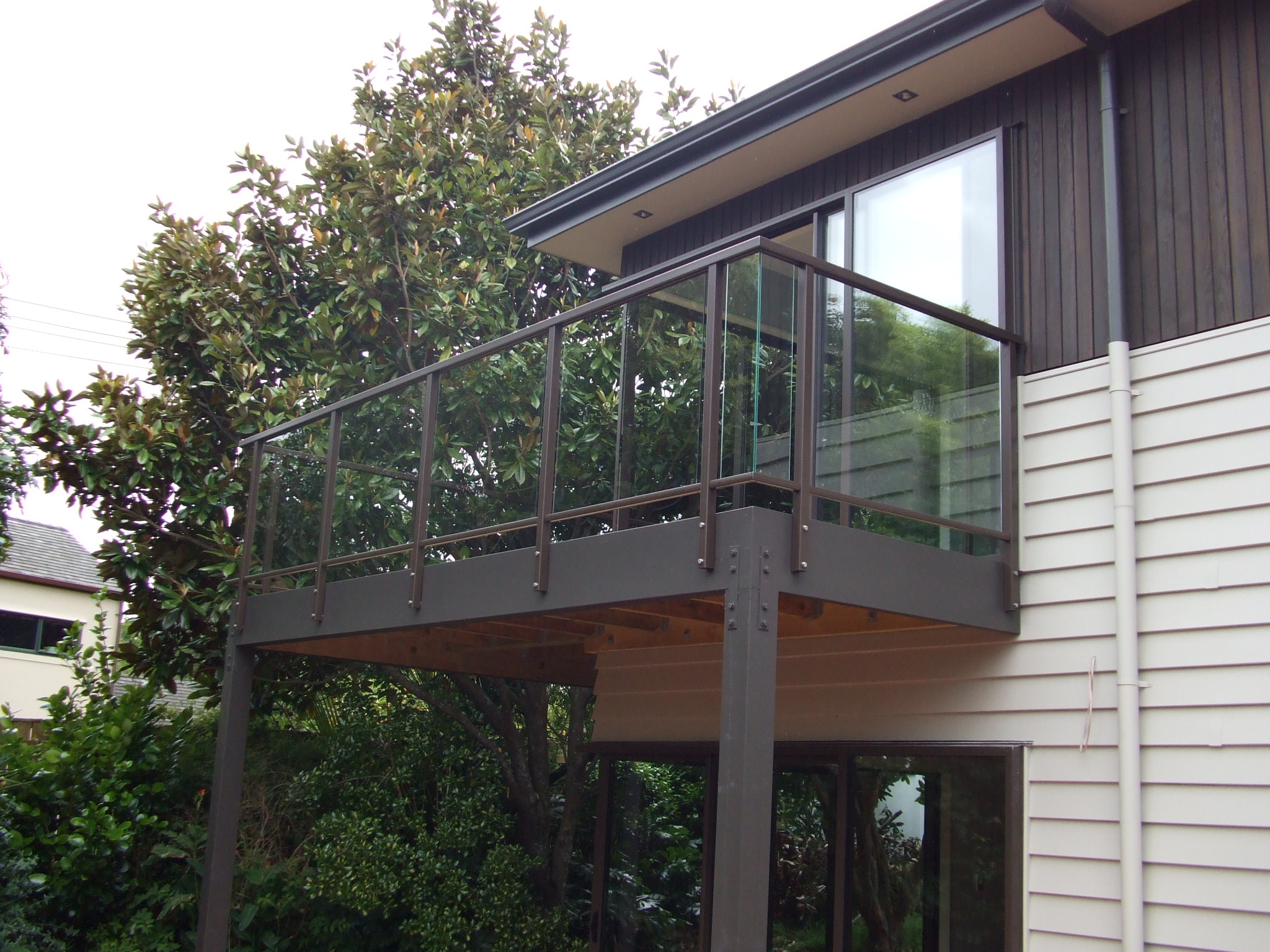

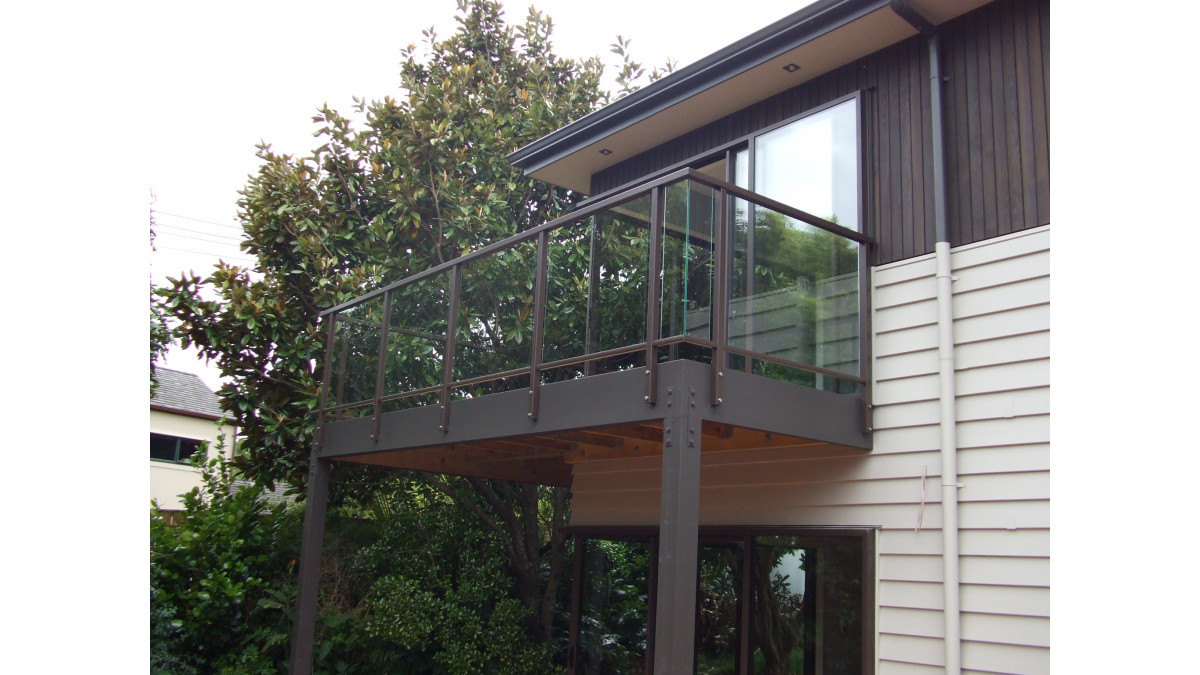

VIKING Face Fix Post to Timber Deck - M10 Coachscrews
VIKING Face Fix Post Waterproof Timber Deck - Spacers and M10 Coachscrews
VIKING Face Fix to Concrete - Gutter Bracket - M10 Studs
Viking Face Fix to Steel + Timber Packers - Gutter Bracket - M10 Bolts
VIKING Face Fix to Steel - Gutter Bracket - M10 Bolts
VIKING Face Fix to Timber - Gutter Bracket - M10 Bolts or Threaded Rod
VIKING Face Fix to Timber - Gutter Bracket - M10 Coachscrews
VIKING Face Fix Waterproof Timber Deck - Gutter Bracket - M10 Coachscrews.
VIKING Top Fix to Concrete - 4 hole Baseplate - M10 Anchors
VIKING Top Fix to Concrete -2 Hole Baseplate - M12 Studs

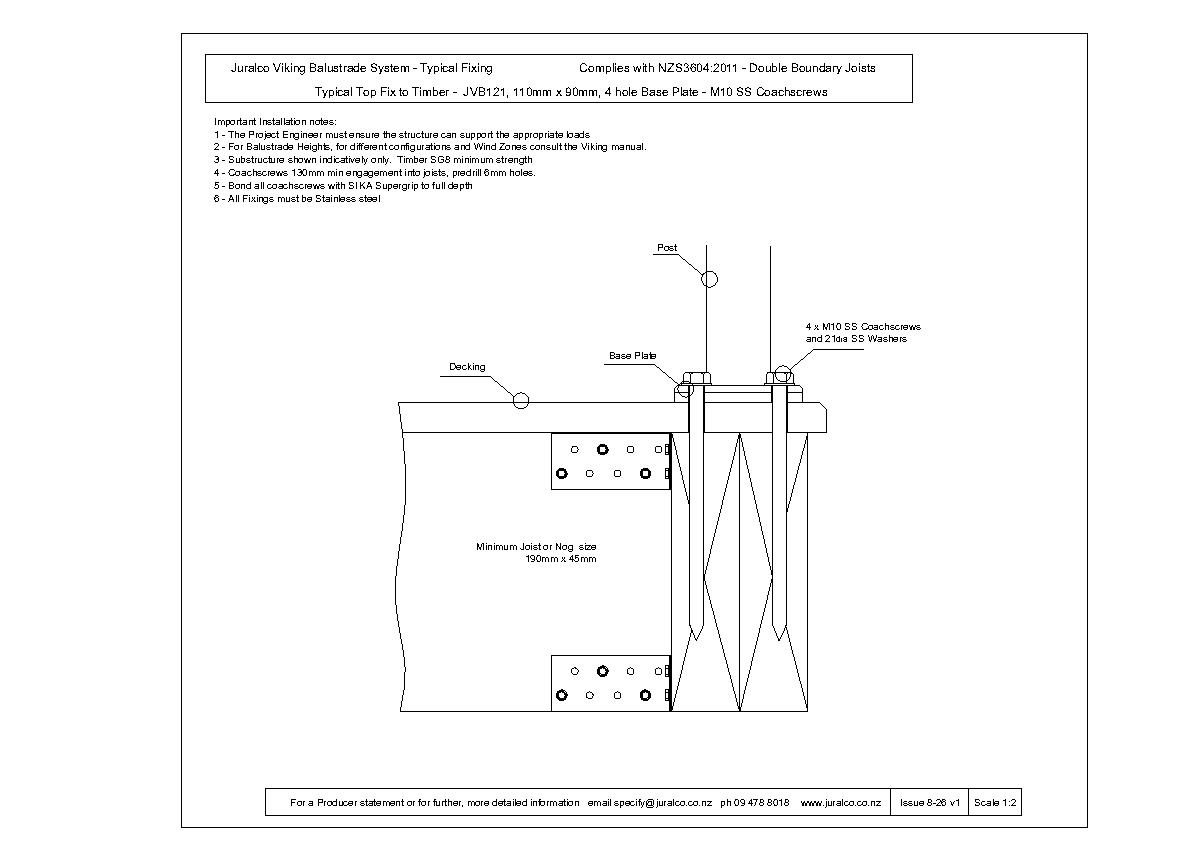

VIKING Top Fix to Timber - 4 Hole Baseplate - M10 Coachscrews
VIKING Top Fix to Timber Deck + Steel - 4 Hole Baseplate - M10 Bolts
