CL200 Hardware
Description

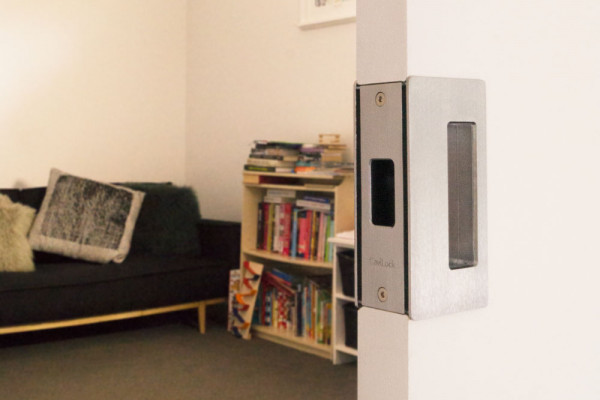

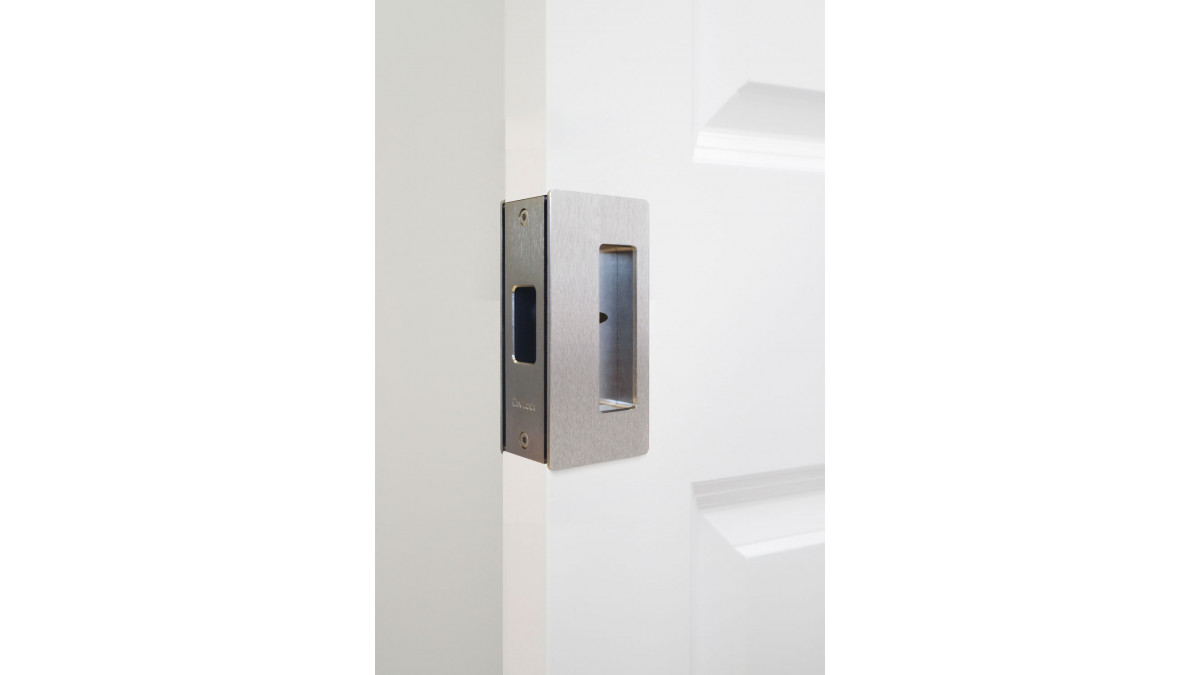

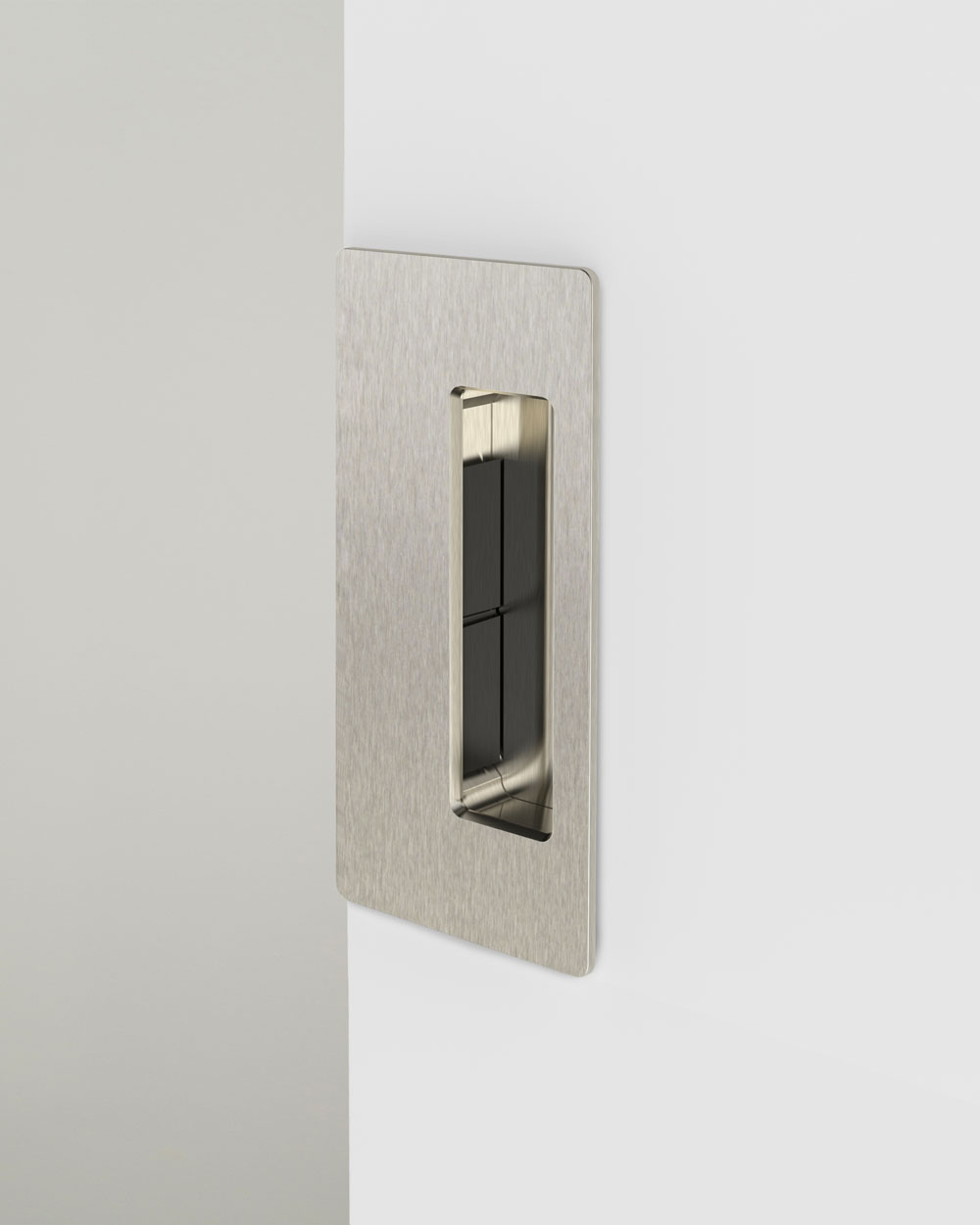

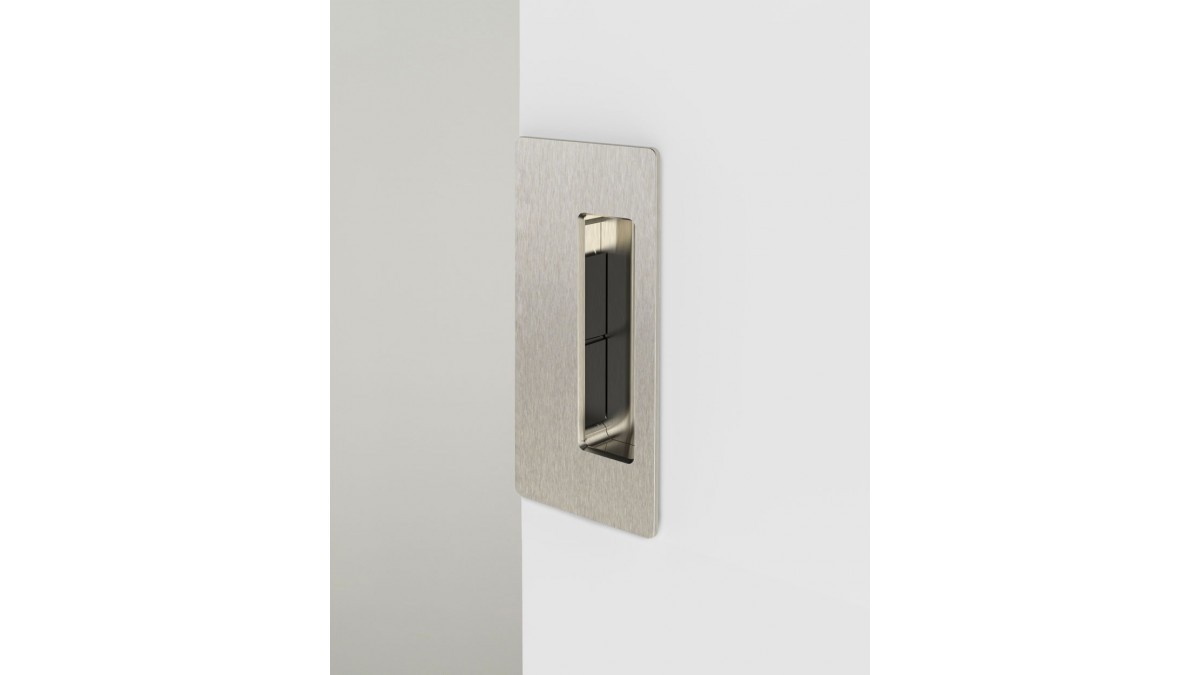

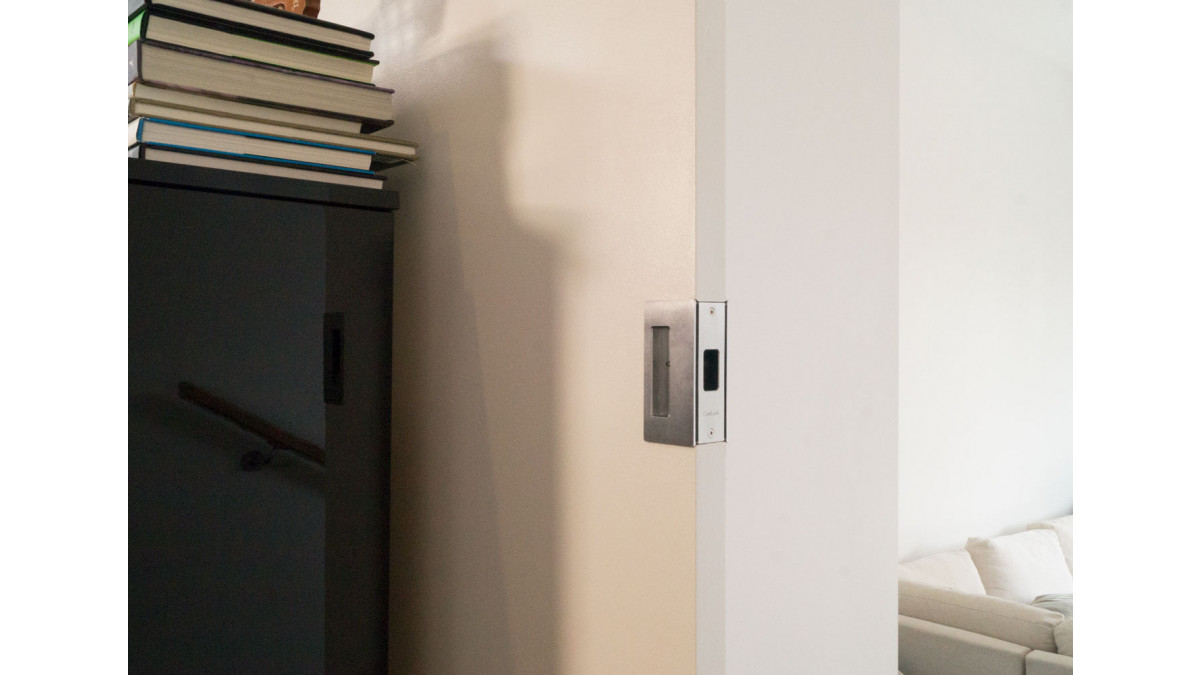

The CaviLock CL200 is a durable range of sliding door hardware suitable for residential, commercial, and hospitality applications. Privacy handles incorporate a patented magnetic system, ensuring a smooth latching action. The symmetrical design makes handing easy — simply ensure the side handles are the desired orientation when fitting.

Passage or privacy configurations are available for single or bi-parting doors.

Two face plate widths are available. Handles can be adjusted to suit doors from 33-40mm or 40-46mm thick.

  • Door Thickness: 33-46mm

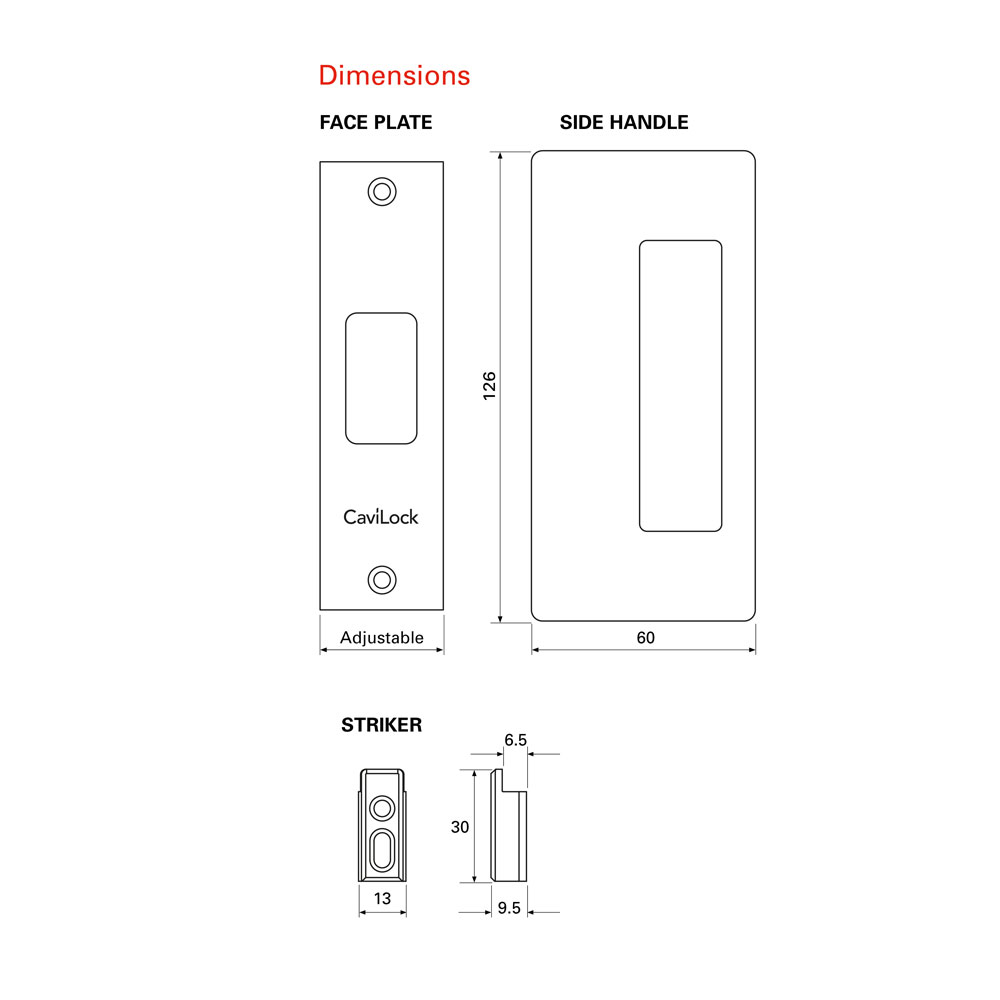

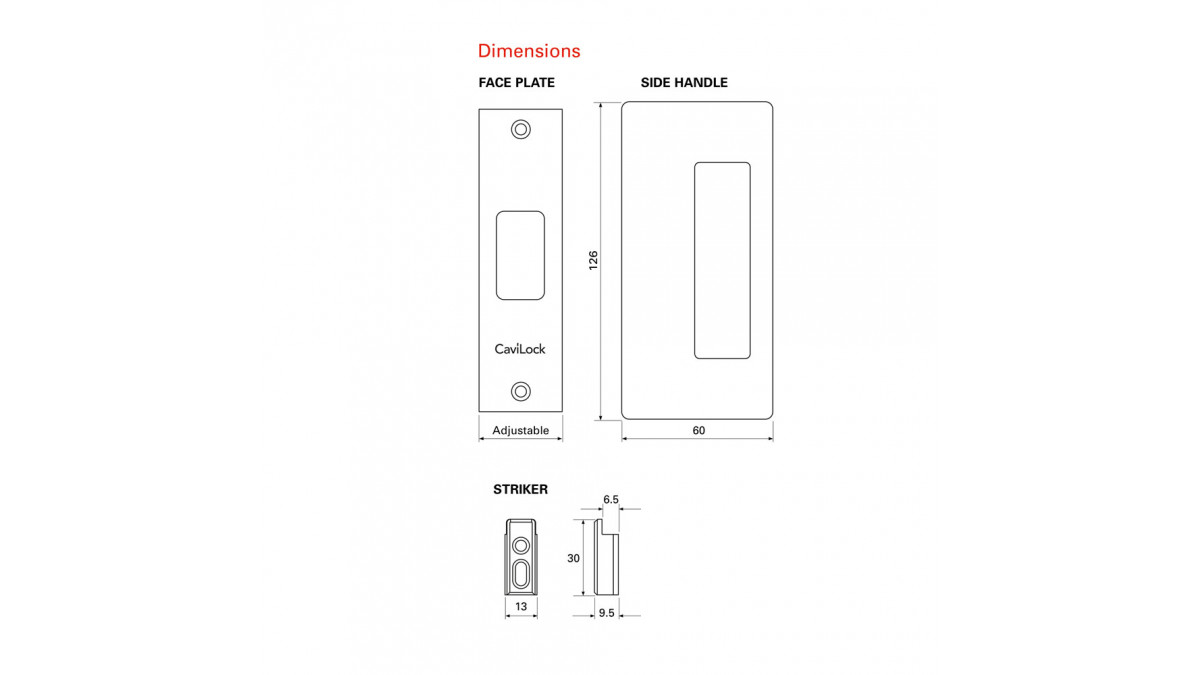

  • Size: 126 x 60mm
  • Suitable Door Types: Timber or aluminium

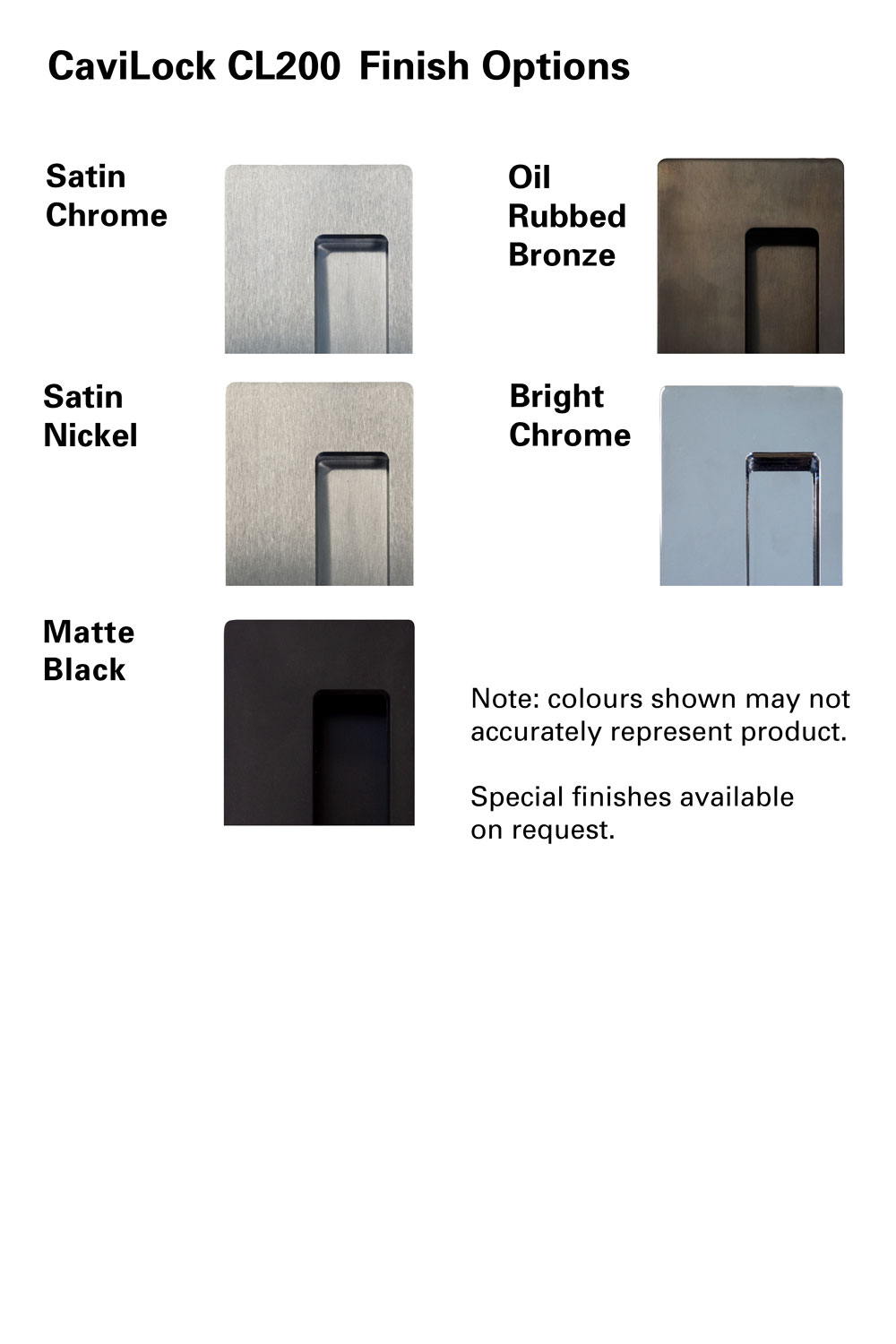

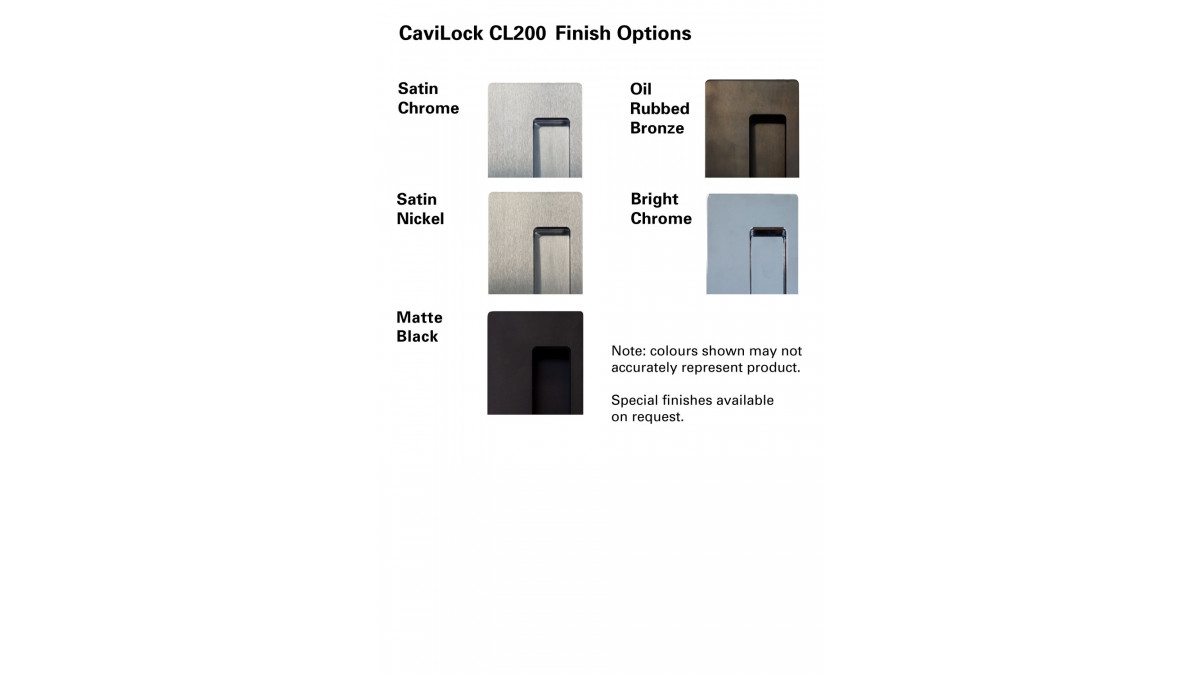

  • Finishes: Satin Chrome, Satin Nickel, Bright Chrome, Oil Rubbed Bronze, Matte Black

Patent pending

Key Features
  • Strong pressure die-cast construction with concealed screw fixings.
  • Allows door to slide completely into cavity flush with the jambs.
  • Available in a range of finishes.
  • Suitable for single or bi-parting double doors 33-46mm thick.
  • Supplied with full fitting instructions and templates.

Options

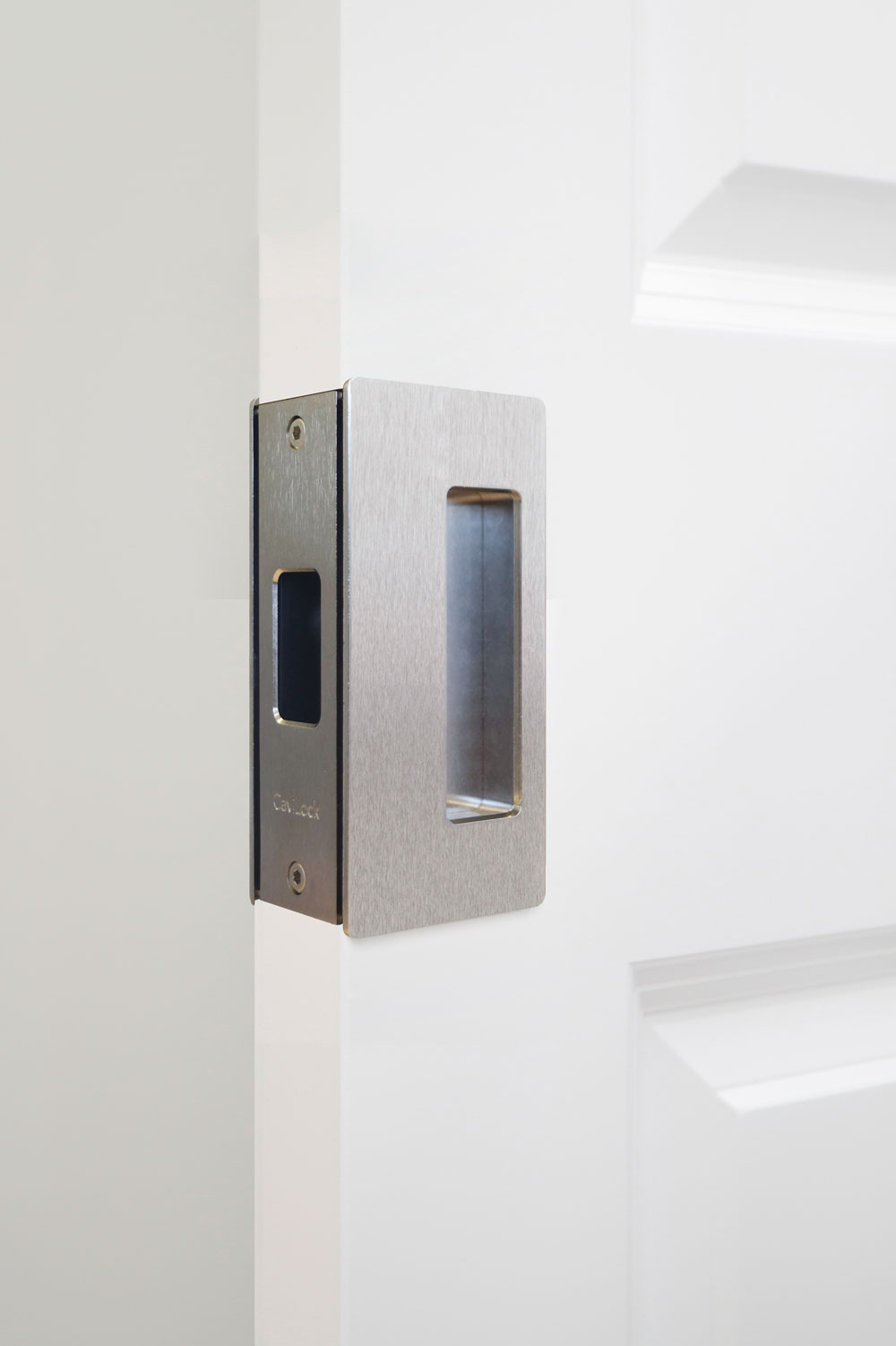

  • CONFIGURATION A: Passage (no magnet or striker)
  • CONFIGURATION C: Bi-Parting mate (to match with Privacy handle)

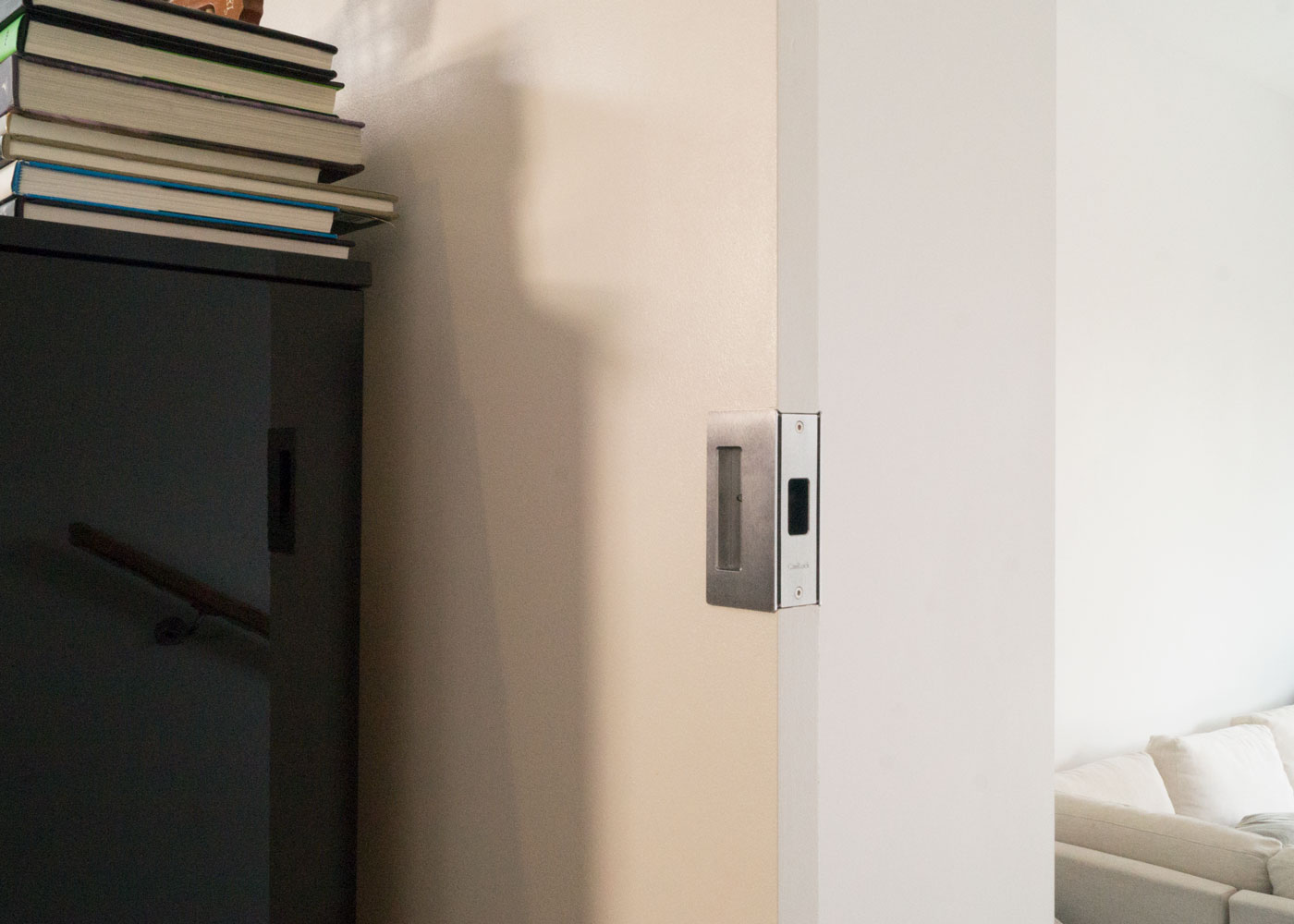

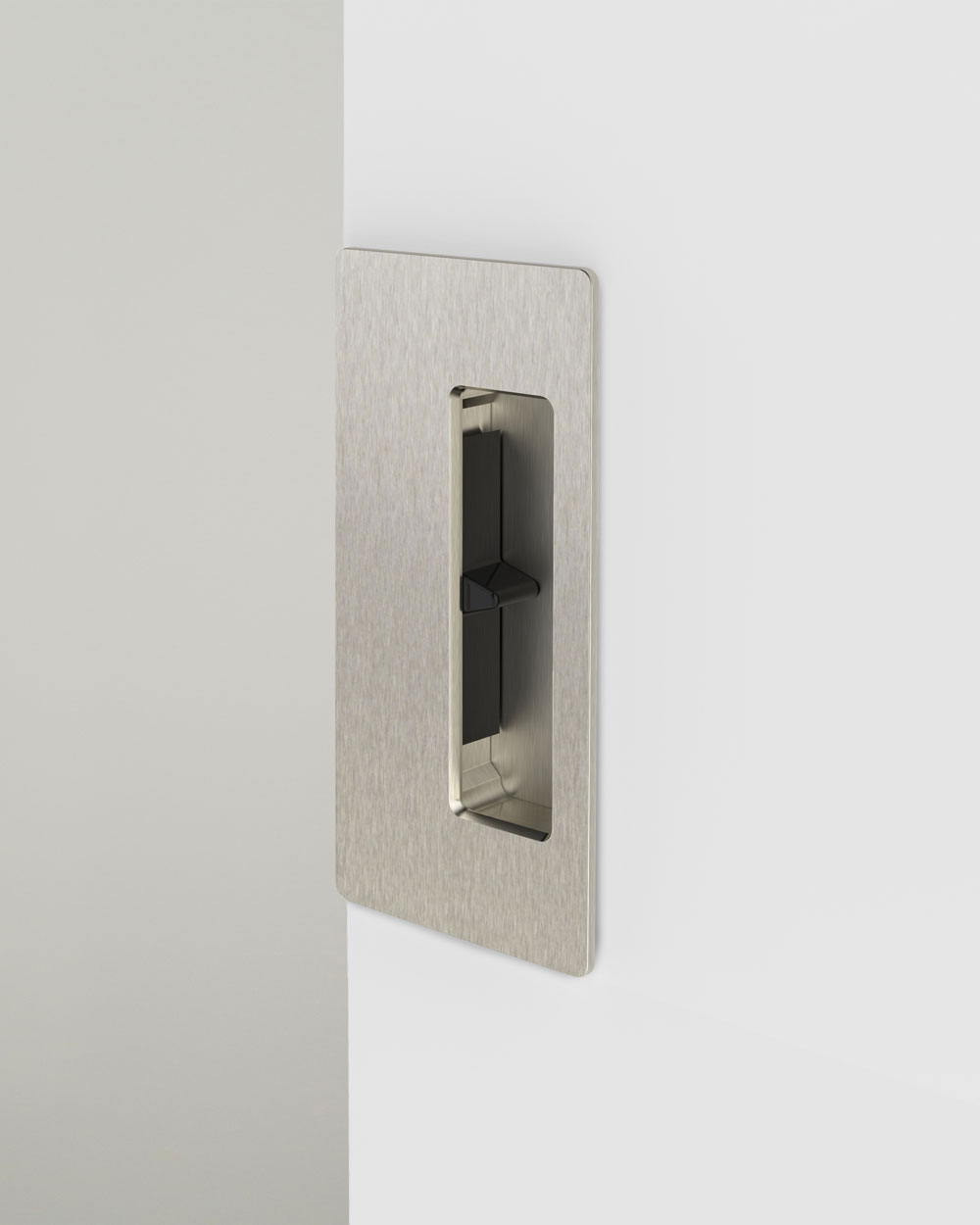

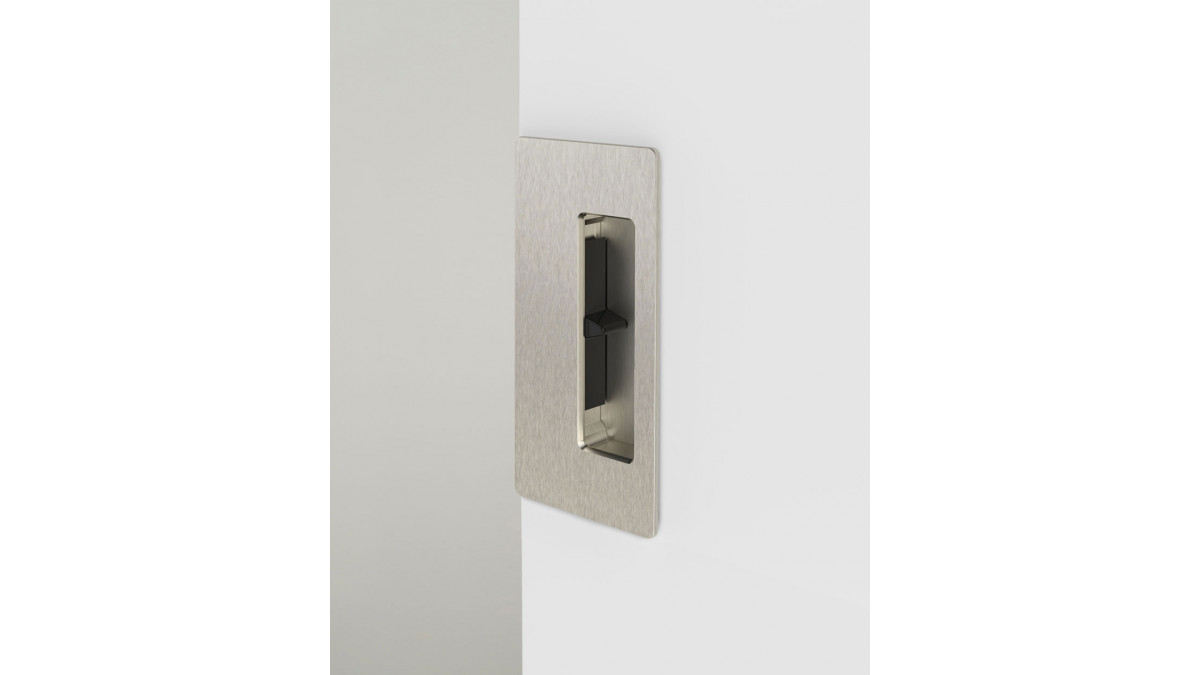

  • CONFIGURATION D: Privacy — Snib both sides, Snib/Emergency Release, or Snib one side
Categories
Handles and Knobs
Ranges
CS CaviLock
NZ Made
NZ Made
Scope of Use
  • Suitable for residential, hospitality applications, and light commercial use
  • Passage or privacy configurations are available for single or bi-parting doors
  • Suitable for door thicknesses 33-46mm
  • Suitable for timber or aluminium doors
Limitations on Use
  • This handle does not comply with disabled egress requirements
In-Service History

Cavilock hardware has been used in residential and commercial projects in New Zealand since 1990.

Documents
Data Sheet
Maintenance Instructions
Warranty
Additional Information

CS For Doors are a manufacturer of cavity sliding door systems and related products.
