Description

Triton Hygiene™ is a New Zealand made, 'soft' fibre ceiling panel with anti-microbial finish, designed to provide high sound absorption in hygiene sensitive areas. Triton Hygiene™ is available in a range of different acoustic options to suit individual environment requirements.

Manufactured from smooth anti-microbial coated Sonatex™ composite facer panel laminated to a 48 kg/m³ bio-soluble glass fibre absorber. Optional foil backed.

Key Features

Smooth anti-microbial facing is easy to wipe clean
Panel face is treated with an anti-microbial coating for high kill rate against common bacteria. Tested to Japanese Standard JIS Z 2801:2000, achieves 99.95% minimum over 24 hours for:
- Staphylococcus aureus
- Eschericia coli (Ecoli)
- Pseudomonas aeruginosa
- Acinetobacter baumannii
- Serrratia marcescens
Broad range of panel options provides very good NRC sound absorption to help reduce back ground noise and reverberation, combined with CAC options to attenuate sound between areas.
Fire Group 2-S
Made in NZ, short lead times including replacement parts
Product stewardship renew and reuse program available
Packaging take back and reuse scheme available
Green Tag Certified level A, low VOC, core contains 80% recycled post consumer waste glass
Panels available with strippable foil option on the face to better protect the decorative finish during the construction phase.
Durable and dimensionally stable in high humidity
Light weight, lower seismic design costs, easy to work and trim
Available with optional foil backing to resist water damage from condensation in plenum

Ranges

Triton Hygienic

NZ Made

NZ-Owned Business

Scope of Use

Triton Hygiene™ is ideal for cafes, restaurants, school food tech rooms, medical/dental centres and pharmaceutical areas for the control of background noise levels and reverberation times.

Limitations on Use

For interior use only, and not in direct contact with water
Installation shall not commence until the building is watertight and dry
Light fittings shall be independently supported
Backloading max. 1.5 kg/m², point loads shall be independently supported
Max 99% R/H at 45°C
Use hold down clips in areas for seismic or wind uplift
Not for air return plenums

Statement of Building Code Compliance

NZ Building Act

This product is not subject to a warning or ban under Section 26.

NZ Building Code Compliance:

B2 Durability – Clause B2.3.1 (c) (i): Asona ceiling tiles with only normal maintenance will have a minimum durability of at least 5 years when installed in accordance with; manufacturer’s installation requirements and AS/NZS 2785:2020.
C3 Fire – Clause C/AS2 4.12.1: Asona Triton Hygiene has a Fire Material Group Number 2-S by NZBC Building Product Specification Parts 8.5.4 or 8.5.5, tested in accordance with ISO 9705 or ISO 5660. (NCC BCA C1.10 clause 4, spec A2.4 clause 4. Group 2).

In-Service History

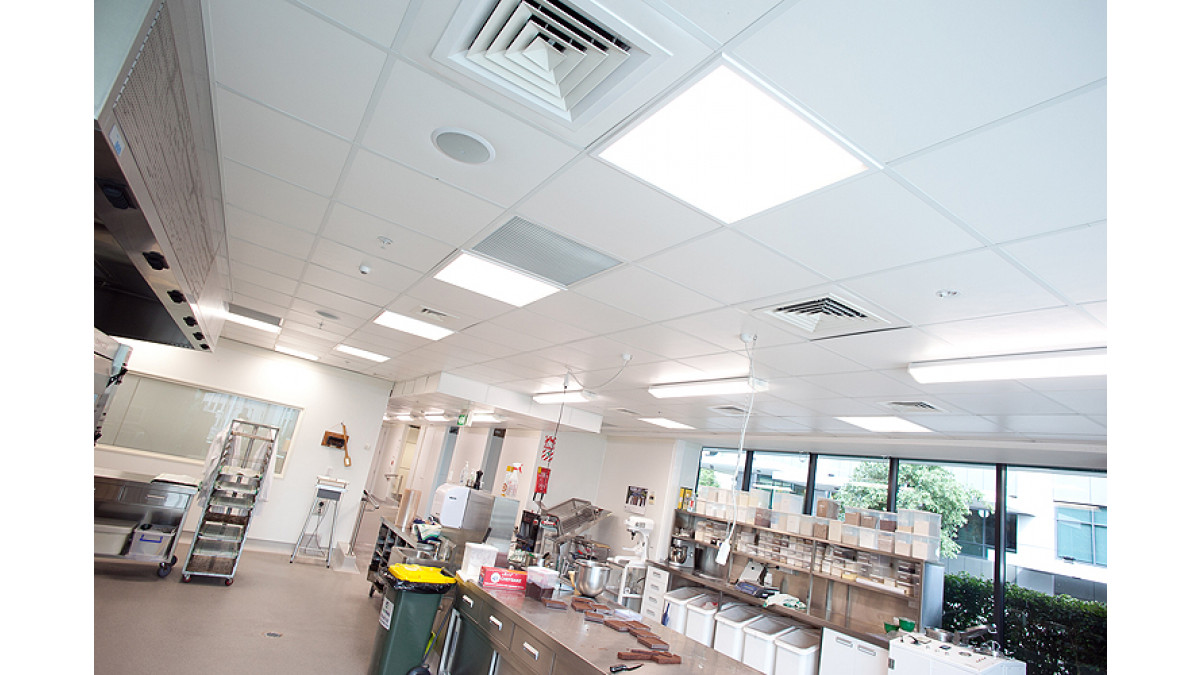

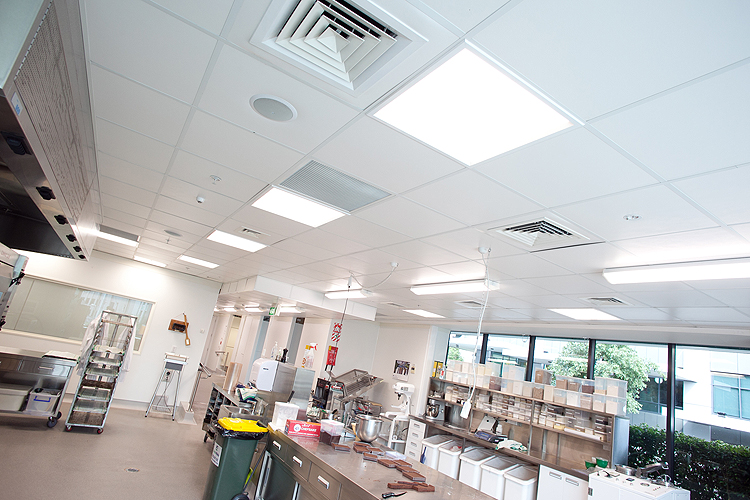

Goodman Fielder training room

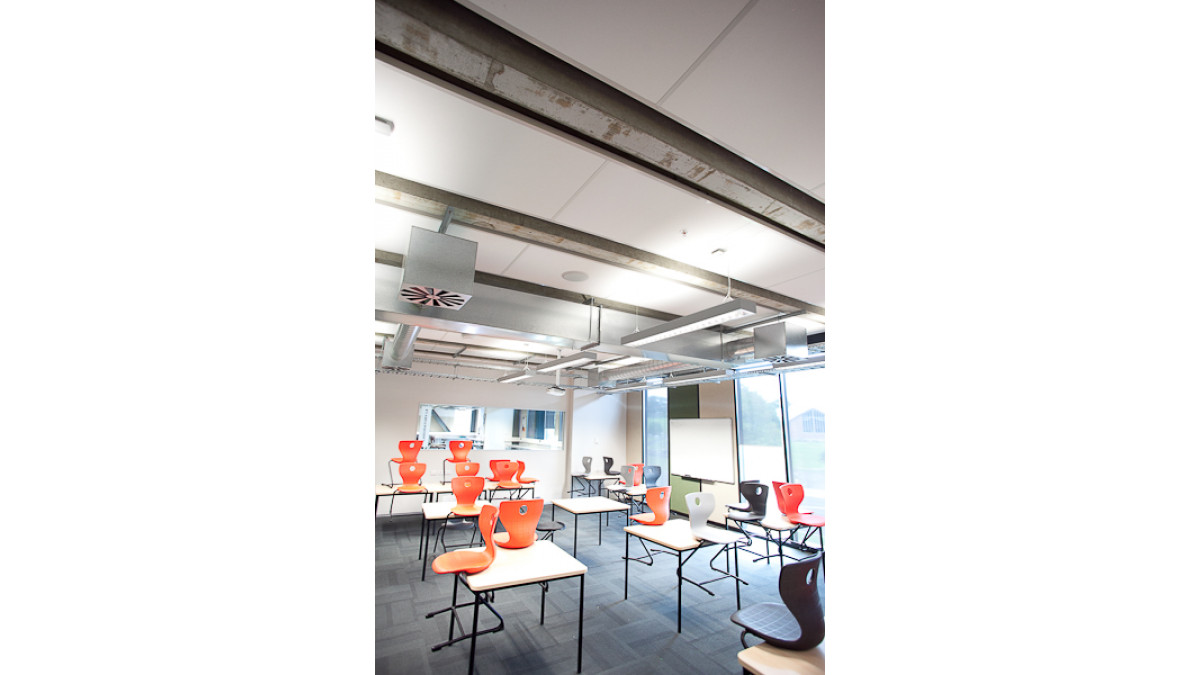

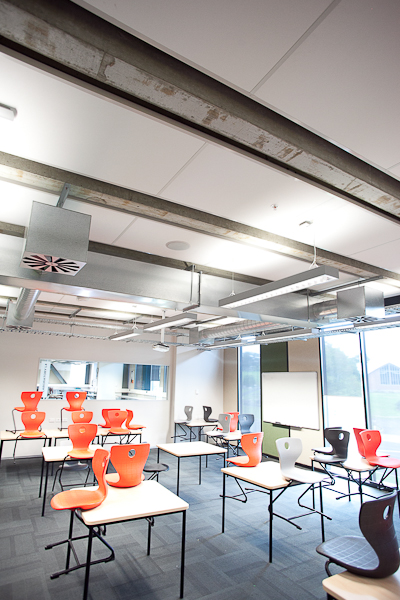

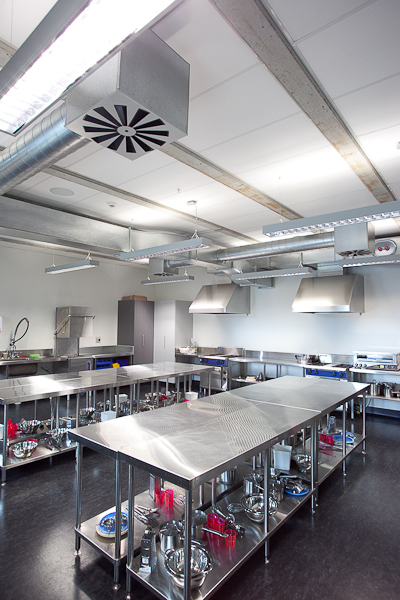

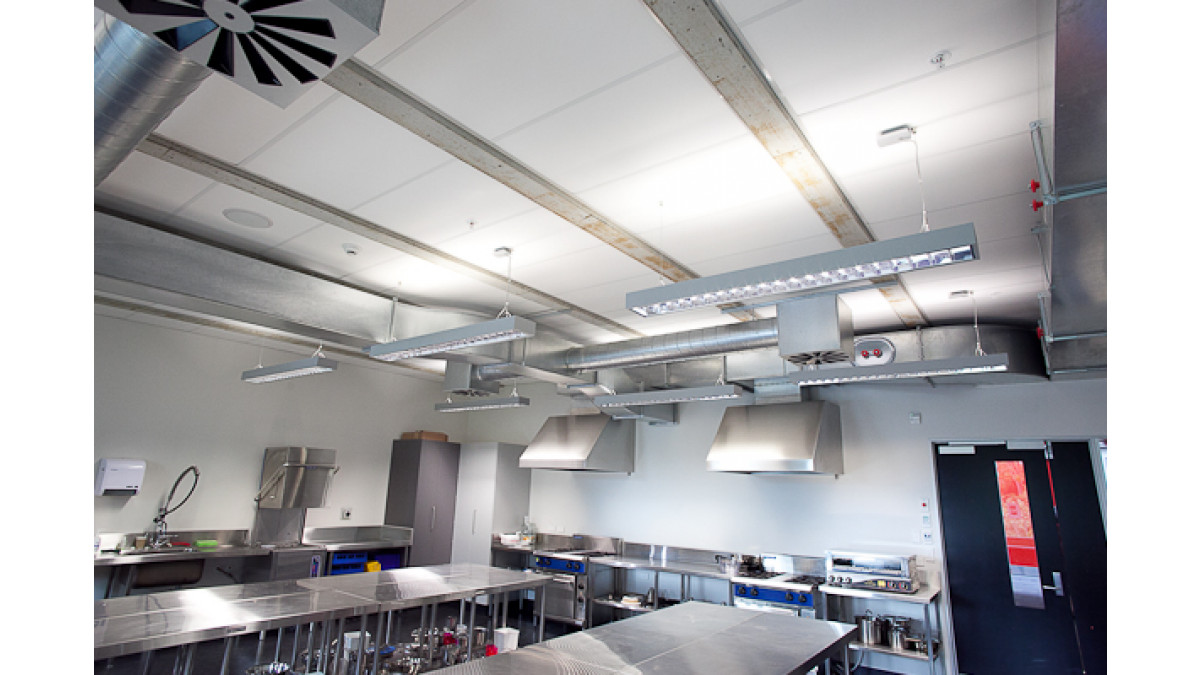

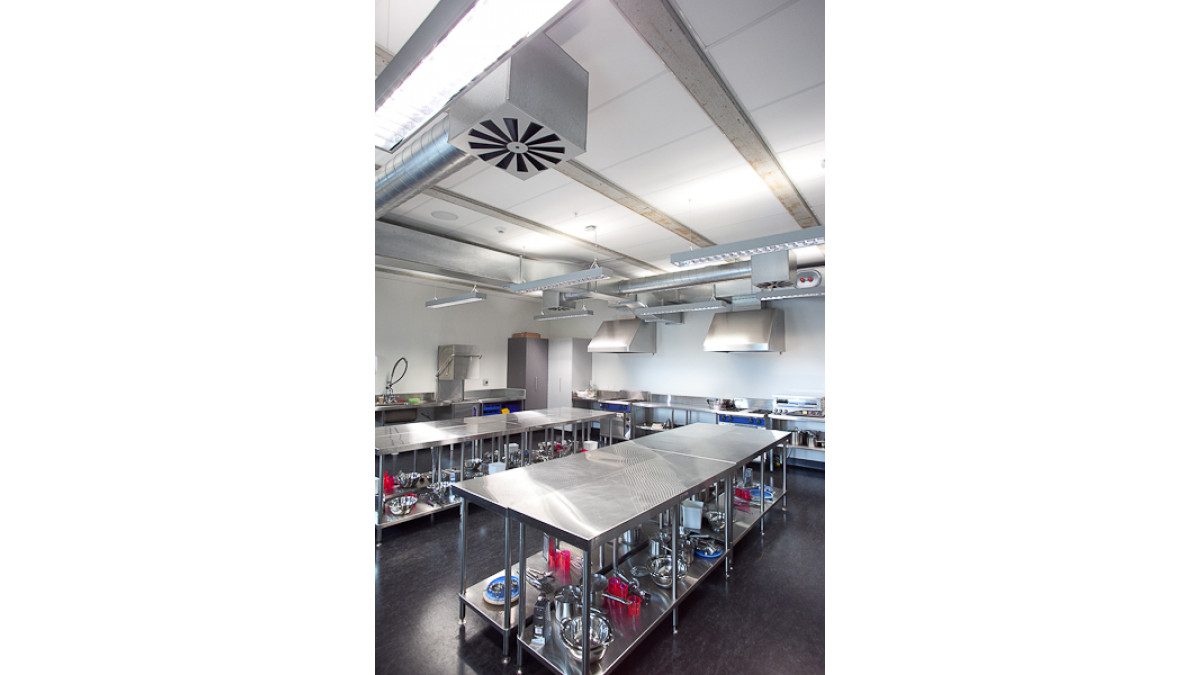

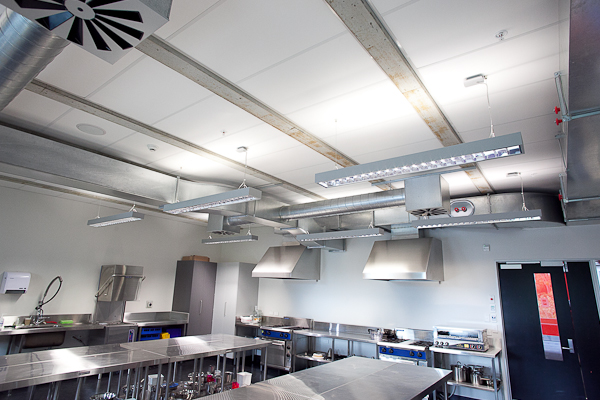

Albany High School food tech classroom
Carlaw Park student accomodation
Waikato Hospital Renal Centre

Other Performance Attributes

Light Reflectance; 83% per BS8493:2008, White
Very high sound absorption rating to control reverberation, NRC 0.70 - 0.95
Green Tag Certified level A, low VOC, core contains 80% recycled post consumer waste glass
Board formed from 80% recycled local glass
Low VOC < 0.002 Mg/m²/hr per ASTM D5116
Product stewardship renew and reuse program available
Packaging take back and reuse scheme available

Panel face is treated with an anti-microbial coating for high kill rate against common bacteria. Tested to Japanese Standard JIS Z 2801:2000, achieves 99.95% minimum over 24 hours for:
