Logicwall Permanent Formwork System
Description

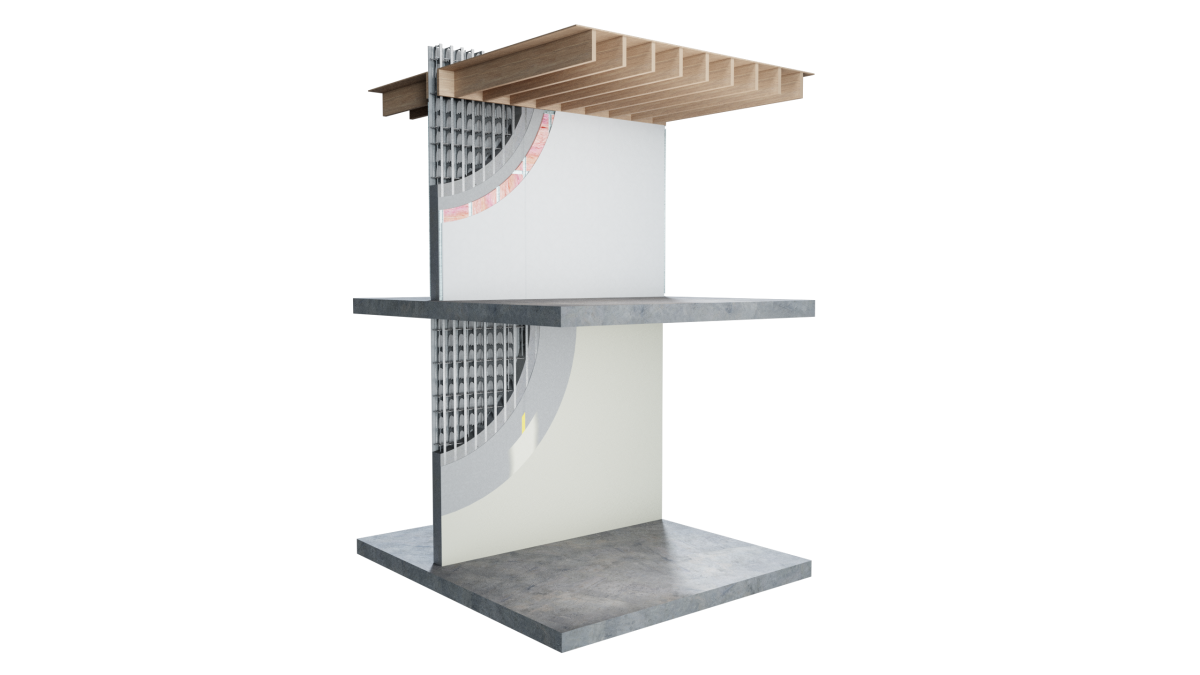

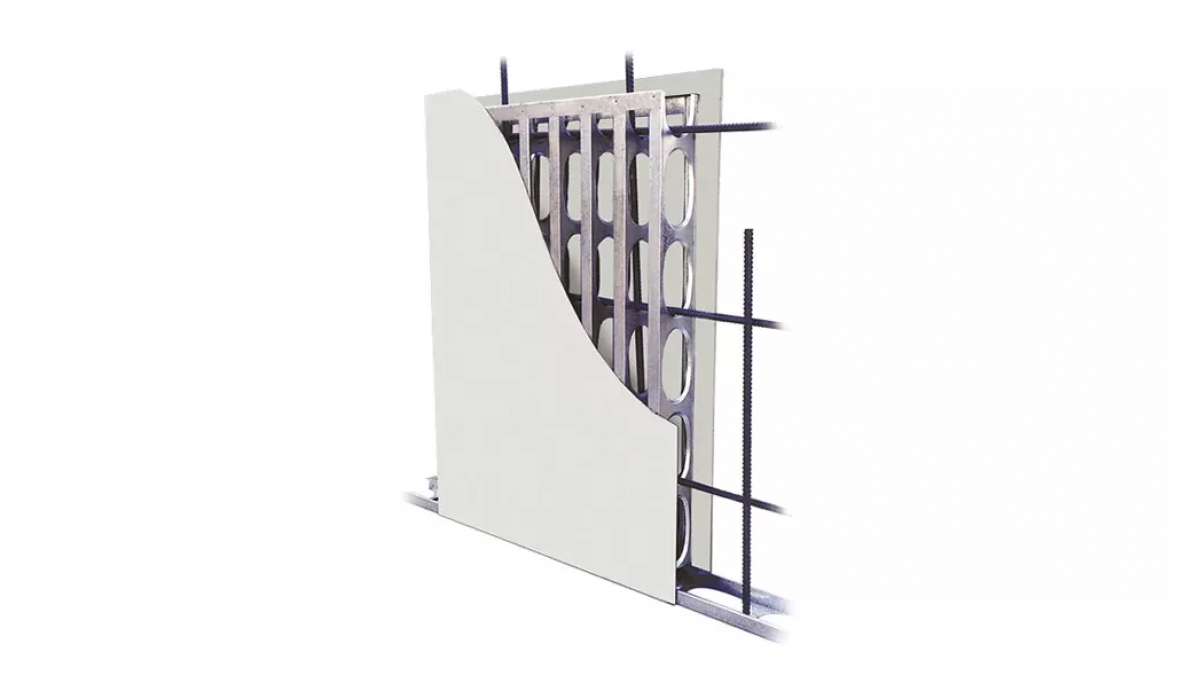

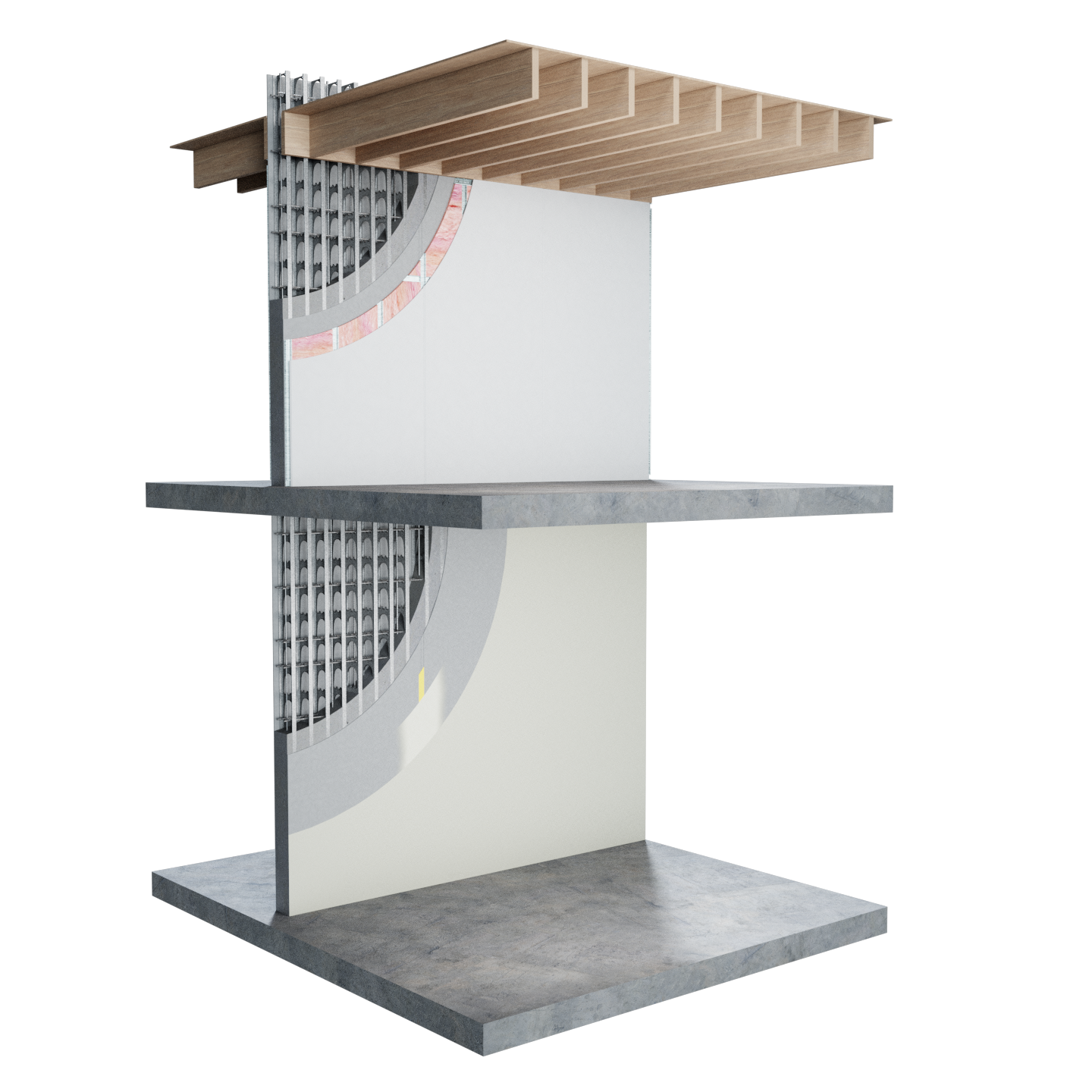

Logicwall is a permanent formwork system designed for use in multi-residential buildings such as apartments, terraced houses, retirement villages, and more. Logicwall consists of a steel stud frame with CSR fibre cement sheets bonded to each side of the studs, creating a panel that can be hand installed onsite and core-filled with concrete. Logicwall is available in thicknesses of 120mm, 150mm, 162mm, 200mm, and 262mm.

Key Features
  • Structure, fire and acoustic ratings achieved in the one system — No need to strap and line the walls. This generally creates a thinner wall overall

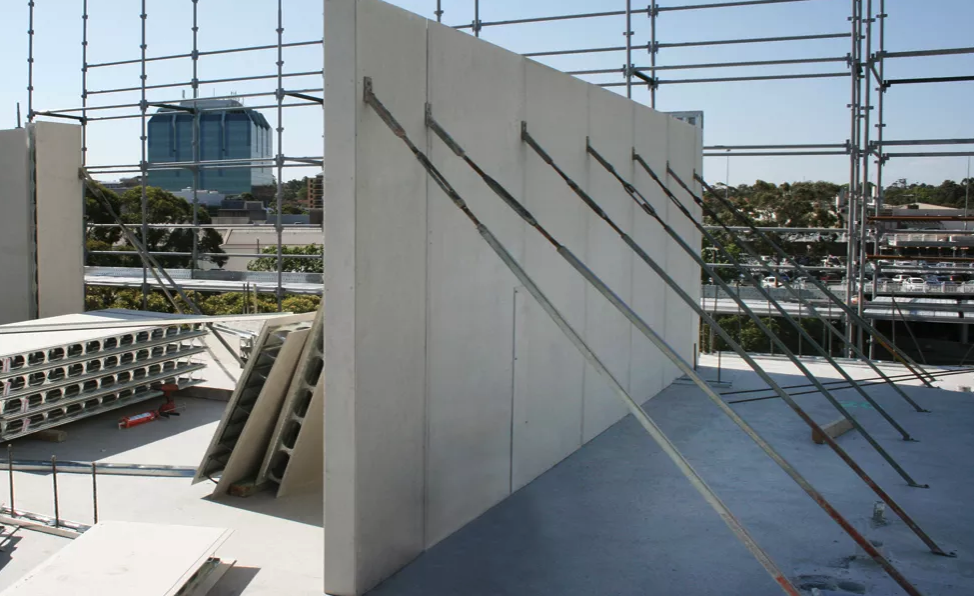

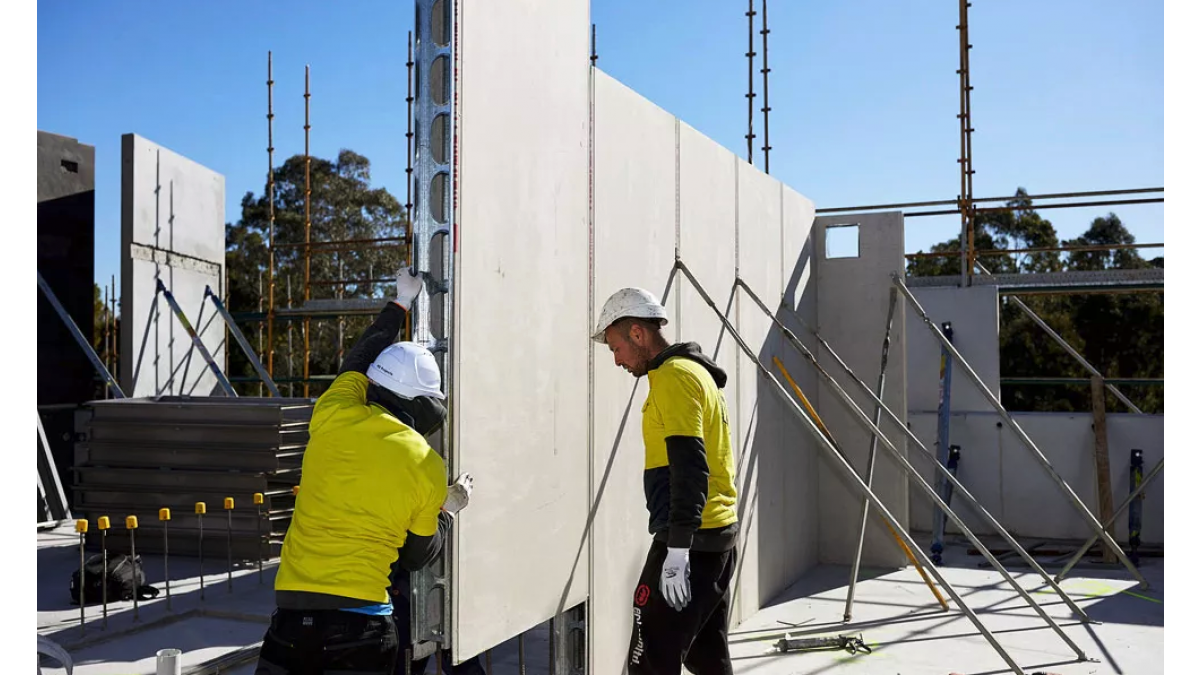

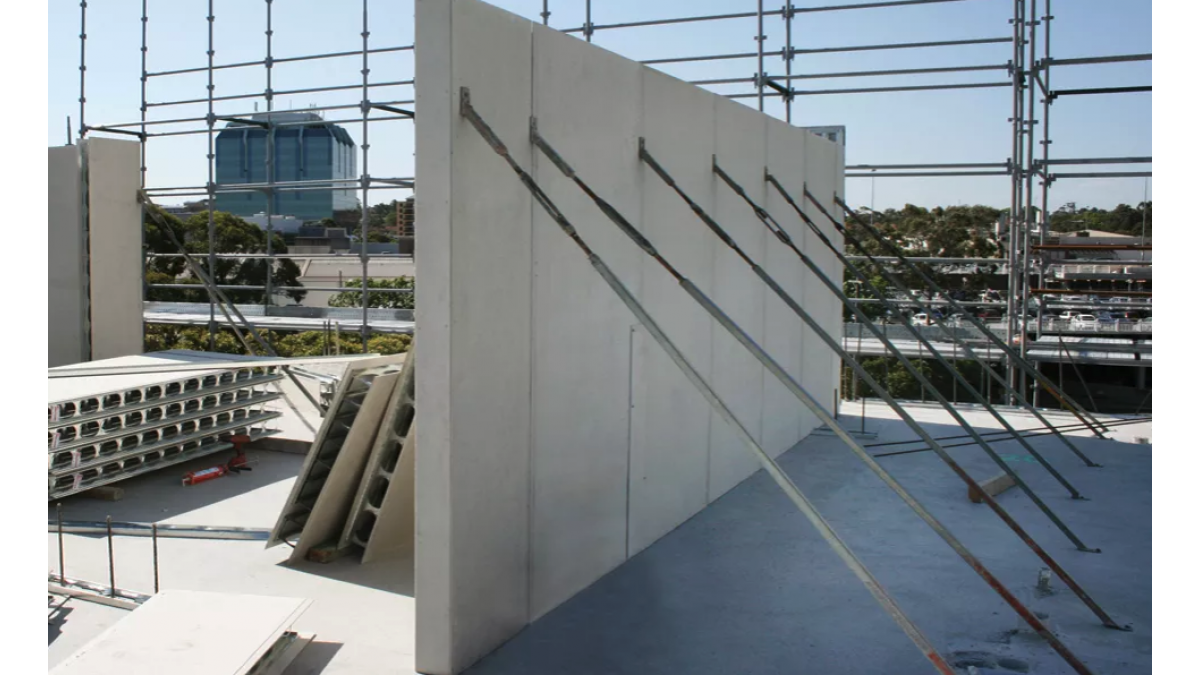

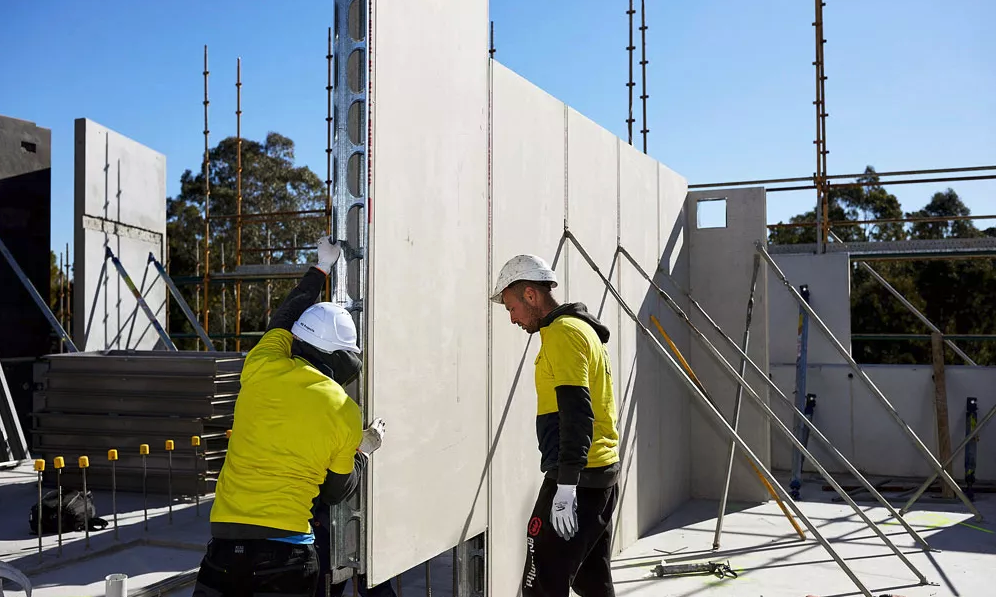

  • Speed of construction — The panels are hand installed making it faster than conventional concrete construction methods. This also reduces the need for a site crane
  • Shop drawn system
  • Significant waste reduction
  • Full supply and installation service supplied
Scope of Use

Logicwall is designed for use in multi-residential buildings such as apartments, terraced housing, retirement villages, motels and hotels.

Logicwall can be used to replace any concrete or masonry wall. However, the benefits are mostly realised when used in the following:

  • Intertenancy walls
  • Corridor walls
  • Lift and stair shafts
Limitations on Use
  • Logicwall is not a waterproof system. Therefore, suitable waterproofing will be needed when using it as a retaining wall or exterior wall
  • It is also not a cladding system — requires acrylic render or rainscreen to comply with E2
  • Thermal capabilities do not meet code so additional insulation will be required when the Logicwall is used in an exterior wall
Statement of Building Code Compliance

If designed and installed in accordance with AFS technical literature Logicwall complies with the following provisions of the NZBC:

  • B2 Durability
  • C6 Structural Stability During Fire
  • G6 Airborne and Impact Sound
  • F2 Hazardous Building Materials
In-Service History

Logicwall originates from Australia and has been used in New Zealand since 2007.

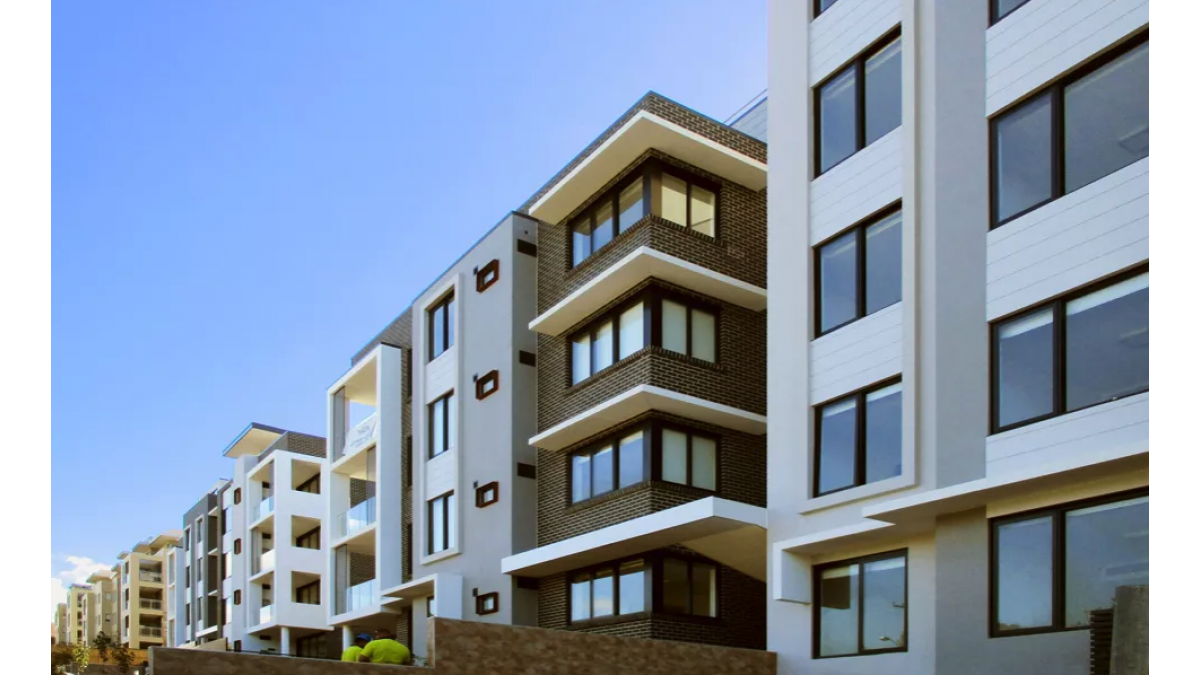

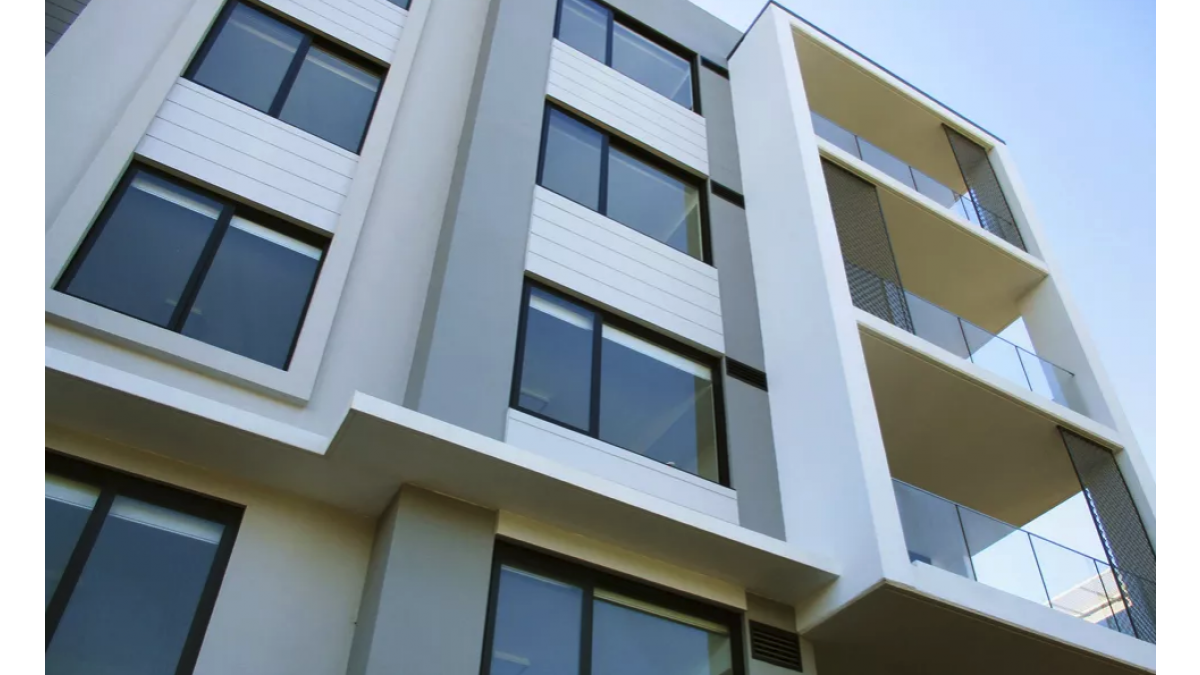

There have been numerous projects throughout the country that have utilised Logicwall as their main vertical structure. Some of these projects include:

  • Rose Garden Apartments in Albany (Auckland)
  • The Dylan in Grey Lynn (Auckland)
  • Bullendale in Queenstown
  • BUPA Care Home in Christchurch
Documents
Logicwall Design Guide

November 2019

Certification incl. Acoustic and Fire Testing

November 2019

Masterspec Work Sections
Installation Guide

November 2019

Logicwall System Overview

2020

CAD/PDF Details
Logicwall Standard Details

AFS NZ manufacture and install permanent formwork systems for the multi-residential market throughout New Zealand.
