Viking's Torch-On Membranes Withstand New Zealand's Harsh Conditions

New Zealand's climate is one of the world's toughest, with:

Frequently unrivalled UV levels
Disproportionate volumes of salt spray over narrow land
'Roaring 40s' constantly blowing off the Southern Ocean
Temperatures ranging from -20°C to +35°C
Mountain ranges affecting rainfall patterns
Earthquakes
Geothermal activity affecting the pH of the water

All of the above factors will test even the world's highest quality construction products. The roofing and waterproofing sector is a perfect example. There is no room for 'almost-waterproof'.

Viking Roofspec's uncompromising standards have seen its roofing and waterproofing membrane systems specified to withstand the harshest of conditions for the long term. Viking Roofspec has recently added to, and rebranded its CodeMarked and BRANZ appraised torch-on membrane range for roofs, decks and tanking below-ground.

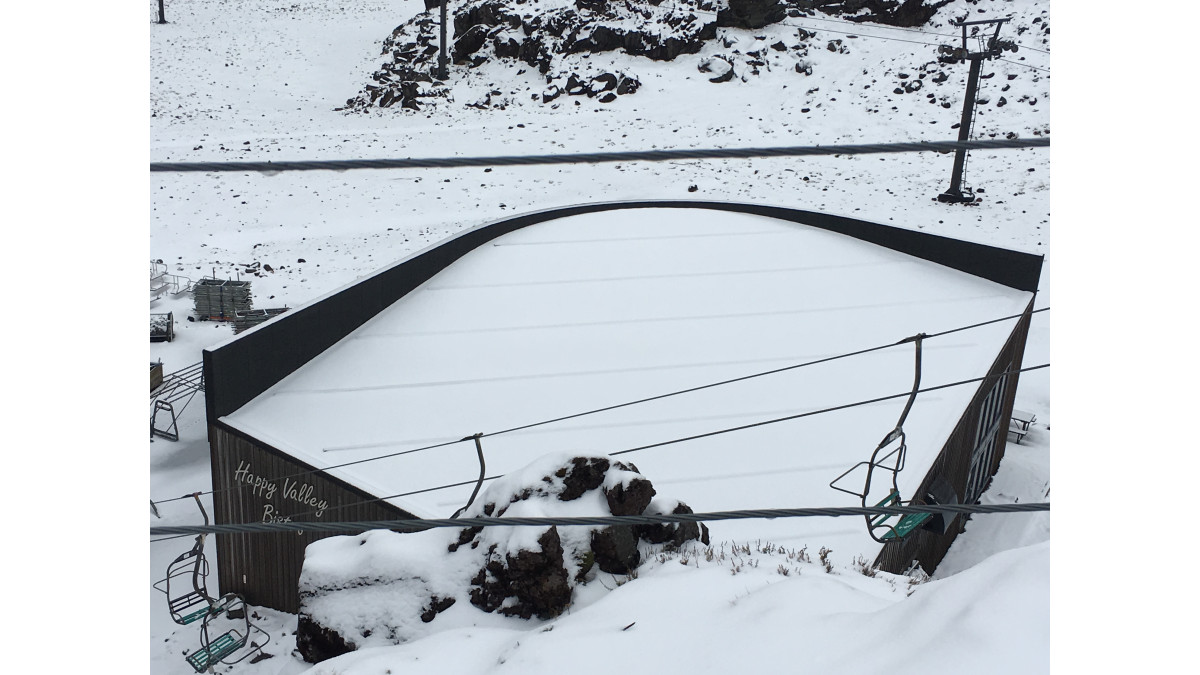

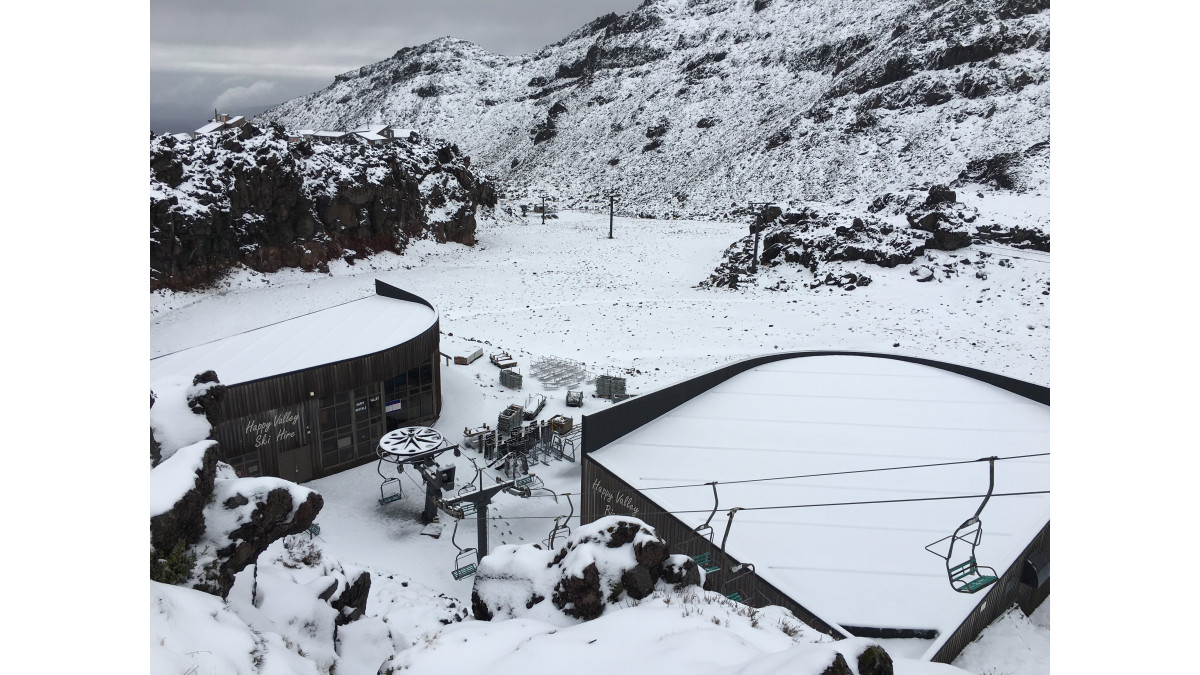

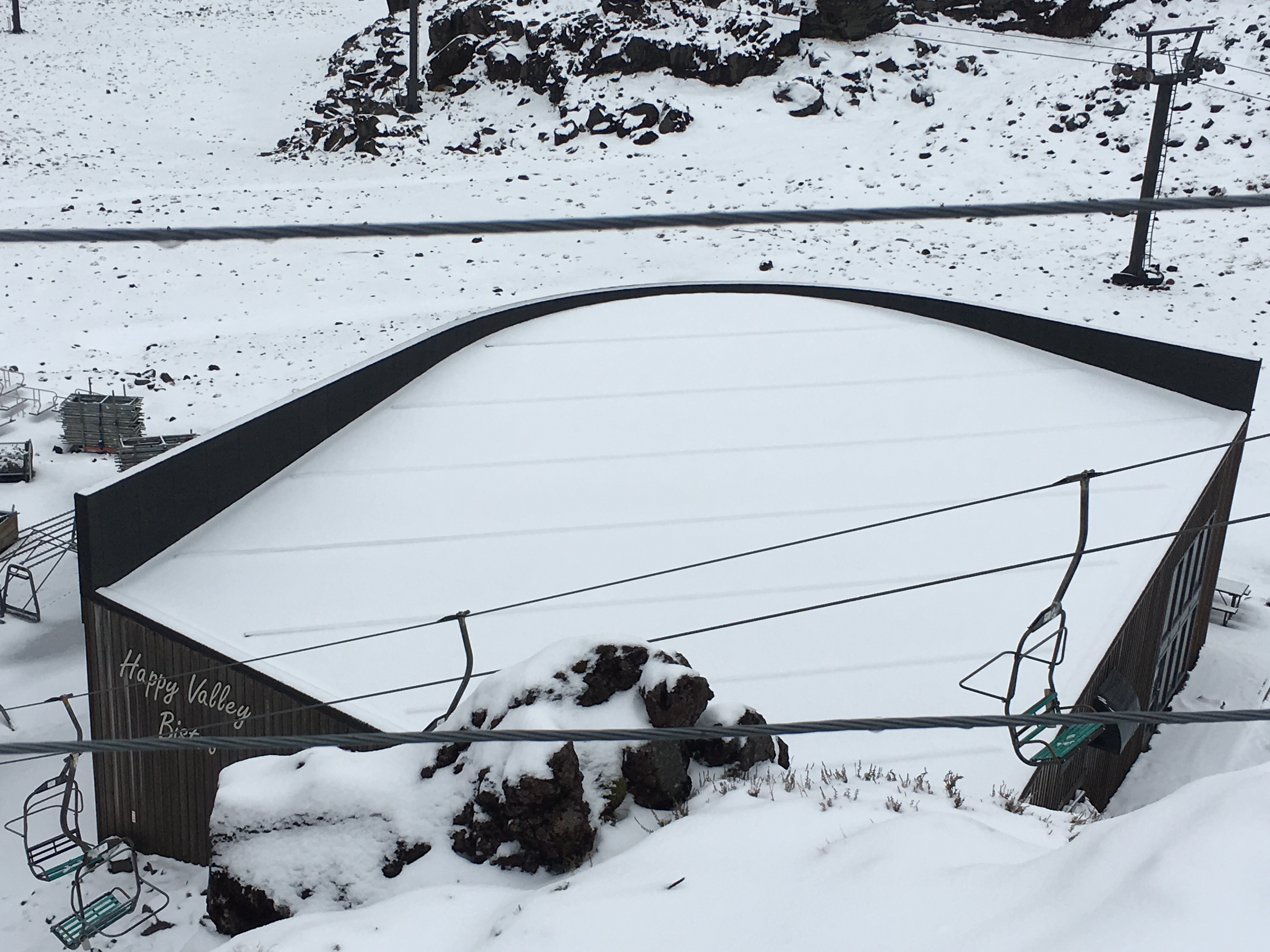

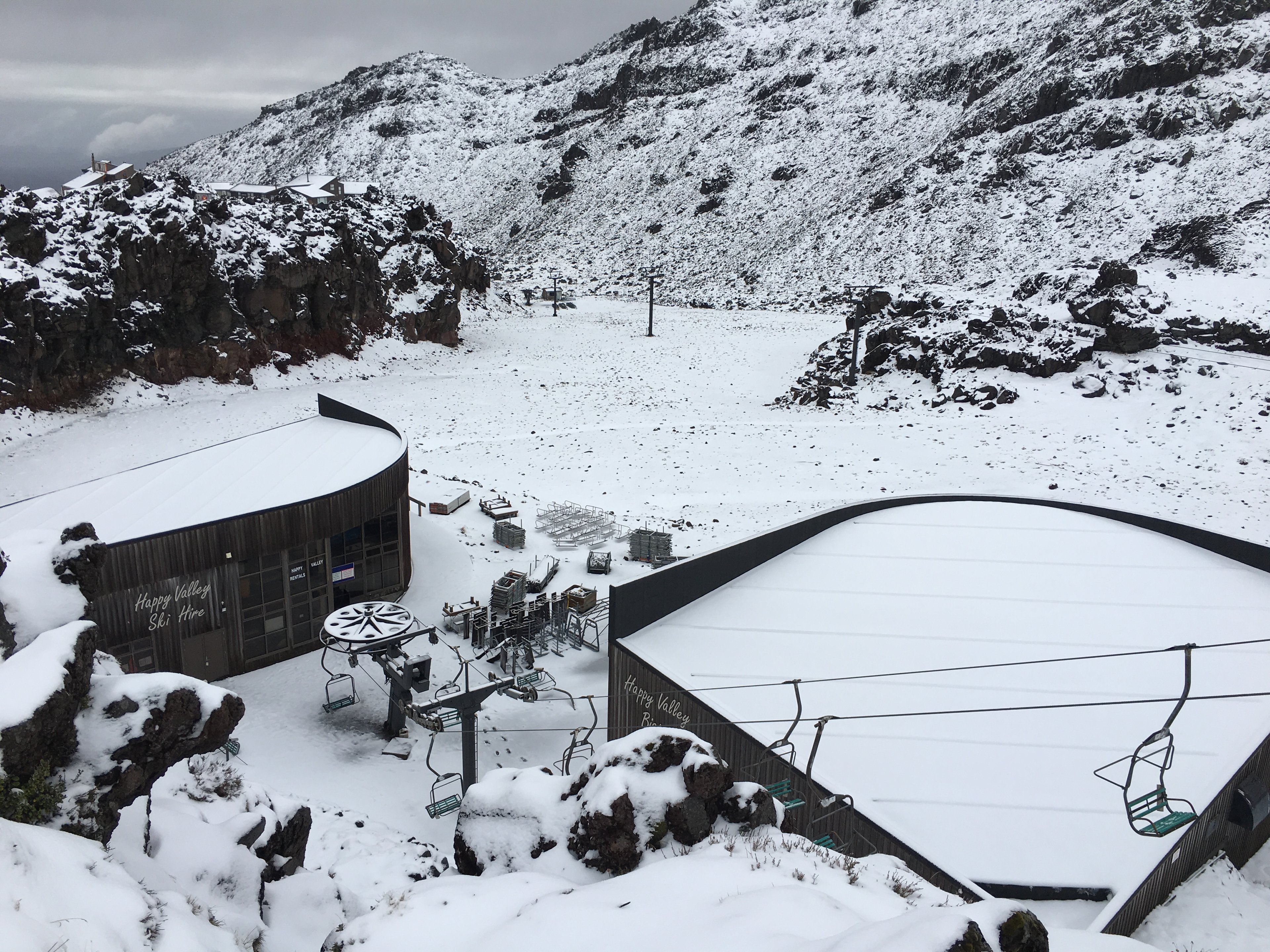

An example of a challenging yet successful installation of these membranes, is the re-roofing of Whakapapa Ski Field's bistro, café and ski rental buildings, using 'Viking GM Lybra' — a two-layer SBS torch-on system manufactured by Italy's General Membrane spA.

SBS membranes, with their high flexibility properties, have been developed to withstand large temperature fluctuations and temperature extremes, so are perfect for New Zealand's Climate Zone 3 (South Island and North Island's Volcanic plateau). The Whakapapa project was a warm roof project using a vapour barrier and rigid Kingspan Polyiso insulation between the substrate and Viking GM torch-on membrane. This system transferred the dew point to the outside of the building, eliminating internal condensation build-up.

The only materials that should be eligible for application in New Zealand's construction sector are:

internationally proven materials;
manufactured by internationally recognised manufacturers;
with substantial warranties;
engineered as complete 'systems';
tested and certified specifically for New Zealand conditions; and lastly,
installed only by licensed applicators.

An exciting addition to Viking's GM torch-on range is the 'Phoenix Super APAO'. This is a premium, two layer, 8mm thick hybrid system, which can be successfully installed anywhere in New Zealand and the Pacific Islands. It has a cold-flexibility quotient of down to -35°C and comes with Viking's longest membrane warranty of 25 years.

Viking Gemini APP TorchOn Membrane

Viking Roofspec

View Product

Viking Gemini APP is a robust and versatile membrane system ideally suited to New Zealand's North Island (except the Central Volcanic Plateau) and the Pacific Islands.

NZ-Owned Business

Viking Gemini APP is suited to tricky / confined roofs where it can be 'bled' in to vulnerable areas such as tight corners and awkward areas susceptible to leaks such as roof penetrations, internal corners and gutter junctions.

It is suitable for low-slope roofs (flat or curved), gutters and parapets, waterproofing beneath a floating deck, inland and coastal conditions, commercial and residential buildings.

Viking Gemini APP Waterproofing Membrane has been assessed as a roof waterproofing membrane on buildings within the following scope:

The scope limitations of NZS 3604:2011 and NZBC Acceptable Solution E2/AS1, Paragraph 1.1; or,
The scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area when subject to specific structural design; and,
Situated in NZS 3604:2011 Wind Zones, up to and including Extra High; and,
With substrates of plywood or suspended concrete slab; and,
With a minimum fall for roofs of 1:30 (2 degrees)

Viking Gemini APP Waterproofing Membrane has also been assessed for use as a roof waterproofing membrane on buildings within the following scope:

Subject to specific structural and weathertightness design situated in wind pressures up to a maximum design differential ultimate limit state (ULS) of 6 kPa: and,
With substrates of plywood or suspended concrete slab

Clause B1 STRUCTURE: Performance B1.3.1 and B1.3.4 (b) (c) (d) (e) for the relevant physical conditions of B1.3.3 (p). Viking GM Gemini A.P.P Waterproofing Membranes meet this requirement.
Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years. Viking GM Gemini A.P.P Waterproofing Membrane meet this requirement.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2 and E2.3.7 (b) and (c). Viking GM Gemini A.P.P Waterproofing Membrane meets these requirements.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking GM Gemini A.P.P Waterproofing Membrane meets this requirement and will not present a health hazard to people.

Structure

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised

CodeMark

Viking Lybra SBS TorchOn Membrane

Viking Roofspec

View Product

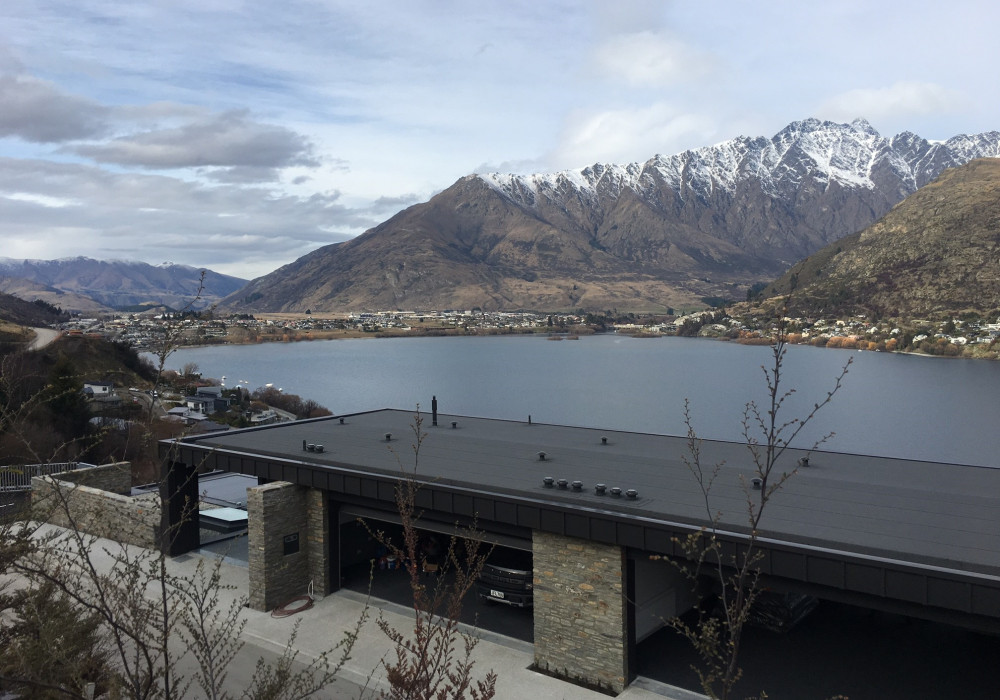

Viking Lybra SBS is a robust and versatile membrane system ideally suited to New Zealand's South Island and the North Island's Central Volcanic Plateau.

NZ-Owned Business

Viking Lybra SBS is suited to tricky / confined roofs where it can be 'bled' in to vulnerable areas such as tight corners and awkward areas susceptible to leaks such as roof penetrations, internal corners and gutter junctions.

It is suitable for low-slope roofs (flat or curved), gutters and parapets, waterproofing beneath a floating deck, inland and coastal conditions, commercial and residential buildings.

Viking Lybra SBS Waterproofing Membrane has been assessed as a roof waterproofing membrane on buildings within the following scope:

The scope limitations of NZS 3604:2011 and NZBC Acceptable Solution E2/AS1, Paragraph 1.1; or,
The scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area when subject to specific structural design; and,
Situated in NZS 3604:2011 Wind Zones, up to and including Extra High; and,
With substrates of plywood or suspended concrete slab; and,
With a minimum fall for roofs of 1:30 (2 degrees)

Clause B1 STRUCTURE: Performance B1.3.1 and B1.3.4 (b) (c) (d) (e) for the relevant physical conditions of B1.3.3 (p). Viking GM Lybra S.B.S Waterproofing Membrane meets this requirement.
Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years. Viking GM Lybra S.B.S Waterproofing Membrane meets this requirement.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2 and E2.3.7 (b) and (c). Viking GM Lybra S.B.S Waterproofing Membrane meets these requirements.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking GM Lybra S.B.S Waterproofing Membrane meets this requirement and will not present a health hazard to people.

Structure

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised

CodeMark

Viking Mercury FC

Viking Roofspec

View Product

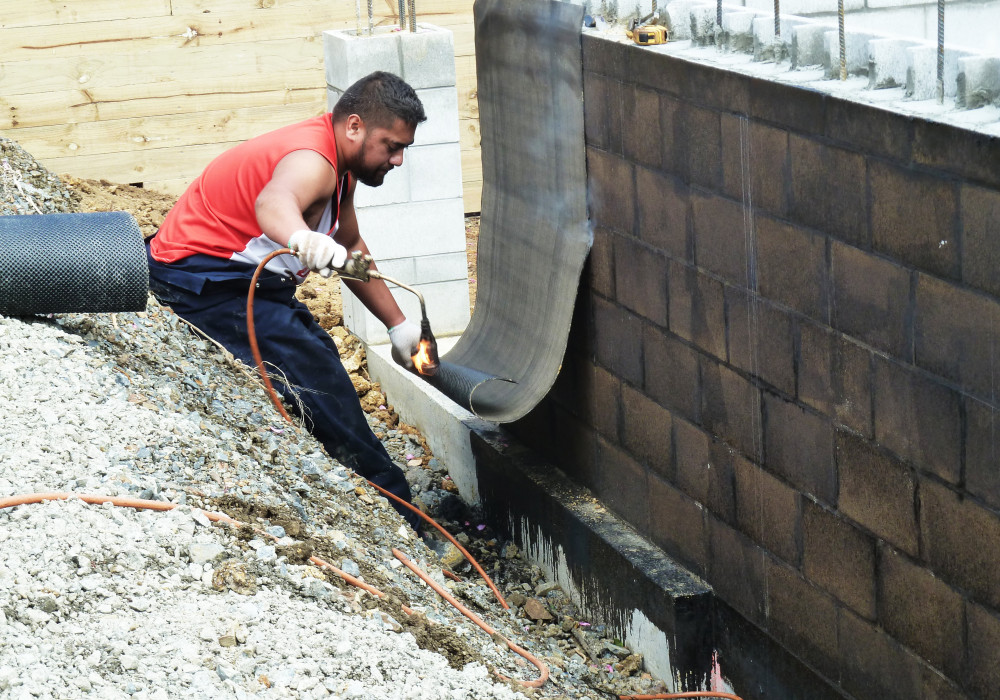

Viking Mercury FC is a damp-proofing and tanking system that protects the below-ground portion of a building structure from water ingress.

NZ-Owned Business

Other forms of tanking where Mercury FC can be used include under floor slabs, behind masonry walls, the lining of substrates of in situ or precast concrete; retaining walls, cellars, lift shafts, tunnels, plaza decks, roof gardens and planter boxes.

Viking Mercury FC DPM Membrane has been appraised as a DPM for use:

On buildings subject to non-specific design under floor slabs complying with NZS 3604 and behind concrete masonry basement walls and under floor slabs complying with NZS 4229; and,
On buildings subject to specific design with substrates of in-situ or precast concrete complying with NZS 3101 or concrete masonry complying with NZS 4230; and,
Where subsoil drainage and free draining granular backfill has been placed behind basement walls

Viking Mercury FC DPM Membrane must be adequately protected against damage during backfilling and in service.

Clause B1 STRUCTURE: Performance B1.3.1. Viking GM Mercury FC Membrane meets this requirement.
Clause B2 DURABILITY: Performance B2.3.1 (a) not less than 50 years. Viking Mercury FC Membrane meets this requirement. See paragraph 11.1 of the Viking Mercury FC Membrane BRANZ Appraisal.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.3. Viking Mercury FC Membrane meets this requirement. See paragraphs 13.1 - 13.3 of the Viking Mercury FC Membrane BRANZ Appraisal.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking Mercury FC Membrane meets this requirement and will not present a health hazard to people.

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised

Viking Phoenix Super APAO

Viking Roofspec

View Product

Viking's 'Platinum' torch-on solution can be installed anywhere in the world.

NZ-Owned Business

Viking Phoenix Super APAO is suited to tricky / confined roofs where it can be 'bled' in to vulnerable areas such as tight corners and awkward areas susceptible to leaks like roof penetrations, internal corners and gutter junctions.

It is suitable for low-slope roofs (flat or curved), gutters and parapets, waterproofing beneath a floating deck, inland and coastal conditions, commercial and residential buildings.

Viking Phoenix Super APAO Waterproofing Membrane has been assessed as a roof waterproofing membrane on buildings within the following scope:

The scope limitations of NZS 3604:2011 and NZBC Acceptable Solution E2/AS1, Paragraph 1.1; or,
The scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area when subject to specific structural design; and,
Situated in NZS 3604:2011 Wind Zones, up to and including Extra High; and,
With substrates of plywood or suspended concrete slab; and,
With a minimum fall for roofs of 1:30 (2 degrees).
Viking Phoenix Super APAO Waterproofing Membrane has also been assessed for use as roof waterproofing membranes on buildings within the following scope:

Subject to specific structural and weathertightness design situated in wind pressures up to a maximum design differential ultimate limit state (ULS) of 6 kPa: and,
With substrates of plywood or suspended concrete slab.

Clause B1 STRUCTURE: Performance B1.3.1 and B1.3.4 (b) (c) (d) (e) for the relevant physical conditions of B1.3.3 (p). Viking Phoenix Super APAO Waterproofing Membrane meets this requirement.
Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years. Viking Phoenix Super APAO Waterproofing Membrane meets this requirement.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2 and E2.3.7 (b) and (c)Viking Phoenix Super APAO Waterproofing Membrane meets these requirements.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking Phoenix Super APAO Waterproofing Membrane meets this requirement and will not present a health hazard to people.

Structure

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised

Viking WarmRoof System

Viking Roofspec

View Product

The most commonly accepted definition of a warm roof (for low slope roofs) is 'a roof where the insulation is installed on top of the roof structure' i.e.

NZ-Owned Business

The Viking WarmRoof System has been appraised for use as an insulating roof on buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, paragraph 1.1 with regards to building height and maximum floor plan areas; and,
on limited access flat roofs with concrete, plywood or steel structural decks subject to specific structural design; and,
with roofs constructed to drain water to gutters and drainage outlets complying with the NZBC; and,
with roofs constructed to suitable falls (refer paragraph 15.3 and 15.4 of the Viking Warm Roof BRANZ Appraisal); and,
with no integral roof gardens; and,
situated in NZS 3604 Building Wind Zones, up to, and including Extra High

The Viking WarmRoof System has also been appraised for durability and thermal performance as an insulated roofing systemon buildings that are the subject of specific design with no building height restriction. Building designers are responsible for the building design and for the incorporation of the Viking WarmRoof System into their design in accordance with the declared properties and instructions of Viking Roofspec.

Clause B1 STRUCTURE: Performance B1.3.1. The Viking WarmRoof System meets this requirement.
Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years. The Viking WarmRoof System meets this requirement. See paragraph 10.1 of the Viking WarmRoof BRANZ Appraisal.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1 and E2.3.2. The Viking WarmRoof System meets these requirements. See paragraphs 15.1 — 15.9 of the Viking Warm Roof BRANZ Appraisal.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Viking WarmRoof System meets this requirement and will not present a health hazard to people.
Clause H1 ENERGY EFFICIENCY: Performance H1.3.1 (a). The Viking WarmRoof System will contribute to meeting this requirement. See paragraph 14.1 of the Viking WarmRoof BRANZ Appraisal.
Clause C/VM2 FIRE PERFORMANCE (of wall and ceiling linings) — ISO9705, Group 1S = highest possible rating.

Structure

Durability

Protection from Fire

External Moisture

Hazardous Building Materials

Energy Efficiency

BRANZ Appraised
