A BRANZ Appraised Waterproofing & Tiling System, Supplied and Supported in NZ by Surtec

The Technokolla Waterproofing and Tiling System, supplied and supported in New Zealand by Surtec, is a tested, compatible system for undertile waterproofing and tiling. It is BRANZ appraised and aligned with E3/AS2 (IWAM Code of Practice), providing confidence from design through to long-term performance.

It is important to specify trusted, tested, compatible systems to achieve durable waterproofing performance. As a BRANZ appraised, New Zealand Building Code-compliant system, the Technokolla Waterproofing and Tiling System provides confidence from design to long-term performance.

Applications

The Technokolla Waterproofing and Tiling System covers a broad spectrum of applications, from interior wet areas such as bathrooms and laundries, to balconies, decks, pools, water features, external facades and cladding. The system is suitable for standalone homes, townhouses, apartments, retirement villages, hotels, and commercial and industrial buildings, in any area where undertile waterproofing is required.

Key performance benefits

Comprehensive and compatible system solutions

Tested system solutions are provided for Internal Tiled Wet Areas, External Tiled Areas and Swimming and Spa Pools, both tiled and plaster finishes. This ensures full compatibility and trusted performance matched to each area. Pools, façades, decks and heated floors are designed on a project-by-project basis and require applicators; please consult Surtec for detailing and documentation.

Each system specification is comprehensive, from substrate preparation with primers, levellers and screeds, to waterproofing, through to finishing grouts and silicones. Where required, the system also includes crack isolation and sound control using NAC ECB75 and Supersam 125 sheet membranes. Key components include primers such as Techno Primer T and Techno Primer 101, BRANZ appraised membranes Rasogum+, Rasolastik ADV and Rasolastik EVO, the Strataflex sheet membrane, reinforcement bands RL80 and RL300, tile adhesives, and finishing with Techno Colours or Techno Evolution grouts and Techno Acesil silicone.

Tested in New Zealand conditions

The Technokolla system meets NZBC B2 Durability and E3 Internal Moisture, references E3/AS2 and the IWAM Code of Practice, and has a proven history of performance in New Zealand conditions for almost 30 years. To help ensure the system meets project-specific requirements, Surtec provides local technical support, certified applicator training, and project-specific advice.

Trusted BRANZ appraised waterproofing performance

Technokolla offers one of the most comprehensively tested waterproofing ranges available in New Zealand. BRANZ appraised membranes include Rasogum+, Rasolastik ADV and Rasolastik EVO (Appraisal 542, internal wet areas) and Strataflex Waterproofing Sheet Membrane (Appraisal 519, internal wet areas). These membranes are tested to AS4858 Wet Area Membranes and are approved for use under AS3740 and the IWAM Code of Practice.

Installation support to reduce risk on-site

International research shows that most waterproofing failures result from poor installation. Surtec addresses this through certified applicator training, council-recognised PS3 producer statement pathways and local site support. Use certified applicators.

Design support

Surtec’s technical team provides pragmatic, solutions-focused support throughout the project journey. This includes exploratory discussions, technical assistance and specification guidance, including site visits, to find the right solutions for the project. CPD sessions, CAD details and specification templates are available to simplify design documentation. Movement joints are to the designer’s layout, with sealant installed per the guide.

Warranty & maintenance

The Technokolla Waterproofing and Tiling System comes with a 15-year product warranty that meets NZBC requirements for performance and durability.

Ongoing protection and maintenance guidance is available. Through partner company Fila Solutions, a global leader in treating, protecting and maintaining ceramic and natural stone, Technokolla provides a complete care cycle. This includes pre-grouting protection, long-term sealers to resist efflorescence and UV damage, and maintenance cleaners to support hygiene and durability over the life of the building. Maintenance expectations for wet areas follow IWAM and the TANZ Best Practice Guide, including sealant renewal and checks at penetrations and wastes.

Learn more

Talk to Surtec for specification advice, certified applicator training and PS3 pathways, and to learn more about undertile waterproofing options for your project.

External Wet Areas Waterproofing & Tiling System — Terraces & Balconies

Technokolla

View Product

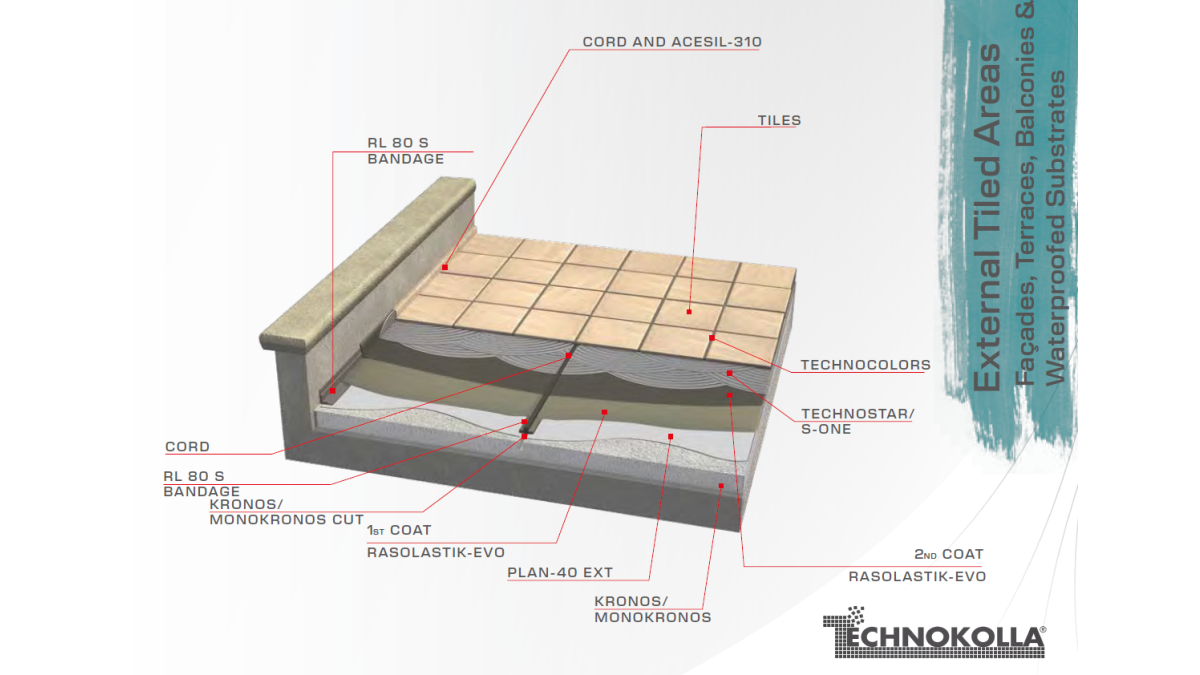

The Technokolla External Waterproofing System is a fully integrated, BRANZ Appraised liquid-applied waterproofing solution, specifically designed for use beneath ceramic and stone tile finishes.

This system is suitable for external floor tile installations in both residential and commercial projects. It is recommended for use on balconies, patios, terraces, façades, and other outdoor hardscape areas.

Compatible with a wide range of tile types, including ceramic and porcelain.

Rasolastik Waterproofing Membranes have been BRANZ Appraised for use as waterproofing membranes in the following applications:

Buildings within the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1
Timber-framed structures designed and constructed in accordance with the NZ Building Code (NZBC)
Substrates including plywood and fibre cement compressed sheet
Decks with a maximum area of 40m²

Rasolastik Waterproofing Membranes are also approved for use as waterproofing membranes over external reinforced concrete pedestrian decks and balconies for buildings within the following scope:

Up to 3 storeys high, with a maximum height from ground to eaves of 10 metres
Floor plan areas limited only by seismic and structural control joints
Reinforced concrete designed and constructed in accordance with the NZBC

For full details on scope, limitations, and compliance, refer to BRANZ Appraisal 541.

In the opinion of BRANZ, TECHNOKOLLA Rasolastik Exterior Waterproofing Membranes, when designed, installed, used, and maintained in accordance with the statements and conditions of BRANZ Appraisal No. 541, will meet the following provisions of the New Zealand Building Code (NZBC):

Clause B2 Durability — Performance B2.3.1(b): 15 years
TECHNOKOLLA Rasolastik Exterior Waterproofing Membranes comply with this requirement.
Clause E2 External Moisture — Performance E2.3.1 and E2.3.2
Decks and balconies incorporating TECHNOKOLLA Rasolastik Exterior Waterproofing Membranes comply with these requirements.
Clause F2 Hazardous Building Materials — Performance F2.3.1
TECHNOKOLLA Rasolastik Exterior Waterproofing Membranes meet this requirement as they are not classified as hazardous building materials.

Refer to BRANZ Appraisal 541 for the full scope of use, limitations, and compliance conditions related to external wet area applications.

BRANZ Appraised

External Stone Cladding Waterproofing & Adhesive Fixing System

Technokolla

View Product

The Technokolla external cladding and waterproofing system enables direct adhesive fixing of natural stone to a wide range of stable vertical substrates including cast-in-place concrete, precast panels, concrete block (masonry), rendered brick, fibre cement board, and cementitious screeds.

LBC Declare Red List Free

NZ-Owned Business

Designed for fixing natural stone cladding to external concrete and masonry walls in residential and commercial buildings.
Suitable for vertical façade applications including full-height external walls, feature cladding, and architectural detailing.
Recommended for use in New Zealand’s diverse climate conditions including high UV, coastal, and high wind zones.
Compatible with reinforced concrete, solid masonry, and rendered block substrates.
Suitable for both new builds and recladding or remedial installations..
System supports seismic resilience when installed with specified movement joints and compliant sealant systems
Complies with NZBC Clause E2 External Moisture by forming a water-shedding tile layer and water-resistant substrate protection.
Supports compliance with B2 Durability and F2 Hazardous Building Materials when all system components are correctly applied.
Ideal for use in conjunction with concrete structural façades in high-rise or commercial projects where tiled stone finishes are desired.
Tested to meet performance requirements for external adhesive cladding systems aligned with TANZ Best Practice and E2/AS1.

The Technokolla External Stone Cladding System supports compliance with multiple clauses of the NZ Building Code when installed in accordance with system specifications and technical documentation.

Complies with NZBC Clause E2 External Moisture by providing a continuous water-resistant barrier behind exterior stone cladding
Complies with NZBC Clause B2 Durability by delivering a minimum 15-year service life for all waterproofing components under normal external exposure conditions
Complies with NZBC Clause F2 Hazardous Building Materials as waterproofing products used in the system are low VOC, solvent-free, and non-toxic.

Waterproofing elements such as Rasolastik EVO and Rasolastik ADV meet EN 14891 standards and IWAM Code of Practice requirements for flexible membrane performance
System design aligns with E2/AS1 and TANZ Best Practice Guidelines for external wall tiling and façade cladding.

BRANZ Appraised

Internal Tiled Wet Areas — Kitchens Bathroom Laundries

Technokolla

View Product

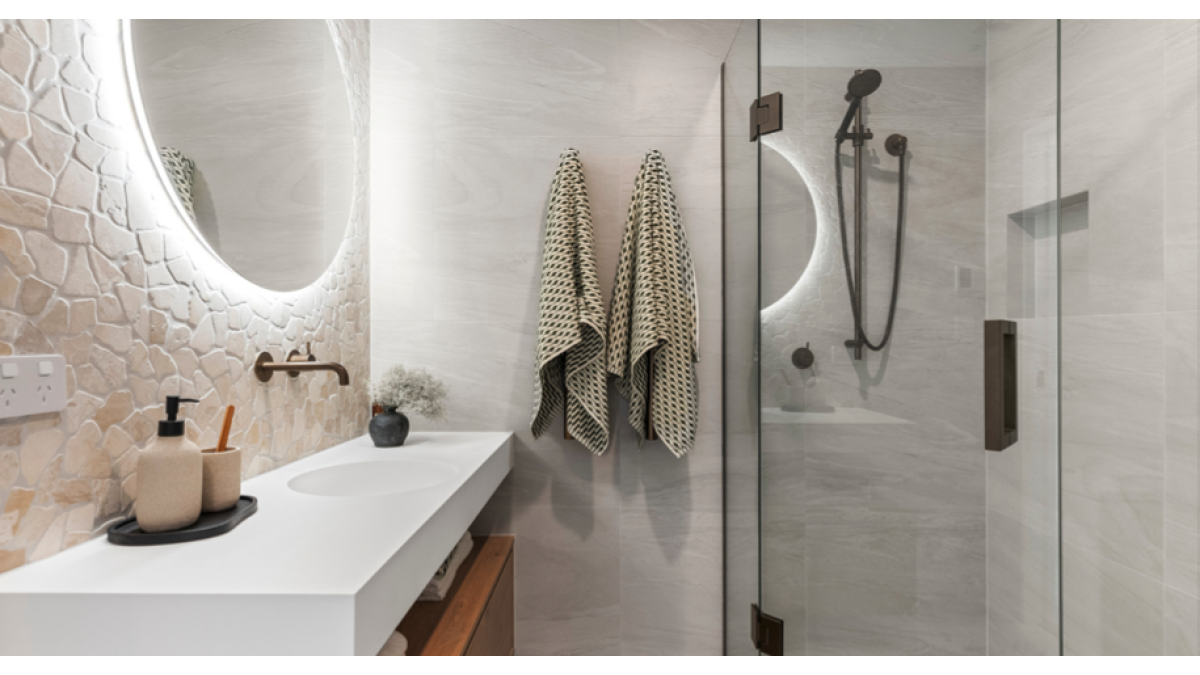

The Technokolla Wet Area Waterproofing System is a fully integrated, BRANZ Appraised liquid-applied waterproofing system, designed for application beneath ceramic and stone tile finishes in internal wet areas.

The Technokolla Wet Area Waterproofing System is designed for use beneath ceramic, porcelain, and natural stone tiles, including mosaics, in internal wet areas. It is suitable for both residential and commercial applications, including bathrooms, kitchens, and laundries.

The system components — including Rasogum+, Rasolastik ADV, and Rasolastik EVO — have been appraised for use in the following scope:

Interior wet areas in residential, commercial, hospitality, and institutional buildings (e.g. apartments, hotels, gyms, educational facilities).
Wall substrates: Concrete, concrete masonry, wet area fibre cement sheet lining systems, wet area plasterboard lining systems.
Floor substrates: Concrete, plywood, fibre cement compressed sheet, fibre cement tile underlay.
Must be protected by ceramic, porcelain, or natural stone tile finishes, including mosaics, to prevent physical damage.
Suitable for use in standard and high-humidity environments
Compliant for use in NZ wind zones up to Extra High when used internally in sealed environments.
Membranes must be installed in accordance with Technokolla installation guidelines and protected from UV exposure during installation.

Refer to BRANZ Appraisal No. 542 and BRANZ Appraisal No. 541 for complete scope and compliance requirements.

In the opinion of BRANZ, the Technokolla Rasolastik and Rasogum+ Wet Area Membranes, when designed, used, installed, and maintained in accordance with the statements and conditions of BRANZ Appraisal No. 542 comply with the following provisions of the New Zealand Building Code (NZBC):

Clause B2 Durability — Performance B2.3.1 (b): 15 years
The membranes meet the durability requirements for building elements incorporating waterproofing systems.
Clause E3 Internal Moisture — Performance E3.3.6:
Interior wet area floors and walls incorporating Technokolla Rasolastik and Rasogum+ membranes will prevent water penetration and meet this requirement (as covered by Appraisal 542).
Clause F2 Hazardous Building Materials — Performance F2.3.1:
The membranes do not contain any hazardous materials and will not present a health hazard to building occupants.

Refer to BRANZ Appraisal 542 for internal wet area use applications for full scope, limitations, and compliance conditions.

BRANZ Appraised

Swimming & Spa Pools Waterproofing, Tiled & Plastered System

Technokolla

View Product

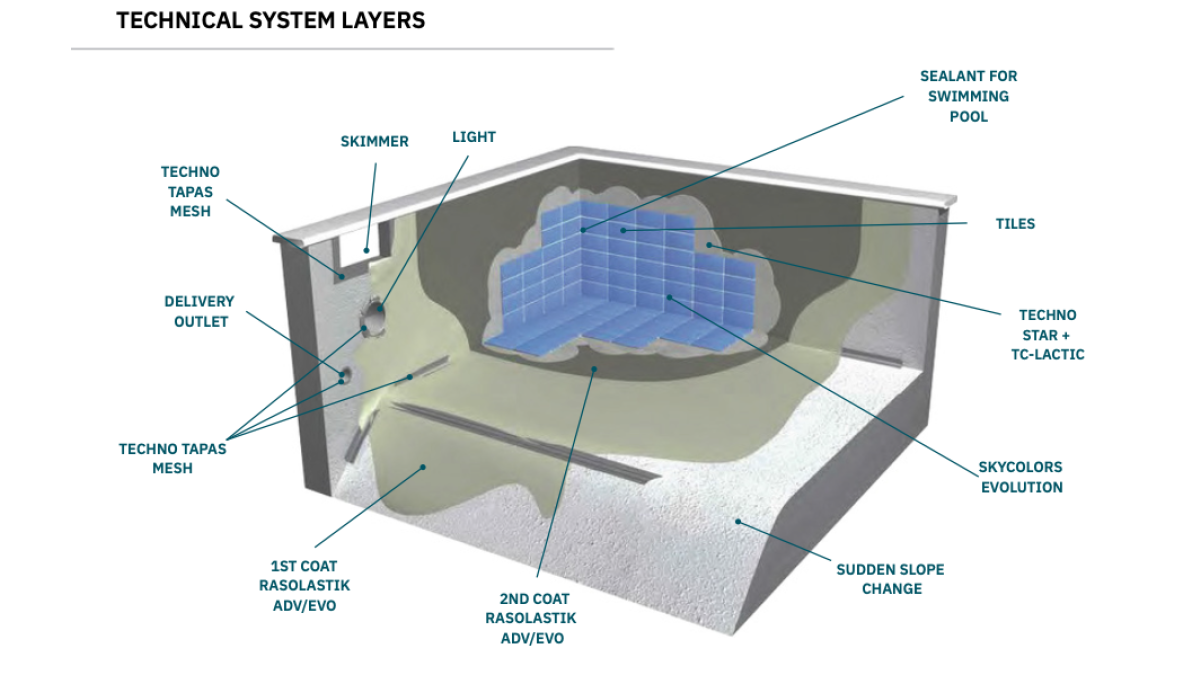

The Technokolla Waterproofing System is a fully integrated, BRANZ Appraised, liquid-applied waterproofing solution, purpose-built for use beneath ceramic tiles, stone finishes, and mosaics in swimming pools and areas immersed in water.

This system is suitable for tiled & plastered swimming pool installations in both residential and commercial projects, including spas, plunge pools, water features, and submerged wet zones. It is engineered to perform in fully immersed environments where long-term waterproofing, flexibility, and bond strength are critical.

Compatible with a wide range of tile & plaster finishes, including ceramic, porcelain, mosaics, and natural stone.

Rasolastik Waterproofing Membranes have been BRANZ Appraised for use as waterproofing membranes in swimming pool and submerged applications when applied over approved concrete substrates.

These membranes are suitable for use in:

Reinforced concrete swimming pools and spas, both indoor and outdoor
Tiled pool shells, plunge pools, and water features requiring full submersion
Residential and commercial pools, including pools in hotels, leisure centres, and multi-residential developments
Projects where waterproofing performance under hydrostatic pressure, chlorine exposure, and thermal cycling is essential

Rasolastik membranes comply with the New Zealand Building Code (NZBC) and have been tested in accordance with BRANZ Appraisal No. 541.

They provide excellent adhesion to properly prepared concrete substrates designed and constructed in line with NZBC requirements.

For full details on scope, limitations, and compliance, refer to BRANZ Appraisal No. 541.

In the opinion of BRANZ, TECHNOKOLLA Rasolastik Waterproofing Membranes, when designed, installed, used, and maintained in accordance with the statements and conditions of BRANZ Appraisal No. 541, will meet the following provisions of the New Zealand Building Code (NZBC) as they apply to swimming pool applications:

Clause B2 Durability — Performance B2.3.1(b): 15 years
TECHNOKOLLA Rasolastik Waterproofing Membranes comply with this durability requirement, providing long-term protection in fully submerged environments such as swimming pools and spas.
Clause E2 External Moisture — Performance E2.3.1 and E2.3.2
When used in swimming pool structures, TECHNOKOLLA Rasolastik Waterproofing Membranes meet these performance requirements by preventing water ingress and maintaining watertight integrity under hydrostatic pressure.
Clause F2 Hazardous Building Materials — Performance F2.3.1
TECHNOKOLLA Rasolastik Waterproofing Membranes comply with this provision as they are not classified as hazardous building materials.

Refer to BRANZ Appraisal No. 541 for the full scope of use, compliance conditions, and limitations as they apply to waterproofing systems for swimming pools and submerged areas.

BRANZ Appraised
