External Stone Cladding Waterproofing & Adhesive Fixing System
Description

The Technokolla external cladding and waterproofing system enables direct adhesive fixing of natural stone to a wide range of stable vertical substrates including cast-in-place concrete, precast panels, concrete block (masonry), rendered brick, fibre cement board, and cementitious screeds. It is suitable for use on reinforced structural façades and engineered substrates designed to support the weight and movement of adhered stone cladding. The system is compatible with both new construction and retrofit applications where the substrate has been appropriately prepared and primed in accordance with installation guidelines.

It combines a complete suite of Technokolla-certified components including waterproofing membranes, tile adhesives, primers, grouts, and weatherproof joint sealants.

Designed for long-term performance in NZ's diverse climate, this solution delivers a durable, weather-resistant façade system ideal for exterior stone wall applications in residential and commercial construction.

Suitable for new builds and recladding projects where external moisture management, seismic resilience, and aesthetic integrity are critical.

Core System Components

Techno Primer 101:

  • An adhesion promoting primer for C2 class cement based adhesives on non absorbent substrates such as glazed ceramic tiles, polished porcelain, stone, PVC and linoleum. Can also be diluted 1:1 with water for use on absorbent or semi absorbent substrates including concrete, cement screeds, gypsum, plasterboard, anhydrite, wood and chipboard prior to applying adhesives, plasters or cement based self levelling compounds.

Techno Primer T:

  • A synthetic resin based primer formulated for preparing very absorbent cement based screeds and plasters. Ensures optimal adhesive bond strength and even surface porosity before tiling or coating.

Techno Gap:

  • A thixotropic, fibre reinforced technical levelling mortar for indoor and outdoor substrate preparation in layers 3–20 mm thick. Ready for covering after 24–48 hours depending on thickness and site conditions.

Techno Monokronos:

  • A pre mixed, quick drying, controlled shrinkage screed mortar for indoor and outdoor use in layers 30–60 mm thick. Classified CT‑C25‑F5 to EN 13813, ideal for creating stable screeds prior to tiling.

Techno Repair (Epoxy Resin):

  • A two component, pourable epoxy resin for filling and sealing cracks. Acts as an adhesion promoter for cement based skim coats and self levelling mortars on smooth, dense substrates. Non shrink formulation.

Techno Rasolastik Advance:

  • A highly flexible, two component cementitious waterproofing membrane for external use including terraces, balconies and swimming pools. Class II membrane with crack bridging of approximately 1.35 mm. Complies with AS 4858 and holds BRANZ Appraisal No. 541 (E2B2).

OR

Techno Rasolastik EVO:

  • A single component, fibre reinforced cement based waterproofing and concrete protection mortar. Suitable for swimming pools, basins, tanks, reservoirs, canals and potable water contact. Resists hydrostatic pressure and complies with EN 1504‑9 for concrete protection. Holds BRANZ Appraisal No. 541 (E2B2).

Techno RL80 Bond Breaker:

  • A two part corner and joint sealing band comprising non woven polypropylene fabric over a butyl rubber self adhesive tape. Used for waterproofing corners, junctions and penetrations in systems with Rasolastik membranes. Supplied in 80 mm x 15 m rolls.

Techno Fibreglass Mesh:

  • An alkali resistant fibreglass mesh with woven roving structure and macromolecule latex coating for added strength and durability. Supplied in 1 m x 50 m rolls for reinforcing membrane applications.

Techno S One:

  • A C2TE S1 class deformable cement based adhesive for tiles and natural stone up to 10 mm thick. Suitable for facades, heated screeds, swimming pools and industrial floors. Meets ISO 13007 and EN 12004.

OR

Techno Star:

  • A C2TE S1 class deformable cement based adhesive for tiles and natural stone up to 15 mm thick. Especially suited for large format porcelain and stone. Meets ISO 13007 and EN 12004.

Techno TC Lastic:

  • A synthetic rubber based elasticising additive for cement based adhesives and mortars. Increases flexibility to C2S2 classification and improves adhesion to challenging substrates.

Technocolors:

  • A cement based polymer modified grout for joints 1–8 mm wide. Fine finish and colour rich, incorporating a micro shield system to resist mould, bacteria and staining. Available in 30 colours.

Techno Skycolors Evolution:

  • A two component epoxy grout and adhesive for joints 1–15 mm wide. Smooth finish, available in 19 colours, with high chemical and water resistance for hygienic and wet area applications.

Maxisil N:

  • A non staining neutral cure silicone for expansion joints in natural stone such as marble and granite. Mildew resistant and available in 24 colours.
Key Features
  • Designed specifically for adhesive fixing of natural stone cladding to exterior concrete and masonry wall substrates.
  • Incorporates a complete system of compatible waterproofing membranes, primers, adhesives, grouts, and joint sealants.
  • Engineered for vertical installation in external environments including residential and commercial façades.
  • Integrates movement joints and expansion detailing to manage thermal stress, seismic movement, and substrate shifts.
  • Features water-resistant and UV-stable sealants for long-term protection against external moisture and weather exposure.
  • Compatible with both cement-based and reactive (epoxy) tile adhesives to suit various stone formats and project demands.
  • Suitable for fixing heavy natural stone panels including granite, marble, limestone, and engineered stone.
  • Tested and aligned with New Zealand Building Code E2/AS1 and TANZ Best Practice Guide for external tiling.
  • Supports façade performance in high-UV, coastal, and high-wind zones across New Zealand.
  • System components include screed or repairing compounts, Primers and bandages/fibre mesh for surface preparation, Rasolastik EVO or Rasolastik ADV for waterproofing, tile adhesives for bonding, with optional additives to promote flexibility & adhesion, Grouts, Silicone, and weatherproof expansion joints.
LBC Declare Red List Free
LBC Declare Red List Free
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Designed for fixing natural stone cladding to external concrete and masonry walls in residential and commercial buildings.
  • Suitable for vertical façade applications including full-height external walls, feature cladding, and architectural detailing.
  • Recommended for use in New Zealand’s diverse climate conditions including high UV, coastal, and high wind zones.
  • Compatible with reinforced concrete, solid masonry, and rendered block substrates.
  • Suitable for both new builds and recladding or remedial installations..
  • System supports seismic resilience when installed with specified movement joints and compliant sealant systems
  • Complies with NZBC Clause E2 External Moisture by forming a water-shedding tile layer and water-resistant substrate protection.
  • Supports compliance with B2 Durability and F2 Hazardous Building Materials when all system components are correctly applied.
  • Ideal for use in conjunction with concrete structural façades in high-rise or commercial projects where tiled stone finishes are desired.
  • Tested to meet performance requirements for external adhesive cladding systems aligned with TANZ Best Practice and E2/AS1.
Limitations on Use
  • Not suitable for timber-framed walls or lightweight construction systems without engineered support and suitable substrate preparation.
  • Not intended for use over sealed, painted, or bitumen-coated surfaces unless properly abraded, primed, and verified for compatibility.
  • Substrates must be dimensionally stable, dry, and free from contaminants, laitance, or structural defects.
  • Adhesives and grouts must be applied within manufacturer-specified temperature and moisture conditions.
  • Only approved Technokolla components may be used to ensure system compatibility and compliance.
  • Incorrect installation or substitution of products will void performance warranties and compliance statements.
  • Application requires qualified tiling professionals trained in external façade and adhesive cladding installation.
  • Stone selection must consider water absorption, weight, and finish suitability for external exposure.
  • Not designed for areas subject to permanent immersion or water ponding without additional system specification.
Statement of Building Code Compliance

The Technokolla External Stone Cladding System supports compliance with multiple clauses of the NZ Building Code when installed in accordance with system specifications and technical documentation.

  • Complies with NZBC Clause E2 External Moisture by providing a continuous water-resistant barrier behind exterior stone cladding
  • Complies with NZBC Clause B2 Durability by delivering a minimum 15-year service life for all waterproofing components under normal external exposure conditions
  • Complies with NZBC Clause F2 Hazardous Building Materials as waterproofing products used in the system are low VOC, solvent-free, and non-toxic.

Waterproofing elements such as Rasolastik EVO and Rasolastik ADV meet EN 14891 standards and IWAM Code of Practice requirements for flexible membrane performance
System design aligns with E2/AS1 and TANZ Best Practice Guidelines for external wall tiling and façade cladding.

In-Service History

The Technokolla External Cladding System has been successfully used in NZ across a wide range of residential and commercial façade installations.

Waterproofing components have been in market since the 1990's with proven field performance under tiled stone cladding in both coastal and inland environments.

Used extensively on multi-storey buildings, external stone feature walls, and commercial façade recladding projects. Rasolastik EVO and ADV membranes have a history of consistent waterproofing performance under adhered cladding systems exposed to external moisture, thermal movement.

Accepted by local councils and compliance officers when detailed in project specifications and supported with PS3 documentation.

Other Performance Attributes
  • Waterproofing membranes such as Rasolastik EVO and Rasolastik ADV are flexible and designed to accommodate structural and thermal movement without cracking or delamination.
  • These membranes comply with EN 14891 for liquid-applied waterproofing under ceramic tiles and meet the requirements of the IWAM Code of Practice.
  • Rasolastik EVO is BRANZ Appraised (No. 541), supporting compliance with NZBC Clause E3 Internal Moisture and B2 Durability.
  • Both Rasolastik EVO and ADV are solvent-free and classified as Class A+ for low VOC emissions according to Eurofins certification.
  • Membranes must be protected from UV exposure and are not intended to remain exposed beyond the tiling phase.
  • These products support sustainable construction practices by reducing moisture ingress risk, extending the life of façade systems, and minimising repair cycles.
BRANZ Appraised
BRANZ Appraised
Documents
External Stone Cladding System Fixing & Waterproofing General Technokolla Specification
Manual: External Stone Cladding

2025

Primer 101 Plus Data Sheet
Primer T Data Sheet
Safety Data Sheet: Rasolastik Advance Part A (Powder)

Version 4.0

Safety Data Sheet: Rasolastik EVO

Version 4

TC Lastic Data Sheet
Technical Data Sheet: Rasolastik EVO

01/25

Techno Gap Data Sheet
Techno RL80 S
Techno S-One Data Sheet
Techno Skycolor Evolution Epoxy Data Sheet
Techno Star Data Sheet
Technocolor Data Sheet
Techo Monokronos Data Sheet
Rasolastik Evo Product Information

Technokolla’s tiling and waterproofing systems offer BRANZ-appraised performance for NZ residential & commercial projects, complying with NZBC, and IWAM best practice; backed by a 15 year warranty.

Product Enquiries

News from Technokolla

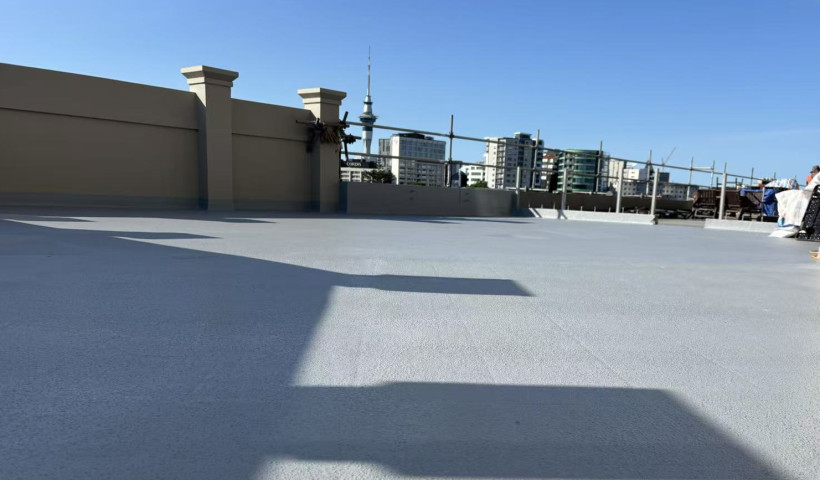

Remediating a Tiled External Terrace Deck with Technokolla Rasolastik EVO and Rhino TUFF STUFF
