Complete Waterproofing System: External Tiled Wet Areas — Facades, Terraces & Balconies
Description

The Technokolla External Waterproofing System is a fully integrated, BRANZ Appraised liquid-applied waterproofing solution, specifically designed for use beneath ceramic and stone tile finishes.

Manufactured in Italy, the system provides long-term protection in high-moisture environments across both residential and commercial construction—ideal for decks, balconies, façades, patios, and waterproofed substrates.

It features a coordinated range of adhesives, waterproofing membranes, grouts, and levelling compounds, all developed for outdoor tile & stone installations. Designed to accommodate movement and environmental exposure, the system delivers long-term durability and excellent mechanical performance in external applications.

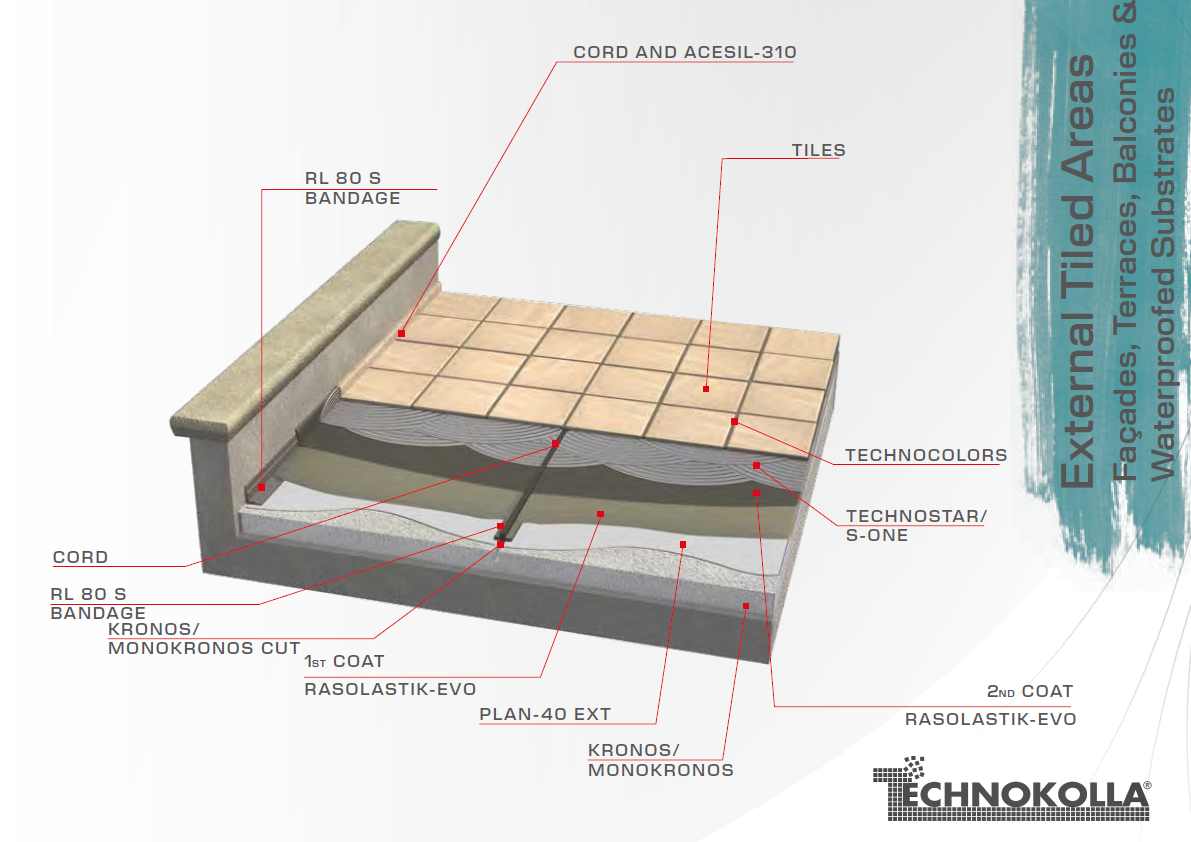

Core System Components

Techno Rasolastik EVO:

  • A single-component, fibre-reinforced cement-based mortar for waterproofing and protecting concrete.
  • Suitable for swimming pools, basins, tanks, and areas in contact with drinking water. Resists hydrostatic pressure and protects concrete in accordance with EN 1504-9 and potable water compliant.
  • BRANZ Appraisal Nos. 541 & 542.

Techno Star:

  • A high-performance C2TE S1-class adhesive suitable for thicker applications (up to 15mm).
  • Perfect for large-format porcelain or stone in both interior and exterior settings.
  •  Meets ISO13007 & EN12004

Technocolors:

  • A cement-based polymer-modified grout for joints between 1–8mm.
  • Offers a fine, colour-rich finish and incorporates a micro-shield system to resist bacteria, mould, and staining.
  • Available in 30 colours.

Techno Kronos:

  • A high-performance, cement-based self-levelling compound with very low emissions, ideal for both interior and exterior use.
  • Designed for medium-load areas, it offers excellent dimensional stability with minimal shrinkage and can be applied in thicknesses from 3 to 40 mm—or up to 60 mm when mixed with aggregates.
  • It is suitable for use over underfloor heating, is pumpable for easy application, and delivers low internal stress for a stable finish.
  • When covered, it can be used outdoors and is ideal for creating bonded screeds under ceramic tiles on cementitious substrates.

Plan-40 EXT:

  • Very low-emission cement-based self-levelling compound is suitable for interior and exterior areas.
  • PLAN-40 EXT is a multipurpose, very low shrinkage and high thickness (3-40 mm) levelling compound for average loading.

Techno RL80:

  • A two-part bandage with a 100% non-woven polypropylene fibre fabric over a butyl rubber self-adhesive tape for waterproofing systems.
  • Watertight treatment for corners between walls and floors, wall-to-wall corners and for sealing joints between special pieces such as gullies, drains, and spot lamps, for waterproofing treatments using RASOGUM+ or products of the RASOLASTIK range to be covered by ceramic tiles.
  • Dimensions: 80mm x 15m.

Techno Acesil:

  • A mould-resistant, acid-cure silicone sealant for internal and external use.
  • Highly elastic, ideal for perimeter joints and areas with expected movement.
Key Features
  • A complete, BRANZ Appraised solution for waterproofing and tiling external wet areas, including decks, balconies, patios, terraces, façades, and other outdoor hardscape zones.
  • This fully integrated system is designed to deliver long-term durability, excellent mechanical performance, and consistent results across residential and commercial projects.
  • Manufactured in Italy and trusted worldwide, the system is ideal for use beneath ceramic, porcelain, and natural stone tiles, providing a stable, high-performance installation over waterproofed or exposed cementitious substrates.
  • Certified high-performance adhesives for external use, ensuring secure tile fixing in all weather conditions
  • Low-modulus, deformable grouts that absorb thermal expansion and structural movement
  • UV- and weather-resistant waterproofing membranes built to withstand New Zealand’s climate
  • Self-levelling compounds like PLAN-40 EXT create a smooth, reliable base with thicknesses from 3 to 40 mm (or up to 60 mm with aggregates)
  • Suitable for use over underfloor heating systems, with low shrinkage and internal stress
  • Pumpable and easy to apply for large-scale or small-area projects
  • Exterior-rated components that maintain performance when installed over waterproofed substrates
  • Together, these products form a reliable, flexible system that ensures watertight protection, surface integrity, and a professional finish in all outdoor tile applications.
Scope of Use

This system is suitable for external floor tile installations in both residential and commercial projects. It is recommended for use on balconies, patios, terraces, façades, and other outdoor hardscape areas.

Compatible with a wide range of tile types, including ceramic and porcelain.

Rasolastik Waterproofing Membranes have been BRANZ Appraised for use as waterproofing membranes in the following applications:

  • Buildings within the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1
  • Timber-framed structures designed and constructed in accordance with the NZ Building Code (NZBC)
  • Substrates including plywood and fibre cement compressed sheet
  • Decks with a maximum area of 40m²

Rasolastik Waterproofing Membranes are also approved for use as waterproofing membranes over external reinforced concrete pedestrian decks and balconies for buildings within the following scope:

  • Up to 3 storeys high, with a maximum height from ground to eaves of 10 metres
  • Floor plan areas limited only by seismic and structural control joints
  • Reinforced concrete designed and constructed in accordance with the NZBC

For full details on scope, limitations, and compliance, refer to BRANZ Appraisal 541.

Limitations on Use
  • A minimum grout joint width of 4 mm is recommended to accommodate movement and ensure proper sealing.
  • Expansion joints must be installed at intervals of no more than 9 m² to manage thermal and structural movement.
  • Waterproofing membranes must be applied only by Surtec (Trade Supplies Ltd) approved and trained applicators to ensure system integrity and compliance.

For full details on limitations and compliance requirements, refer to BRANZ Appraisal 541.

Statement of Building Code Compliance

In the opinion of BRANZ, TECHNOKOLLA Rasolastik Exterior Waterproofing Membranes, when designed, installed, used, and maintained in accordance with the statements and conditions of BRANZ Appraisal No. 541, will meet the following provisions of the New Zealand Building Code (NZBC):

  • Clause B2 Durability — Performance B2.3.1(b): 15 years
    TECHNOKOLLA Rasolastik Exterior Waterproofing Membranes comply with this requirement.
  • Clause E2 External Moisture — Performance E2.3.1 and E2.3.2
    Decks and balconies incorporating TECHNOKOLLA Rasolastik Exterior Waterproofing Membranes comply with these requirements.
  • Clause F2 Hazardous Building Materials — Performance F2.3.1
    TECHNOKOLLA Rasolastik Exterior Waterproofing Membranes meet this requirement as they are not classified as hazardous building materials.

Refer to BRANZ Appraisal 541 for the full scope of use, limitations, and compliance conditions related to external wet area applications.

In-Service History

Technokolla was founded in 1995 in Sassuolo, Italy, and has been supplying its waterproofing & tiling systems internationally since the late 1990s, including New Zealand.

Notable projects include:

  • JW Marriott, Auckland
  • Novotel Christchurch
  • Albany Lakes, mixed use development, Auckland
  • Milford Apartments, Auckland
  • Metlifecare, Auckland
  • Loxley Apartments, Auckland
  • Rarotongan Resort, Rarotonga, Cook Islands
Other Performance Attributes
  • BRANZ Appraised — Assessed and approved under BRANZ Appraisal No. 541 for external waterproofing applications including decks, balconies, and terraces.
  • Tested and compliant with the following standards:
    • EN 14891 (waterproofing membranes under tile finishes)
    • EN 12004 (tile adhesives)
    • EN 13888 (grouts)
    • EN 13813 (screeds and self-levelling compounds)
  • Service Life — Minimum 15-year service life when installed and maintained in accordance with Technokolla system guidelines and NZ Building Code requirements.
  • Low VOC & Indoor Air Quality — Products used in the system are formulated with very low VOC emissions and have achieved the EUROFINS Indoor Air Comfort GOLD A+ rating, meeting leading international standards for healthy indoor environments.
  • UV and Weather Resistance — Exterior-grade membranes engineered for long-term exposure to New Zealand’s harsh weather conditions, including UV.
  • Movement Accommodation — Low-modulus, deformable adhesives and grouts designed to absorb thermal and structural movement common in outdoor environments.
  • System Compatibility — Fully integrated system including Technokolla adhesives, grouts, waterproofing membranes, and levelling compounds, all developed to work together for consistent performance and durability.

Warranty

The Technokolla External Waterproofing and Tiling System is backed by a 15-year product warranty when installed by an approved applicator in full accordance with Surtec and Technokolla installation guidelines. The warranty covers the performance of the system components, including waterproofing integrity, adhesive bonding, and overall compatibility when used as part of the complete Technokolla system.

To maintain warranty validity:

  • The membrane must be fully protected by tile or stone finishes
  • All movement joints and detailing must follow Technokolla system specifications
  • Routine inspections must be carried out as part of standard building maintenance
  • Any damage or alteration must be repaired using approved Technokolla products and methods
  • The installation must comply with the New Zealand Building Code and BRANZ Appraisal No. 541

This warranty applies to product performance only and does not cover workmanship.

Warranty documentation and project registration are available upon request. Registration is strongly recommended to ensure priority technical support and claim resolution.

BRANZ Appraised
BRANZ Appraised
Documents
External Tiled Areas: Decks & Balconies

2025

Data Sheet: Plan-40 EXT
Data Sheet: Rasolastik EVO
Data Sheet: Techno Acesil
Data Sheet: Techno Kronos
Data Sheet: Techno RL80
Data Sheet: Technocolors
Data Sheet: Technostar
BRANZ Appraisal 541: Rasolastik Exterior Waterproofing

No 541 (2024)

Technical Drawings

Surtec supplies Technokolla’s premium Italian-made tiling and waterproofing systems, backed by local expertise, BRANZ appraisals, and a 15 year warranty.
