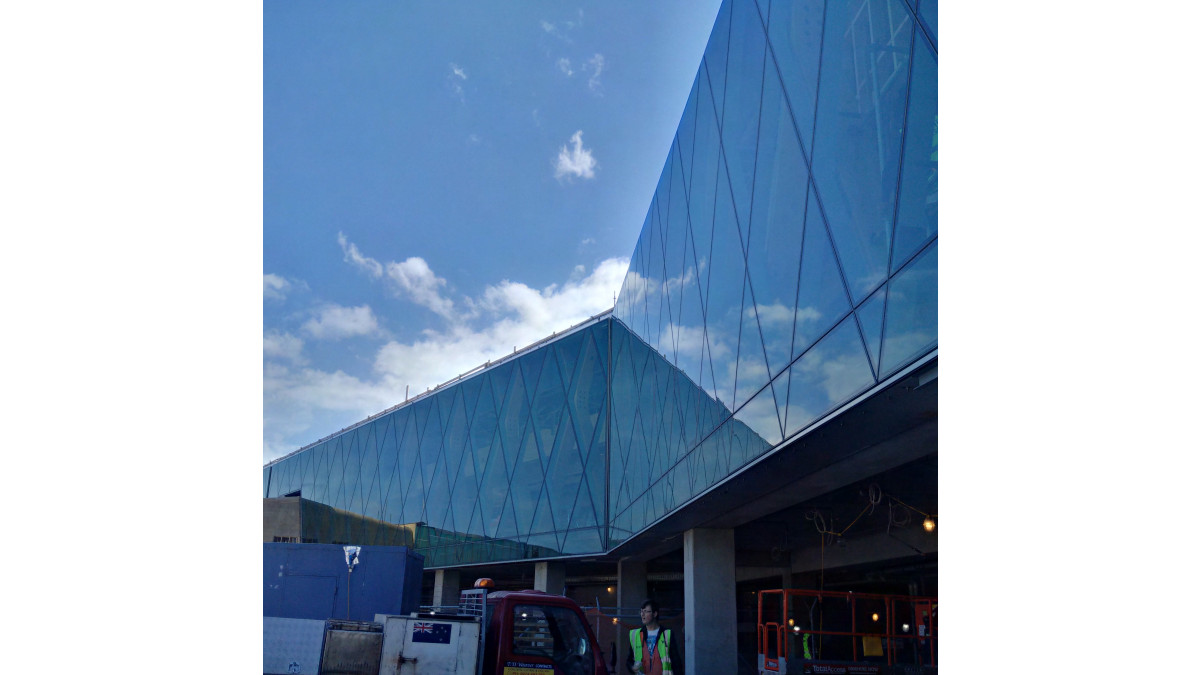

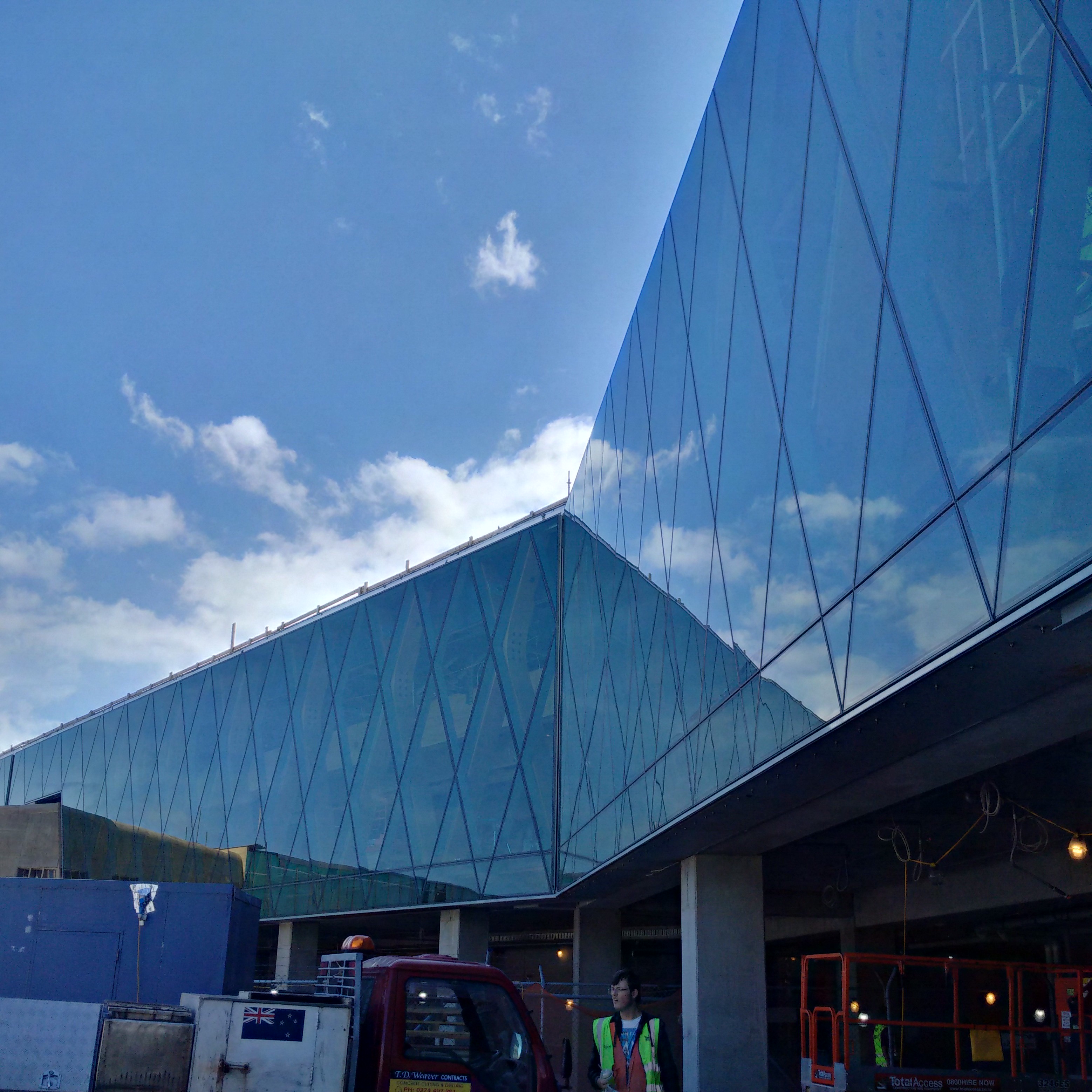

WIAL Terminal Extension Stage One Open

The first stage of the WIAL terminal extension opened in April. A fantastic effort to the Hawkins team and indeed all subtrades involved.

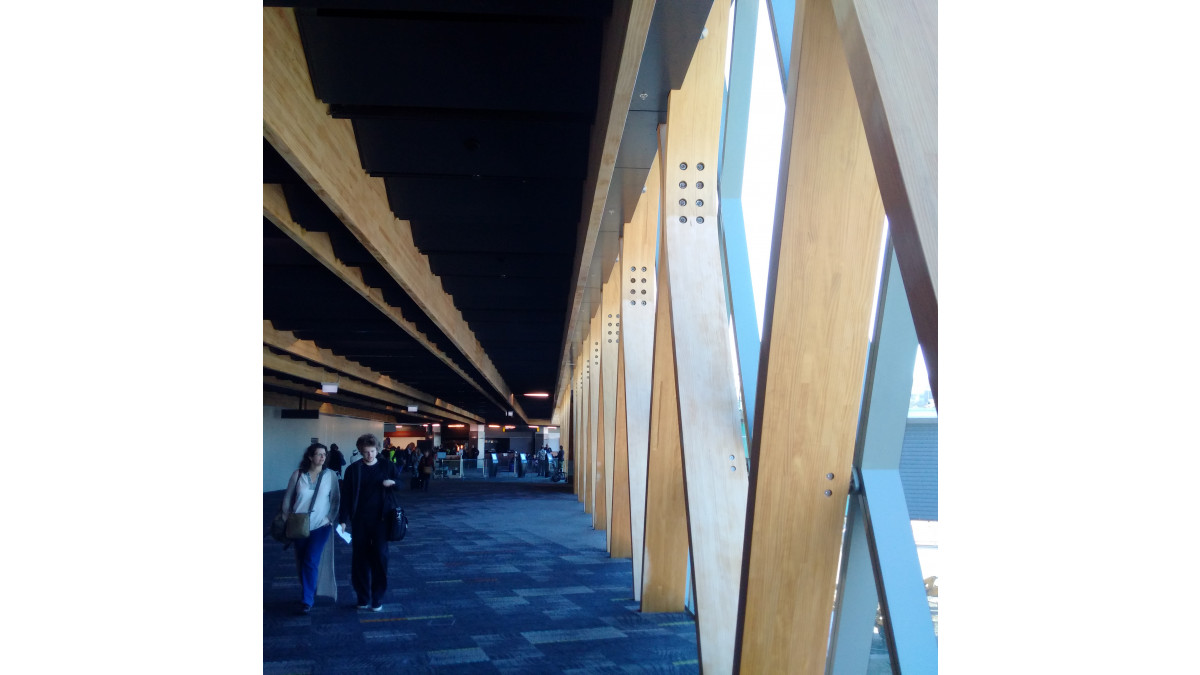

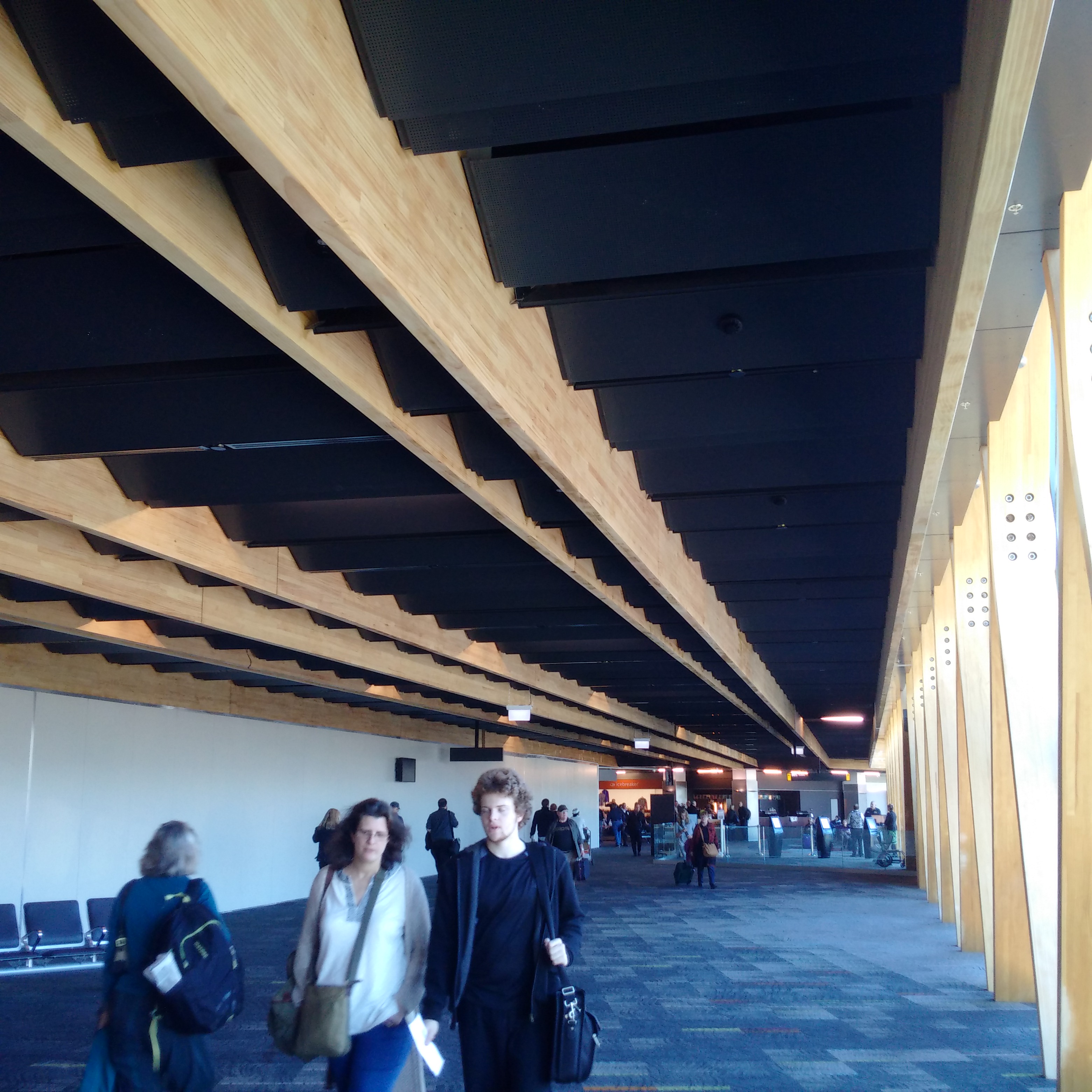

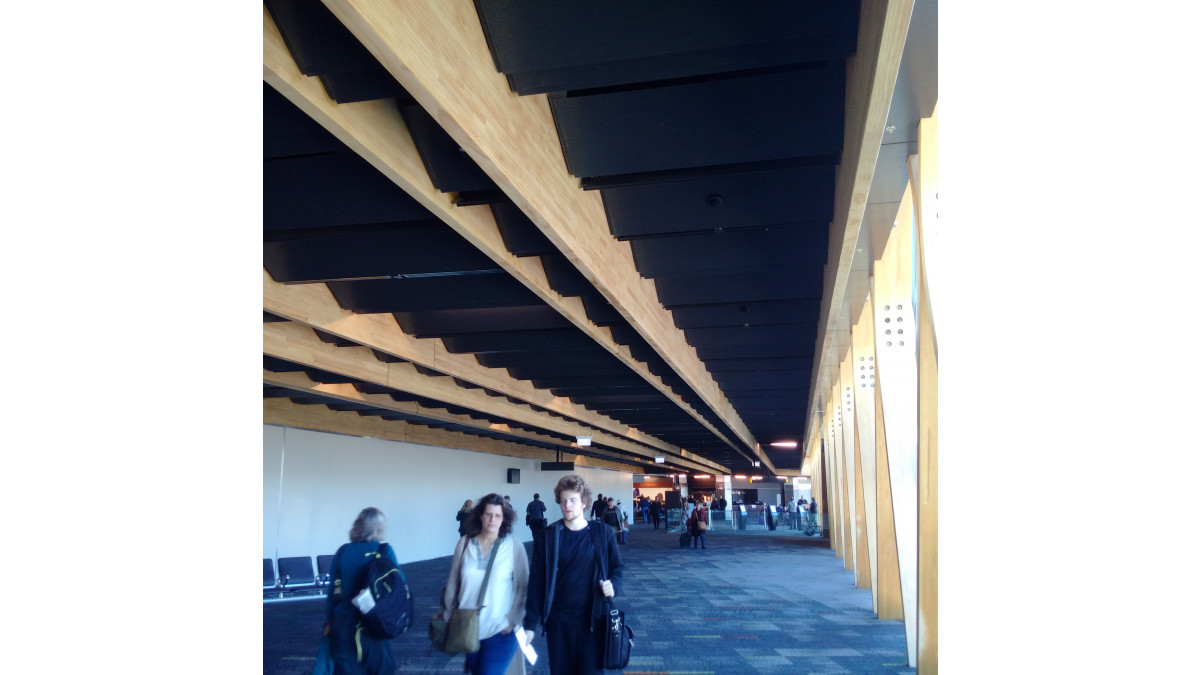

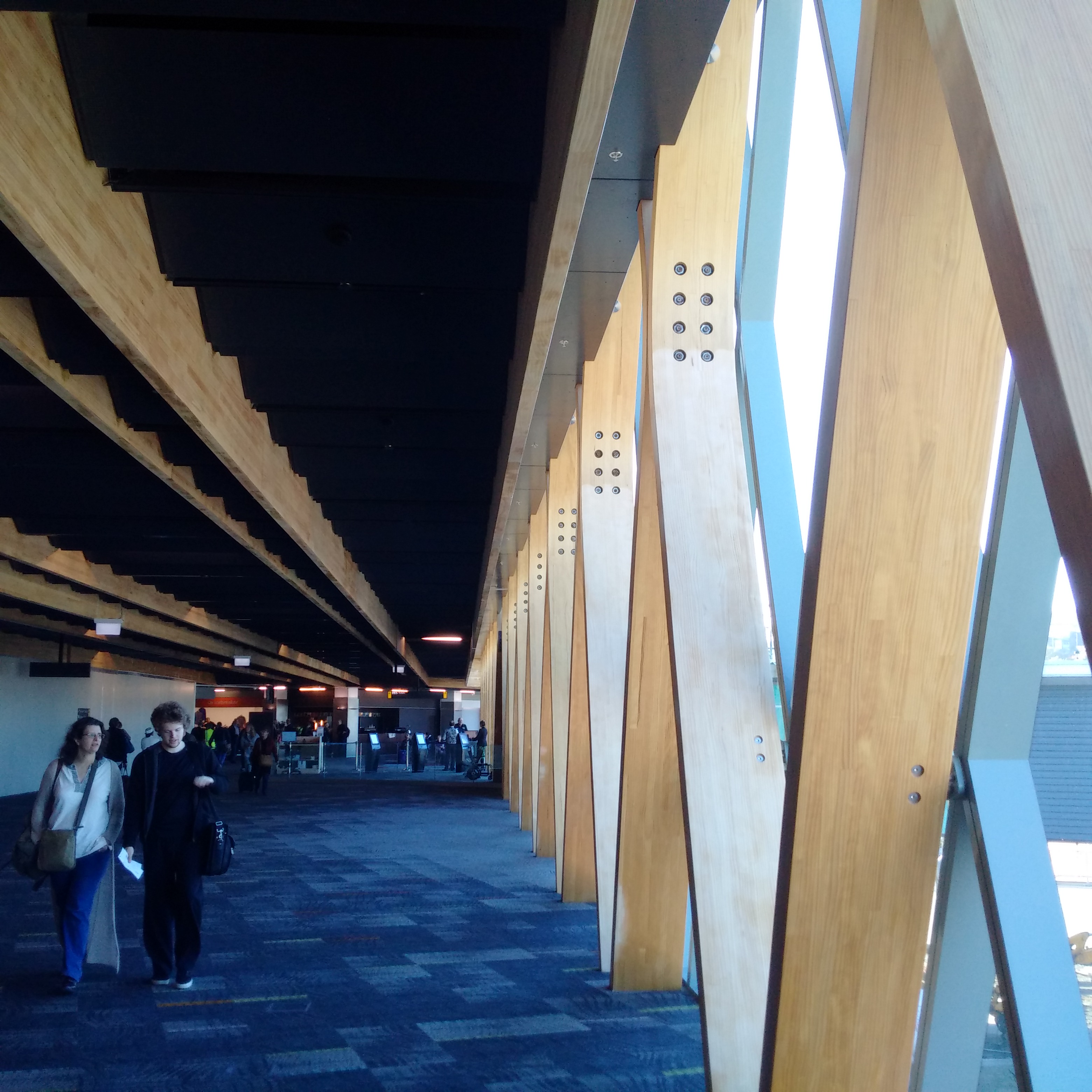

Walking through the new part of the terminal is an experience and it is amazing how many travellers take the time to stop and look at the laminated 'X' beams. Many travellers are even touching and smelling the timber.

The $58m extension will lengthen the terminal building by 30m and will provide greater lounge space, additional food and beverage offerings, and will also double the number of toilets.

Location: Wellington
Client: WIAL
Architect: Warren and Mahoney
Structural Engineer: BECA
Builder: Hawkins Group
Products Used: Curved Glulam 'X' Columns and Decorative Ceiling Beams
Date: 2015/16

Connection Detailing

Techlam NZ

View Product

Techlam can source and pre-fit many different types of structural timber connections in the plant, allowing significant reductions in time spent on site and reducing the need for site cutting or epoxying.

Curved Beams

Techlam NZ

View Product

Curved glulam timber beams have long been a cost-effective form of construction, both for their strength and design capabilities.

FSC Certified

Techlam laminated timber posts and beams can be used in all forms of construction where the structure relies on AS/NZS 1170: 2002. The design and use must be in accordance with Techlam specifications, design criteria and selection tables.

If installed in accordance with the Techlam installation requirements, Techlam laminated posts and beams and Techlam structural laminated flooring will comply with the performance clauses of the Building Code:

Structure B1/AS1: meets the requirements of B1.3.1, B1.3.2, B1.3.3 (a, b, f, j, m, q) B1.3.4 (a, b, c, d, e); AS 1170:2002 for engineering span tables; AS/NZS 1328:1998 and AS5068 for building element.
Durability B2/AS1: meets the requirements of B2.3.1(a) B2.3.2. All timber is treated in accordance with NZS 3640. Techlam does not carry out this treatment, Techlam relies upon its suppliers as they are all third party accredited.
Protection from Fire C: APA Evaluation of Char Rate (ASTM E119), TT-118, January 2015; meets the requirements of C6.3 C6.4. Where members are required to have a fire resistance rating the designer can use the following standards for FRR design: TT-118 OR: NZS 3603:1993 (section 9)
Hazardous Building Materials F2/AS1: meets the requirements of F2.3.1. Timber treatment suppliers meet NZS3640, which includes flash-off requirements.

Structure

Durability

Protection from Fire

Hazardous Building Materials

Glulaminated Visual Appearance Grade

Techlam NZ

View Product

Techlam Trade's Visual Appearance Grades are the best choice for any application where timber members are exposed to view.

FSC Certified

Techlam Laminated Timber Posts and Beams can be used in all forms of construction where the structure relies on AS/NZS 1170: 2002. The design and use must be in accordance with Techlam specifications, design criteria and selection tables.

Structure B1/AS1: meets the requirements of B1.3.1, B1.3.2, B1.3.3 (a, b, f, j, m, q) B1.3.4 (a, b, c, d, e); AS 1170:2002 for engineering span tables; AS/NZS 1328:1998 and AS5068 for building element.
Durability B2/AS1: meets the requirements of B2.3.1(a) B2.3.2. All timber is treated in accordance with NZS 3640. Techlam does not carry out this treatment, Techlam relies upon its suppliers as they are all third party accredited.
Protection from Fire C: APA Evaluation of Char Rate (ASTM E119), TT-118, January 2015; meets the requirements of C6.3 C6.4. Where members are required to have a fire resistance rating the designer can use the following standards for FRR design: TT-118 OR: NZS 3603:1993 (section 9).
Hazardous Building Materials F2/AS1: meets the requirements of F2.3.1. Timber treatment suppliers meet NZS3640, which includes flash-off requirements.

Structure

Durability

Protection from Fire

Hazardous Building Materials
