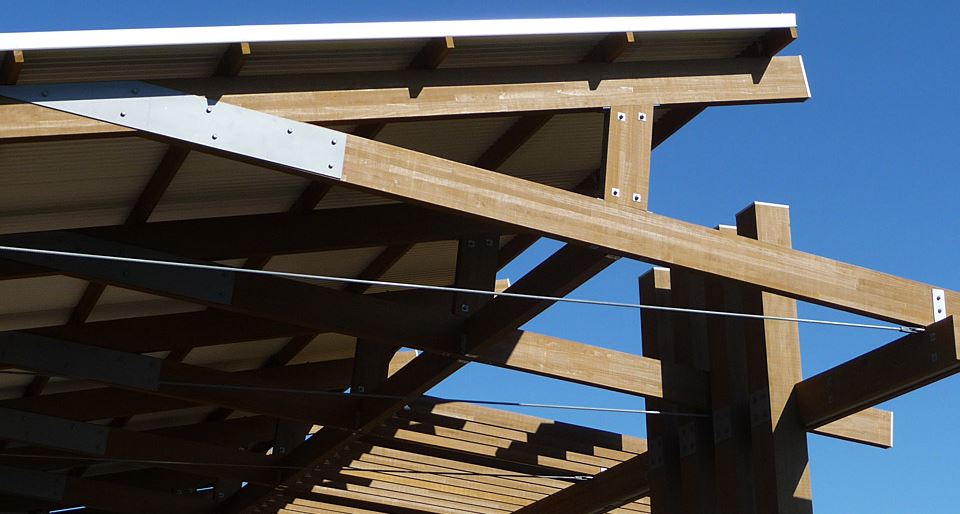

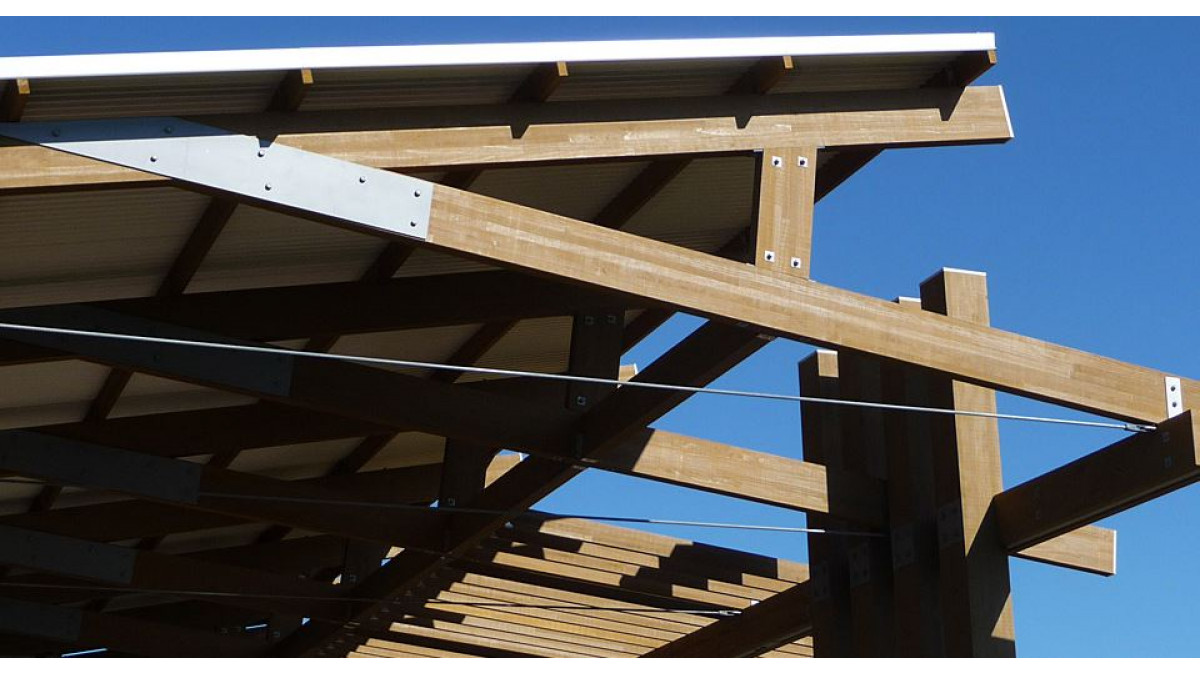

Glulaminated Visual Appearance Grade
Description

Techlam Trade's Visual Appearance Grades are the best choice for any application where timber members are exposed to view.

Suitable for veranda beams or feature rafters, our Visual Appearance Grade timbers will give your project a high quality finish.

Standard specifications

  • Visual defects filled
  • Sanded on all sides
  • One coat of temporary sealer applied for protection during construction period
  • Treatment options: UT, H1.2, H3.2, H5

Optional specifications

  • Pre-cambered
  • Bandsawn finish
  • Larger dimensions
  • Lengths to more than 20m
  • Pre-primed
Categories
Structural Timber
FSC Certified
FSC Certified
Scope of Use

Techlam Laminated Timber Posts and Beams can be used in all forms of construction where the structure relies on AS/NZS 1170: 2002. The design and use must be in accordance with Techlam specifications, design criteria and selection tables.

Limitations on Use

Techlam glulam products are supplied with one coat of temporary sealer applied. To preserve the aesthetics of the product, it should be further sealed with a high quality primer and two full coats of premium enamel or acrylic topcoat within 14 days.

All cuts and notches, holes and rebates must be sealed with protective coating to prevent shrinkage and swelling. All exterior timber products must be kept dry and protected from excessive heat, direct sunlight or prolonged exposure to the elements. Where specific fire performance is required Techlam laminated timber posts and beams must be designed in conjunction with a fire consultant.

Statement of Building Code Compliance

If installed in accordance with the Techlam installation requirements, Techlam laminated posts and beams and Techlam structural laminated flooring will comply with the performance clauses of the Building Code:

  • Structure B1/AS1: meets the requirements of B1.3.1, B1.3.2, B1.3.3 (a, b, f, j, m, q) B1.3.4 (a, b, c, d, e); AS 1170:2002 for engineering span tables; AS/NZS 1328:1998 and AS5068 for building element.
  • Durability B2/AS1: meets the requirements of B2.3.1(a) B2.3.2. All timber is treated in accordance with NZS 3640. Techlam does not carry out this treatment, Techlam relies upon its suppliers as they are all third party accredited.
  • Protection from Fire C: APA Evaluation of Char Rate (ASTM E119), TT-118, January 2015; meets the requirements of C6.3 C6.4. Where members are required to have a fire resistance rating the designer can use the following standards for FRR design: TT-118 OR: NZS 3603:1993 (section 9).
  • Hazardous Building Materials F2/AS1: meets the requirements of F2.3.1. Timber treatment suppliers meet NZS3640, which includes flash-off requirements.
In-Service History
  • Aro Ha Wellness Retreat, Southern Alps
  • Hobsonville Wharf
  • Pak 'N Save covered carpark, Petone
  • Wellington International Airport
  • EIT Student Amenities Atrium, Hawkes Bay
  • Hodge Sports Centre, Scots College, Wellington
  • Museum and Art Gallery, Samoa
B1 Structure compliant
Structure
B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
F2 Hazardous Building Materials compliant
Hazardous Building Materials
Documents
Span Tables
Techlam PASS Statements
Accreditation
Installation and Operation
Warranty
BIM
Techlam Standard Beam - 112mm
Techlam Standard Beam - 135mm
Techlam Standard Beam - 180mm
Techlam Standard Beam - 42mm
Techlam Standard Beam - 65mm
Techlam Standard Beam - 88mm
Techlam Standard Post - 112mm
Techlam Standard Post - 135mm
Techlam Standard Post - 180mm
Techlam Standard Post - 42mm
Techlam Standard Post - 65mm
Techlam Standard Post - 88mm
Techlam Standard Profile - 112mm
Techlam Standard Profile - 135mm
Techlam Standard Profile - 180mm
Techlam Standard Profile - 42mm
Techlam Standard Profile - 65mm
Techlam Standard Profile - 88mm
