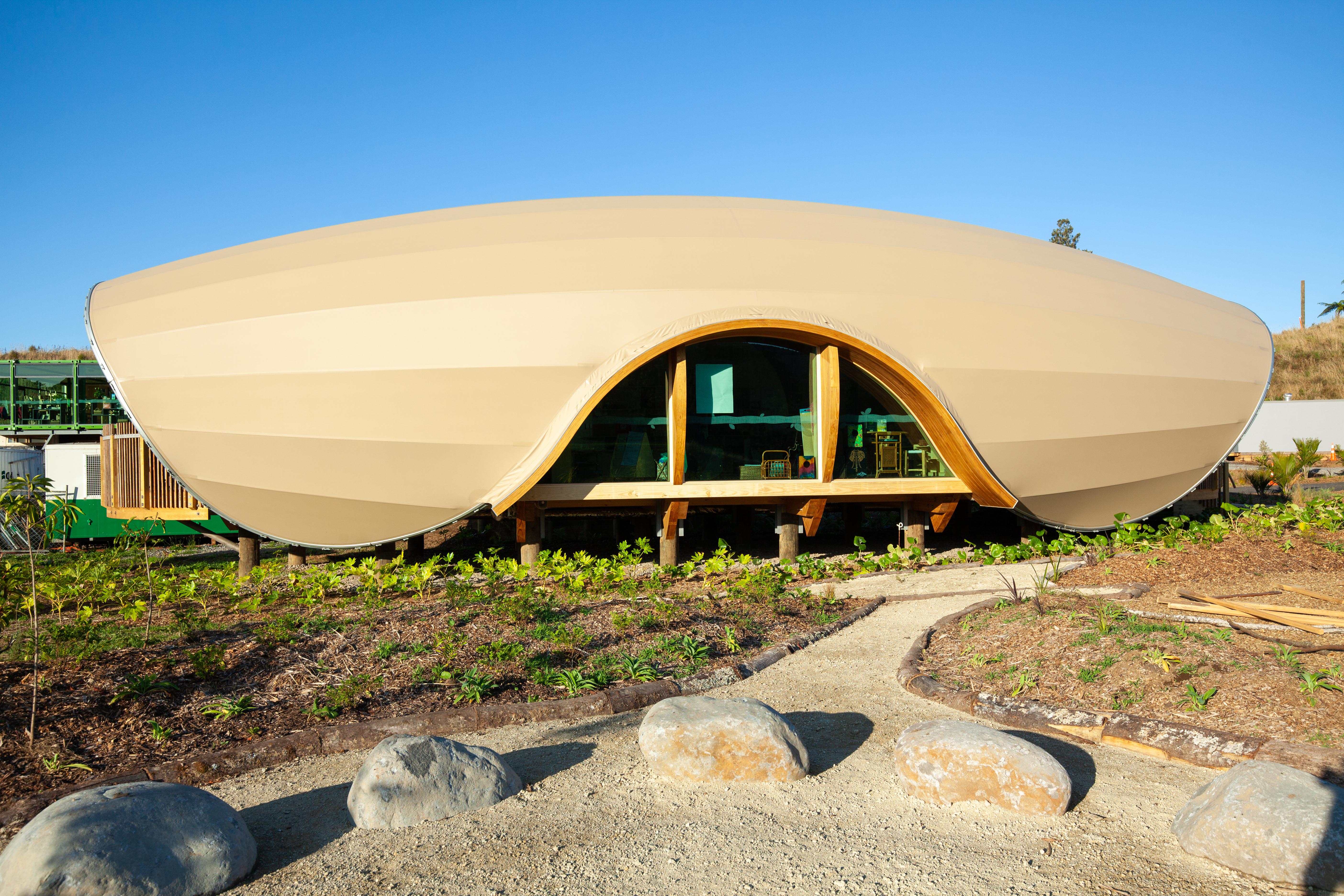

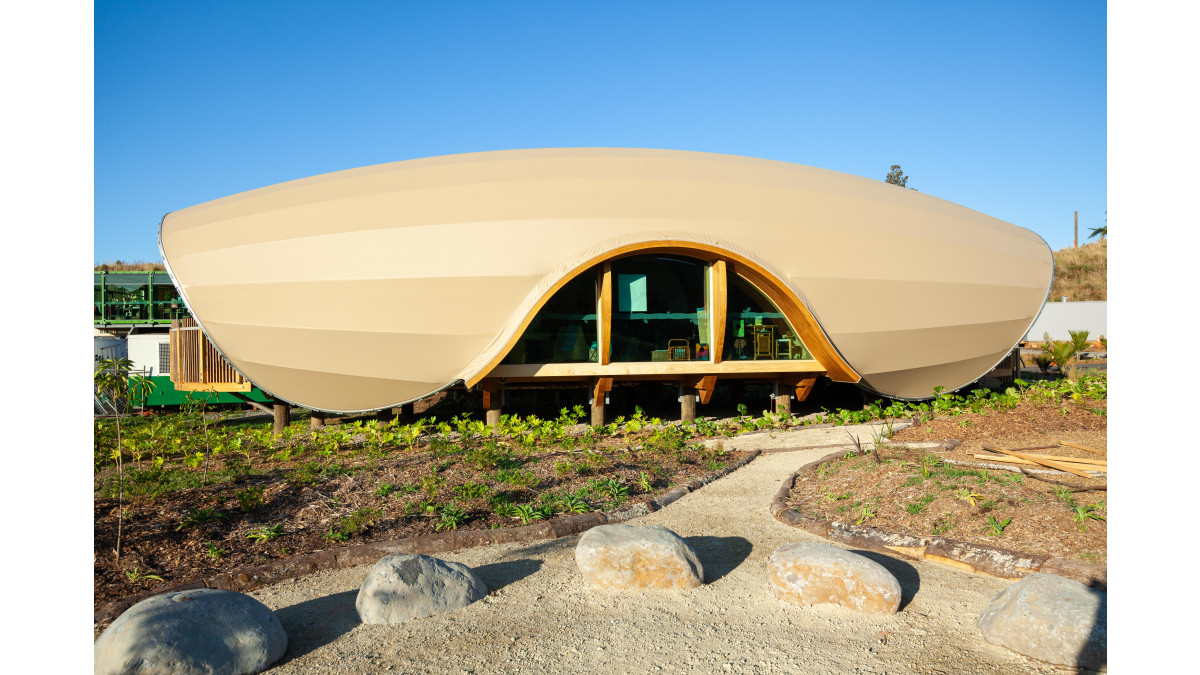

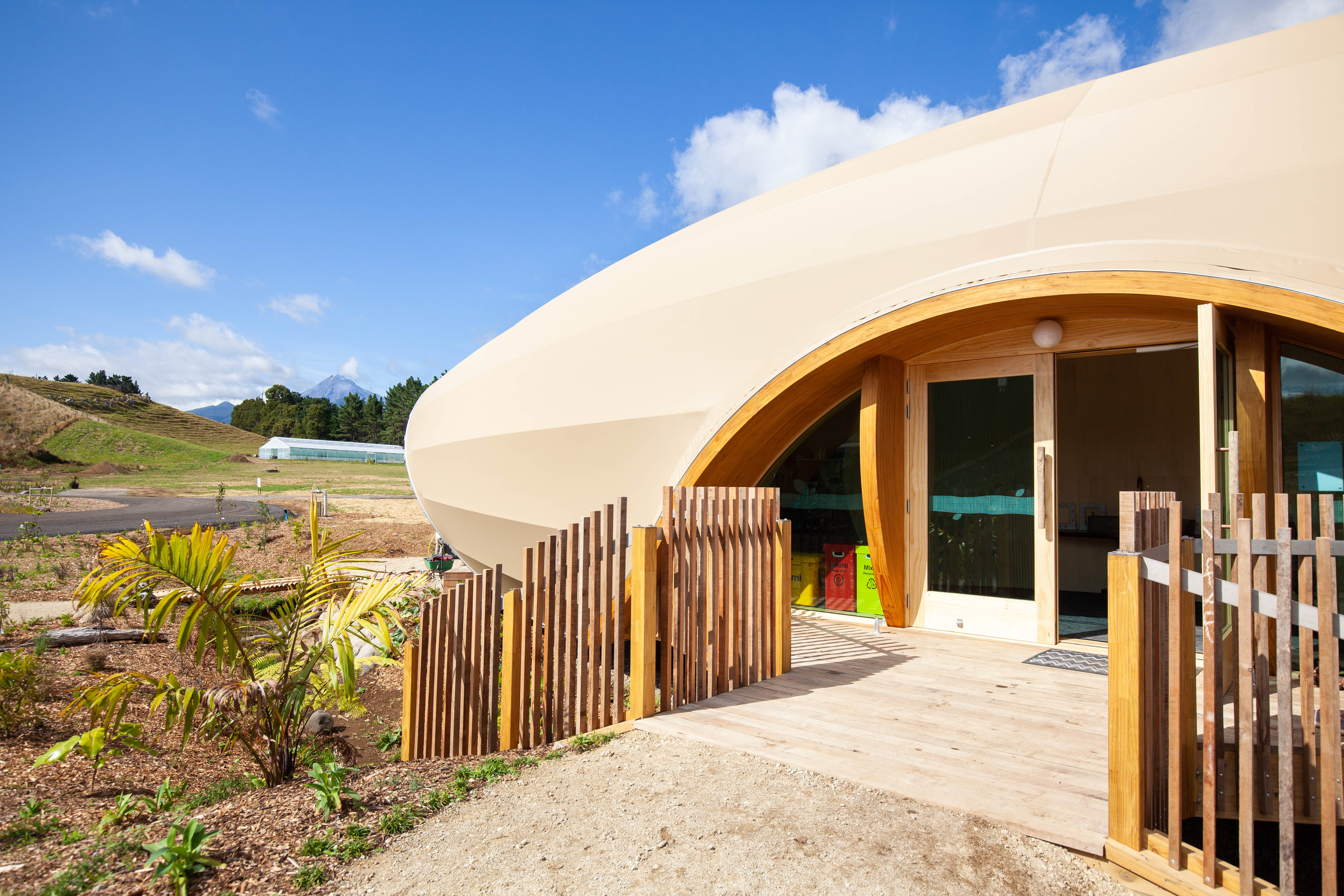

Sustainable Glulaminated Timber a Perfect Fit for Green School NZ

From the building's unique design to the innovative materials used, Green School is focused on the future. Green School is built around an innovative vision from the founders, Mike and Rachel Perrett, who worked with Boon Team Architects to bring their design to life. The design is focused on connecting with nature, creating a place of deep learning for students.

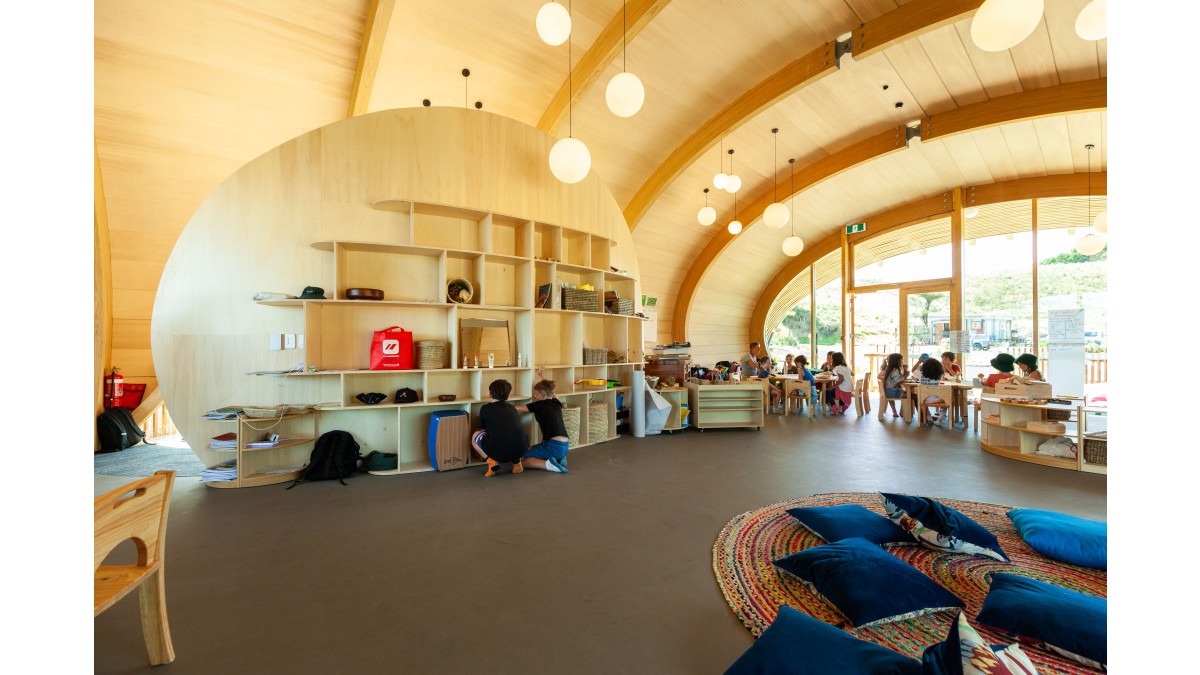

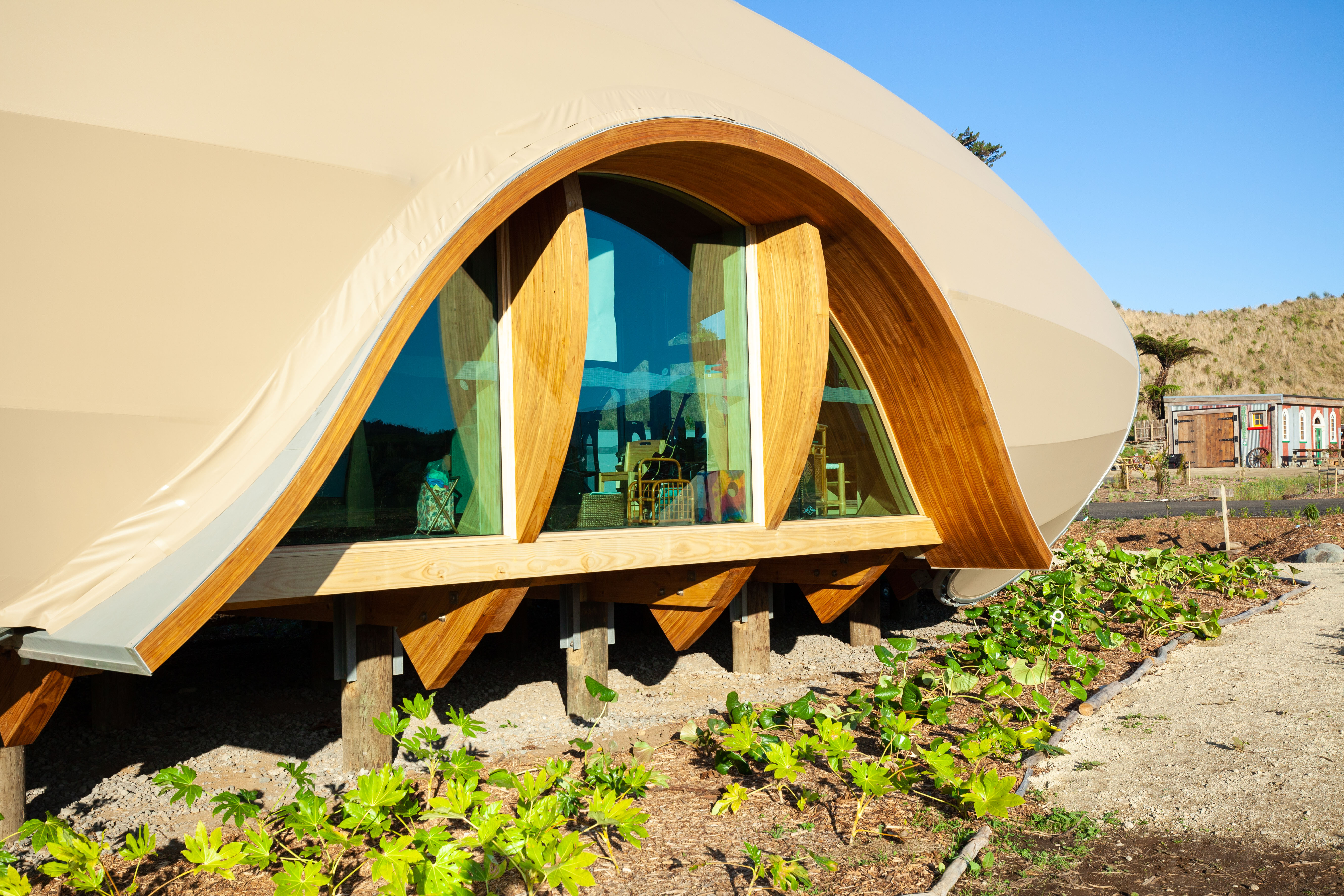

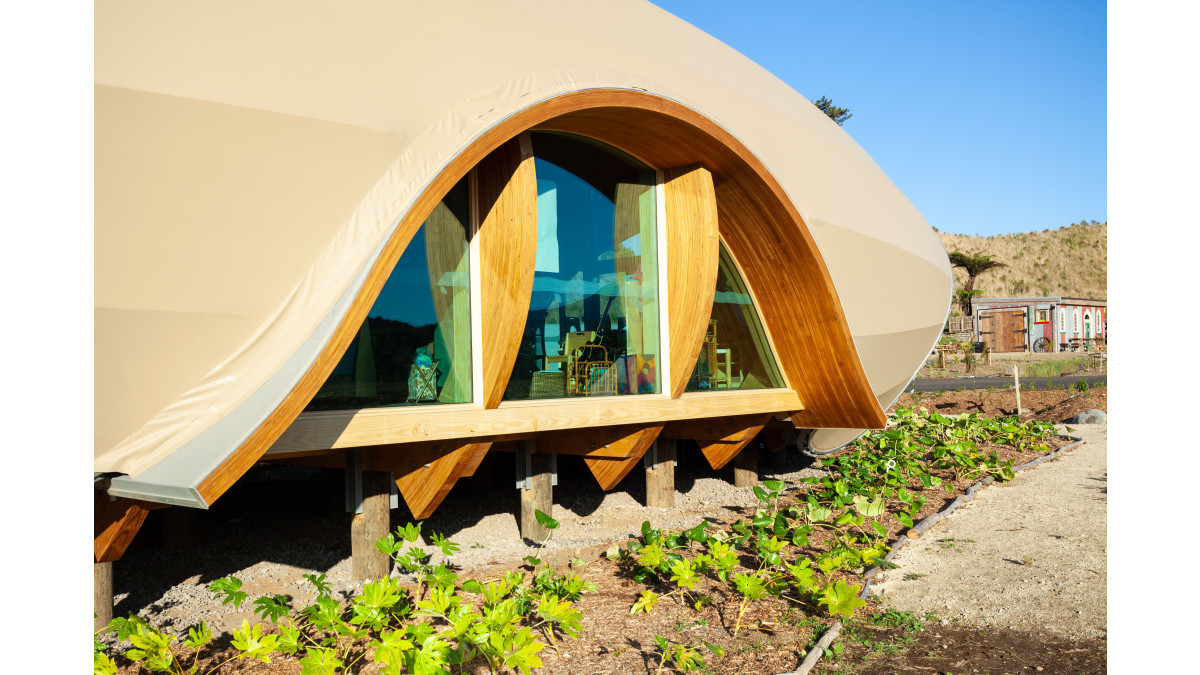

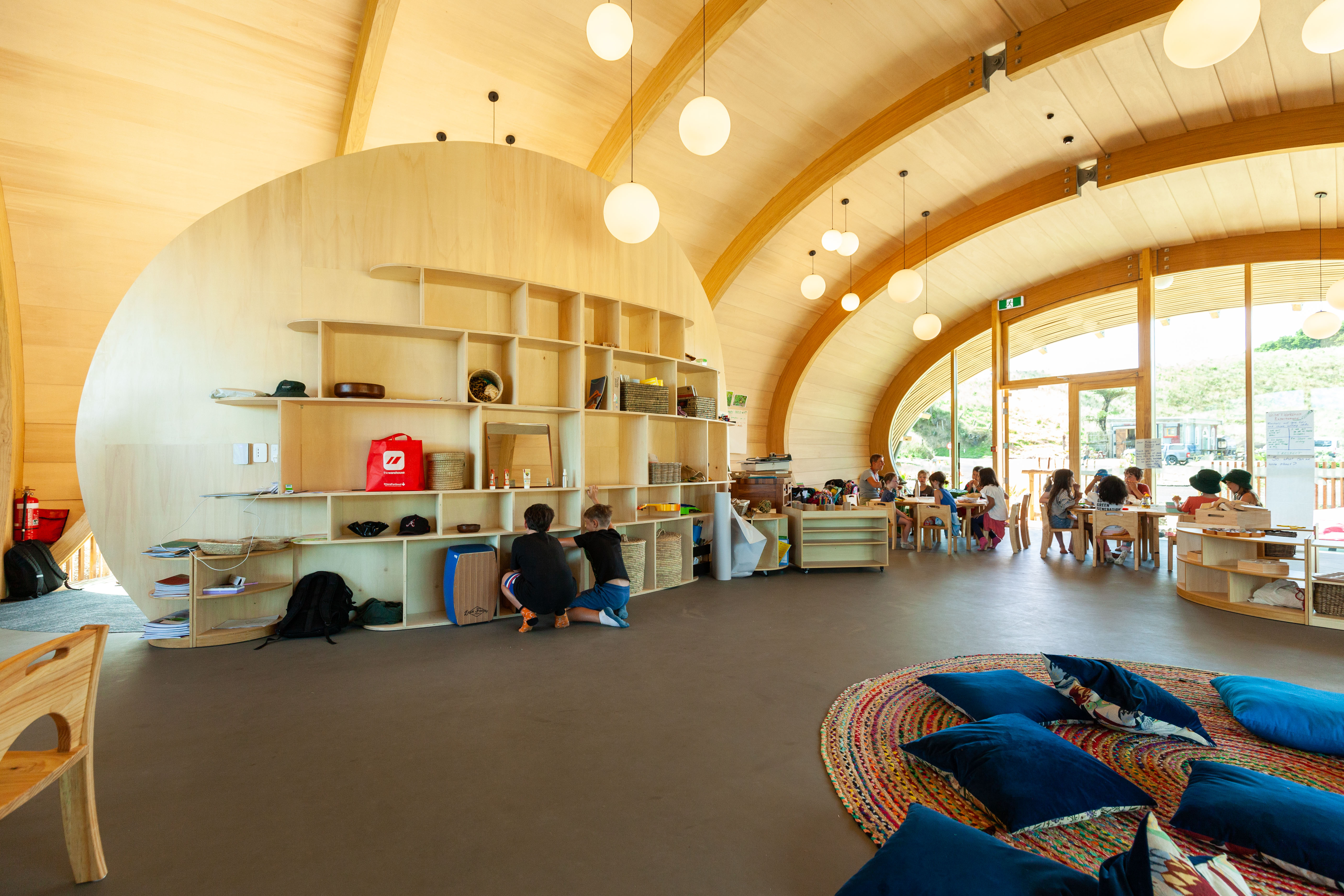

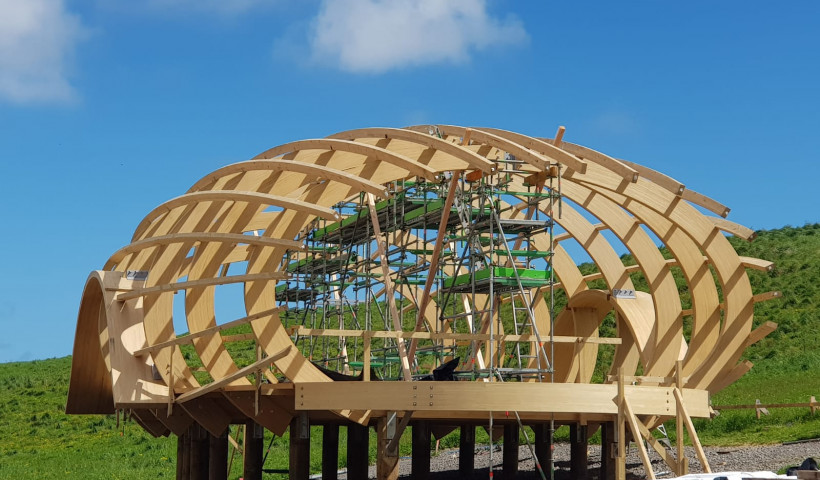

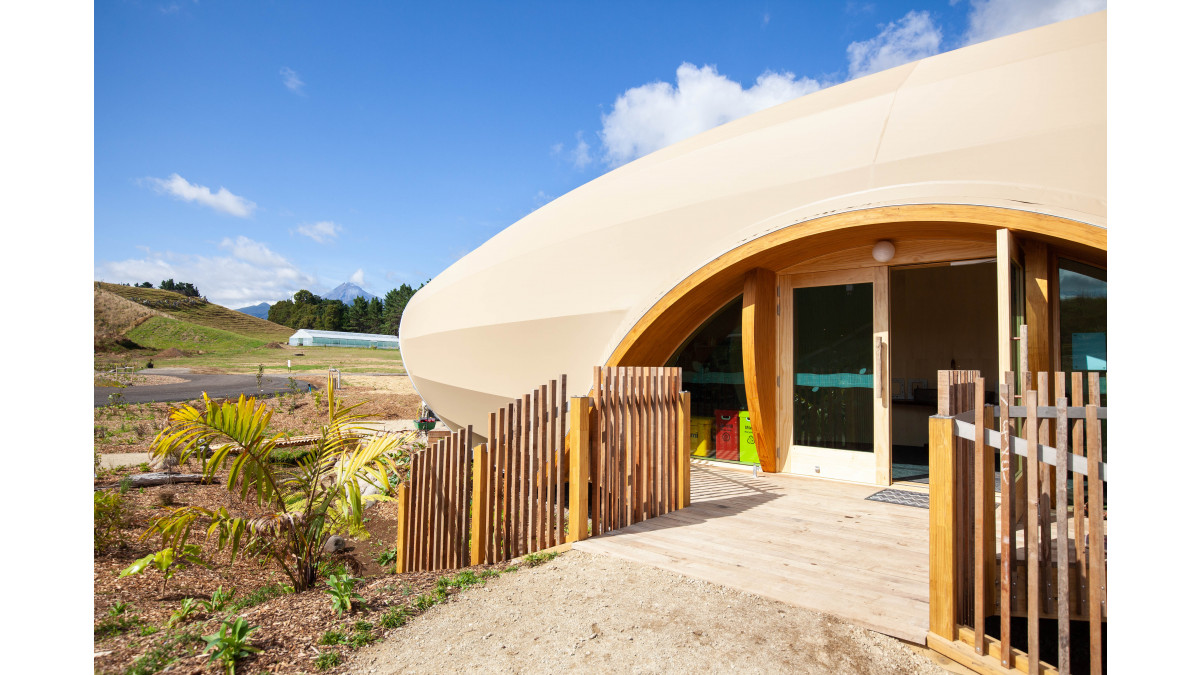

Green School used sustainable and innovative materials that create a safe and comfortable atmosphere where the students can thrive with purpose. The bulk of the classrooms are sustainably milled timber, treated with an environmentally preferred treatment. Techlam supplied the school with the structural components for their three classroom pods. The portals, bearers and purlins were manufactured within strict timeframes to bring the project to life. Techlam also packaged their products with fully recyclable timber wrapping, as well as prefabricating all components, ensuring minimal time and wastage on site.

The design and build of Green School have created an innovative learning environment to inspire students. Techlam NZ are proud to be a part of this awesome project.

Glulaminated Visual Appearance Grade

Techlam NZ

View Product

Techlam Trade's Visual Appearance Grades are the best choice for any application where timber members are exposed to view.

FSC Certified

Techlam Laminated Timber Posts and Beams can be used in all forms of construction where the structure relies on AS/NZS 1170: 2002. The design and use must be in accordance with Techlam specifications, design criteria and selection tables.

If installed in accordance with the Techlam installation requirements, Techlam laminated posts and beams and Techlam structural laminated flooring will comply with the performance clauses of the Building Code:

Structure B1/AS1: meets the requirements of B1.3.1, B1.3.2, B1.3.3 (a, b, f, j, m, q) B1.3.4 (a, b, c, d, e); AS 1170:2002 for engineering span tables; AS/NZS 1328:1998 and AS5068 for building element.
Durability B2/AS1: meets the requirements of B2.3.1(a) B2.3.2. All timber is treated in accordance with NZS 3640. Techlam does not carry out this treatment, Techlam relies upon its suppliers as they are all third party accredited.
Protection from Fire C: APA Evaluation of Char Rate (ASTM E119), TT-118, January 2015; meets the requirements of C6.3 C6.4. Where members are required to have a fire resistance rating the designer can use the following standards for FRR design: TT-118 OR: NZS 3603:1993 (section 9).
Hazardous Building Materials F2/AS1: meets the requirements of F2.3.1. Timber treatment suppliers meet NZS3640, which includes flash-off requirements.

Structure

Durability

Protection from Fire

Hazardous Building Materials

Glulam Portals

Techlam NZ

View Product

Techlam laminated timber portal frames are a structural solution, providing large and efficient spans.

FSC Certified

Techlam laminated timber portals can be used in all forms of construction where the structure relies on AS/NZS 1170: 2002. Manufacturing is subject to project specific environmental conditions.

Structure B1/AS1: meets the requirements of B1.3.1, B1.3.2, B1.3.3 (a, b, f, j, m, q) B1.3.4 (a, b, c, d, e); AS 1170:2002 for engineering span tables; AS/NZS 1328:1998 and AS5068 for building element.
Durability B2/AS1: meets the requirements of B2.3.1(a) B2.3.2. All timber is treated in accordance with NZS 3640. Techlam does not carry out this treatment, Techlam relies upon its suppliers as they are all third party accredited.
Protection from Fire C: APA Evaluation of Char Rate (ASTM E119), TT-118, January 2015; meets the requirements of C6.3 C6.4. Where members are required to have a fire resistance rating the designer can use the following standards for FRR design: TT-118 OR: NZS 3603:1993 (section 9).
Hazardous Building Materials F2/AS1: meets the requirements of F2.3.1. Timber treatment suppliers meet NZS3640, which includes flash-off requirements.

Structure

Durability

Protection from Fire

Hazardous Building Materials

Curved Beams

Techlam NZ

View Product

Curved glulam timber beams have long been a cost-effective form of construction, both for their strength and design capabilities.

FSC Certified

Techlam laminated timber posts and beams can be used in all forms of construction where the structure relies on AS/NZS 1170: 2002. The design and use must be in accordance with Techlam specifications, design criteria and selection tables.

Structure B1/AS1: meets the requirements of B1.3.1, B1.3.2, B1.3.3 (a, b, f, j, m, q) B1.3.4 (a, b, c, d, e); AS 1170:2002 for engineering span tables; AS/NZS 1328:1998 and AS5068 for building element.
Durability B2/AS1: meets the requirements of B2.3.1(a) B2.3.2. All timber is treated in accordance with NZS 3640. Techlam does not carry out this treatment, Techlam relies upon its suppliers as they are all third party accredited.
Protection from Fire C: APA Evaluation of Char Rate (ASTM E119), TT-118, January 2015; meets the requirements of C6.3 C6.4. Where members are required to have a fire resistance rating the designer can use the following standards for FRR design: TT-118 OR: NZS 3603:1993 (section 9)
Hazardous Building Materials F2/AS1: meets the requirements of F2.3.1. Timber treatment suppliers meet NZS3640, which includes flash-off requirements.

Structure

Durability

Protection from Fire

Hazardous Building Materials

Connection Detailing

Techlam NZ

View Product

Techlam can source and pre-fit many different types of structural timber connections in the plant, allowing significant reductions in time spent on site and reducing the need for site cutting or epoxying.
