Speedfloor Offers Smart Level Entry Solutions

Speedfloor works with designers to provide engineered level entry access solutions for decks and wet areas. These solutions feature the superior spanning capacity of the Speedfloor lightweight steel joist system, with an option for prefabricated frames/panels that can be delivered NZ-wide.

Option 1: Cut-to-order framing for simple assembly

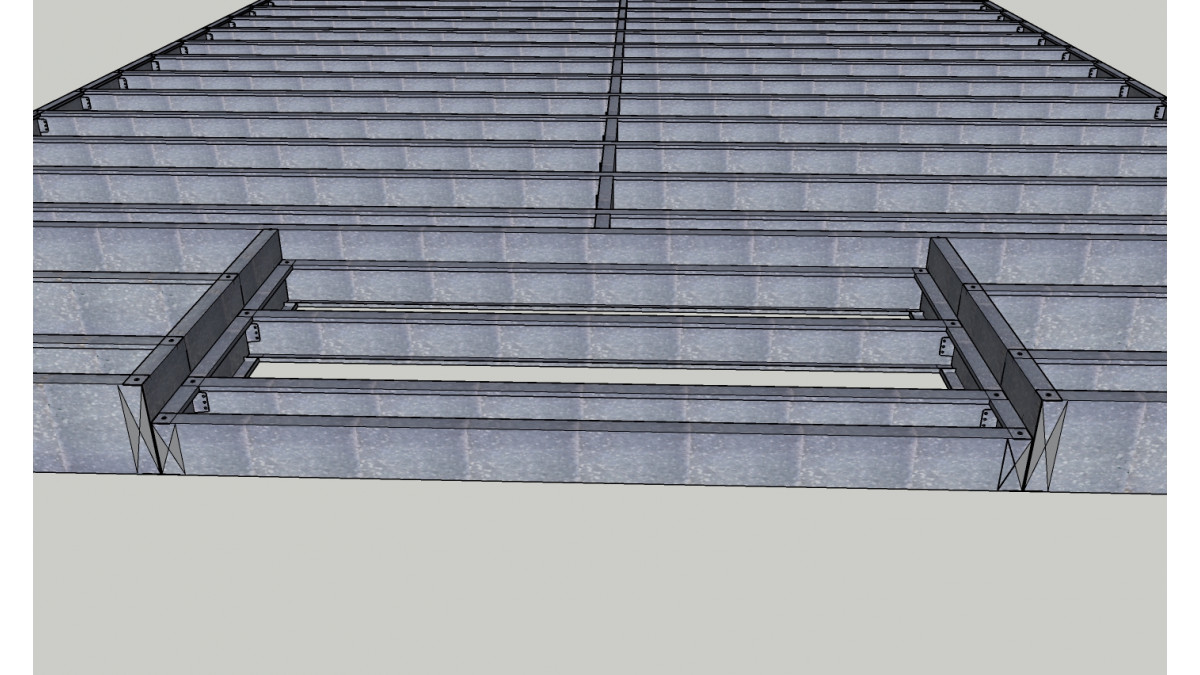

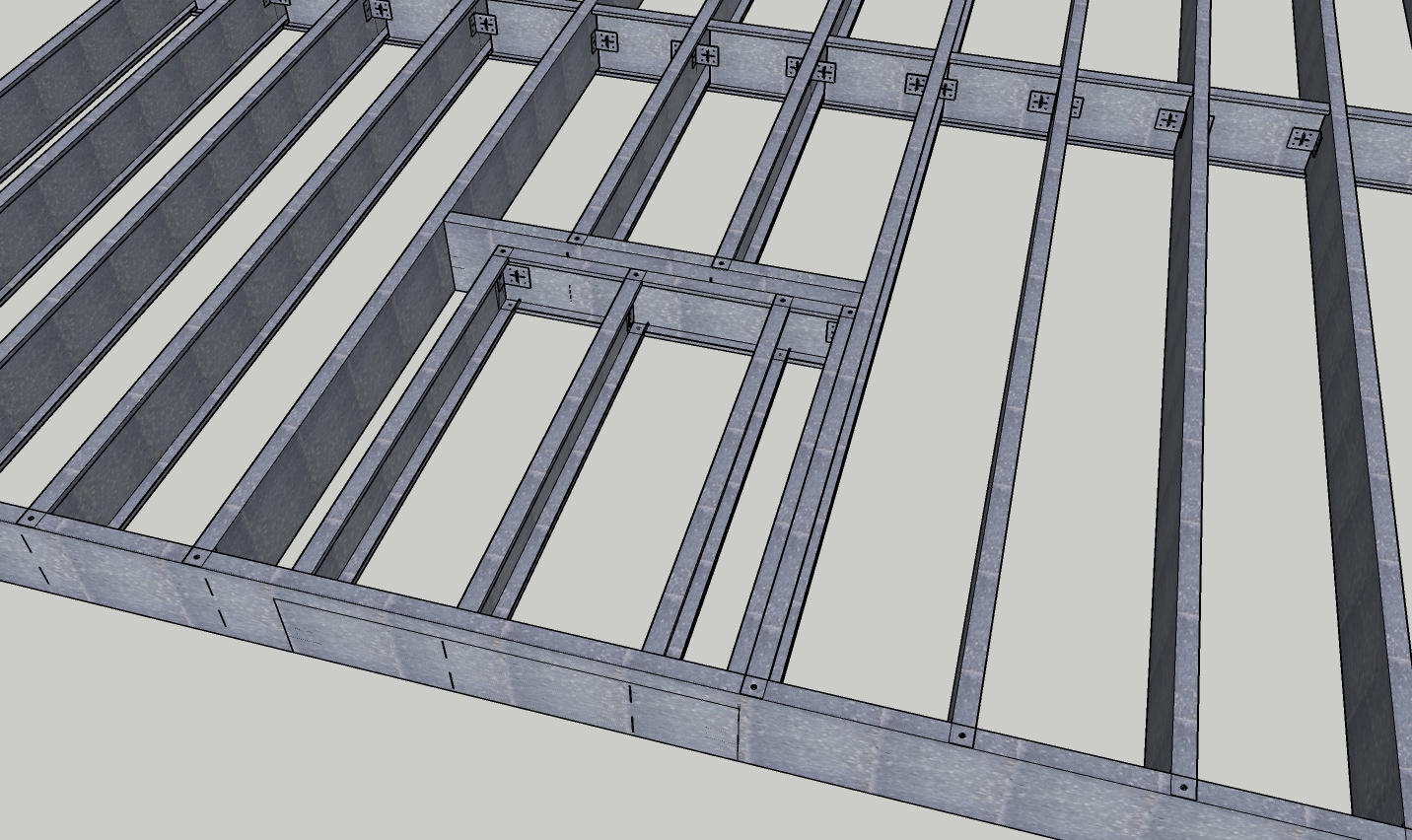

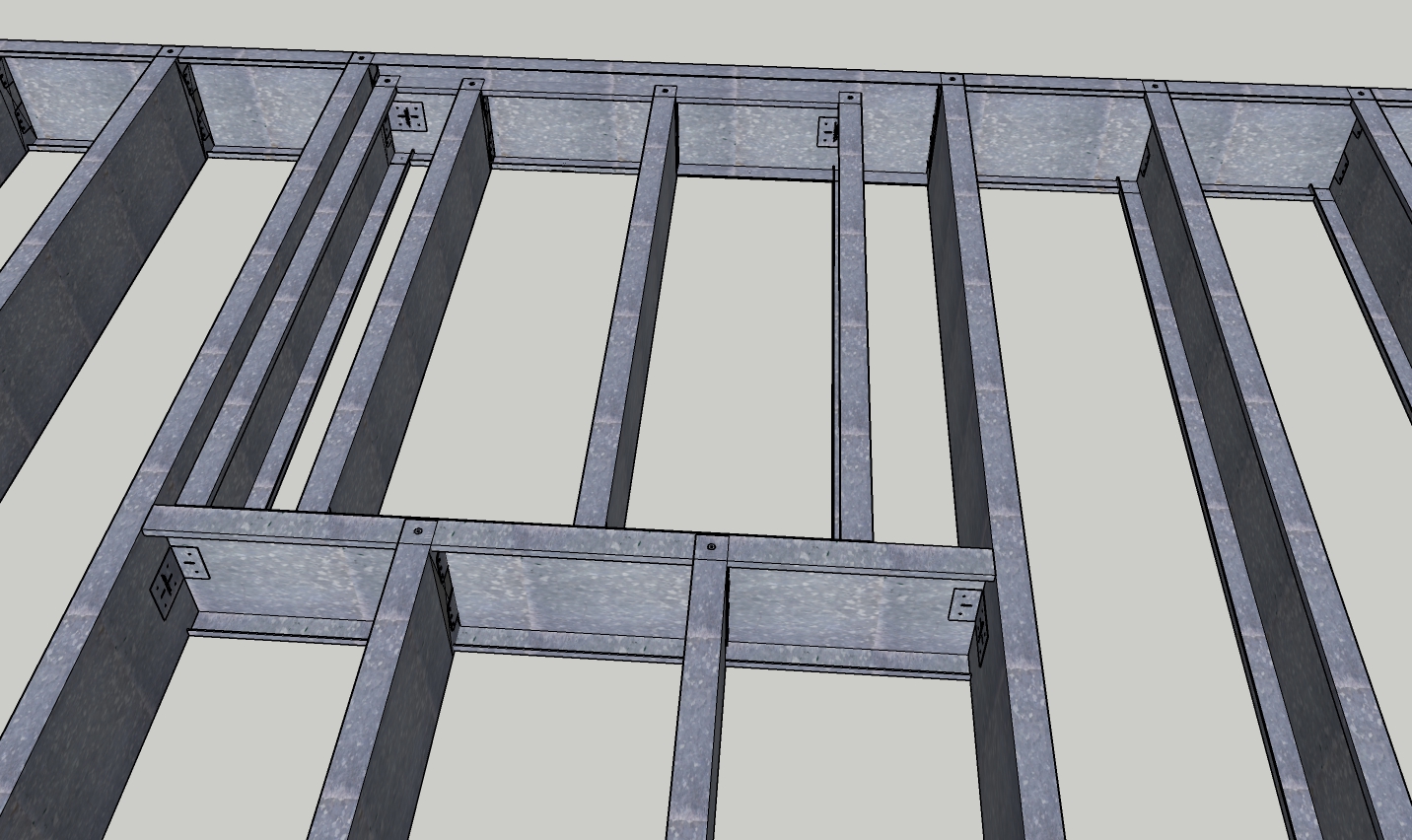

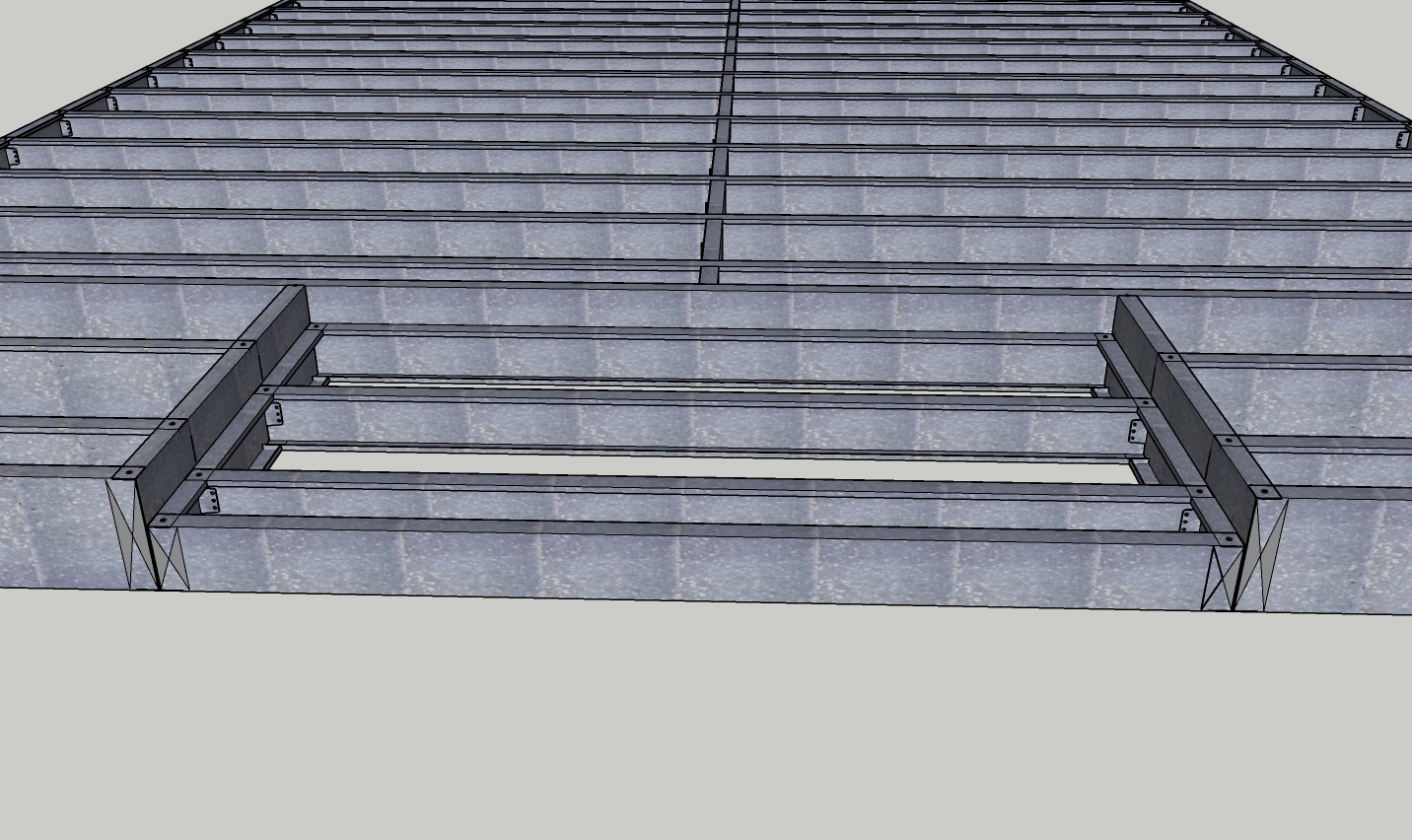

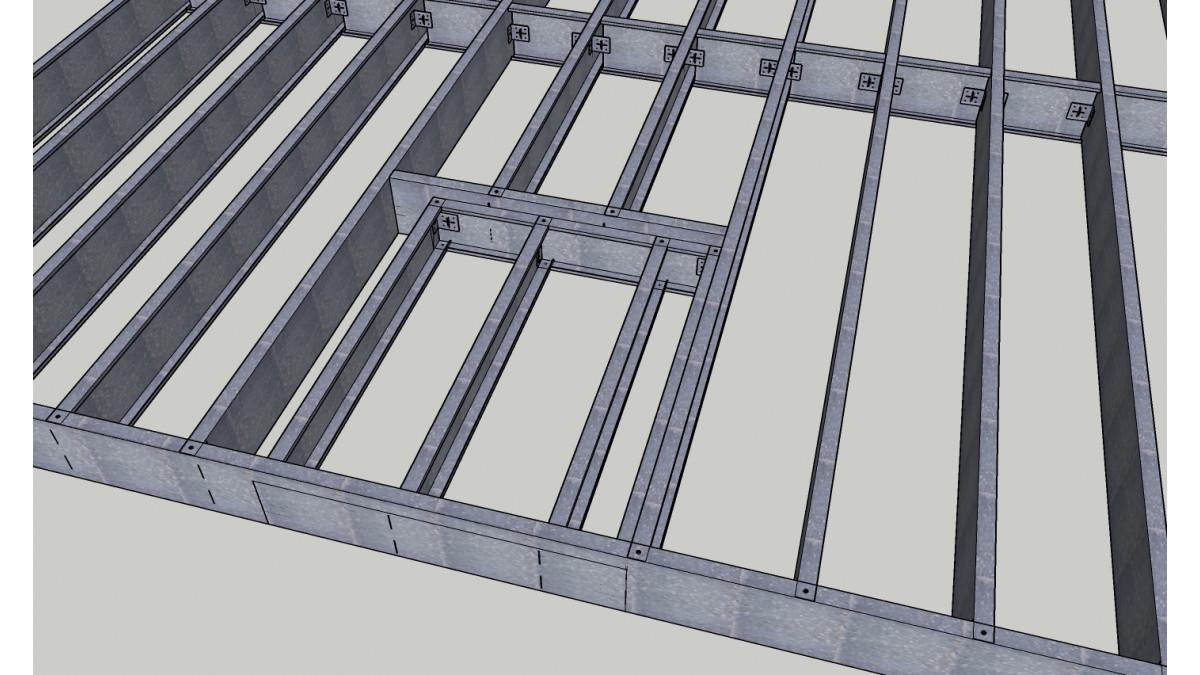

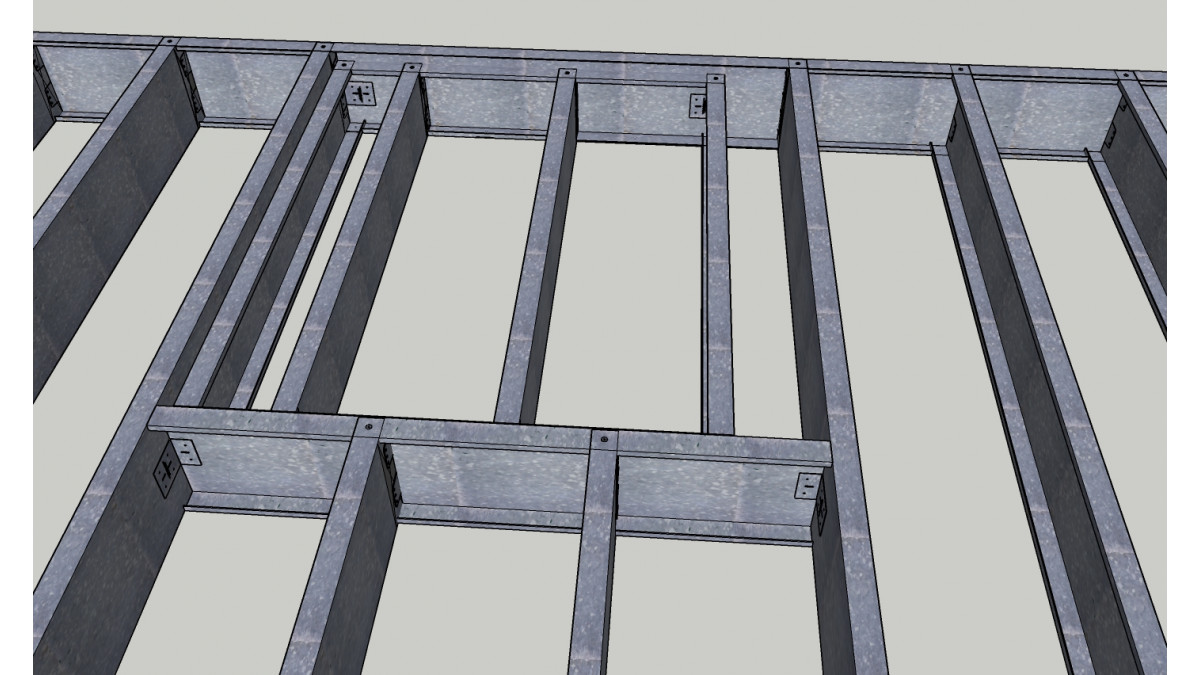

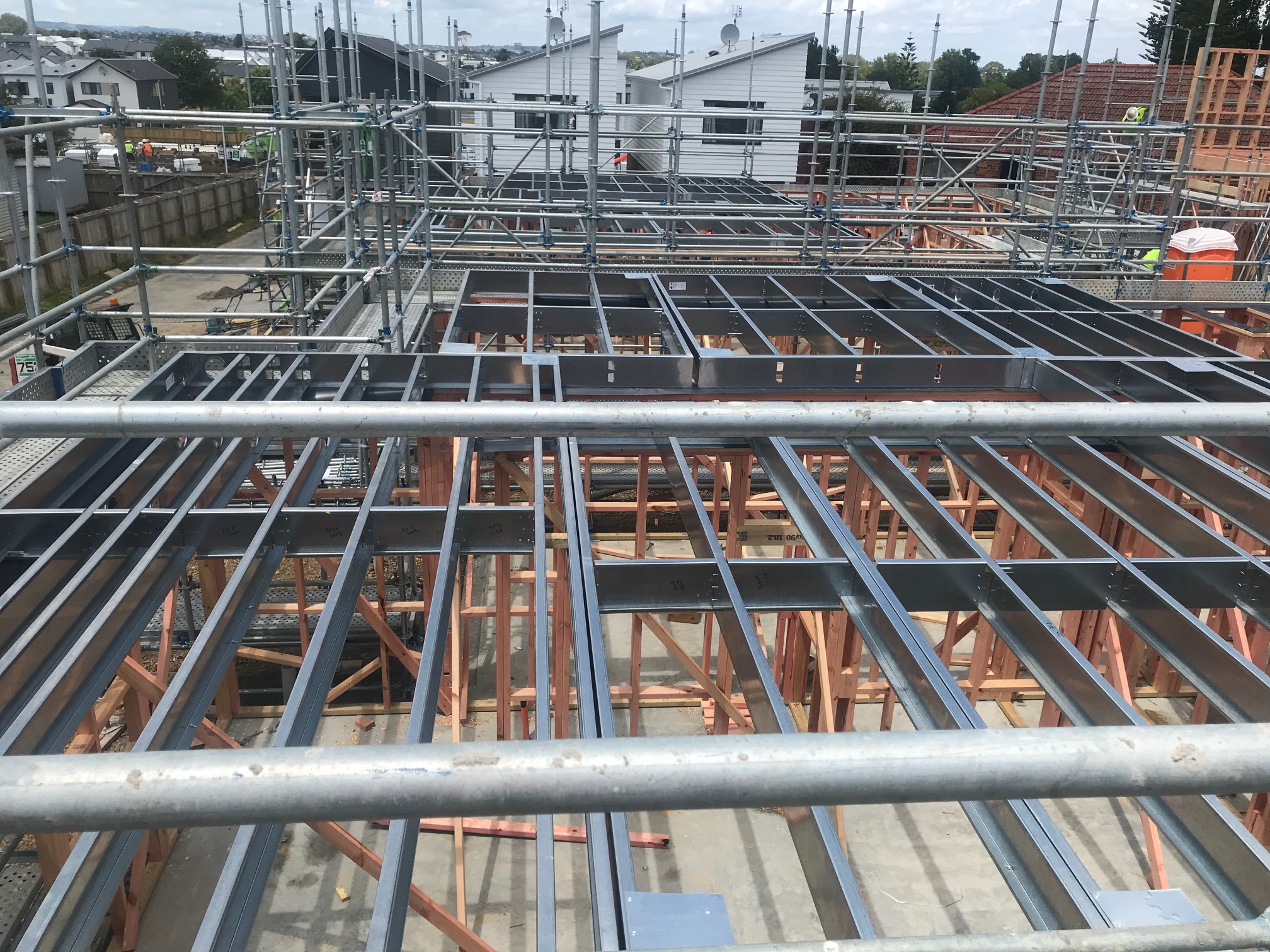

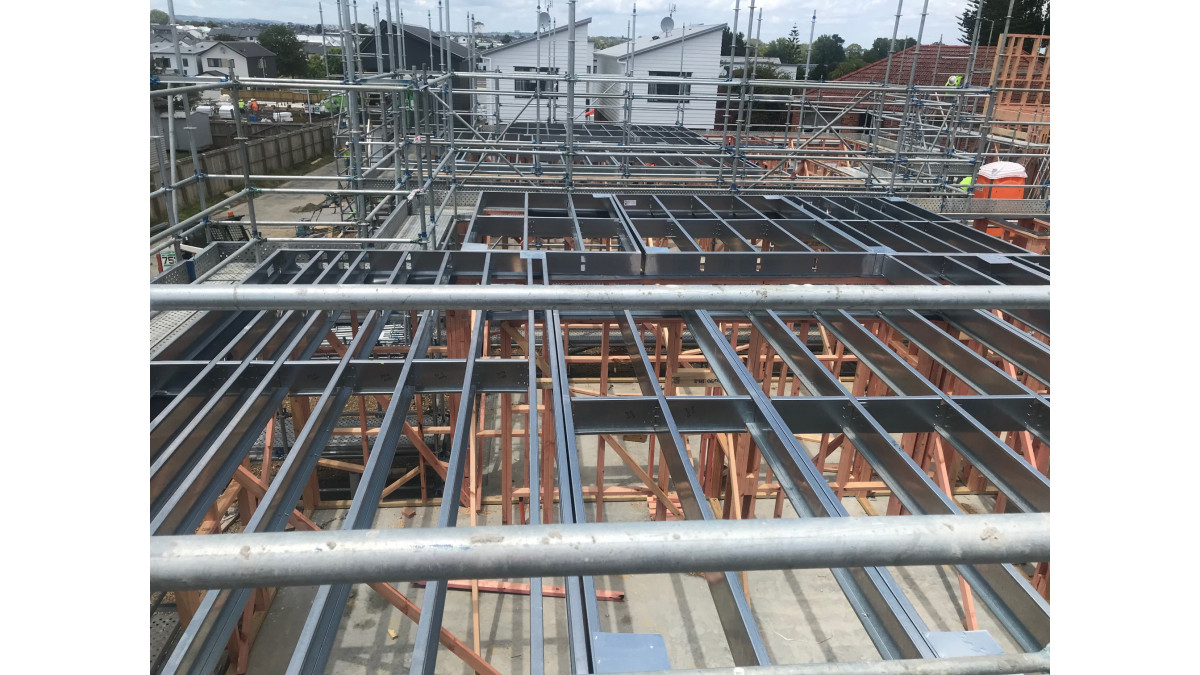

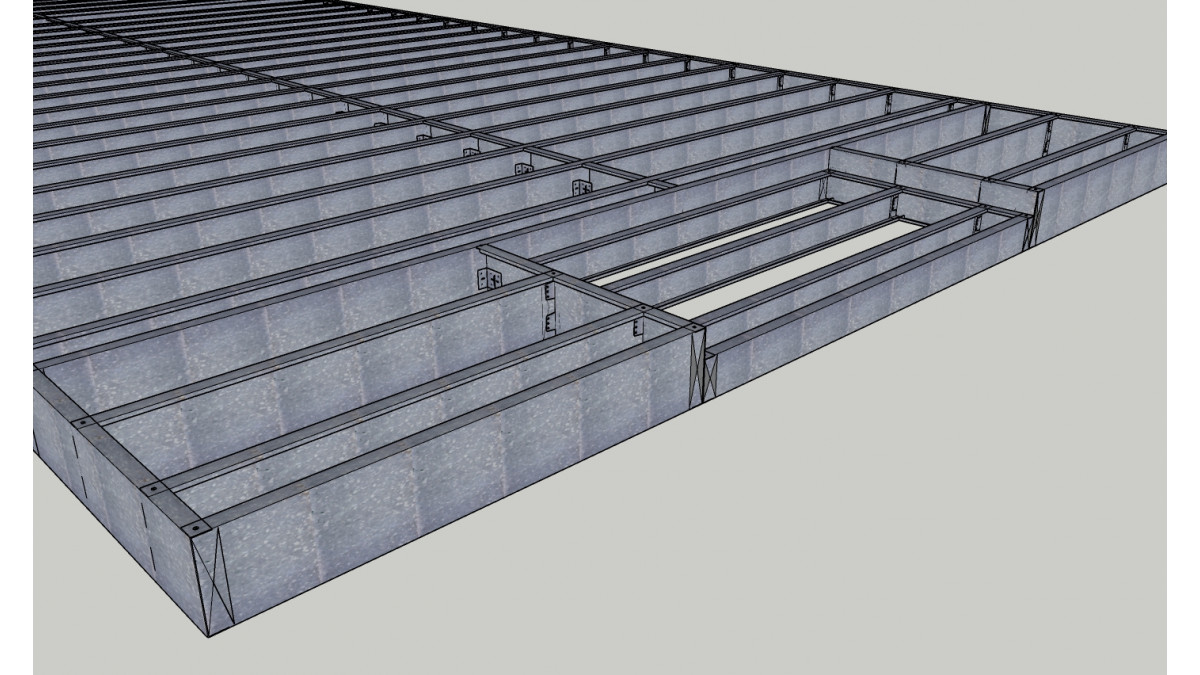

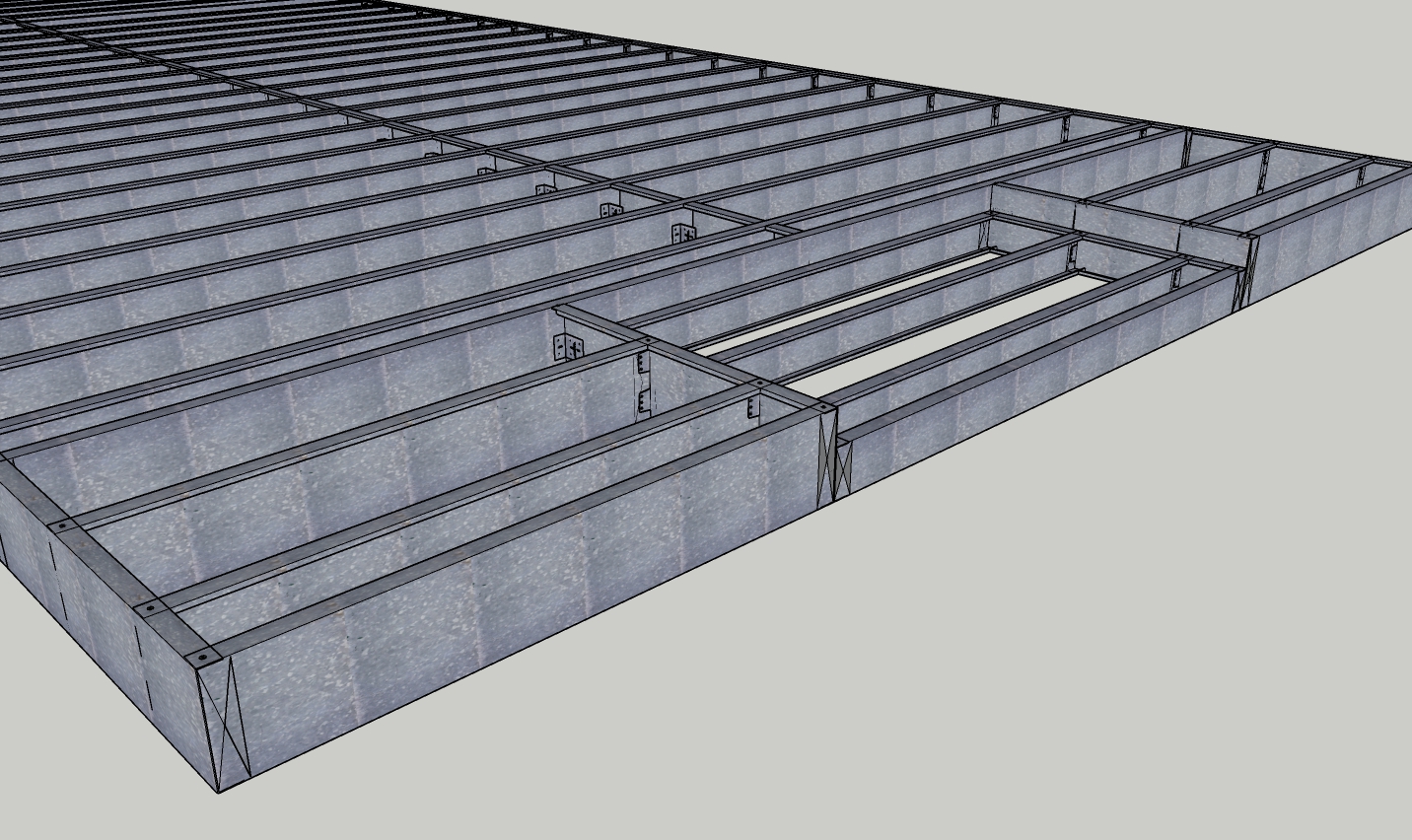

Speedfloor creates set downs in the structural floor frame by inserting a smaller section size to suit the build up required for the level entry access. This can be through a traditional on-site installation method, but with one key difference. Speedfloor supplies detailed framing plans and materials made to order to suit the particular requirements of the job. This means no cutting or "building" is required, just assembly of the frames.

Option 2: Pre-assembled floor frames

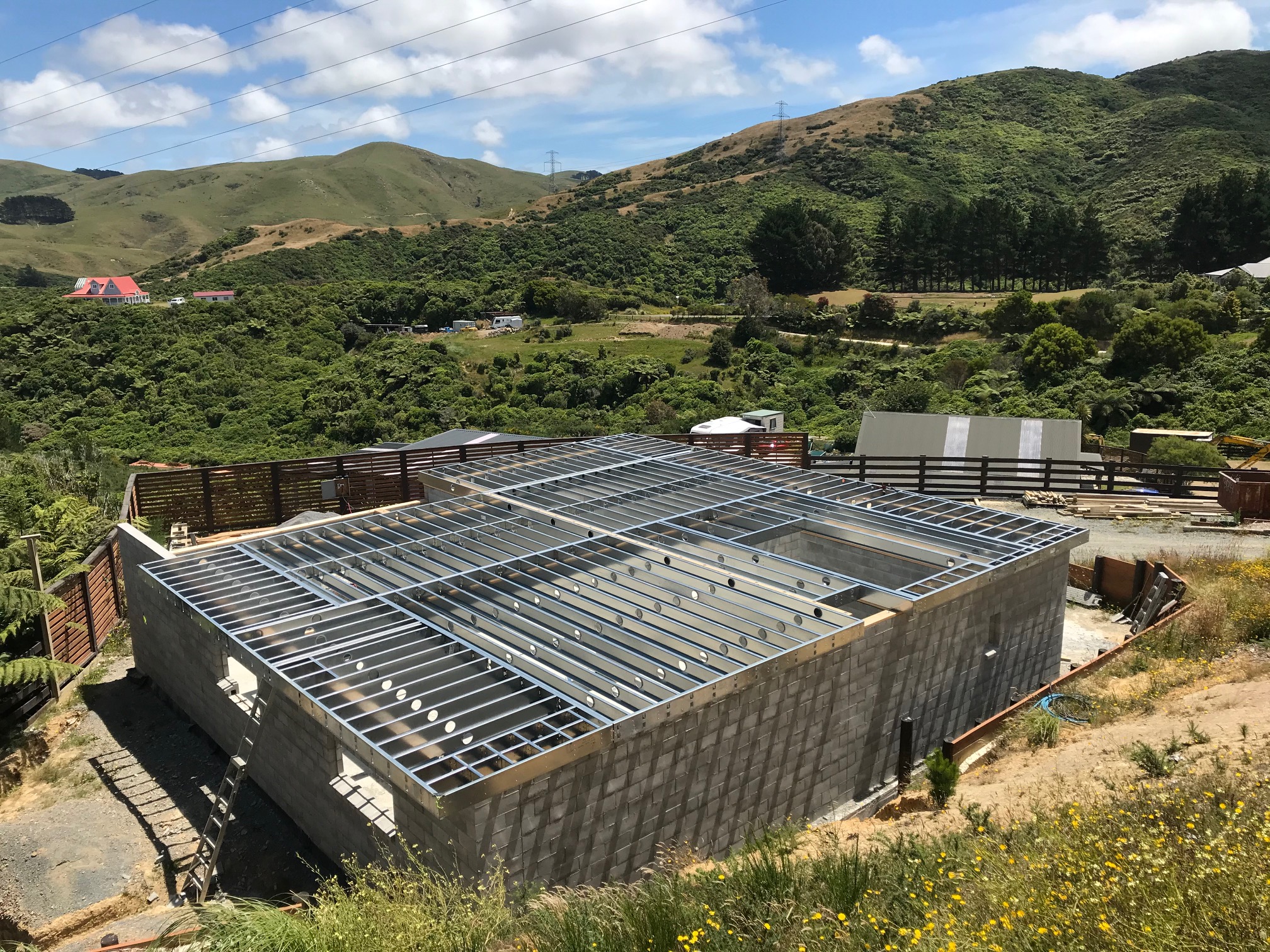

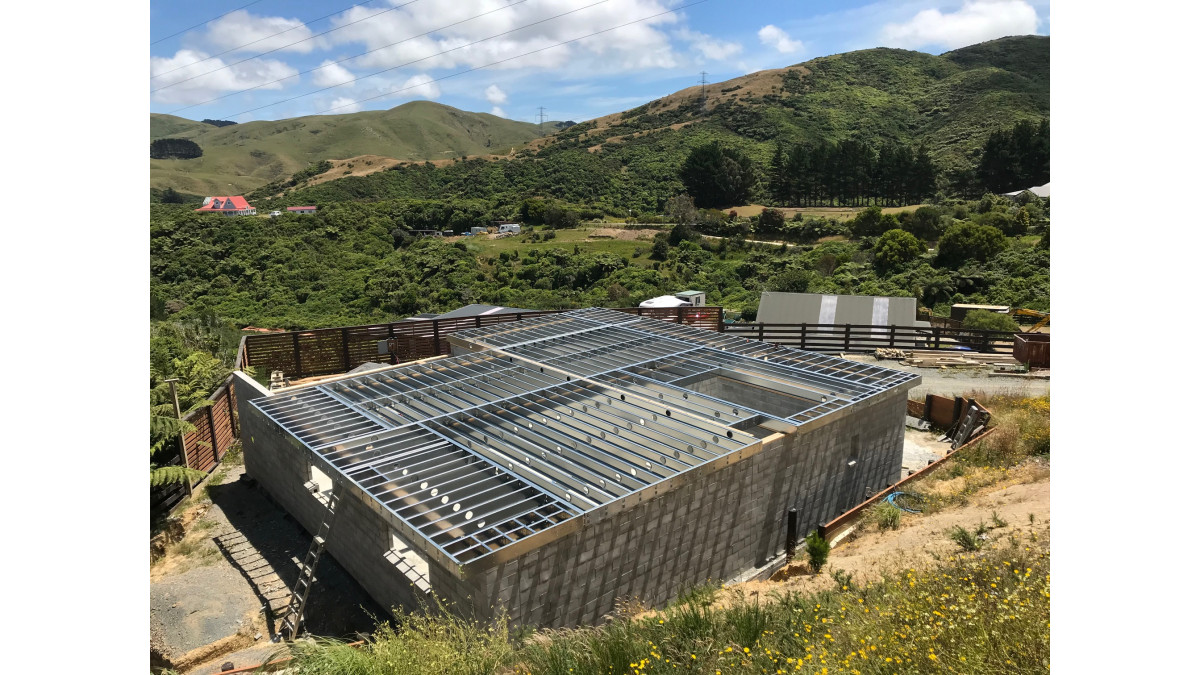

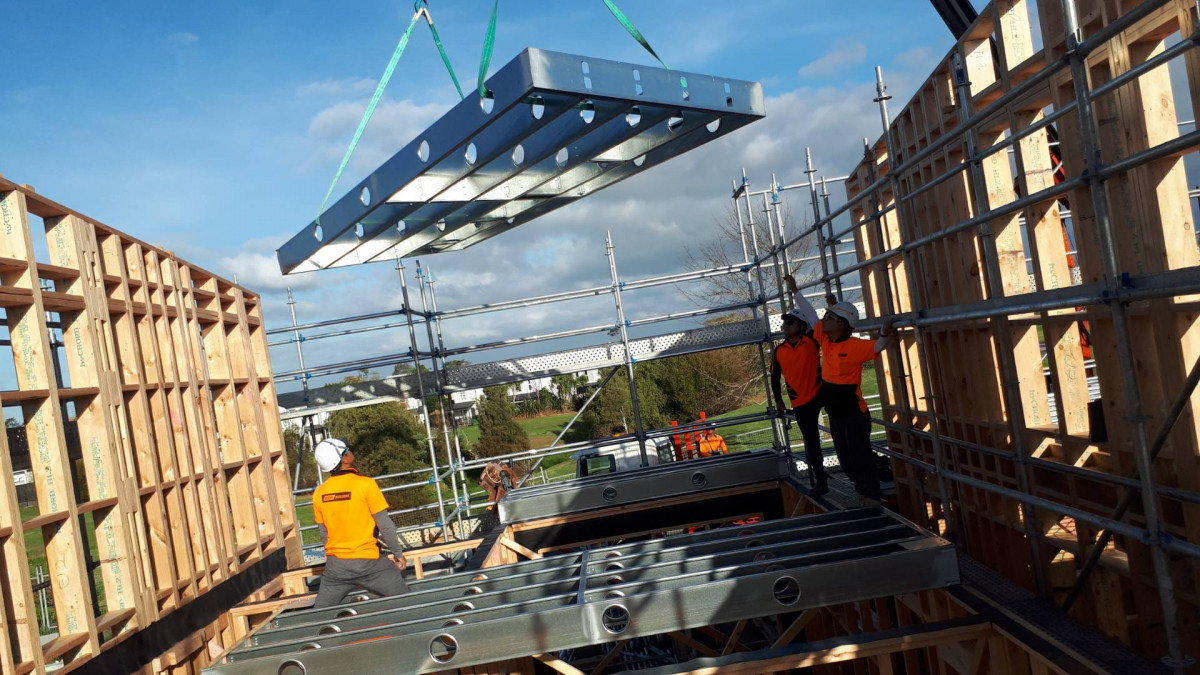

Speedfloor supplies pre-assembled floor frames which are placed on the primary structure or load-bearing frames and then fixed into position. This option is a growing part of Speedfloor's service and can be an advantage for the contractors on-site in terms of efficient use of the labour force.

Each of these solutions ensures fast and easy installation of Speedfloor's lightweight steel joist floor system in a custom design that meets level entry requirements for the project.

Steel Joist System

Speedfloor Ltd

View Product

The Speedfloor Steel Joist system offers extended spanning capability and unmatched constructional flexibility in almost any type of construction.

NZ Made

NZ-Owned Business

Assembled on site or delivered as a pre-assembled cassette, Speedfloor joists are easily configured for mezzanine floors, portal framed sheds, industrial platforms, residential mid floors and piled sub floors or integrated into timber framed buildings.

Applications include:

mezzanine floors in commercial buildings
suspended floors in portal framed sheds
platforms for industrial structures
residential mid-floors
sub-floors on piled foundations
prefabricated and transportable units

The Speedfloor Steel Joist System will meet Building Code Clauses B1 and B2 when used in accordance with the manufacturer's specification and project specific Producer Statements.

The Speedfloor Steel Joist system has been designed to comply with the following NZS, AS/NZS and AS standards to meet the requirements of the Building Code.

NZS 3404
AS/NZS 1170.0
AS/NZS 1170.1
AS/NZS 1170.2
AS/NZS 1170.4
AS/NZS 4600
AS 4100
AS 3623

Structure

Durability

BRANZ Appraised

Suspended Concrete Flooring

Speedfloor Ltd

View Product

The Speedfloor Suspended Concrete Flooring is a unique, composite floor of steel and concrete that makes light work of pouring anything from single level, to multi-storied structures.

NZ Made

NZ-Owned Business

The Speedfloor Suspended Concrete Flooring is a proven performer in all types of construction, from steel structures, masonry buildings, poured in-situ or pre-cast concrete panels, to ICF, timber and cold formed steel frame construction.

Frame is light enough to be manhandled into place for pouring. The ends are simply bolted to the joists which are then ready for transport to site with no propping or painting required.

Slabs can be 90mm to 220mm in thickness. Minimum compressive strength of 25 mPa to achieve composite action is normally achieved within the first 72 hours of curing, depending on environmental conditions.

The Speedfloor concrete floor system is suitable for all types of construction including:

Steel structures
Masonry buildings
Concrete poured in-situ walls & beams
Pre-cast concrete panels
ICF
Timber framed construction
Cold-formed steel frame construction

The Speedfloor Suspended Concrete Floor system meets Building Code Clauses B1 and B2 when used in accordance with the manufacturer's specification and project specific Producer Statements.

The Speedfloor Suspended Concrete Floor system is designed to comply with the following NZS and AS/NZS Standards to meet the requirements set out in the Building Code.

NZS 3404:Part 1 & 2
AS/NZS 4600
AS 1397
AS 2327 Part 0 & 1

Structure

Durability
