AquaKnight: Tested Stainless Steel Clamping for Membrane Drains

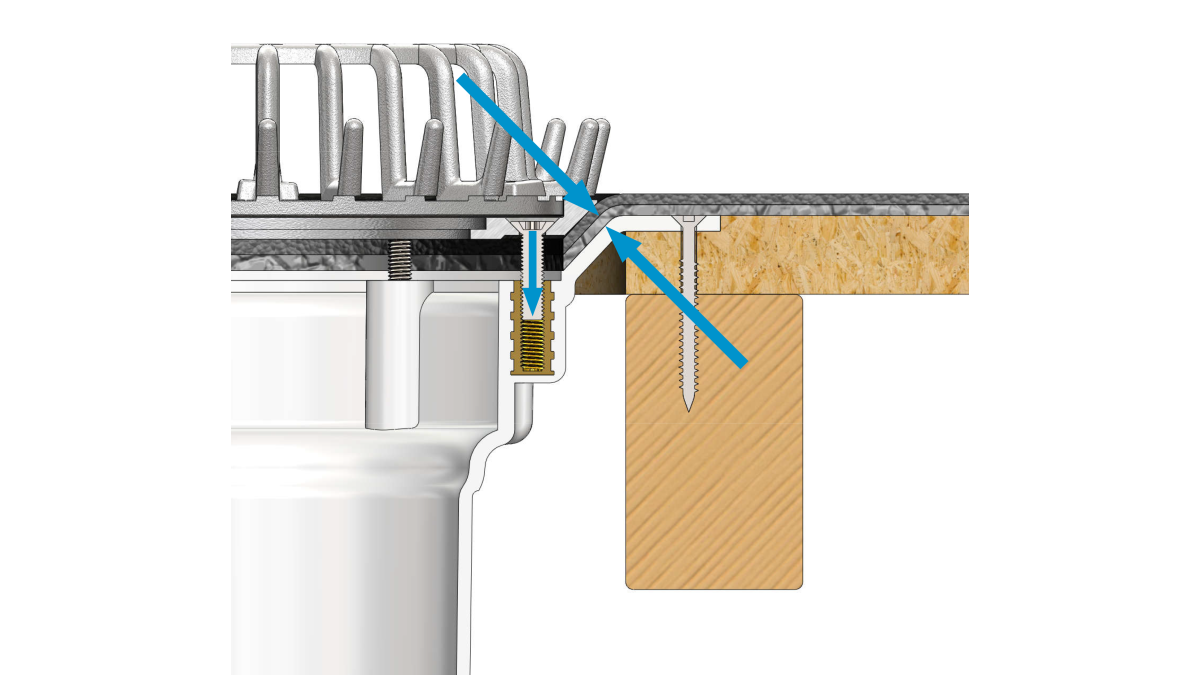

Your reputation hinges on specifying drainage solutions that perform flawlessly. Aquaknight’s membrane clamping range, featuring stainless steel clamp rings, delivers unmatched clamping force for all membrane types 0-12mm thick, ensuring a watertight seal. Unlike plastic clamp rings which lack rigidity, Aquaknight's stainless-steel clamps provide ten times the strength, as verified by WSP Laboratories’ deflection tests. This eliminates reputational risk tied to leaks or system failures.

Check out the Aquaknight Industries WSP deflection test:

The wettest part of the roof needs the most protection!

Endorsed by the Waterproofing Membrane Association Inc. (WMAI), and specified by New Zealand’s market leading membrane suppliers, Aquaknight sets the industry standard for durability and compliance with modern Waterproofing Membrane systems.

Aquaknight's Red List Free and Declare Label-listed product range aligns with sustainable design, meeting Living Building Challenge criteria for eco-conscious projects.

FlowLab testing confirms optimal hydraulic performance.

Specifying Aquaknight instills confidence in your designs. Don’t compromise with inferior plastic alternatives, choose Aquaknight for reliability and innovation.

Contact [email protected] for free spec sheets and FlowLab reports to enhance your next project.

HiFlow Full Stainless Hot Mix Membrane Roof Drains

Aquaknight

View Product

Constructed entirely from stainless steel, these outlets are suitable for use on membrane roofs, decks, and balconies.

LBC Declare Red List Free

NZ Made

Membrane roofs, decks, balconies
Insulated drain options are available for warm-roofs
Compatible with all hot-mix, torch-on, single layer sheet and liquid membrane waterproofing systems
Bottom exit
Engineered clamping range 0-10mm membrane thickness for multi-layer and torch-on
Declare Red List Free, ideal for Living Building Challenge projects

If designed, installed and maintained in accordance with Aquaknight Industries’ requirements, the Aquaknight Roof Drain will meet or contribute to meeting the following provisions of the NZBC:

B2 Durability B2.3.1 (b)
E1 Surface Water E1.3.3 (a, b, c, d, e, f)
F2 Hazardous Materials F2.3.1

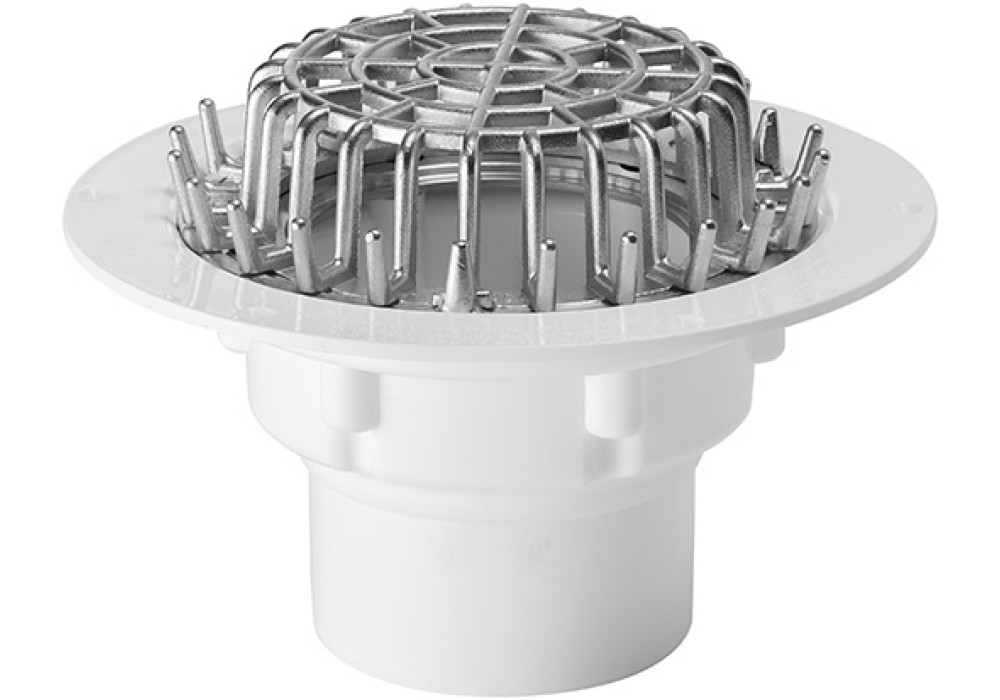

HiFlow Roof Drain — 100mm

Aquaknight

View Product

Aquaknight Membrane Roof Drains are a hi-flow capacity, uPVC outlet with a stainless steel domed lid and a stainless steel, interlocking clamp ring.

NZ Made

Suitable for use as outlets and/or overflow drains in conjunction with a variety of modern waterproofing membrane systems:
- single-ply sheet membranes
- torch-on membranes
Insulated drain options are available for warm-roofs
Bottom exit
Large flange for general application
Engineered clamping range 0-10mm membrane thickness; suitable for single-ply, multi-layer and torch-on
Residential and commercial applications
All corrosion zones as defined in NZS 3604:2011

single-ply sheet membranes
torch-on membranes

If designed, installed and maintained in accordance with Aquaknight Industries’ requirements, the Aquaknight Roof Drain will meet or contribute to meeting the following provisions of the NZBC:

B2 Durability B2.3.1 (b)
E1 Surface Water E1.3.3 (a, b, c, d, e, f)
F2 Hazardous Materials F2.3.1

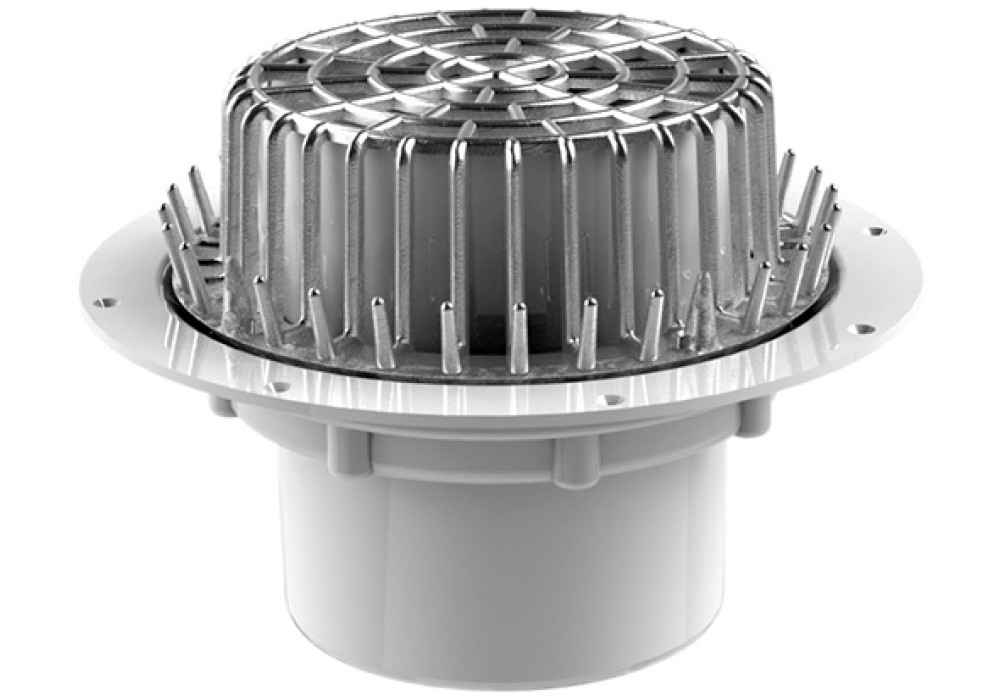

HiFlow Roof Drain — 150mm

Aquaknight

View Product

Aquaknight Membrane Roof Drains are a hi-flow capacity, uPVC outlet with a stainless steel domed lid and a stainless steel, interlocking clamp ring.

NZ Made

Suitable for use as outlets and/or overflow drains in conjunction with a variety of modern waterproofing membrane systems:
- single-ply sheet membranes
- torch-on membranes
Insulated drain options are available for warm-roofs
Bottom exit
Large flange for general application
Engineered clamping range 0-10mm membrane thickness; suitable for single-ply, multi-layer and torch-on
Residential and commercial applications
All corrosion zones as defined in NZS 3604:2011

single-ply sheet membranes
torch-on membranes

If designed, installed and maintained in accordance with Aquaknight Industries’ requirements, the Aquaknight Roof Drain will meet or contribute to meeting the following provisions of the NZBC:

B2 Durability B2.3.1 (b)
E1 Surface Water E1.3.3 (a, b, c, d, e, f)
F2 Hazardous Materials F2.3.1

HiFlow Roof Drain — 50mm

Aquaknight

View Product

Aquaknight Membrane Roof Drains are a hi-flow capacity, uPVC outlet with a stainless steel domed lid and a stainless steel, interlocking clamp ring.

NZ Made

Suitable for use as outlets and/or overflow drains in conjunction with a variety of modern waterproofing membrane systems:
- single-ply sheet membranes
- torch-on membranes
Insulated drain options are available for warm-roofs
Side or bottom exit
Large flange for general application
Engineered clamping range 0-10mm membrane thickness; suitable for single-ply, multi-layer and torch-on
Residential and commercial applications
All corrosion zones as defined in NZS 3604:2011

single-ply sheet membranes
torch-on membranes

If designed, installed and maintained in accordance with Aquaknight Industries’ requirements, the Aquaknight Roof Drain will meet or contribute to meeting the following provisions of the NZBC:

B2 Durability B2.3.1 (b)
E1 Surface Water E1.3.3 (a, b, c, d, e, f)
F2 Hazardous Materials F2.3.1

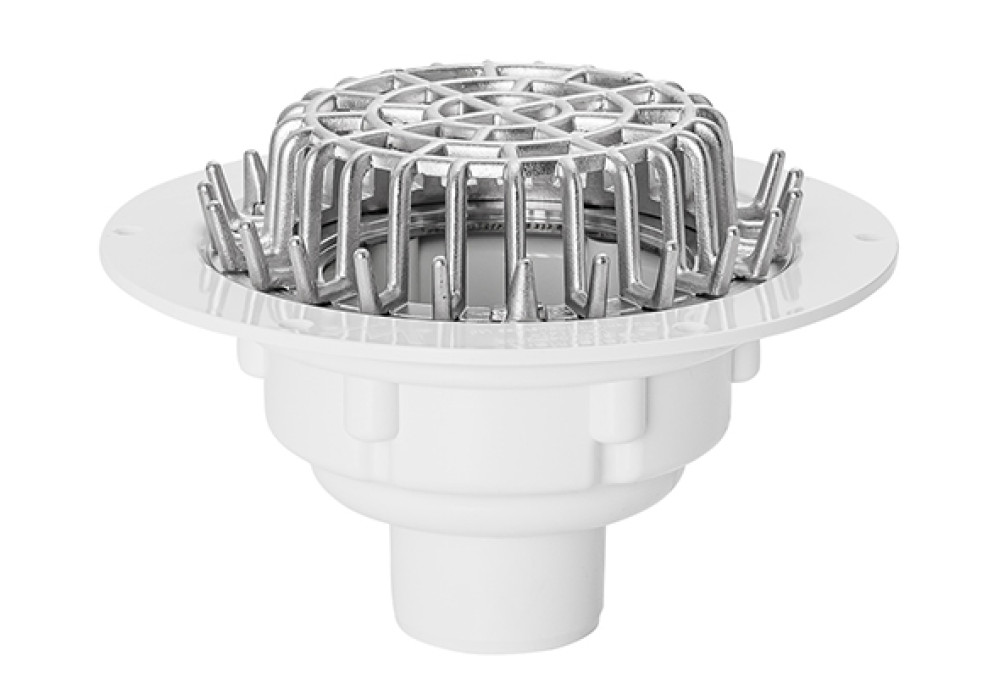

HiFlow Roof Drain — 65mm

Aquaknight

View Product

Aquaknight Membrane Roof Drains are a hi-flow capacity, uPVC outlet with a stainless steel domed lid and a stainless steel, interlocking clamp ring.

NZ Made

Suitable for use as outlets and/or overflow drains in conjunction with a variety of modern waterproofing membrane systems:
- single-ply sheet membranes
- torch-on membranes
Insulated drain options are available for warm-roofs
Bottom exit
Big flange option for general application
Small flange option for undersized box-gutters and difficult, confined spaces
Engineered clamping range 0-10mm membrane thickness; suitable for single-ply, multi-layer and torch-on
Residential and commercial applications
All corrosion zones as defined in NZS 3604:2011

single-ply sheet membranes
torch-on membranes

If designed, installed and maintained in accordance with Aquaknight Industries’ requirements, the Aquaknight Roof Drain will meet or contribute to meeting the following provisions of the NZBC:

B2 Durability B2.3.1 (b)
E1 Surface Water E1.3.3 (a, b, c, d, e, f)
F2 Hazardous Materials F2.3.1

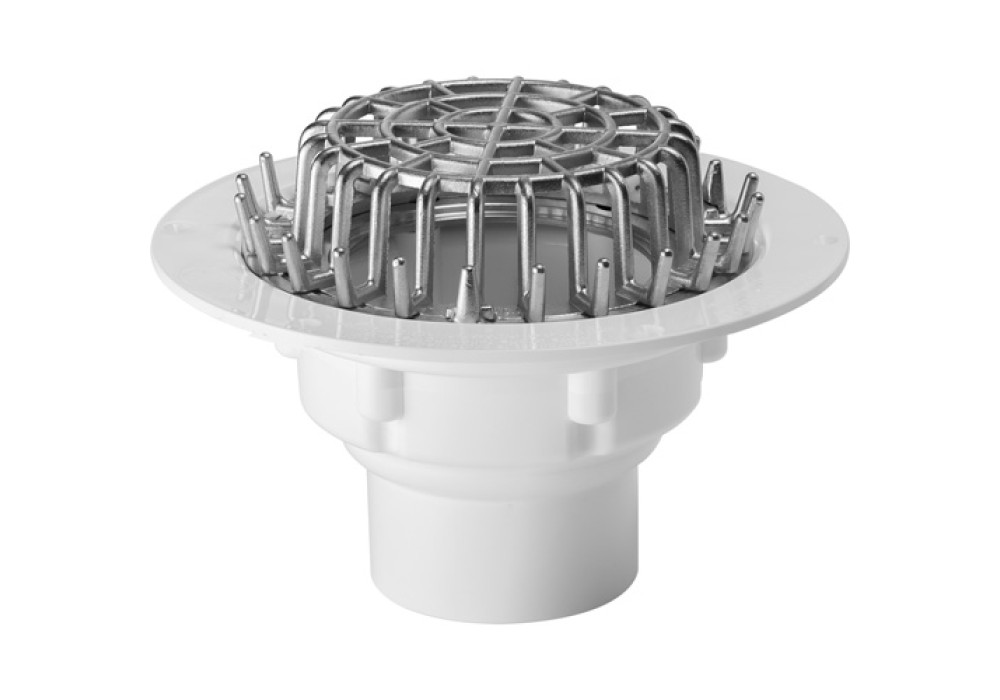

HiFlow Roof Drain — 80mm

Aquaknight

View Product

Aquaknight Membrane Roof Drains are a hi-flow capacity, uPVC outlet with a stainless steel domed lid and a stainless steel, interlocking clamp ring.

NZ Made

Suitable for use as outlets and/or overflow drains in conjunction with a variety of modern waterproofing membrane systems:
- single-ply sheet membranes
- torch-on membranes
Insulated drain options are available for warm-roofs
Side or bottom exit
Large flange for general application
Engineered clamping range 0-10mm membrane thickness; suitable for single-ply, multi-layer and torch-on
Residential and commercial applications
All corrosion zones as defined in NZS 3604:2011

single-ply sheet membranes
torch-on membranes

If designed, installed and maintained in accordance with Aquaknight Industries’ requirements, the Aquaknight Roof Drain will meet or contribute to meeting the following provisions of the NZBC:

B2 Durability B2.3.1 (b)
E1 Surface Water E1.3.3 (a, b, c, d, e, f)
F2 Hazardous Materials F2.3.1
