The situation

An area increasingly queried by specifiers is how to maintain continuous insulation performance where a roof drain penetrates a warm roof build-up. NZBC Clause H1 Energy Efficiency now requires substantially higher minimum R-values across the building, with the roof identified as the area of most cost-efficient gain. As warm roof construction gains market share across New Zealand's commercial sector, the drain penetration has become a recurring point of failure between design intent and delivery.

The existing solutions

The drain penetration itself has long been treated as a detail outside the insulation layer. In a box gutter, for example, the void around the drain body has been an after-thought, often packed with off-cuts of insulation and expanding foam in an ad-hoc manner on site. This approach compromises the continuity of the thermal envelope and introduces a localised cold bridge at precisely the point most exposed to water and thermal movement — with the finished result depending heavily on the skill and diligence of whoever is on the roof that day.

Aquaknight's design-led solution

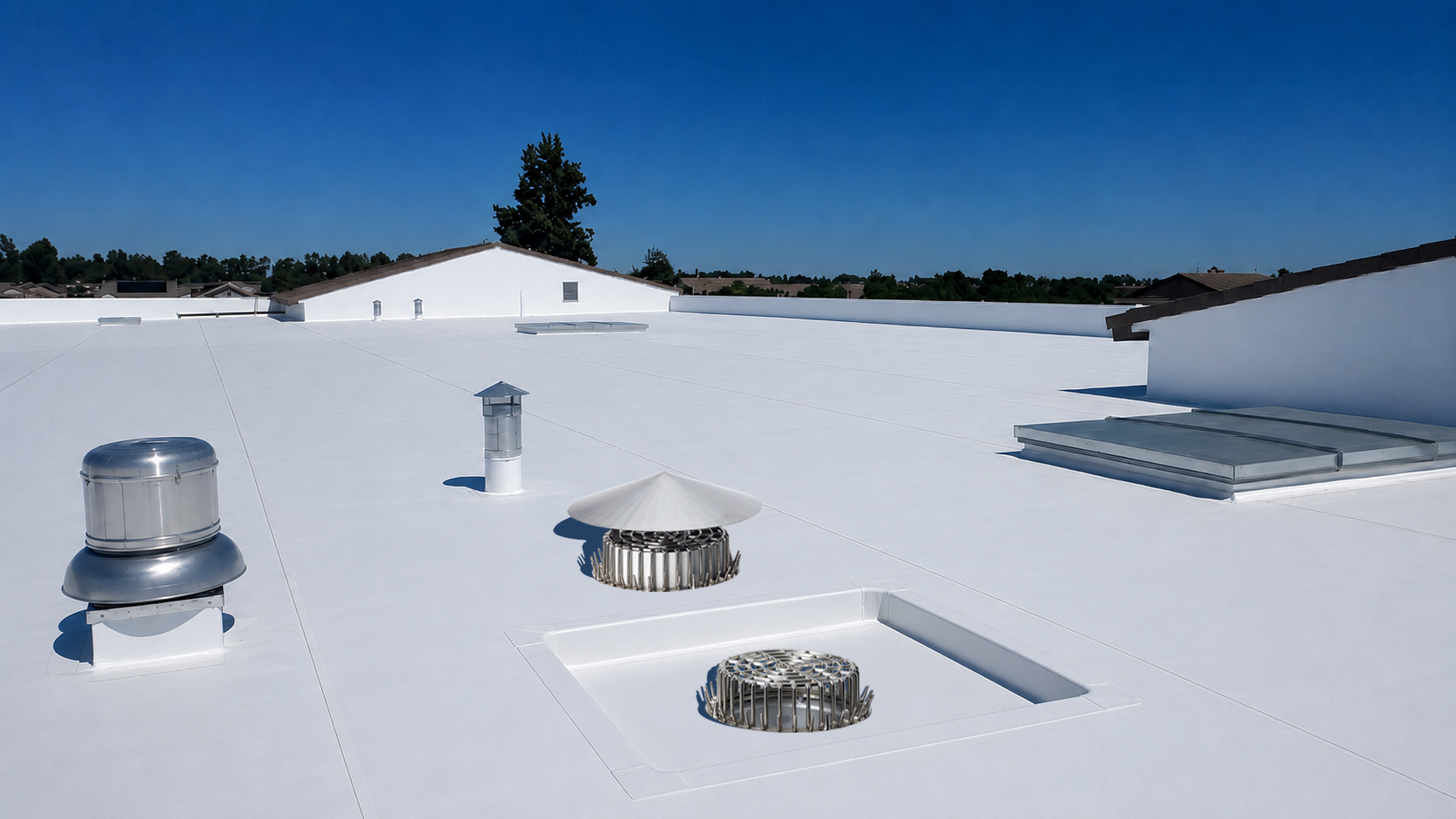

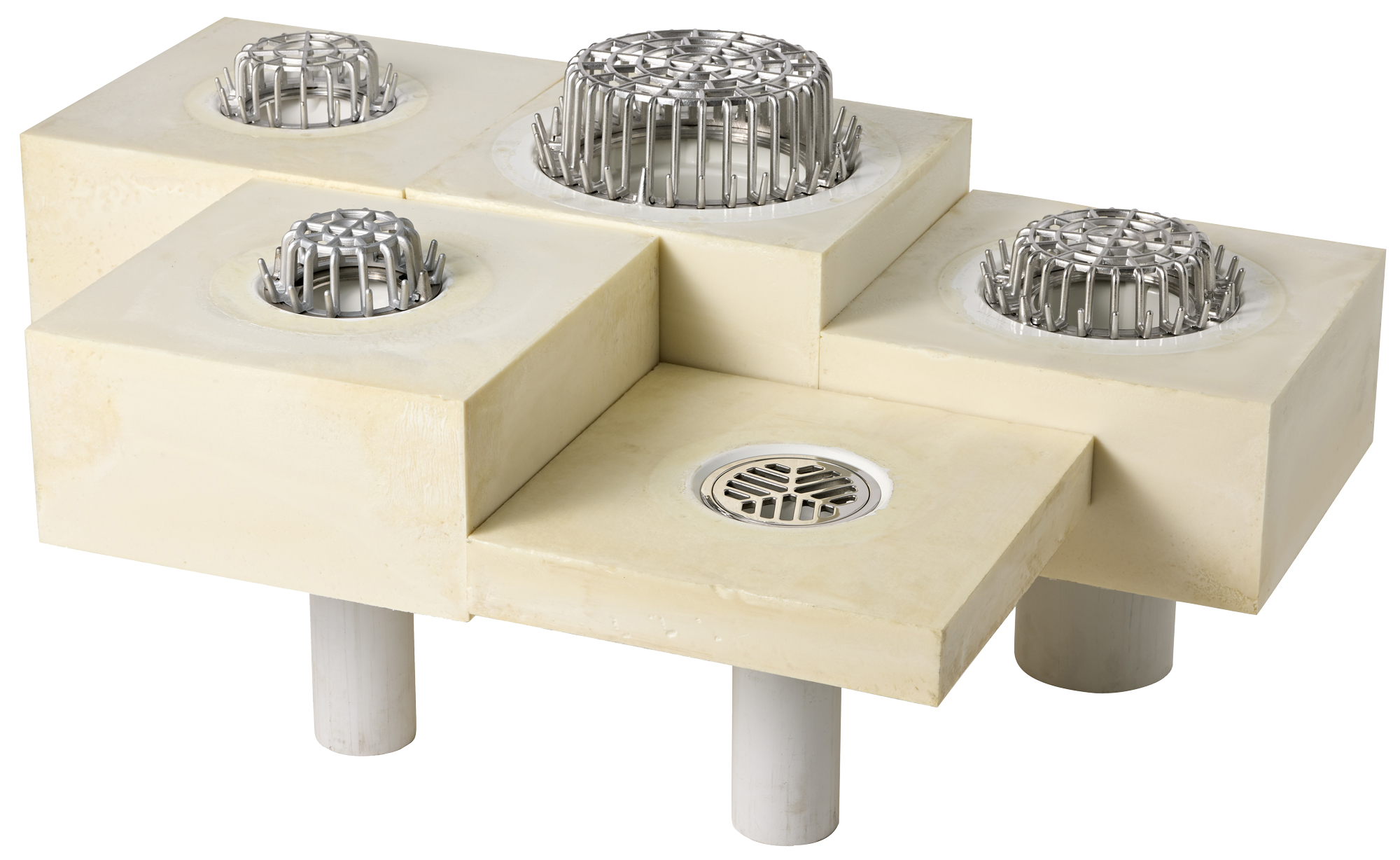

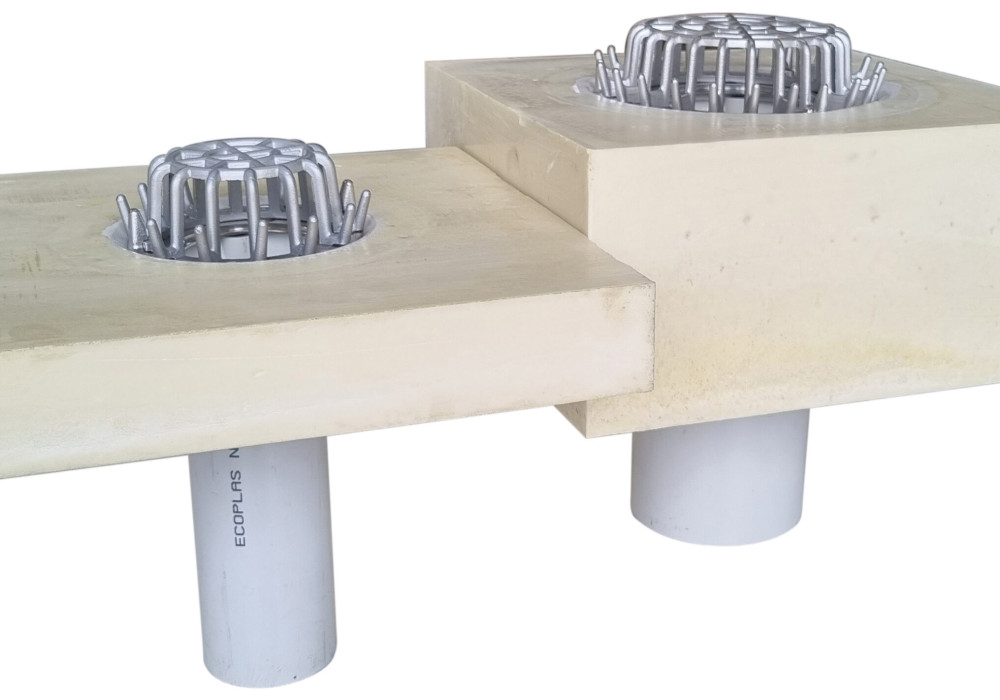

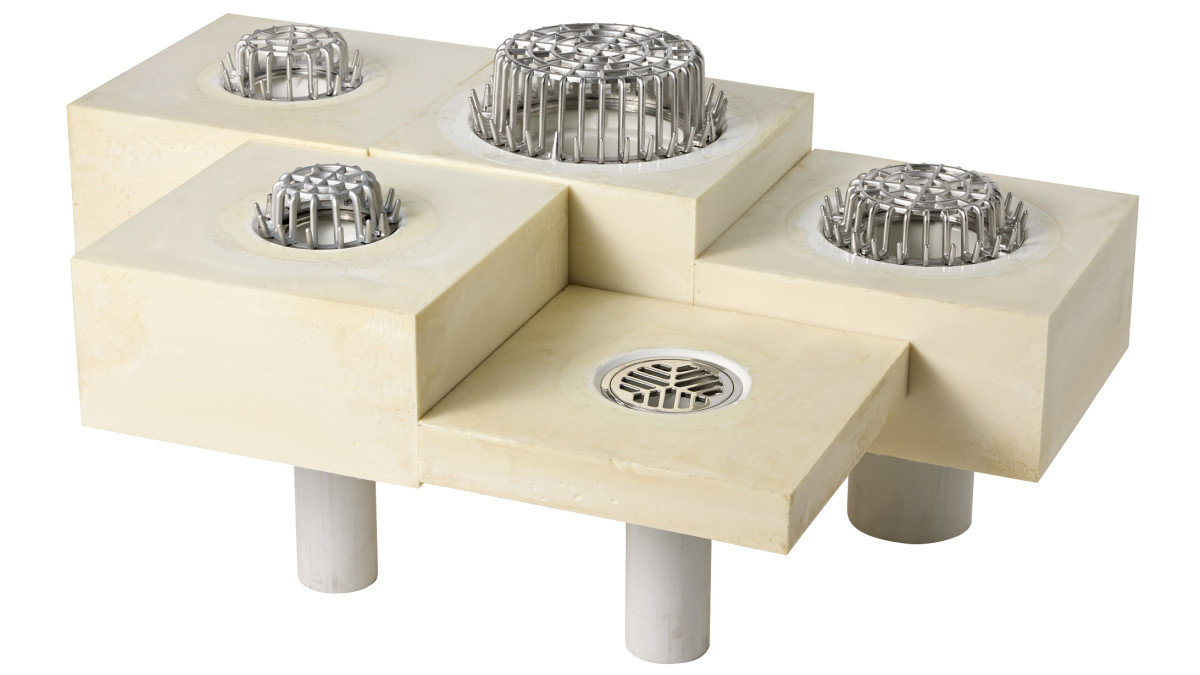

Aquaknight's insulated roof drain addresses this by supplying the drain body as a factory over-moulded block of closed-cell foam, matched to and exceeding the thermal performance of the surrounding insulation board. For residential application, the unit is manufactured to a standard 300 × 300mm format matching New Zealand's minimum box-gutter width, and supplied in matching panel thickness so it integrates directly into the warm-roof specification set by the membrane manufacturer. Units are secured by direct fixing into the substrate, with on-site trimming of the foam available where an offset from standard geometry is required — removing the need for installers to fill an irregular void with cut-offs and expanding foam, and replacing it with a consistent, pre-insulated component.

The validation

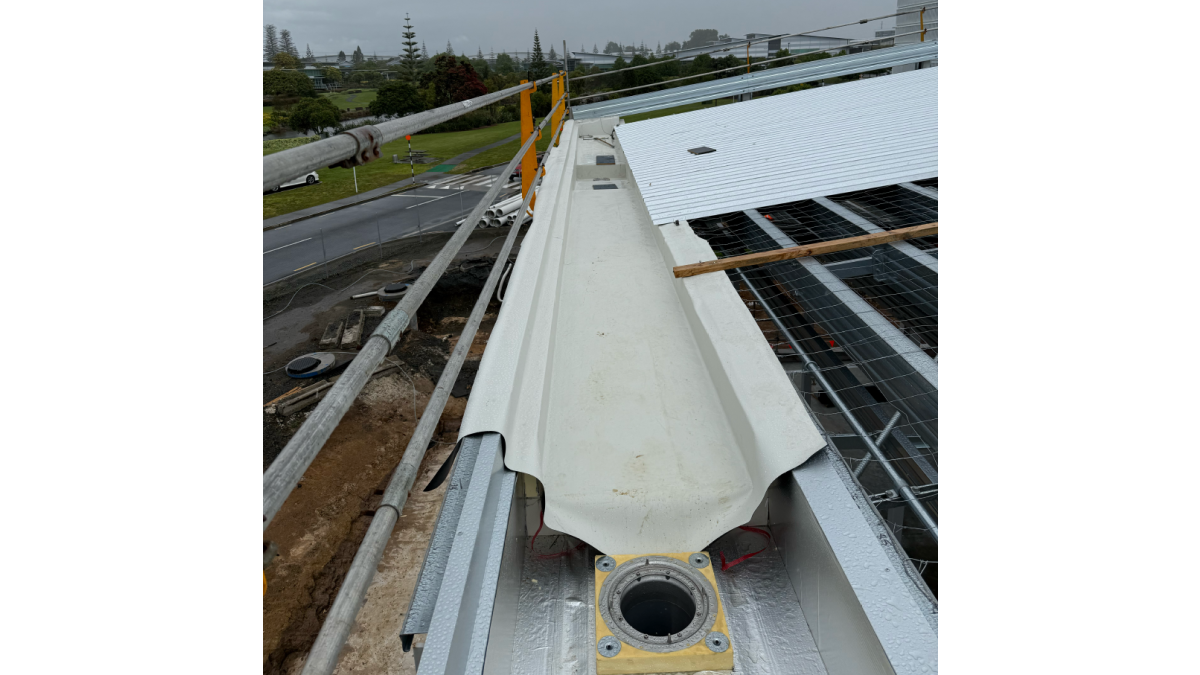

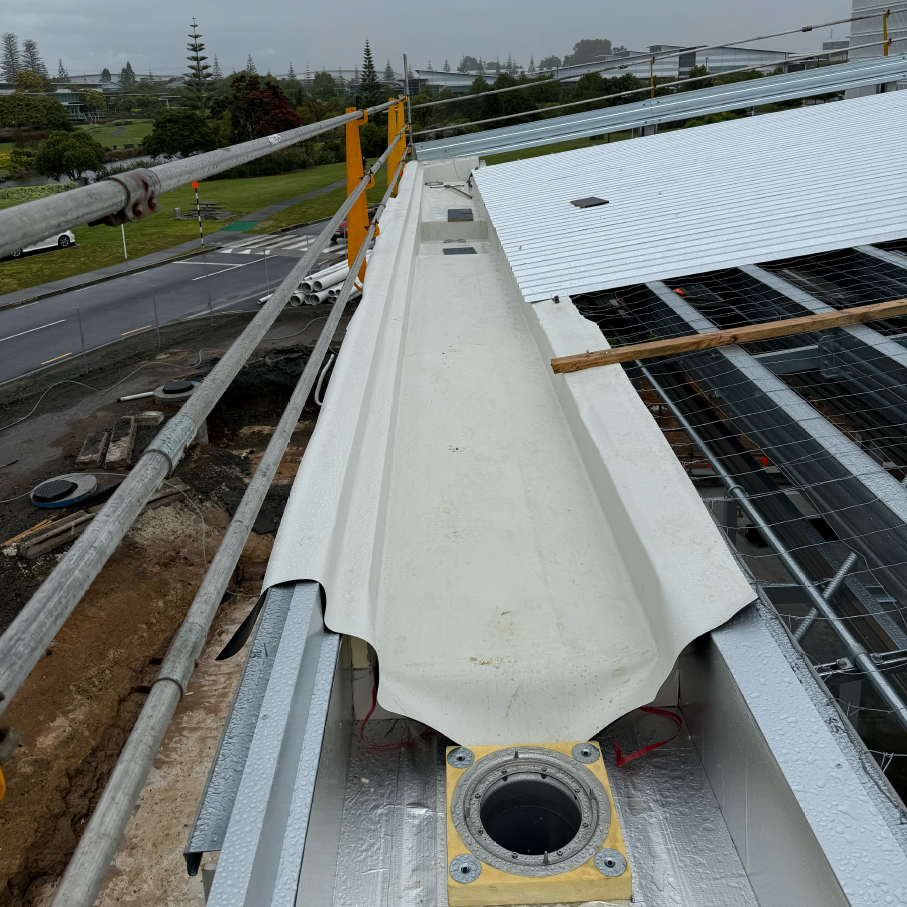

On a recent commercial project using multiple 225mm outlets, applicators and plumbers reported that the time saved on installation, together with the consistency of the finished detail, outweighed the cost difference by a wide margin, with no on-site insulation fitting required around the drain body.

Aquaknight has specialised in waterproofing membrane drainage for over 25 years and supplies the largest stocked range of membrane clamping drainage products available throughout Australasia. They are a member of the Waterproofing Membrane Association Inc (WMAI), the New Zealand-owned body that sets benchmark requirements and codes of practice for waterproofing membrane systems, and supplies drainage products to the credible waterproofing system suppliers representing global membrane manufacturers operating in the New Zealand market.

For designers and installers working within warm roof systems, the insulated drain represents a shift from field-fabricated detailing compromise to a factory-engineered, design-aligned component — reducing the risk of thermal bridging, simplifying quality control on site, and giving certainty that the drain penetration performs to the same standard as the roof surrounding it. As H1 requirements continue to shape roof design, standardised solutions of this kind will become the expected approach for drain penetrations in warm roof and box gutter applications.
