Warm Roof Insulated Drains
Aquaknight
All products

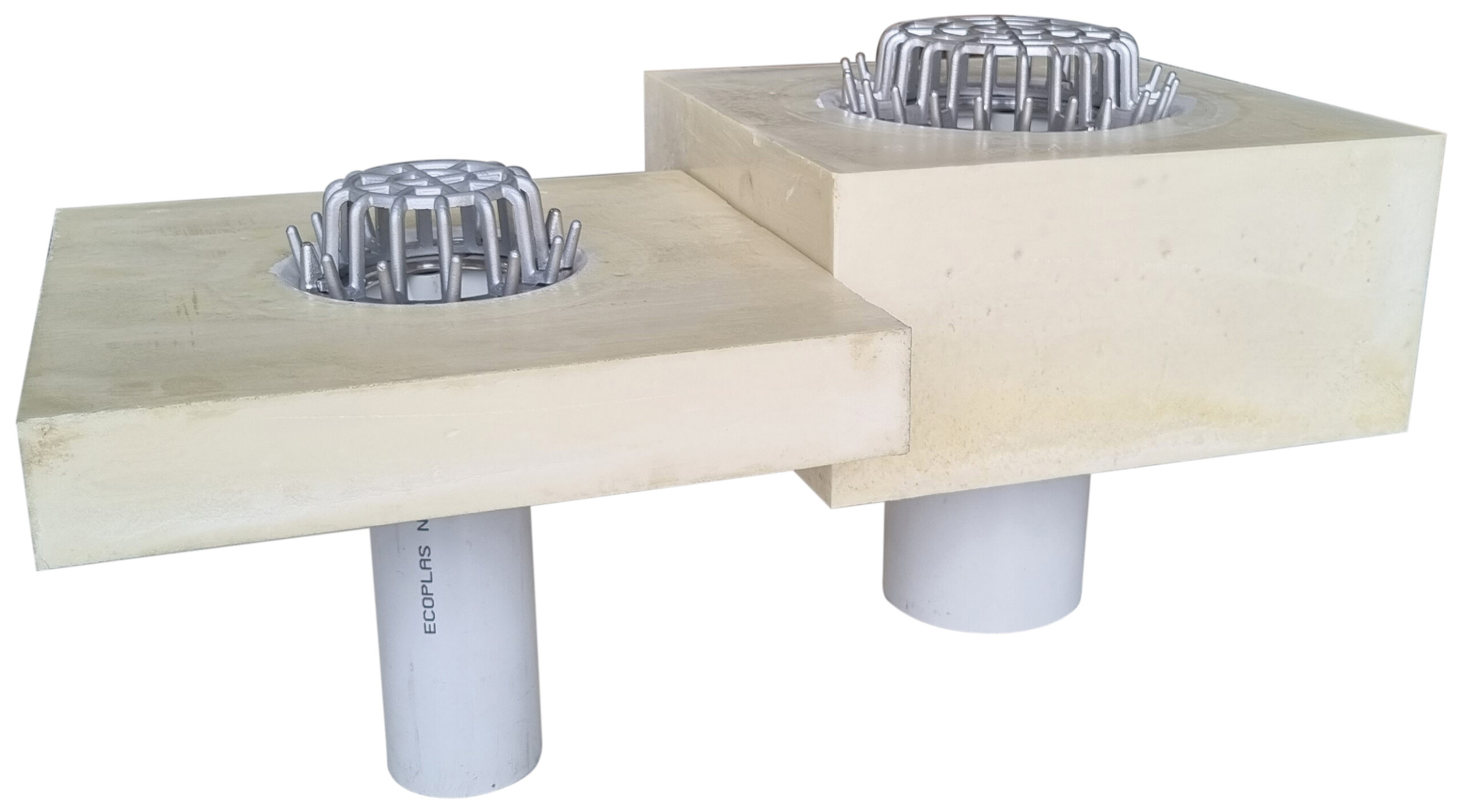

Insulated Roof Drains scaled

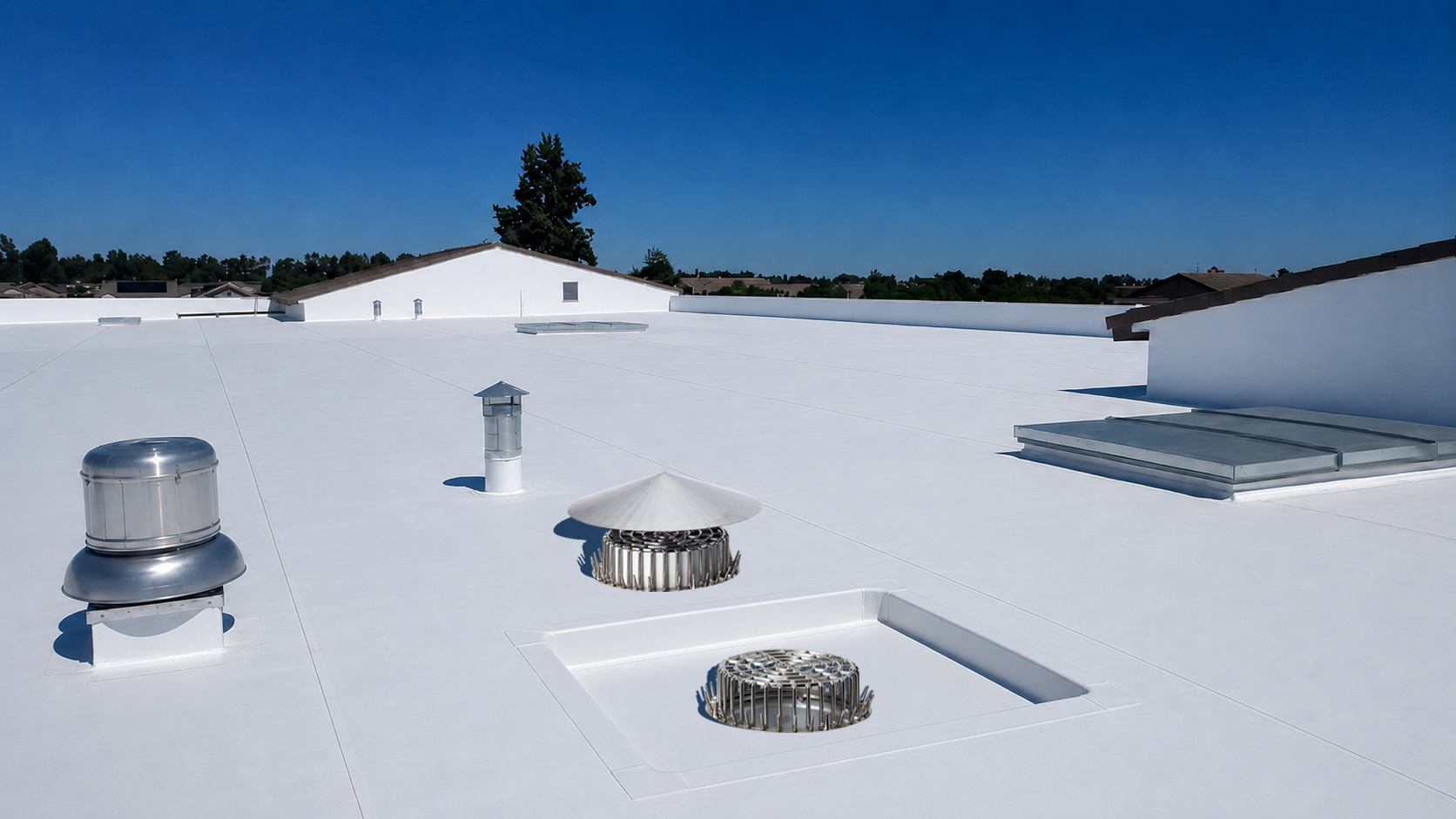

Pre Sump SSDrains

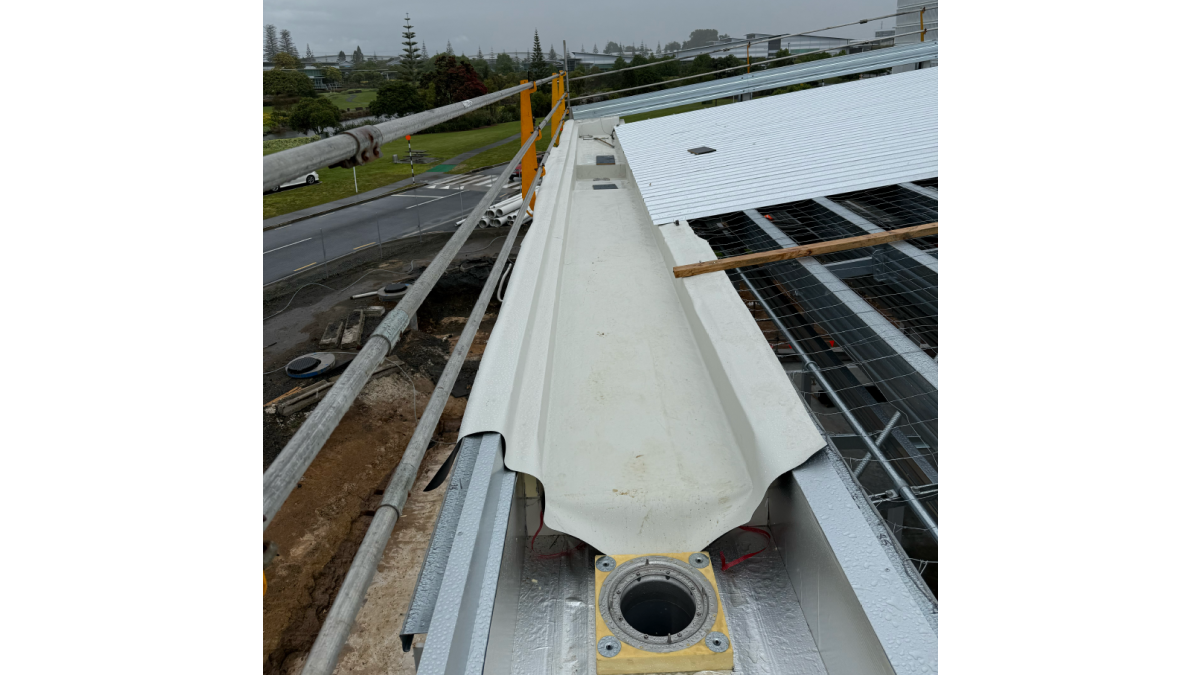

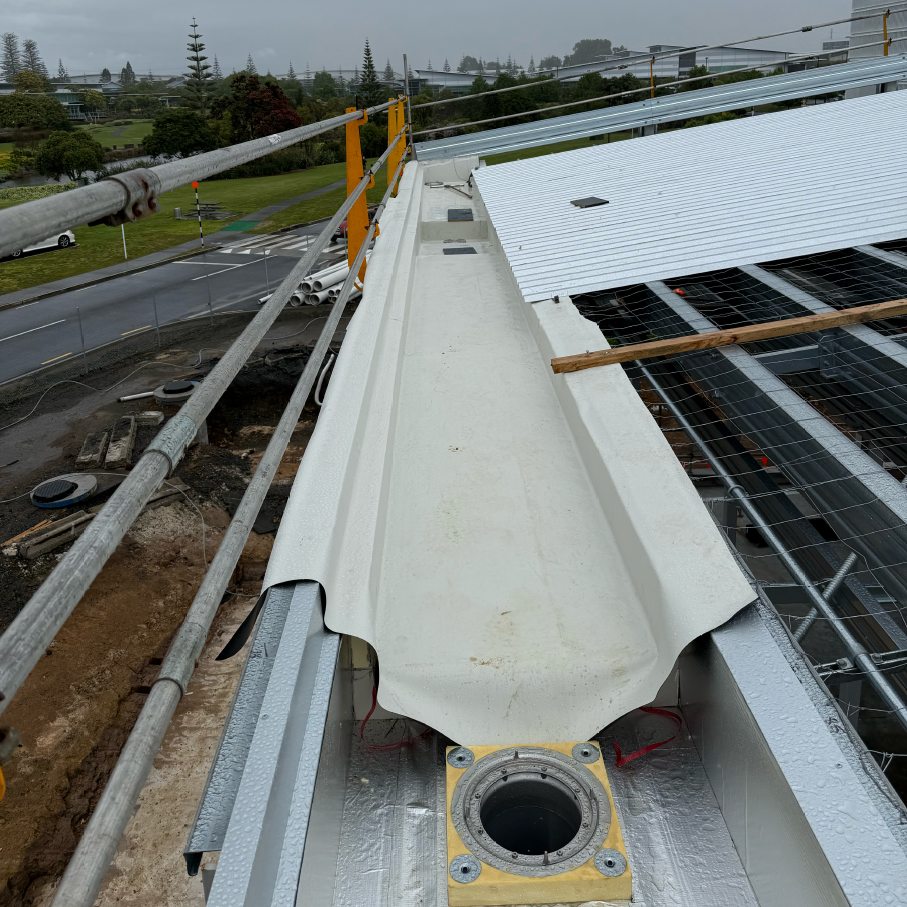

Box Gutter install
Description

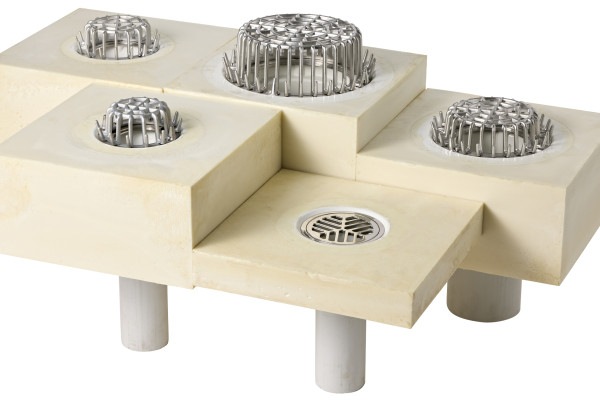

Aquaknight Warm Roof Insulated Drains feature a factory over-moulded closed-cell foam insulation block designed to integrate with warm roof membrane assemblies. The design eliminates localised thermal bridging where roof drains penetrate the insulation envelope.

Manufactured in New Zealand, the units are supplied in a standard 300x300mm format to match standard box-gutter minimum widths and are available in various insulation panel thicknesses matching warm-roof specifications.

Insulated options are available for Aquaknight Roof Drains, Deck Drains, and Inter-Balcony Drains.

Key Features
  • Elimination of Thermal Bridging: Replaces ad-hoc site practices (such as filling voids around drains with insulation off-cuts and expanding foam) with a factory-engineered component that maintains continuous thermal performance across the roof envelope.
  • Factory Over-Moulded Block: Closed-cell foam block is supplied pre-insulated to match or exceed the R-value of surrounding insulation boards, removing the reliance on site-applied insulation work.
  • Simplified Site Installation: Factory-standardized sizing allows units to be dropped directly into place and secured via direct fixing to the substrate, significantly reducing on-site installation time and labor.
  • On-Site Adaptability: Foam block can be easily trimmed on site to accommodate offset geometries or custom layout requirements without compromising detailing consistency.
  • System Integration: Formats and panel thicknesses integrate directly into membrane manufacturers' warm roof specification sets.
  • Quality Control & Certainty: Eliminates installation variability by replacing field-fabricated void filling with a consistent, design-aligned component.
Categories
Roofing and Decking Ancillaries Thermal Insulation Pipes and Drainage Fittings
Ranges
Membrane Deck Drains Membrane Roof Drains Membrane Interbalcony Drains
NZ Made
NZ Made
Scope of Use
  • Suitable for commercial and residential warm roof, deck, and inter-balcony drainage applications.
  • Designed for installation in box gutters (minimum 300mm width) and flat warm roof build-ups.
  • Compatible with rigid sheet roof insulation boards and clamp-ring waterproofing membrane systems.
  • Direct fixed to the roof substrate using mechanical fixings or compatible adhesives.
Statement of Building Code Compliance

Aquaknight Warm Roof Insulated Drains, if designed, used, installed, and maintained in accordance with the conditions of Aquaknight's technical documents, will comply with, or contribute to compliance with, the following performance provisions of the NZ Building Code:

  • B2 Durability: B2.3.1 (b)
  • E1 Surface Water: E1.3.3 (a, b, c, d, e, f)
  • F2 Hazardous Materials: F2.3.1
  • H1 Energy Efficiency: H1.3.1(a), H1.3.2E
In-Service History

Aquaknight has specialised in waterproofing membrane drainage for over 25 years in Australasia, and has developed insulated drains for warm roofs to meet a demand in the market.

Other Performance Attributes
Test: Result: Method:
10% Compressive Strength — Parallel (50kg/m³) 350kPa AS2498.3
10% Compressive Strength — Perpendicular (50kg/m³) 280kPa AS2498.3
Fire Test Self-extinguishing in  0-3 secs D1692 / ISO3582
Dimensional Stability @100% Humidity:
14 Days @ -30°C
14 Days @ +70°C		 % Change
-0.3
-0.4		 D2126-66
Thermal Conductivity (k-factor) @22.5°C 0.024W/mK EKO machine
Closed Cell Content >95% Pycnometer
VOC Emissions Greenstar Limit = 0.5mg/m²/hr 0.01 over 24hrs CETEC — D5116
Documents
All Membrane Deck Drains — Product Reference Chart
URL
All Membrane Interbalcony Drains — Product Reference Chart
URL
All Membrane Roof Drains — Product Reference Chart
URL
Aquaknight Website: Insulated Roof Drains
URL

Aquaknight offers premium drainage solutions for all modern membrane types: liquid, single ply, multi-layer, torch-on and monolithic.

Product Enquiries

News from Aquaknight

Protect Against Leaks, Overflows and Failures with Aquaknight's Comprehensive Inter-Balcony Drainage Range
Protect Against Leaks, Overflows and Failures with Aquaknight's Comprehensive Inter-Balcony Drainage Range
Aquaknight
March 2026 Product News
Introducing Aquaknight Industries' Scupper Guards NEW
Introducing Aquaknight Industries' Scupper Guards
Aquaknight
January 2026 New Products
Protect Your Reputation with Proven Watertight Solutions
Protect Your Reputation with Proven Watertight Solutions
Aquaknight
November 2025 Product News
View all news

Popular Products from Aquaknight

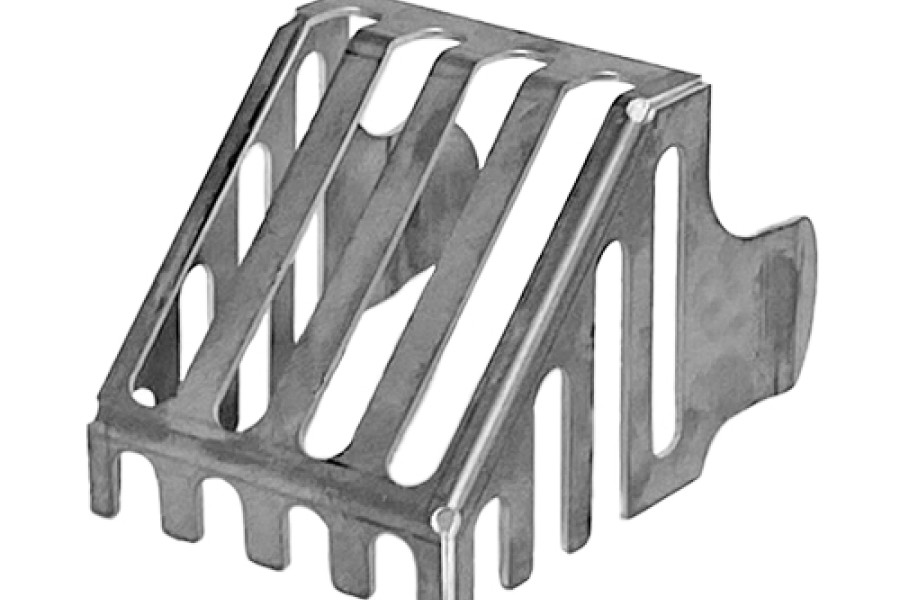

Scupper Guards — Membrane Roof Drain Accessories
