• Sun protection and light control
• Residential and commercial applications

Size & Installation:

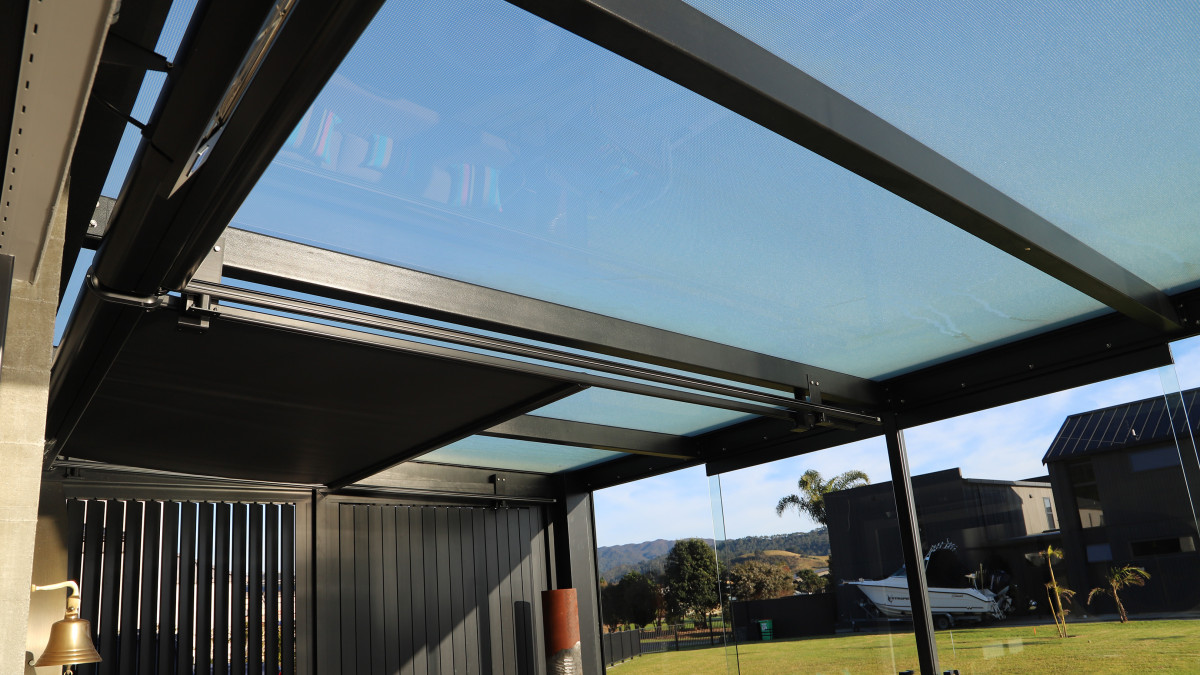

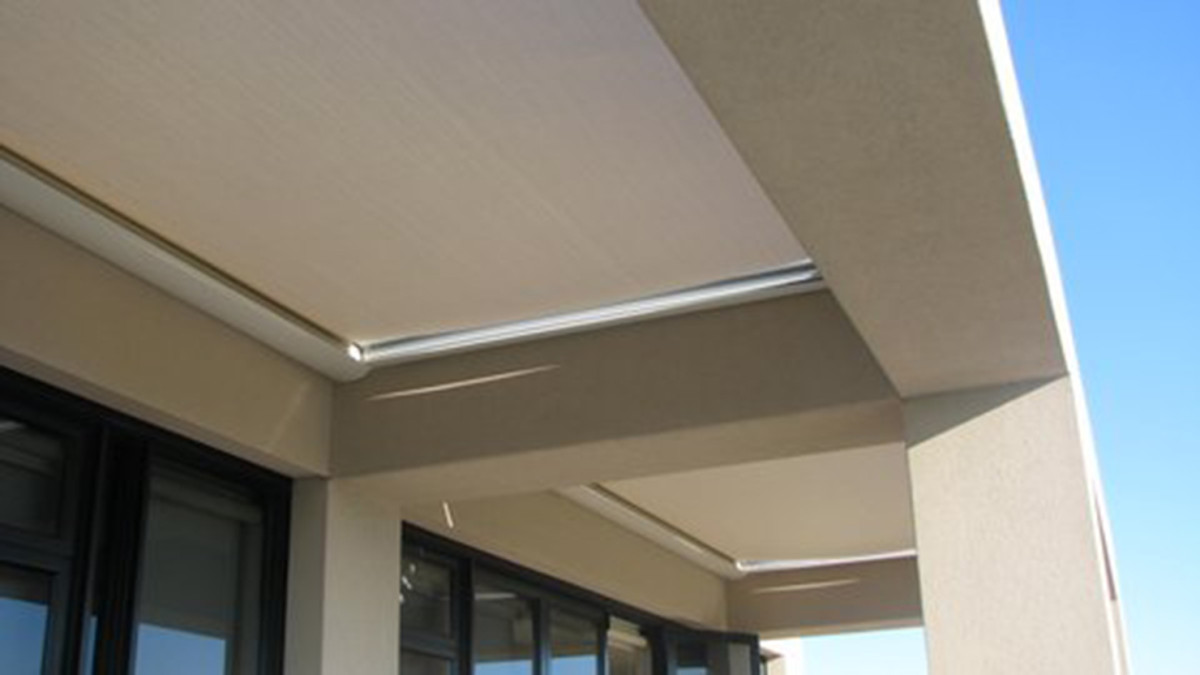

• Primarily installed on top of pergolas, glass, or open roofs

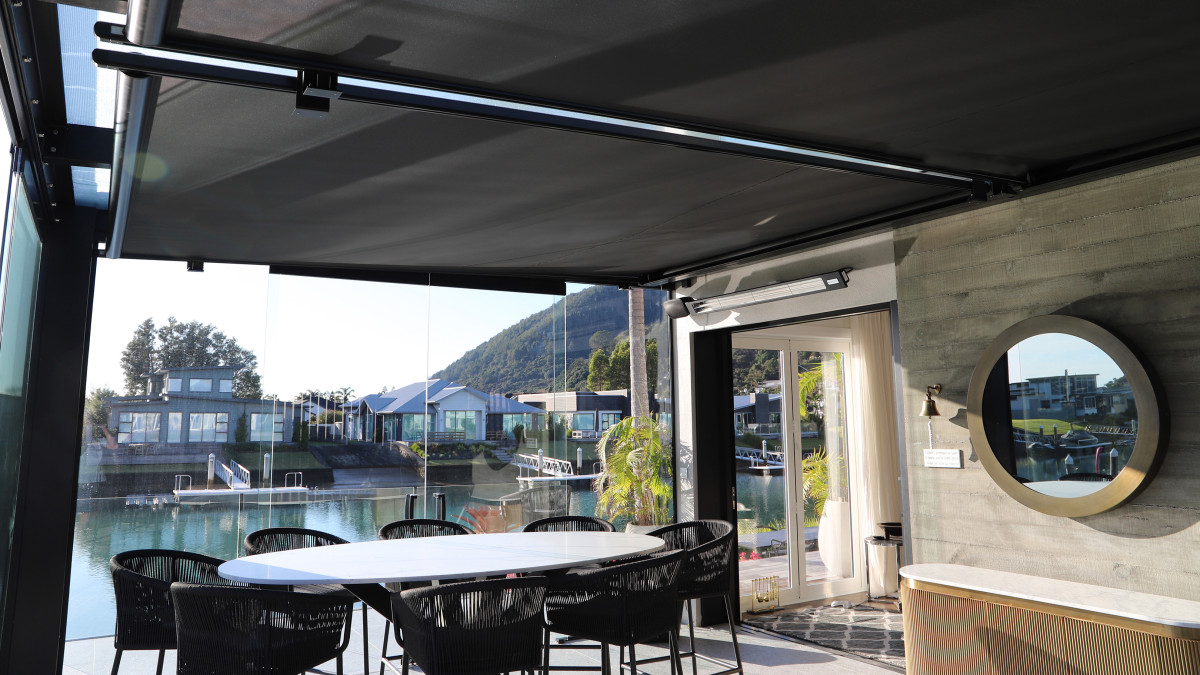

• Under-pergola or under-glass-roof installation is possible using additional custom-made brackets
• Install at any angle/pitch from 0° to 180°, provided the cassette and front bar are positioned horizontally level
• Maximum size per unit: 4.0m width with projection up to 4.0m; combined width by projection must not exceed 12m²

Operation:

• Motorised operation using Somfy tubular motors with remote-control or hard-wired switch options
• Control options include individual, multiple, group, master, and automatic control using sensors
• Weather sensors available: sun, wind and rain; wind and rain sensors can retract the awning automatically, including when wind speeds exceed 35 km/h

• Not designed as a rain shelter; retract when rain is imminent.
• If wind automation is used, wind sensors are set to retract the awning when wind speeds exceed 35km/h.
• Under-pergola or under-glass-roof installation requires additional custom-made brackets.
• Cassette and front bar must be installed horizontally level to achieve the stated 0°–180° pitch range.
• Pitch can only be adjusted manually.
• Motorised operation only; manual operation is not available for Terrazza.
• Maximum coverage must not exceed 12m²; maximum width 4.0m; projection up to 4.0m.
• A degree of fabric sagging will occur on larger awnings; interior spring tension can reduce but not eliminate sagging.
• Techno X Solar Screen (PVC-coated polyester) recommended for solar control.
• For exterior installations near coastal areas it is recommended to wash the components and rails 3 to 4 times a year.
• Motors must be installed by a registered electrician.

Window Treatments has nationwide service coverage and has been operating since 1984.

• Manufactured in New Zealand exclusively by Window Treatments NZ Ltd
• Fabrics have excellent UV and light fastness; Techno X Solar Screen (PVC-coated polyester) recommended for solar control; flame and fade resistant; blocks 87–93% of sun's rays; provides daytime privacy while maintaining view.
• Somfy motor options all with IP 44 rating. See Specification Sheet for full performance information.

Warranty & Maintenance:

• 3 year warranty
• Coastal maintenance recommendation: wash components and rails with fresh water 3–4 times per year
