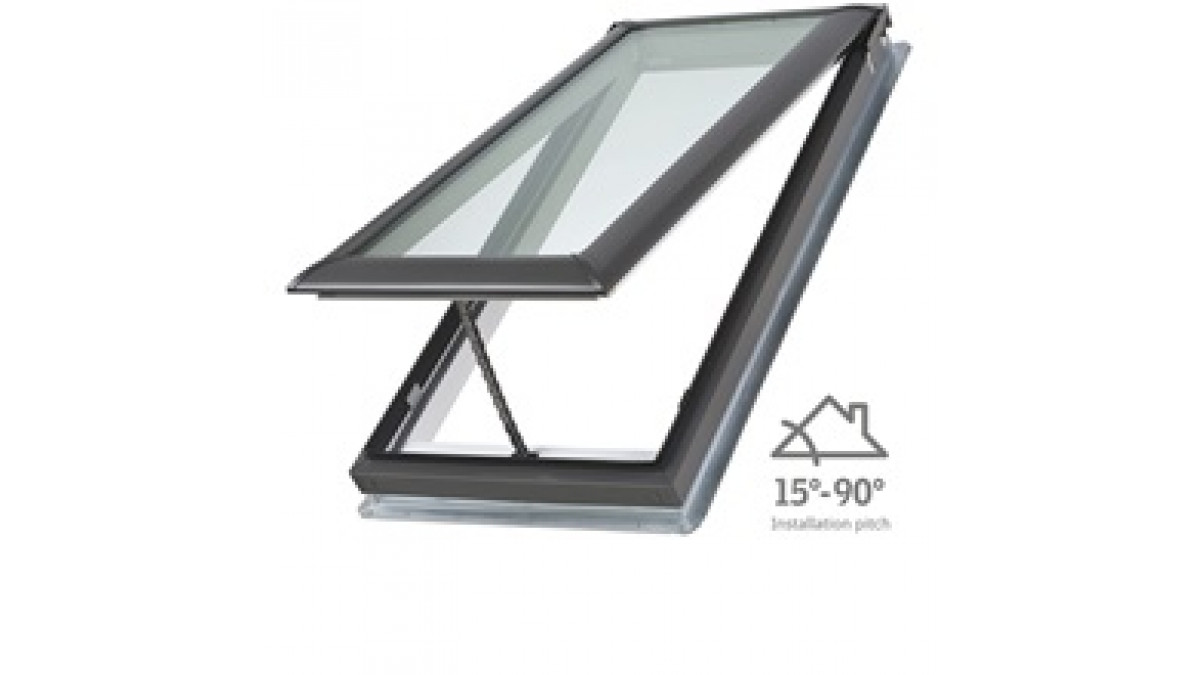

Manual Skylight - Pitched Roofs

Velux VS opening skylight is the healthy choice for visually expanding interiors with daylight, fresh air and sky views. Great for bathrooms, kitchens, laundries and any rooms needing a daylight and fresh air transformation.

Key Features
  • Suitable for pitched roofs 15° to 90°
  • Toughened, argon fill, double glazing with Low-E3 coating
  • Includes removable insect screen
  • Exterior of aluminium in "grey friars" colour
  • R-value of 0.50 m2K/W for complete unit
  • Two control options for in reach and out of reach installations
  • Available in sixsizes:
    • 550x980, 780x980, 780x1180, 780x1400, 1140x700, 1140x1180


Statement of Building Code Compliance

BRANZ Appraised (Appraisal No.968)

Meets the New Zealand Building Code requirements for:

  • B2 - Durability (15 years)
  • C3 - Protection from Fire (classified as non-combustible)
  • E3 - External Moisture (tested to AS4285)
  • F2 - Hazardous Building Materials
  • G4 - Natural Ventilation (can be used to meet the G4 requirements)
  • G7 - Natural Light (can be used to meet the G7 requirements)
  • H1 - Energy Efficiency (exceeds the minimum R-value requirements for skylights in all climate zones)
Other Performance Attributes

HEALTHY - Daylight boosts vitamin D levels during extended indoor times in winter and fresh air replaces damp, allergen filled stale air

VALUE - Daylight, fresh air and sky views with VS opening skylights

PRE-FINISHED - White painted interior frames require no on-site painting

QUALITY - Stylish design, tested performance and dedicated local sales support

CAD/PDF (link to page on supplier website)
Data Sheet
Size Chart
Compliance Statement
Specification Clause/Guide
Independent Appraisal (BRANZ)
Test Results
Installation and Operation
Maintenance Instructions
Custom Flashing - Rooflink Article

VELUX are a supplier of skylights and roof windows and have been active in New Zealand since 1981.
