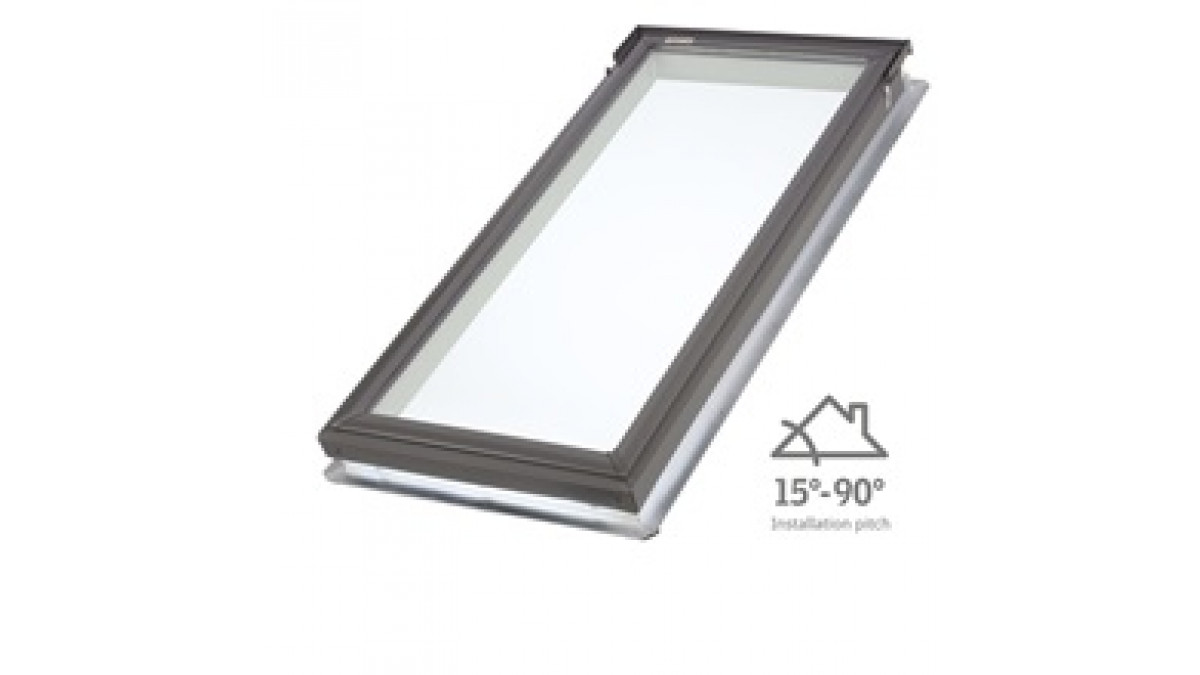

Fixed Skylight - Pitched Roofs
Description

Velux FS fixed skylight for pitched roofs is the affordable choice for visually expanding interiors with daylight and sky views. Great for living rooms, dining rooms and any rooms needing a daylight transformation.

Key Features
  • Suitable for pitched roofs from 15° to 90°
  • Toughened, argon fill, double glazing with Low-E3 coating
  • Exterior of aluminium in "grey friars" colour
  • R-value of 0.49 m2K/W for complete unit
  • Available in sevensizes:
    • 550x700, 550x980, 780x980, 780x1180, 780x1400, 1140x700, 1140x1180
Scope of Use

Velux F5 Fixed Skylight can be used on a roof pitch between 15° to 90°.

Limitations on Use

Velux F5 Fixed Skylight can not be used on low-pitch roofs less than 15°. Refer to low-pitch skylights for suitable options.

Statement of Building Code Compliance

BRANZ Appraised (Appraisal No.968)

Meets the New Zealand Building Code requirements for:

  • B2 - Durability (15 years)
  • C3 - Protection from Fire (classified as non-combustible)
  • E3 - External Moisture (tested to AS4285)
  • F2 - Hazardous Building Materials
  • G4 - Natural Ventilation (can be used to meet the G4 requirements)
  • G7 - Natural Light (can be used to meet the G7 requirements)
  • H1 - Energy Efficiency (exceeds the minimum R-value requirements for skylights in all climate zones)
In-Service History





Other Performance Attributes

VALUE - Daylight and sky views with FS fixed skylights.

HEALTHY - Daylight boosts vitamin D levels during extended indoor times in winter.

PRE-FINISHED - White painted interior frames require no on-site painting.

QUALITY - Stylish design, tested performance and dedicated, local sales support.

Documents
CAD/PDF (link to page on supplier website)
Compliance Statement
Data Sheet
Size Chart
Independent Appraisal (BRANZ)
Test Results
Maintenance Instructions
Warranty
Specification Clause/Guide
Installation and Operation
VELUX ACTIVE brochure
Custom Flashing - Rooflink Article

VELUX are a supplier of skylights and roof windows and have been active in New Zealand since 1981.
