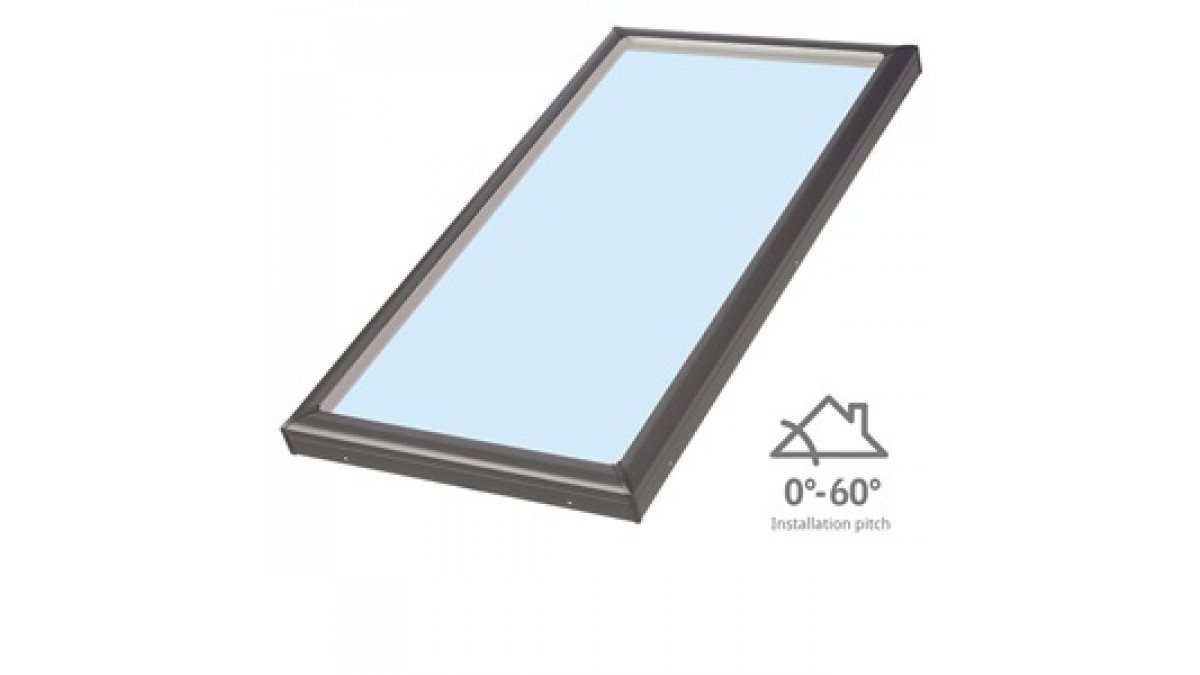

Fixed Skylight - Low Pitch
Description

Velux FCM low pitch fixed skylight is the affordable choice for visually expanding interiors with daylight and sky views. Great for living rooms, dining rooms and other rooms needing more light.

Key Features
  • Suitable for installation pitch of 0° to 60°
  • Toughened, argon fill, double glazing with Low-E3 coating
  • Exterior of aluminium in "grey friars" colour
  • R-value of 0.44 m2K/W for complete unit
  • Available in eight sizes:
    • 692x692, 692x997, 692x1302, 692x1911, 895x895, 895x1302, 997x997, 1302x1302
Scope of Use
  • Suitable for low pitch installations 0° to 60°
Limitations on Use

VELUX recommends FCM is installed with a slight pitch (e.g. 3-5°) to help prevent condensation build-up and water ponding on the glass.

Statement of Building Code Compliance

BRANZ Appraised (Appraisal No.968)

Meets the New Zealand Building Code requirements for:

B2 - Durability (15 years)
E3 - External Moisture (tested to AS4285)
F2 - Hazardous Building Materials
G4 - Natural Ventilation (can be used to meet the G4 requirements)
G7 - Natural Light (can be used to meet the G7 requirements)
H1 - Energy Efficiency (exceeds the minimum R-value requirements for skylights in all climate zones)

Other Performance Attributes

VALUE - Daylight and sky views with FCM low-pitch fixed skylights.

FLEXIBLE - Can be installed in any orientation in the roof.

HEALTHY - Daylight boosts vitamin D levels during extended indoor times in winter.

QUALITY - Stylish design, tested performance and dedicated, local sales support.

Documents
Data Sheet
Size chart - FCM Fixed Skylight
Independent Appraisal (BRANZ)
Test Results
Compliance Statement
CAD/PDF (link to page on supplier website)
Specification Clause/Guide
Installation and Operation
Maintenance Instructions
Warranty
VELUX ACTIVE brochure
Custom Flashing - Rooflink Article

VELUX are a supplier of skylights and roof windows and have been active in New Zealand since 1981.

Product Enquiries

News from VELUX

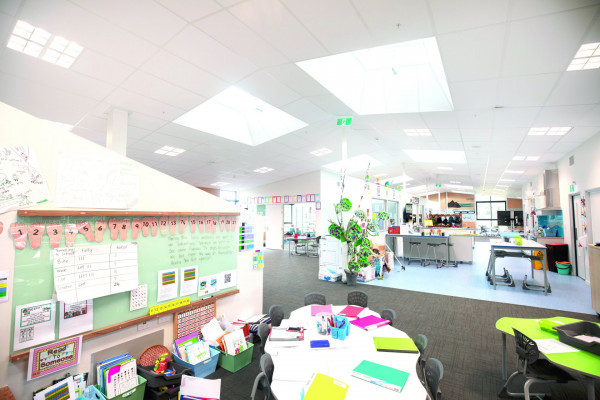

Maximising Daylight and Fresh Air in Buildings with VELUX

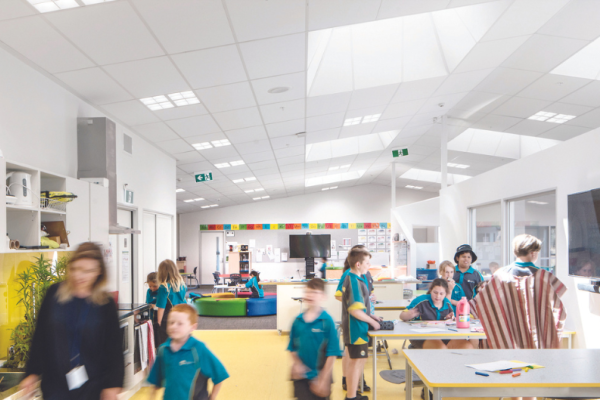

The Future is Brighter with VELUX Skylights

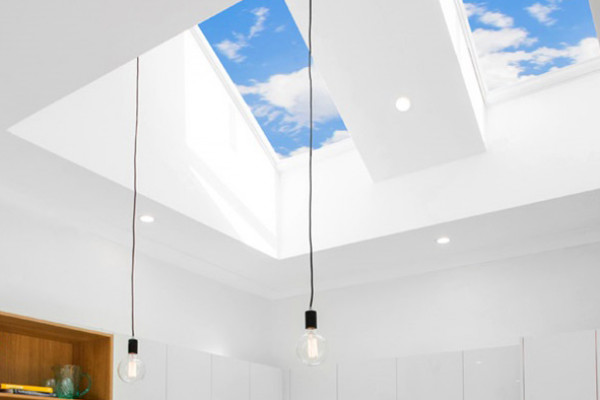

Reaching for New Heights with Skylights
