Electric Skylight - Pitched Roofs
Description

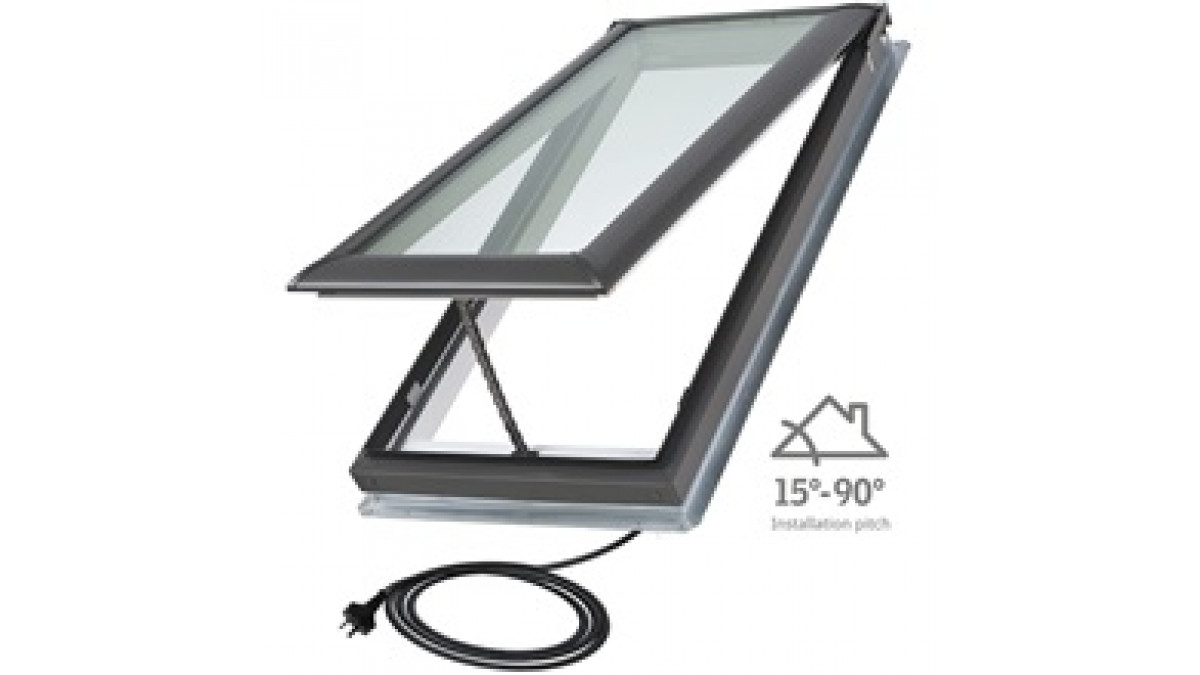

Velux VSE Integra electric skylight is the smart choice for visually expanding interiors with daylight, fresh air and sky views on remote control. Great for bathrooms, kitchens, laundries and any rooms needing a daylight and fresh air transformation.

Velux VSE Integra control pad comes standard with every Integra opening skylight or roof window. With 8 pre-defined programmes for easy to use home automation.

Key Features
  • Suitable for pitched roofs 15° to 90°
  • Remote controlled
  • Laminated, argon fill, double glazing with Low-E3 coating
  • Includes removable insect screen
  • Exterior of aluminium in "grey friars" colour
  • R-value of 0.50 m2K/W for complete unit
  • Available in six sizes:
    • 550x980, 780x980, 780x1180, 780x1400, 1140x700, 1140x1180
Scope of Use
  • VSE Integra Electric Skylight can be installed on roof pitches 15° to 90°.
Limitations on Use

Solar Skylight can not be used on low-pitch roofs less than 15º. Refer to low-pitch skylights for suitable options.

Statement of Building Code Compliance

BRANZ appraised (Appraisal No.968)

Meets the New Zealand Building Code requirements for:

  • B2 - Durability (15 years)
  • C3 - Protection from Fire (classified as non-combustible)
  • E3 - External Moisture (tested to AS4285)
  • F2 - Hazardous Building Materials
  • G4 - Natural Ventilation (can be used to meet the G4 requirements)
  • G7 - Natural Light (can be used to meet the G7 requirements)
  • H1 - Energy Efficiency (exceeds the minimum R-value requirements for skylights in all climate zones)
Other Performance Attributes

SMART - Programmable Integra control pad and pre-installed rain sensors included

HEALTHY - Daylight boosts vitamin D levels during extended indoor times in winter and fresh air replaces damp, allergen filled stale air

PRE-FINISHED - White painted interior frames require no on-site painting.

QUALITY - Stylish design, tested performance and dedicated local sales support

Documents
CAD/PDF (link to page on supplier website)
Compliance Statement
Data Sheet
Size Chart
Size Chart
Independent Appraisal (BRANZ)
Test Results
Maintenance Instructions
Warranty
Specification Clause/Guide
Installation and Operation
VELUX ACTIVE brochure
Custom Flashing - Rooflink Article

VELUX are a supplier of skylights and roof windows and have been active in New Zealand since 1981.

Product Enquiries

News from VELUX

VELUX Aims to Become Lifetime Carbon Neutral
VELUX Provides Breath of Fresh Air to Heritage Home

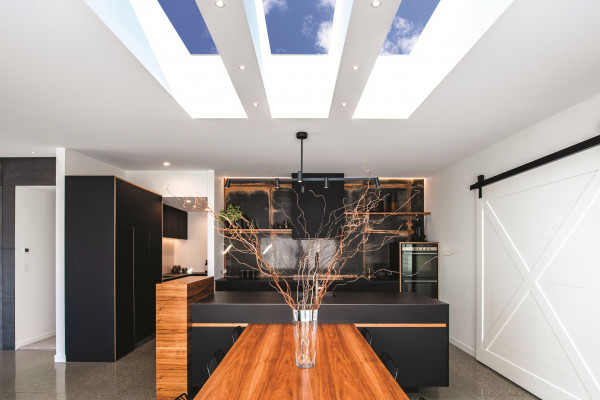

Transform Spaces with Skylights
