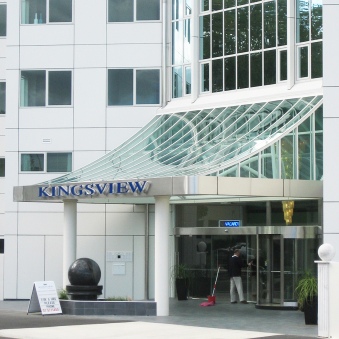

100 Series Overhead Canopy System
Description

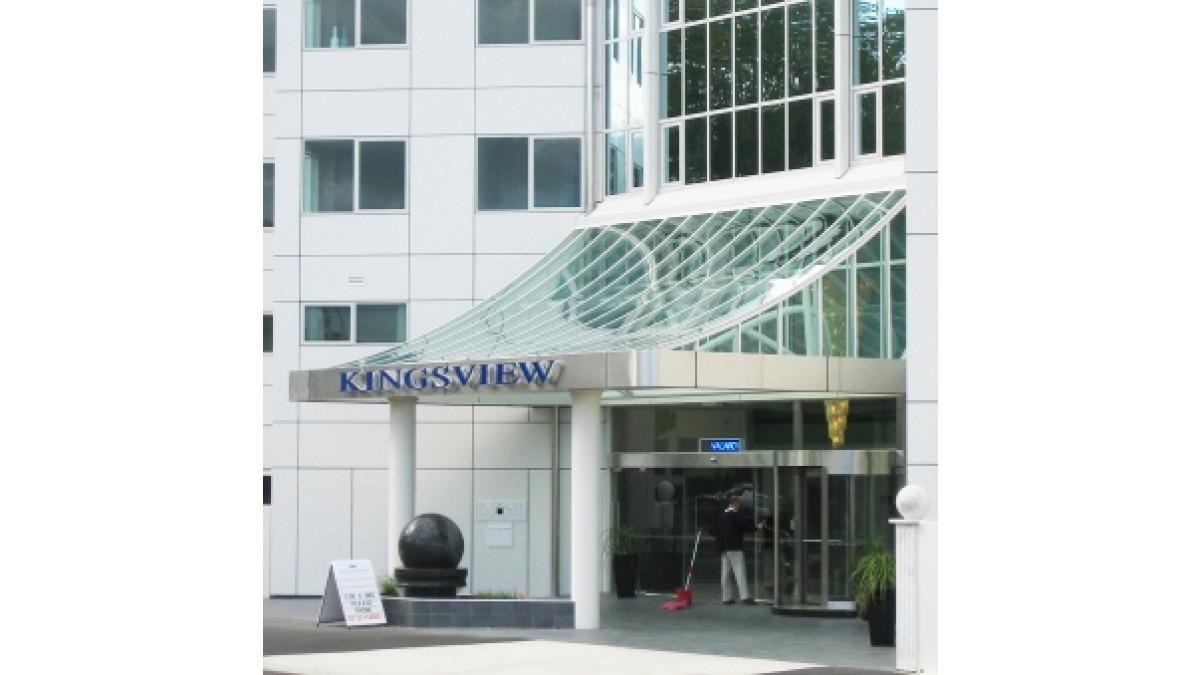

Spectrum's glazed canopy systems provide natural light, clear vision and weather tightness.

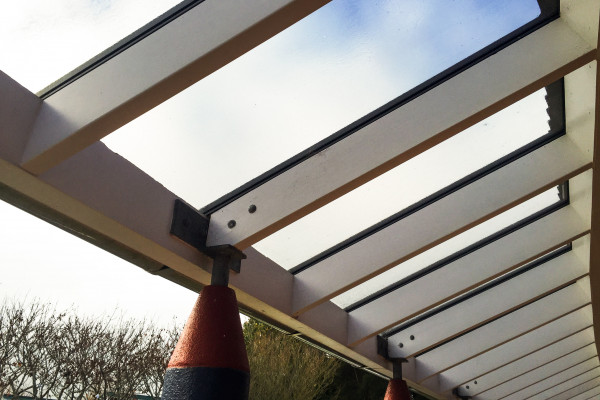

Most overhead glazing systems usually end up with a compromise of design, strength and economy. The 100 series is designed to accommodate 50mm wide structural rafters of depths calculated to economically span the distance required for users' glass roof and glass canopy needs.

Key Features
  • Suitable for large or small span applications
  • Built-in drainage channel to glazing bar and purlin

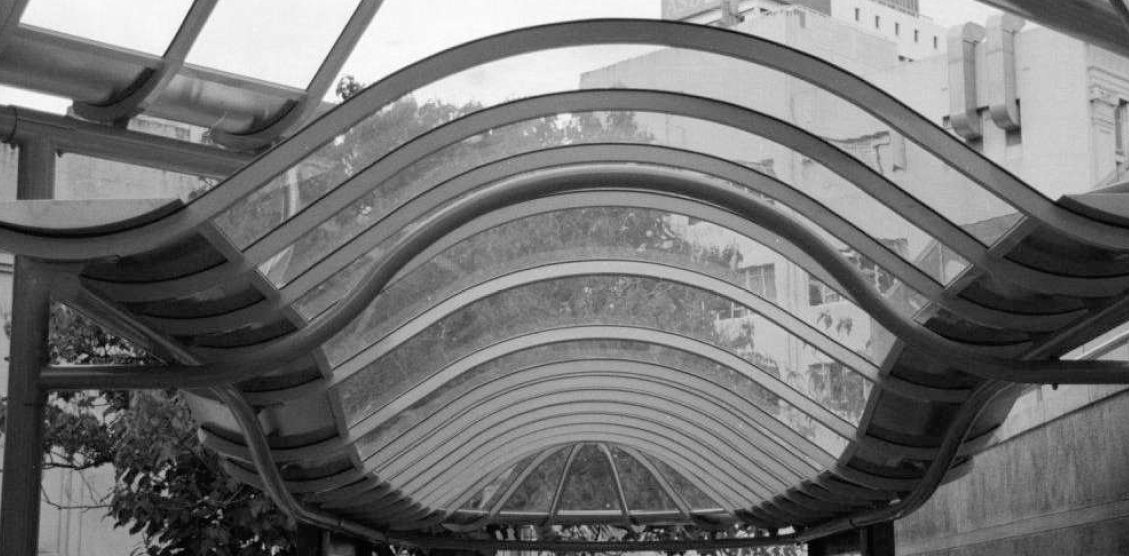

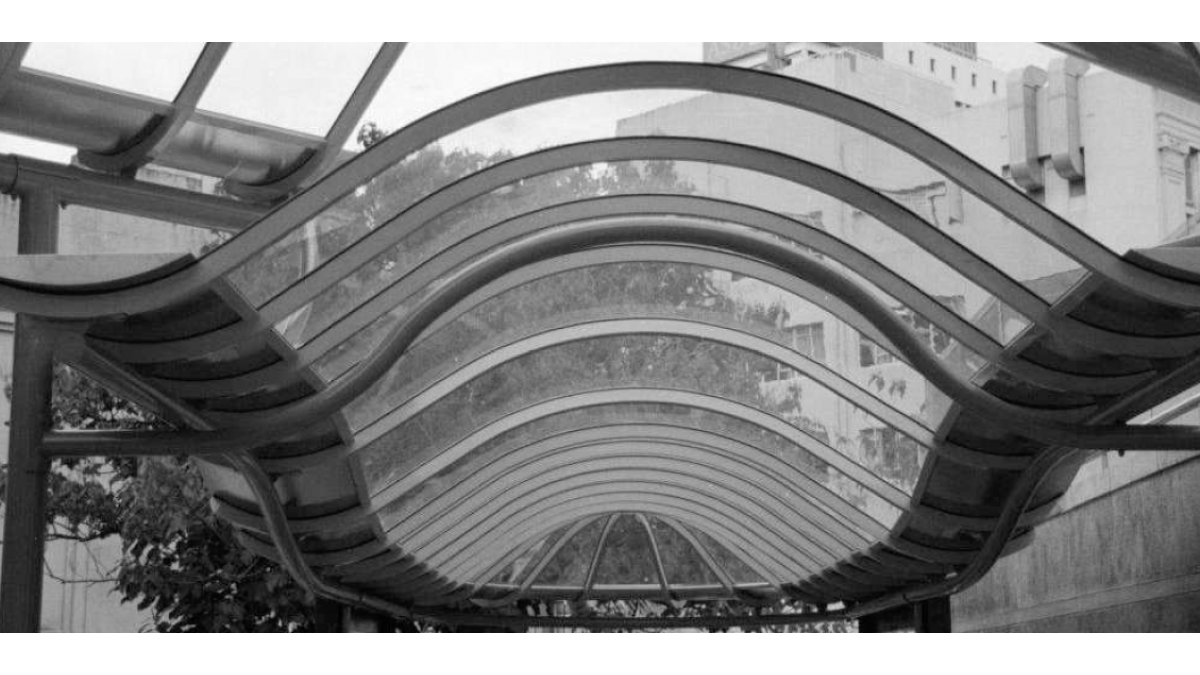

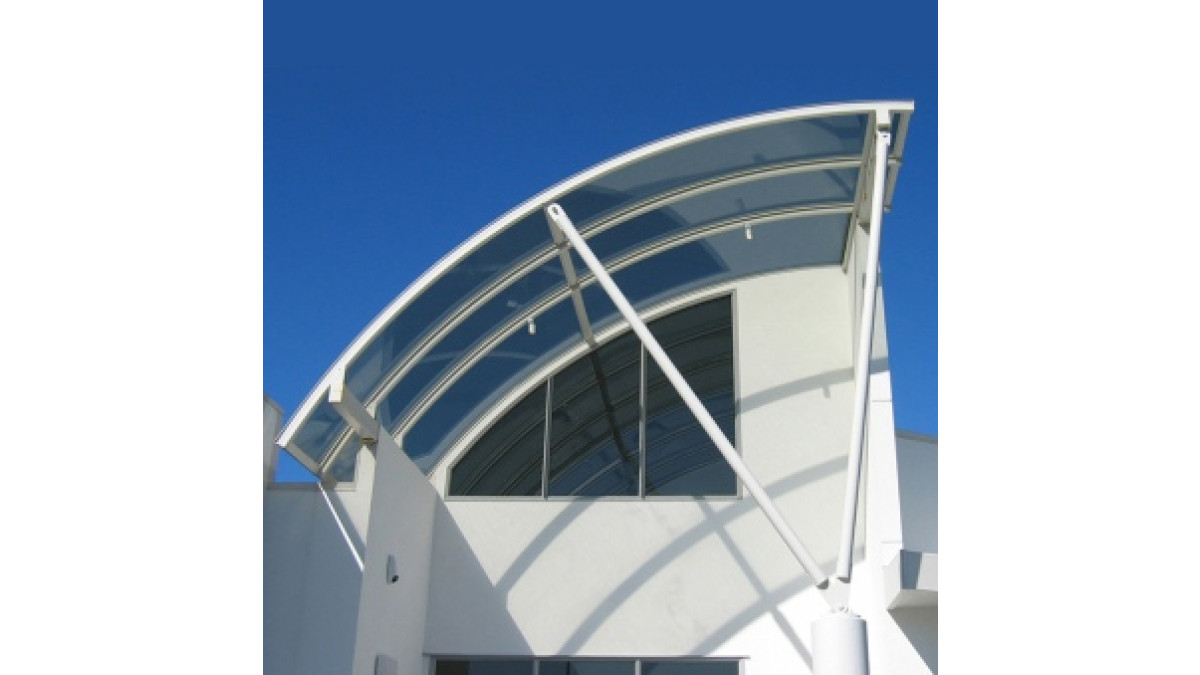

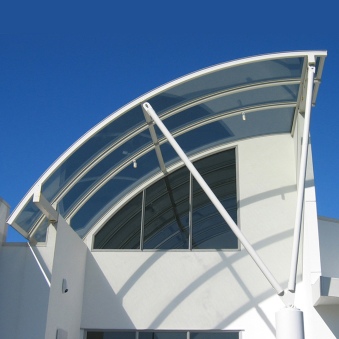

  • Able to be curved to a 1400mm radius
  • Avaliable in all architectural surface finishes
  • Alloy and temper - 6063 T5
Scope of Use

Spectrum's 100 Series overhead glazing bar system is the most versatile overhead glazing system of its kind.

Suitable for large or small span residential or low rise commercial applications.

Limitations on Use

Glazing bars are able to be curved to min 1400mm radius.

Other Performance Attributes

Each unit manufactured by Spectrum Aluminium is a purpose made special product. For this reason testing is not undertaken without express chargeable directions from clients.

Spectrum do however take every reasonable care to assemble each structure to comply with NZS 4211:1985A3.

Literature
Product Assurance
Data Sheet

Spectrum designs and manufactures modular and custom architectural metalwork products including aluminium and glass balustrades, overhead glazing, louvres and screens.

Product Enquiries

News from Spectrum

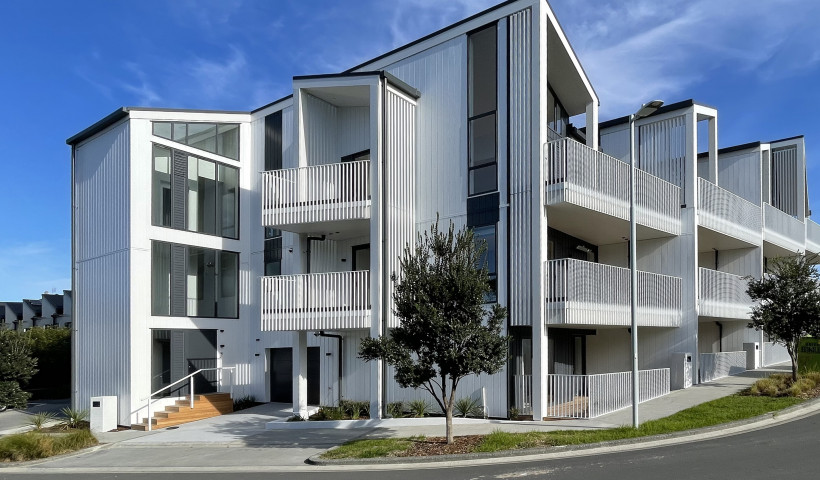

Deck Privacy and Inter-Tenancy Screens with Fall Protection Benefits
Bold Statement with Custom Balustrade and Screen by Spectrum

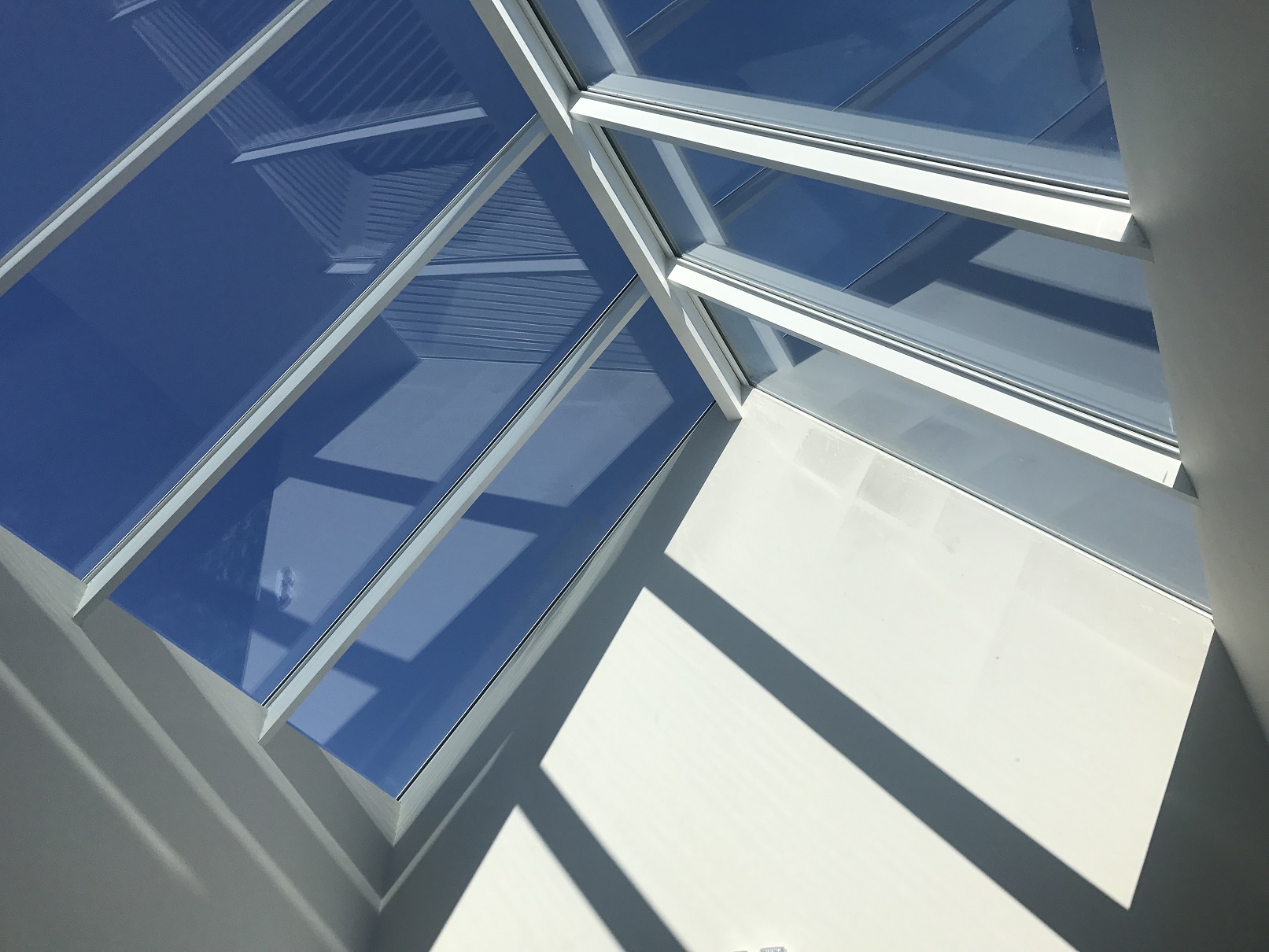

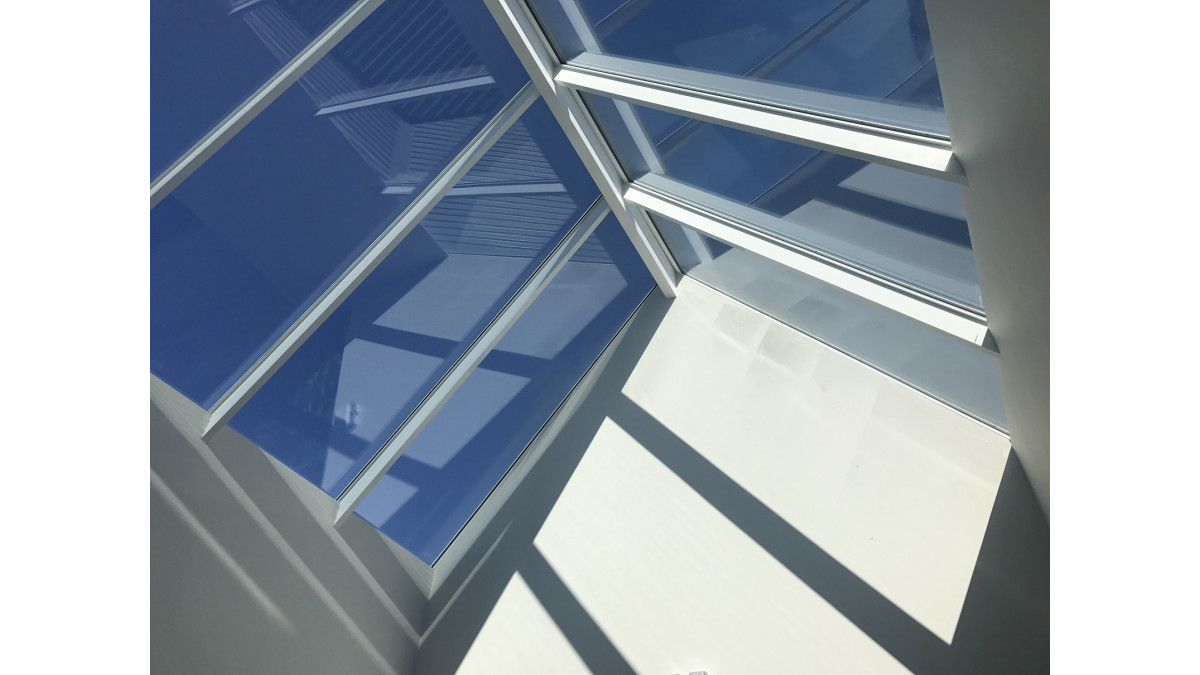

Let the Light Flood in with Spectrum Overhead Glazing Systems
