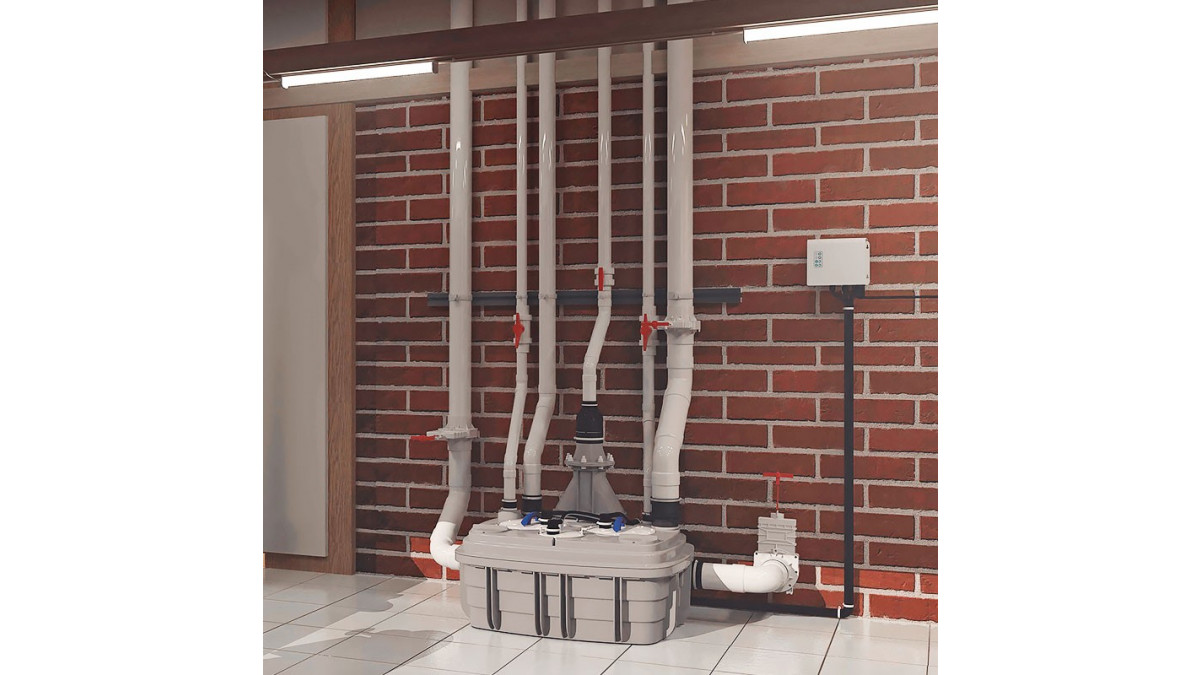

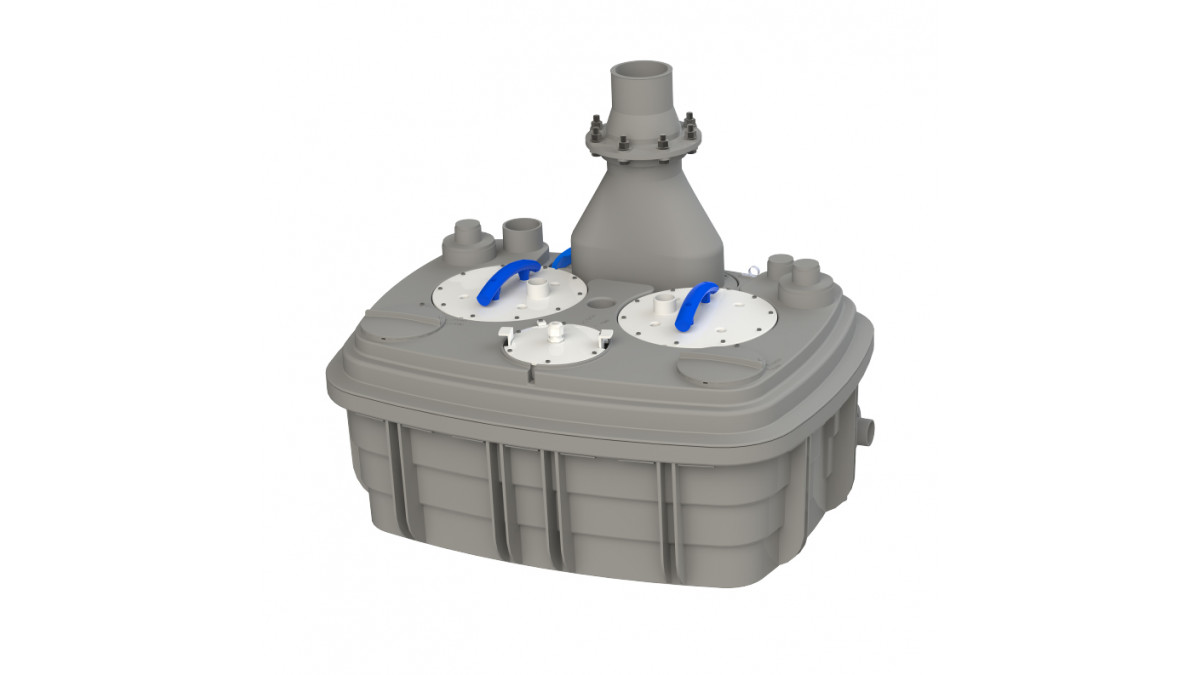

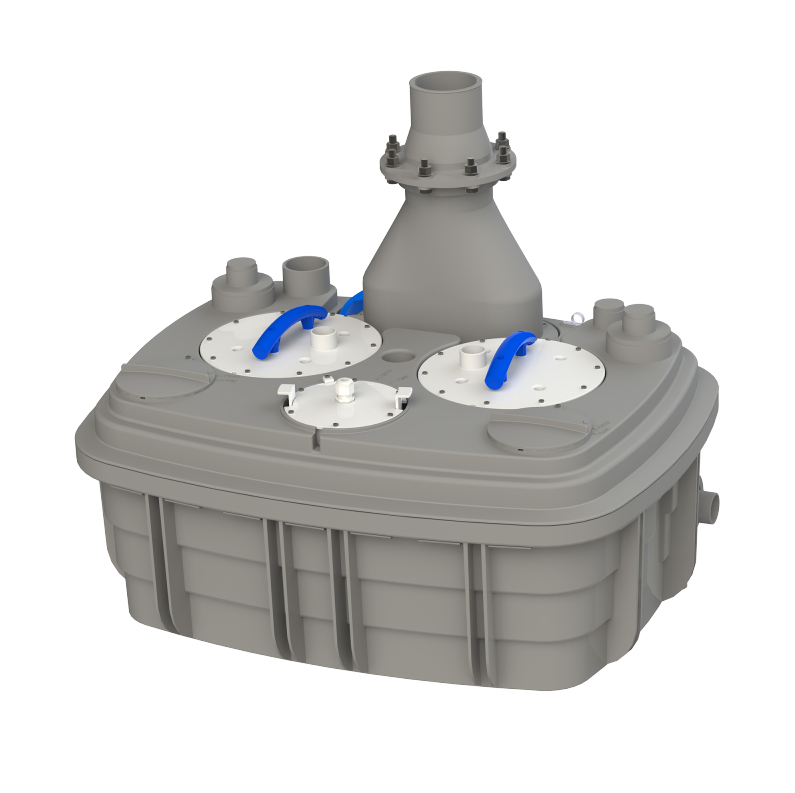

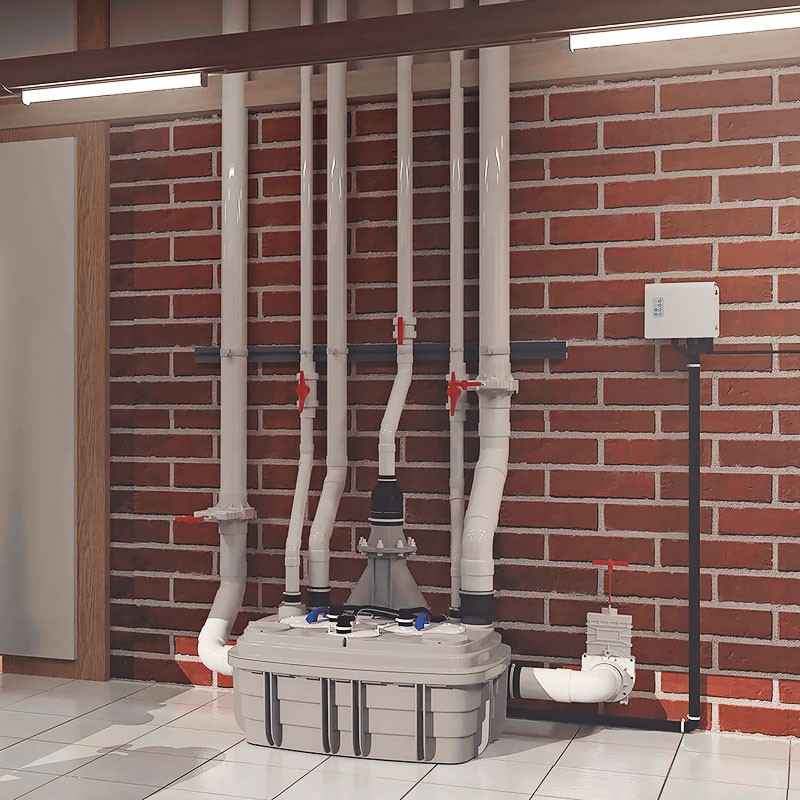

Sanicubic 2 VX (Single Phase) Lifting Station (Waste Pump)
Description

The Sanicubic 2 VX is a powerful lifting station used for demanding commercial situations. It features twin 2000w motors, vortex blade-less pumping technology which is well suited for applications to eliminate blockages.

The Sanicubic 2 VX is suitable for public facilities as it utilises a vortex to break up matter and not a macerator blade like other Cubics which results in a larger free passage for foreign objects to pass through.

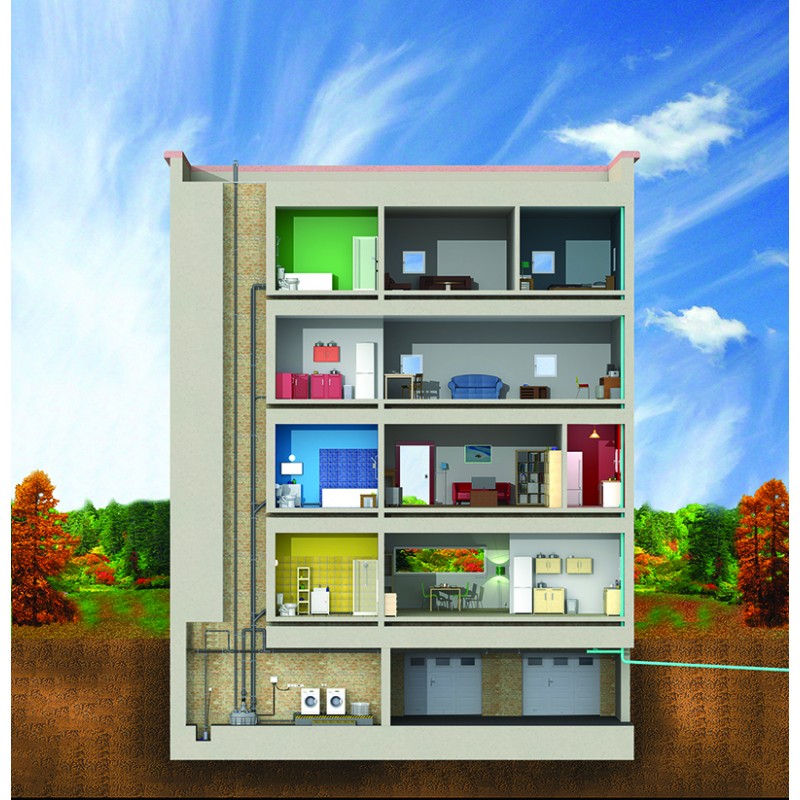

Saniflo lifting stations are a waste water pump allowing sanitary fixtures to be installed in areas where access to waste water pipes and conventional gravity drainage is limited, increasing the design possibilities for installing additional facilities in existing buildings.

Key Features

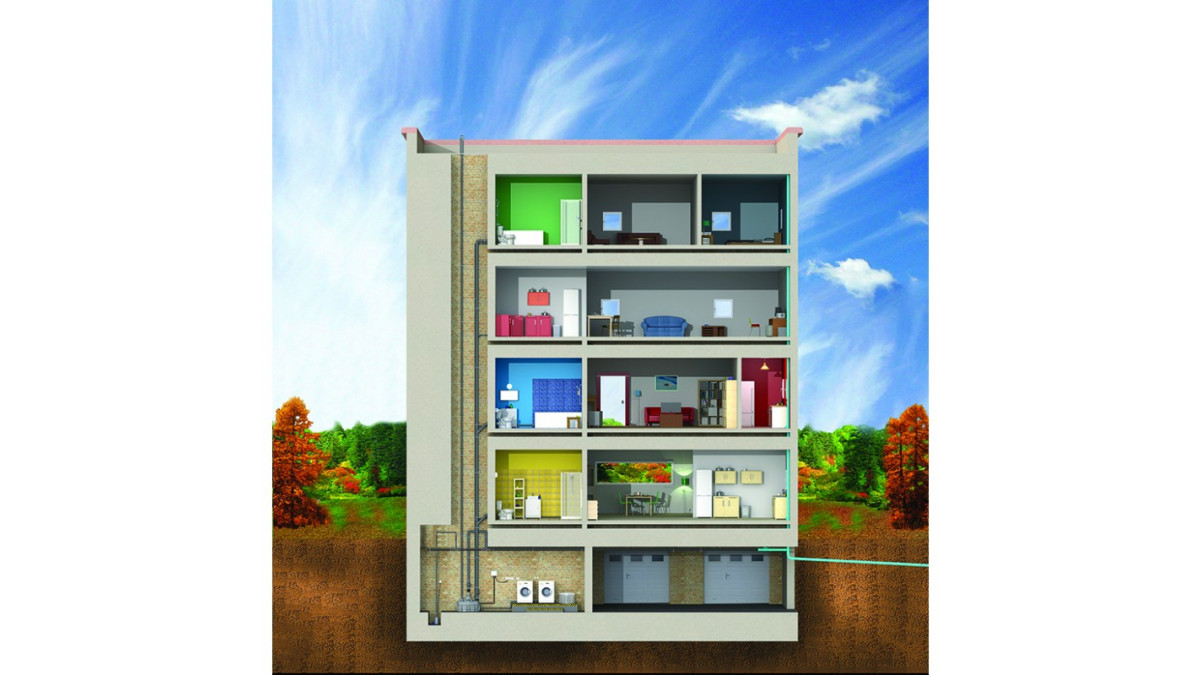

  • Whole of building solution — bathroom and kitchen fixtures
  • Commercial use — building repurposing and modifications from dwellings to large commercial projects
  • All in one pump, grey water and waste/black water
  • Ideal for large volume commercial situations
  • Large bore vortex pump with a 50 mm free passage capable of pumping waste water without the need to macerate
  • Two alarms for ultimate safety — both hard-wired
  • Large 120 L tank volume
  • Easy to install — no need to excavate
  • Easily removable motors for servicing and maintenance
Scope of Use

The Sanicubic 2 VX is ideal for residential buildings, commercial buildings, restaurants, schools, hotels, shopping centres.

  • Suitable for public facilities as it utilises a vortex to break up matter — larger free passage for foreign objects to pass through
  • Two motors enable operation in all circumstances
  • Stands on the floor and does not need to be positioned below ground
  • Toilets, basins, baths, showers, washing machines, dish washers, sinks
  • Can pump up to 10m in height, or 1m height with 100m length — refer to data sheet
  • Control panel mounted up to 4m from pump, and additional alarm can be mounted up to 5m from control panel
  • Two integrated non-return valves and four inlets: 40/50/100/110mm and one inlet 40/50mm
  • Can be connected to a Building Management System — Volt free contact for connection
Limitations on Use
  • Surface of pump must be located minimum 275mm below the lowest fixture (normally the shower)
  • Allow 200 mm clearance around pump for maintenance purposes
  • All horizontal pipework requires a minimum of 1:100 fall
  • Working temperature of 35°C. Will handle up to 70°C for short periods
  • Must be installed by a licensed plumber
  • Suitable for public facilities as it utilises a vortex to break up matter and not a macerator blade like other Cubics which results in a larger free passage for foreign objects to pass through. See Product Selection Grid
  • Do not dispose of any solvents, paints, caustic soda, acids, citrus oil products or other chemicals in sanitary fixtures connected to this device
  • Do not dispose of foreign objects, feminine hygiene products, wet wipes or paper hand towels in the system
  • The pump is not intended for the disposal of hair, adequate filtration must be installed for hair wash basins upstream of the pump in the form of a dedicated hair trap
  • Excessive grease build up due to lack of servicing may void warranty
Statement of Building Code Compliance

In opinion of Saniflo this product meets the following provisions of the NZBC:

  • Clause B2 DURABILITY: Performance B2.3.1 [a] not less than 50 years, and B2.3.1 [b] 15 years, and B2.3.2. The Sanicubic 2 VX meets this requirement
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Sanicubic 2 VX meets this requirement and does not present a health hazard to People
  • Clause G13 FOUL WATER: Performance G13.3.1 and G13.3.2. Sanicubic 2 VX meets these requirements

Producer Statement available. Project specific compliance statements are available on request.

In-Service History

The Saniflo SFA Company is the inventor of the macerator concept, with waste solution products successfully deployed around the world for the past 60 years

Other Performance Attributes
  • Watermark Certificate WMTS 106: 2019 Certificate number: 23048
  • This product meets AS/NZS 3500.1:2018

Warranty Conditions

  • This device is guaranteed for 2 years from the date of purchase and is subject to:
    • NZ CG Act 1993 if used for personal, domestic or household use
    • Installation in strict compliance with manufacturers installation manual in the product box
  • This warranty does not cover the following which remain at the risk, cost and responsibility of the owner:
    • Costs of travel and transport or insurance of the device
    • Device installed outside 50km radius from an accredited Saniflo Agents Office
    • All Costs necessary to safely access and replace the installed device including costs of additional plant equipment, materials. handling and/or safety equipment
  • This warranty is not transferable
  • This warranty shall not apply when the product is sold or installed outside New Zealand
Documents

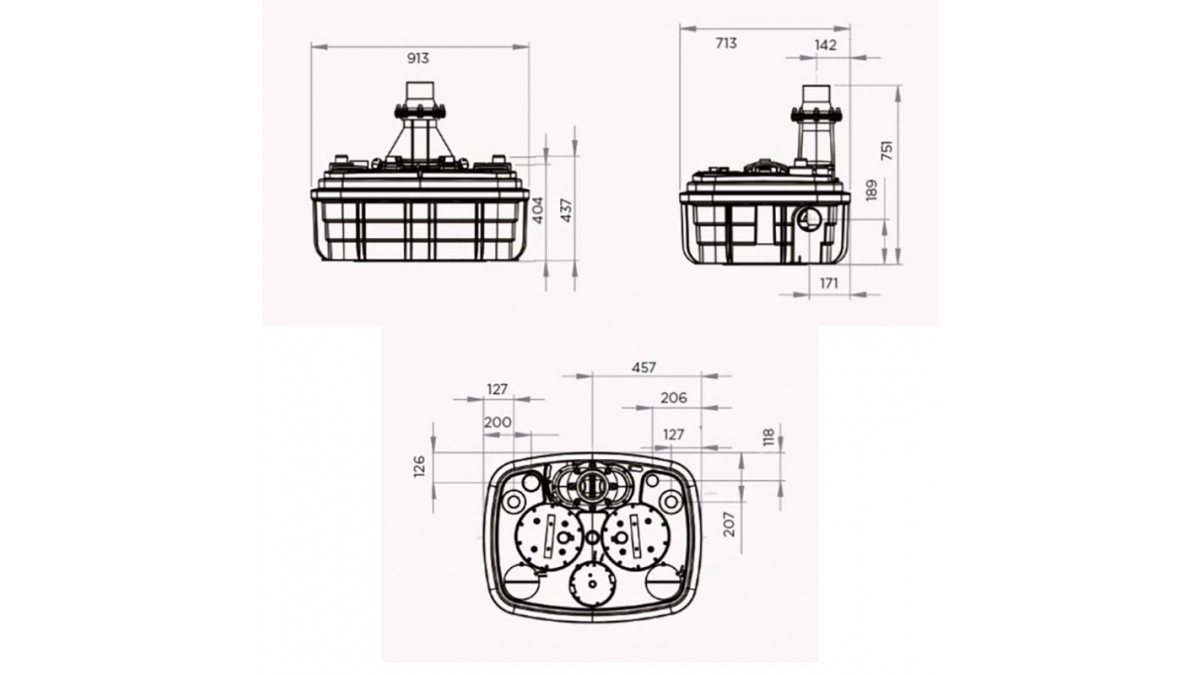

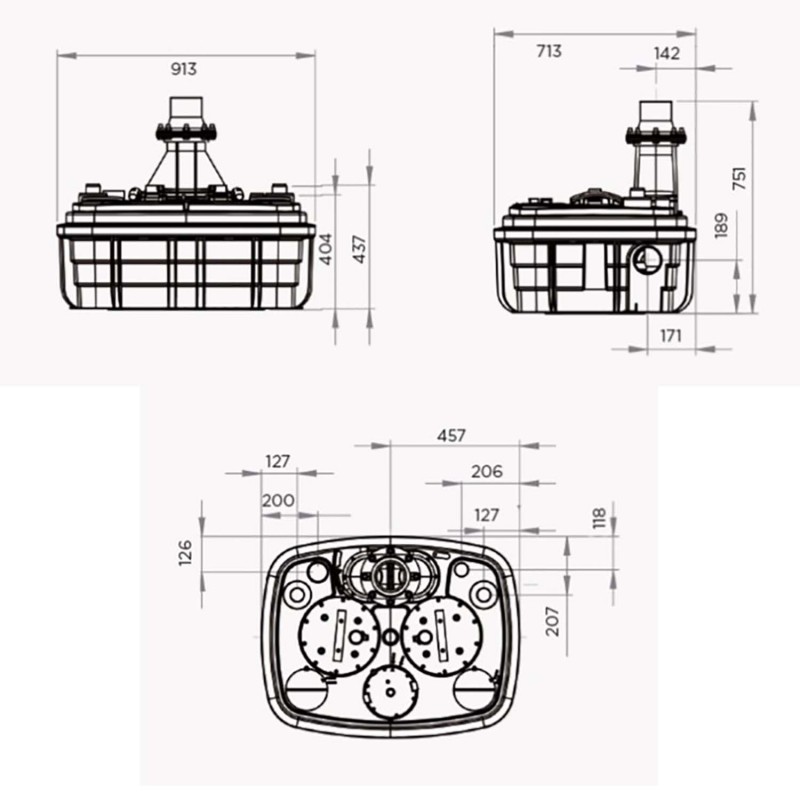

Drawings on BIMobject
Data Sheet: Sanicubic 2 VX
Installation: Sanicubic

Eng 03.17

Saniflo Design Guide
Saniflo Product Selection Grid
