Sanicubic 2 Pro Lifting Station (Waste Pump)
Description

The Sanicubic 2 Pro WP is a high performance macerating lifting station for commercial and intensive residential use. Twin motor load balanced system utilising high performance stainless steel cutter technology and IP68 submersible rating.  Two motors enable operation in all circumstances, and its five inputs make it possible to connect all the sanitary facilities required.

Saniflo lifting stations are a waste water pump allowing sanitary fixtures to be installed in areas where access to waste water pipes and conventional gravity drainage is limited, increasing the design possibilities for installing additional facilities in existing buildings.

Key Features
  • Whole of building solution — bathroom and kitchen fixtures
  • Commercial use — building repurposing and modifications from dwellings to large commercial projects
  • All in one pump, grey water and waste/black water
  • Can pump up to 11 metres in height
  • IP68 submersible rating
  • Ideal for busy business environments and larger domestic situations

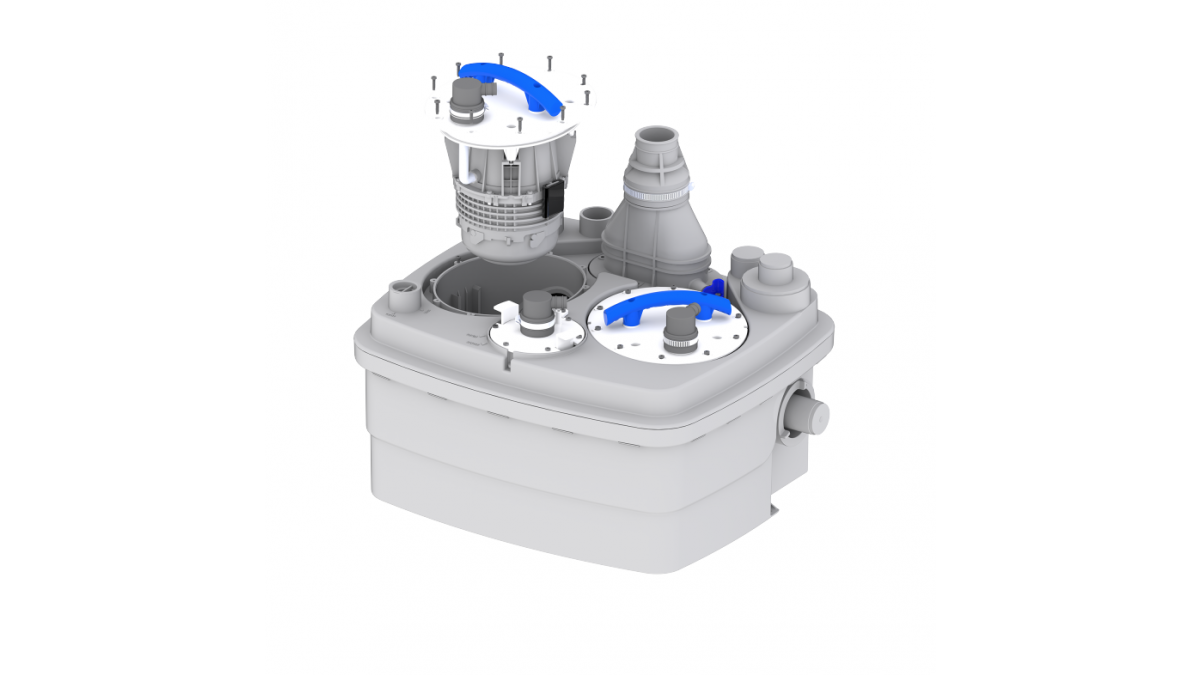

  • New design with easily removable motor for servicing and maintenance
  • Tough, reliable macerator pump — ProX K2 shredder technology which reduces clogging
  • Load balanced twin macerator pumps for a failsafe system
  • Alternate activation ensures even wear of motors
Scope of Use

Sanicubic 2 Pro is a 'whole building' solution for commercial and intensive residential use:

  • Multiple sanitary fixtures — toilets, basins, baths, showers, washing machines, dish washers, sinks
  • Commercial and intensive domestic use
  • Ideal for building repurposing and modifications
  • Applications located below the main sewerage line
  • Can pump up to 11 metres in height, or 1m height with 100m length — refer to data sheet
  • IP rating (68) means pump can be installed in exterior locations or in areas prone to flooding for short periods

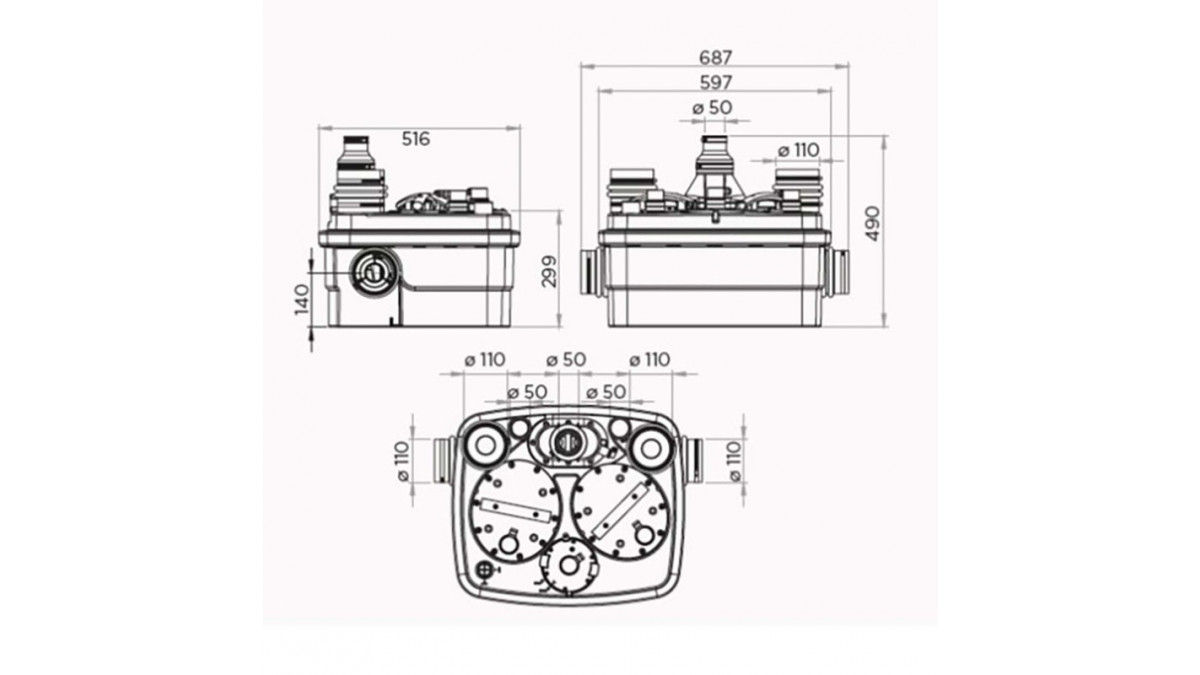

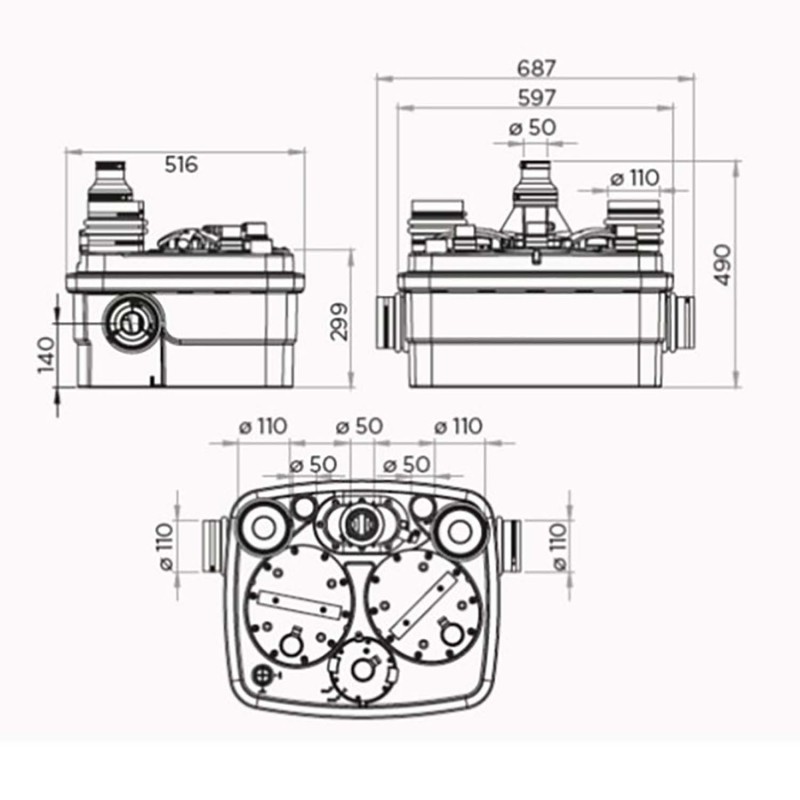

  • Inlet pipework: 40/50/100/110mm. Discharge pipework: 40mm
Limitations on Use
  • Surface of pump must be located minimum 275mm below the lowest fixture (normally the shower)
  • Allow 200mm clearance around pump for maintenance purposes
  • Working temperature of 35°C. Will handle up to 70°C for short periods.
  • Must be installed by a licensed plumber
  • Not suitable for public facilities, refer to Sanicubic 2VX. See Product Selection Grid
  • Do not dispose of any solvents, paints, caustic soda, acids, citrus oil products or other chemicals in sanitary fixtures connected to this device
  • Do not dispose of foreign objects, feminine hygiene products, wet wipes or paper hand towels in the system
  • The pump is not intended for the disposal of hair, adequate filtration must be installed for hair wash basins upstream of the pump in the form of a dedicated hair trap
  • Excessive grease build up due to lack of servicing may void warranty
Statement of Building Code Compliance

In opinion of Saniflo this product meets the following provisions of the NZBC:

  • Clause B2 DURABILITY: Performance B2.3.1 [a] not less than 50 years, and B2.3.1 [b] 15 years, and B2.3.2. The Sanicubic 2 Pro meets this requirement
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Sanicubic 2 Pro meets this requirement and does not present a health hazard to People
  • Clause G13 FOUL WATER: Performance G13.3.1 and G13.3.2. Sanicubic 2 Pro meets these requirements

Producer Statement available. Project specific compliance statements are available on request.

In-Service History

The Saniflo SFA Company is the inventor of the macerator concept, with waste solution products successfully deployed around the world for the past 10 years.



Other Performance Attributes
  • Watermark Certificate WMTS 106: 2019 Certificate number: 23048
  • This product meets AS/NZS 3500.1:2018
  • IP Rating 68 — pump can be positioned outside the building, can tolerate submersion for short periods — refer to Saniflo for technical clarification

Warranty Conditions

  • This device is guaranteed for 2 years from the date of purchase and is subject to:
    • NZ CG Act 1993 if used for personal, domestic or household use
    • Installation in strict compliance with manufacturers installation manual in the product box
  • This warranty does not cover the following which remain at the risk, cost and responsibility of the owner:
    • Costs of travel and transport or insurance of the device
    • Device installed outside 50km radius from an accredited Saniflo Agents Office
    • All Costs necessary to safely access and replace the installed device including costs of additional plant equipment, materials. handling and/or safety equipment
  • This warranty is not transferable
  • This warranty shall not apply when the product is sold or installed outside New Zealand

Note:

  • Do not dispose of products such as solvents, paints, caustic soda, acids, citrus oil products or other chemicals in sanitary fixtures connected to this device
  • Do not dispose of foreign objects, feminine hygiene products, wet wipes or paper hand towels in the system
  • The pump is not intended for the disposal of hair, adequate filtration must be installed for hair wash basins upstream of the pump in the form of a dedicated hair trap
  • Excessive grease build up due to lack of servicing may void warranty
Documents
Drawings on BIMobject
Data Sheet: Sanicubic 2 Pro
Installation: Sanicubic

Eng 03.17

Installation: Sanicubic Pro 2

12.07

Saniflo Design Guide
Saniflo Product Selection Grid

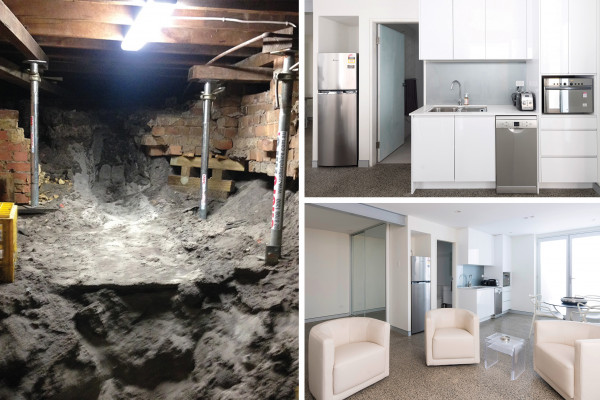

Case Study: Restaurant on Sydney Wharf

Saniflo has a solution to overcome those situations where drainage is a problem — allowing freedom of design without the cost and inconvenience of moving sewer pipes.
