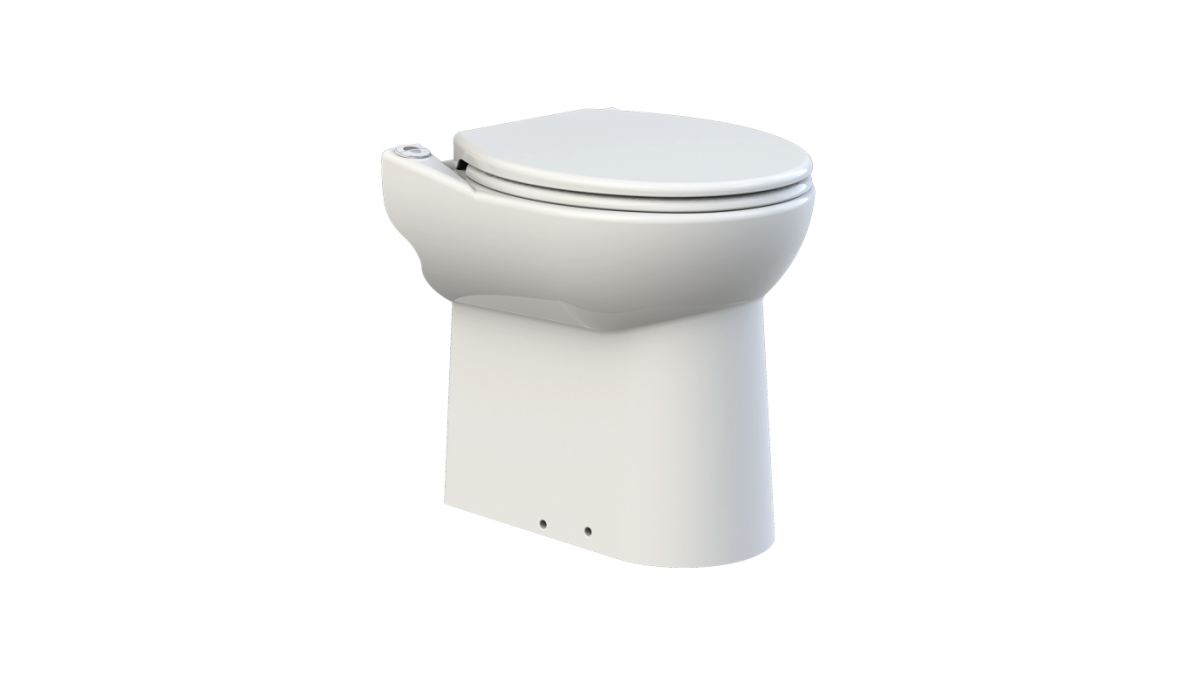

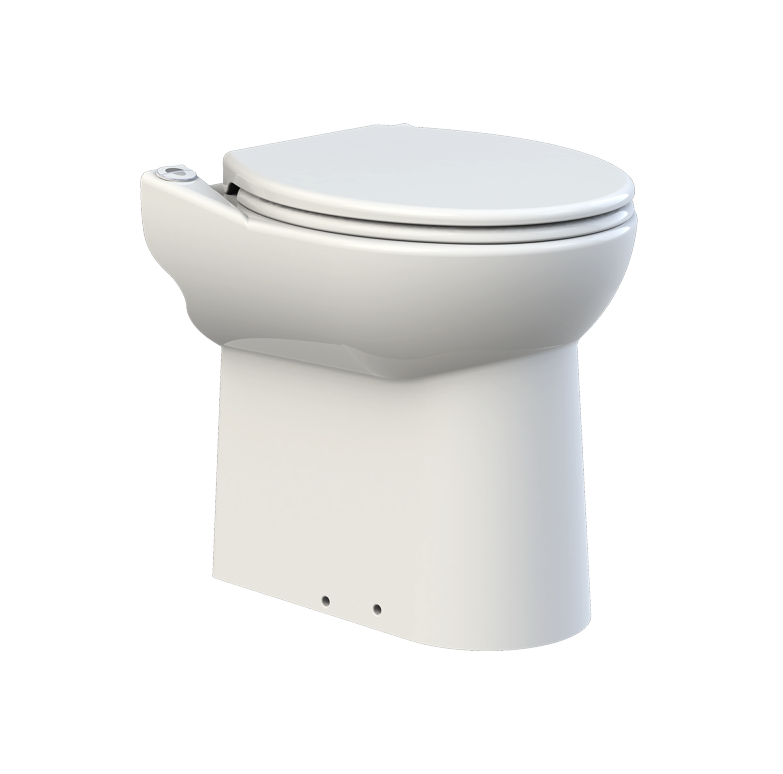

Sanicompact 43 Integrated Macerator Toilet
Description

Sanicompact is the first all-in-one macerating toilet suite, allowing the addition of a toilet now in one easy product. The compact design enables a toilet to be added where space is limited, and with the option of adding a basin, this makes Sanicompact ideal for a powder room or laundry addition.

Saniflo macerators allow sanitary fixtures to be installed in areas where access to waste water pipes and conventional gravity drainage is limited, increasing the design possibilities for installing additional facilities in existing buildings.

Key Features

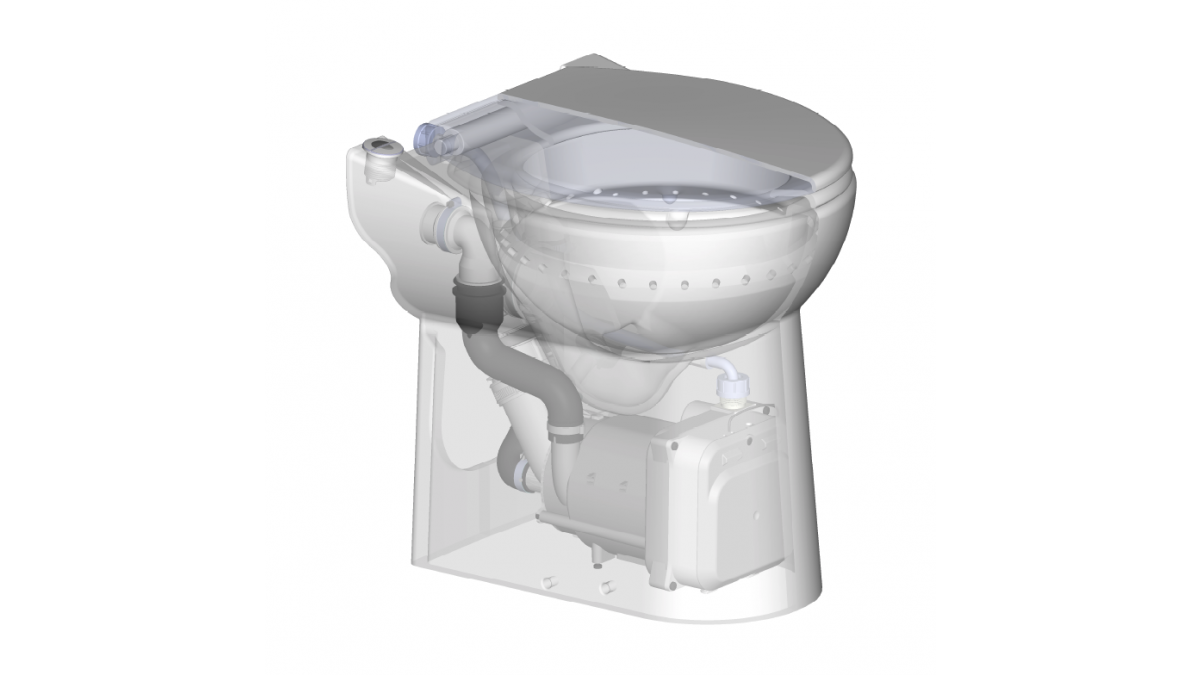

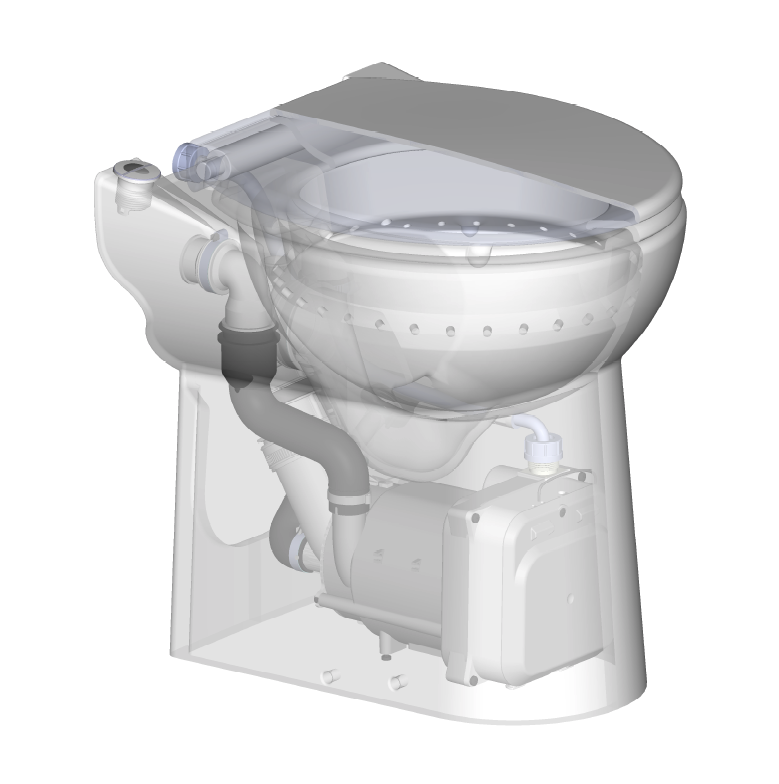

  • A complete toilet suite with built in macerator
  • Ability to add a basin
  • Cistern-less flush button connected directly to the domestic water supply

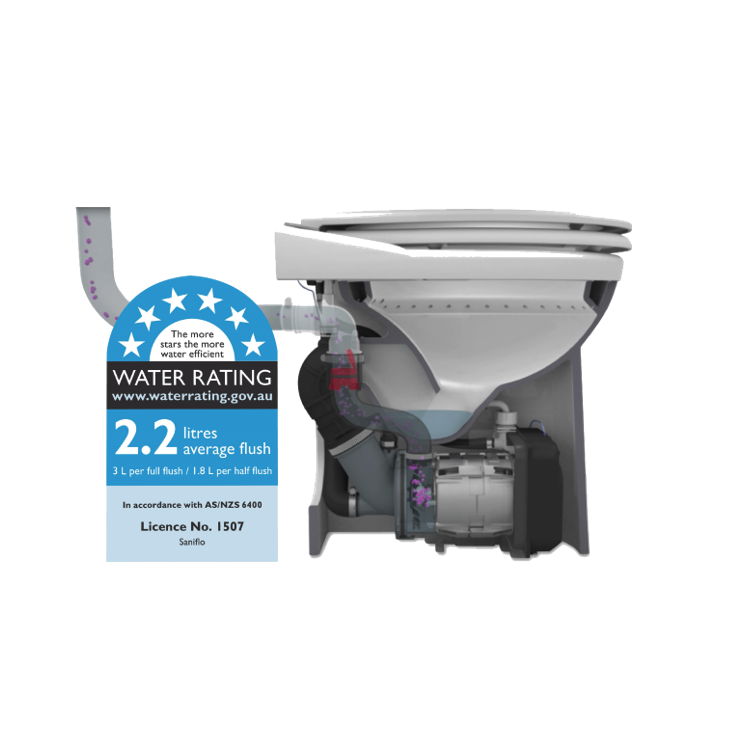

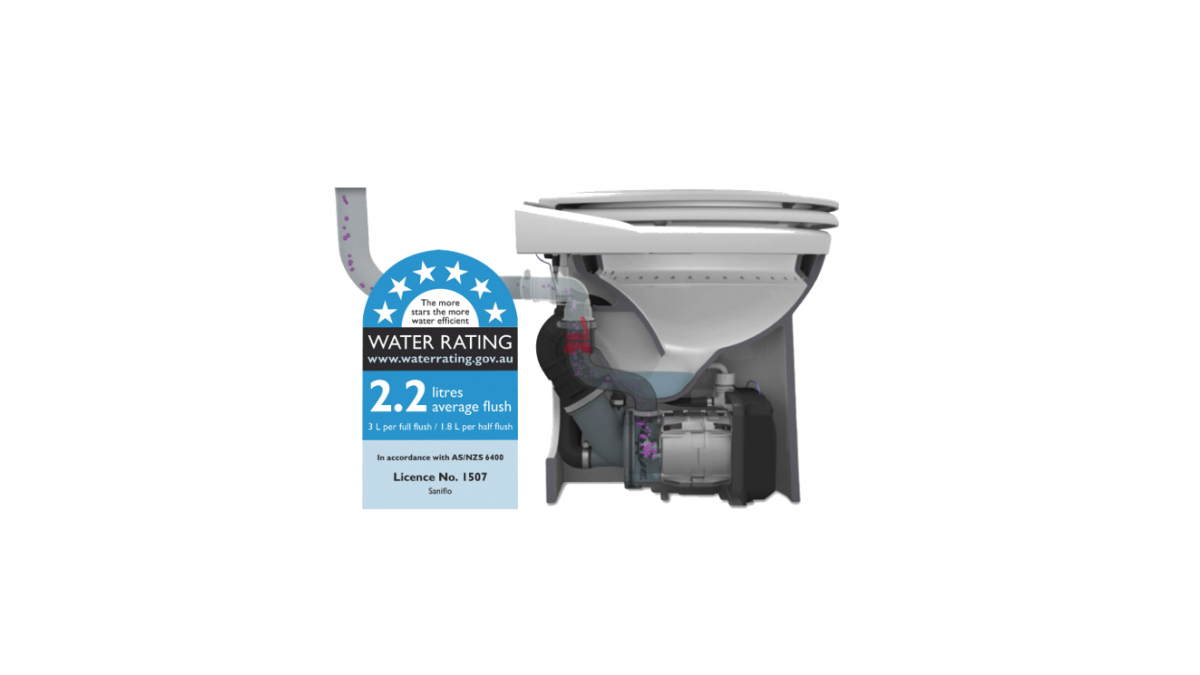

  • Water saving flush system — dual flush
  • Soft-close toilet seat
  • 240v plug connection
  • Factory pre-mounted non-return valve (supplied)
  • Floor-mounting kit
Scope of Use

Sanicompact is an integrated toilet and macerator:

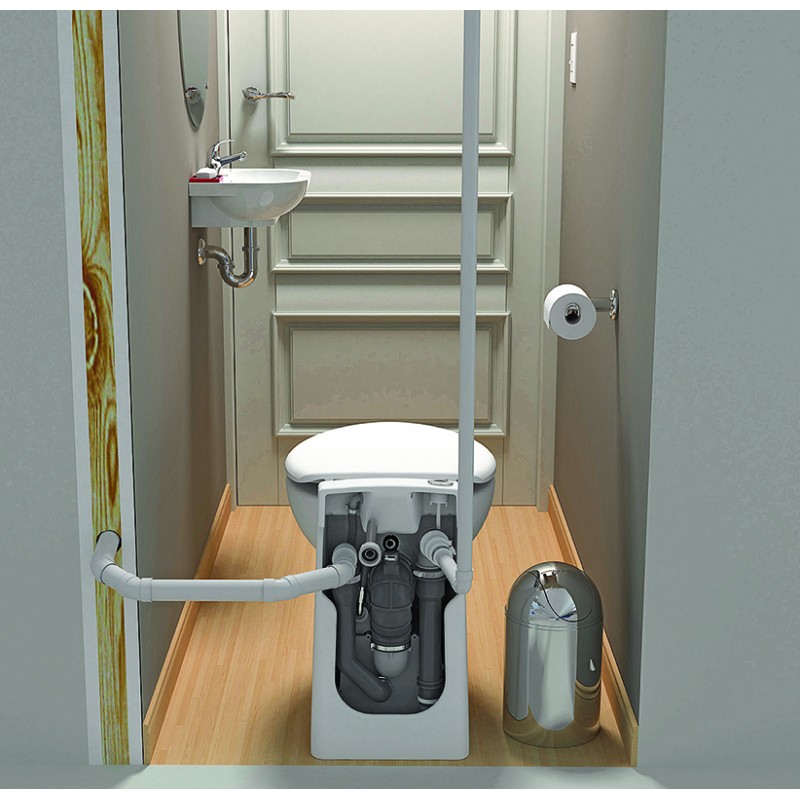

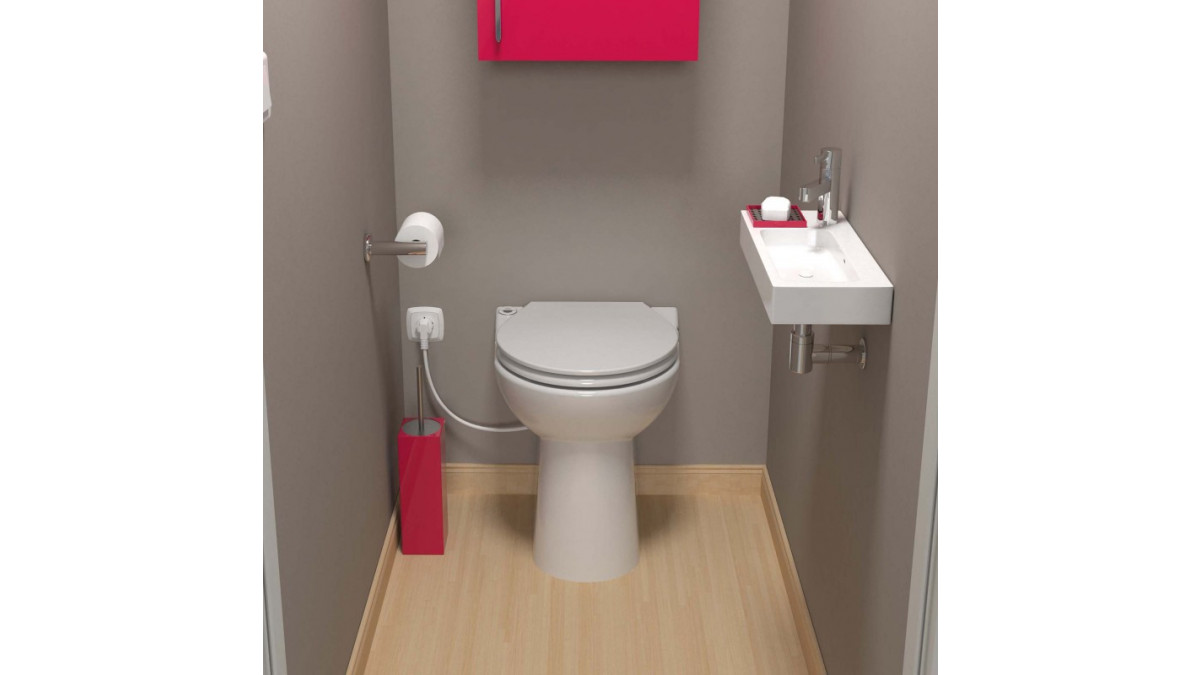

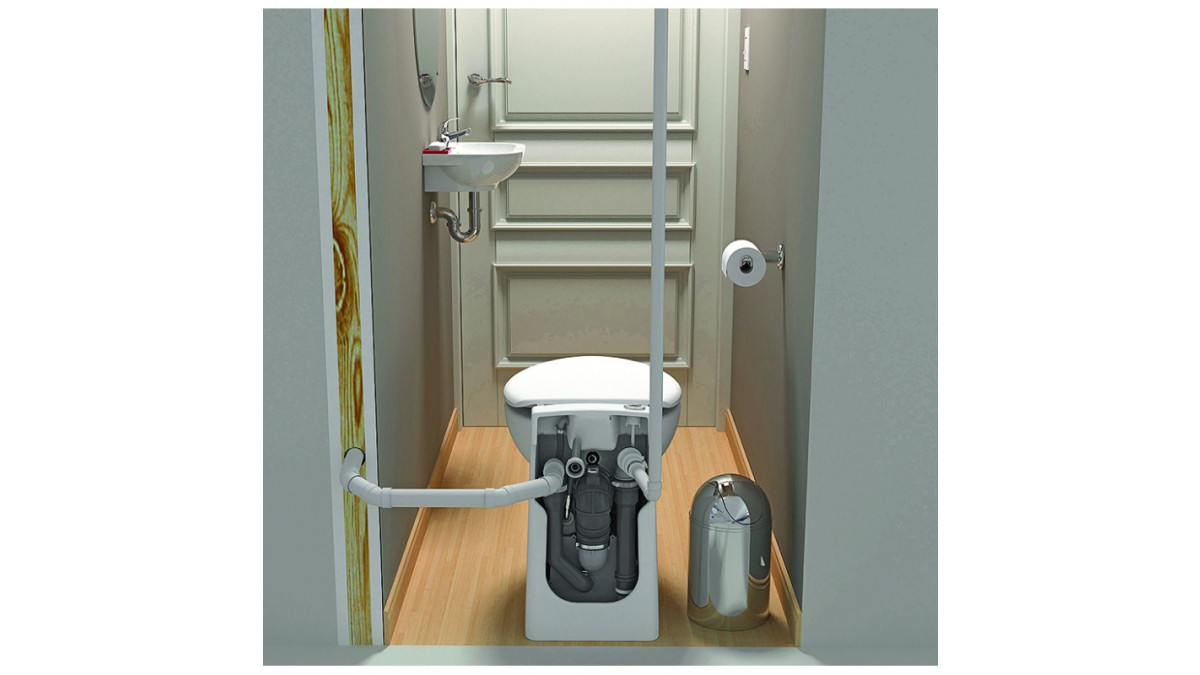

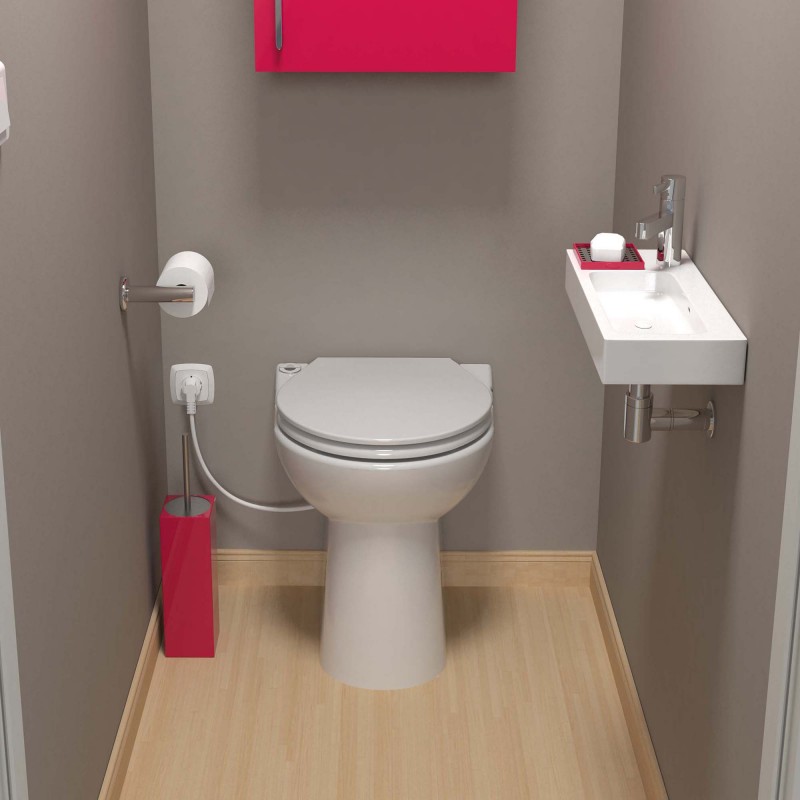

  • Ideal for adding a powder room, or toilet in laundry

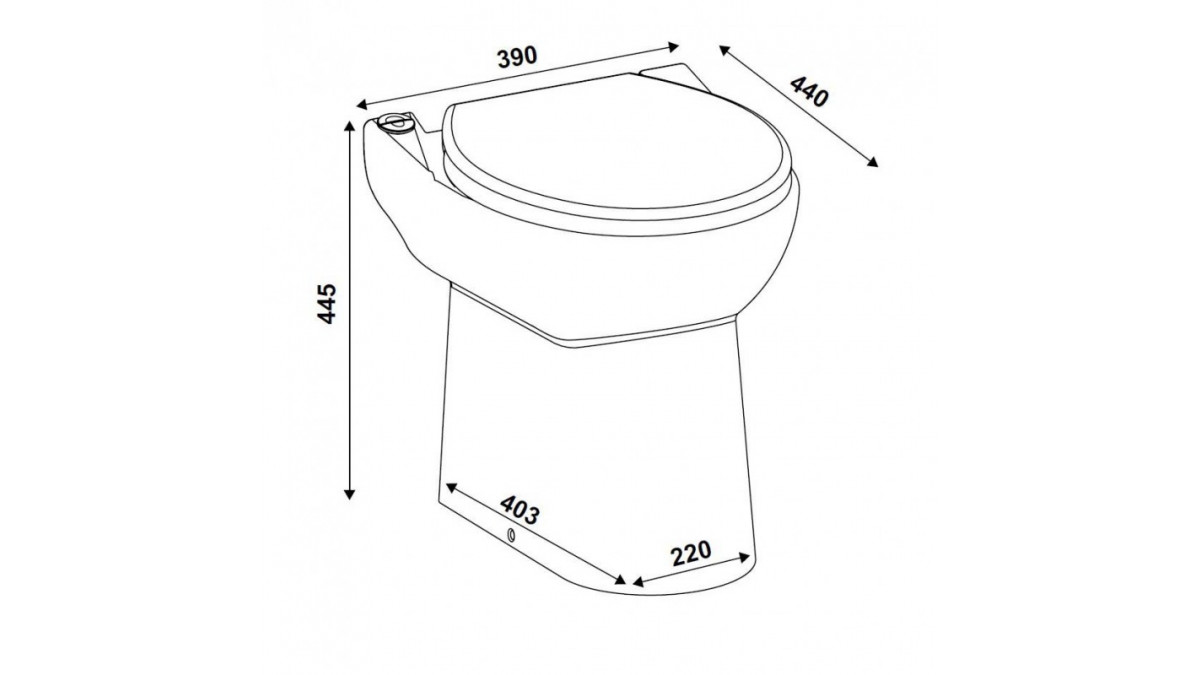

  • Compact design ideal where space is limited
  • Option to add basin
  • Can pump up to 3m in height, or 1m in height with 30m length — refer to data sheet
  • Outlet pipework: 25mm
  • Floor-mounting kit
  • Cistern-less flush button connected directly to the domestic water supply
  • 240v plug connection
Limitations on Use
  • Requires a minimum dynamic pressure of 1.7 bar water supply pressure
  • All horizontal pipework requires a minimum of 1:100 fall
  • Working waste water temperature 35°C
  • Must be installed by a licensed plumber
  • For other applications refer to Product Selection Grid
Statement of Building Code Compliance

In opinion of Saniflo this product meets the following provisions of the NZBC:

  • Clause B2 DURABILITY: Performance B2.3.1 [a] not less than 50 years, and B2.3.1 [b] 15 years, and B2.3.2. The Sanicompact meets this requirement
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Sanicompact meets this requirement and does not present a health hazard to People
  • Clause G13 FOUL WATER: Performance G13.3.1 and G13.3.2. Sanicompact meets these requirements

Producer Statement available. Project specific compliance statements are available on request.

In-Service History

The Saniflo SFA Company is the inventor of the macerator concept, with waste solution products successfully deployed around the world for the past 10 years.

Other Performance Attributes
  • Watermark Certificate WMTS 106: 2019 Certificate number: 23048
  • This product meets AS/NZS 3500.1:2018
  • IP rating 44

Warranty Conditions

  • This device is guaranteed for 2 years from the date of purchase and is subject to:
    • NZ CG Act 1993 if used for personal, domestic or household use
    • Installation in strict compliance with manufacturers installation manual in the product box
  • This warranty does not cover the following which remain at the risk, cost and responsibility of the owner:
    • Costs of travel and transport or insurance of the device
    • Device installed outside 50km radius from an accredited Saniflo Agents Office
    • All Costs necessary to safely access and replace the installed device including costs of additional plant equipment, materials. handling and/or safety equipment
  • This warranty is not transferable
  • This warranty shall not apply when the product is sold or installed outside New Zealand
Documents
Drawings on BIMobject
Data Sheet: Sanicompact
Installation: Sanicompact

01.15

Saniflo Design Guide
Saniflo Product Selection Grid

Saniflo has a solution to overcome those situations where drainage is a problem — allowing freedom of design without the cost and inconvenience of moving sewer pipes.
