AMF Thermatex SF Acoustic Ceiling Tile
Description

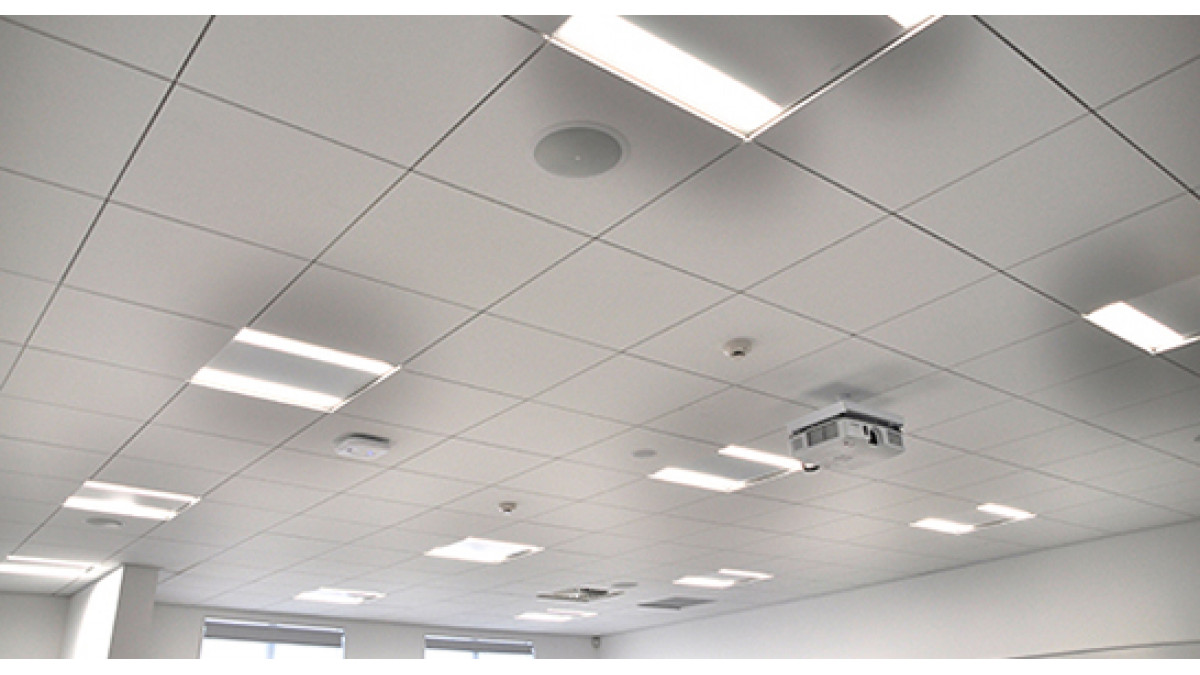

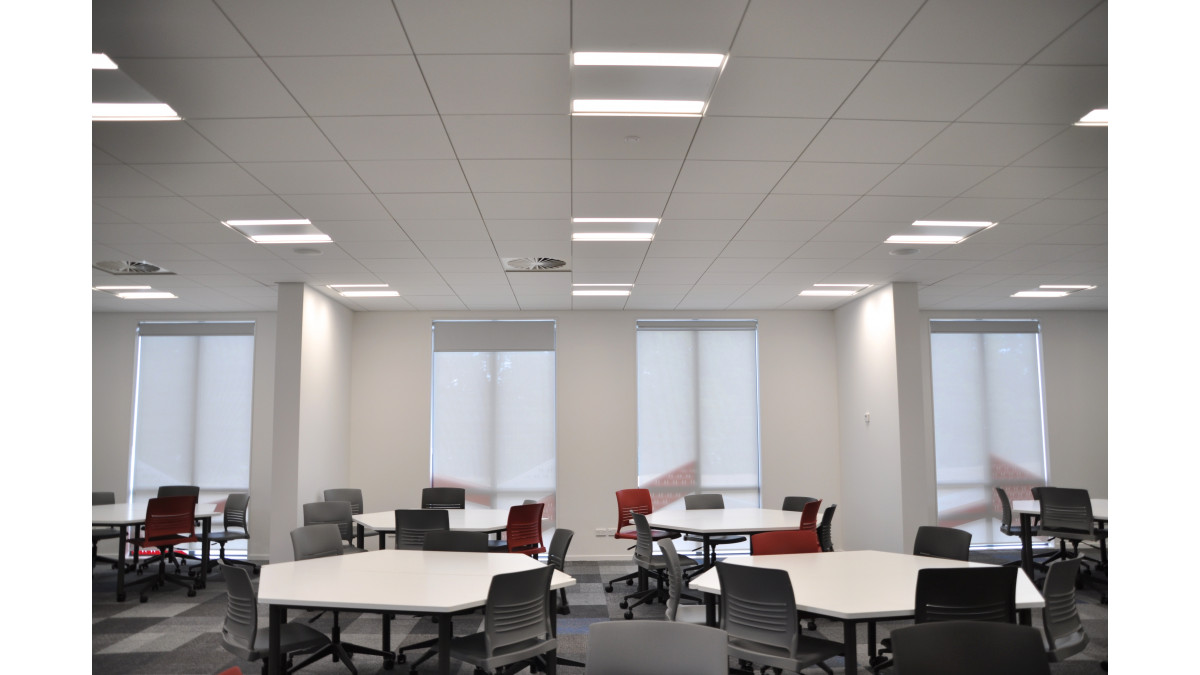

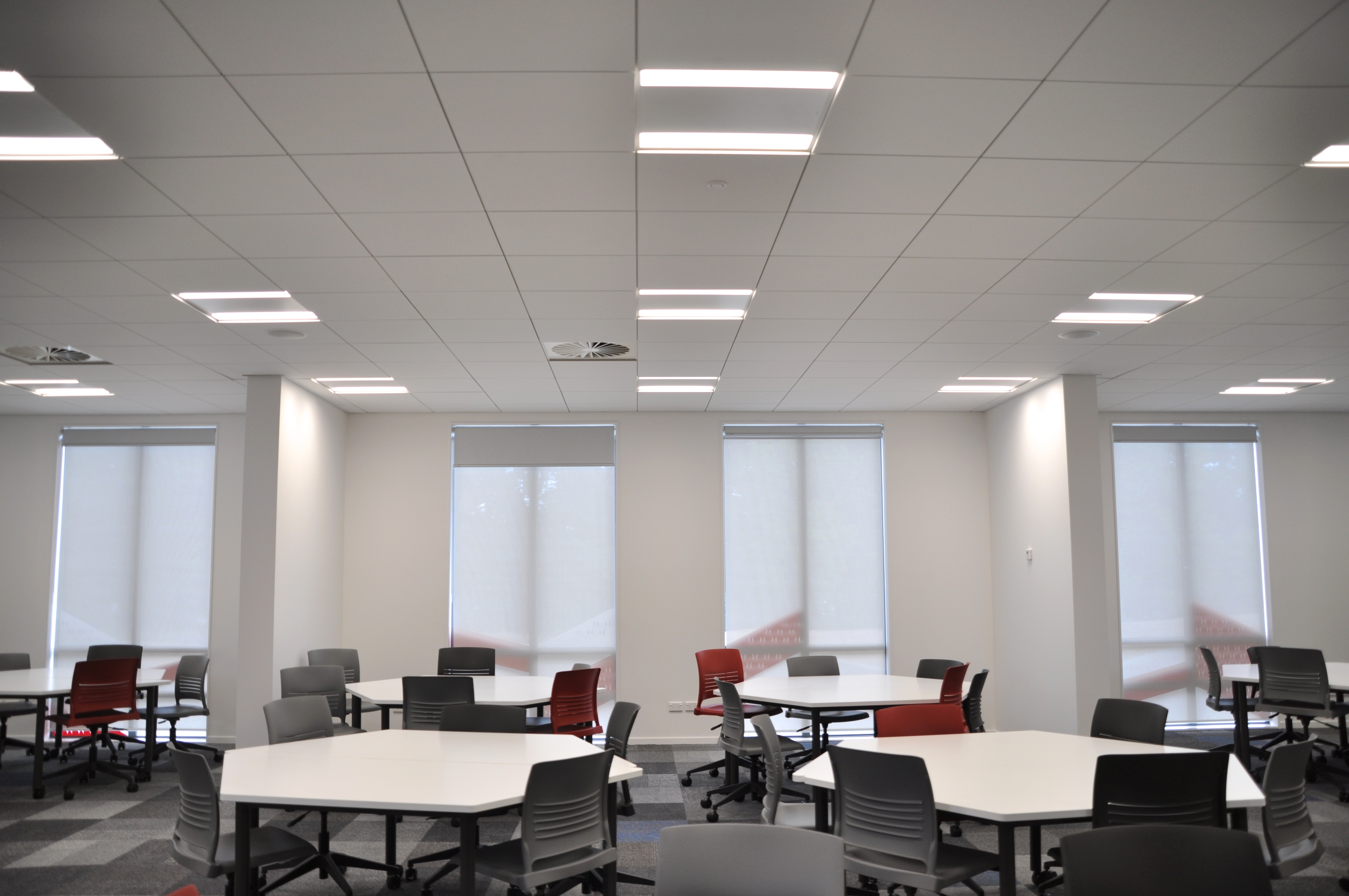

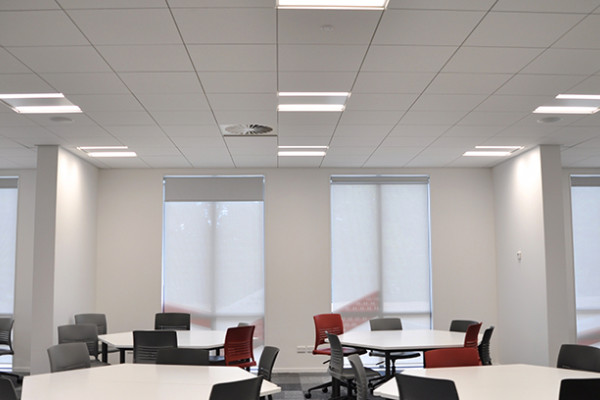

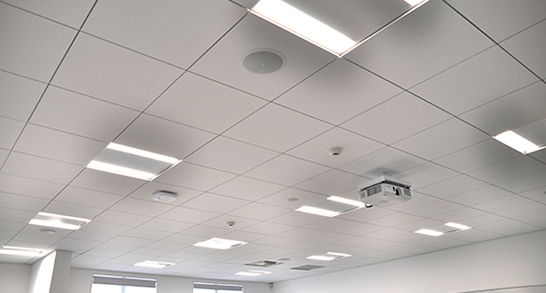

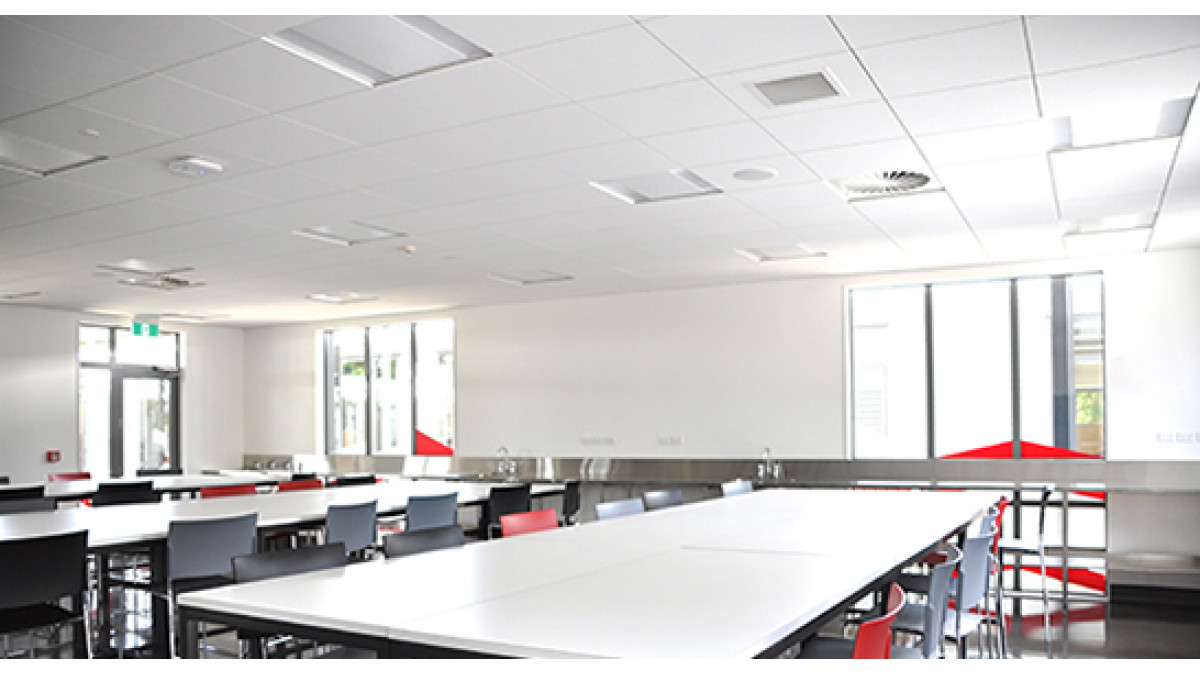

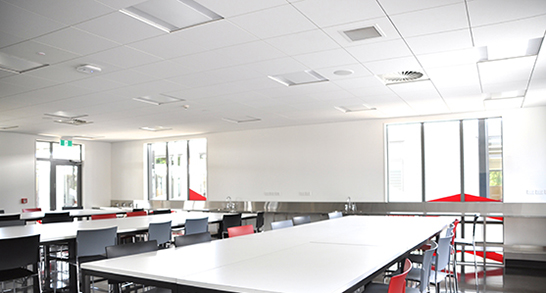

This elegant AMF performance suspended ceiling with the attractive SF shadow edge requires minimal void as the tile is installed purely from below. Installation and removal of the individual tiles is achieved simply by a small shift of the tile along the tee grid. With its invisible perforation, Thermatex SF Acoustic achieves high values in sound absorption and once installed shows a white, homogeneous surface in a discreet module.

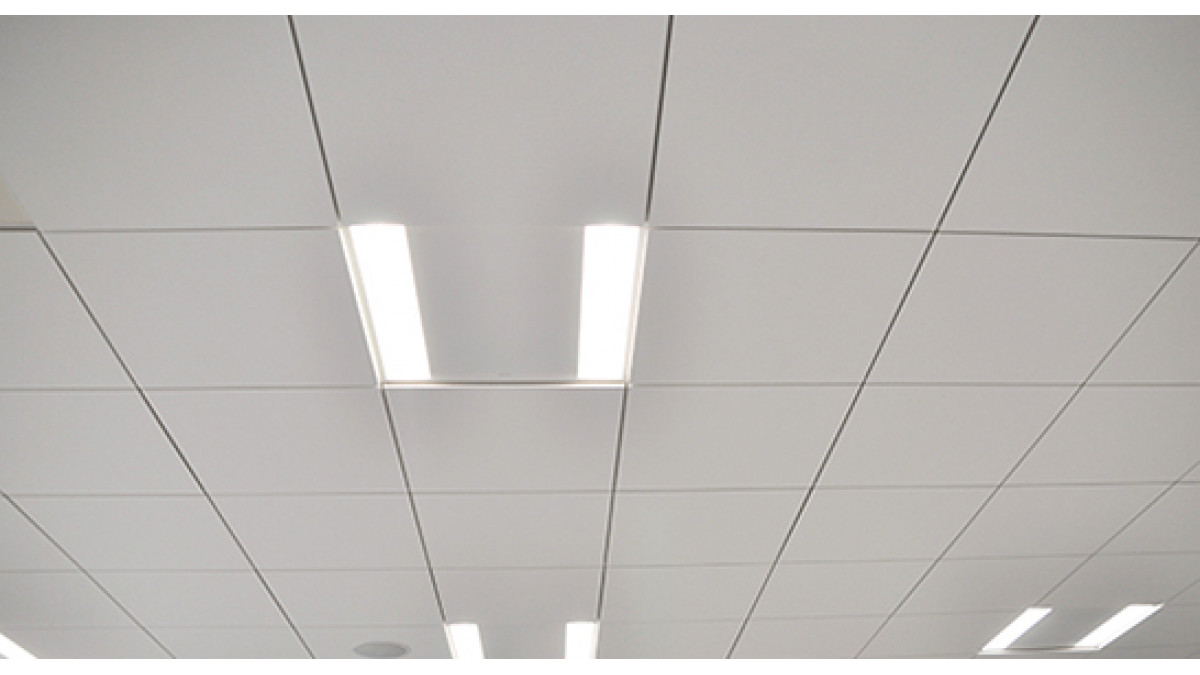

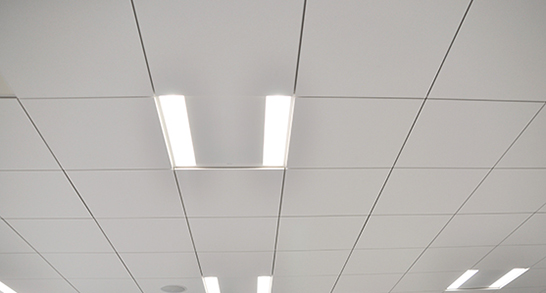

A homogenous appearance can be achieved as the ceiling face is only broken by the narrow shadow gaps. This is added to by the plain, white fleece coated surface finish of the tile. A high contrast, 3D effect can be achieved through the use of dark coloured grid.

Thermatex SF Acoustic also scores well with good technical acoustic properties. The AMF Acoustic Range carries the Declare label.

Key Features

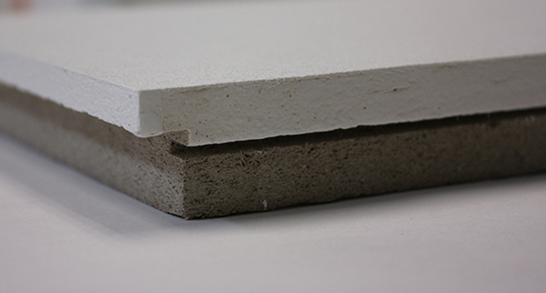

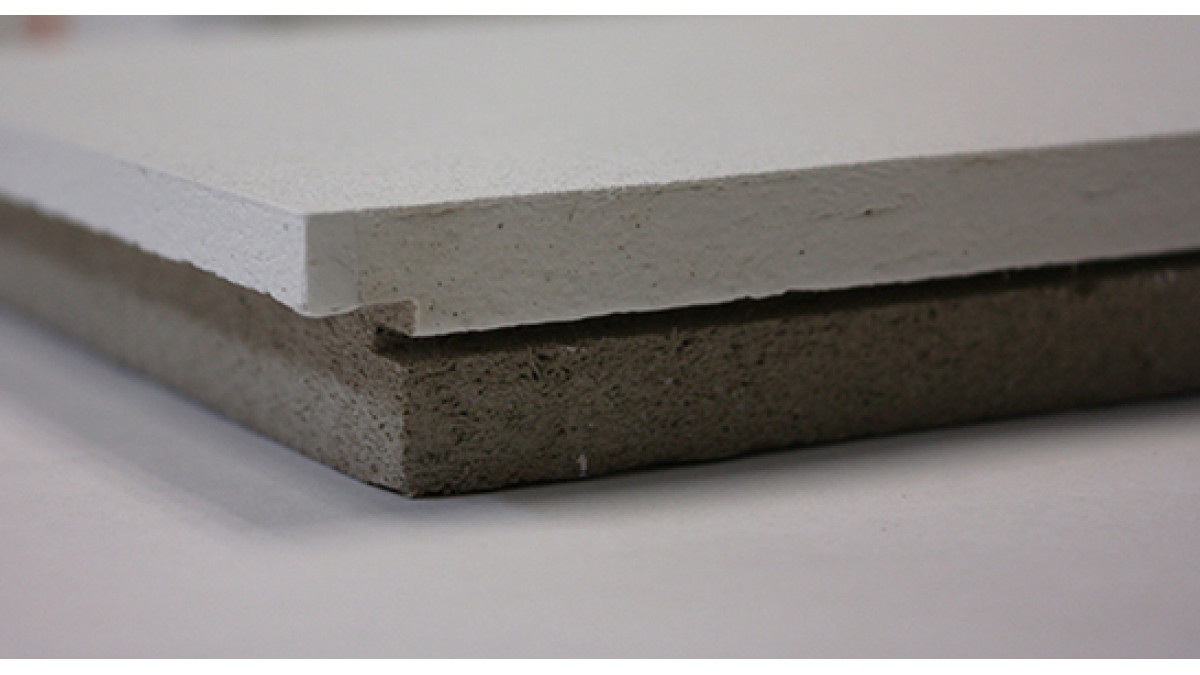

  • SF-Shadow joint acoustic ceiling tile (semi-concealed) suspended ceiling system
  • Requires minimal void/ plenum space as ceiling tiles gets installed from beneath the suspension grid - unlike most traditional suspended ceiling systems
  • Thickness / weight 24 mm (c. 8.4 kg/m²)
  • Colour White similar to RAL 9010
  • Sound absorption NRC = 0.70 as per ASTM C 423
  • Sound attenuation CAC = 39 dB as per ASTM E413-10
  • Light reflectance up to 88%
  • Thermal conductivity λ = 0.052 – 0.057 W/mK as per DIN 52612
  • Humidity up to 95 % RH
Red List Material Free
Red List Material Free
Scope of Use

AMF Thermatex SF-Acoustic ceiling tiles can be used in all building types throughout New Zealand — seismic ceiling design is recommended as with all new suspended ceiling installations.

They are ideal for use in ceilings with minimal plenum space where high acoustic absorption is required.

Limitations on Use
  • AMF Thermatex SF-Acoustic ceiling tiles are only available in 600 x 600mm configuration.
Statement of Building Code Compliance
  • Building material class A2-s1, dO as per BS EN 13501-1
  • Fire resistance Group 1-S (as per ISO 5660 Parts 1 and 2)
In-Service History

AMF Thermatex SF-acoustic ceiling tiles have been available in New Zealand (through Potter Interior Systems) and used in various projects since 2010. Prior to this, the product has been used extensively oversea's (namely Germany and other European countries).

Interior Fire Rating 1S
1S
Documents
Data Sheet

05.02.2021

Specification Clause (Masterspec)
