A Series 132 — Aluminium Partition System
Description

The A Series 132 provides a central line glazing with numerous configurations and design options, offering a complete partition system for plasterboard and glazing.

Key Features
  • Standard profile size of 132mm x 25mm, 132mm x 35mm, 132mm x 50mm
  • Standard wall size based on 92mm steel stud with either a single or double layer of 13mm plaster board on each side
  • Can accommodate glass thicknesses between 6mm and 13mm
  • Door thicknesses between 35mm and 50mm can be used
  • Shadowline details optional
Categories
Partitions
Declare LBC Red List Free
Declare LBC Red List Free
NZ Made
NZ Made
Scope of Use
  • Standard wall size based on 64mm steel stud with either a single or double layer of 13mm plaster board on each side
  • Can accommodate glass thicknesses between 6mm and 13mm
  • Door thicknesses between 35mm and 50mm can be used
Other Performance Attributes
  • All  aluminium partition suites carry the Declare label
  • Final Assembly: New Zealand. Life Expectancy: 50+ years. End of of Life Options: 100% Reusable/Recyclable.
Documents
Declare Accreditation
Specification Clause (Masterspec)
Maintenance Instructions
CAD/PDF Details

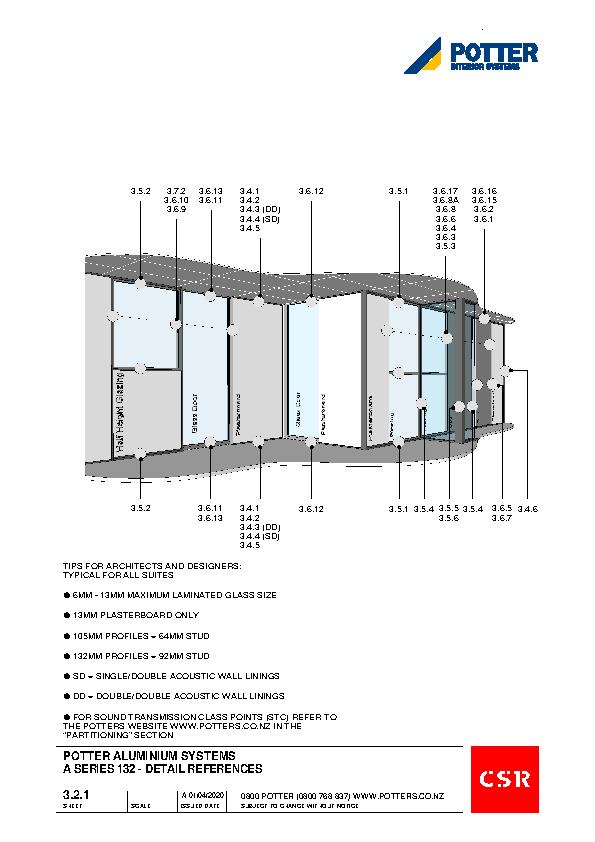

3.2.1 Detail References

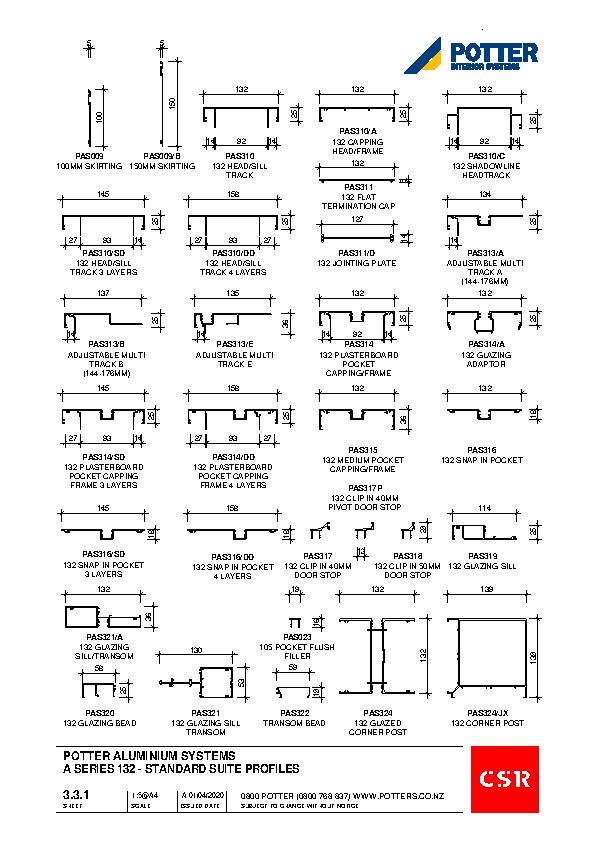

3.3.1 Standard Suite Profiles

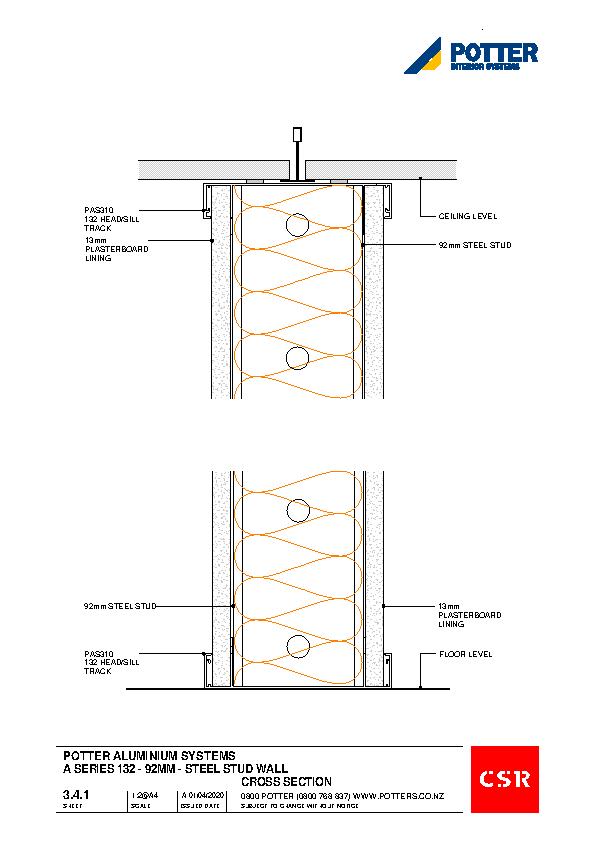

3.4.1 92mm Steel Stud Wall

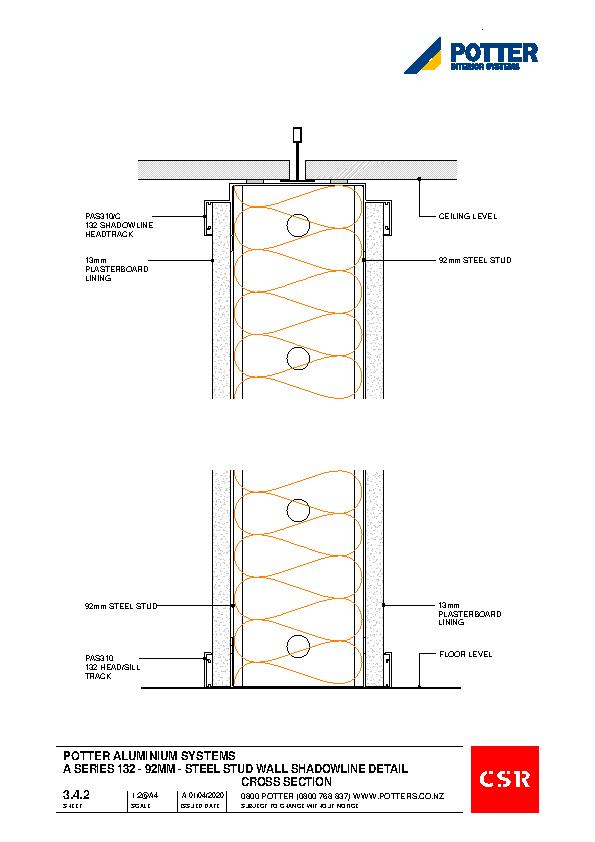

3.4.2 92mm Steel Stud Wall Negative Detail

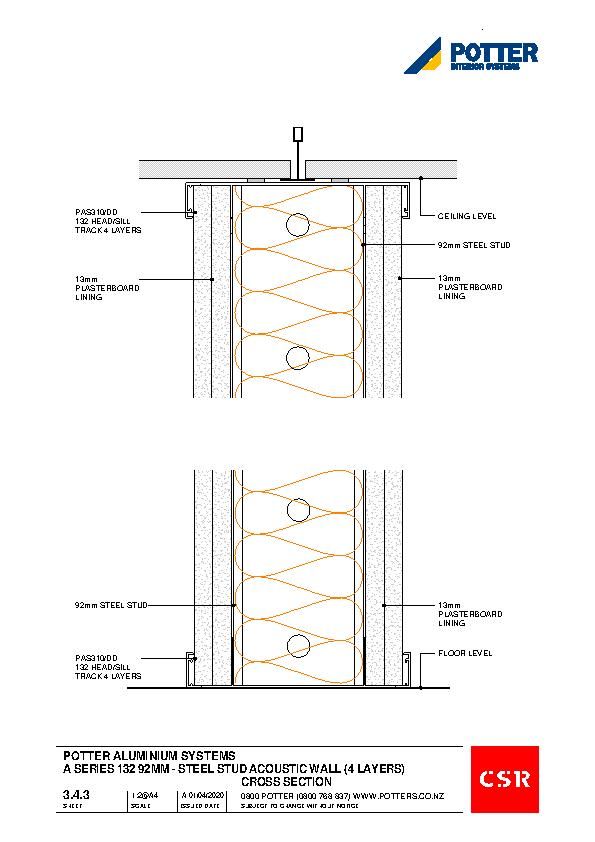

3.4.3 92mm Adjustable Multi-Track Steel Stud Wall
3.4.4 150mm Steel Stud Wall
3.4.5 A Series 132 – 150mm Steel Stud Wall

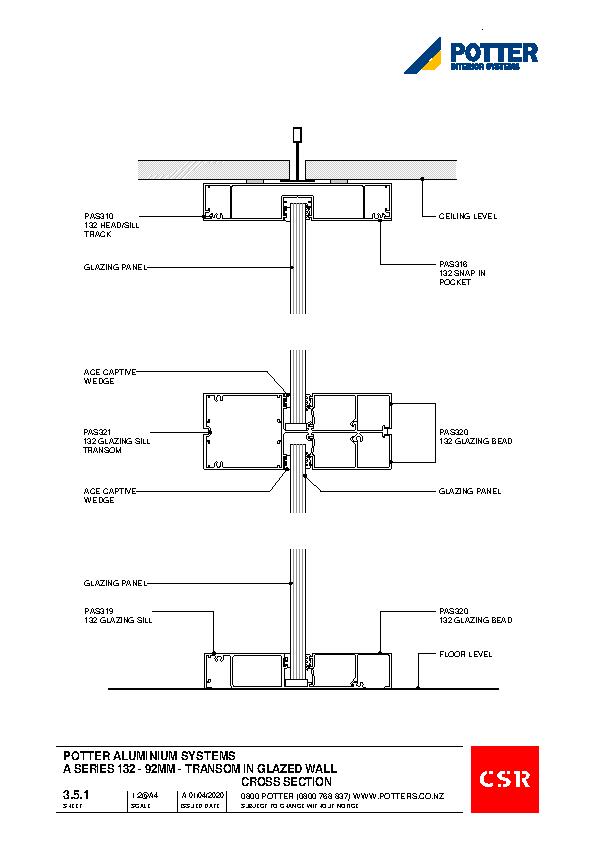

3.5.1 92mm Glazing Transom

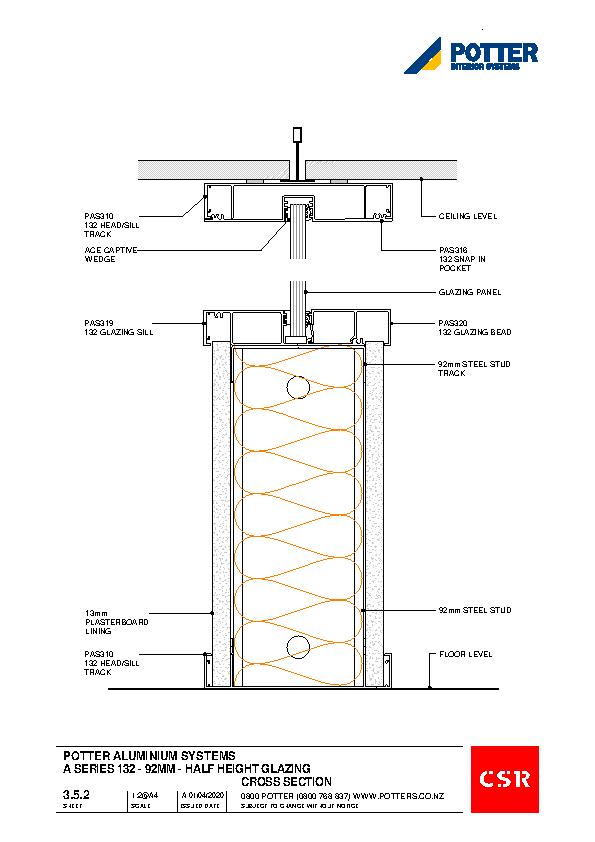

3.5.2 92mm Half Height Glazing

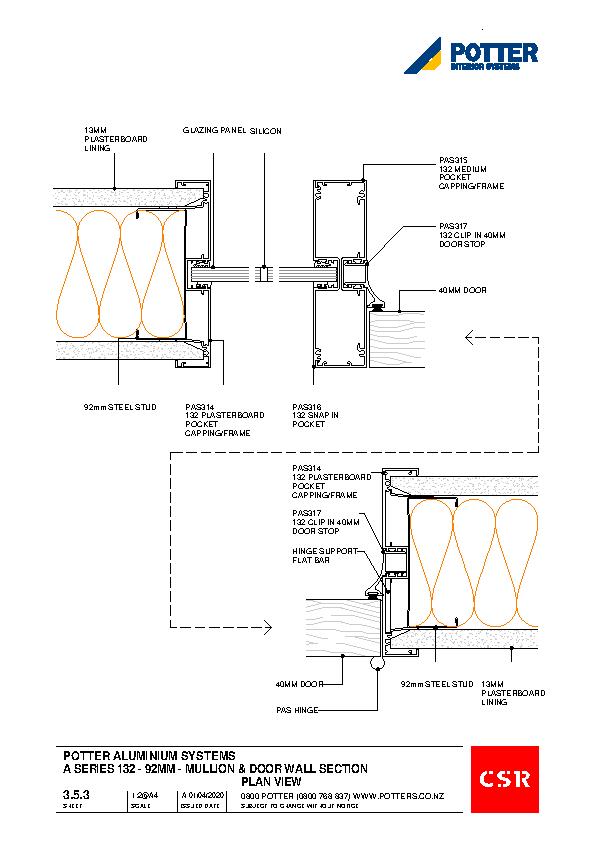

3.5.3 92mm Mullion & Door Wall Section
3.5.4 92mm Large Glazing Posts

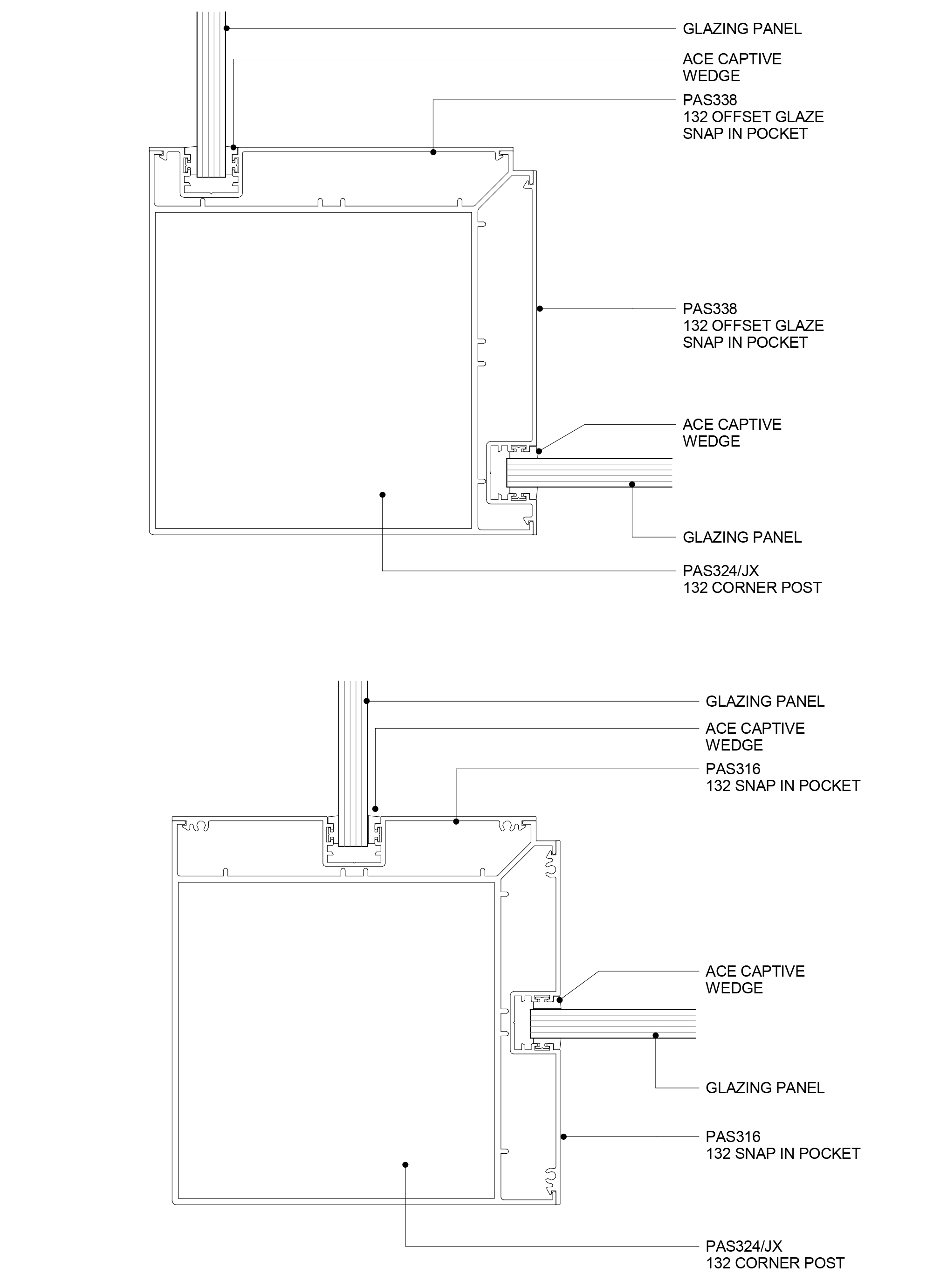

3.5.5 A Series 132 – 92mm Glazing Corner Post Single

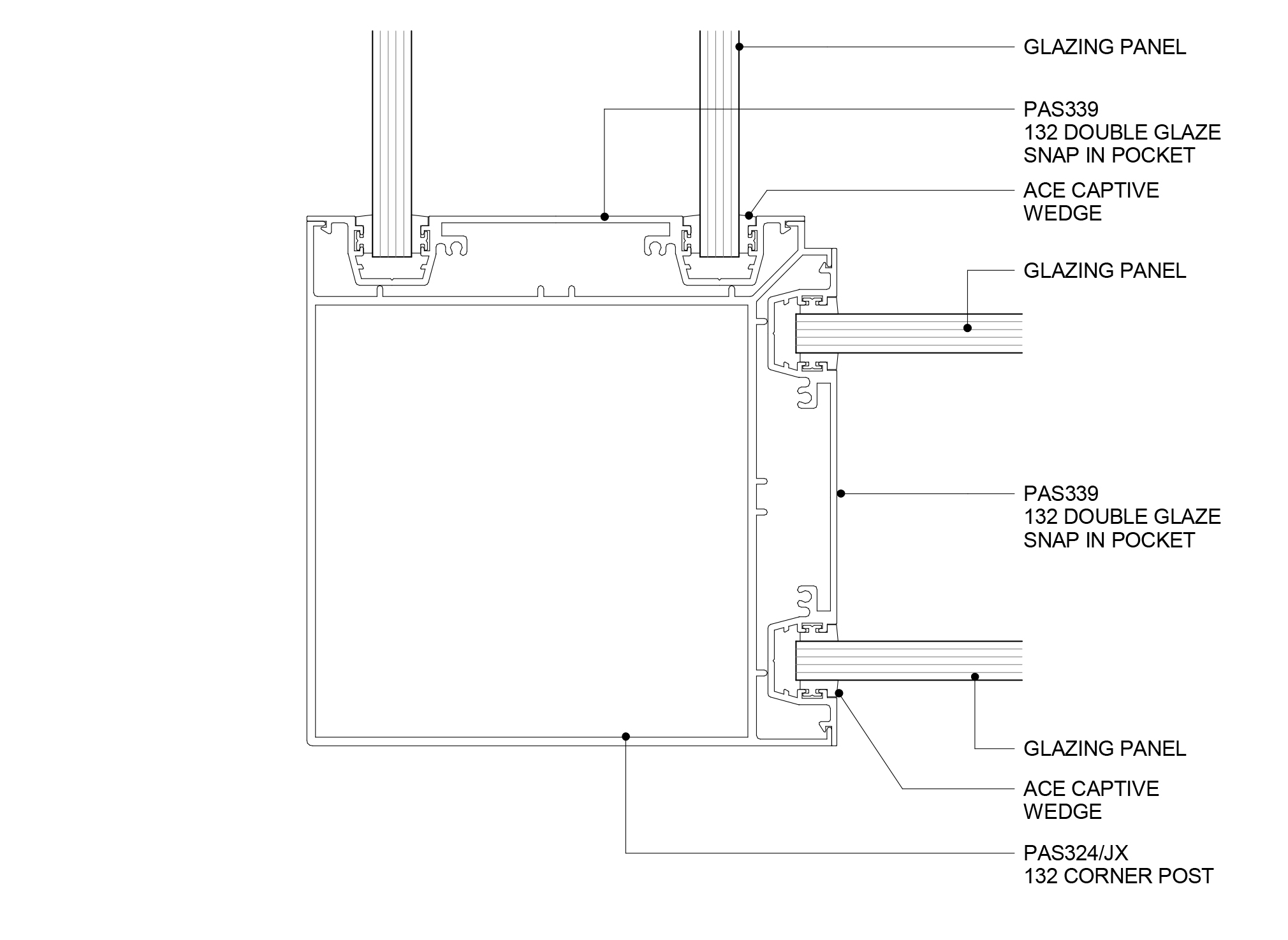

3.5.6 A Series 132 – 92mm Glazing Corner Post Double

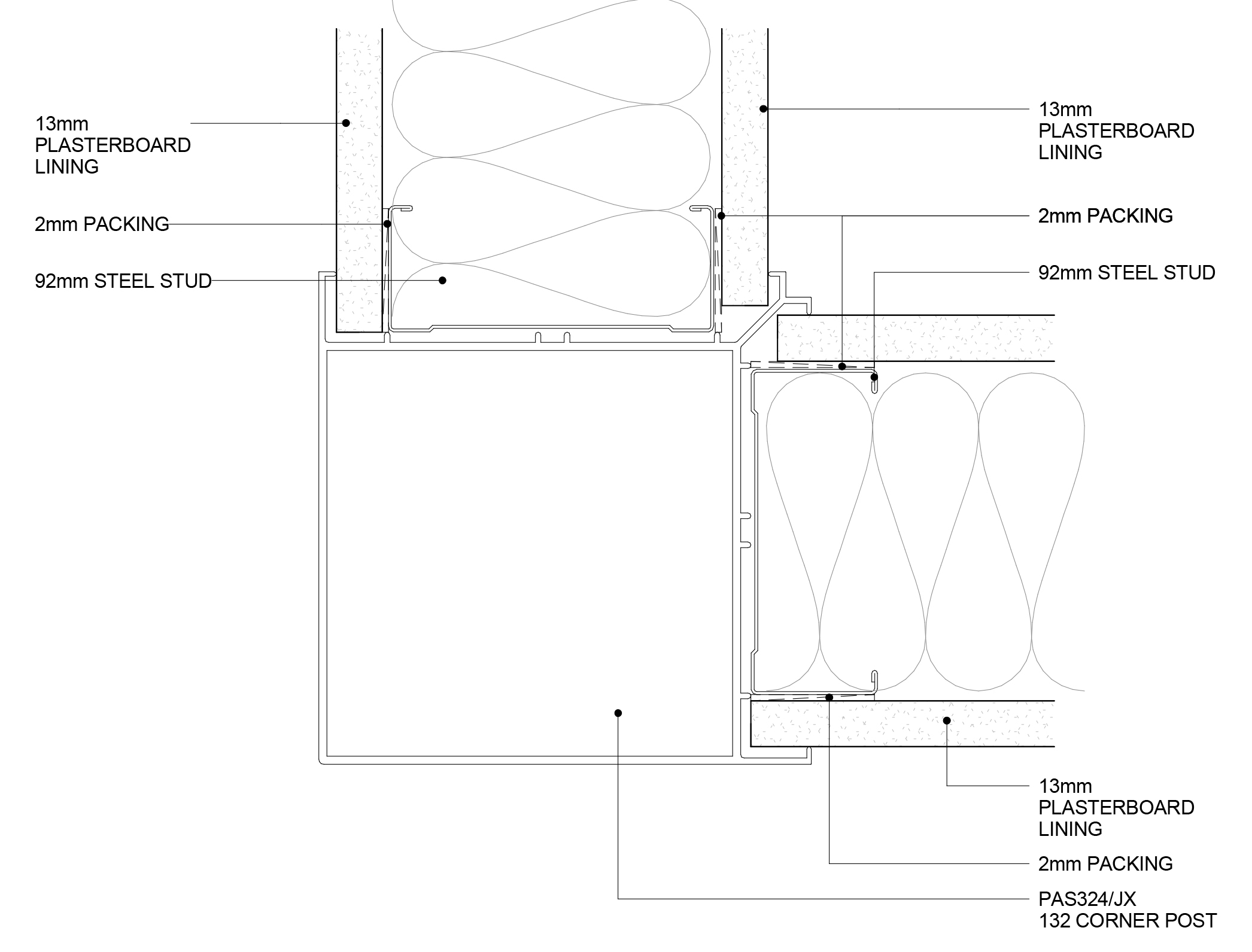

3.5.7 A Series 132 – 92mm Wall Corner Post

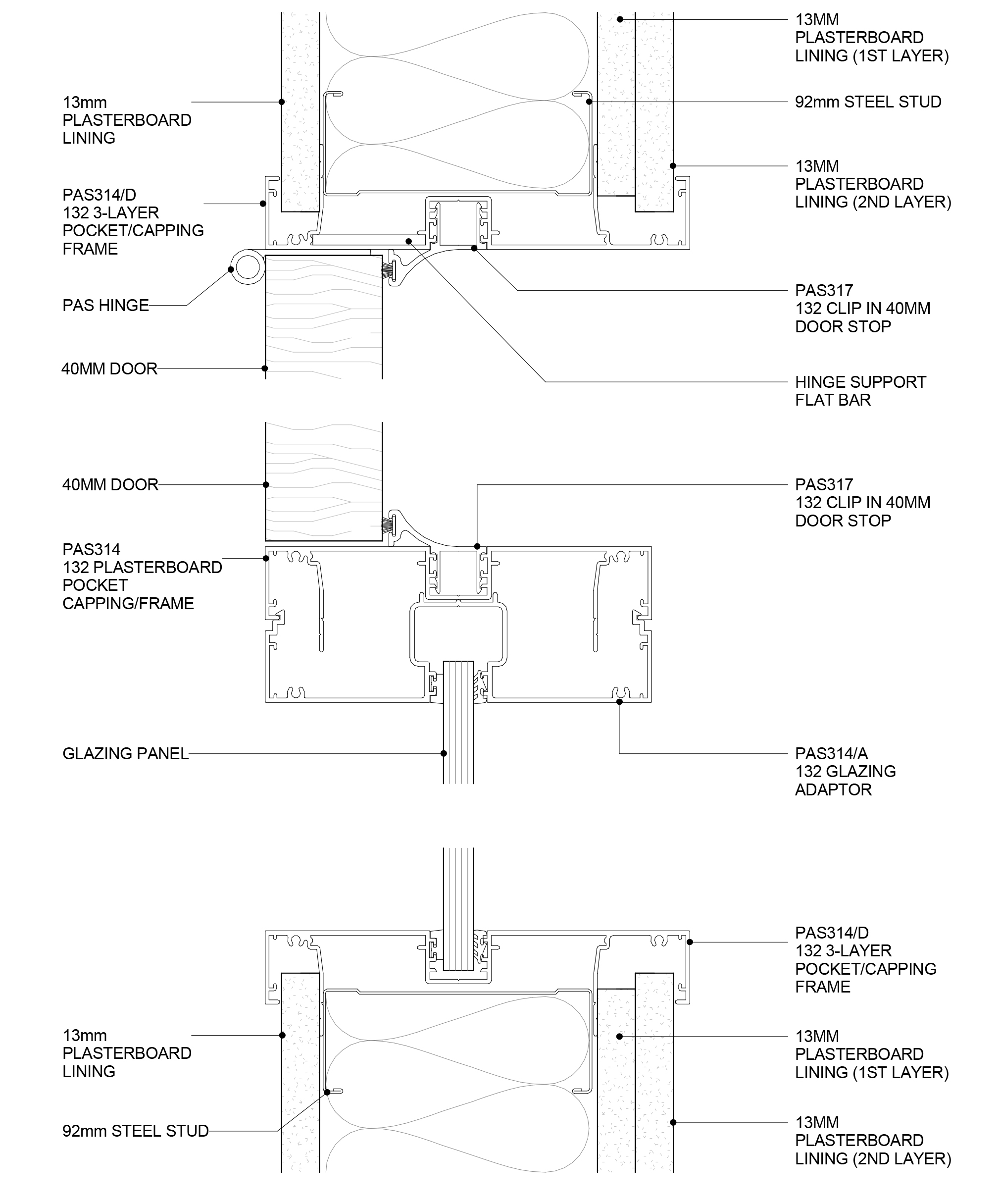

3.5.8 A Series 132 – 92mm Three Layer System

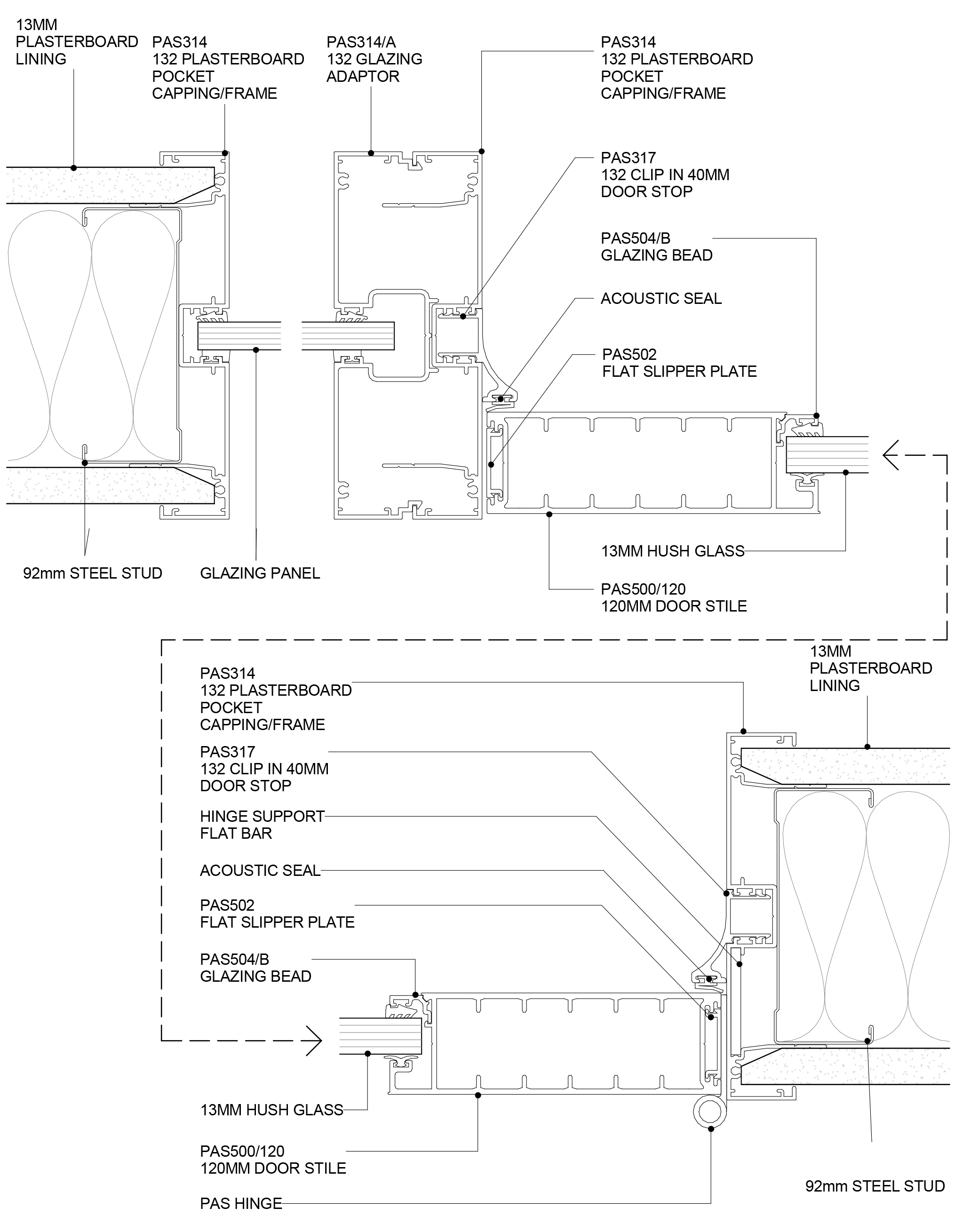

3.5.9 A Series 132 – 92mm 50mm Mullion + DS Series 120mm

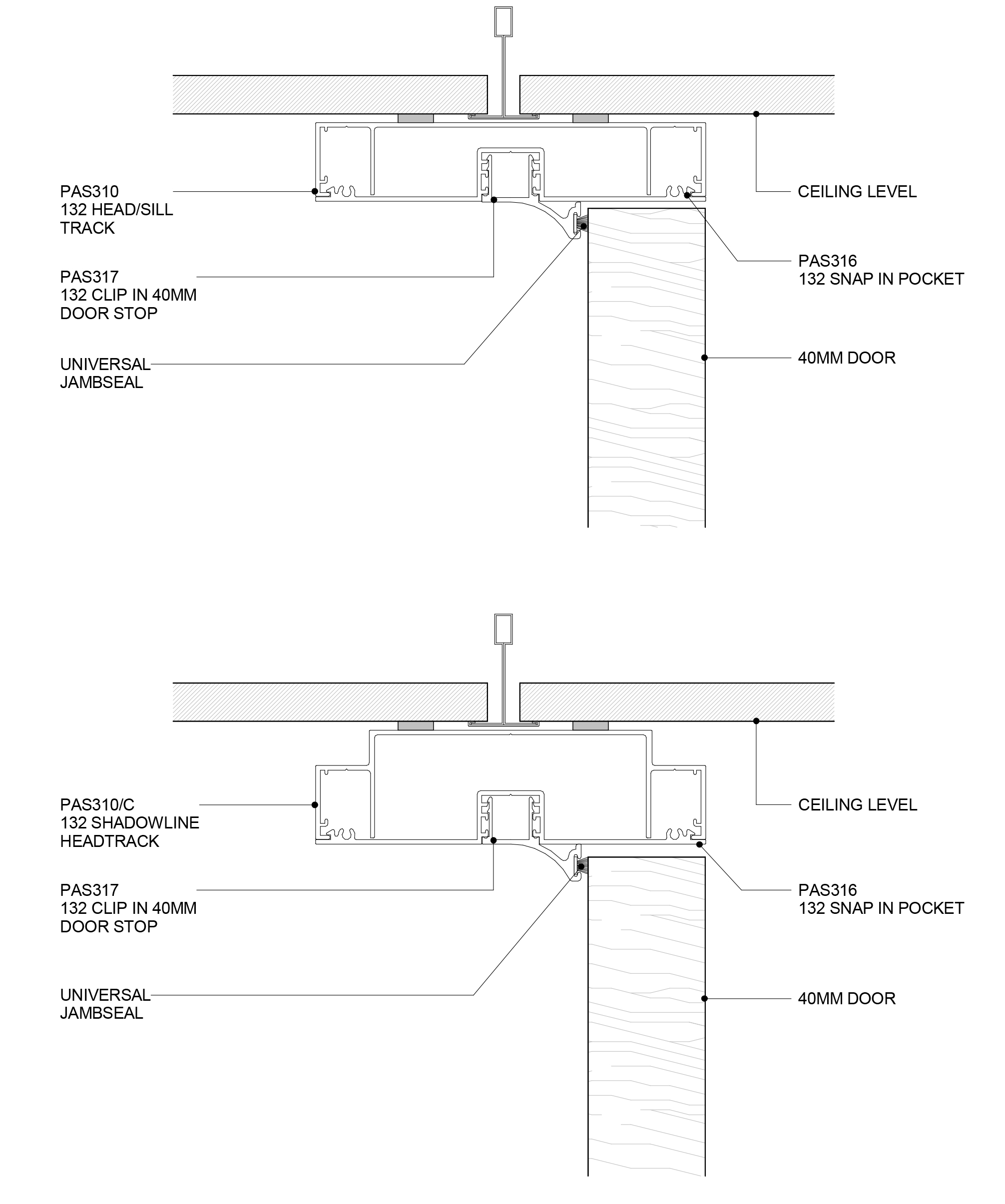

3.6.1 A Series 132 – 92mm 40mm Door Headtrack

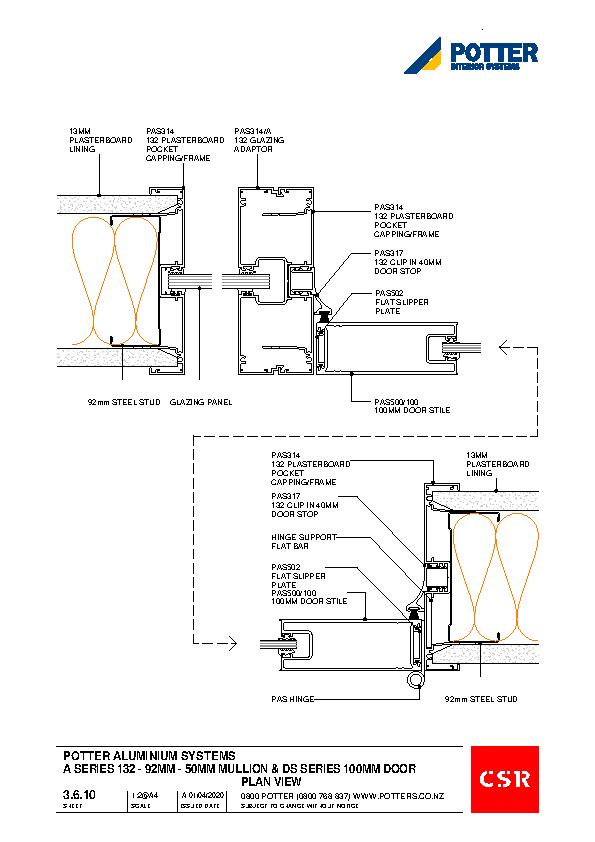

3.6.10 50mm Mullion & DS Series 100mm Door

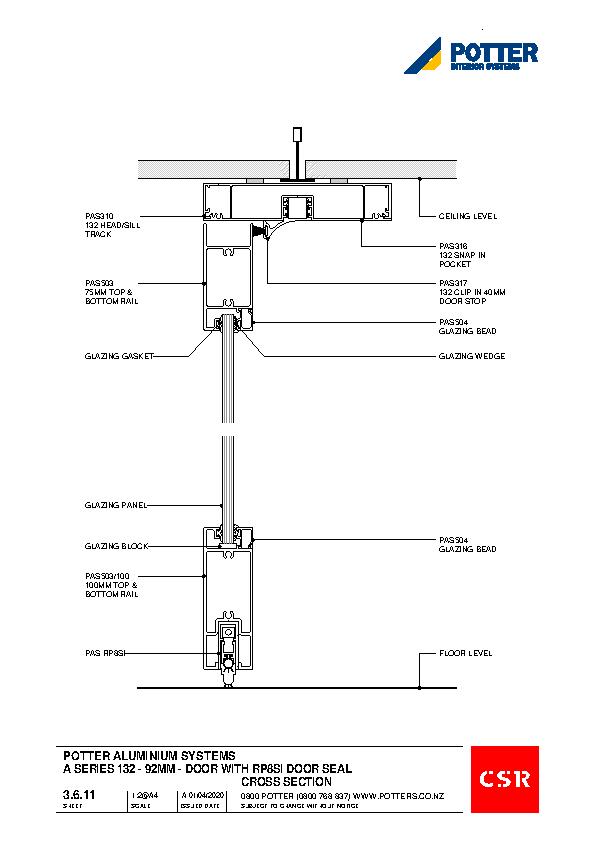

3.6.11 92mm Door With RP8SI Door Seal

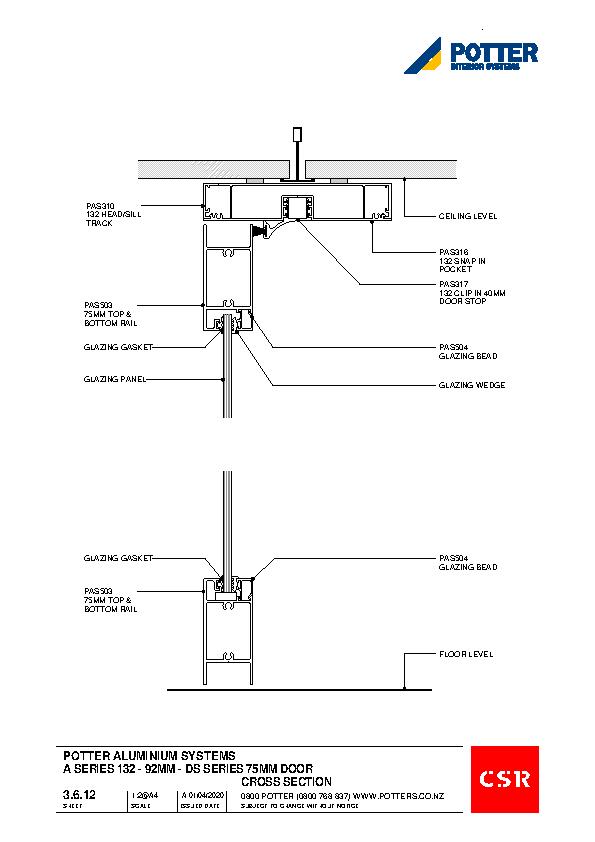

3.6.12 92mm DS Series 75mm Door
3.6.13 92mm DS Series 100mm Door & RP8SI Door Seal
3.6.15 A Series 132 – 92mm 40mm Door Headtrack Multi Layer

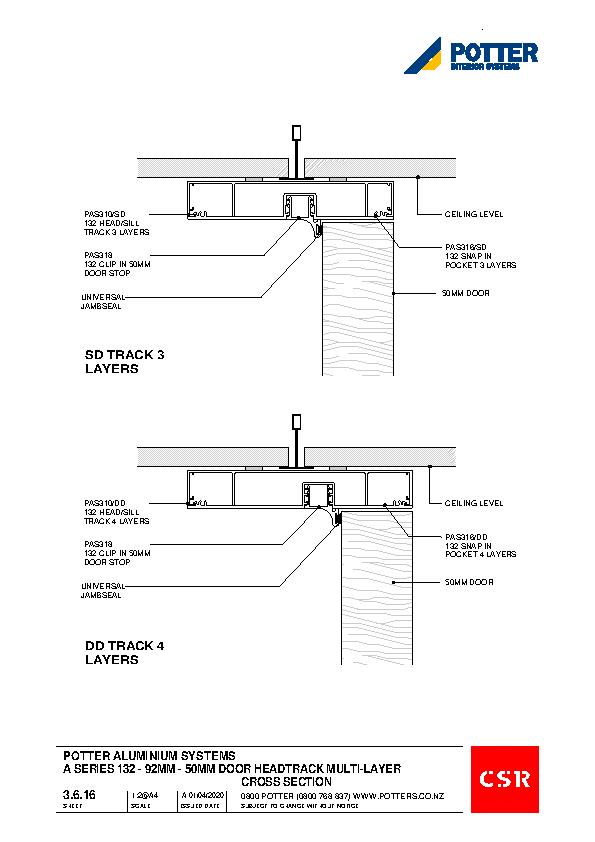

3.6.16 A Series 132 92mm 50mm Door Headtrack Multi Layer

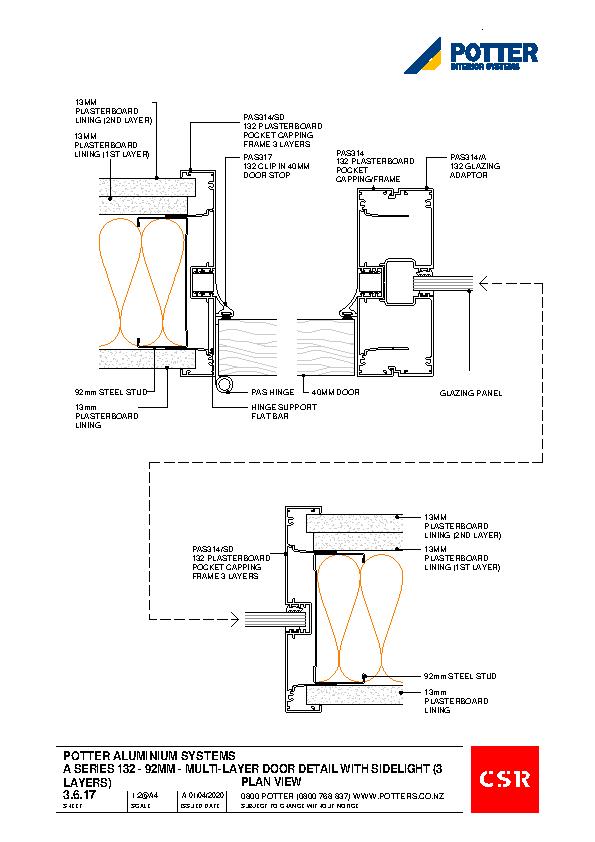

3.6.17 A Series 132 – 92mm Multi Layer Door with Sidelight

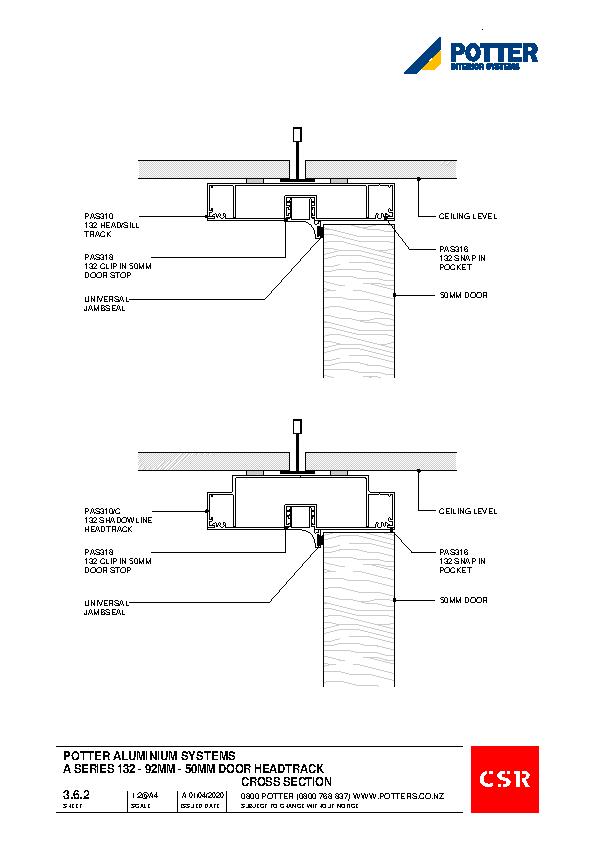

3.6.2 92mm 50mm Door Headtrack
3.6.3 150mm 40mm Door To Headtrack
3.6.4 150mm 50mm Door To Headtrack
3.6.5 92mm Adjustable Multi Track Door Detail
3.6.6 92mm Adjustable Multi Track Door Detail 2

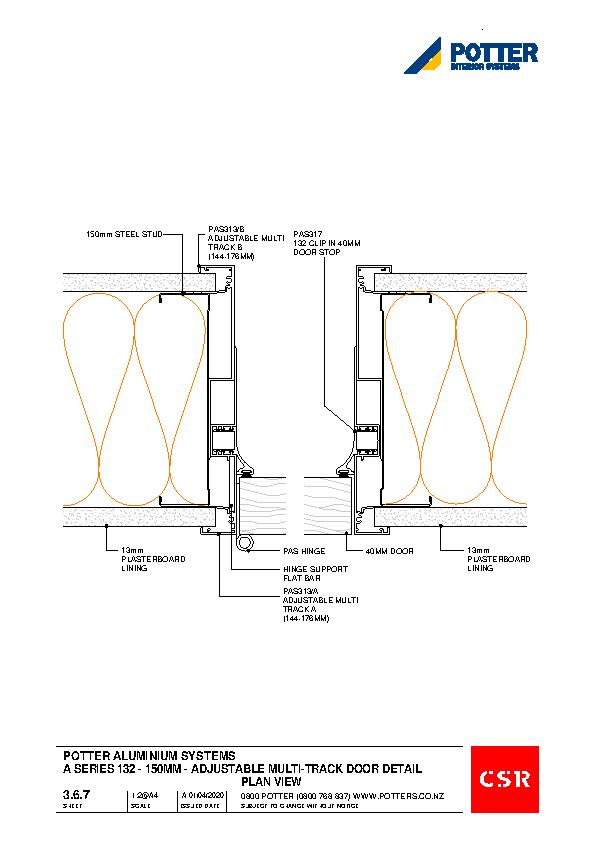

3.6.7 150mm Adjustable Multi Track Door Detail

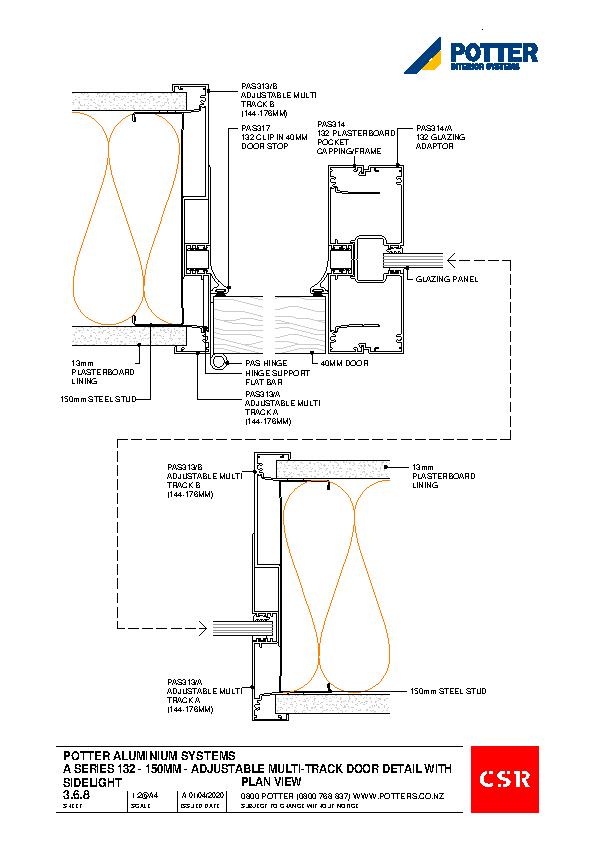

3.6.8 150mm Adjustable Multi Track Door Detail 2

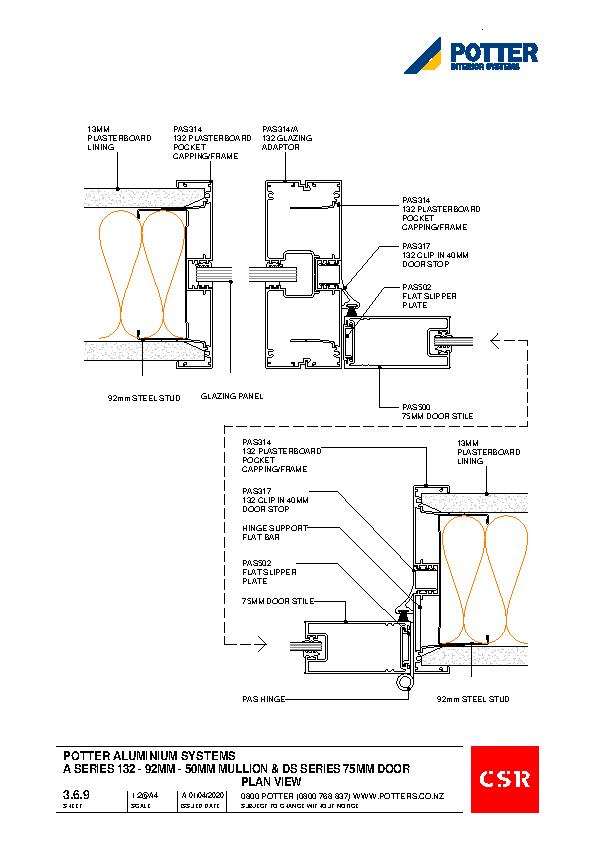

3.6.9 50mm Mullion & DS Series 75mm Door
