Leaf size:

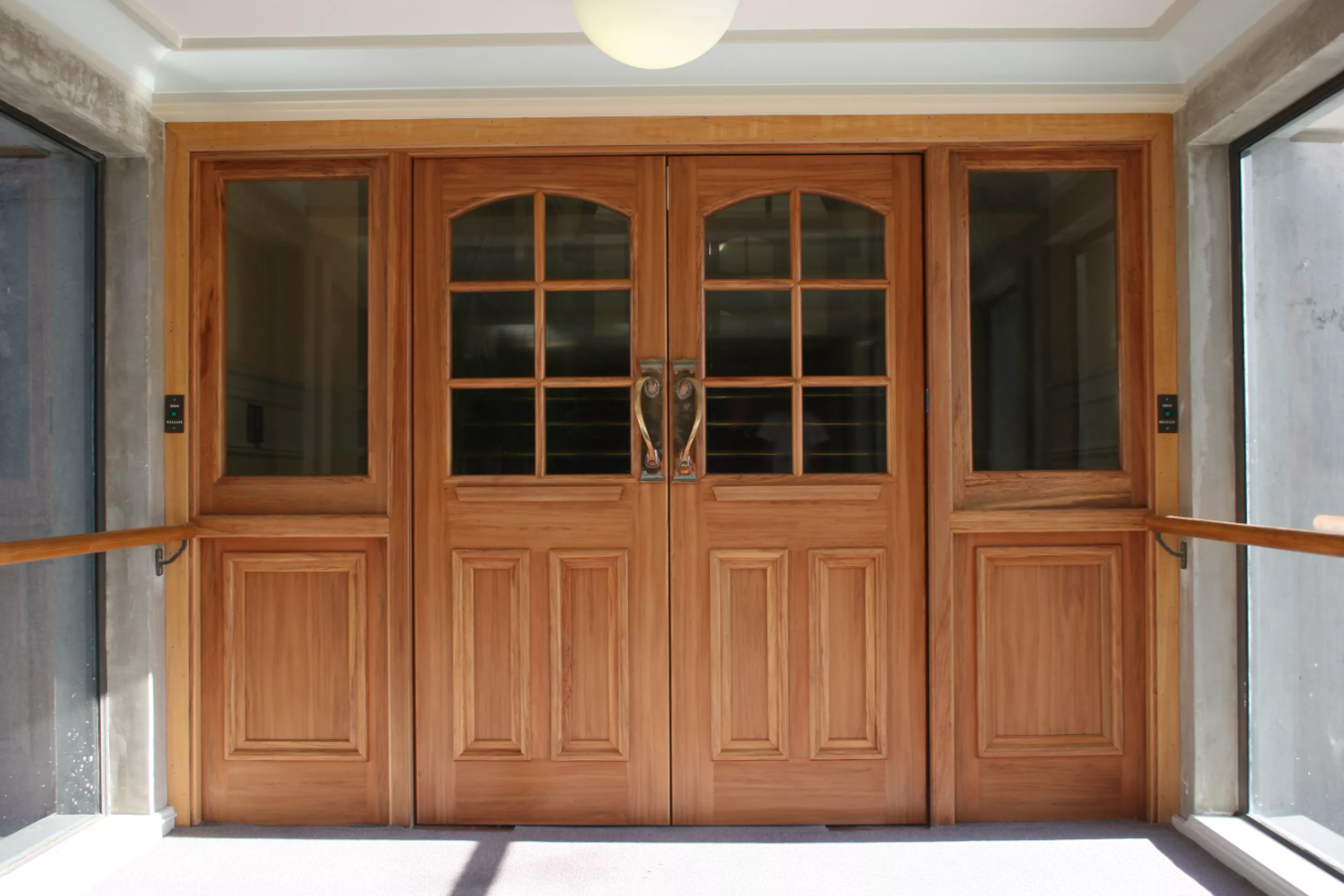

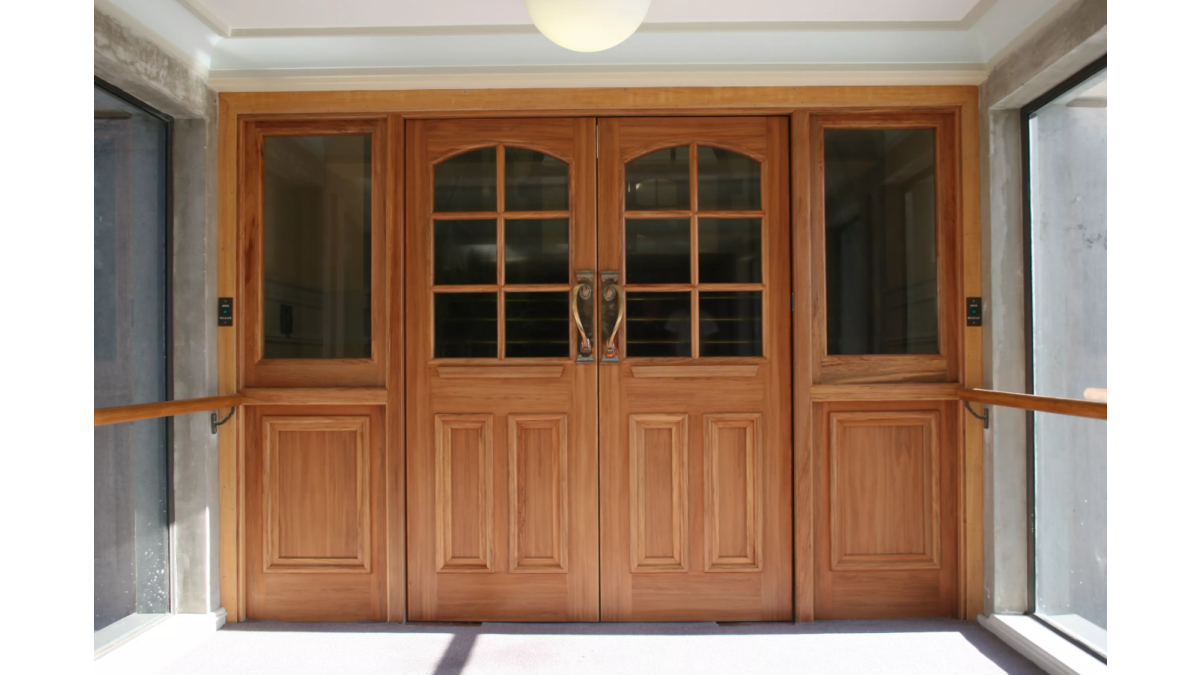

• The VP30HR double-action timber-framed (VP30HR DA TF) door set is a pivoting door suitable for interior installation only.
• The door set configuration may be single leaf or pair, finished with a variety of facings and pivoted in a timber frame (on floor springs only).
• The thickness of the VP30HR DA TF door leaf is 65mm with an approximate leaf weight of 35kg/m2.

Wall type:

• Jambs may be connected to timber stud, steel stud or concrete masonry.
• The minimum specification for each wall type is:
  • Precast concrete (100mm thickness) or grouted blockwork (140mm thickness).
  • Non-load bearing timber stud partitions of minimum lining thickness of 10mm Fyreline GIB Board^® in accordance with GBT30 (GIB ^® Fire Rated Systems).
• Non-load bearing steel stud partitions of minimum specification GBS60 (GIB^® Fire Rated Systems).

• Meets NZS4520.2010 standard

Thermal insulation:

• This door leaf has a thermal insulation rating (R-value) of 0.645 Km2/W.
