Juralco SunFold® Retractable Louvre Roof
Description

SunFold® is a retracting and folding louvre roof. Fully closed, partially open and pivoted, or fully retracted and stacked to one side. Available in integrated, wall-mounted, or freestanding configurations and expertly combine a traditional veranda/gazebo concept with a modern louvred roof for a seamless transition between indoor and outdoor space. New Zealand designed and manufactured to take full advantage of an alfresco living space for all-year outdoor living.

Key Features
  • 5 year manufacturer's warranty
  • 15 or 25-Year Dulux Powder Coating surface finish warranty
  • Supported by a nationwide network of installers
  • German linear and Italian tubular motors are the best available to operate these systems
  • Unique End Pivot design technology provides a more weather-resistant roof when closed
  • Integrated gutter reduces leaks and provides a clean & seamless look
  • Gutter box: Exclusive solid aluminium gutter box & cover plates avoid ugly silicone corner joints
  • Hidden gutter drainpipes run inside support posts to provide a clean architectural finish

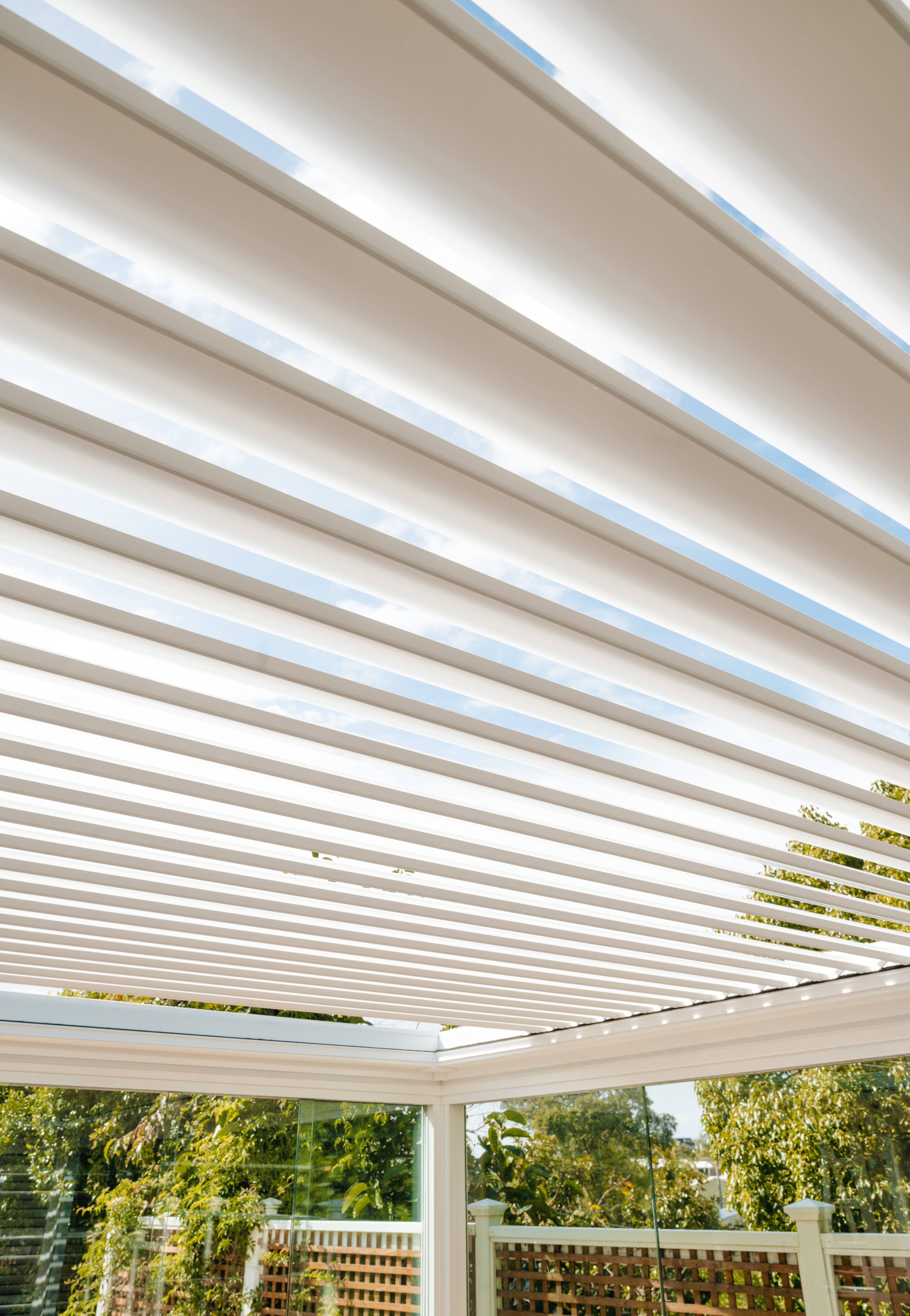

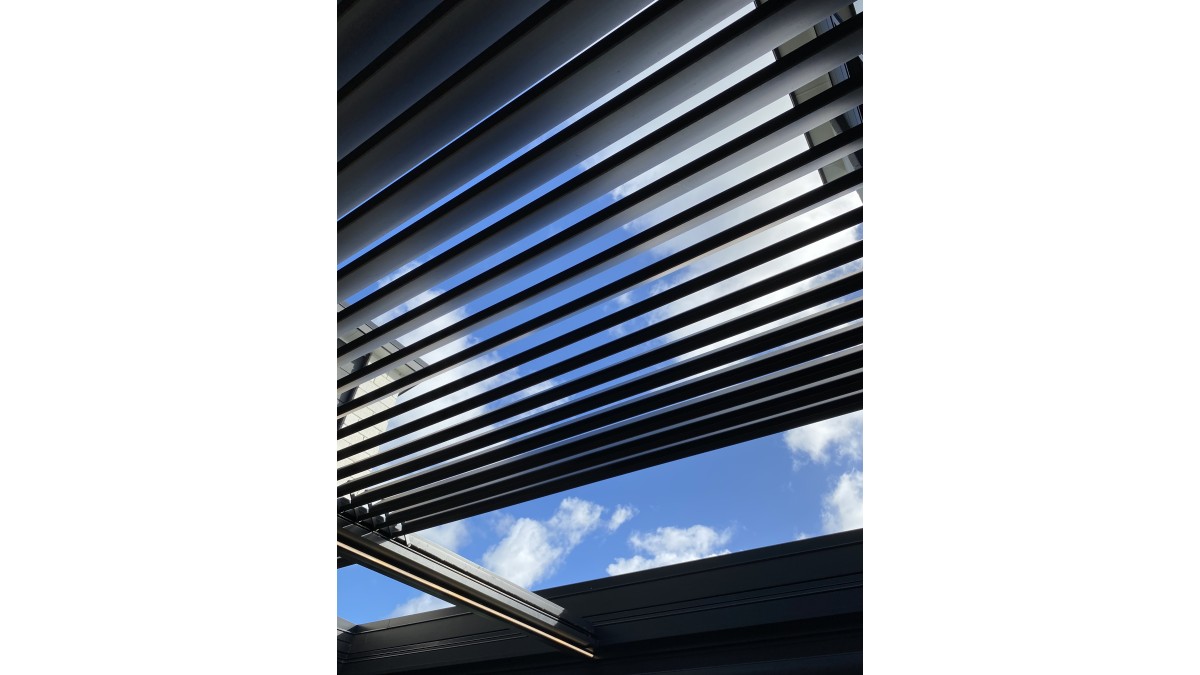

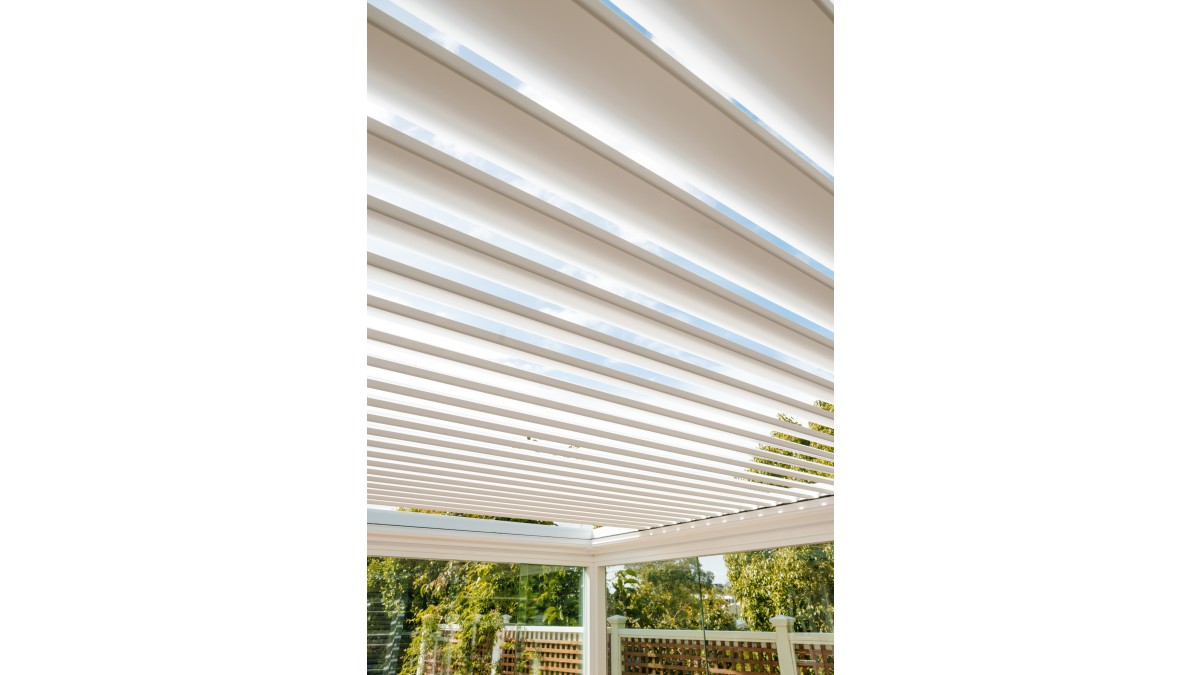

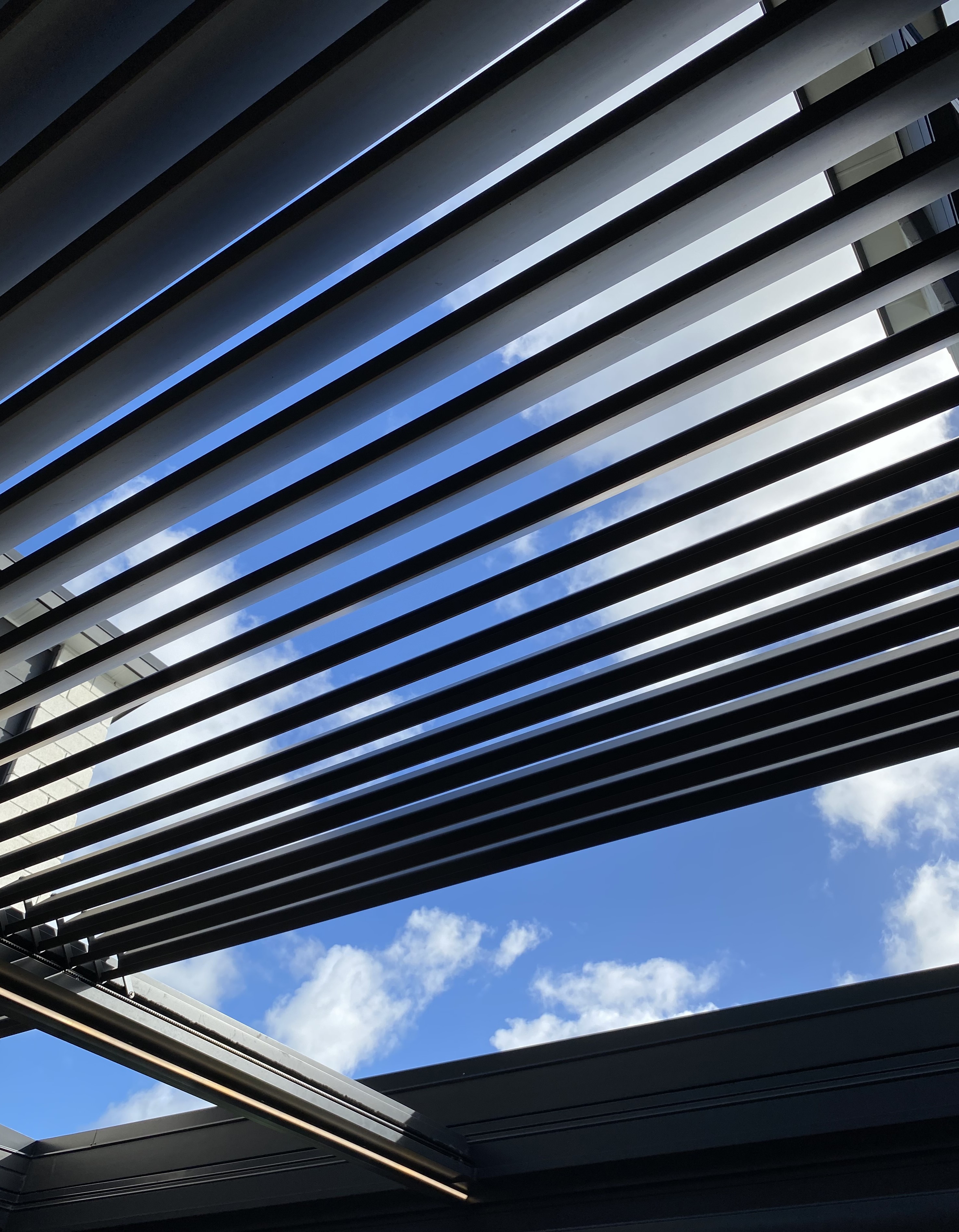

  • Louvres can pivot up to 90 degrees

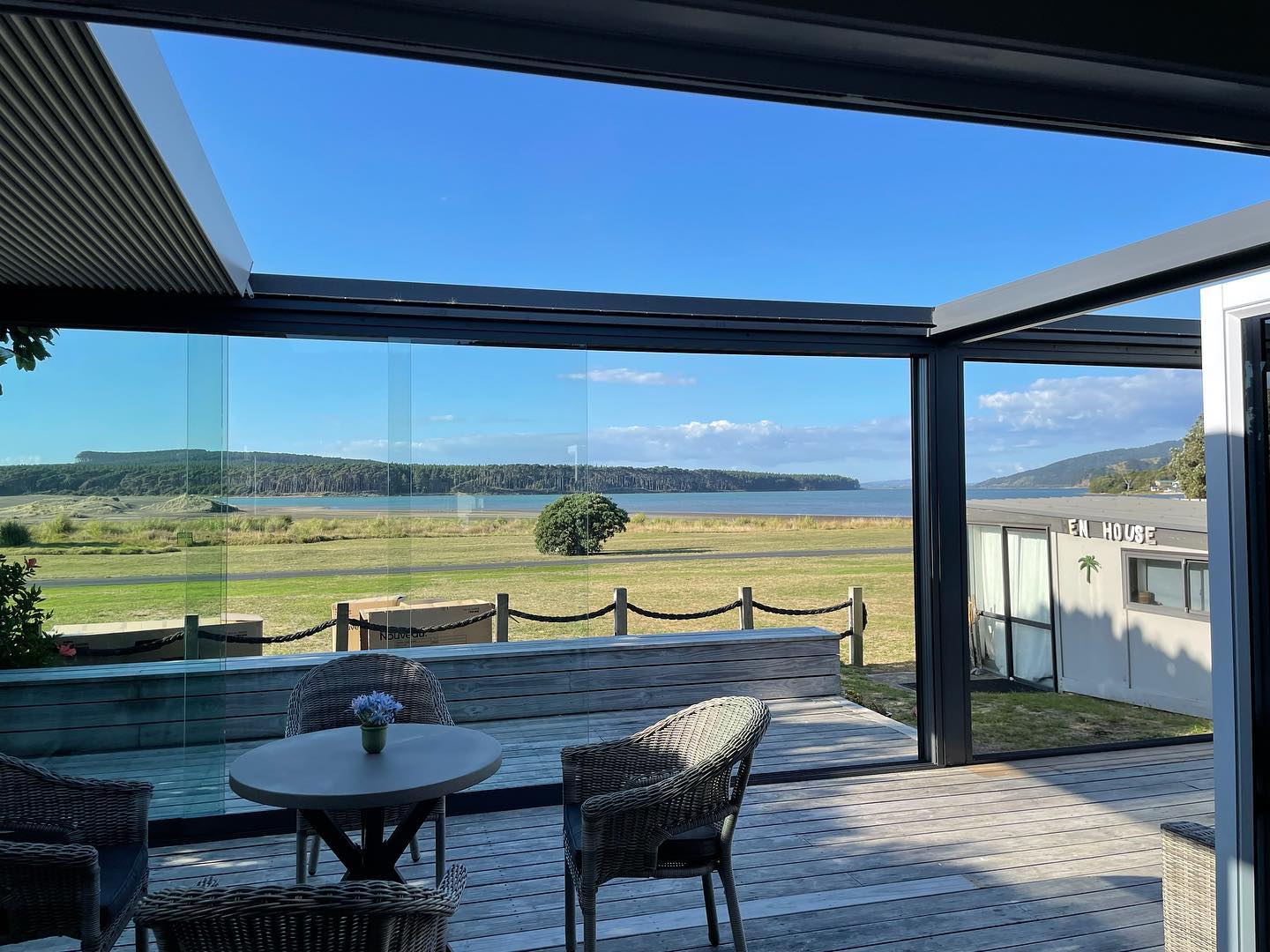

  • Glaslide glass sliding doors, Louvrelite 88® can be added

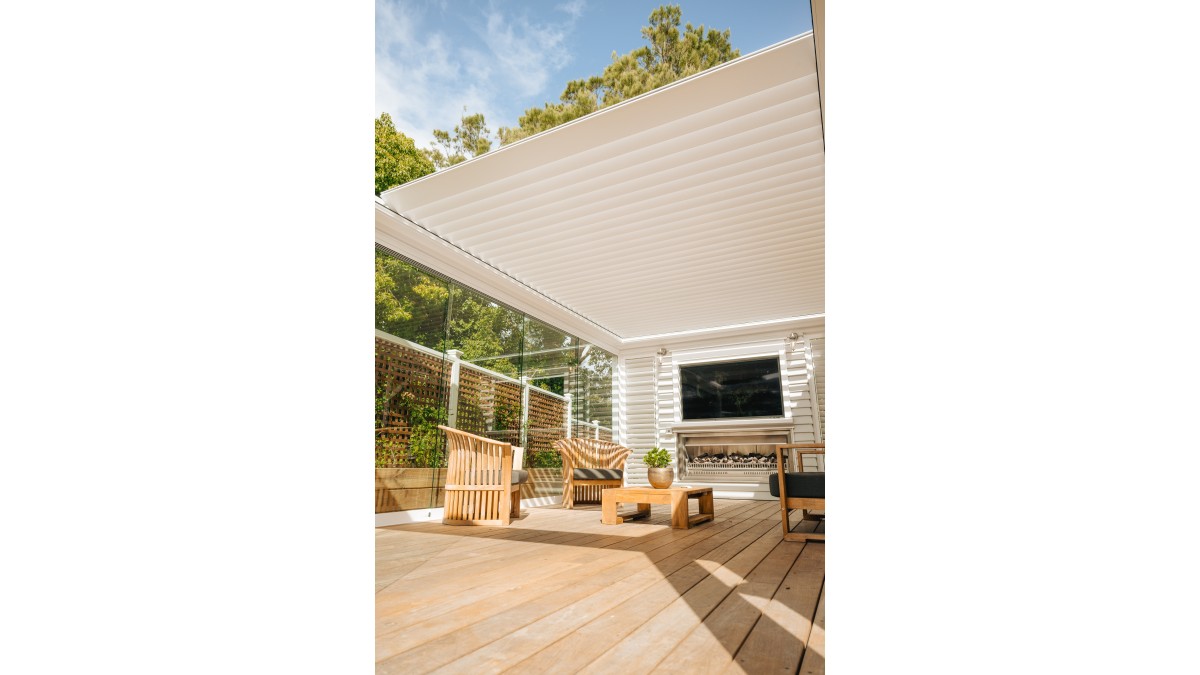

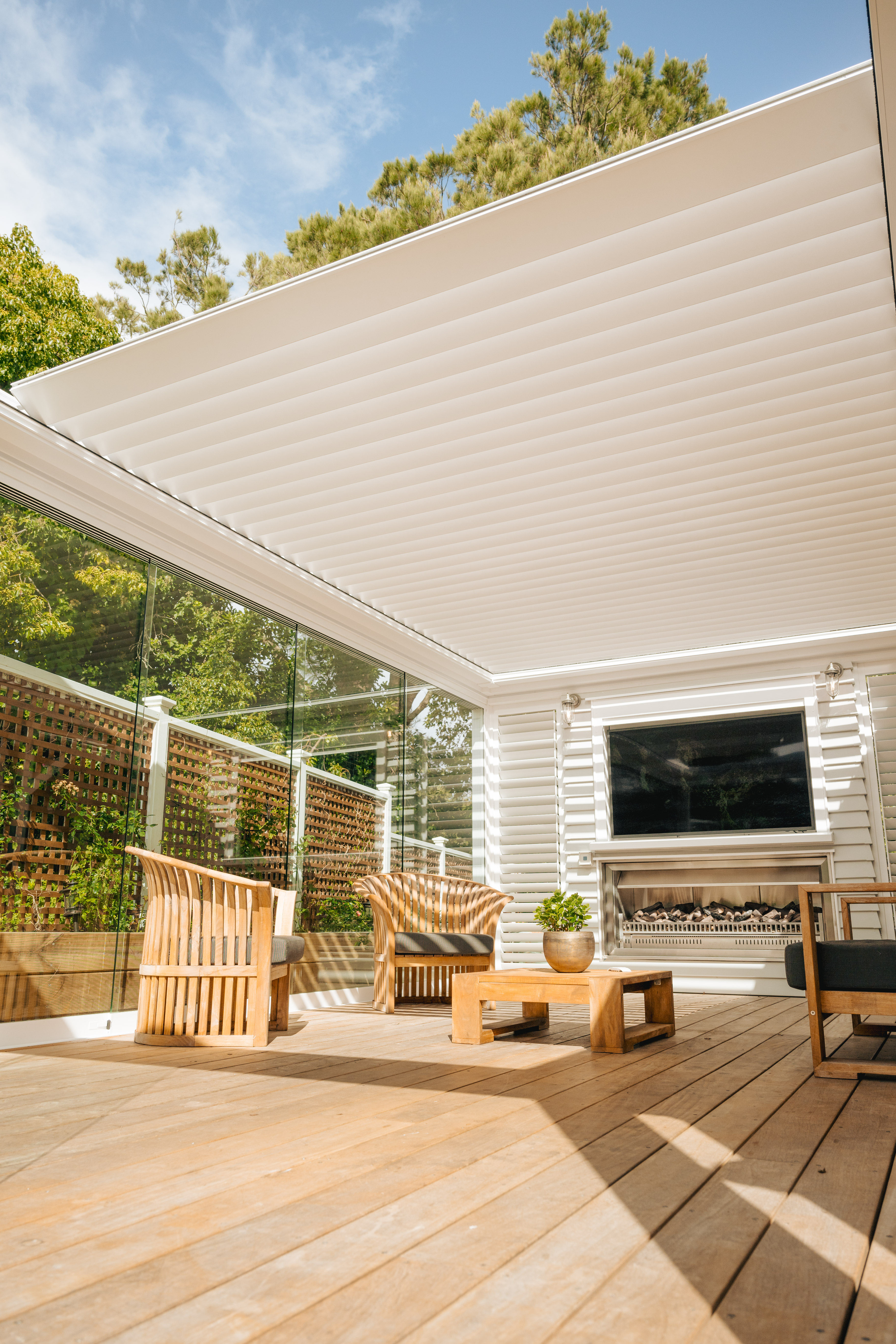

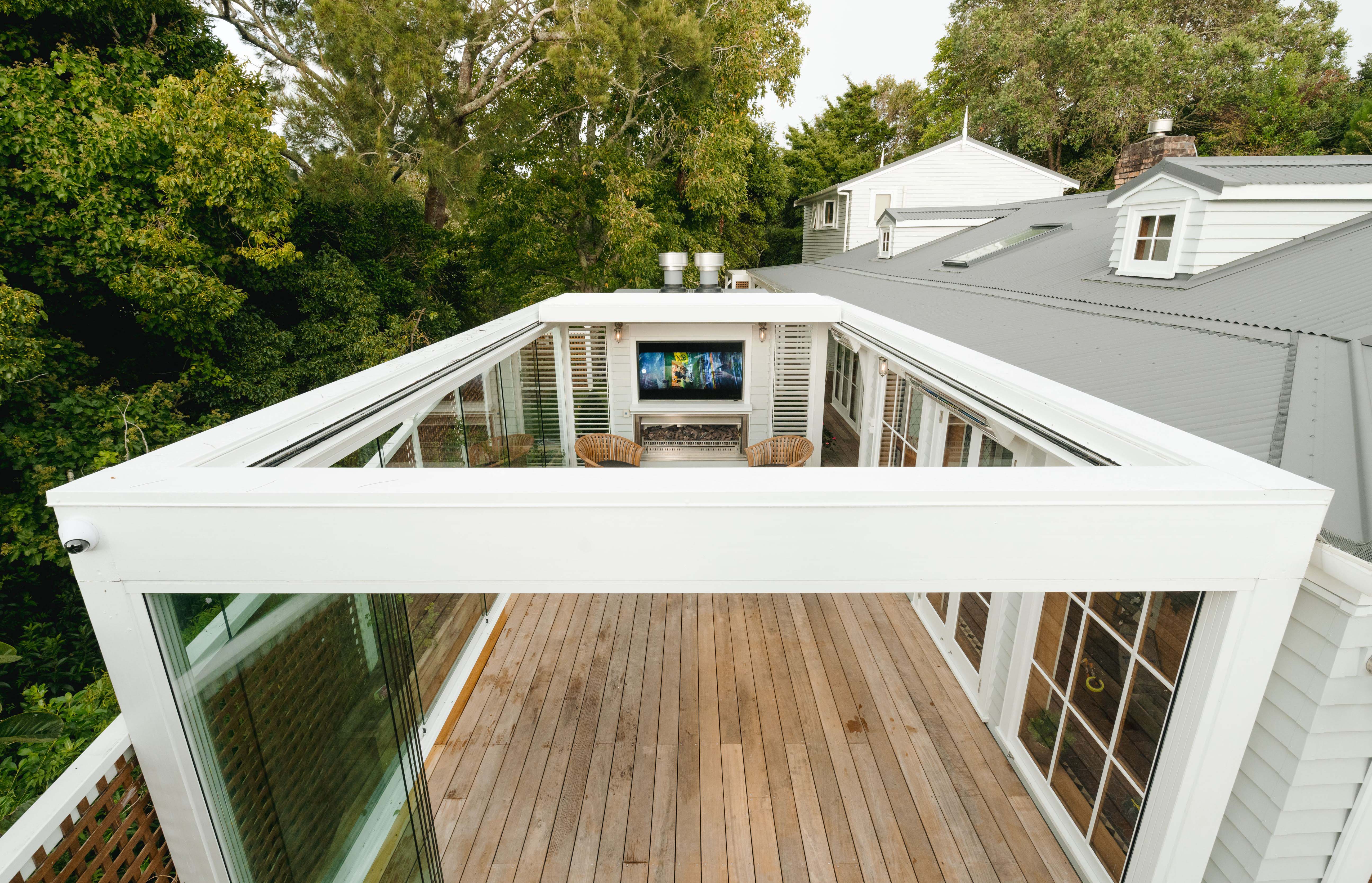

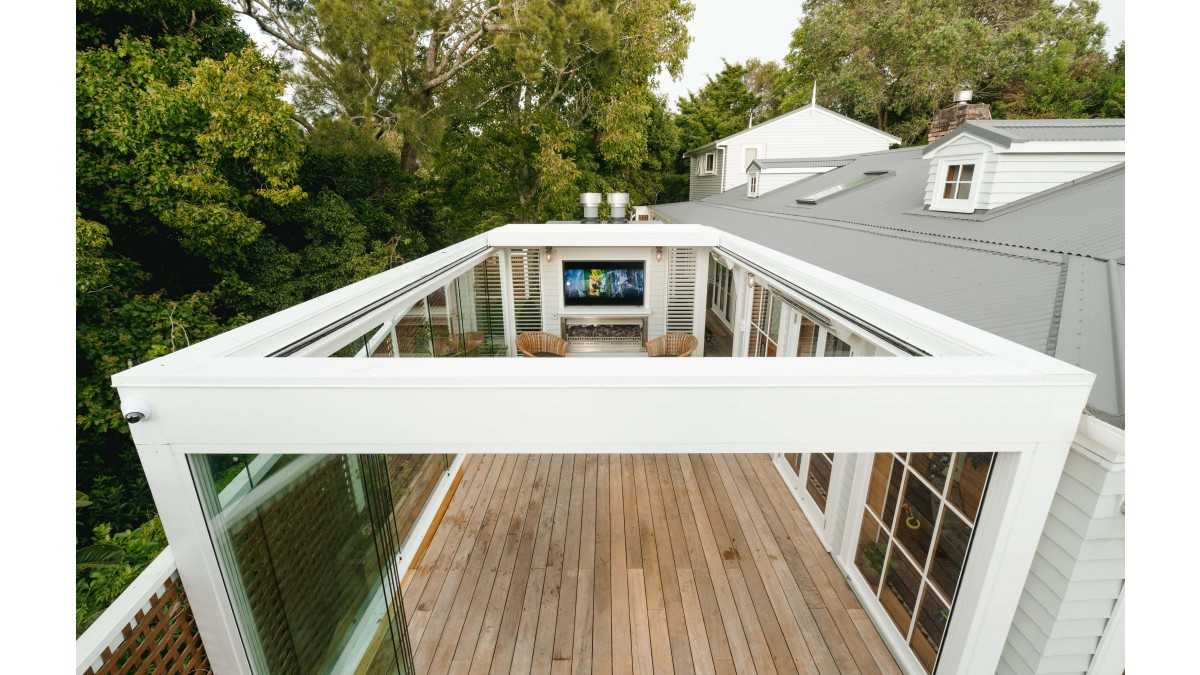

  • Retract the roof to up to 75% of the roof area
  • Partially tilt and retract louvres to control light & airflow or tightly close for weather protection
  • Ability to integrate on outer beam Solarzip™ drop-down screen optional
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

Wall Fixed Option:

  • Custom made
  • Can be fixed onto virtually all styles and shapes of homes
  • Support beams are designed to house downpipes or guttering
  • Fitted onto one wall: 2 legs required
  • Fitted onto two walls: 1 leg required
  • Available in the powder coat colour of choice

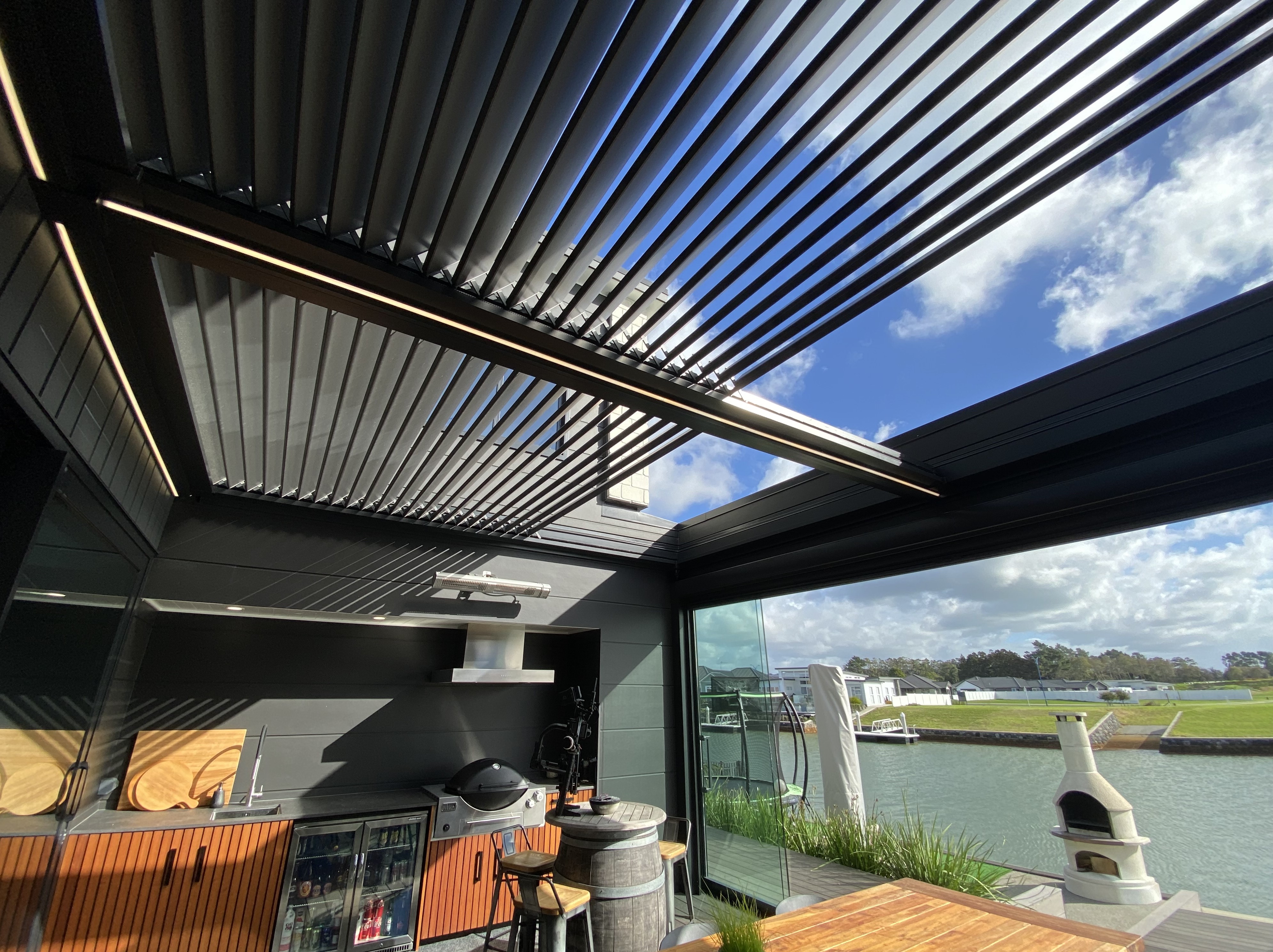

  • Optional extras such as integrated LED lights available

Freestanding Option:

  • No supporting structures are required for installation
  • Custom designed to specific requirement
  • Flexibility to place the Louvre roof in a separate outdoor area
  • Hidden downpipes fitted on supporting leg nearest drain area
  • Louvres set to the best sun orientation for all-day shading
  • Optional extras available include LED lights, sun and rain sensors
  • Powder coated in the finished colour of your choice
  • Drop-down screens or Glaslide® doors can be added  to create an outdoor room

Integrated Option:

  • Guttering and fixings are hidden for a sleek finish
  • Custom-made to fit the new or existing outdoor areas and design
  • Louvres orientated to suit sun direction for shading
  • Options available include LED lights, sun and rain sensors
  • Powder coated in the finished colour of your choice
  • 180mm louvre blades fit snuggly together to produce a weather-resistant seal
Limitations on Use
  • Juralco Outdoor Living System® configurations and sizes are effected by Wind Zone restrictions.  For clarification refer to Configurations
  • Juralco Outdoor Living System® must be installed in accordance with the Juralco Product Manual
  • Any deviation from standard fabrication or installation must involve guidance from Juralco Aluminium Building Products Ltd (the manufacturer)
NZS 3604 Earthquake Zone Medium suitable
Medium Earthquake Zone
NZS 3604 Wind Zone High suitable
High Wind Zone
NZS 3604 Wind Zone Low suitable
Low Wind Zone
NZS 3604 Wind Zone Very High suitable
Very High WInd Zone
Statement of Building Code Compliance

Designed and manufactured in New Zealand, Juralco® Louvre Roof Systems have been engineered and tested by independent engineers to comply with NZS3604:2011 wind zone and snow loading calculations.

Other Performance Attributes
  • 5 year warranty for Juralco Outdoor Living System®, including automation
  • Dulux Duralloy Plus powder coating — 15 year warranty
  • Dulux Duratec powder coating — 25 year warranty
Test Results
Test Results
Documents
Louvre Roof Specification Details

3-24 v1

Configurations: Single Bay
Configurations: Two Bay
Maintenance Instructions
Warranty

Dec 2022

Brochure
Colour Range
Additional Information

Juralco design and supply exceptional aluminium building products through the nationwide HomePlus network.
