InteriorInterior
SC Core Doorset
Description

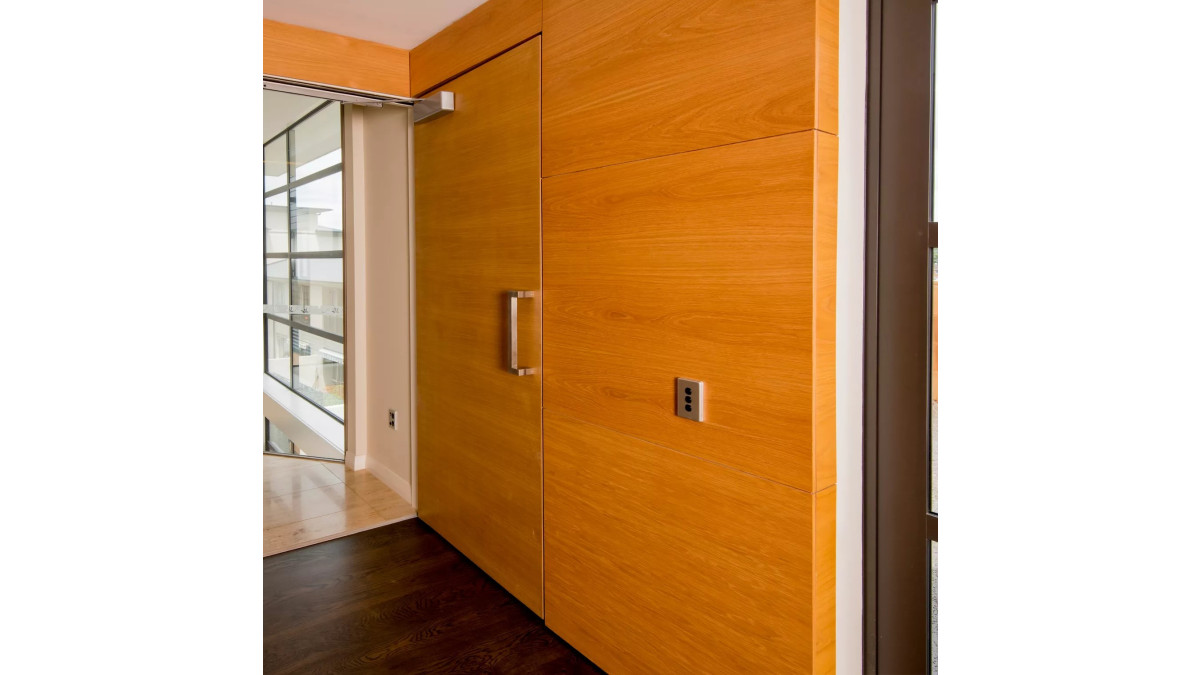

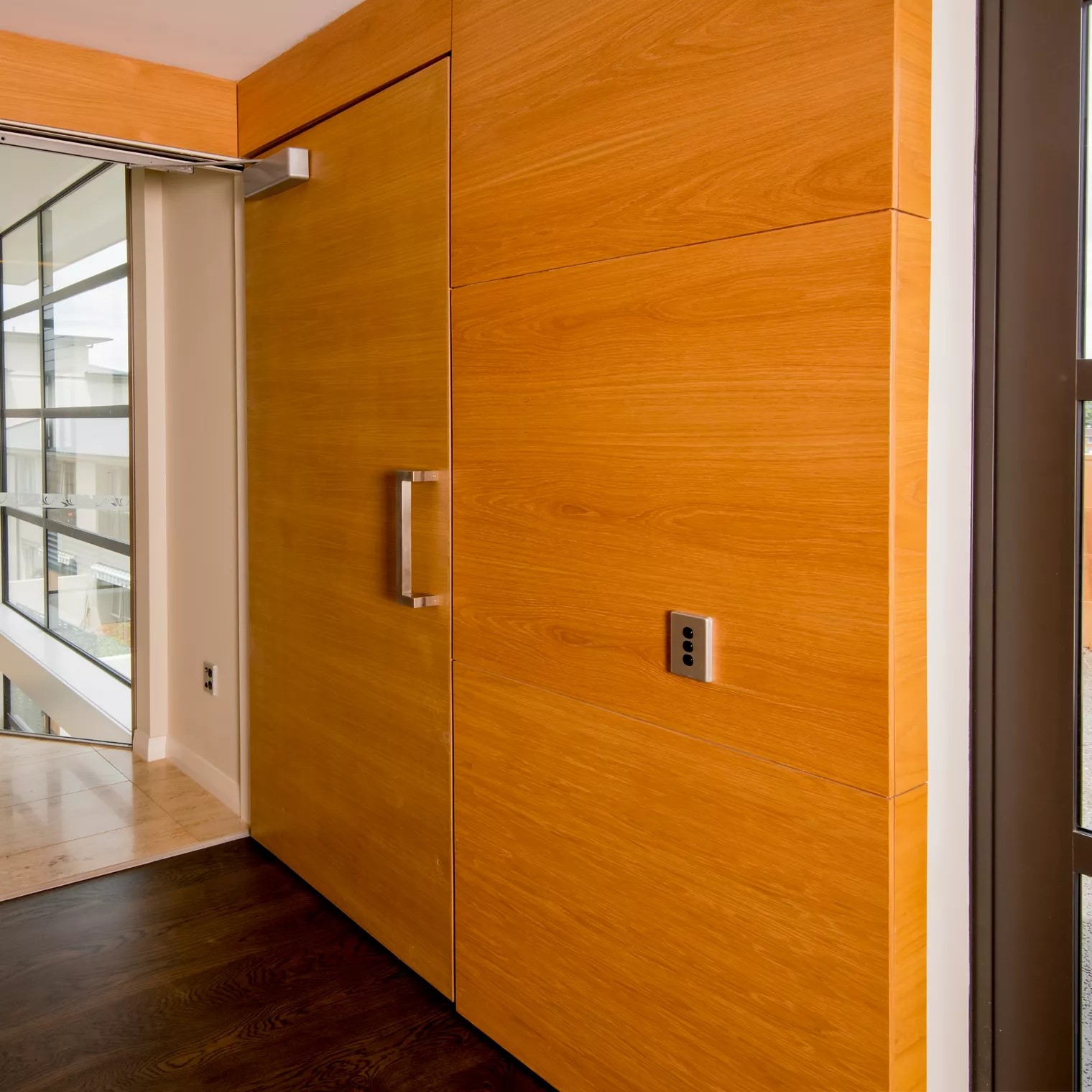

The Pacific Solid Core doorset is a flush-panel door set, typically pre-hung on high quality steel hinges in a timber or steel frame.

Doorsets are available as single leaf or pair leaf, finished in a variety of facings.

The standard doorset is intended for interior use in dry conditions, however this door set is suitable for exterior use with the right leaf facing.

Solid Core doorsets are suitable for commercial and moderate institutional use where some impact resistance is required.

Pacific Standard Commercial doorsets are supplied in their natural state ready for a paint or varnish finish.

Key Features

Core: Particle Board 30mm

Rails, Stiles: Radiata Pine, butt-joined and stapled

Clashing: Paint Quality doors are unclashed as standard. Veneered doors are clashed in matching timber, thickness 5mm, to vertical edges.

Facings: Medium Density Fibreboard is standard

Pre-easing: 2mm

Thickness:This door leaf is available as 38, 40, 42, 45 or 47mm thick. Standard size is 40mm thick. Minimum leaf thickness for steel framed doors is 45 mm.

Leaf Sizes: The solid core door is available for manufacture to any practical size to suit client requirements.

NZ Made
NZ Made
Scope of Use
  • Timber or steel frame.
  • The standard doorset is intended for interior use in dry conditions, however this door set is suitable for exterior use with the right leaf facing.
  • Solid Core doorsets are suitable for commercial and moderate institutional use where some impact resistance is required.
Limitations on Use
  • This door is not tested for water ingress in exterior installations and we make no statement as to its suitability under NZBC E2 "External moisture". All exterior doors should be given as much shelter as possible and be fitted with appropriate flashing systems.
  • There are no hardware limitations for the Solid Core door set, however consideration should always be given to fitness for purpose.
  • Concealed hinges are not an option on this doorset.
  • Thought should be given to the facings of oversize door leafs so that there is no visible join in the face of the door.
Other Performance Attributes

Thermal insulation:

  • This door leaf has a thermal insulation rating (R-value) of 0.368 Km²/W (for a 40mm thick leaf).
Documents
Data Sheet

3/7/2025
