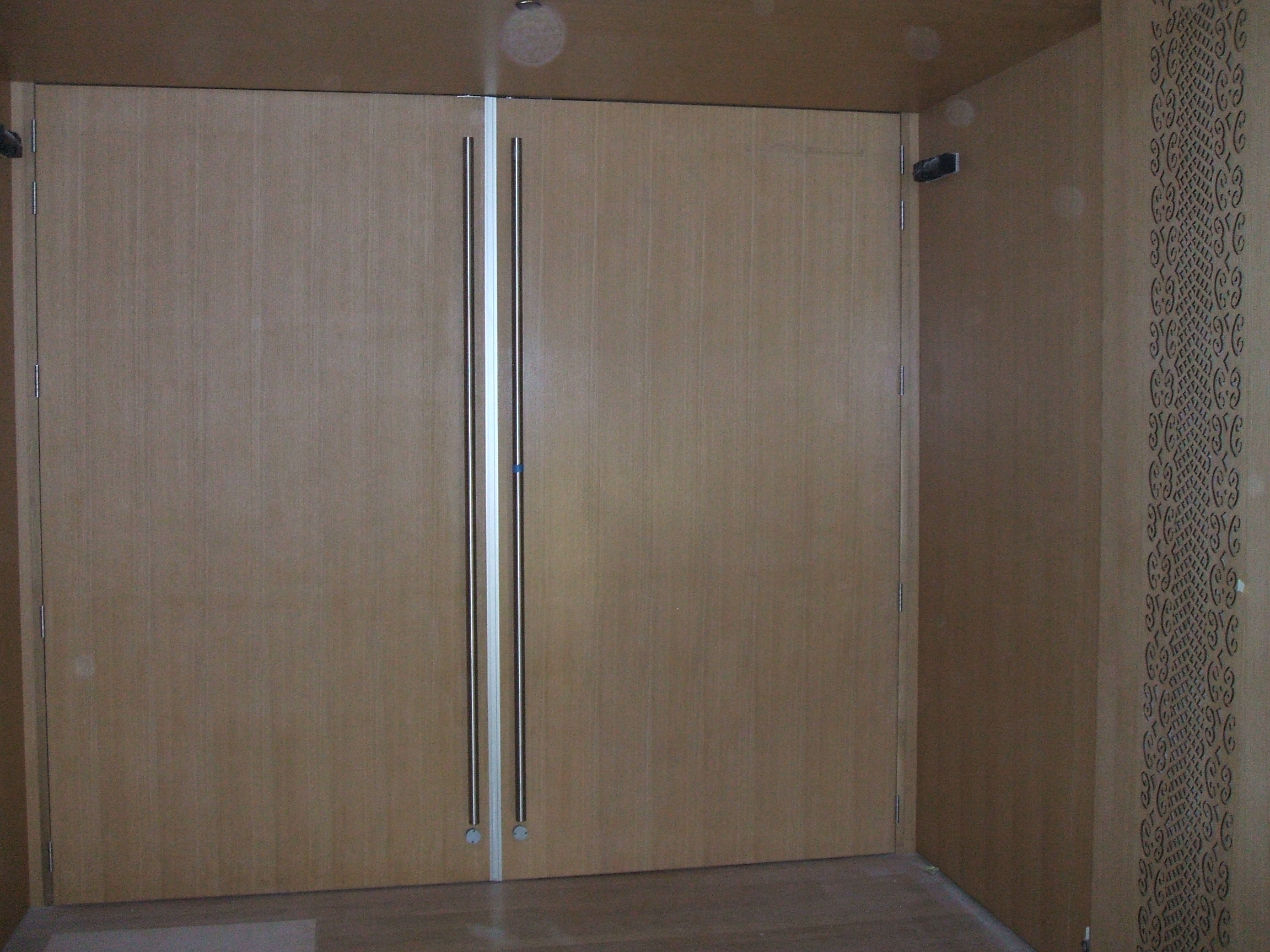

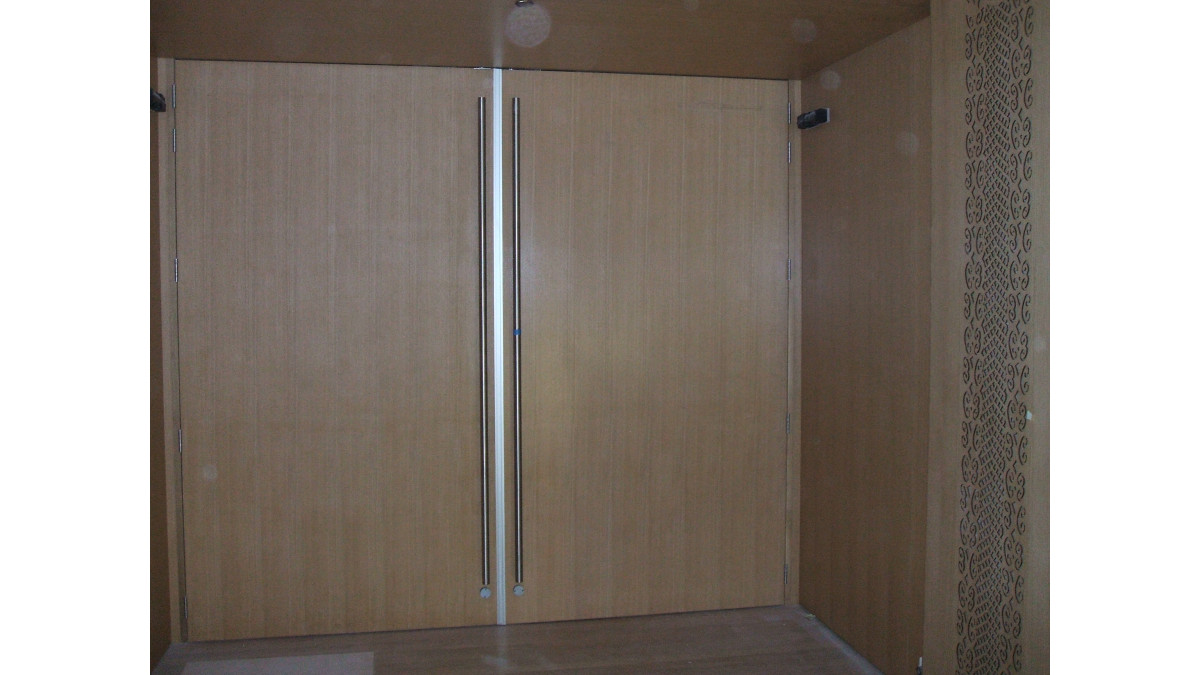

• The thickness of the AD100 door leaf is 43mm with an approximate leaf weight of 17kg/m²
• Optional vision panel
• Suitable for interior use only
• Compatible with timber stud, steel stud, and masonry wall

• AD-series acoustic doors are available with a smoke control rating (-/-/-/ SM).
• These doors comply with the NZBC C/AS2 C6.1.2 definition of smoke control doors.

• Certified acoustic performance to ISO 140-3

Thermal insulation:

• This door leaf has a thermal insulation rating (R-value) of 0.739 Km2/W.
