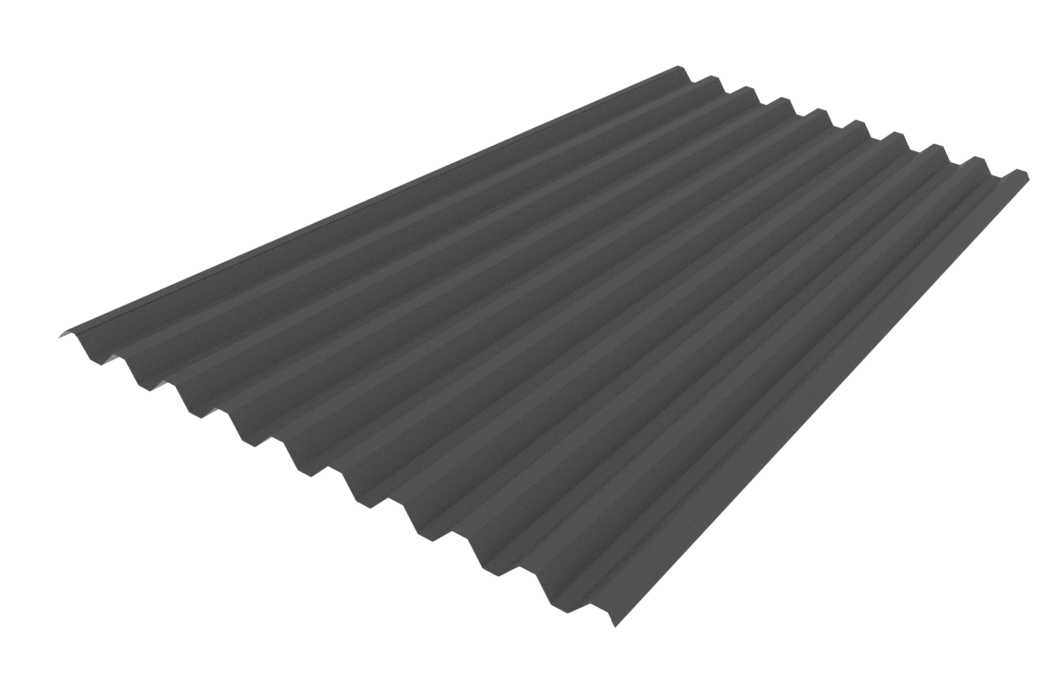

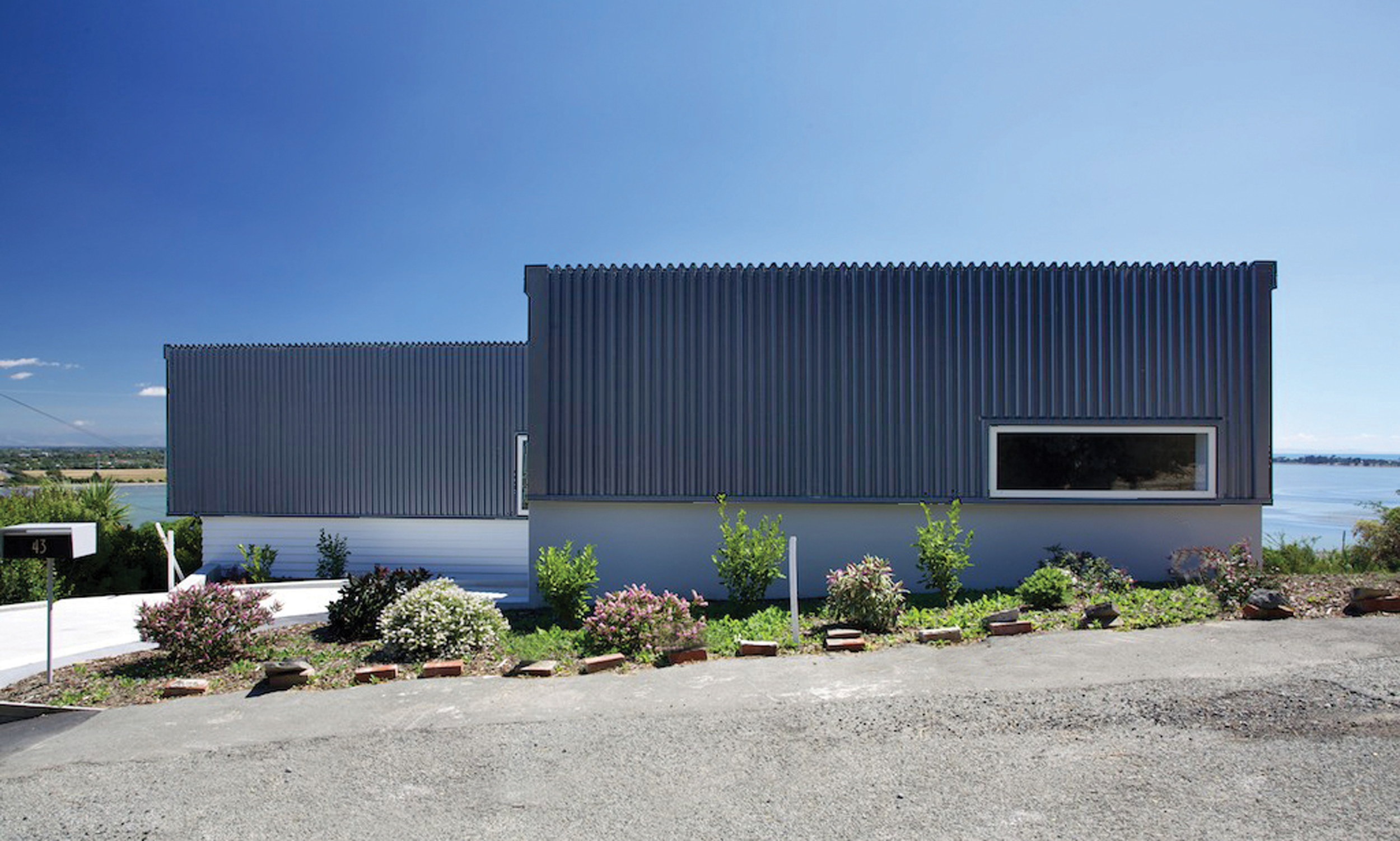

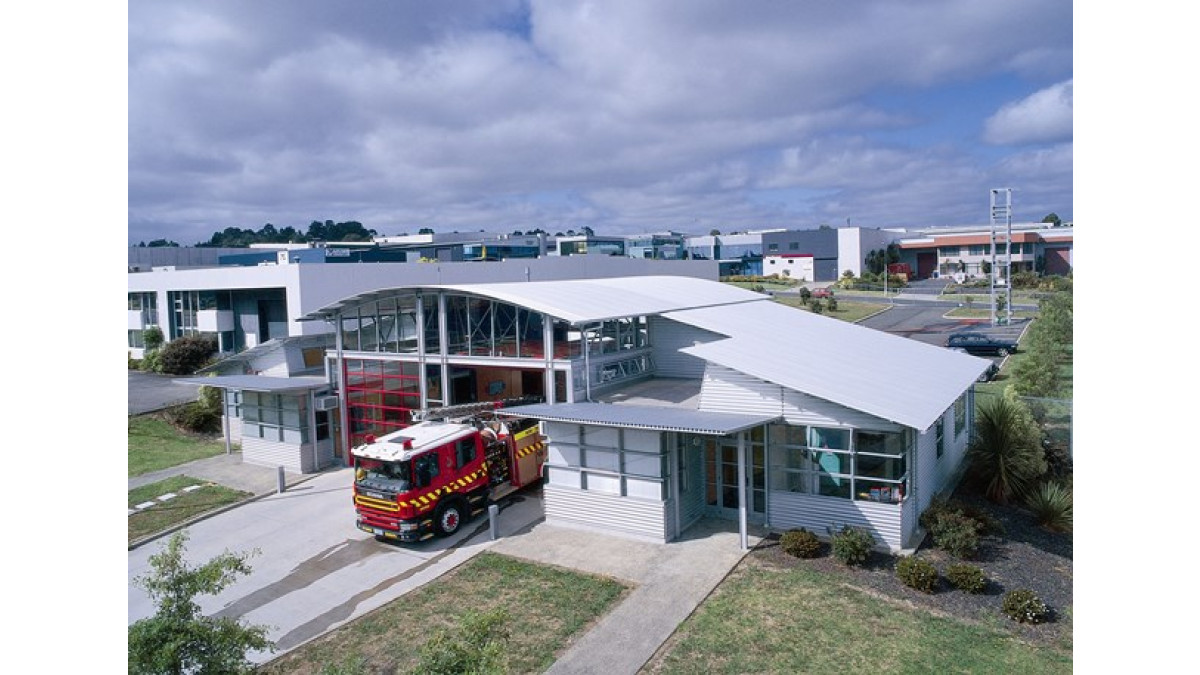

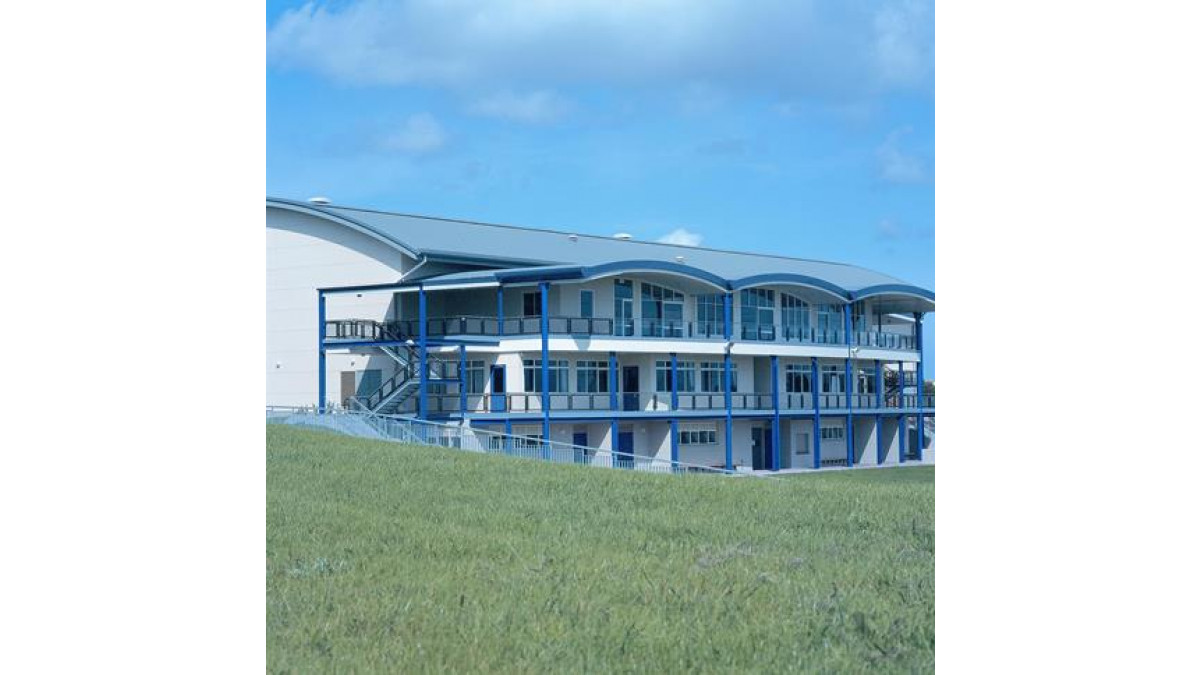

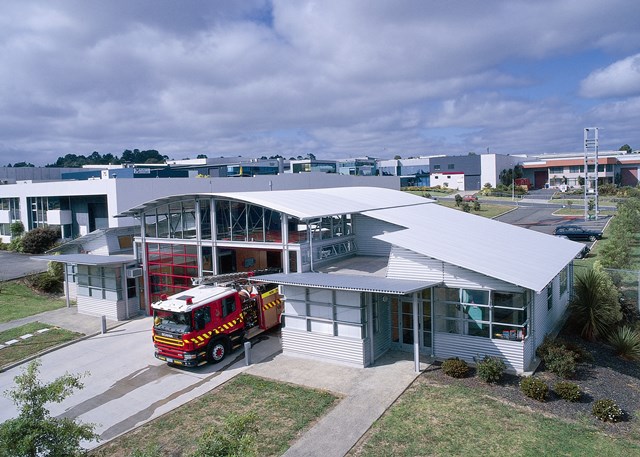

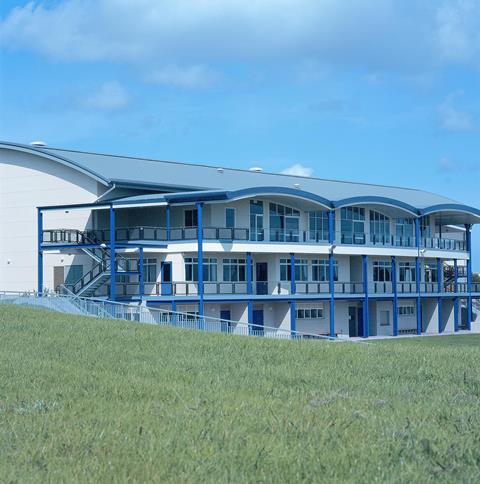

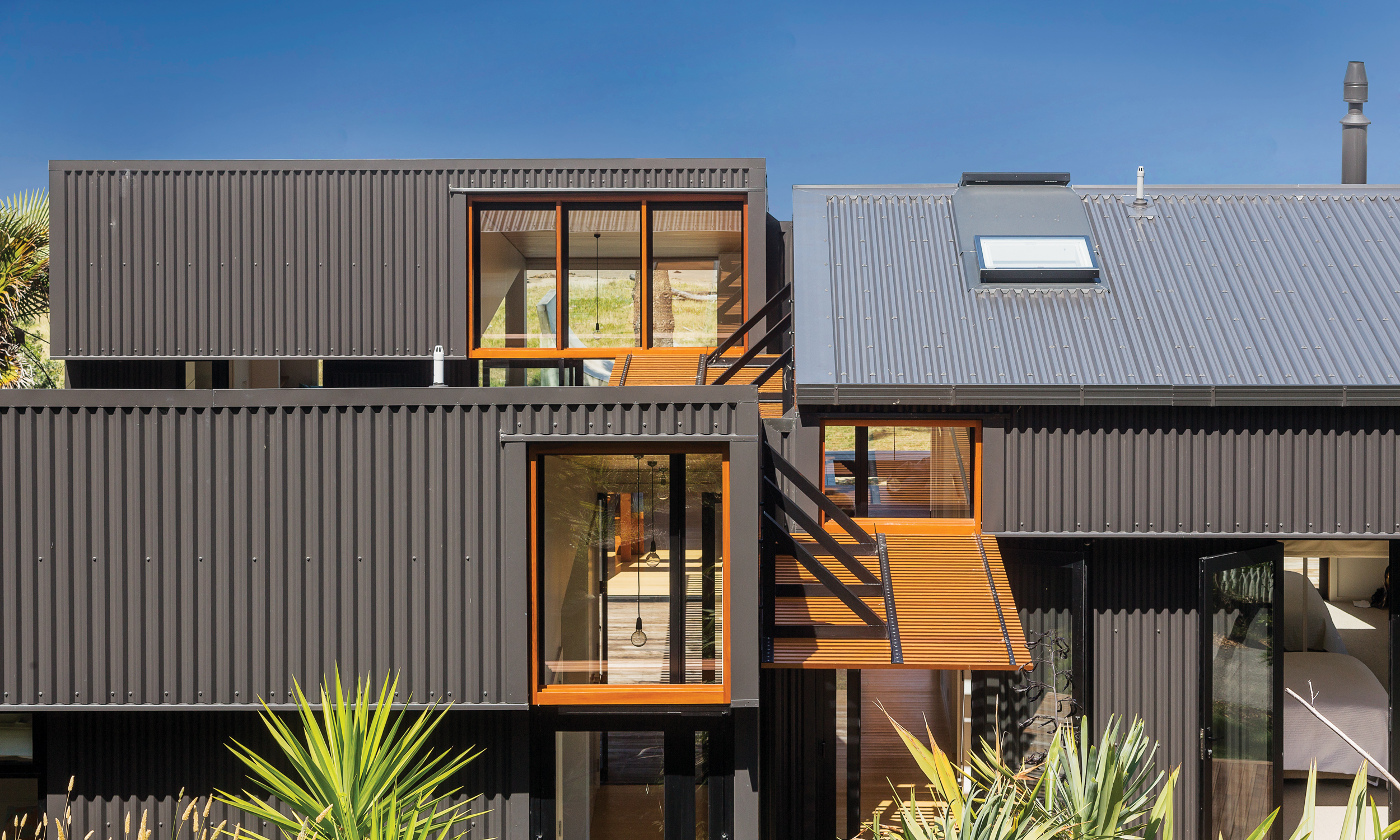

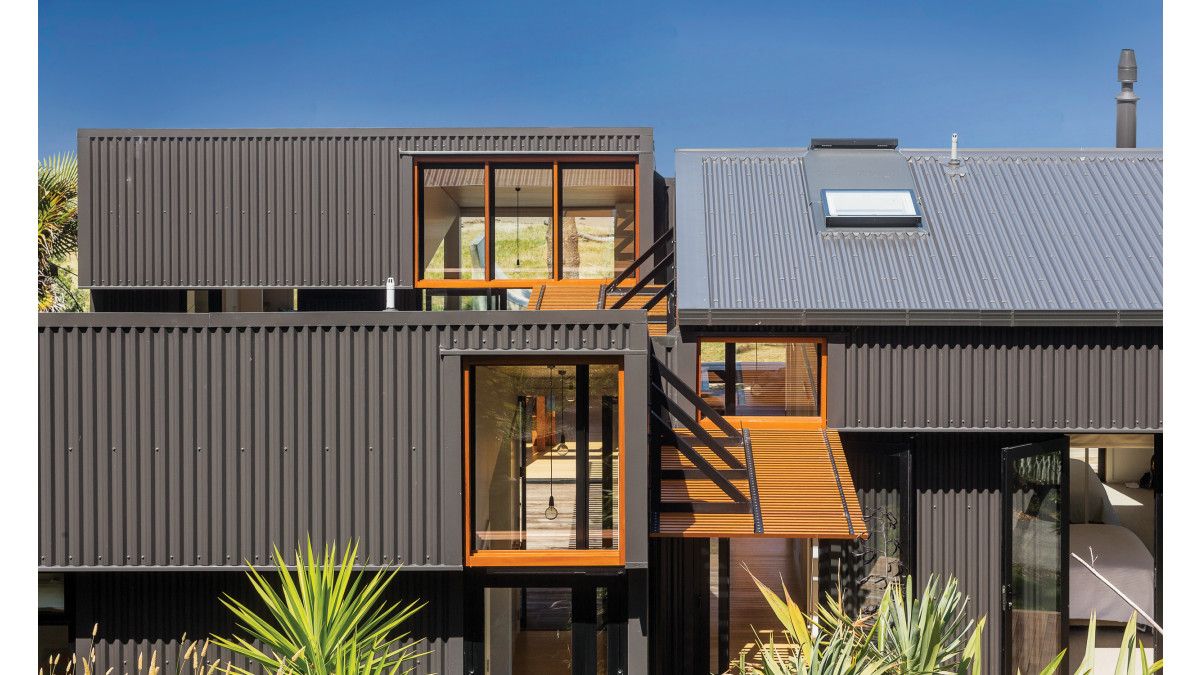

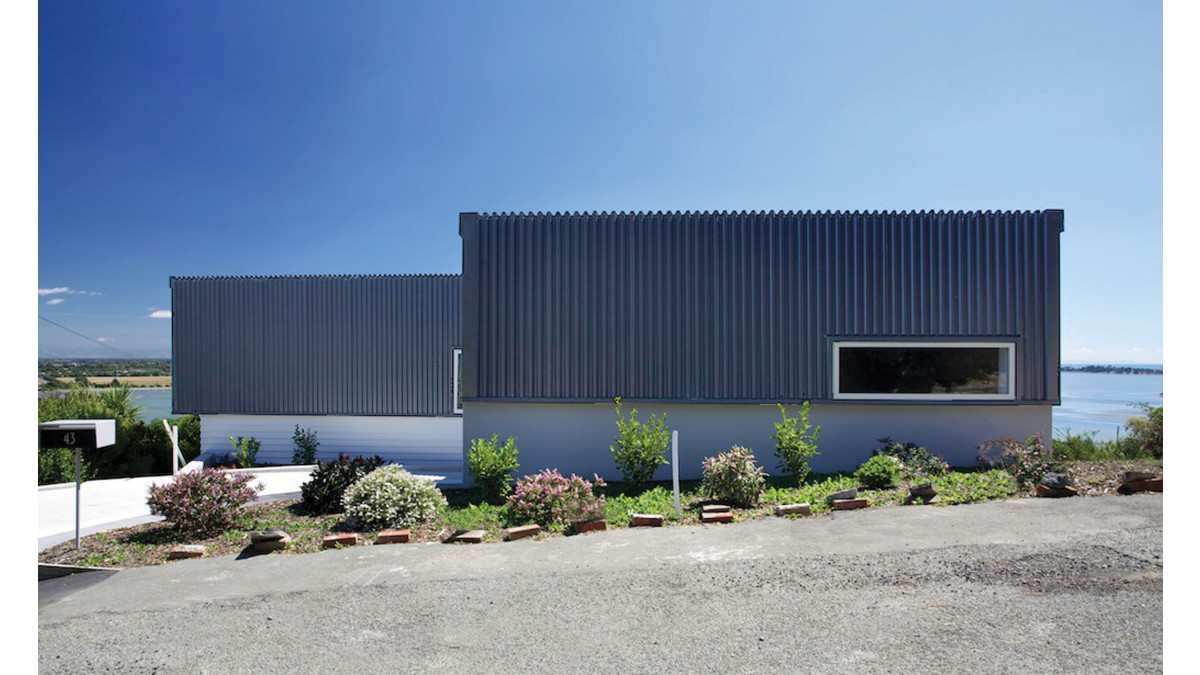

Dimond V-Rib
Description

The clean-cut, striking appearance of V-Rib makes it a popular roofing and cladding profile used on a wide range of applications from the Comalco Aluminium Smelter at Tiwai Point, Southland to the prestigious Mikano restaurant on Auckland’s waterfront.

The symmetrical sections have inherent strength characteristics that provide a good tolerance to foot traffic as well as the title of the strongest drape curved roofing profile available.  Where design criteria demands continuous length, economy and simple, speedy erection V-Rib makes an excellent choice.

Key Features
  • Cover: 915mm
  • Sheet Width: 966mm
Green Tag Certified
Green Tag Certified
NZ Made
NZ Made
Scope of Use

Minimum Pitch: 4 degrees

Dimond long run metal roofing and cladding is intended for use in constructing the building envelope for commercial buildings and residential buildings subject to the limitations listed below.

Attention to the following details is required to ensure the expected system performance is achieved:

  • The selection of the type and grade of sheeting material and fasteners must be based on the life expectancy required and the severity of the external and internal environments.
  • Correct choice of breather type or vapour barrier underlay to suit the building environment.
  • Site storage that keeps product dry and protected from damage.
  • Sheeting handling that prevents surface damage.
  • Avoidance of excessive spans or insufficient fasteners for the expected loads.
  • Correct placement and flashing of penetrations through the roof.
  • Correct layout and installation of the sheeting, underlay and netting.
  • Allowance for thermal expansion and contraction.
  • Sufficient roof pitch to permit complete surface water drainage.
  • Control of allowable contact with dissimilar materials.
  • Awareness and implementation of maintenance requirements, particularly for surfaces not washed by natural rainfall.
  • Correct choice of material for collection of drinking water from a Zincalume or colour finished roof is required.
Limitations on Use
  • Not suitable for use as a platform for maintenance work.
  • If the need arises to use Dimond long run roofing & cladding outside the limitations and procedures given in the Performance Statements or other referenced literature, or if any doubt exists on product handling or use, written approval for use must be obtained from Dimond before the project commences.
4° Minimum Roof Pitch Required
Statement of Building Code Compliance

Test information available from Pacific Coilcoaters and BHP NZ Steel, and past history of use of long run metal roofing and cladding products in New Zealand indicate that, provided the product use and maintenance is in line with the guidelines contained in the current literature referenced, Dimond long run metal roofing & wall cladding systems can be expected to meet the performance criteria in clause B2 and E2 of the New Zealand Building Code, for a period of not less than 15 years.

In-Service History

Dimond is New Zealand's largest manufacturer of steel roofing, cladding, structural and rainwater goods.

Other Performance Attributes

Green Tag:

  • All Dimond Roofing products roll-formed using ColorCote painted steel coil is Global GreenRate GreenTag certified and is applicable for Green Star and Home Star credits

Span Capacity

Roofing Span Capacity
Thickness  End span  Internal span
0.40mm 1.20m* 1.80m
0.55mm 1.70m* 2.50m

*To suit ultimate wind loads up to 1.5 kPa

Cladding Span Capacity
Thickness  End span  Internal span
0.40mm 1.90m 2.90m
0.55mm 2.30m 3.50m

Note: Spans shown above are for steel. When using other materials please call 0800 DIMOND for more info.

B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
Documents
CAD/PDF LInk
Product Technical Statement
Dimond Roofing & Cladding Technical Manual
Span Tables
Environmental Information
Environmental Information
Specification Clause (Masterspec)
Installation and Operation
Brochure
Dimond Homeowners Brochure
