Dezignatek Profile Doors

Thermoform profile doors are made using a robust vinyl film which is wrapped around the face and edges of a drawer or door panel and then bonded under heat and vacuum pressure.

This provides a seamless, hard‑wearing and moisture-resistant finish, without the need for edge tape. Thermoform doors and drawers are provided with a melamine back.

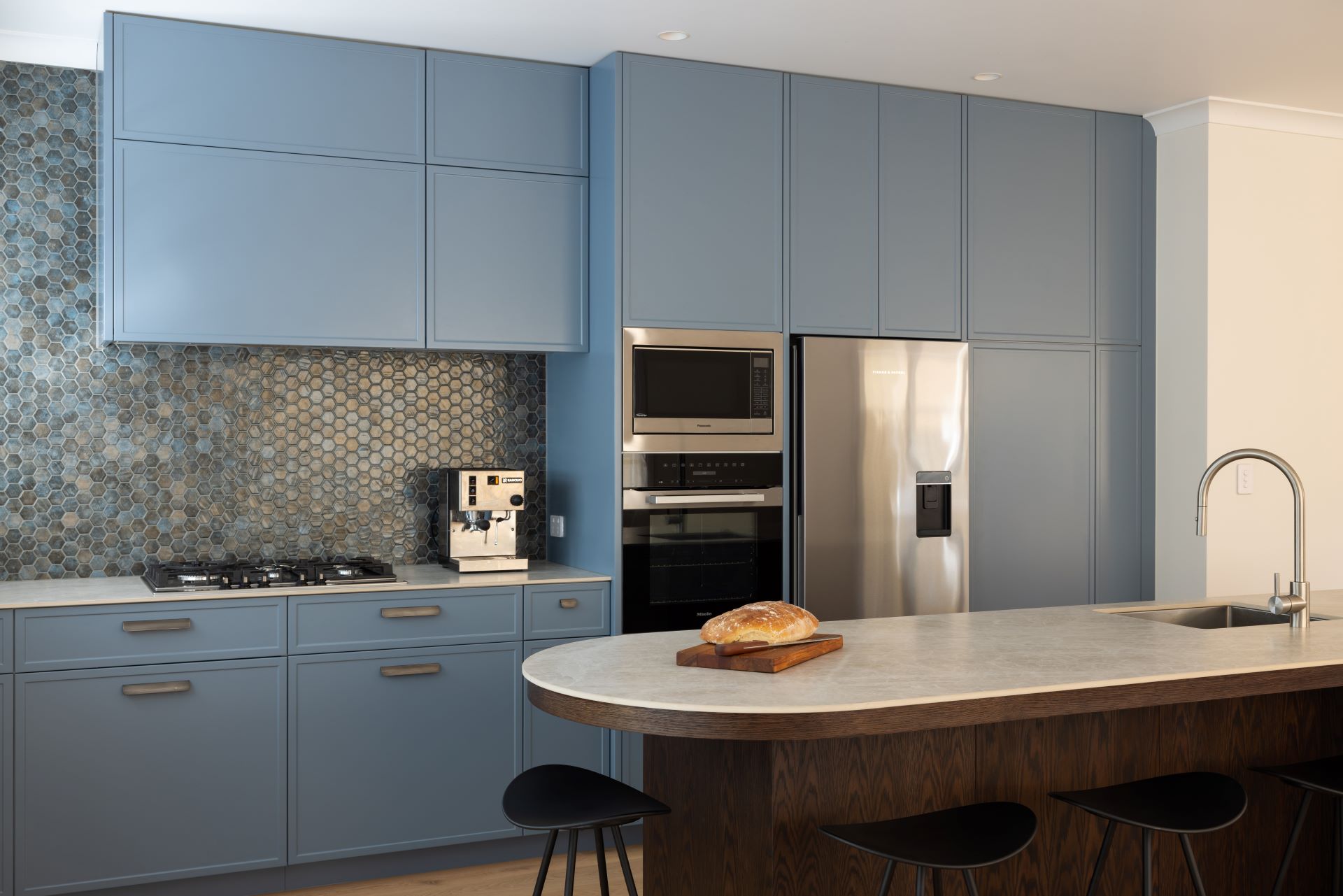

All thermoform profile doors can be supplied as a paint-ready option which can be finished in a paint colour of choice.

Key Features
  • Proudly made in New Zealand
  • 10 year warranty
  • Made with a NZ made HDF substrate
  • Standard return of 80mm
  • Eco Choice Aotearoa accreditation
Eco Choice Aotearoa (ECNZ) Licensed
Eco Choice Aotearoa
NZ Made
NZ Made
Scope of Use
  • An ideal surface for normal wear and tear in a kitchen environment
  • Available in 18mm, 25mm and 30mm only
  • Maximum height 2400mm
  • Up to 350mm return available (max height 1200mm)
  • When using woodgrain foils specify if panel is left hand or right hand to ensure wood grain runs in one direction

If doors are subjected to excessive heat from certain types of ovens and dishwashers on a prolonged basis, shrinkage of the edges may occur. To eliminate this potential shrinkage Dezignatek recommends as follows:

  • Fit 180 degrees wrapped panels either side of the oven and dishwasher, or if under bench scriber panels will suffice
  • Where a drawer is fitted under an over tower, fit panel horizontally to protect drawer, or fit an appropriate powder coated oven deflector in either white or silver
Limitations on Use

Never use the following on the doors: abrasive cleaners, Janola or similar, scourer pads, wire wool, sand paper, or solvents and thinners

While Dezignatek doors and panels are water resistant (not water proof), care should be taken to ensure excessive exposure to water, steam or extreme humidity is avoided.

In-Service History

Dezignatek operates from a state of the art production facility in East Tamaki with a high level of automation covering its CNC operations, sanding and robotic glue application prior to thermoforming. It also provides finished melamine, acrylic and Soft-Matt  HPL doors with decors available from Prime Panels or Bestwood ranges.

Other Performance Attributes
  • 10 year warranty
  • Eco Choice Aotearoa accreditation
Technical Data Sheet
Specification Manual
Product Care Guide
Thermoform Catalogue
Environmental Information
