Conectabal Commercial Baulstrades
Description

Moddex Commercial Balustrades eliminate risk to workers, customers and visitors from falls from height in public areas.  Moddex commercial and industrial balustrades offer a high safety load rating and will achieve compliance with every standard in any application.

Available in 8 configurations:

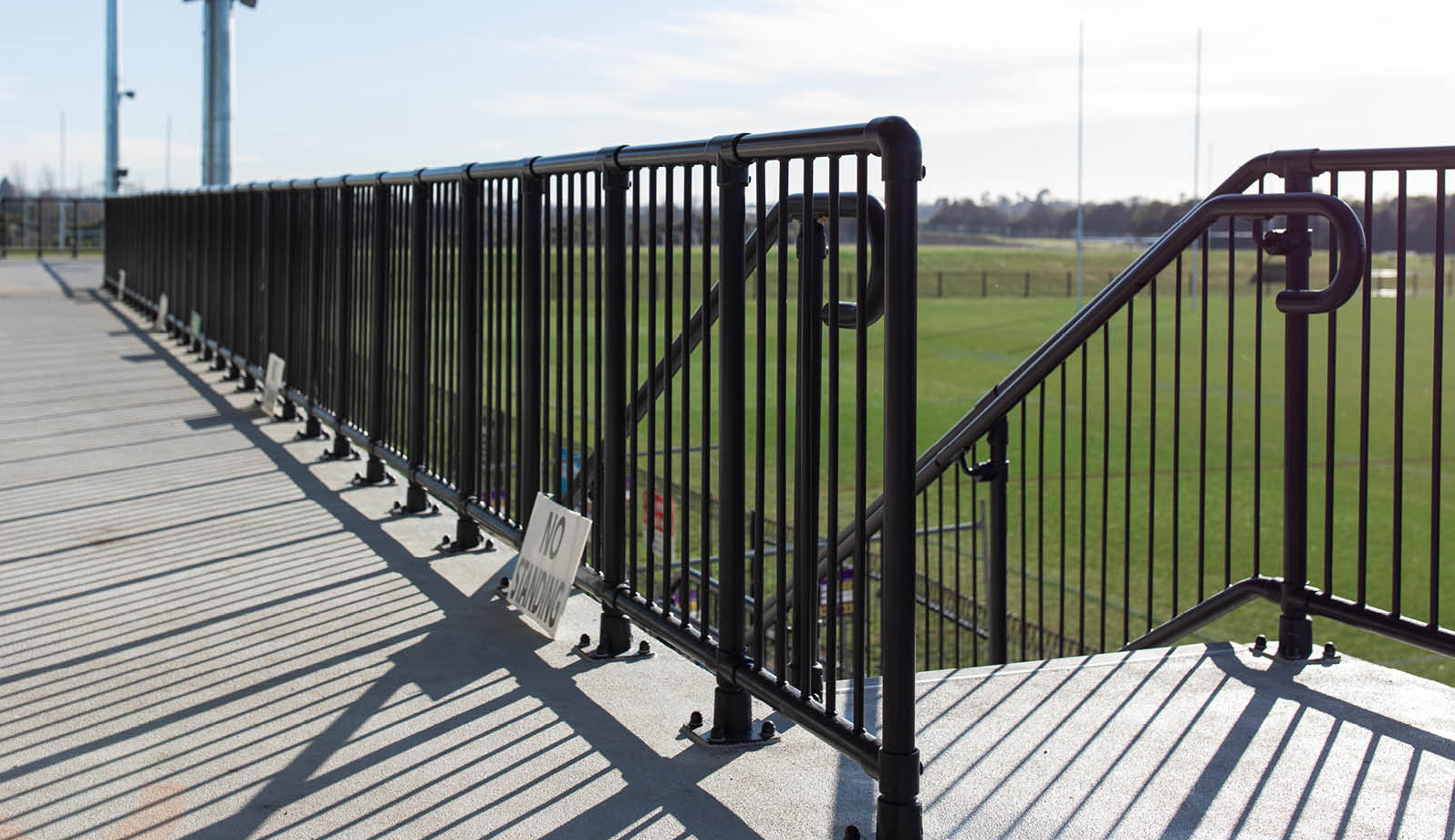

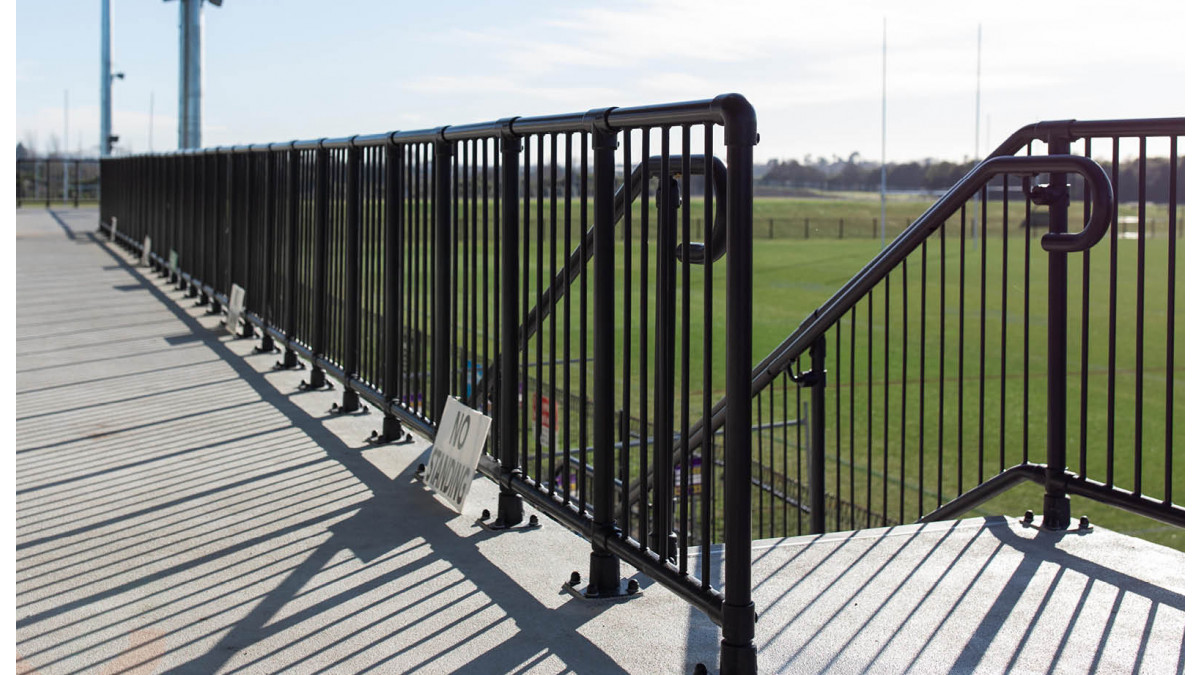

  • CB10 — Standard Balustrade

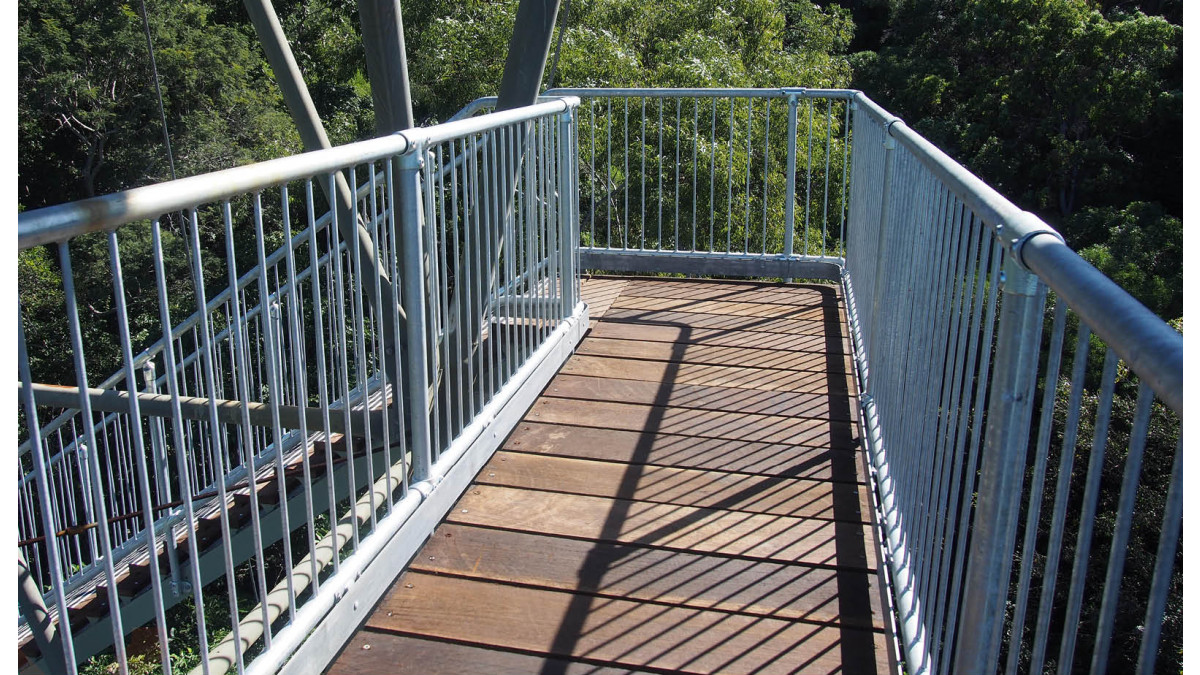

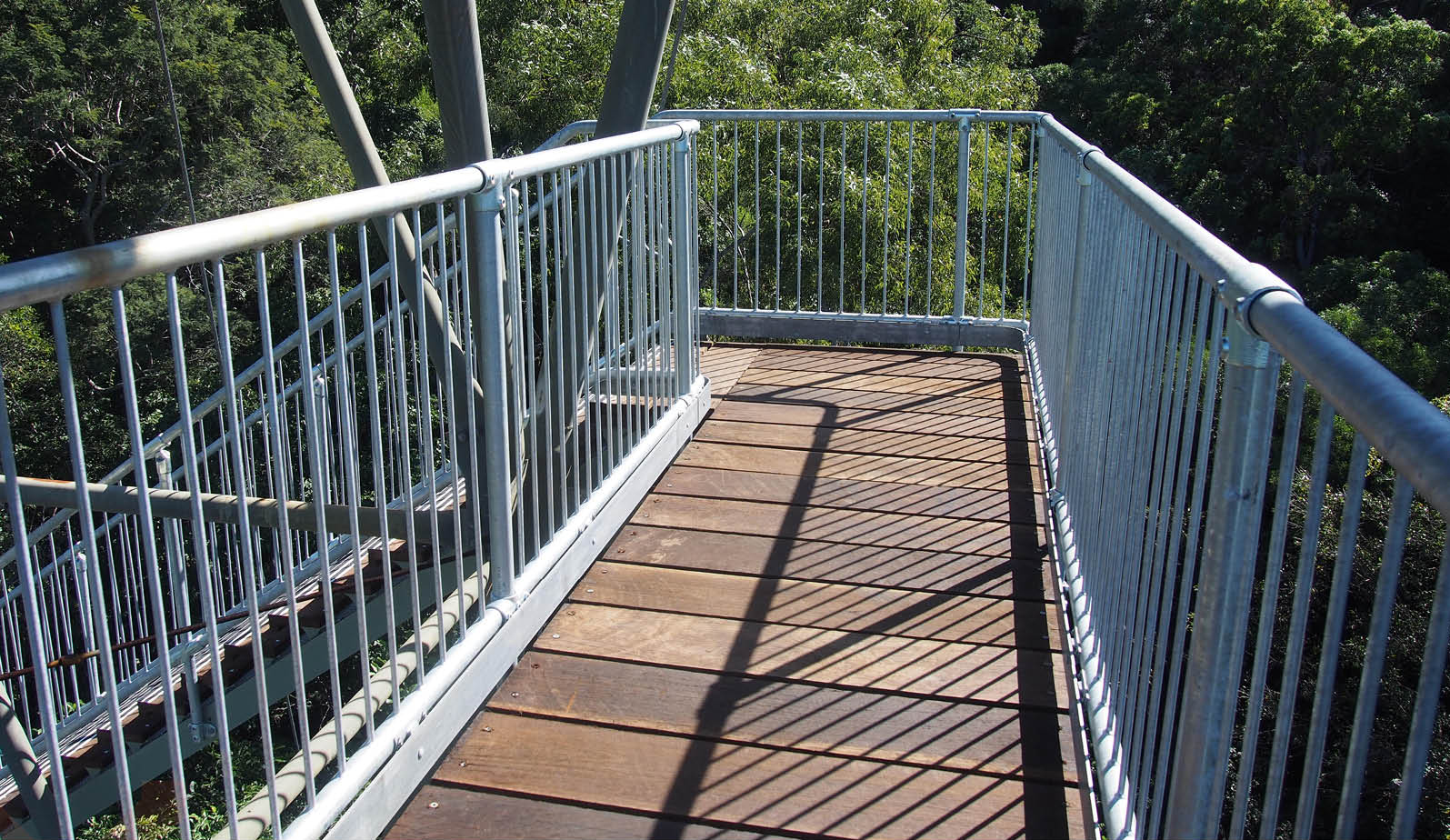

  • CB20 — Balustrade with kickplate

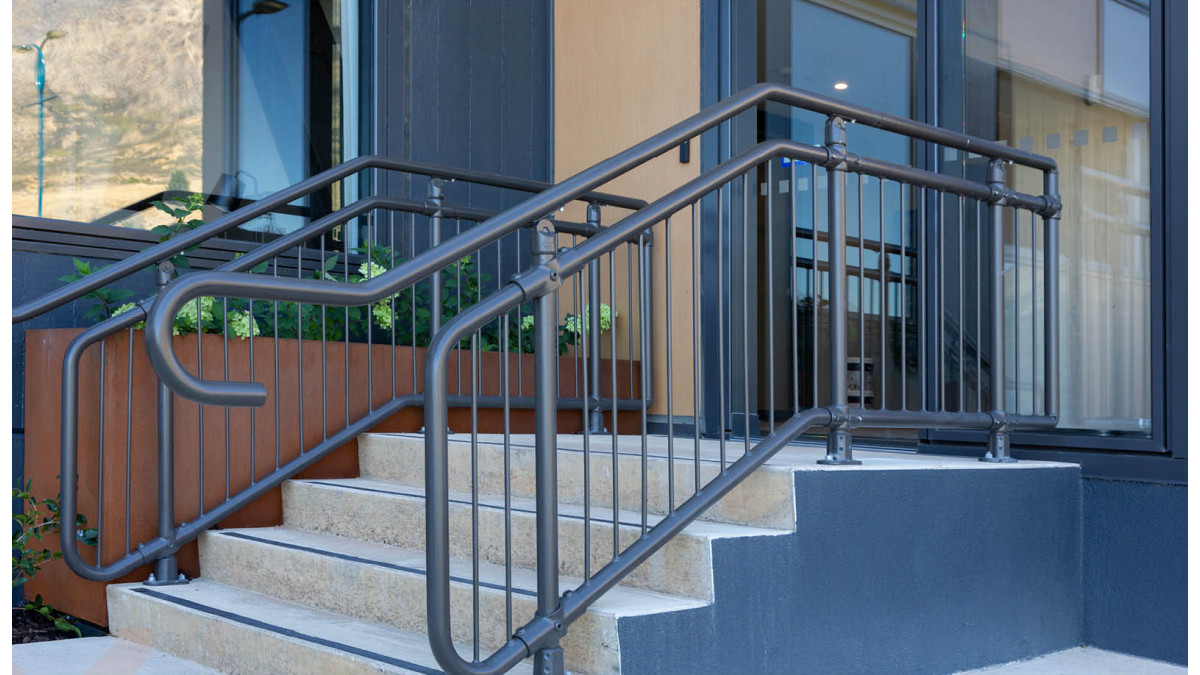

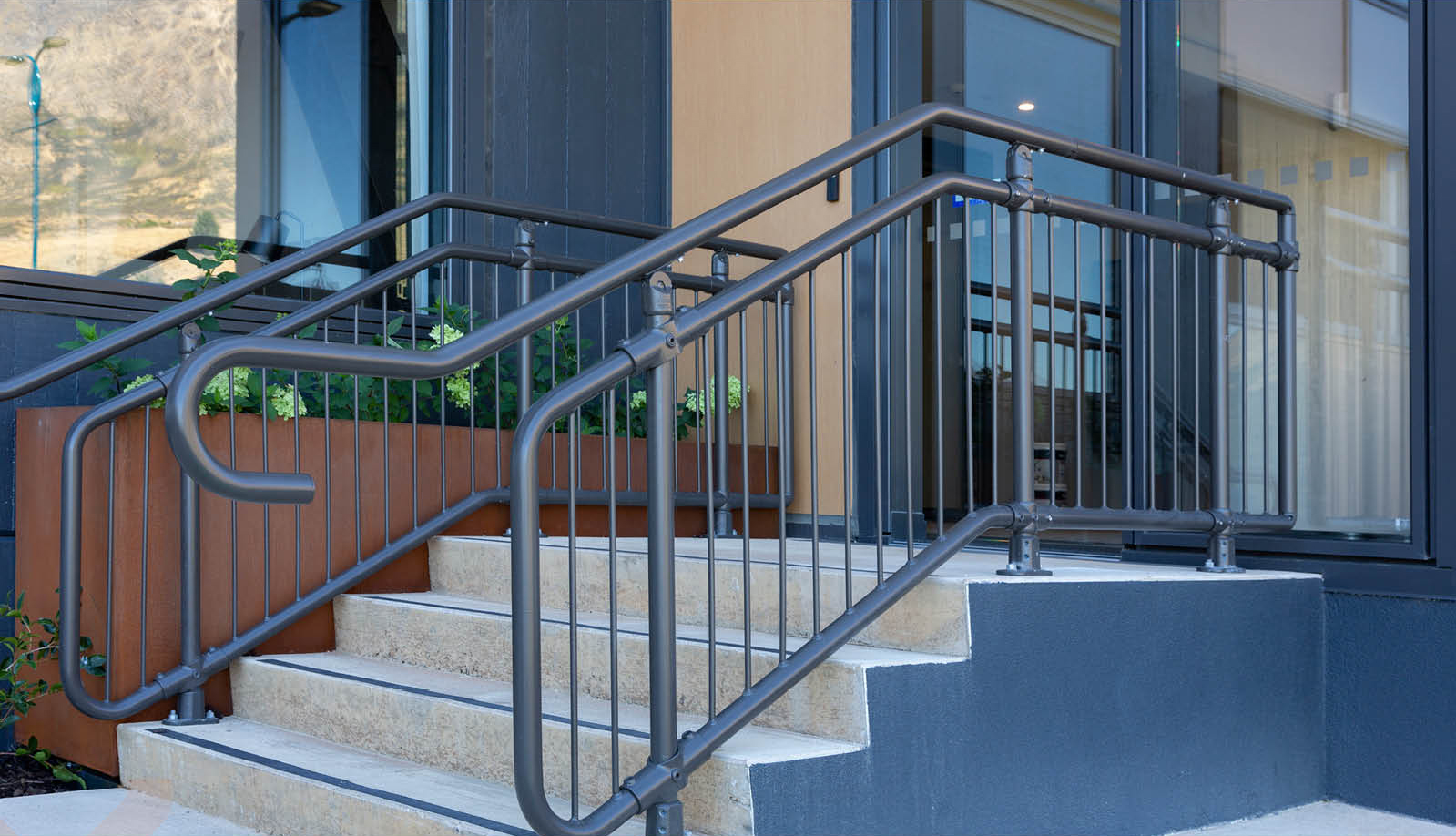

  • CB30 — Balustrade with smooth and continuous top-rail

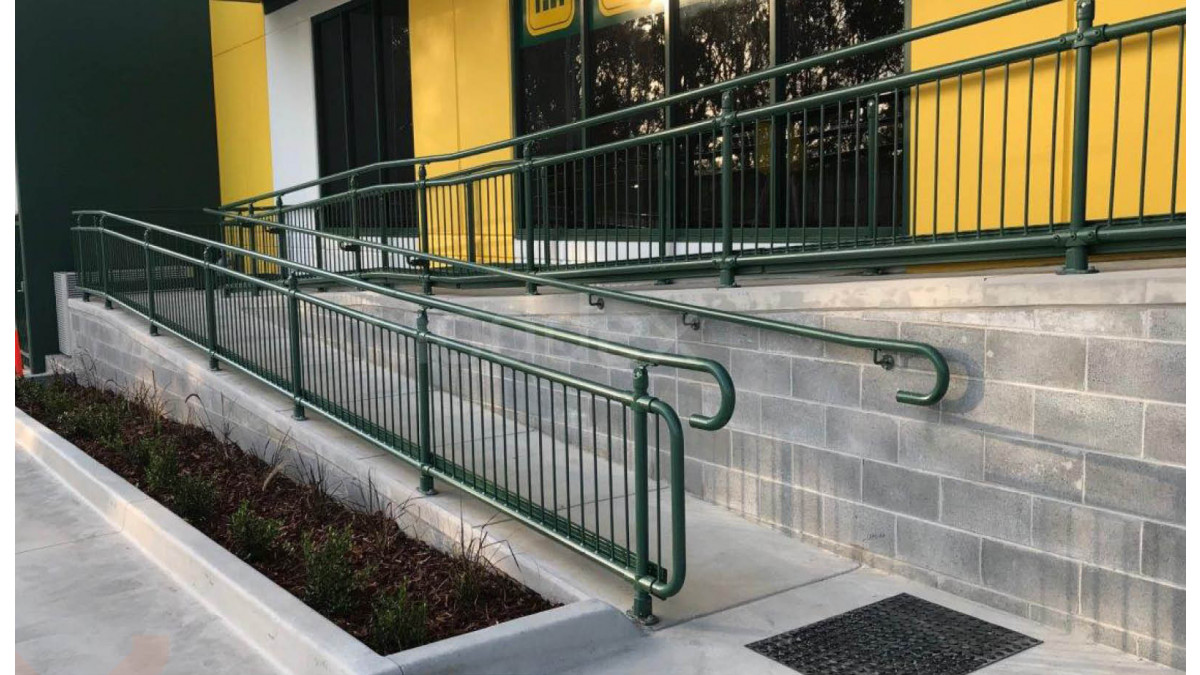

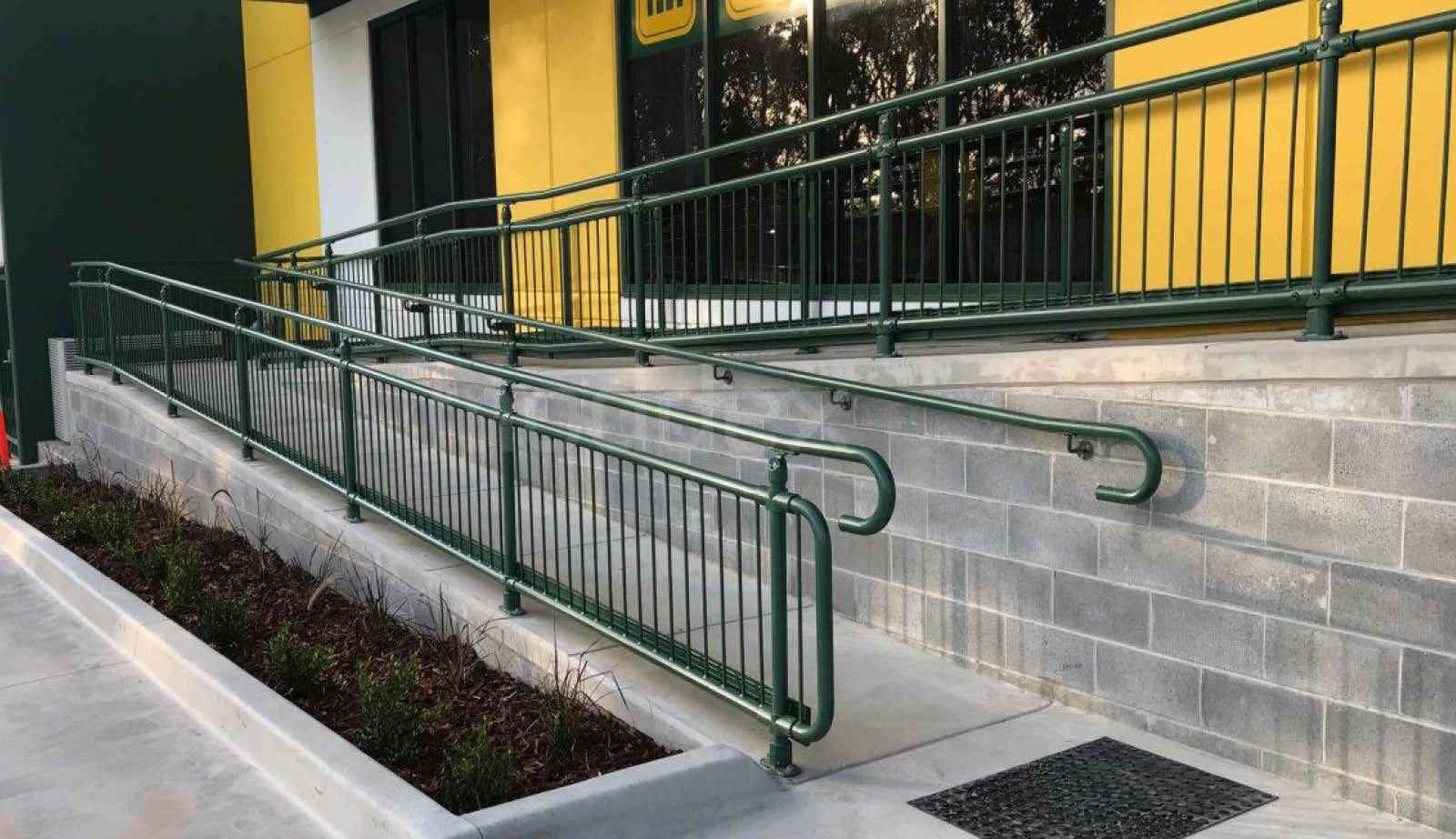

  • CB35 — Balustrade with smooth and continuous top-rail and kickplate

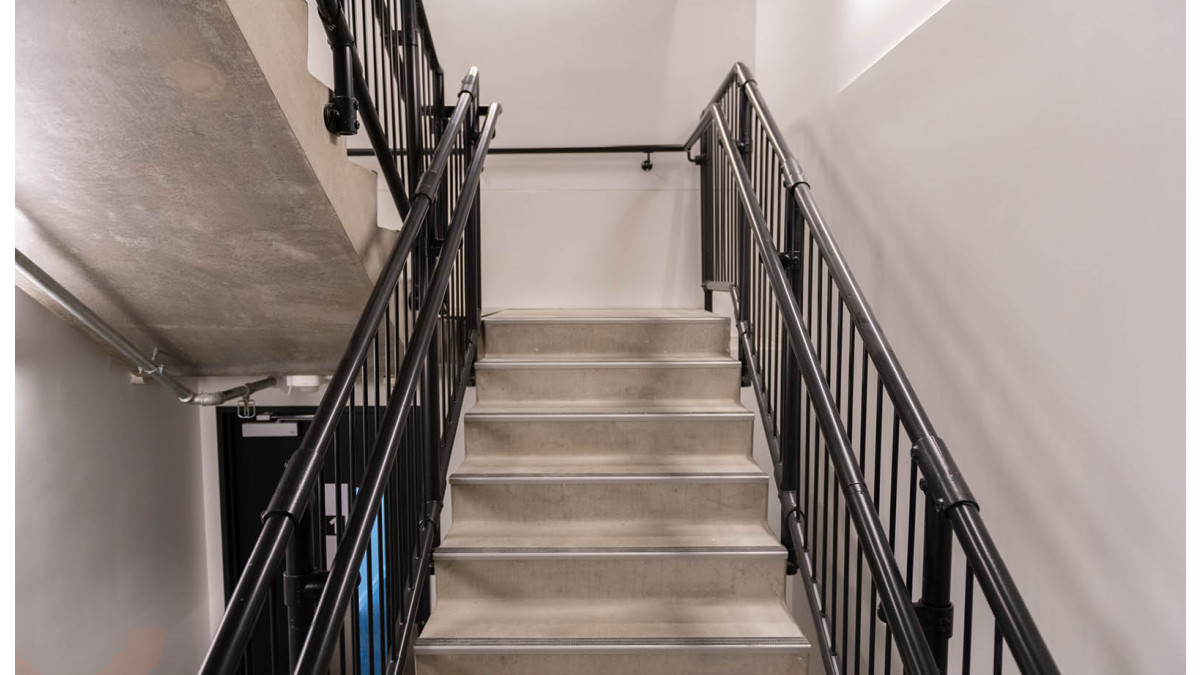

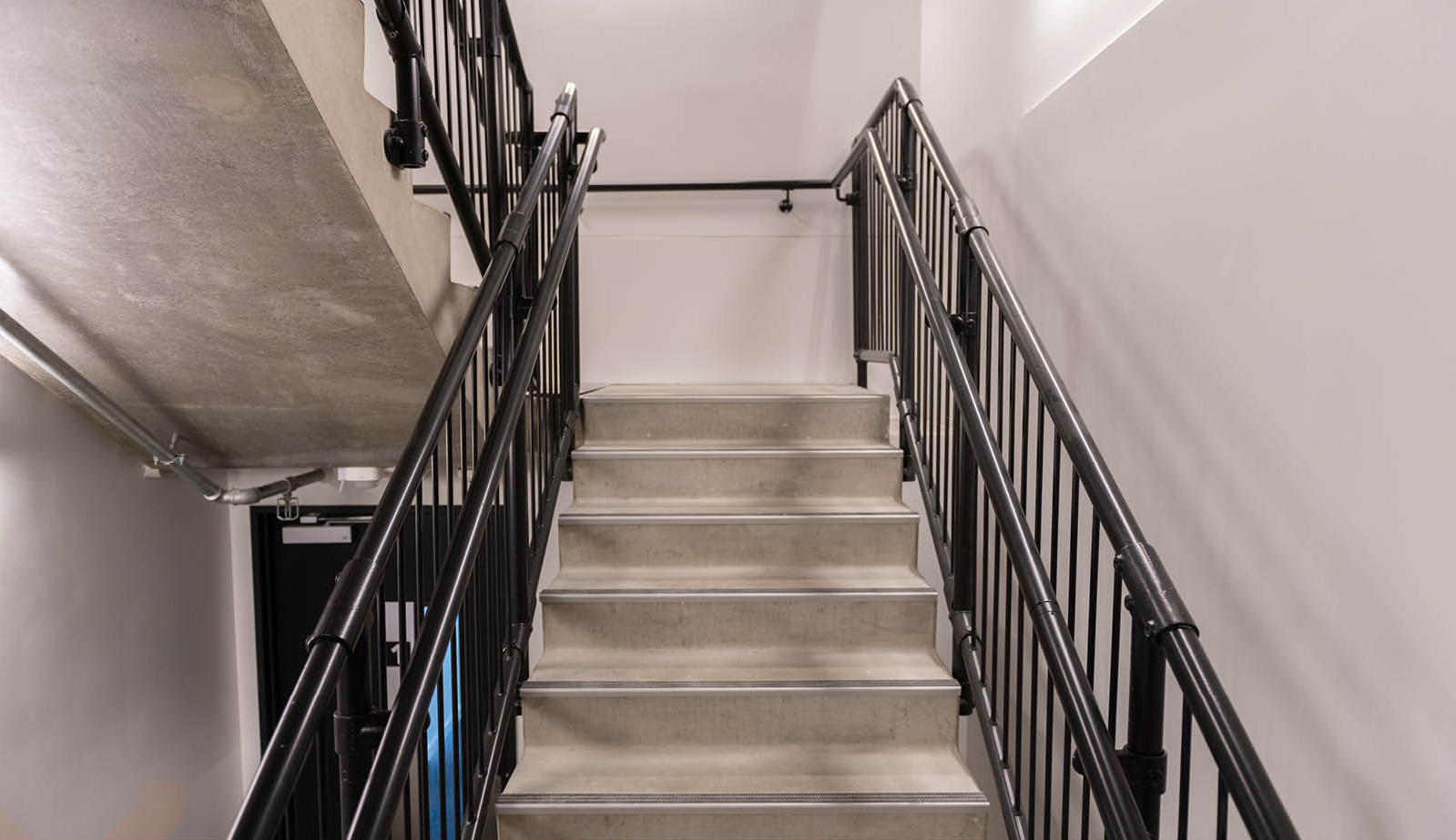

  • CB40 — Balustrade with offset handrail

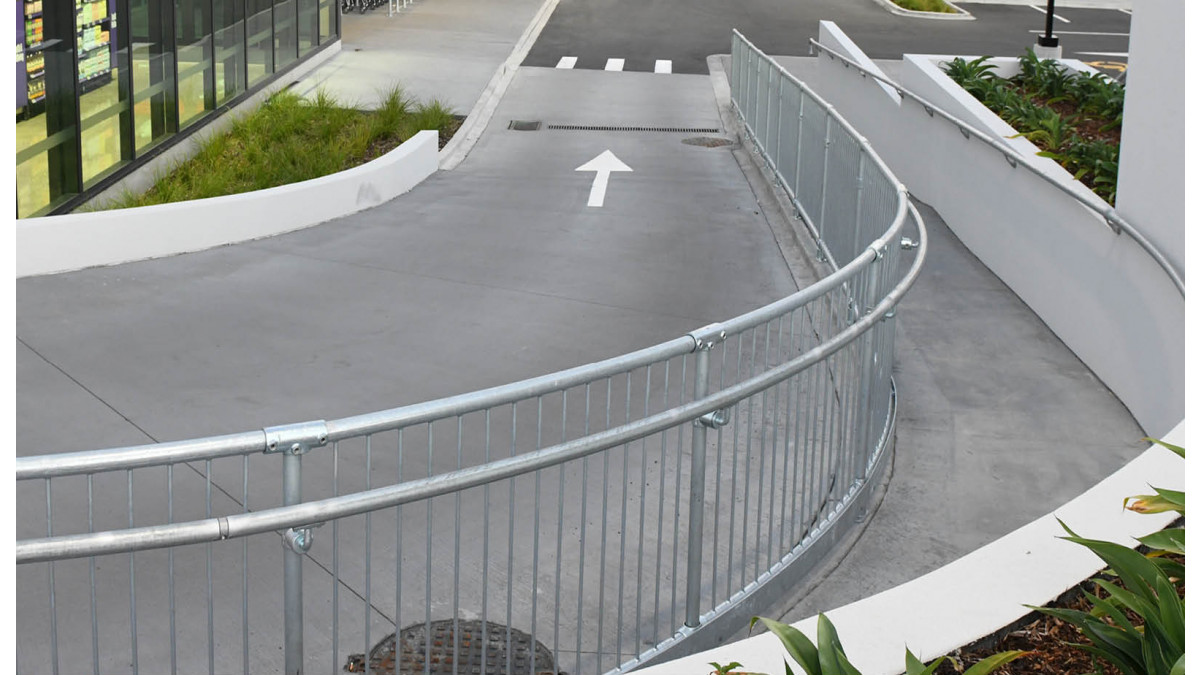

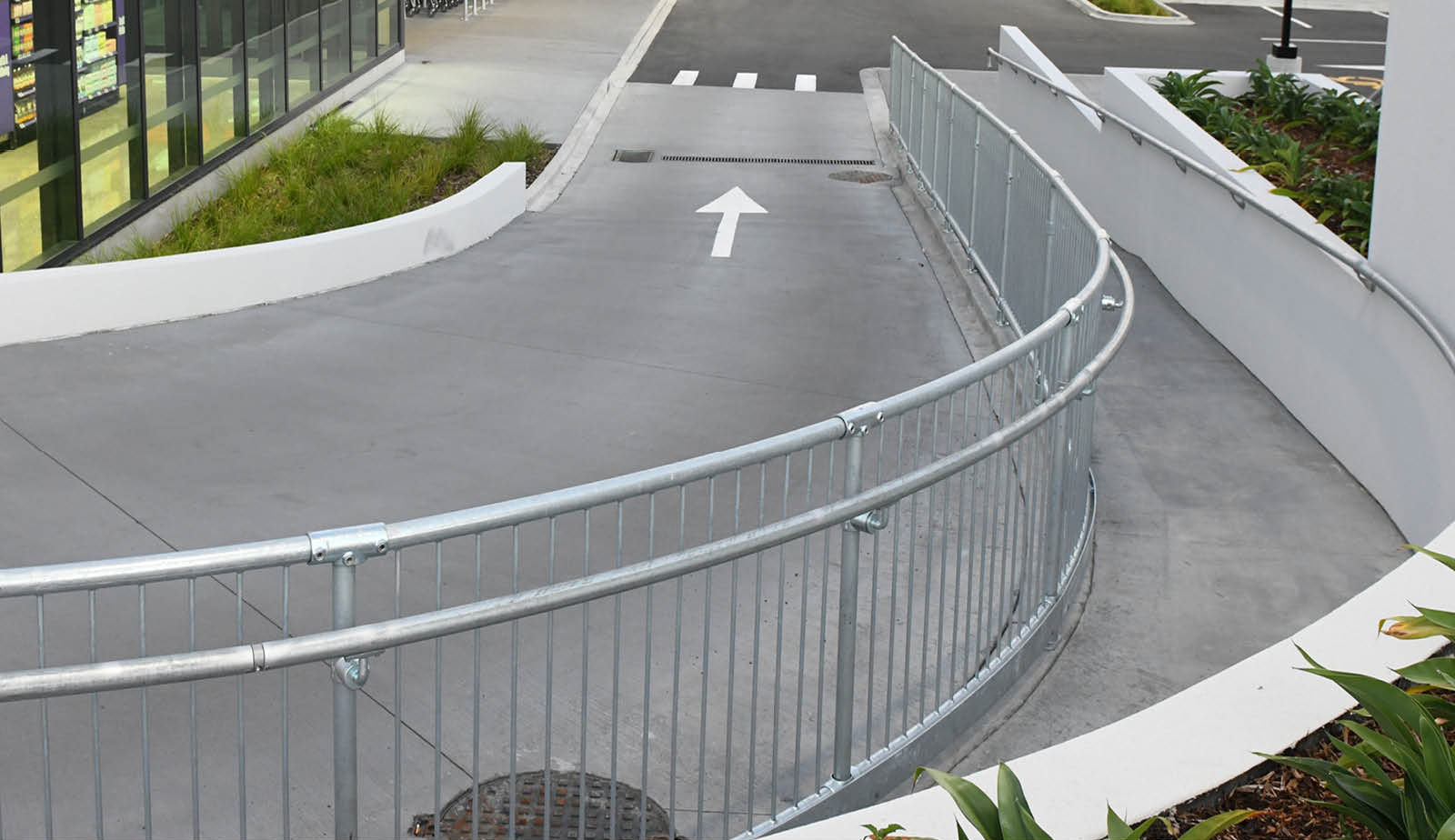

  • CB45 — Balustrade with offset handrail and kickplate

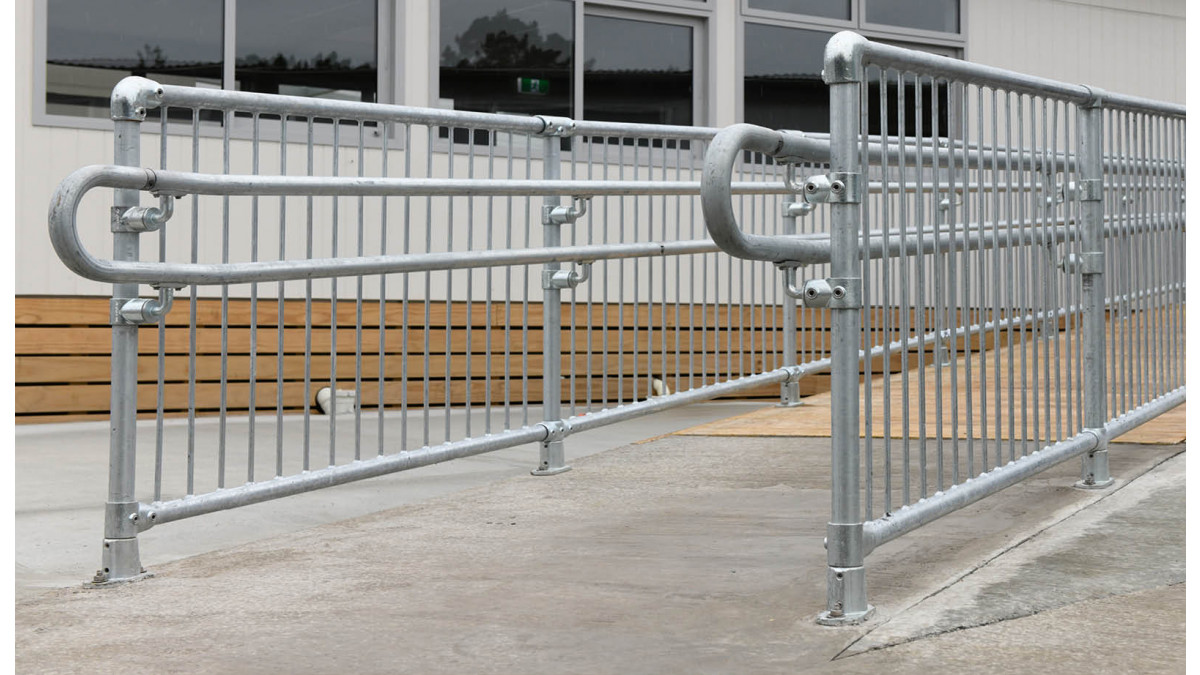

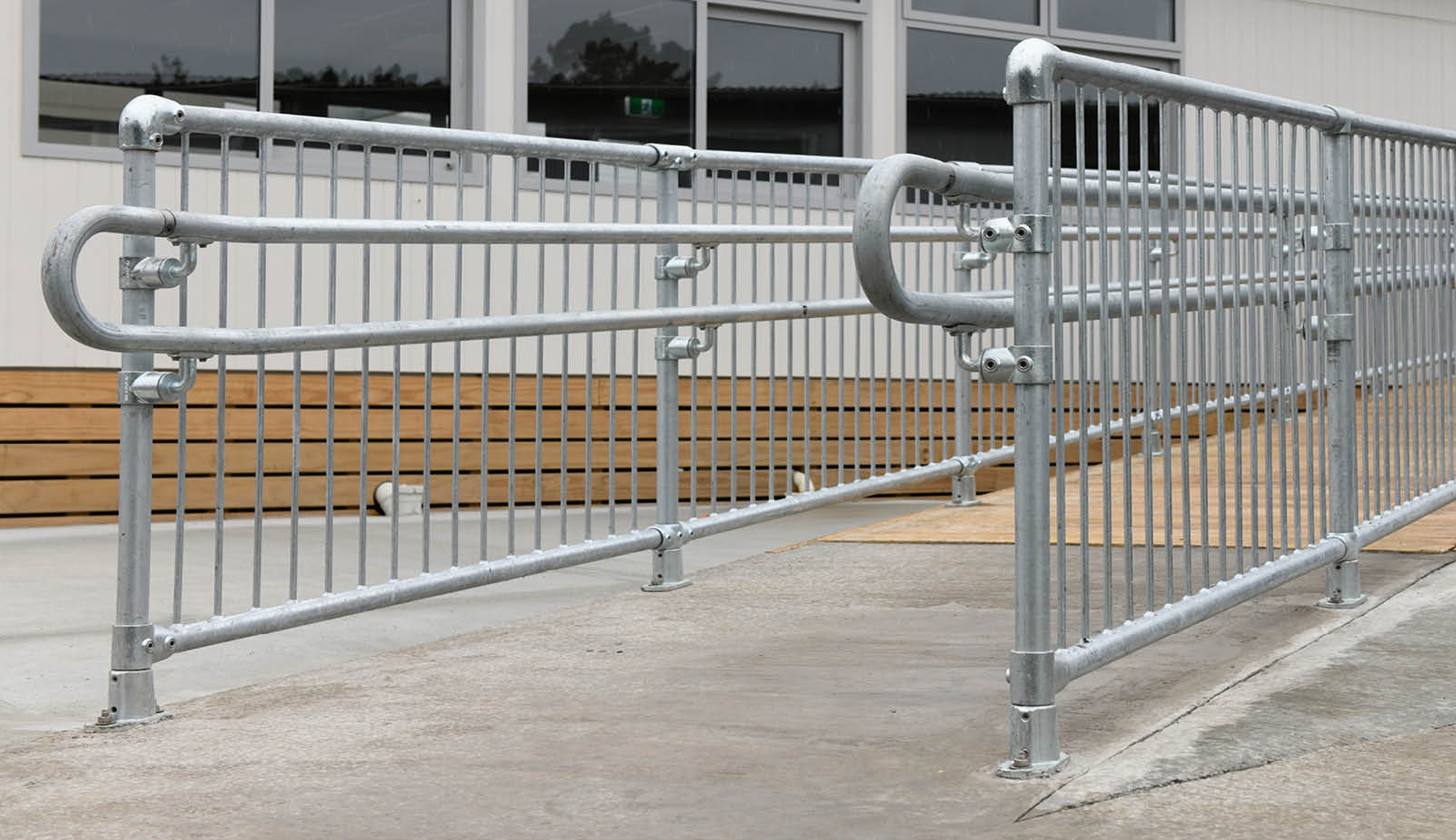

  • CB50 — Balustrade with double offset handrail

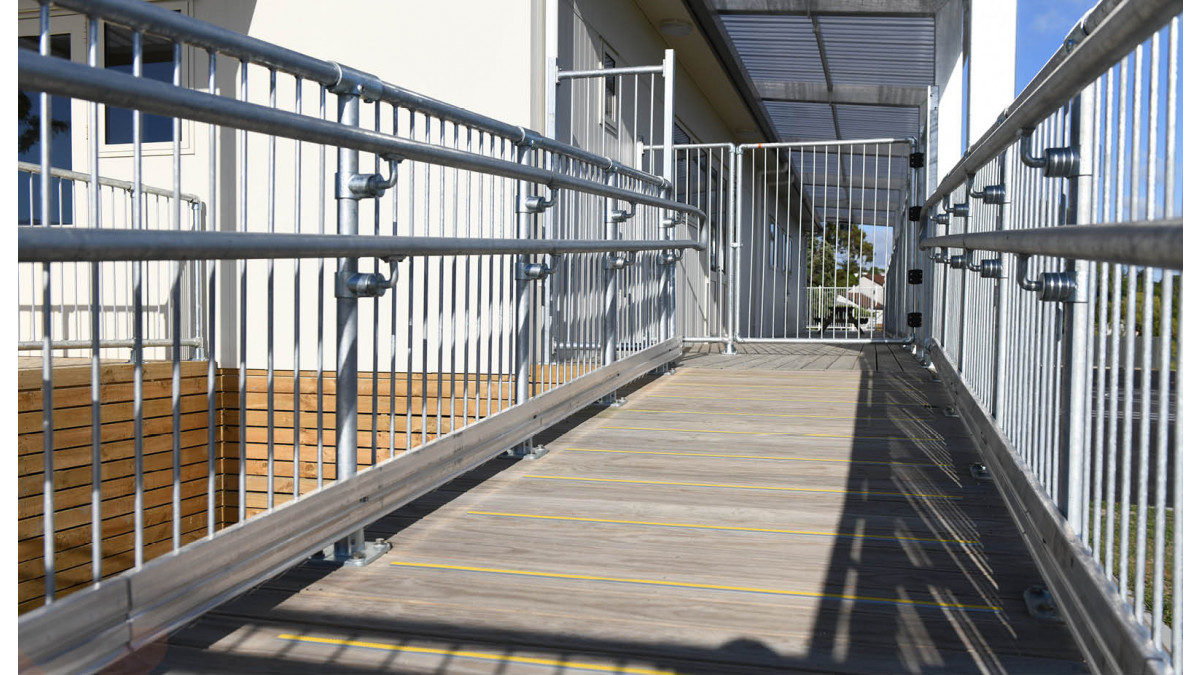

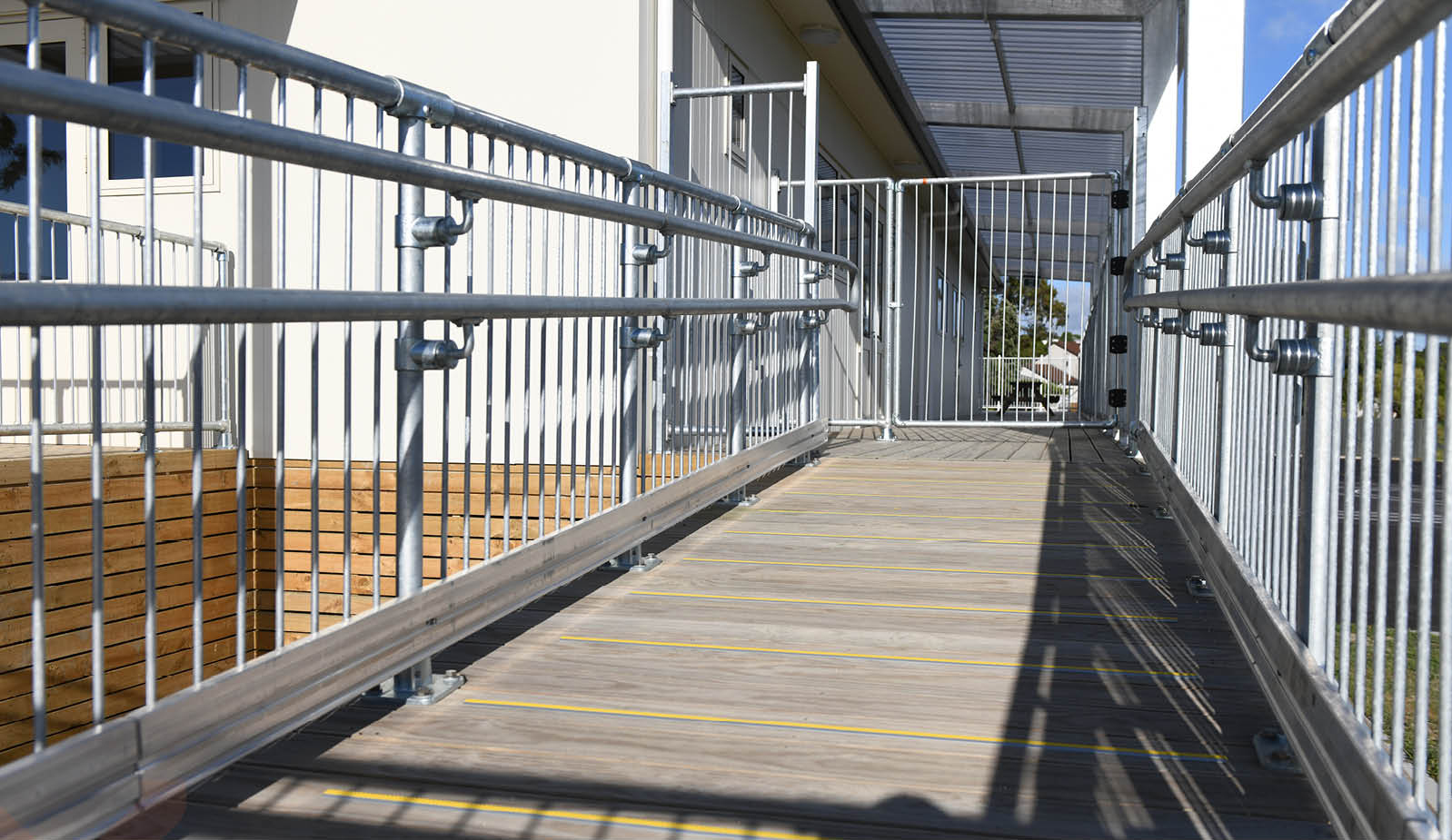

  • CB55 — Balustrade with double offset handrail and kickplate
Key Features
  • Balusters at 100mm intervals to meet or exceed standards across New Zealand
  • Crowd loadings up to C5 classification on request
  • Modular flexibility
  • No-weld assembly
  • Flat pack delivery
  • Easy to install
  • Galvanised zinc for durability and corrosion resistance
  • BIM and CAD files available
  • Colour options
Scope of Use

Easily configured to suit a wide range of applications:

  • Retaining walls
  • Carparks and loading bays
  • Access ramps and stairs
  • Recreation centres
  • Mezzanines
  • Footbridges
  • Culverts
  • Fire stairs

Crowd loadings up to C5 classification on request

Statement of Building Code Compliance
  • Moddex Conectabal Commercial Balustrades complies with the New Zealand Building Code — Clause F4 - Safety from falling.
  • Refer to Moddex Conectabal PS1 for further product specification details
  • Crowd loadings up to C5 classification on request
Other Performance Attributes
  • Testing and performance based on requirement of Australian Standard AS1170.1 Clause 3.6 Table 3.3
  • Stringent vibration endurance tests have been performed and independent testing has been carried out to confirm the suitability of the Moddex system in maritime conditions
  • Galvanised to AS 4792 and AS/NZS 4680:2006 (where applicable)

Warranty

5 years from date of purchase subject to correct installation, use and maintenance in accordance with manufacturer's specifications and recommendations unless otherwise negotiated at the time of purchase.

Documents
CAD & BIM Files to Download
Data Sheet: CB10
Data Sheet: CB20
Data Sheet: CB30
Data Sheet: CB35
Data Sheet: CB40
Data Sheet: CB45
Data Sheet: CB50
Data Sheet: CB55
Moddex Masterspec Worksection
PS1: Conectabal

2013

Handrail & Balustrade Configurations

2014

Mounting Options

2018

Moddex Brochure

2021

Moddex are New Zealand and Australia’s leading manufacturer of innovative barrier systems for large-scale infrastructure and non-residential construction projects.
