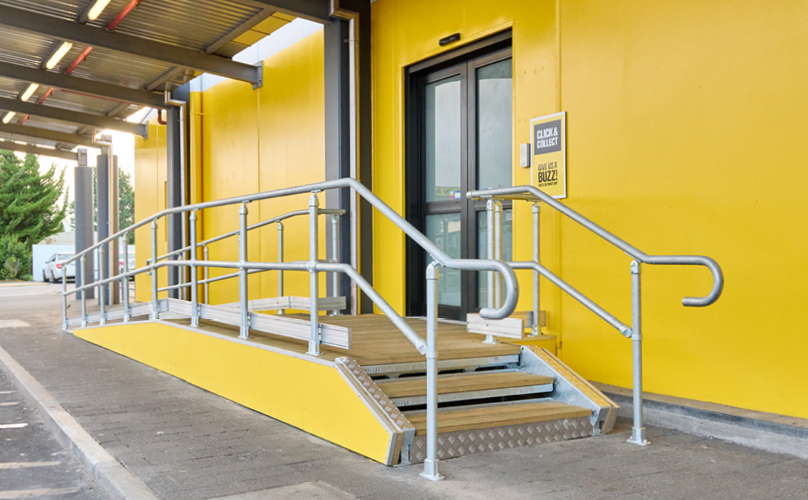

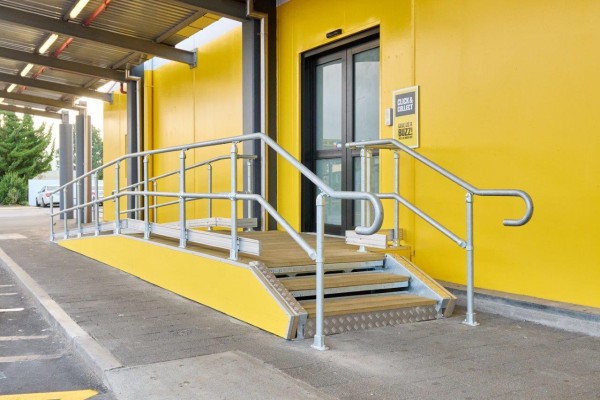

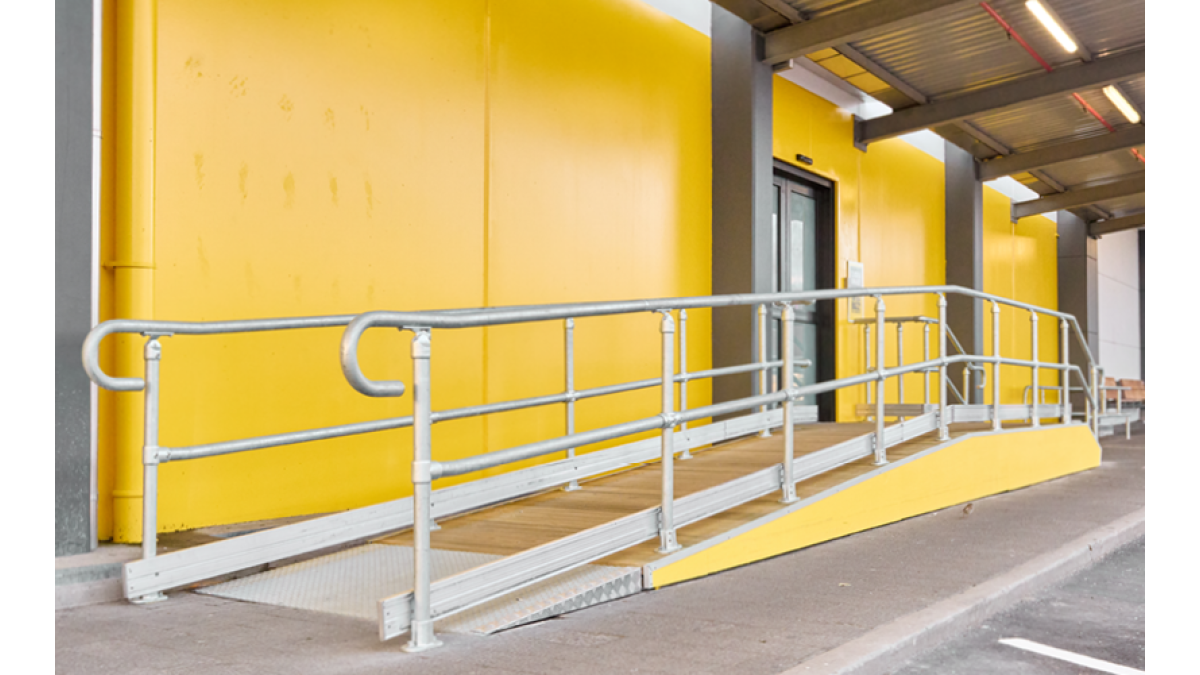

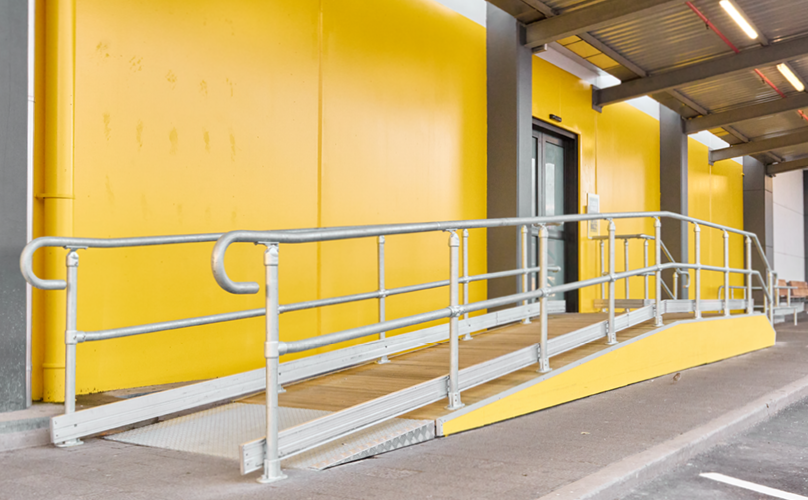

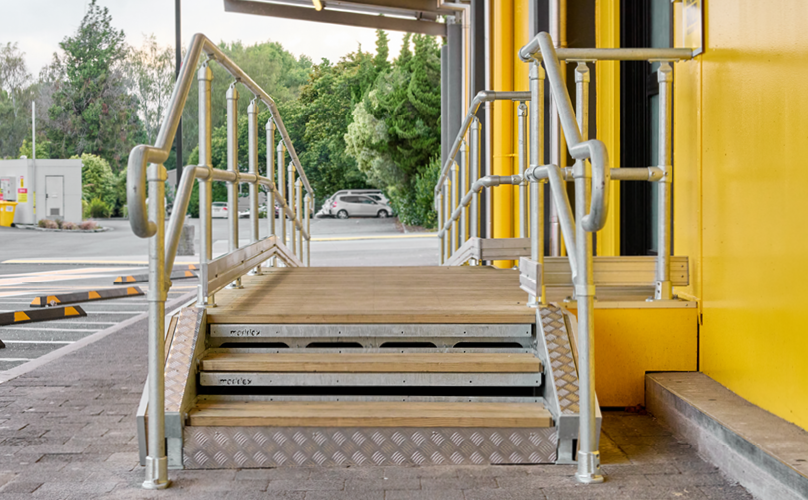

Ezibilt Modular Stair, Ramp & Deck Solution
Description

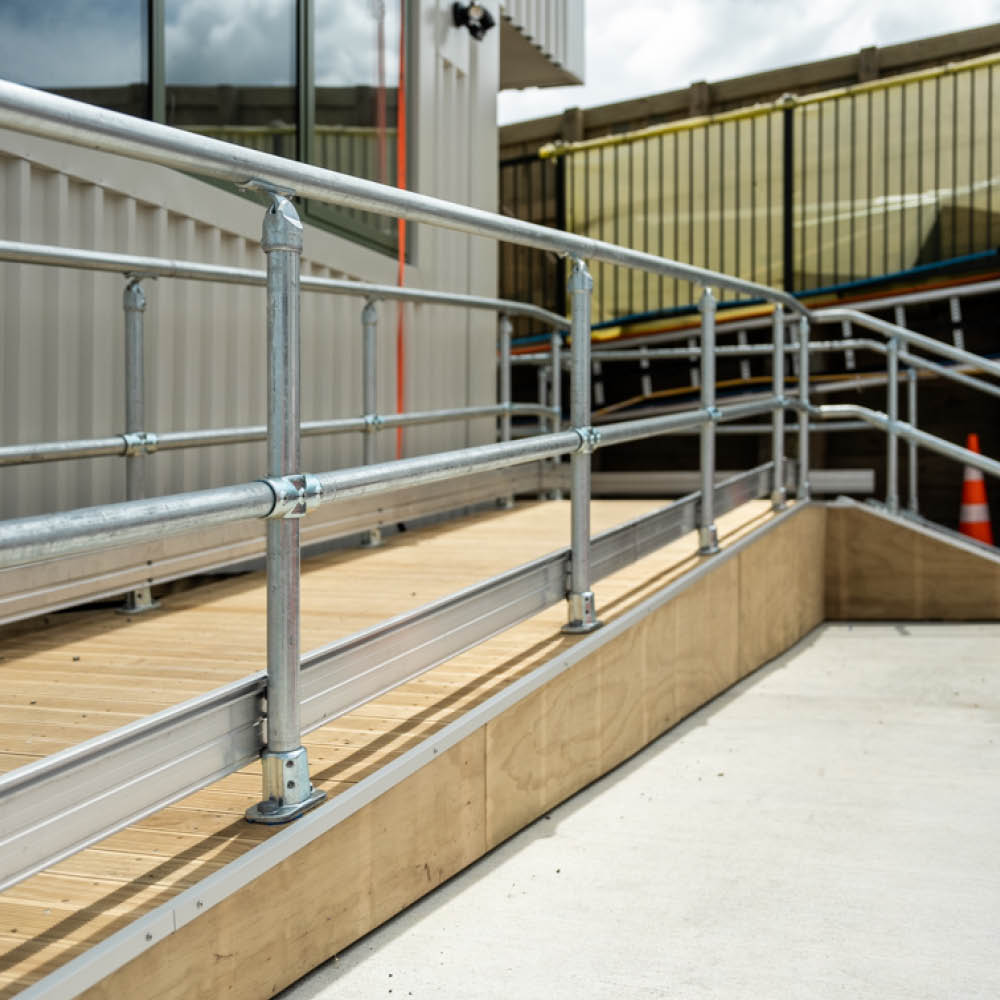

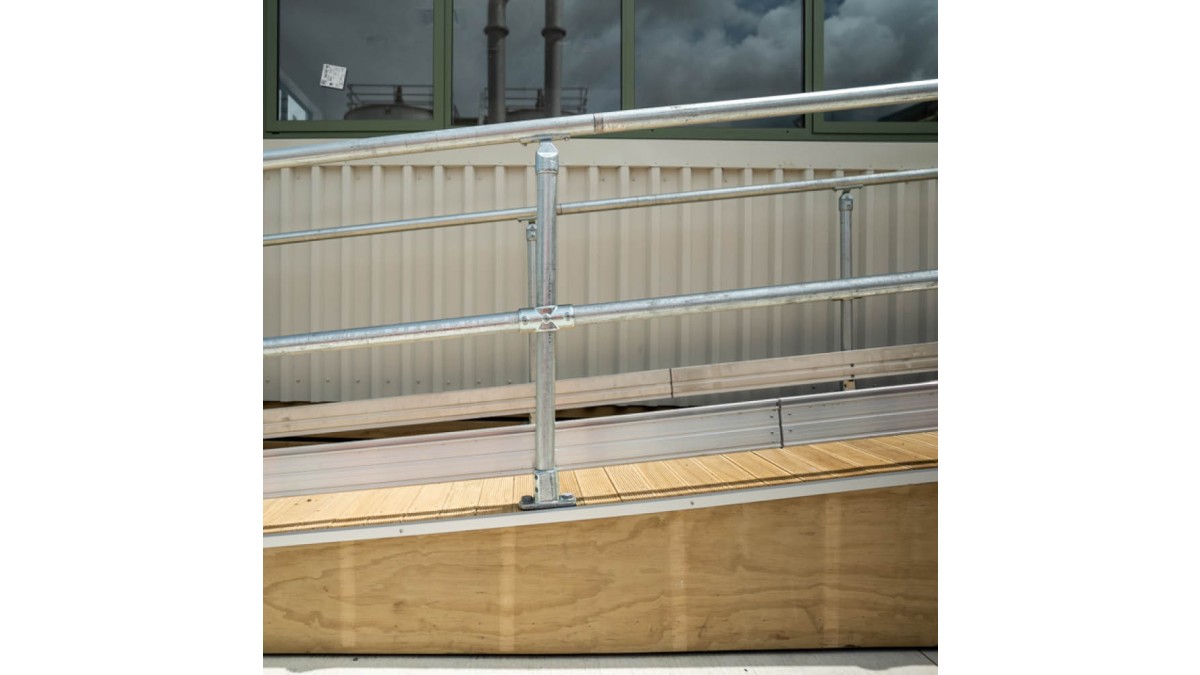

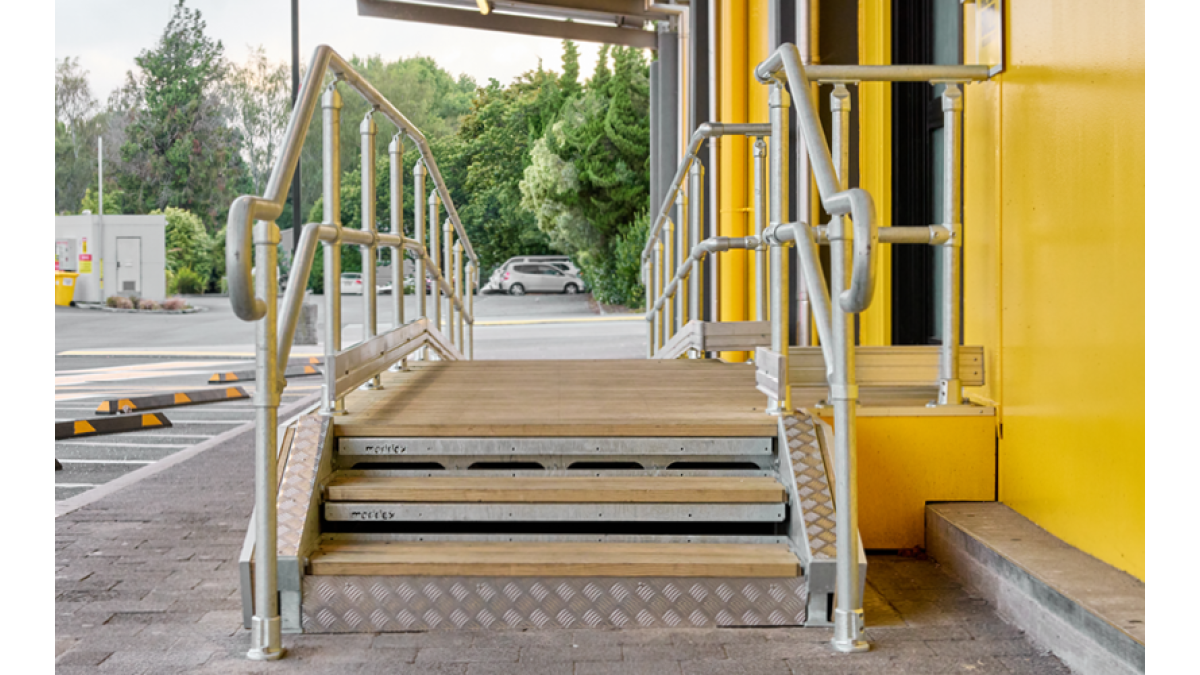

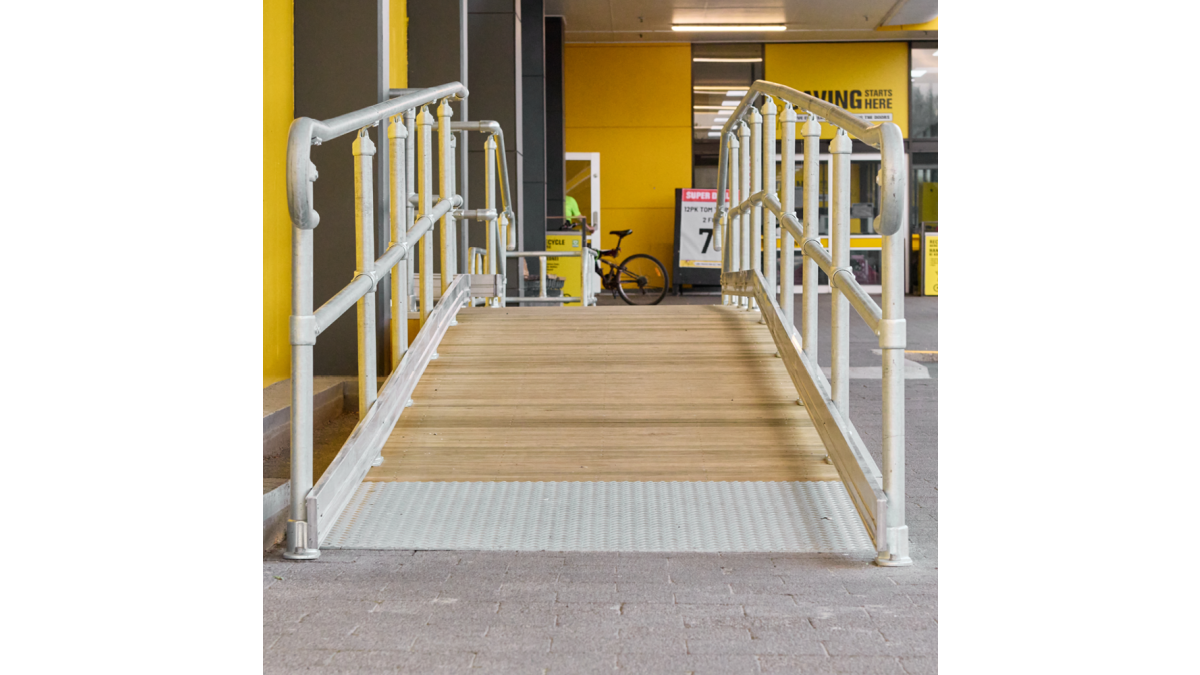

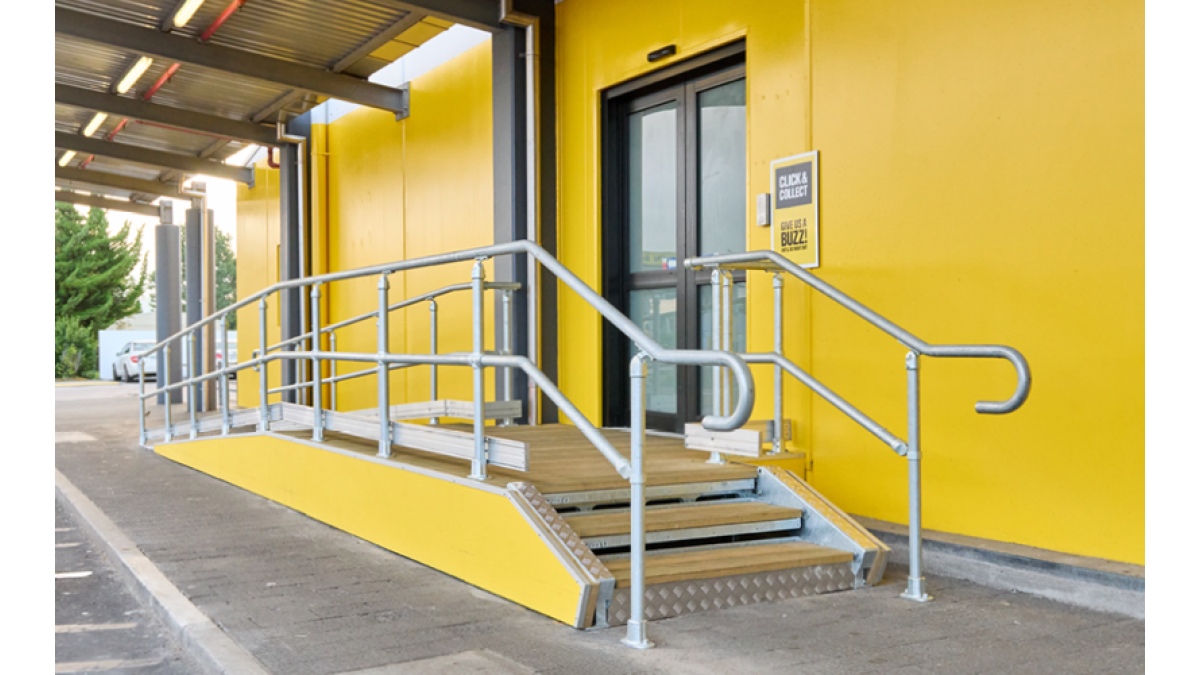

The Ezibilt™ Stair, Ramp & Deck System is the ultimate pre-engineered, offsite manufactured solution for fast-tracked construction of accessibility stairs, ramps and decks.

This is the latest in groundbreaking co-created innovation to join the versatile Moddex range, offering modular flexibility that can be configured to suit any site of varying heights and contours.

Adjustable and compatible to fit sloping site terrain with ramps and platforms having adjustable legs and stairs with adjustable stringers (both in length and angle) usable from 24°  through to 38°, the Ezibilt system replaces traditional custom-built access ramps, stairs and decks and eliminates the time-consuming processes associated with site measuring, customised design, delivery and installation

Key Features
  • Pre-engineered, modular solution — removes need for time consuming site measuring and design
  • Can be configured to suit sites of varying heights and contours
  • Fast-tracked accessibility construction — reduces time for stairs, ramps, and decks to be completed

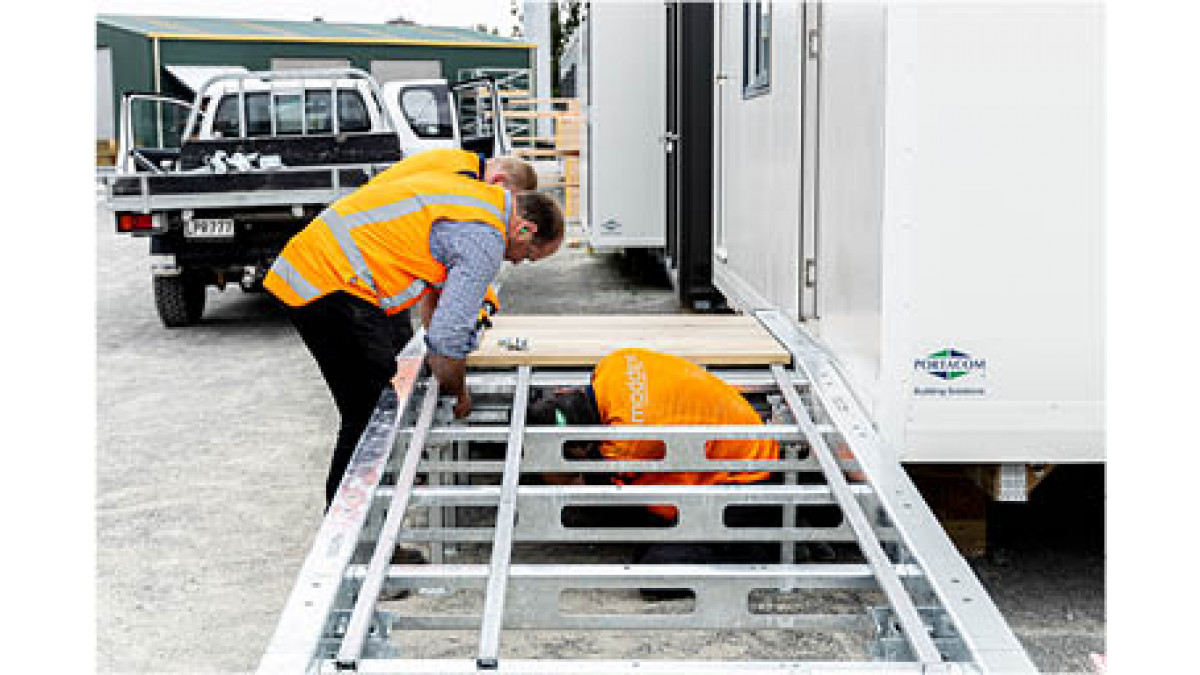

  • Produced offsite, as a kitset which turns up ready to go and installed within a couple of days.
  • Adjustable and compatible which gives it flexibility to fit a wide range of sites.
  • Flexible Cladding options. Tie into existing look and feel.
  • Supplied complete with all fixings, boards and clear easy to follow installation instructions.

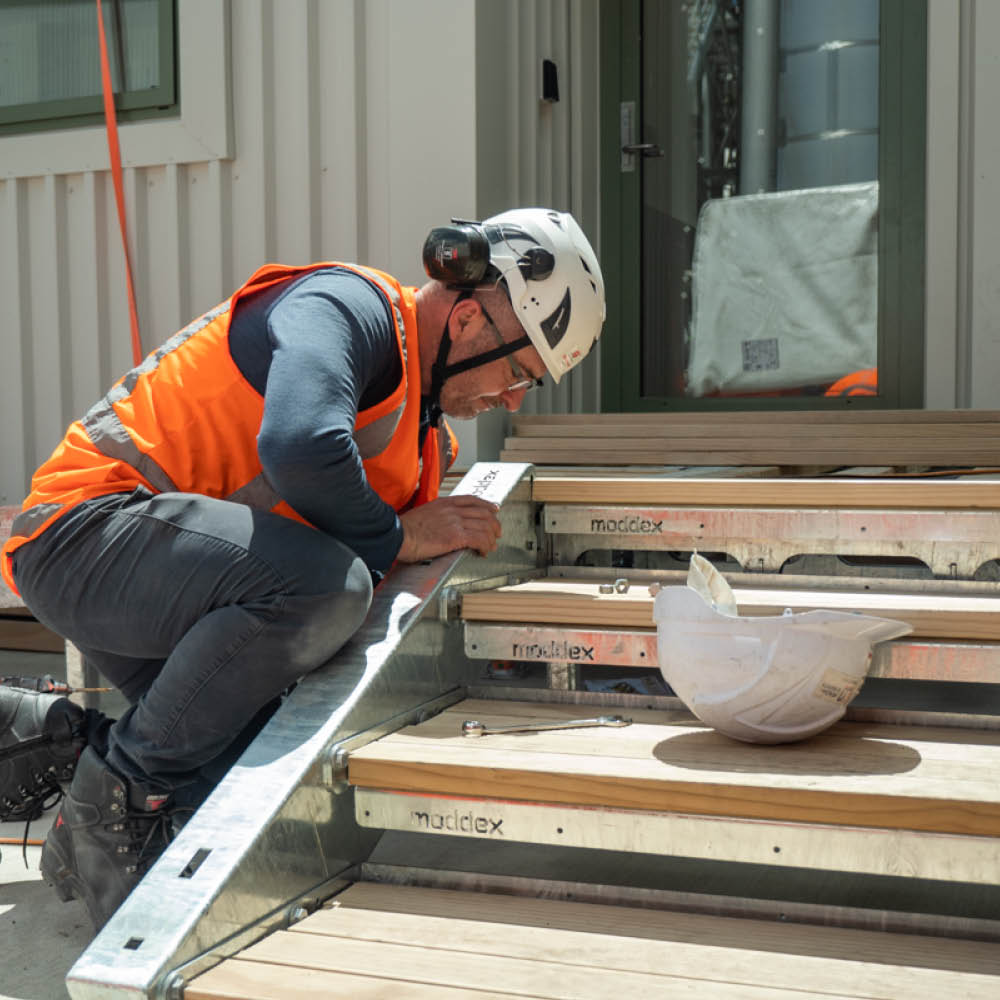

  • Designed for simple assembly  – don’t need skilled staff for install.
  • Pre-engineered system which ensures guarantees a compliant access system to the New Zealand Building Code (NZBC).
  • Supplied with an engineering producer statement.
  • Easy to specify – Downloadable Revit Files and Masterspec worksection coming…
Scope of Use
  • Ideal for projects that require short time frame delivery
  • Supplied in interconnecting modules

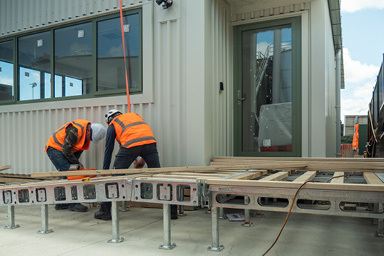

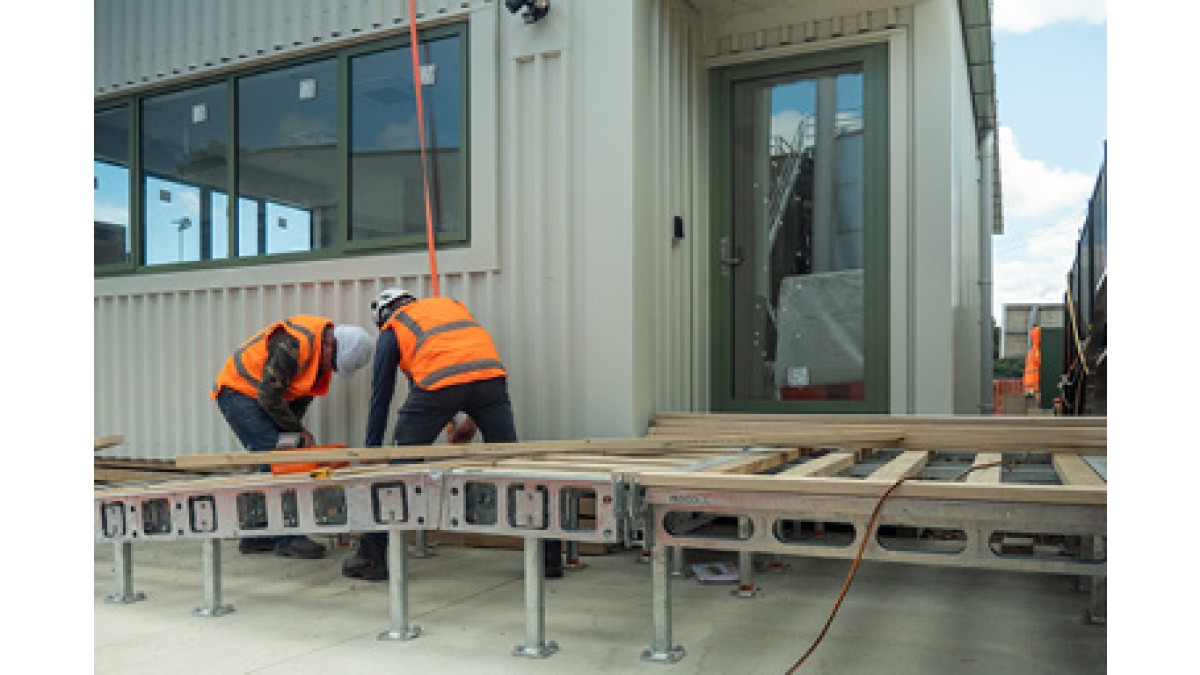

  • Can be set down on piles, concrete footings or other standard substructures
  • Can be configured to suit sites of varying heights, contours, and sloping terrain

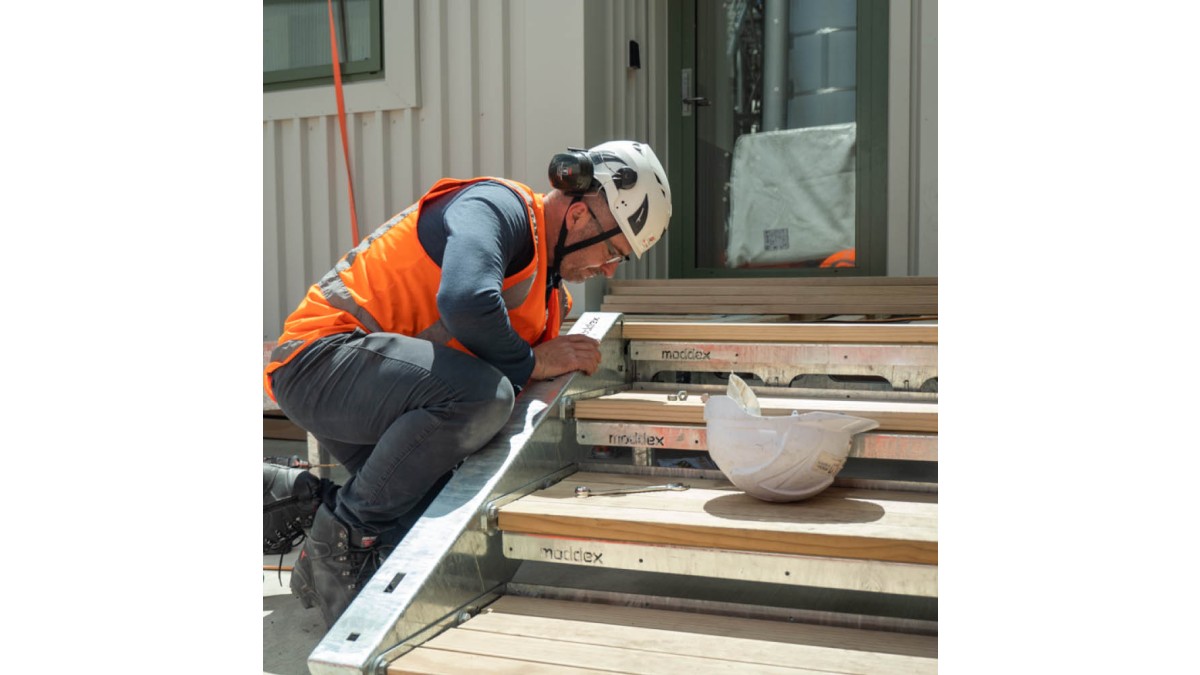

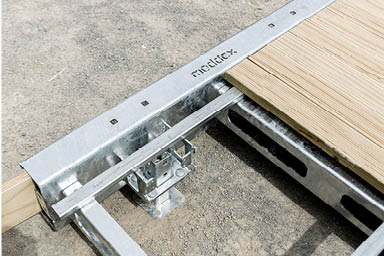

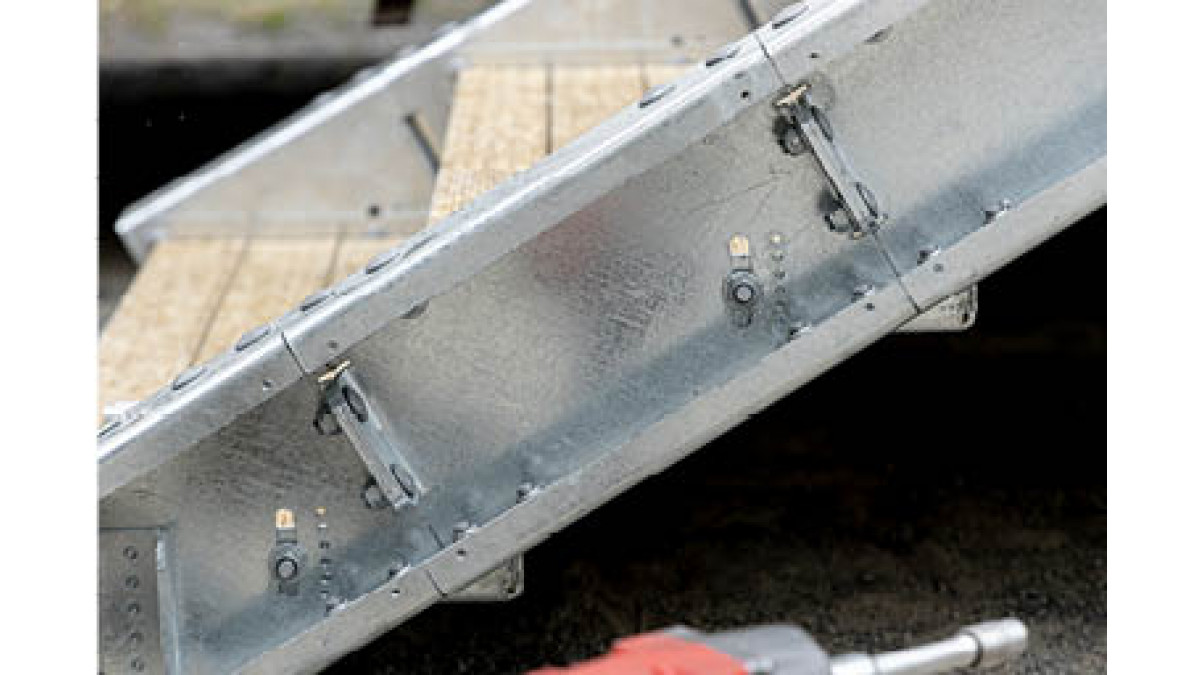

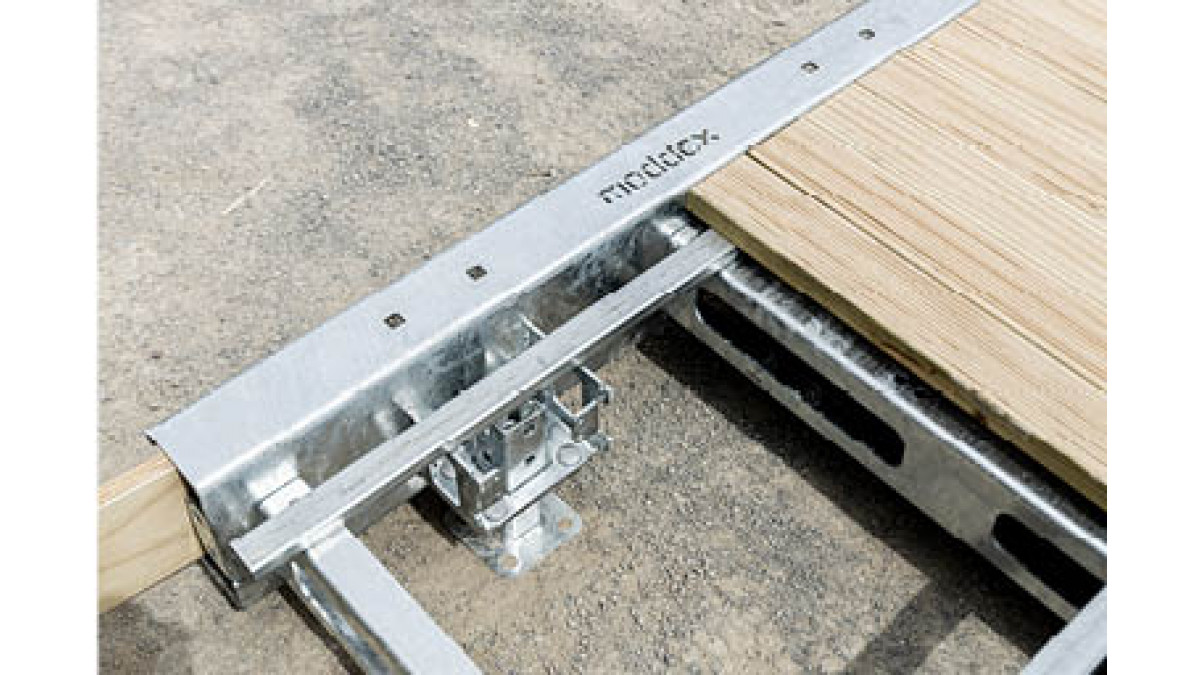

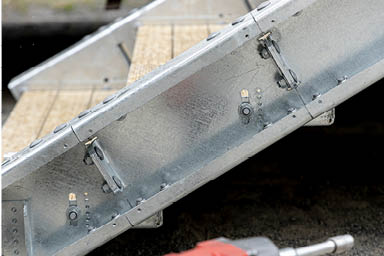

  • Adjustable legs and stairs with adjustable stringers (both in length and angle) usable from 24° through to 38°

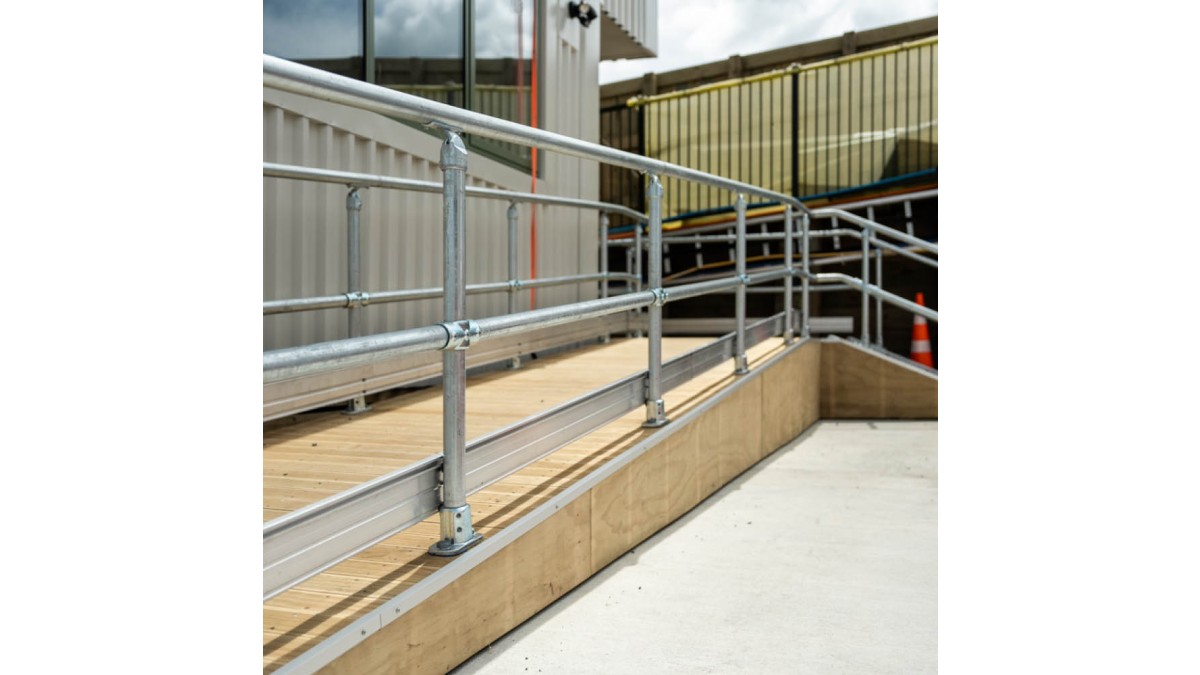

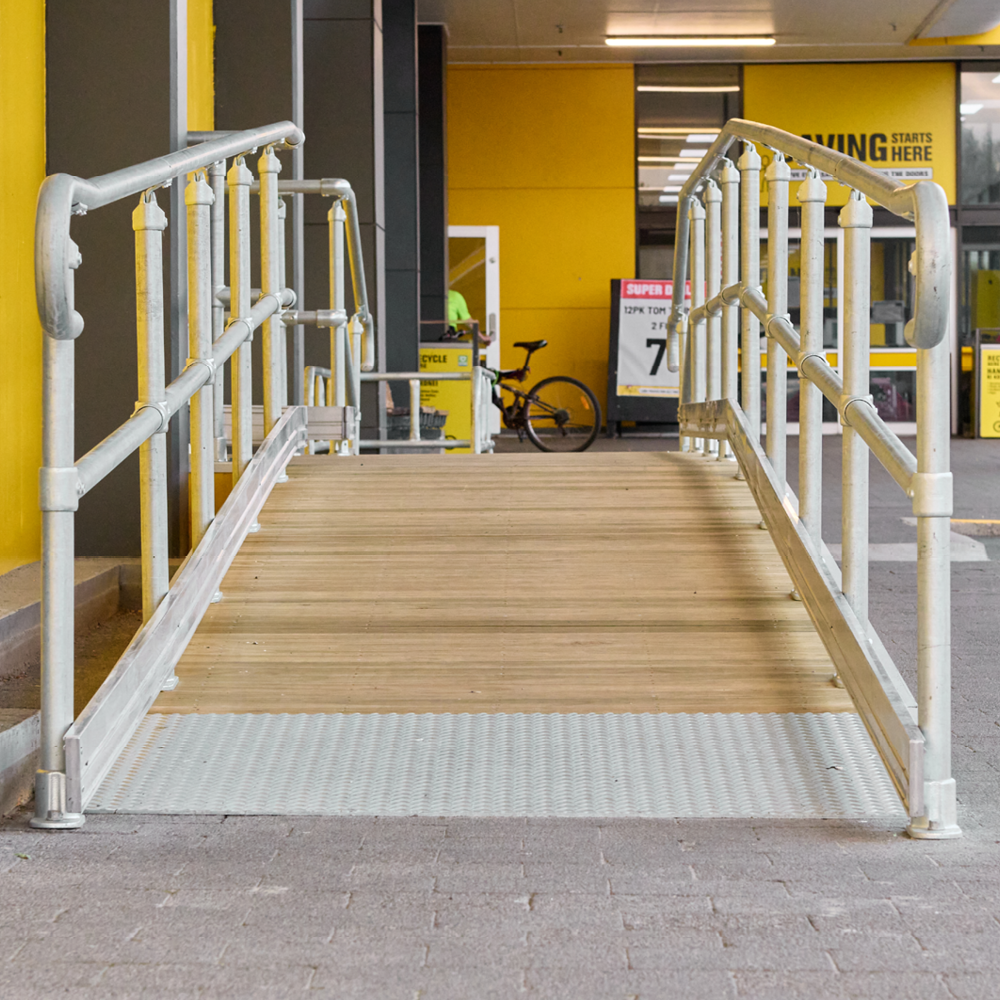

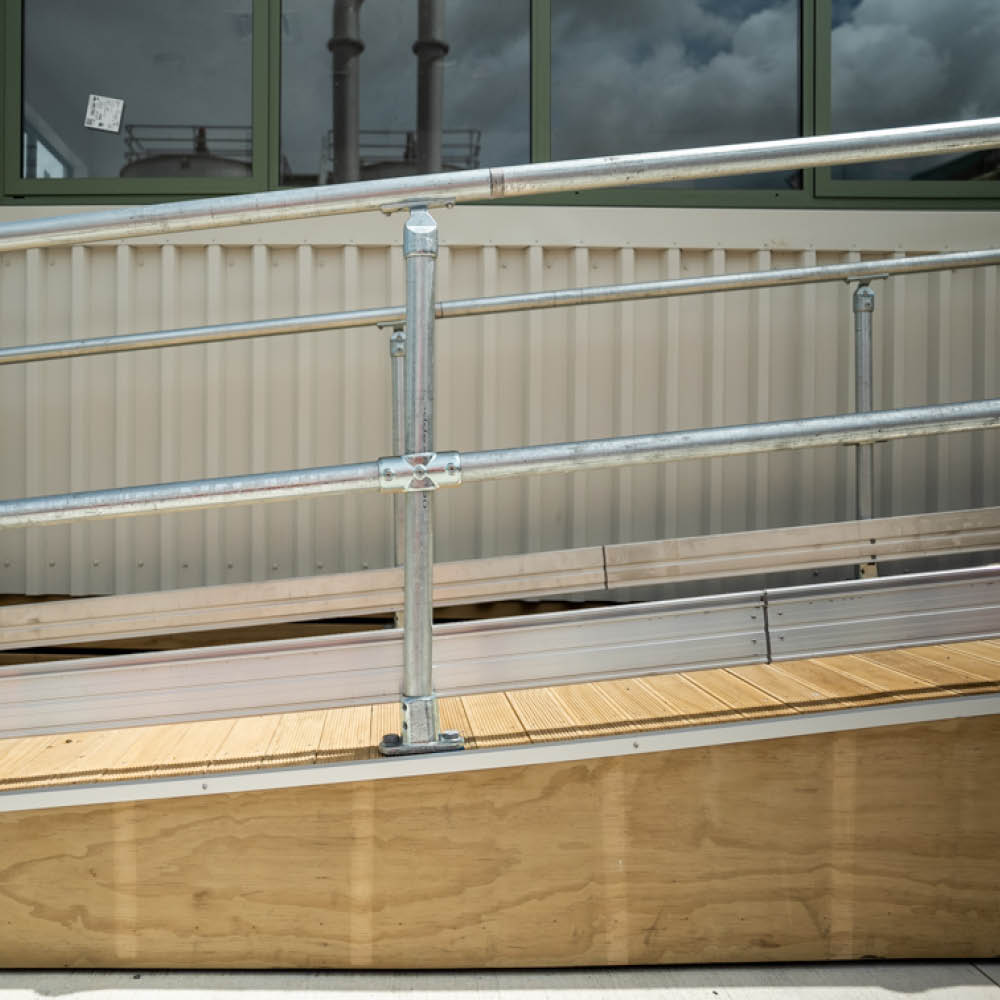

  • Integrates with Moddex handrail and balustrades and allows for timber cladding to be added once installed

Applications:

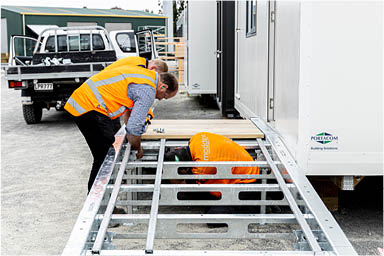

  • Portable buildings and container houses
  • Site offices and Portacoms
  • Schools and clubs
  • Parks & gardens — paths, huts & viewing platforms
  • Construction and roading sites
  • Fire escape platforms and stairs
Statement of Building Code Compliance

As with all Moddex products, Ezibilt is completely compliant to all the required standards and the NZBC D1 Access Routes, and is supplied complete with an engineering producer statement.

NZBC:

  • D1 Access Routes

Moddex Ezibilt system is designed and manufactured in accordance with the following loading standards:

  • AS/NZS1170.0
  • AS/NZS1170.1
  • AS/NZS1170.2
  • AS/NZS1170.3
  • AS/NZS1170.5

Steel Design Standards:

  • NZS3404.

Aluminium (if applicable):

  • AS/NZS 1664.1
Other Performance Attributes
  • Patent Pending NZ778084
Documents
BIM Content Library
Ezibilt Overview Booklet
Ezibilt Specification Sheet
Additional Information: Ezibilt
Building Product Information Sheet - Ezibilt

v1

Moddex are New Zealand and Australia’s leading manufacturer of innovative barrier systems for large-scale infrastructure and non-residential construction projects.

Product Enquiries

News from Moddex

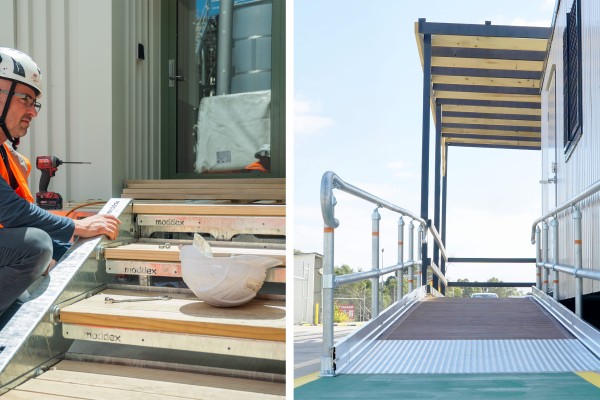

Innovation at its Best: The Ezibilt Ramp System
