Marshall Weatherization System
Description

The Marshall Weatherization System is used behind wall cladding systems and around framed joinery openings as a secondary weather resistant barrier for roofs and walls.

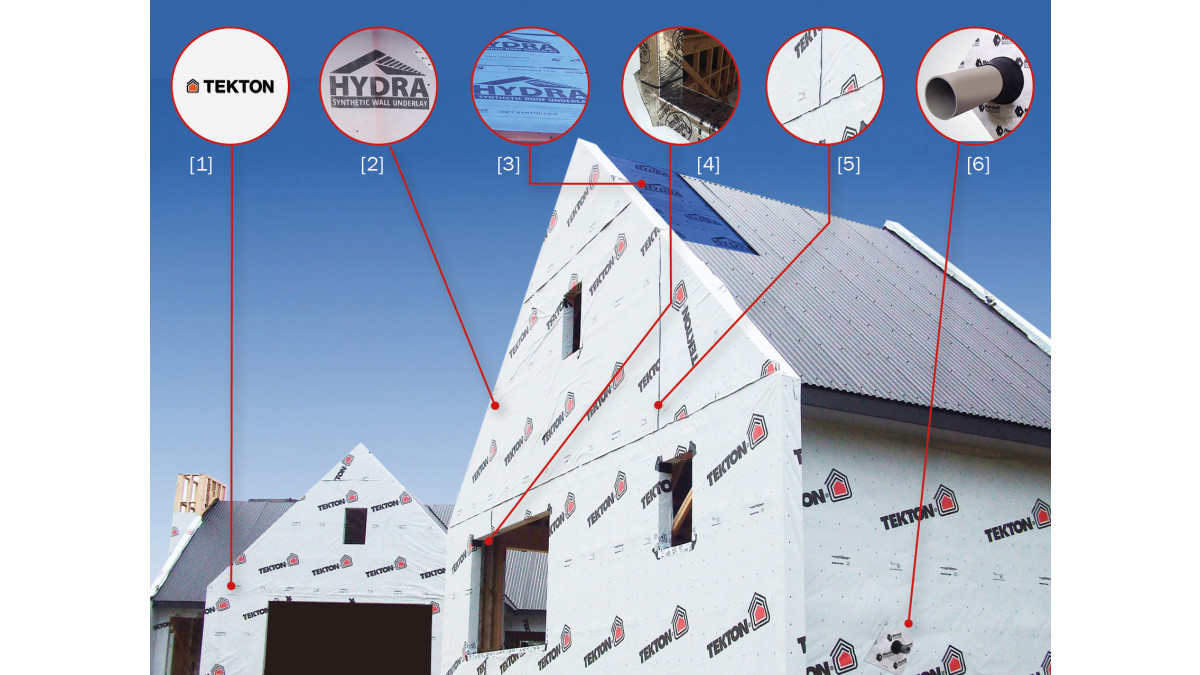

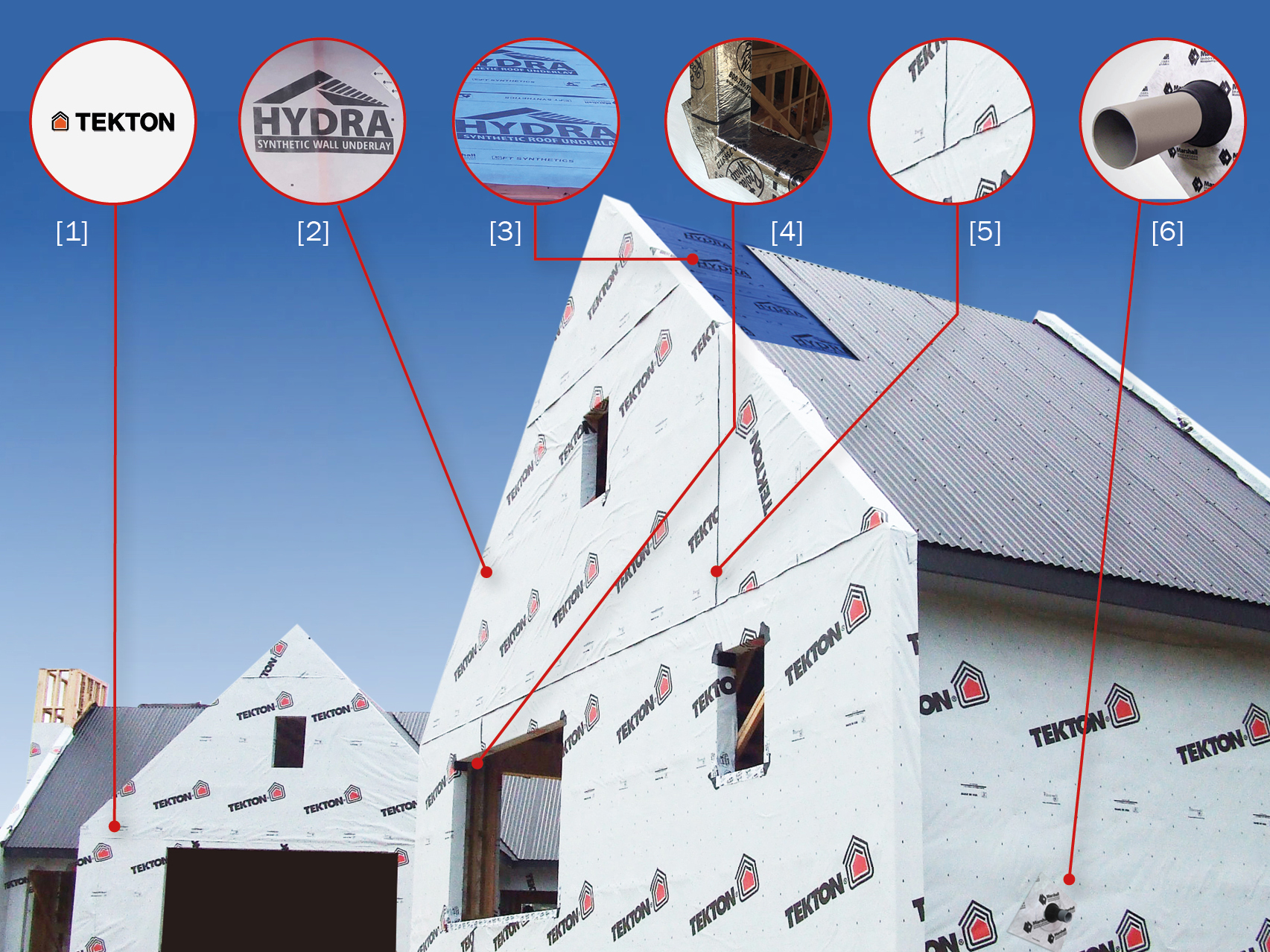

The System is comprised of:

  • Tekton/ HYDRA Wall/Roof Underlays
  • HYDRA Roof Underlay
  • Marshall Construction Tape
  • Trade Seals
  • SUPER-STICK Building Tape

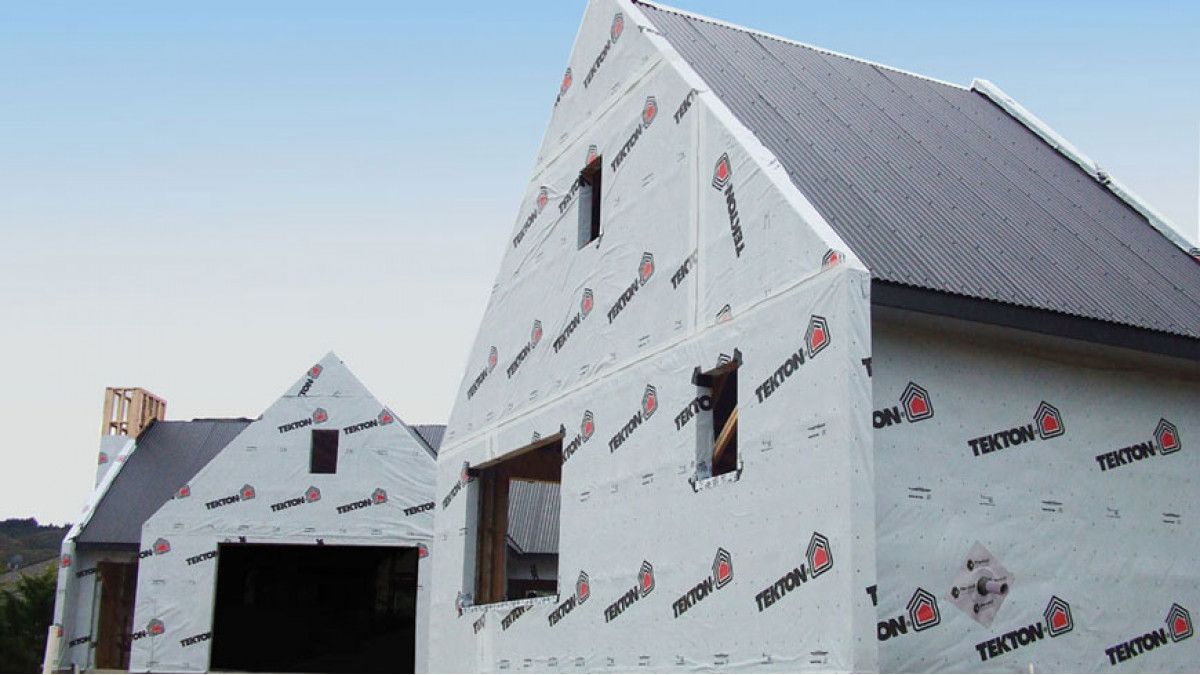

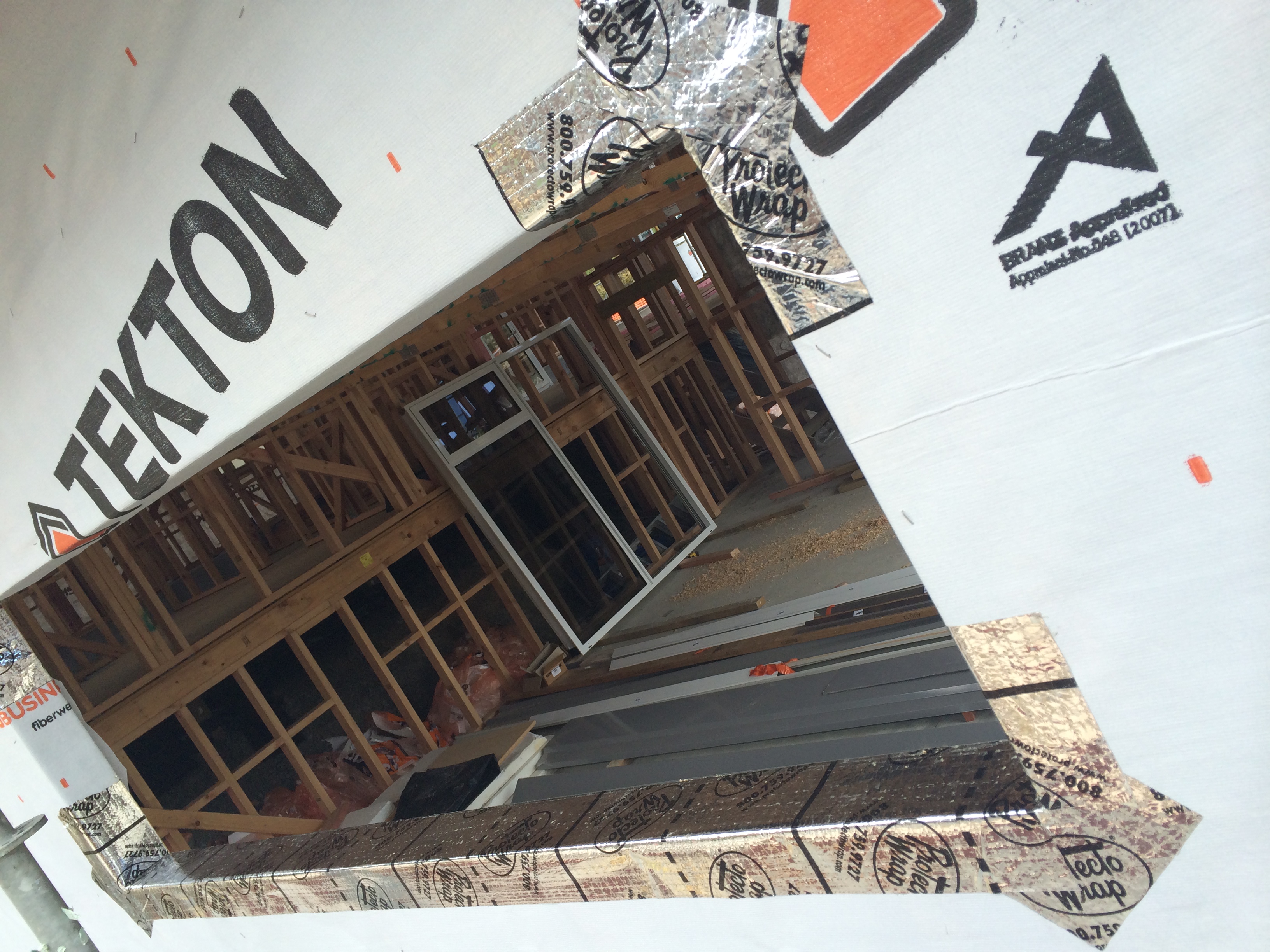

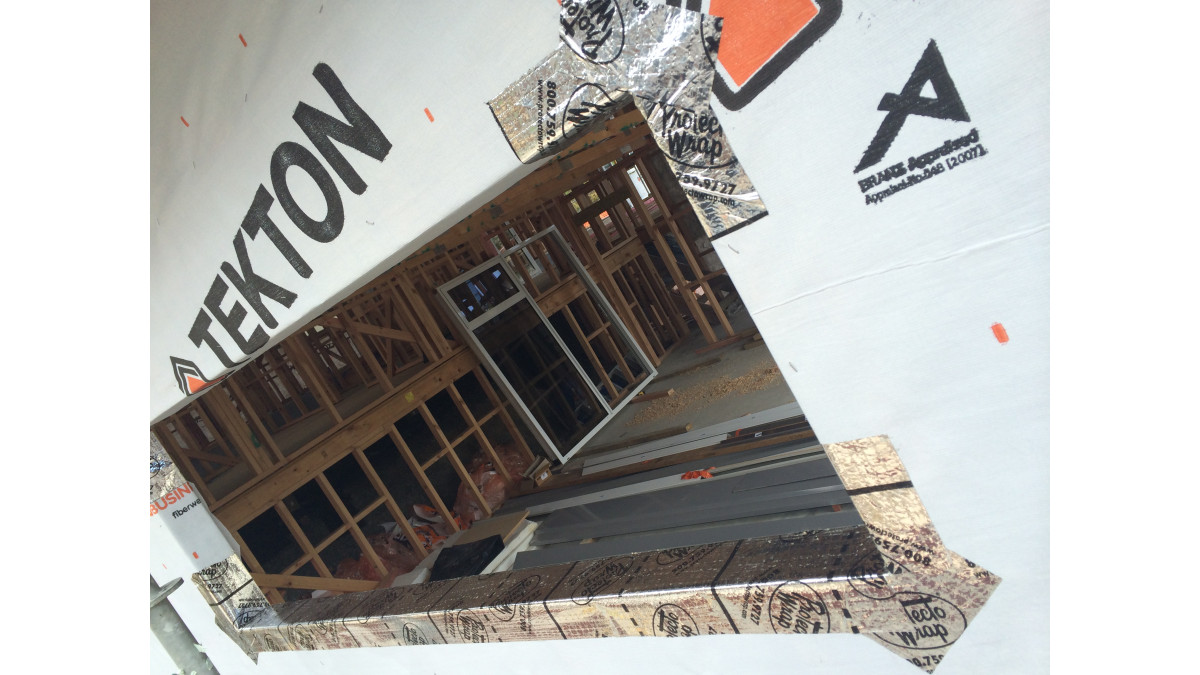

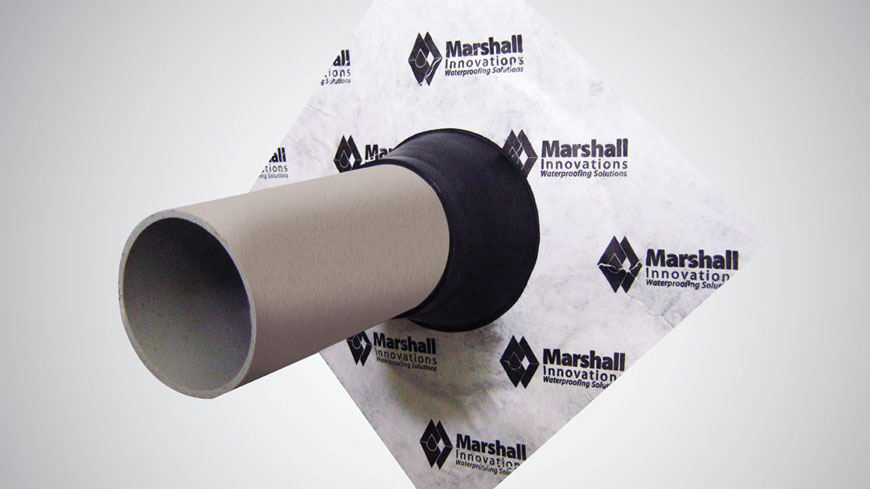

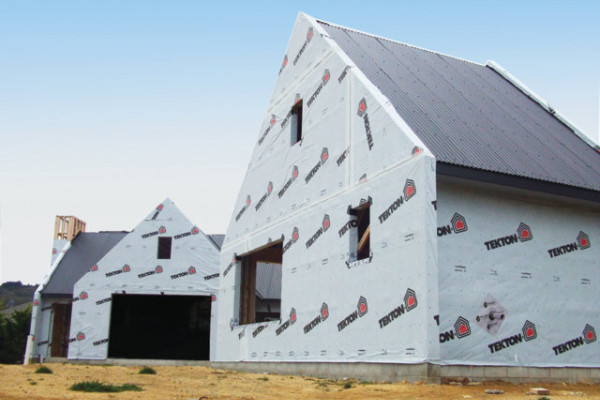

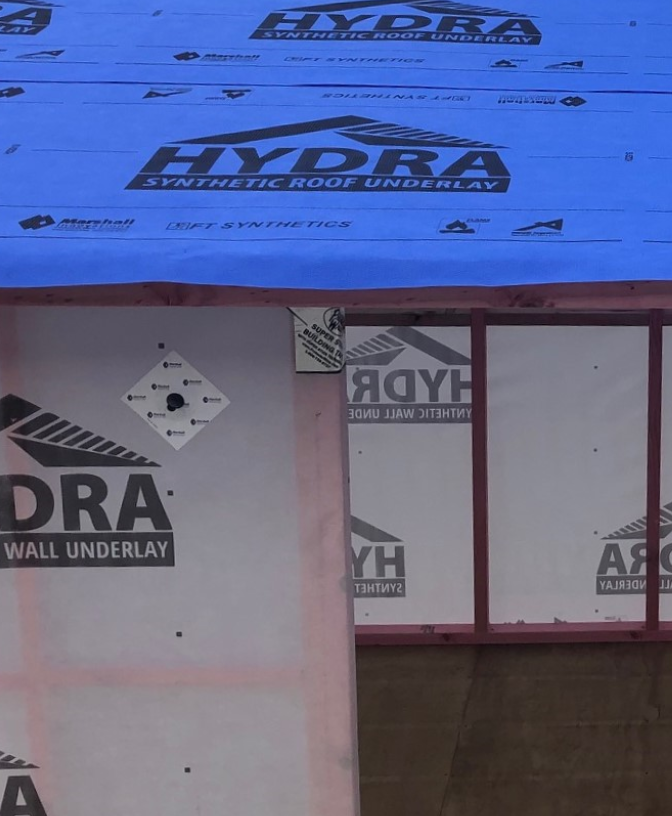

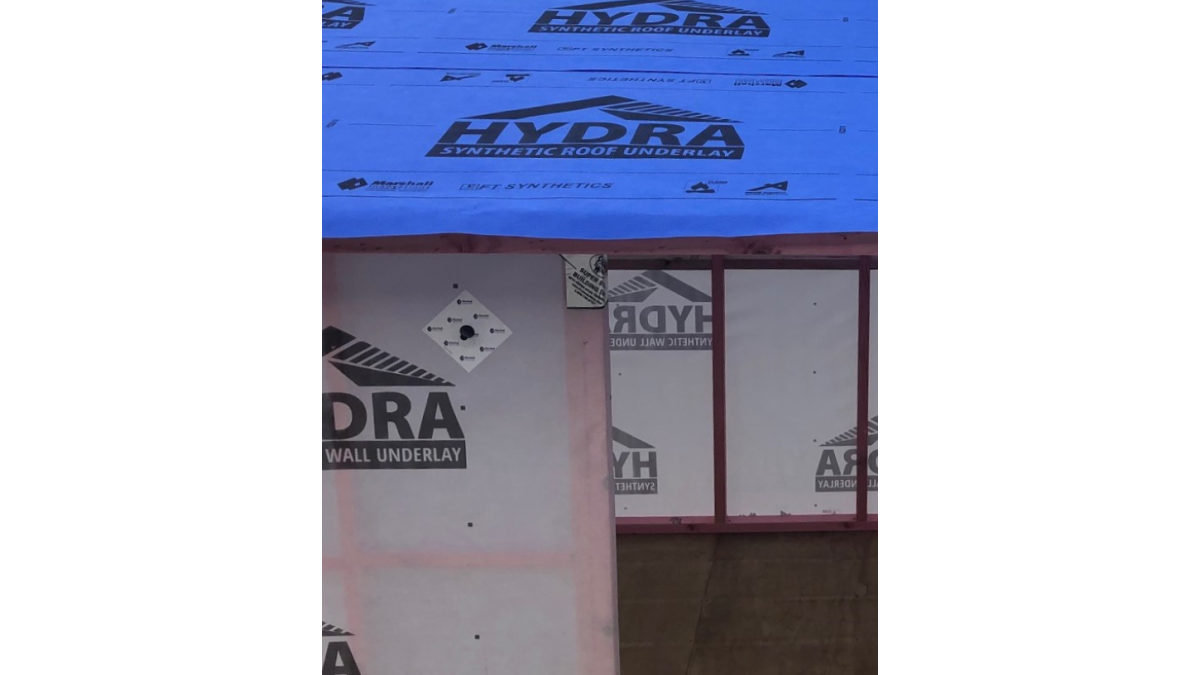

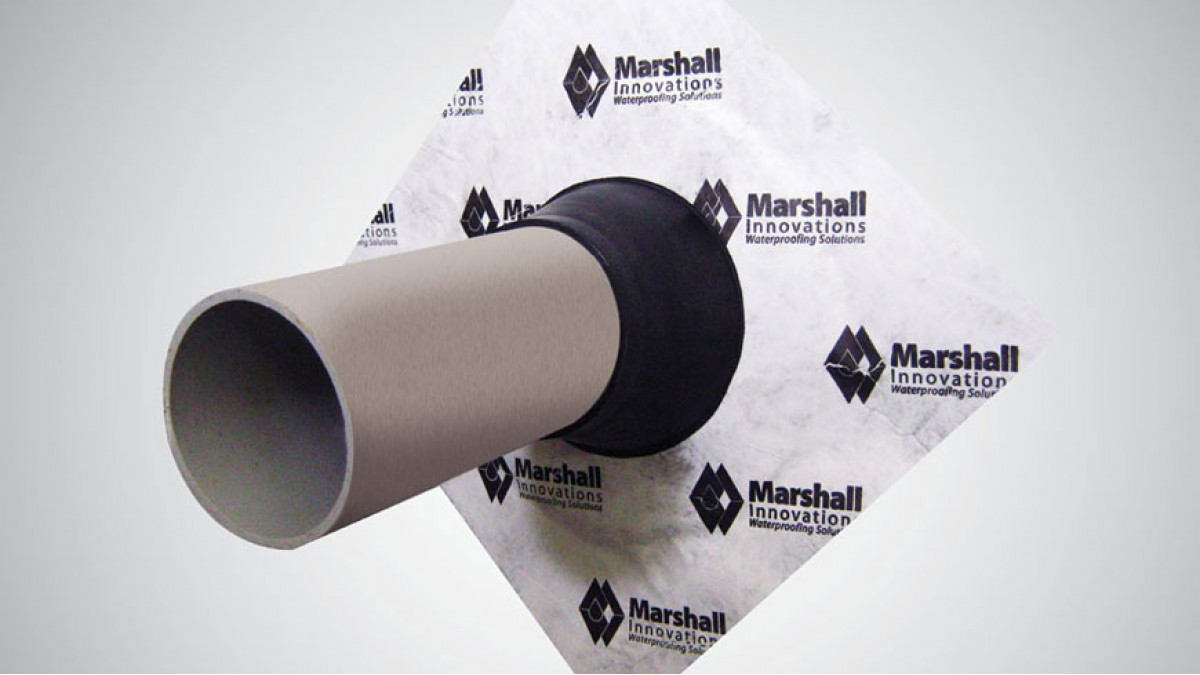

The HYDRA Roof Underlay is fitted over the roof framing members. HYDRA Wall or TEKTON Wall Underlay is fixed directly to the outside of the framing. The Wall Underlay over the openings is then cut and fixed to the inside face of the framing. Marshall Construction Tape is applied over the seams and Protecto Wrap, Super-Stick or the ProtectoSill System is installed around the joinery openings. TRADE-SEAL’s are fitted over pipe and conduit penetrations through the building envelope to provide an air and moisture seal.

Key Features
  • A system that combines a range of respected products to form a secure construction envelope.
  • Highly compatible product integration.
  • Fully BRANZ appraised weatherization system
  • UV and weather exposure for up to 60 days.
  • Superior strength, water holdout and flexibility with ease of installation.
  • Meets and exceeds the requirements of the New Zealand Building Code (NZBC) Clause B2 Durability and Clause E2 External Moisture.
Recycled Content (Pre-Consumer)
Pre-Consumer Recycled Content
Scope of Use

The Marshall Weatherization System has been appraised for use on buildings within the following scope:

  • Constructed with timber framing in accordance with the scope limitations of NZBC Acceptable Solution E2/AS1 or, constructed with steel framing subject to specific engineering design, with the building height and floor plan area in accordance with scope limitations of NZBC Acceptable Solution E2/AS1; and,
  • with absorbent wall claddings directly fixed to frame complying with NZBC Acceptable Solution E2/AS1 or covered by a valid BRANZ Appraisal that specifies a flexible wall underlay and a flexible flashing system; or,
  • with absorbent and non-absorbent wall claddings installed over an 18 mm minimum drained cavity complying with NZBC Acceptable Solution E2/AS1 or covered by a valid BRANZ Appraisal that specifies a flexible wall underlay or a rigid wall underlay with flexible underlay over and flexible flashing system; or,
  • with masonry veneer in accordance with NZBC Acceptable Solution E2/AS1 for timber framed buildings or specific design for steel framed buildings; and,
  • situated in NZS 3604 Wind Zones up to and including 'Very High' where the flexible wall underlay is directly fixed to the frame, and up to and including 'Extra High' where the underlay is used over rigid wall underlays

See BRANZ Appraisal 621 for full information

Limitations on Use

No special conditions or limitations. Refer to the Appraisal for general requirements.

Statement of Building Code Compliance

In the opinion of BRANZ, the Marshall Weatherization System if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet, or contribute to meeting the following provisions of the NZBC:

  • Clause B2 Durability: Performance B2.3.1 (a) not less than 50 years, B2.3.1 (b) 15 years and B2.3.2. The Marshall Weatherization System meets this requirement.
  • Clause E2 External Moisture: Performance E2.3.2. The Marshall Weatherization System contributes to exterior walls meeting this requirement.
  • Clause F2 Hazardous Building Materials: Performance F2.3.1. The Marshall Weatherization System meets this requirement and will not present a health hazard to people. This is an Appraisal of an Alternative Solution in terms of New Zealand Building Code compliance.
BRANZ Appraised
BRANZ Appraised
Documents
BPIR HYDRA Roof Underlay

Vn. 1

BPIR HYDRA Wall Underlay

Vn. 1

BPIR SUPER-STICK

Vn. 1

BPIR Tekton

Vn. 1

BPIR Trade-Seal

Vn. 1

Marshall Weatherization System Warranty

Vn. 2

BRANZ Appraisal: HYDRA Roof Underlay

1071 [2019]

BRANZ Appraisal: Weatherization System

621 [2020]

Specification Guide: Marshall Weatherization System

2025

Construction Tape Brochure

May 2025

MWS Brochure
