Trusted System Provides One-Stop Shop for Pre-Cladding and Weathertightness

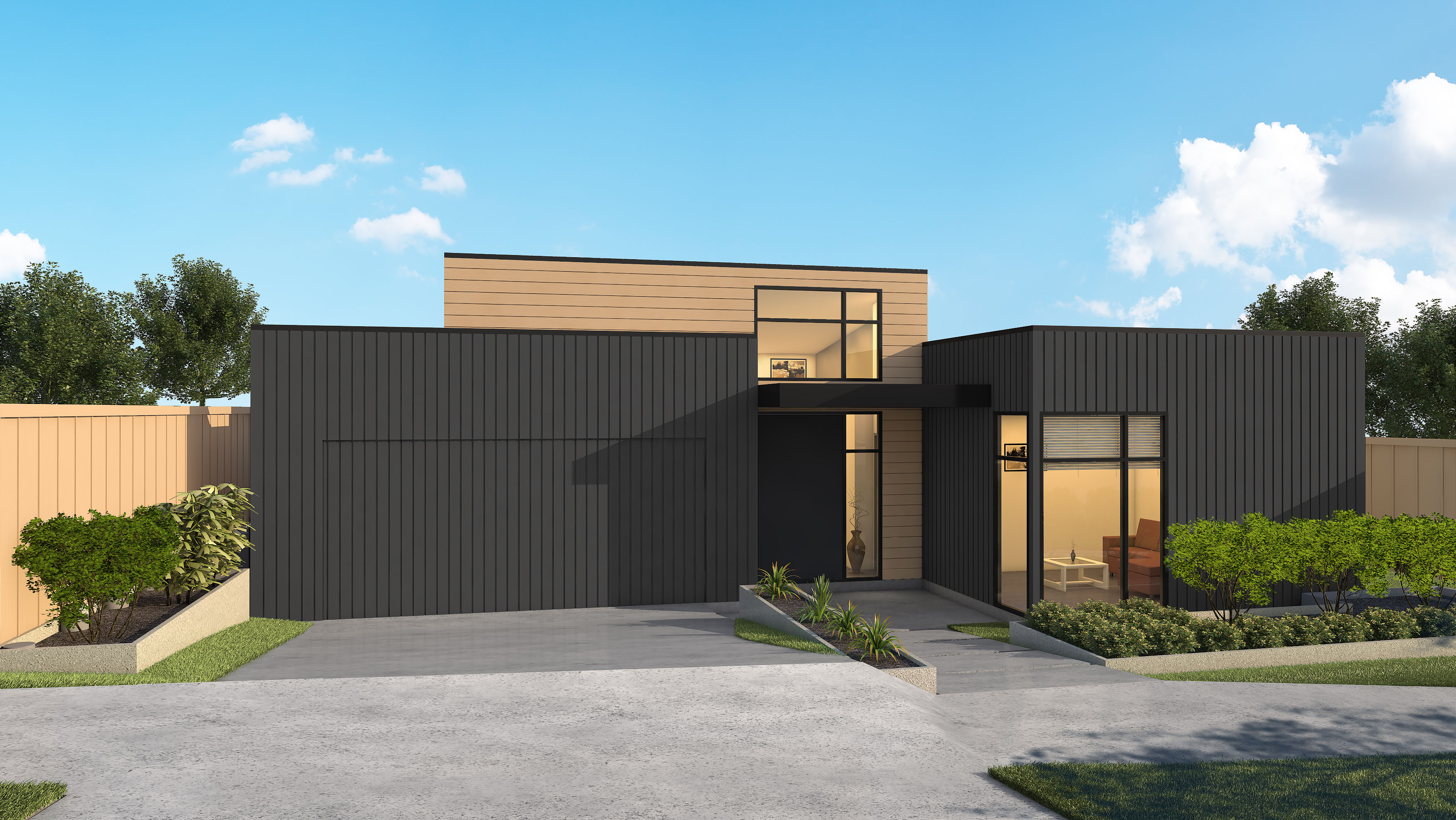

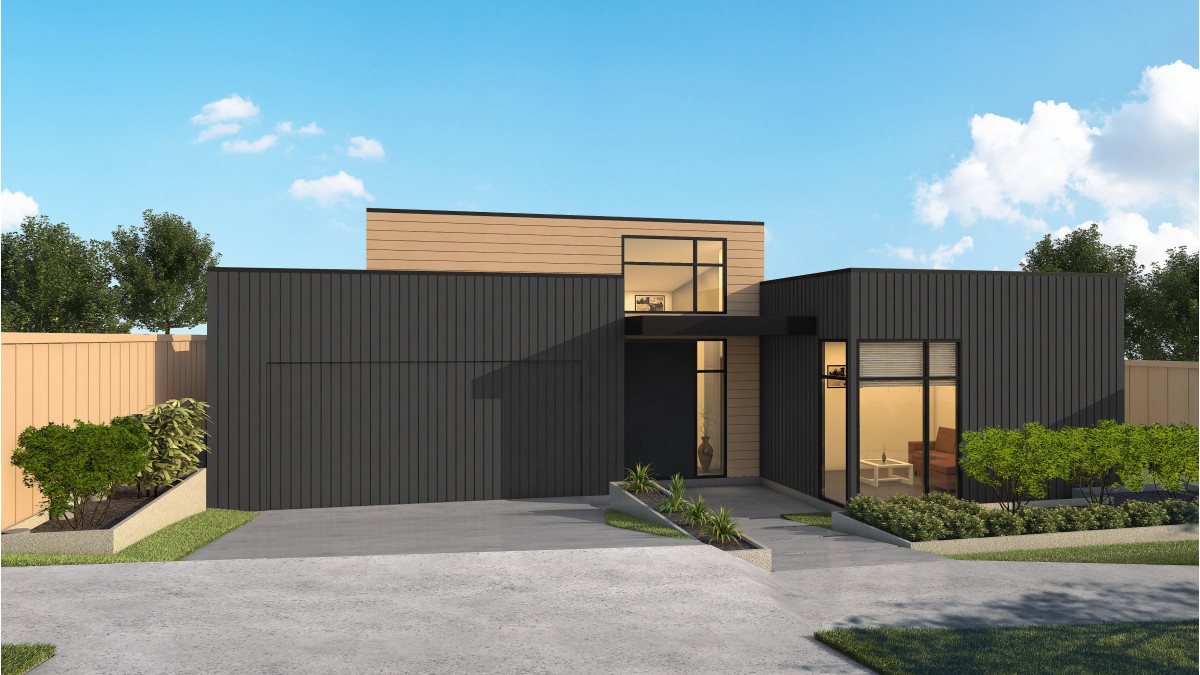

Maddren Homes’ New 192m² showhome in Milldale, Auckland is a vision of comfortable modern living with three bedrooms, two bathrooms and vibrant living areas which extend to the outdoors. When it came to protecting the building enclosure from the elements, Maddren Homes turned to Marshall Innovations to provide a complete weatherization system.

“Performance-wise, we were trying to build something above code,” says Keegan Anderson, Sales Manager, Maddren Homes. “We’re always trying to go above and beyond code and Marshalls help in that way.”

Having worked with different products over the years, Marshalls has become the go-to system for Maddren Homes. “We’ve found that Marshalls have better products. They’re easy to use and they’re compatible with each other — especially the underlay and the Super-Stick.”

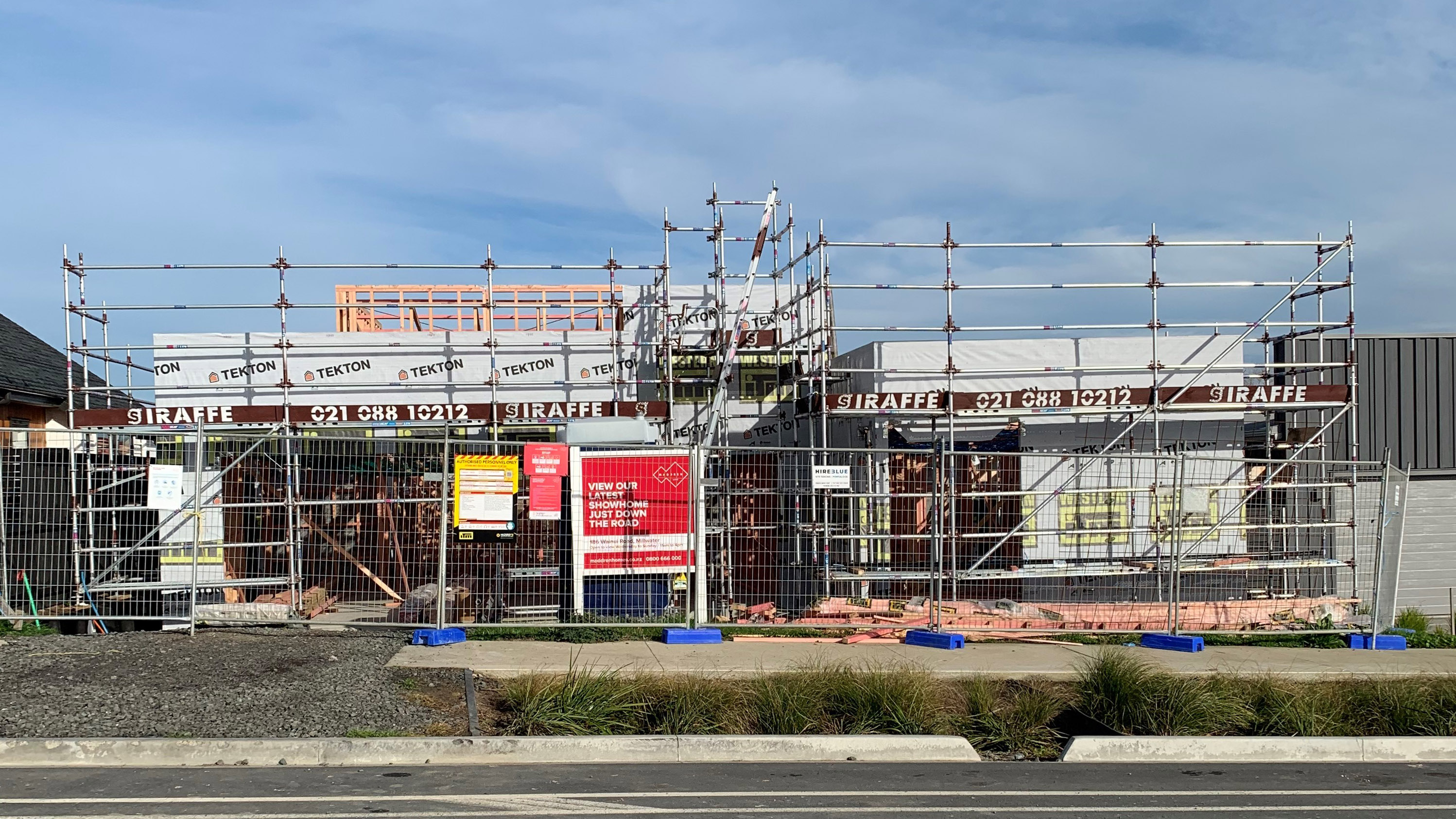

A complete pre-cladding and weathertightness system was specified for the new showhome, including the Tekton Flexible Wall Underlay, Super-Stick Flexible Flashing Tape, Seam Tape and Trade Seals.

A highlight of this system is the Super-Stick Flexible Flashing Tape which at less than 0.4mm thickness provided installation benefits for the build. “We’re down to a millimetre tolerance so it’s nice to have a thin layer compared to other products out there that are 3 - 4mm,” says Keegan. “The thinness means you can prevent bows in walls and it makes getting in between window framings easy.” He adds that Super-Stick is simple to use and can be installed in any temperature — helping to reduce construction delays.

Another advantage is the robustness of the Tekton Flexible Wall Wrap. “The paper is not like paper,” says Keegan. “The fibres are really strong so if you brush past it with your hammer it’s not gonna rip and tear and leave a hole.”

Ultimately, the beauty of working with Marshall Innovations is that they offer a complete weatherization system from a single source — with guaranteed compatibility between products. “Marshalls come with a good range penetration seals, paper, superstick,” says Keegan. “It’s a one-stop shop when you’re cladding a house, and electricians and plumbers use their products too, so it's a one system fit.”

Keegan is confident that the new showhome will stand the test of time, with weathertightness secured thanks to Marshall Innovations’ compatible system. “I’m absolutely 100% positive on that front,” he says. “The result we get on all our homes now that we use Marshall products is great.”

Marshall Weatherization System

Marshall Innovations

View Product

The Marshall Weatherization System consists of Tekton/ HYDRA Building Wraps, HYDRA Roof Underlay, Super Stick Building Tape, Trade-Seals and Tekton Seam Tape.

Pre-Consumer Recycled Content

The Marshall Weatherization System has been appraised for use on buildings within the following scope:

Constructed with timber framing in accordance with the scope limitations of NZBC Acceptable Solution E2/AS1 or, constructed with steel framing subject to specific engineering design, with the building height and floor plan area in accordance with scope limitations of NZBC Acceptable Solution E2/AS1; and,
with absorbent wall claddings directly fixed to frame complying with NZBC Acceptable Solution E2/AS1 or covered by a valid BRANZ Appraisal that specifies a flexible wall underlay and a flexible flashing system; or,
with absorbent and non-absorbent wall claddings installed over an 18 mm minimum drained cavity complying with NZBC Acceptable Solution E2/AS1 or covered by a valid BRANZ Appraisal that specifies a flexible wall underlay or a rigid wall underlay with flexible underlay over and flexible flashing system; or,
with masonry veneer in accordance with NZBC Acceptable Solution E2/AS1 for timber framed buildings or specific design for steel framed buildings; and,
situated in NZS 3604 Wind Zones up to and including 'Very High' where the flexible wall underlay is directly fixed to the frame, and up to and including 'Extra High' where the underlay is used over rigid wall underlays

Very High WInd Zone

In the opinion of BRANZ, the Marshall Weatherization System if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet, or contribute to meeting the following provisions of the NZBC:

Clause B2 Durability: Performance B2.3.1 (a) not less than 50 years, B2.3.1 (b) 15 years and B2.3.2. The Marshall Weatherization System meets this requirement.
Clause E2 External Moisture: Performance E2.3.2. The Marshall Weatherization System contributes to exterior walls meeting this requirement.
Clause F2 Hazardous Building Materials: Performance F2.3.1. The Marshall Weatherization System meets this requirement and will not present a health hazard to people. This is an Appraisal of an Alternative Solution in terms of New Zealand Building Code compliance.

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised

SUPER-STICK Flashing Tape

Marshall Innovations

View Product

SUPER-STICK is a flexible flashing tape used around framed joinery openings as a secondary weather resistant barrier.

SUPER-STICK has been appraised as a flexible flashing system for use around window and door joinery openings for buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
with wall cladding systems complying with NZBC Acceptable Solution E2/AS1 or a valid BRANZ Appraisal that specifies a flexible flashing tape system; and,
with wall underlays compatible with the flexible flashing tape; and, situated in NZS 3604 Wind Zones up to, and including, 'Extra High'.
SUPER-STICK has also been appraised as a flexible flashing system for use around window and door joinery openings for steel framed buildings

In the opinion of BRANZ, SUPER-STICK, if designed, used, installed and maintained in accordance with the statements and conditions of Appraisal No. 846 (2013), will meet or contribute to meeting the following provisions of the NZBC:

Clause B2 Durability: Performance B2.3.1 (b), 15 years and B2.3.2. SUPER-STICK meets these requirements.
Clause E2 External Moisture: Performance E2.3.2. SUPER-STICK contributes to meeting this requirement.
Clause F2 Hazardous Building Materials: Performance F2.3.1. SUPER-STICK meets this requirement and will not present a health hazard to people. SUPER-STICK has been appraised as an Alternative Solution in terms of New Zealand Building Code compliance.

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised

Trade Seals

Marshall Innovations

View Product

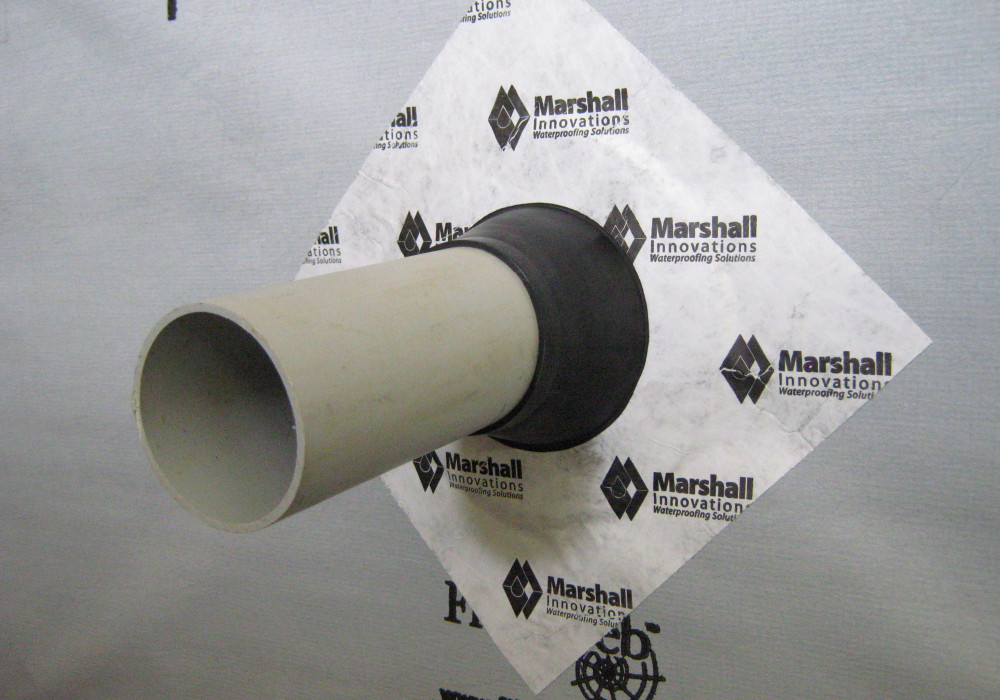

A range of EPDM collars with self adhesive backing.

Trade-Seals have been appraised for use as a pipe and service penetration seals for use where the pipes and service penetrations penetrate the wall underlay on timber framed buildings within the following scope.

the scope limitations of NZBC Acceptable Solutions E2/AS1, Paragraph 1.1: and,
with BRANZ Appraised flexible and rigid wall underlays; and,
situated in NZS 3604 Building Wind Zones up to, and including 'Extra High'

Trade-Seals have been appraised for use as a pipe and service penetration seals for use where the pipes and service penetrations penetrate the wall underlay on steel framed buildings within the following scope.

the scope limitations of NZBC Acceptable Solutions E2/AS1, Paragraph 1, with regards to building height and floor plan area; and,
with BRANZ Appraised flexible and rigid wall underlays; and,
situated in NZS 3604 Building Wind Zones up to, and including 'Extra High'

Trade-Seals have also been appraised for use on buildings subject to specific weather tightness design. Building designers are responsible for the building design and for incoporation of Trade-Seals into their design in accordance with the declared properties and the instructions of Marshall Innovations Limited.

Extra High Wind Zone

Trade Seals if designed, used, installed, and maintained in accordance with the BRANZ Appraisal No.719, will meet or contribute to meeting the following provisions of the NZBC:

B2 DURABILITY: Performance B2.3.1 (b), 15 years and B2.3.2. The TRADE-SEAL meets these requirements
E2 EXTERNAL MOISTURE: Performance E2.3.2. When used as part of the cladding system, Trade-Seals will contribute to meeting this requirement
F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Trade-Seal meets this requirement and will not present a health hazard to people

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised
