60 Day UV Rating for Fire-Retardant Synthetic Wall Underlay

When specifying pre-cladding products, specifiers often start with three key questions:

Are the products proven to be durable in New Zealand's unique conditions?
Are the products compatible with other components used in the build?
Do these products meet and exceed the New Zealand Building Code?

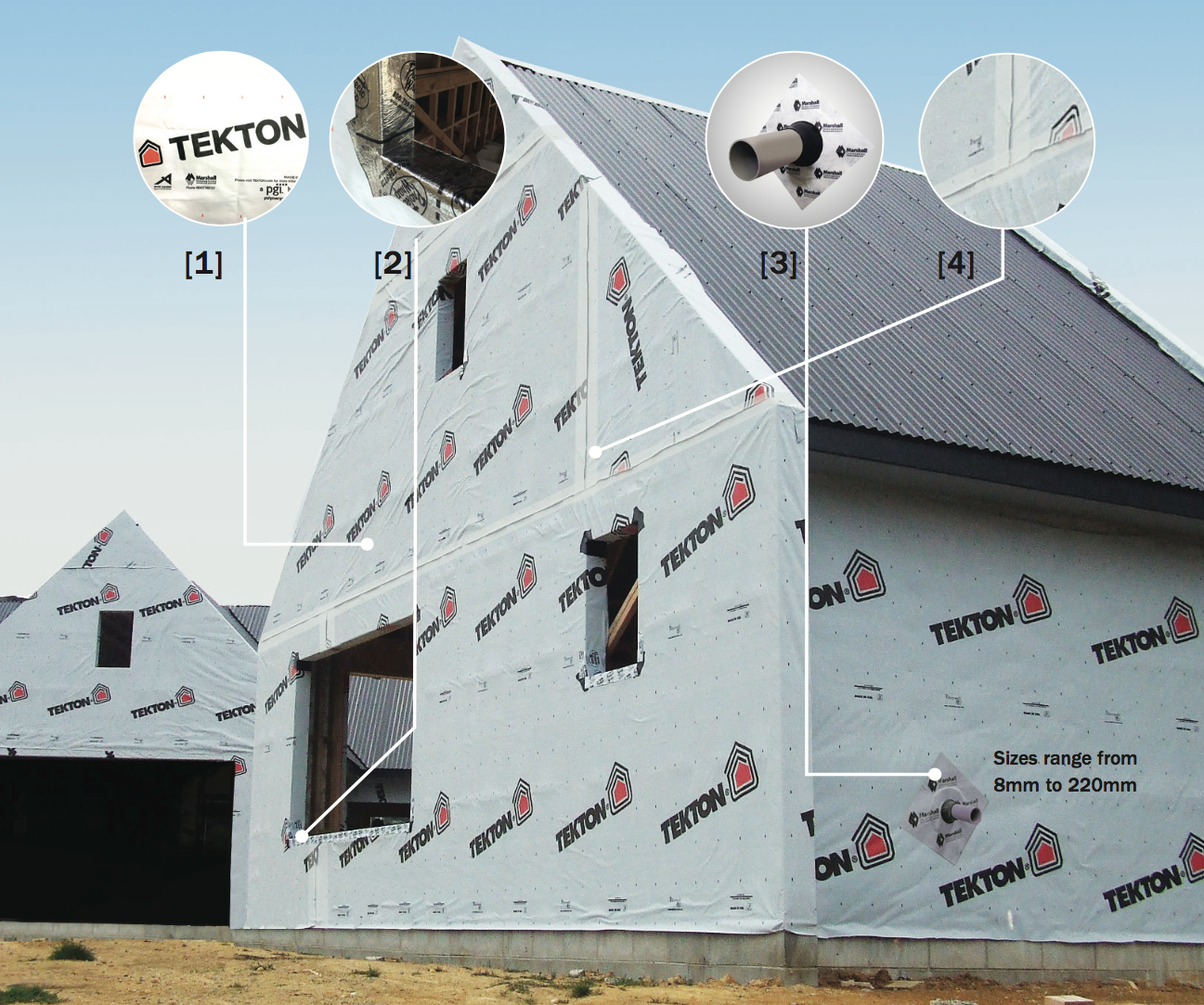

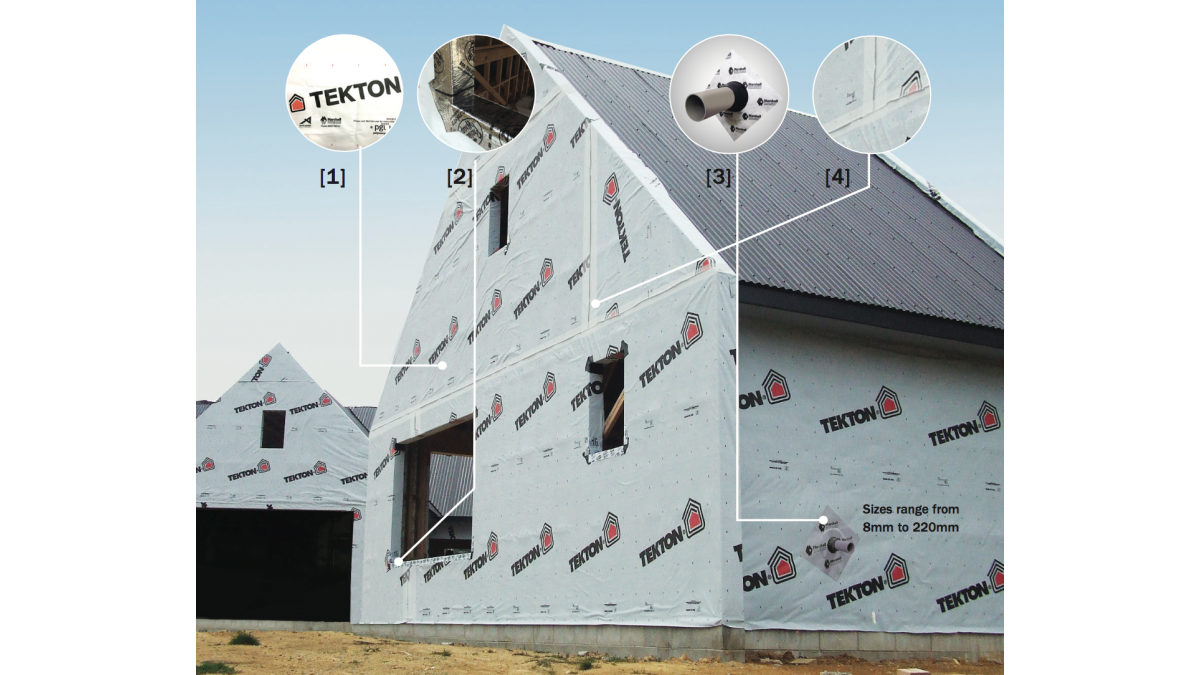

The Tekton Weatherization System is a combination of three of Marshall Innovations' key products: Tekton House Wrap, Protecto Wrap SuperStick Building Tape and Trade-Seals. Tekton Seam tape is also available for the joins in Tekton House Wrap.

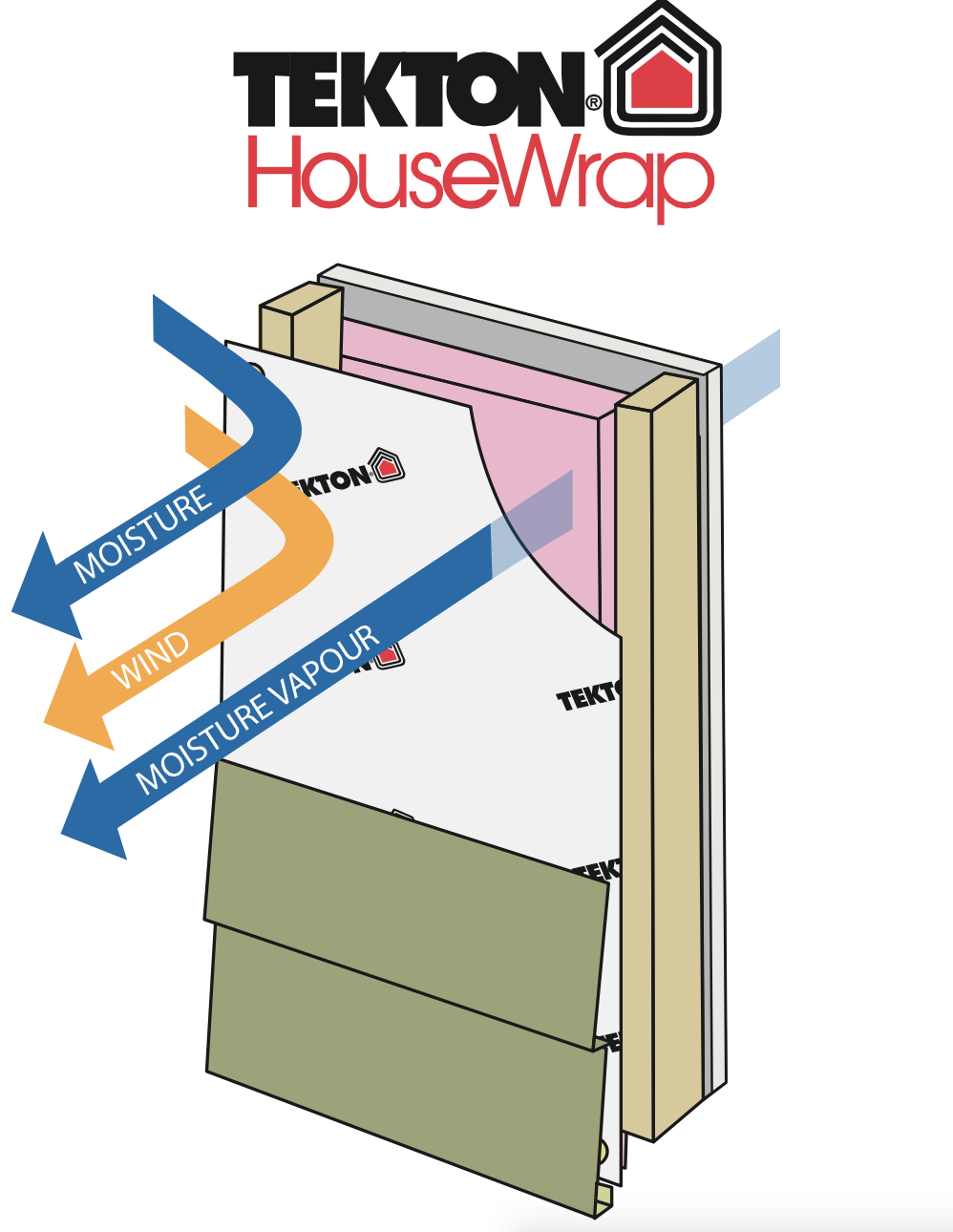

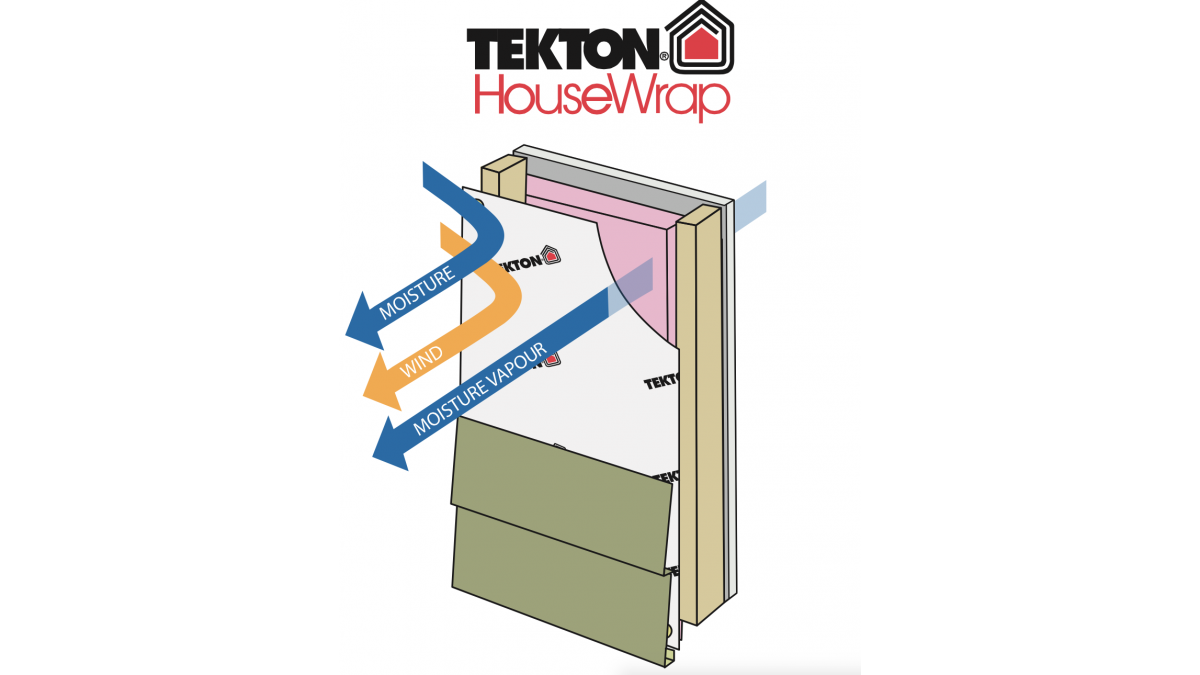

Tekton House Wrap is a fire retardant synthetic breathable wall underlay with a 60 Day UV rating, superior strength and water holdout.

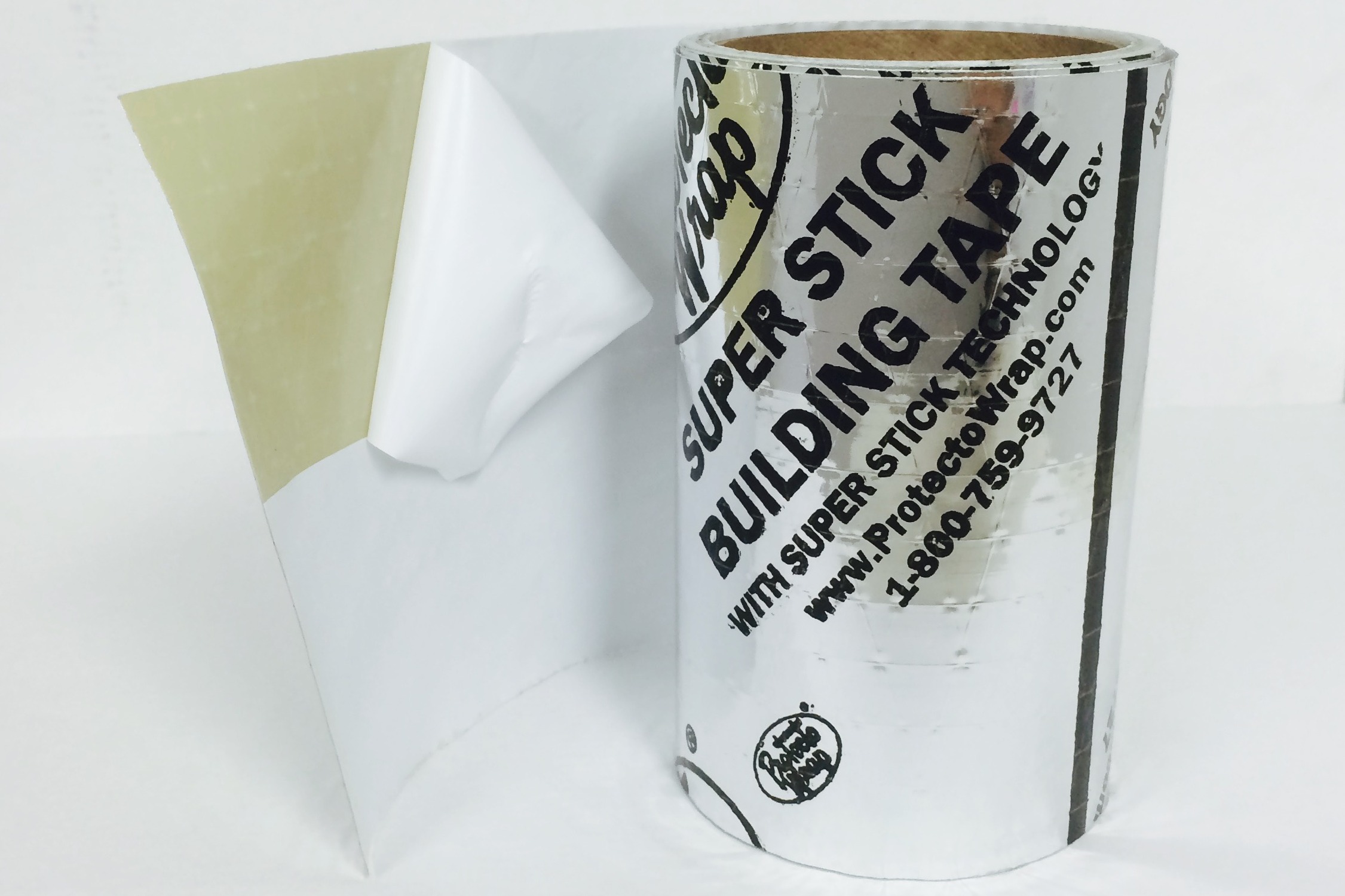

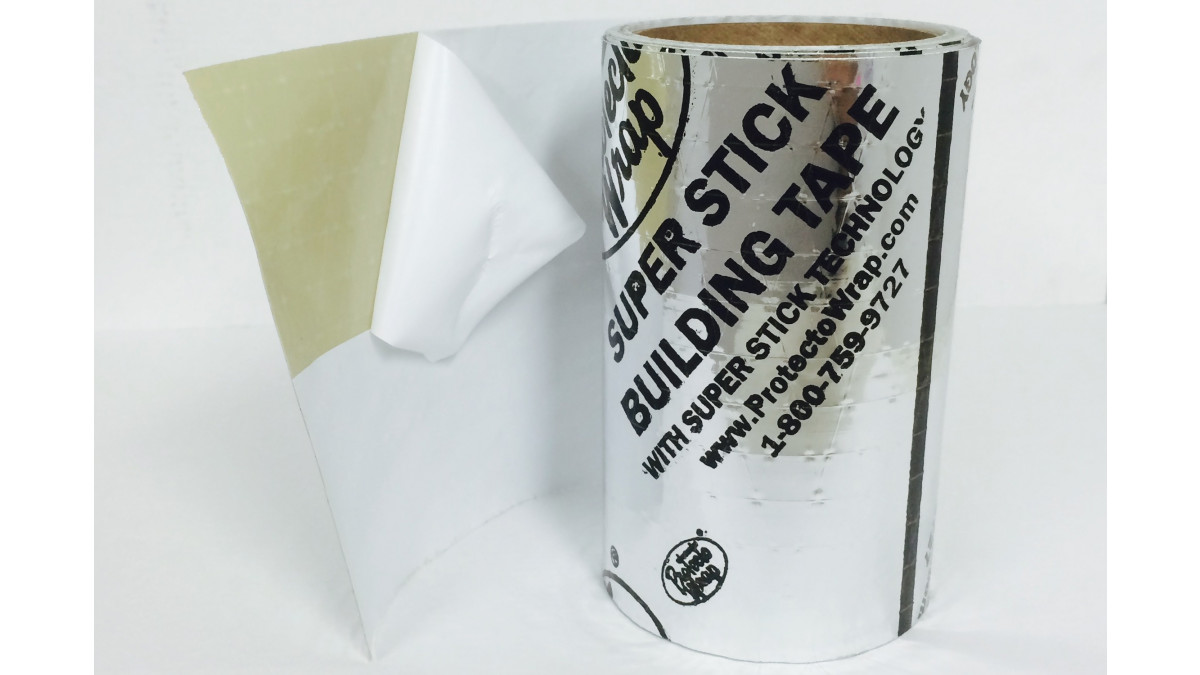

Protecto Wrap SuperStick Building Tape is a high-performance building tape for window and door openings. It is incredibly thin and strong, and is a cleaner, greener tape with no VOCs, HFCCs or CFCs. SuperStick Tape solves sealant compatibility issues that occur with other brands of tapes.
Trade Seals are a one piece self-adhesive collar for sealing wall penetrations, like pipe and conduit, and they are available in ten different sizes. They save considerable time on site and solve the issue where tape is often incorrectly applied at this critical penetration. They can be retrofitted as well.

Sean Lett, company owner of Marshall Innovations, says "We have been supplying window flashing tapes to New Zealand for longer than any other company. Our products simply outperform the competition on all key areas, so it was a logical step to combine these products into an easy to specify system."

The Tekton Weatherization System is BRANZ appraised and is available in Masterpsec (4161M) and Smartspec (Carpentry Section) as a 'one click' specification or through the Marshall Innovations website.

Marshall Weatherization System

Marshall Innovations

View Product

The Marshall Weatherization System consists of Tekton/ HYDRA Building Wraps, HYDRA Roof Underlay, Super Stick Building Tape, Trade-Seals and Tekton Seam Tape.

Pre-Consumer Recycled Content

The Marshall Weatherization System has been appraised for use on buildings within the following scope:

Constructed with timber framing in accordance with the scope limitations of NZBC Acceptable Solution E2/AS1 or, constructed with steel framing subject to specific engineering design, with the building height and floor plan area in accordance with scope limitations of NZBC Acceptable Solution E2/AS1; and,
with absorbent wall claddings directly fixed to frame complying with NZBC Acceptable Solution E2/AS1 or covered by a valid BRANZ Appraisal that specifies a flexible wall underlay and a flexible flashing system; or,
with absorbent and non-absorbent wall claddings installed over an 18 mm minimum drained cavity complying with NZBC Acceptable Solution E2/AS1 or covered by a valid BRANZ Appraisal that specifies a flexible wall underlay or a rigid wall underlay with flexible underlay over and flexible flashing system; or,
with masonry veneer in accordance with NZBC Acceptable Solution E2/AS1 for timber framed buildings or specific design for steel framed buildings; and,
situated in NZS 3604 Wind Zones up to and including 'Very High' where the flexible wall underlay is directly fixed to the frame, and up to and including 'Extra High' where the underlay is used over rigid wall underlays

Very High WInd Zone

In the opinion of BRANZ, the Marshall Weatherization System if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet, or contribute to meeting the following provisions of the NZBC:

Clause B2 Durability: Performance B2.3.1 (a) not less than 50 years, B2.3.1 (b) 15 years and B2.3.2. The Marshall Weatherization System meets this requirement.
Clause E2 External Moisture: Performance E2.3.2. The Marshall Weatherization System contributes to exterior walls meeting this requirement.
Clause F2 Hazardous Building Materials: Performance F2.3.1. The Marshall Weatherization System meets this requirement and will not present a health hazard to people. This is an Appraisal of an Alternative Solution in terms of New Zealand Building Code compliance.

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised
