Delabie Tempomatic Electronic Basin Taps — DE444000, DE442006, DE440006
Description

Delabie Tempomatic electronic taps open and close automatically with no manual contact for improved hygiene and up to 90% water savings.

Key Features
  • Deck-mounted electronic basin tap
  • Scale-resistant flow straightener
  • Anti-blocking safety
  • Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 to 6 lpm
  • Chrome-plated solid brass body

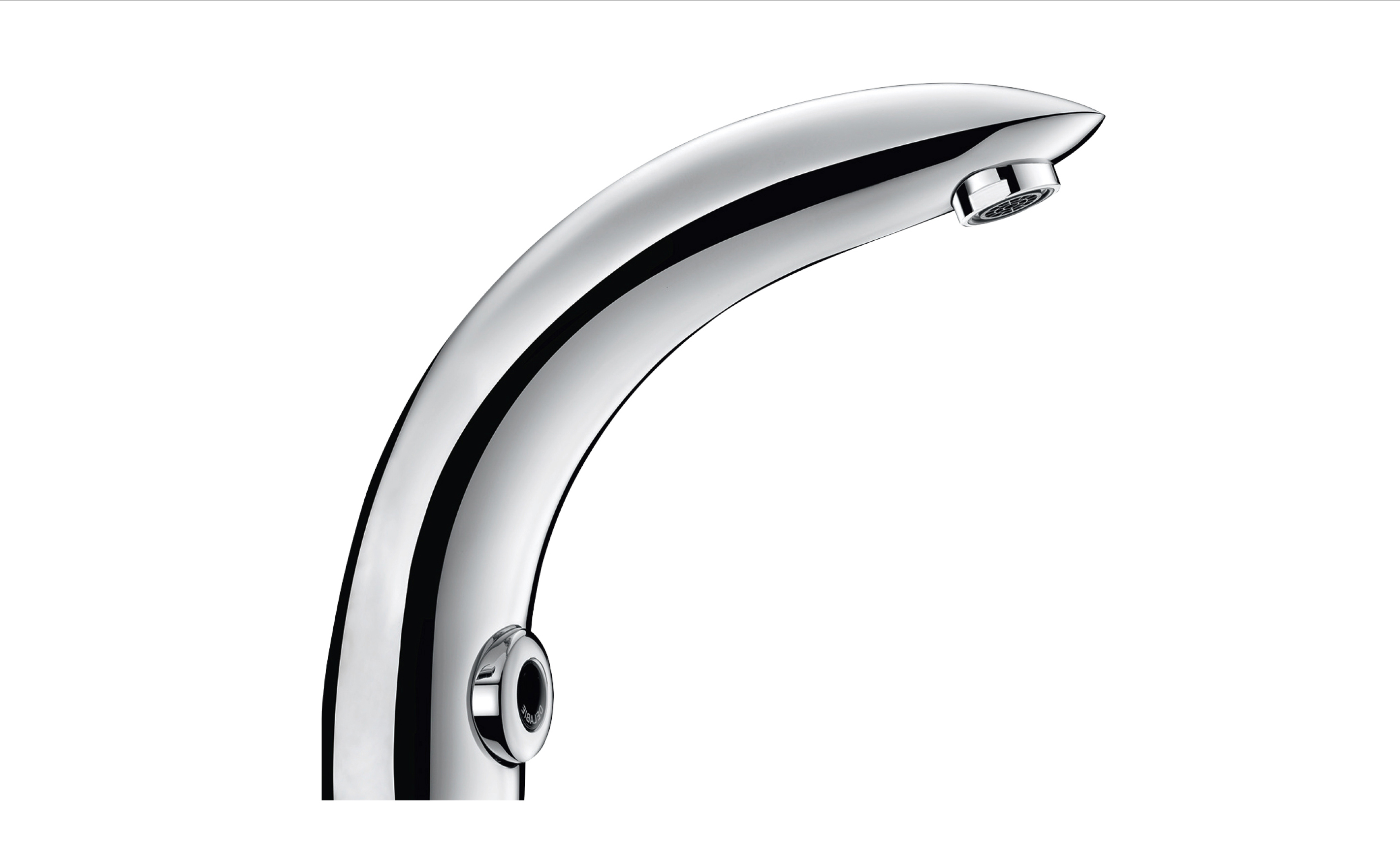

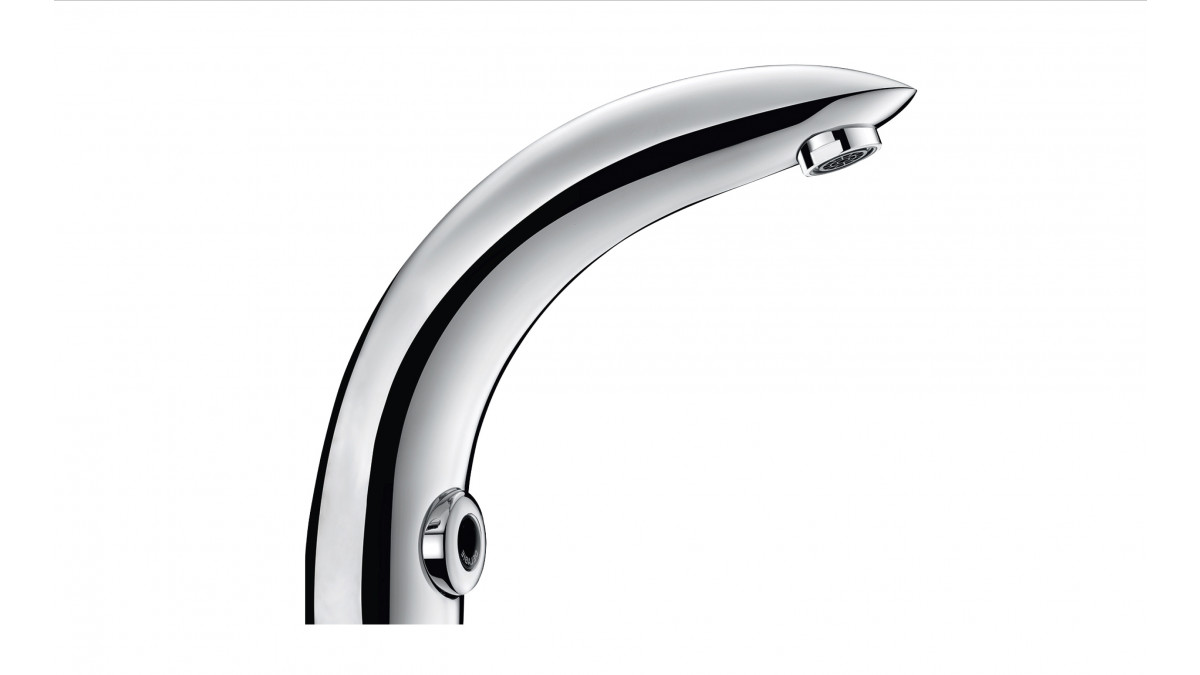

Tempomatic 2 — MODEL: DE444000

  • Independent IP65 electronic control unit
  • 230/12V mains supply with transformer
  • Adjustable duty flush (pre-set flush ~60 sec. every 24hr after last use)
  • Shockproof, infrared presence detection sensor
  • PEX flexible with filter and solenoid valve M3/8"

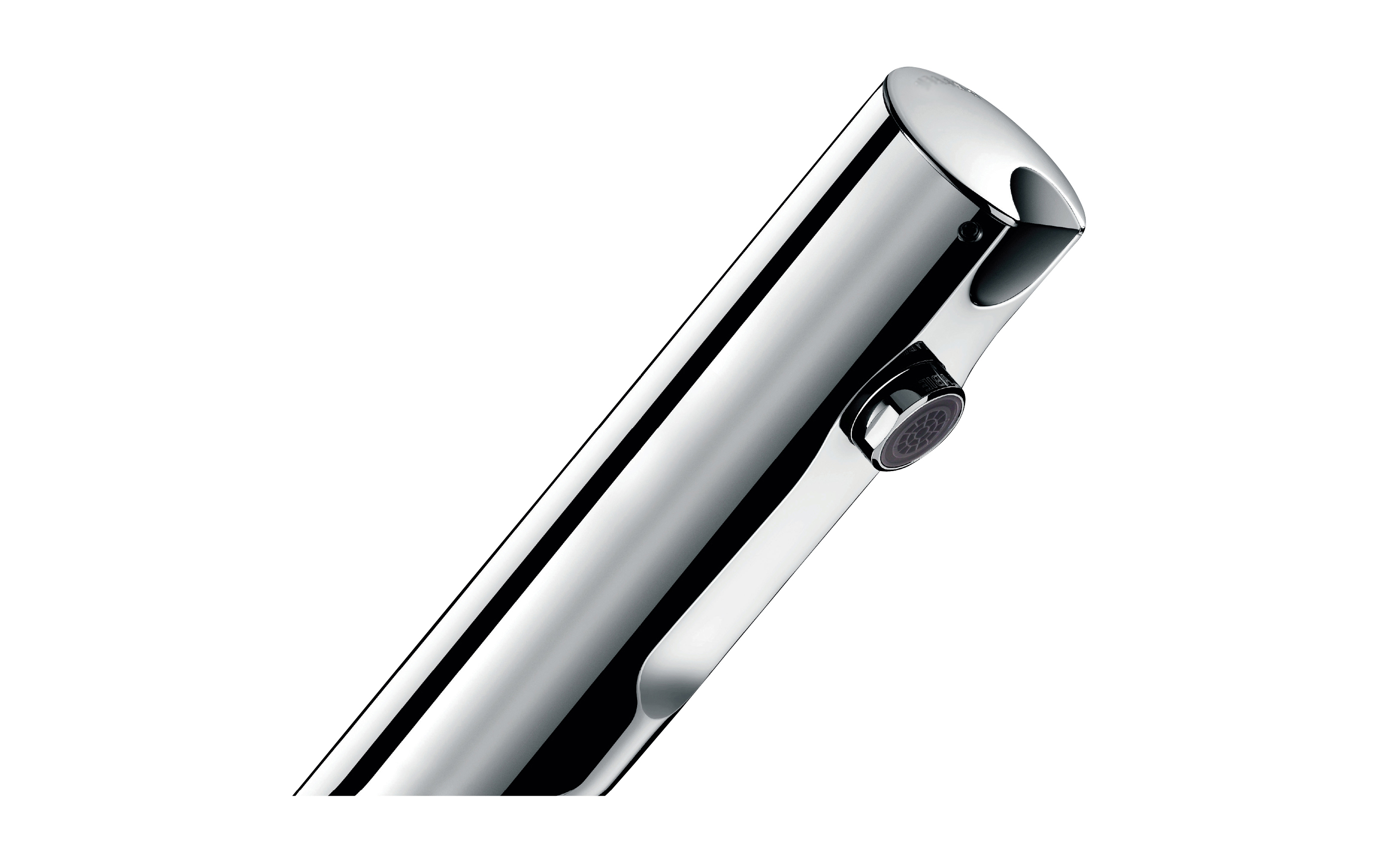

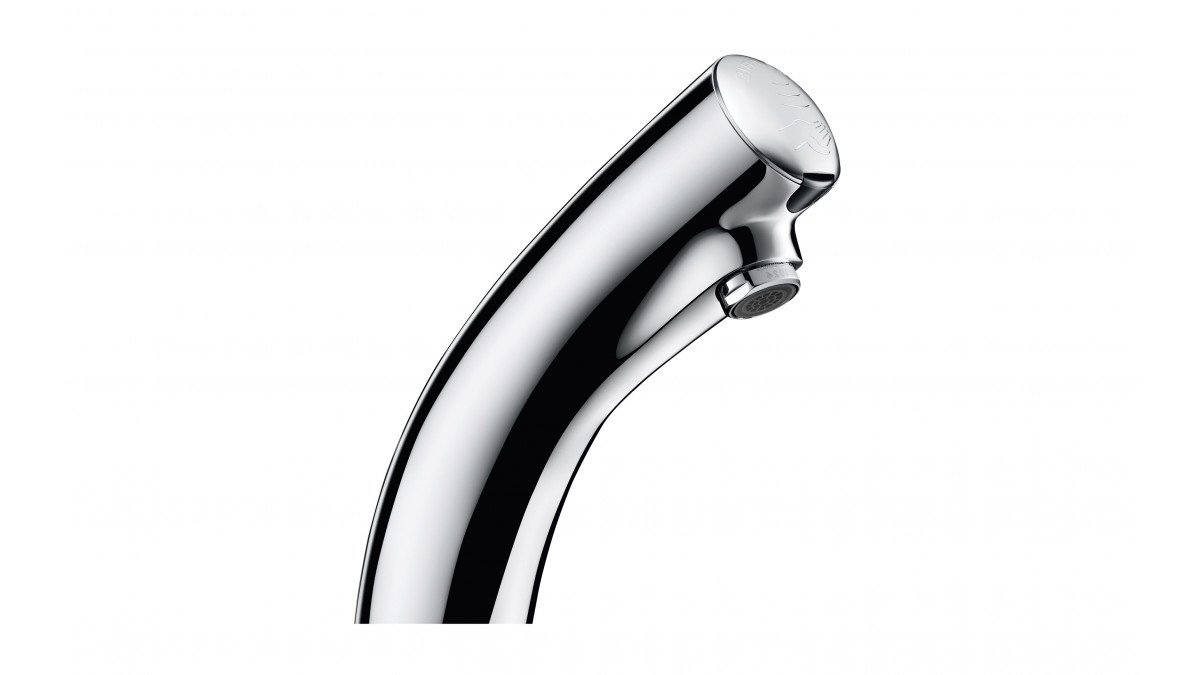

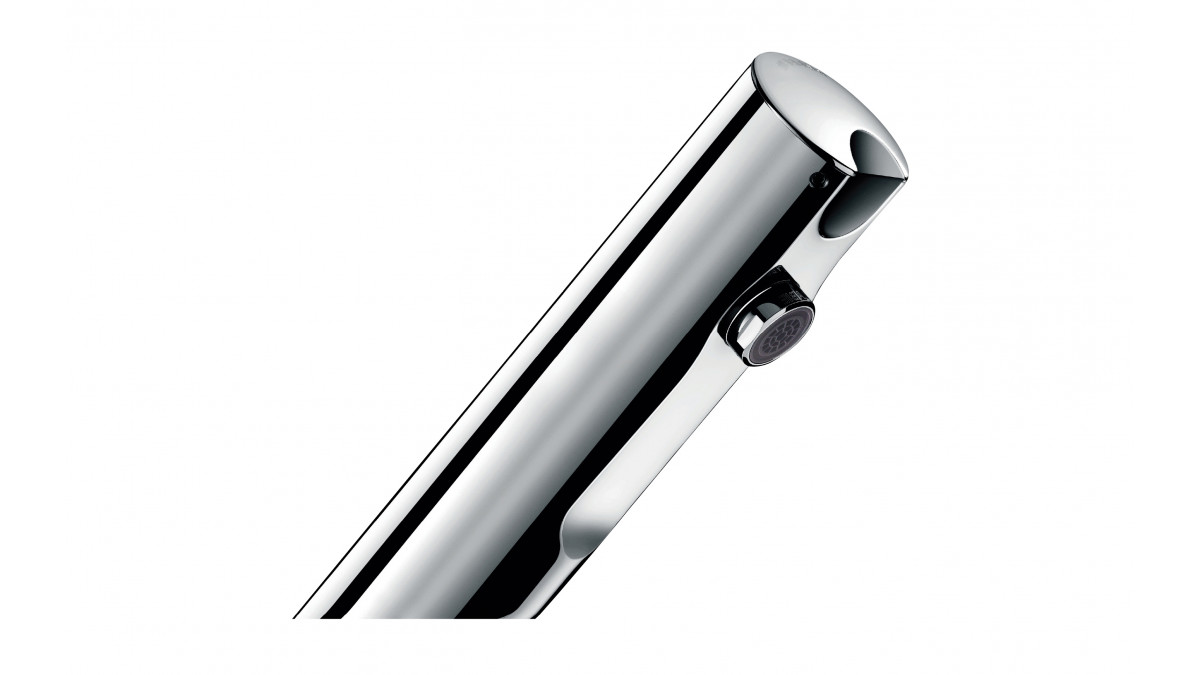

Tempomatic 3 & 4 — MODELS: DE442006 / DE440006

  • Battery-operated with 223 6V Lithium battery integrated into tap body
  • Reduced-stagnation solenoid valve and electronic unit integrated into the body of the tap
  • Duty flush (~60 sec. every 24hr after last use)
  • Active, infrared presence detection, sensor at the end of the spout optimises detection
  • PEX flexible F3/8” with stopcock and filter
  • Fixing reinforced by 2 stainless steel rods
Scope of Use
  • Suitable for public bathrooms and commercial use
  • Suitable for mains or high-pressure systems

Recommended for:

  • Accessible bathrooms
  • Commercial office buildings
  • Educational facilities
  • Health and Aged Care facilities
  • Industrial buildings
  • Public and retail amenities
  • Sporting facilities
Limitations on Use
  • Not suitable for low-pressure systems
  • Installation of a thermostatic mixing valve is recommended
In-Service History
  • Installed at the new ASB Waterfront Theatre in Auckland's Wynyard Quarter
Other Performance Attributes
  • 6 Star WELS rating
  • Up to 90% water savings
  • Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 to 6 lpm
  • Scale-resistant flow straightener
  • Anti-blocking safety
Documents
Data Sheet: Tempomatic 2

3/07/2020

Data Sheet: Tempomatic 3
Data Sheet: Tempomatic 4
Case Study: ASB Water Front Theatre
